MEMORY HiCORDER MR8847A
High-speed 20 MS/s (*1), 32-channel, Fully Isolated Memory Recorder for On-site Jobs and R&D
Hioki Memory HiCorders are high-speed waveform monitoring and recording devices that can simultaneously measure multiple physical phenomena such as voltage, current, temperature, vibration, acceleration and rotation due to complete isolation between channels and from each channel to the ground. The MR8847A delivers 20 MS/s sampling (*1), 32 isolated channels, and max. 1000 V direct input, all housed in a tough and field-ready body to properly respond to the most challenging work sites from transformer substations to railway maintenance yards to paper and steel mills.
How to use the Hioki MR8847A Memory HiCorder to Generate Signals While Monitoring Waveforms
The Hioki MR8847A is function generator, arbitrary waveform generator, and waveform recorder all in a single device. Easily observe waveforms while changing the signal amplitude or frequency, programming a variety of waveforms to output in the desired order, and adjusting other testing conditions.
Key Features
- Supports a wide variety of measurements with a total of 17 plug-in modules
- Generate and record with a single unit
- Direct 1000 V high voltage input testing
- High-speed sampling up to 20MS/s (*1) with fully isolated inputs
- 32 analog channels + 16 logic ch to 20 analog channels + 64 logic ch
- High-speed sampling with waveform judgement function
- Soil-resistant construction strong against adverse working environments
- Big buttons coated to withstand industrial oil and residue
- Drop-in paper loading and one-touch setup, along with high-speed 50mm/s printing
- *1:When U8975, U8977, U8978 are installed, max. sampling speed is 10 MS/s.
Model No. (Order Code)
| MR8847-51 | Max. 32ch, 64MW memory, main unit only |
|---|---|
| MR8847-52 | Max. 32ch, 256MW memory, main unit only |
| MR8847-53 | Max. 32ch, 512MW memory, main unit only |
An extensive selection of 17 modules accommodates the full range of measurement applications
Hioki has added new high-performance modules in response to overwhelming demand. The Memory HiCorder now supports a wide variety of measurements with a total of 17 plug-in modules.
■ Inverter / UPS Test
- Operation testing and evaluation during load fluctuation
- Confirmation of UPS switching
■ Power Monitor and Logger
- Identify power fluctuations when power supply is turned ON/OFF and during load fluctuations
- Long-term fluctuations in power
■ Control Simulation
- Generate simulated output of each type of sensor signal
- Fluctuating simulated output for 12 V DC car batteries
■ Vibration / Endurance Tests
- Analyze the relationship between engine control and vibration
- Confirm equipment durability
High-speed 20MS/s (*1), 32-channel, Fully Isolated Memory Recorder
The MR8847A performs multichannel measurement with simultaneous, high-speed sampling of all channels at 20 MS/s (*1). (resolution: 50 nsec)
High-speed sampling allows you to measure the rising edge of pulses and detect anomaly operations and instantaneous waveforms that occur suddenly with high precision.
Connections between analog input channels, and between the input channel and the main unit, are isolated by isolation elements. So potential differences can be measured without any concerns, just like with an oscilloscope.
*1: When U8975, U8977, U8978 are installed, max. sampling speed is 10 MS/s.
Generate and record in a single unit / ARBITRARY WAVEFORM GENERATOR UNIT U8793
Just one Memory HiCorder gives you a function generator mode, arbitrary waveform generator mode, and waveform measurement mode. This makes it easy to observe waveforms while varying test conditions, such as changing the signal's amplitude and frequency and programming various waveforms to output in order.
The included Waveform Creation Software SF8000 can be used not only to create waveforms, but also to perform calculations such as adding noise and multiplying waveforms quickly and easily.
Directly input high voltage without a differential probe / HIGH VOLTAGE UNIT U8974
Since you can directly input up to 1000 V DC and 700 V AC, a differential probe is no longer necessary.
Maximum rated voltage to ground is 1000 V for CAT III and 600 V for CAT IV environments.
Logic input of up to 64 channels
The MR8847A has 16 built-in logic input channels.
Add 3 logic input units to record a total of 64 channels at once.
You can also display the waveforms for all channels on a single screen—ideal for timing measurements.
Up to 20 channels of analog waveforms can be recorded at the same time for efficiency.
FFT analysis function
The MR8847A can perform one-signal FFT for analyzing frequency components, two-signal FFT for analyzing transfer functions, and octave analysis for acoustics.
X-Y RECORDER
Saving data in chronological order allows records to be saved as digital data, rather than paper hardcopies that need to be stored.
Use pen up/down control to record only the required data. The MR8847A can replaces mechanical pen recorders.
Determine waveform quality
Use the waveform judgment function, which monitors whether a waveform extends beyond the given area, to easily determine the quality of signal waveforms that are normally difficult to judge.
The MR8847A also has a waveform judgment function for FFT analysis waveforms and X-Y waveforms built in.
Basic specifications
| Max. Number of channels | 32 ch analog + 16 ch logic, or 20 ch analog + 64 ch logic (when used with built-in logic input + plug-in Logic Unit 8973 × 3) |
|---|---|
| Number of slots | 8 slots (Max. 8), [Limitation on number of slots] when using the 3CH Current Unit U8977: Max. 3, when using the Current Unit 8971: Max. 4, when using the Logic Unit 8973: Max. 3 |
| Number of logic channels | 16 ch logic (logic probe terminal GND share a common GND with chassis) Built-in logic input not available when using DVM Unit MR8990 on slots 1 or 2. [Limitation on using built-in logic input] (with logic measurement ON) • Measurement resolution on slots 1 and 2 is limited up to 12 bits • Cannot use Frequency Unit 8970 on slots 1 or 2. |
| Measurement ranges (20 div full-scale) | [Analog unit 8966]: 5 mV/div to 20 V/div, 12 ranges, resolution : 1/100 of range (using 12-bit A/D) [High Voltage Unit U8974]: 200 mV/div to 50 V/div, 8 ranges, resolution : 1/1600 of range (using 16-bit A/D) |
| Max. allowable input | 400 V DC (using the 8966), 1000 V DC (using the U8974) |
| Frequency characteristics | DC to 5 MHz (-3 dB, using the 8966), DC to 100 kHz (using the U8794) |
| Time axis (Memory function) | 5 µs to 5 min/div (100 samples/div) 26 ranges, External sampling (100 samples/div, or free setting), Time axis zoom: x2 to x10 in 3 stages, compression: 1/2 to 1/200 000 in 16 stages |
| Measurement functions | MEMORY (high-speed recording), RECORDER (real-time recording), X-Y RECORDER (X-Y real-time recording), FFT |
| Other functions | Waveform judgment (at Memory or FFT function) |
| Memory capacity | MR8847-51: Total 64 M-words (Memory expansion: none) 32 MW/ch (using 2 Analog channels), to 2 MW/ch (using 32 Analog channels) MR8847-52: Total 256 M-words (Memory expansion: none) 128 MW/ch (using 2 Analog channels), to 8 MW/ch (using 32 Analog channels) MR8847-53: Total 512 M-words (Memory expansion: none) 256 MW/ch (using 2 Analog channels), to 16 MW/ch (using 32 Analog channels) |
| Removable storage | CF card slot (standard) ×1 (up to 2GB, FAT, or FAT-32 format), SSD (128 GB, optional), USB memory stick (USB 2.0) |
| Printing | 216 mm (8.50 in) × 30 m (98.43 ft), thermal paper roll, Recording speed : Max. 50 mm (1.97 in)/s |
| Display | 10.4 inch TFT color LCD (SVGA, 800 × 600 dots) |
| Displayable languages | English, Japanese, Korean, Chinese |
| External interfaces | [LAN] 100BASE-TX (FTP server, HTTP server), [USB] USB2.0 compliant, series A receptacle ×1, series B receptacle ×1, (File transfer internal drive/CF card to PC, or remote control from PC) |
| Power supply | 100 to 240 V AC, 50/60 Hz (130 VA max., when using printer: 220 VA max.), 10 to 28 V DC (when using the optional factory-installed DC Power Unit 9784) |
| Dimensions and mass | 351 mm (13.82 in) W × 261 mm (10.28 in) H × 140 mm (5.51 in) D, 7.6 kg (268.1 oz) (main unit only) |
| Included accessories | Instruction manual ×1, Measurement guide ×1, Application disk (Wave viewer Wv, Communication commands table) ×1, Power cord ×1, Input cord label ×1, USB cable ×1, Printer paper ×1, Roll paper attachment ×2, Ferrite clamp ×1 |
LabVIEW and MATLAB support
| Compatible models | LabVIEW | MATLAB script | ||||
|---|---|---|---|---|---|---|
| MR8847-51 | Available | Available | ||||
| MR8847-52 | Available | Available | ||||
| MR8847-53 | Available | Available | ||||
Printer options (1)
Roll type A4 width 216 mm (8.50 in) × 30 m (98.43 ft), 6 rolls/set
Factory-installed option (2)
*Must specify when ordering
Factory-installed option - not user installable, built in on the bottom case. 10 to 28 V DC drive.
Specify upon order, built-in type, 128 GB
Storage media (4)
*The CF card includes a PC card adapter.
Use only CF Cards or USB drives sold by HIOKI. Compatibility and performance are not guaranteed for CF cards/USB memory sticks made by other manufacturers. You may be unable to read from or save data to such cards.
16 GB, Long-life, High-reliability SLC Flash Memory
Input modules (14)
Input cords are not included. Please purchase them separately. When using 9709 with Current Unit 8971, a total of 7 current probes can be used.
Output modules (3)
Output cords not included. Please purchase separately.
Output cables (2)
* Please contact your local HIOKI distributor for connectors that support Model MR8791.
Max. rated voltage to earth: 33 Vrms AC or 70 V DC, SMB to alligator clip, 1.5 m (4.92 ft) length
Max. rated voltage to earth: 33 Vrms AC or 70 V DC, SMB to BNC terminal, 1.5 m (4.92 ft) length
Input cable (A) (3)
*Voltage is limited to the specifications of the input modules in use.
Red/black set attaches to the ends of the Connection Cord L9790
Red/black set attaches to the ends of the Connection Cord L9790
Red/black set attaches to the ends of the Connection Cord L9790
Input cable (B) (3)
*Voltage is limited to the specifications of the input modules in use.
•φ 5.0 mm (0.20 in) dia.
•Cable allows for up to 300 V input
•1.7 m (5.58 ft) length
•Small alligator clip
•φ 5.0 mm (0.20 in) dia
•Cable allows for up to 600 V input
•1.8 m (5.91 ft) length
•Includes detachable large alligator clips
Attaches to the tip of the banana plug cable, Red/Black: 1 each, 185 mm (7.28 in.) length, CAT II 1000 V
Input cord (C) (2)
* This probe does not expand the maximum rated voltage above ground of an isolated input.
Input cable (D) (2)
* Voltage to ground is within this product’s specifications, separate power source is also required.
Custom cable (0)
*For P9000. Inquire with your Hioki distributor.
(1) Bus powered USB cable
(2) USB(A)- Micro B cable
(3) 3-prong cable
Input cable (E) (2)
*Voltage to ground is within this product's specifications. Separate power source is also required.
100 to 240V AC
Input cable (F) (6)
* Voltage input via banana terminals limited by the voltage specifications of the respective input unit.
Expands the length of L4930/4940, 1.5 m (4.92 ft) length
Attaches to the tip of the L4930/4940, CAT III 600 V
Attaches to the tip of the L4930/4940, CAT III 1000 V

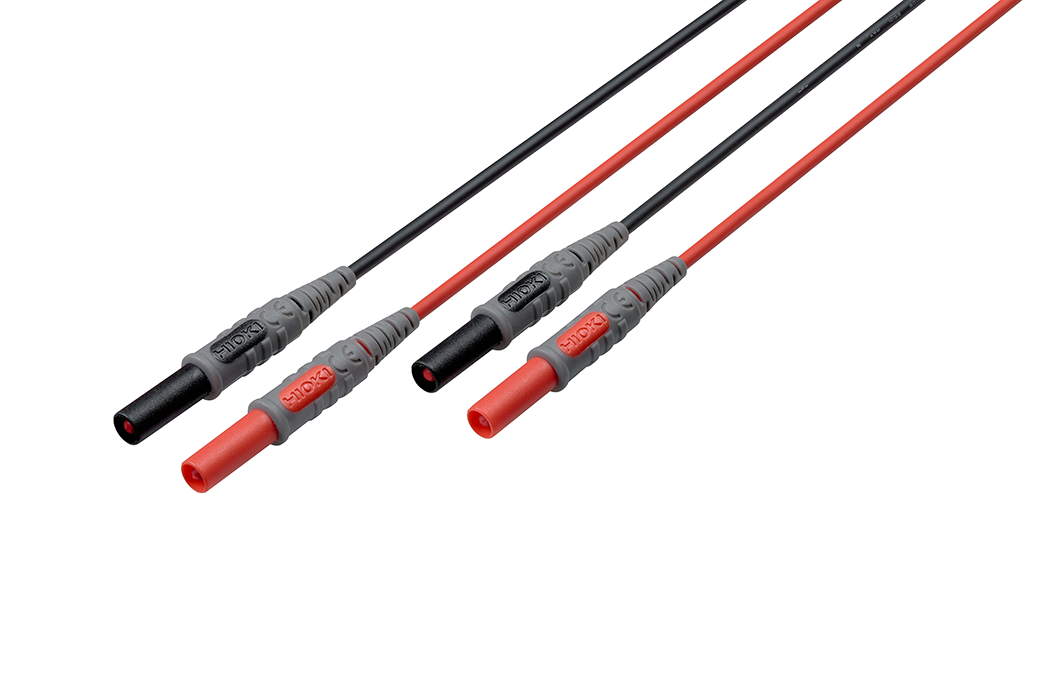

Banana plug - banana plug, 1.5 m (4.92 ft) length, red/black each 1
Attaches to the tip of the L4930/4940, CAT IV 600 V, CAT III 1000 V
Attaches to the tip of the banana plug cable, Red/Black: 1 each, 185 mm (7.28 in.) length, CAT II 1000 V
Input cable (G) (1)
* For the MR8990 *Voltage is limited to the specifications of the input modules in use.
70 cm (2.30ft) length, detachable large alligator clips or needle tips are bundled, CAT IV 600V, CAT III 1000V
Non-contact voltage measurement (1)
Other options for input (5)
Receiving side banana (female), output BNC (male)
To connect the CT6841-6846, CT6865/63/62, 9709, 9272-10 to the 8971/40/51, 38 cm (14.96 in) length
Cord has metallic BNC connectors at both ends, use at metallic terminal, 1.5 m (4.92 ft) length
Cord has insulated BNC connectors at both ends, 1.6 m (5.25 ft) length
Metal BNC to clip, 1.5 m (4.92 ft) length
Temperature sensor (0)
*For reference only. Please purchase locally.
Thermocouple
Logic signal measurement (3)
* Only the small terminal types can be used.
* The 9323 is not required for the small-terminal types 9327, 9320-01, 9321-01 and MR9321-01.
Up to 200 A (High precision) (9)
Separate power supply (CT955x) is required in order to use a high-precision current sensor.
Only sensors with ME15W (12-pin) terminals can be connected to the CT955x.
The separately available CONVERSION CABLE CT9900 is required in order to use a sensor with PL23 (10-pin) terminal.
Up to 1000 A (High precision) (12)
Separate power supply (CT955x) is required in order to use a high-precision current sensor.
Only sensors with ME15W (12-pin) terminals can be connected to the CT955x.
The separately available CONVERSION CABLE CT9900 is required in order to use a sensor with PL23 (10-pin) terminal.
PL23 (10-pin) - ME15W (12-pin) conversion (1)
Convert PL23 (10-pin) terminal to ME15W (12-pin) terminal
POWER SUPPLY for Current Sensors (4)
*A separate power supply (CT955x) is required in order to use a high-precision current sensor.
*Only sensors with ME15W (12-pin) terminals (-05 type) can be connected to the CT955x. *The separately available Conversion Cable CT9900 is required in order to use a sensor with PL23 (10-pin) terminal.
Cord has insulated BNC connectors at both ends, 1.6 m (5.25 ft) length
Directly connect currents sensors (3)
ME15W (12-pin) - PL23 (10-pin) conversion
*The separately available Conversion Cable CT9901 is required in order to use a high-precision current sensor equipped with a ME15W (12-pin) terminal (-05 type) with the Current Unit 8971 (which is designed for use with the MR8847, MR8827, and MR8740).
*While the CT955x is not required in order to use a sensor equipped with a PL23 (10-pin) terminal with the 8971 or 8940, the Conversion Cable 9318 (which comes with the 8971) is required for that setup.
To connect the CT6841-6846, CT6865/63/62, 9709, 9272-10 to the 8971/40/51, 38 cm (14.96 in) length

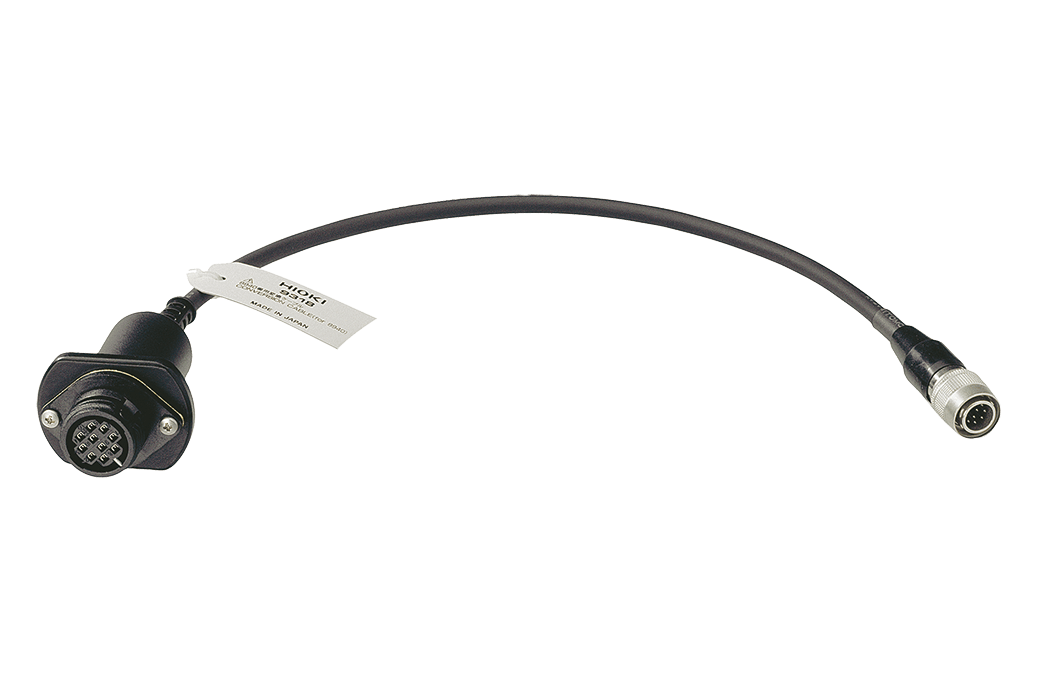

ME15W (12 pin) to PL23 (10 pin) connector
Precautions when connecting a high-precision current sensor to a Memory HiCorder (0)
Connecting to the MR8847A / MR8827 / MR8740
• High-precision current sensor (ME15W) + CT9901 + 9318 → CURRENT UNIT 8971
• High-precision current sensor (ME15W) + CT955x + BNC cable → except CURRENT UNIT 8971
• High-precision current sensor (PL23) + 9318 → CURRENT UNIT 8971
• High-precision current sensor (PL23) + CT9900 + CT955x + BNC cable → except CURRENT UNIT 8971
10 mA class to 500 A (High speed) (4)
Power supply (2)
* Necessary for using the 3270 seies current probes
100 A to 2000 A (Medium speed) (9)
The CM7290 (available separately) is required in order to use these current sensors.
Connect to terminal block, 1.5 m (4.92 ft) length
500 A to 5000 A (3)
*For commercial power lines, 50/60 Hz
Leak Current (4)
*For commercial power lines, 50/60 Hz
Receiving side banana (female), output BNC (male)

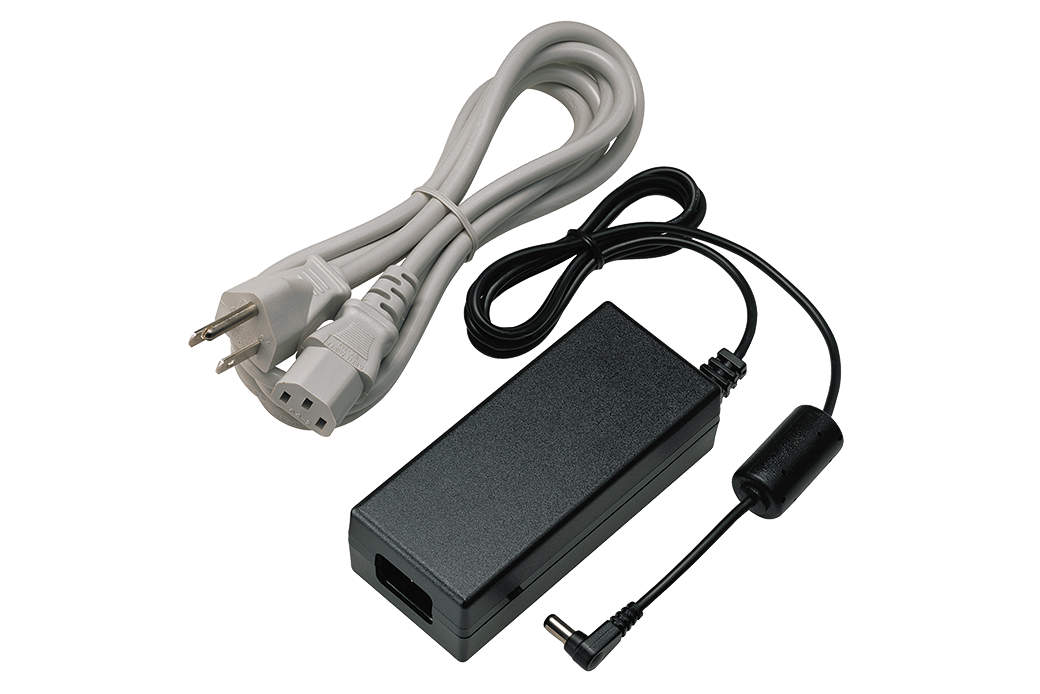

For USA, 100 to 240 V AC, 9 V/ 1 A
Connect to BNC terminal, 1.5 m (4.92 ft) length
Connect to terminal block, 1.5 m (4.92 ft) length
Up to 2000 A (Curent meter) (0)
*Clamp sensor sold separately
PC Software (5)
Straight Ethernet cable, supplied with straight to cross conversion adapter, 5 m (16.4 ft.)

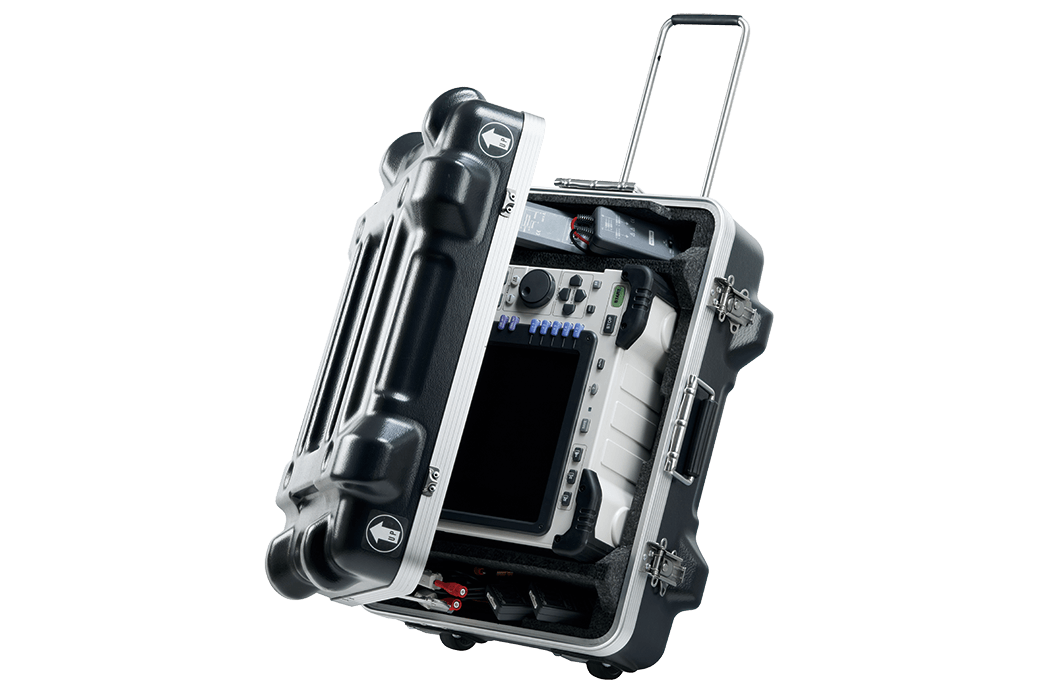

Case (1)
For the MR8847s/8847s, includes compartment for options, hard trunk type
-
MEMORY HiCORDER MR8847-53
Test Report
Japanese
English Ver.00 -
MEMORY HiCORDER MR8847-52
Test Report
Japanese
English Ver.00 -
MEMORY HiCORDER MR8847-51
Test Report
Japanese
English Ver.00 -
MEMORY HiCORDER MR8847A (MR8847-51,MR8847-52,MR8847-53)
Measurement Guide
English
Ver.03
-
MEMORY HiCORDER MR8847A (MR8847-51,MR8847-52,MR8847-53)
Measurement Guide
Simplified Chinese
Ver.03
-
MEMORY HiCORDER MR8847A (MR8847-51,MR8847-52,MR8847-53)
Instruction Manual
English
Ver.08
- Using Current Measurement to Diagnose Arc Welding Quality and Ensure Traceability
- Trip Testing of High-voltage Circuit Breakers in Power Transformer Installations
- Versatile Instrument for Various UPS Operational Tests
- Measure the Core Loss of Filters for Commercial Power Supplies
- Measure the Touch Sensitivity of Push Switches
- Motor Rotation Measurement
- Recording and Monitoring of Conveyor Speeds
- Finding the Cause of Creaking Noise from Door Sashes
-
Visualize Destructive Test and Equipment Failure Analysis
-
Testing UPS Switching Time
- Detect and Record Flaws in Metals
