MEMORY HiCORDER MR8880
Capture High- to Low-Voltage Signals in a Single Device! Rugged, Professional and Ready for the Field
Hioki Memory HiCorders are high-speed waveform monitoring and recording devices that can simultaneously measure multiple quick-changing phenomena due to complete isolation between channels and from each channel to the ground. The MR8880 is a data acquisition (DAQ) recorder built in with 4 analog channels that can accept direct input of 600V, enabling measurements of 3-phase systems.
Measuring Current Waveforms: How to Use Hioki Memory HiCorders
Learn how to use the Hioki MR8880’s trigger function to definitively record the startup current when a motor is powered on.
Pre-trigger settings let you capture details about the situation before and after the trigger is activated, and numerical data of the peak current waveform can be easily identified using the built-in cursor functions.
Key Features
- CAT III 600V isolation performance; directly measure a 480V power line
- 4 completely isolated channels let you simultaneously record data on a 3-phase power line plus have one extra channel
- Tough against harsh environments; -10°C to 50°C operating temperature range
- Built to withstand mechanical shocks and vibrations (ships standard with side protectors)
- Make settings easily with PRESETS function
Model No. (Order Code)
| MR8880-20 | 4ch, printer unit option, English model |
|---|
Recording PLC Timing: How to Use Hioki Memory HiCorders
Watch this video to learn how to use logic probes to analyze the timing of control signals via the 8 logic and 4 analog channels built-in to the Hioki MR8880. Based on the AND / OR settings, the MR8880’s trigger will activate with respect to the specified logic level. Pre-trigger settings let you capture details about the situation before and after the trigger is activated.
Recording Voltage Drop During a Power Outage: How to Use Hioki Memory HiCorders
Watch this video to learn how to easily detect when a voltage drop on the commercial power supply will occur by using the trigger function on a Hioki Memory HiCorder and setting the peak waveform level as the voltage level. The waveforms can also be automatically printed onsite and saved to portable external media for later analysis on a PC.
Basic specifications
| Number of channels | 4 analog channels + 8 logic channels (standard) Note: Isolated analog channels, isolated input and frame, logic has common GND |
|||||
|---|---|---|---|---|---|---|
| Measurement ranges (10 div full-scale) |
4 channels of voltage measurement; mode switchable between instantaneous waveform or RMS value, 10 mV to 100 V/div, 13 ranges, resolution: 1/640 of range RMS value mode: 30 Hz to 10 kHz, Crest factor: 2 |
|||||
| Max. rated voltage | Between terminals: 600 V AC/DC, Between terminal to earth: 600 V AC/DC CAT III; 300 V AC/DC CAT IV | |||||
| Frequency characteristics | DC to 100 kHz (±3dB) | |||||
| Time axis (High-speed function) |
100 µs to 100 ms/div, 10 ranges, Sampling period: 1/100 of range | |||||
| Recording intervals (Real-time function) |
100 µs to 1 minute, 19 selections (simultaneous sampling in all channels) | |||||
| Measurement functions | High-speed function (high speed recording) Real-time function (actual time recording) |
|||||
| Memory capacity | 14-bits × 1M-words/ch (1 word = 2 bytes) | |||||
| Removable storage | CF card slot ×1 (Up to 2 GB), USB 2.0 memory ×1 | |||||
| Printing | [Printer unit is option] 112 mm (4.41 in) × 18 m (59.06 ft), thermal paper roll, Recording speed : 10 mm (0.39 in)/sec Note: Printing is not supported when using alkaline batteries |
|||||
| Display | 5.7-inch VGA-TFT color LCD (640 × 480 dots) | |||||
| Displayable languages | English, Japanese, Chinese | |||||
| Communication interfaces | USB 2.0 mini-B receptacle × 1; Transfers files from the installed CF card or USB memory stick to a PC when connected, and External PC control | |||||
| Power supply | AC adapter Z1002: 100 to 240 V AC (50/60 Hz), 45 VA (include AC adapter, when Real-time recording), 107 VA (include AC adapter, when Real-time recording and printing) Battery pack Z1000: AC adapter has priority when used in combination with battery pack, recharge with AC adapter 3 hours, Continuous use 3 hours (with back-light ON) LR6 (AA) alkaline batteries ×8, Continuous use 40 minutes, (with back-light ON, cannot be used with the Printer unit) DC power supply: 10 to 28 V DC |
|||||
| Dimensions and mass | 205 mm (8.07 in)W × 199 mm (7.83 in)H × 67 mm (2.64 in)D, 1.66 kg (58.6 oz) (with the Battery pack installed) When printer is combined - with main unit: 303 mm (11.93 in)W × 199 mm (7.83 in)H × 67 mm (2.64 in)D, 2.16 kg (76.2 oz) (with the Battery pack installed) |
|||||
| Included accessories | Instruction manual ×1, AC adapter Z1002 ×1, Alkaline battery box ×1, Strap ×1, USB cable ×1, Application disk (Wave viewer Wv, Communication commands table) ×1 | |||||
LabVIEW and MATLAB support
| Compatible models | LabVIEW | MATLAB script | ||||
|---|---|---|---|---|---|---|
| MR8880-20 | N/A | N/A | ||||
Printer options (2)

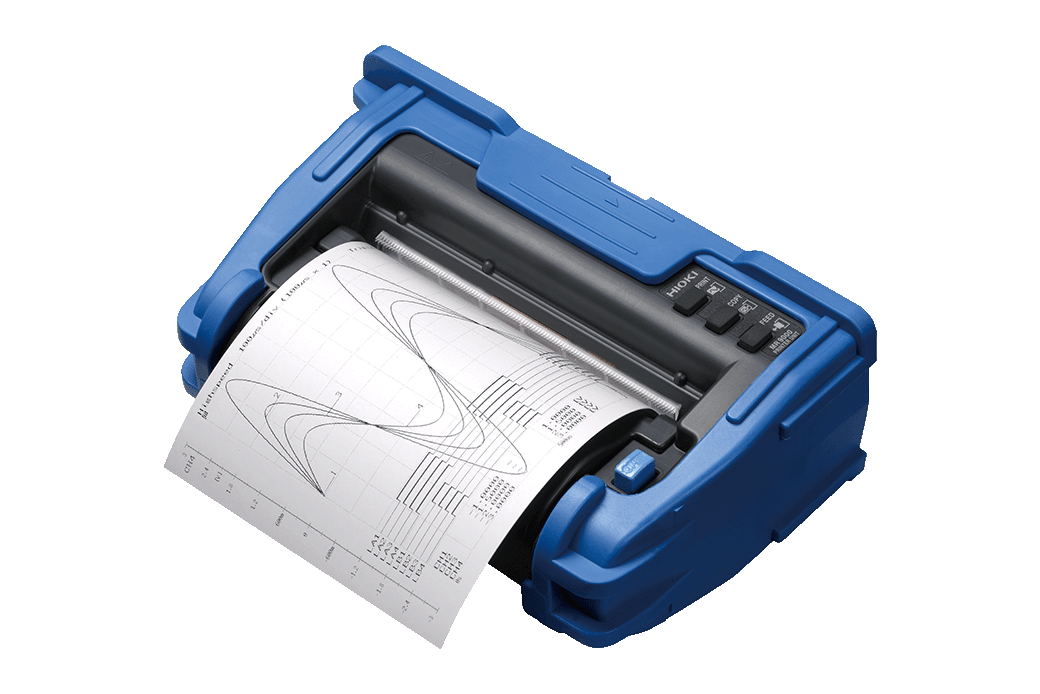

Printing width 100 mm (3.94 in), used together with the MR8880 main body, includes 1 roll of recording paper
Roll type A6 width 112 mm (4.41 in) × 18 m (59.06 ft), 10 rolls/set
Storage media (4)
Includes a PC card adapter with the 9728/9729, and the 9830
Use only CF Cards or USB drive sold by HIOKI. Compatibility and performance are not guaranteed for CF cards/USB memory stick made by other manufacturers. You may be unable to read from or save data to such cards.
16 GB, Long-life, High-reliability SLC Flash Memory
Input cable (A) (4)
*Voltage is limited to the specifications of the input section
• Flexible φ 4.1 mm (0.16 in) thin dia.
• Cable allowing for up to 600 V input
• 1.8 m (5.91 ft) length
Red/black set attaches to the ends of the Connection Cord L9790
Red/black set attaches to the ends of the Connection Cord L9790
Red/black set attaches to the ends of the Connection Cord L9790
Input cable (B) (3)
*Voltage is limited to the specifications of the input section
•φ 5.0 mm (0.20 in) dia
•Cable allows for up to 600 V input
•1.8 m (5.91 ft) length
•Includes detachable large alligator clips
•φ 5.0 mm (0.20 in) dia.
•Cable allows for up to 300 V input
•1.7 m (5.58 ft) length
•Small alligator clip
Attaches to the tip of the banana plug cable, Red/Black: 1 each, 185 mm (7.28 in.) length, CAT II 1000 V
Input cable (D) (2)
*Voltage to ground is within this product's specifications. Separate power source is also required.
Custom cable (0)
*For P9000. Inquire with your Hioki distributor.
(1) Bus powered USB cable
(2) USB(A)- Micro B cable
(3) 3-prong cable
Input cable (E) (2)
*Voltage to ground is within this product's specifications. Separate power source is also required.
100 to 240V AC
Non-contact Voltage measuring (0)
Logic signal measurement (2)
* Only the small terminal types can be used.
* The 9323 is not required for the small-terminal types 9327, 9320-01, 9321-01 and MR9321-01.
Up to 200 A (High precision) (6)
Separate power supply (CT955x) is required in order to use a high-precision current sensor.
Only sensors with ME15W (12-pin) terminals can be connected to the CT955x.
The separately available CONVERSION CABLE CT9900 is required in order to use a sensor with PL23 (10-pin) terminal.
Up to 1000 A (High precision) (7)
Separate power supply (CT955x) is required in order to use a high-precision current sensor.
Only sensors with ME15W (12-pin) terminals can be connected to the CT955x.
The separately available CONVERSION CABLE CT9900 is required in order to use a sensor with PL23 (10-pin) terminal.
PL23 (10-pin) - ME15W (12-pin) conversion (1)
Convert PL23 (10-pin) terminal to ME15W (12-pin) terminal
POWER SUPPLY for Current Sensors (4)
*A separate power supply (CT955x) is required in order to use a high-precision current sensor.
*Only sensors with ME15W (12-pin) terminals (-05 type) can be connected to the CT955x. *The separately available Conversion Cable CT9900 is required in order to use a sensor with PL23 (10-pin) terminal.
Cord has insulated BNC connectors at both ends, 1.6 m (5.25 ft) length
100 A to 2000 A (Medium speed) A (9)
Connect to BNC terminal, 1.5 m (4.92 ft) length
500 A to 1000 A (3)
*For commercial power lines, 50/60 Hz
Leak Current (2)
*For commercial power lines, 50/60 Hz
100 V to 240 V AC
Up to 2000 A (Curent meter) (0)
*Clamp sensor sold separately
PC Software (1)
Power supply (3)
*Z1002 is a bundled accessory
For main unit, DC drive, Connect to external battery, Unprocessed ends, Approx. 2 m (6.6 ft.)
NiMH, charges while installed in the main unit
For main unit, 100 to 240 V AC
Other options (2)
Includes compartment for options, soft case type
Cord has insulated BNC connectors at both ends, 1.6 m (5.25 ft) length
-
