MEMORY HiCORDER MR8875
1000V Direct Input, Portable 16-channel Memory Recorder for Data Acquisition During Vehicle Testing with Direct CAN Bus Input
Hioki Memory HiCorders are high-speed waveform monitoring and recording devices that can simultaneously measure multiple physical phenomena such as voltage, current, temperature, vibration, weight, acceleration and rotation due to complete isolation between channels and from each channel to the ground. The MR8875 data acquisition (DAQ) recorder accommodates plug-and-play input modules to meet applications such as onboard vehicle analysis, current consumption testing of portable devices, and measuring the voltage waveforms of superconducting materials and contacts.
Product Video
Key Features
- 1000 V input and instantaneous DC or RMS waveform measurement with the Analog Unit MR8905
- Multi-channel logger capable of thermocouple temperature measurement up to 60ch at 10 msec intervals
- Measure multiple channels simultaneously despite handheld portable design
- Max. 2 μsec high-speed simultaneous logging for all input channels
- Save directly to the SD Card in real time for uninterrupted long-term logging
- 16-bit high-resolution measurement of voltage, temperature, distortion and CAN signals
- FFT calculation, waveform calculation functions for advanced analysis

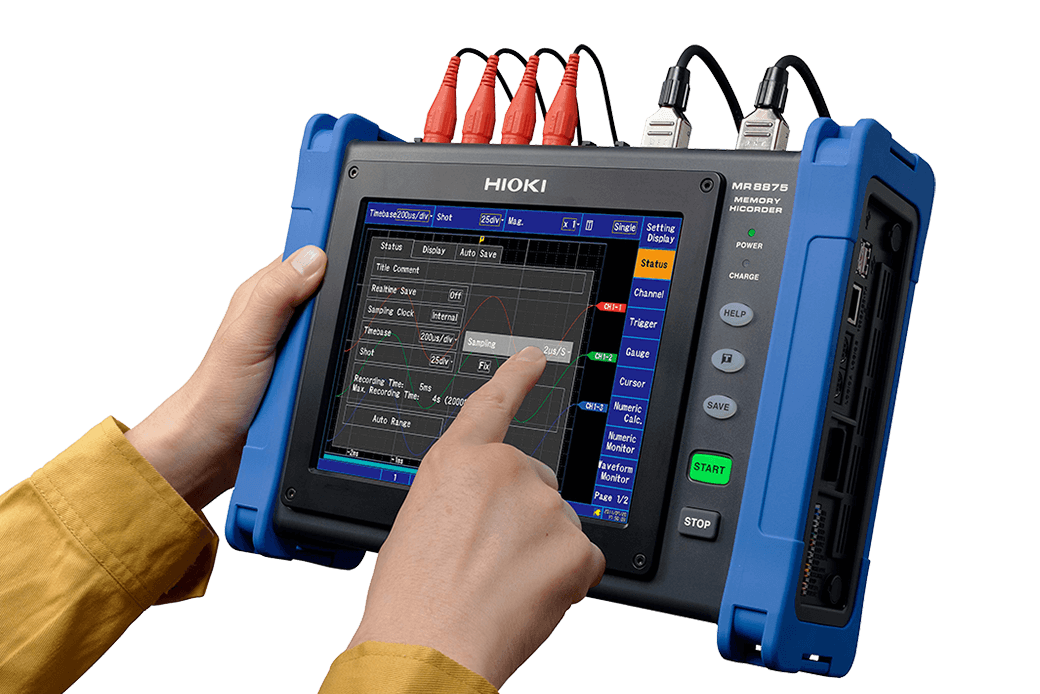

- Intuitive touch screen for optimal operability
- Tough against vibrations and extreme temperatures
Model No. (Order Code)
MR8875 | Max. 16 - 60ch, 32MW memory, main unit only |
---|
How to Use Memory HiCorders: As a Multi-channel High-speed Data Logger
The Hioki MR8875 revolutionizes data logging by letting you record data to the SD Card in real-time in high speeds. Up to 3 full seconds of data logged in as fast as every 2μsec can be precisely captured, and when recording up to 50μsec of data, you can store up to 60 channels of signals, all in real-time into one single SD Card.
How to Use Memory HiCorders: Measuring Acceleration using a Strain Unit
Abrupt fluctuations in acceleration can cause unacceptable motion errors in automobiles, transportation equipment and industrial robots. The Hioki MR8857 Memory HiCorder installed with the strain measurement module can greatly assist in helping you measure and analyze these unexpected acceleration fluctuations across 16 channels. Watch this video to learn how to connect distortion gauge acceleration sensors and make proper settings with the intuitive interface, as well as use the recorder’s scaling function to efficiently record waveforms.
Performance and Durability Testing
With its multichannel, long-term recording capabilities, the MR8875 is ideally suited for use in development applications such as performance and durability testing. Record sensor output, evaluate sensors and other devices, and even use as a flatbed X-Y recorder.
Inverter and Motor Testing
Install the High-voltage Input Unit MR8905 to easily measure and capture waveforms from the primary- and secondary-side of UPS power supply as well as commercial power supply transformers.
Basic specifications

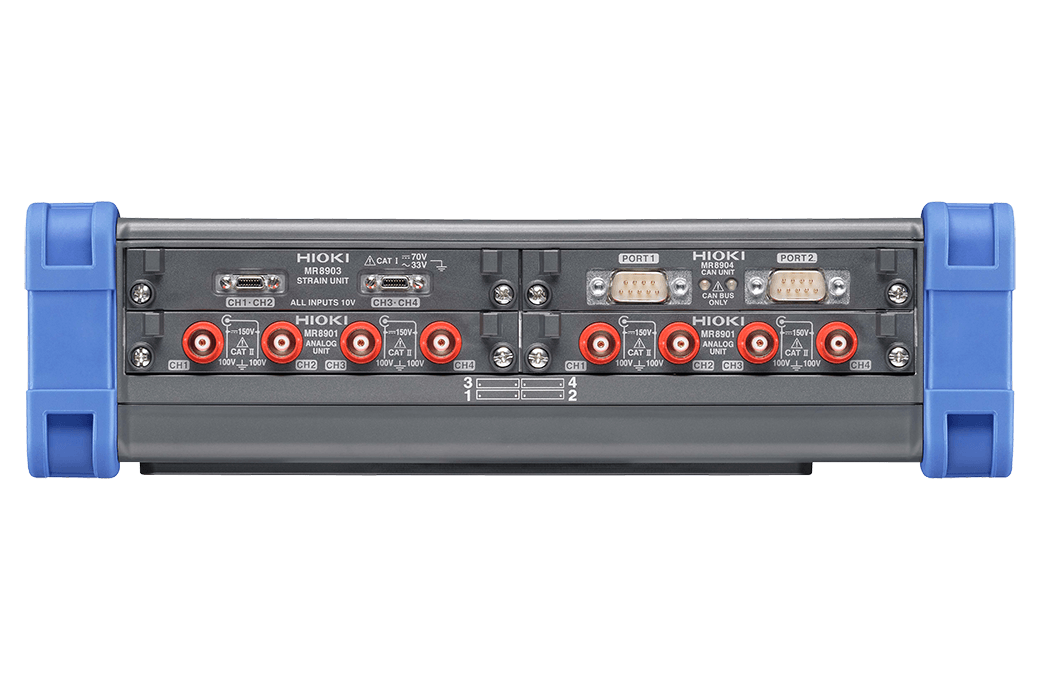

Number of input units | Up to 4 slots | |||||
---|---|---|---|---|---|---|
Number of channels | Max. 16 analog channels (Max. 60 channels when using the MR8902) + standard 8 logic channels + 2 pulse channels Note: For analog units, channels are isolated from each other and from the MR8875’s GND. For CAN unit ports or standard logic terminals or standard pulse terminals, all channels have common GND. |
|||||
Measurement ranges (20 div full-scale) |
5 mV to 10 V/div , 11 ranges (when using the MR8901), 500 mV to 50 V/div , 7 ranges (when using the MR8905), resolution : 1/1250 of range | |||||
Max. rated voltage | Between terminals: 150 V DC Between terminal to earth: 100 V AC, DC (when using the MR8901) |
|||||
Frequency characteristics | DC to 100 kHz (-3 dB, when using the MR8901) | |||||
Time axis | 200 µs to 5 min/div, 21 ranges, sampling period: 1/100 of range, External sampling possible | |||||
Max. sampling rate | [When using MR8901] 500 kS/s (2 μs period, all channels simultaneously) [When using MR8902] 10 ms (all input channels are scanned at high speed during every recording interval) [When using MR8903] 200 kS/s (5 μs period, all channels simultaneously) External sampling: 200 kS/s (5 μs period) |
|||||
Measurement functions | High-speed function (high speed recording), Real-time calculation between channels, FFT calculation, or other functions | |||||
Storage memory capacity | Total 32 M-words (memory expansion: N/A, 8 MW each input unit) Note: 1 word = 2 bytes, therefore 32 Mega-words = 64 Mega-bytes. Note: Storage memory can be allocated depending on the number of channels used at each input unit |
|||||
Removable storage | SD card slot ×1, USB 2.0 memory | |||||

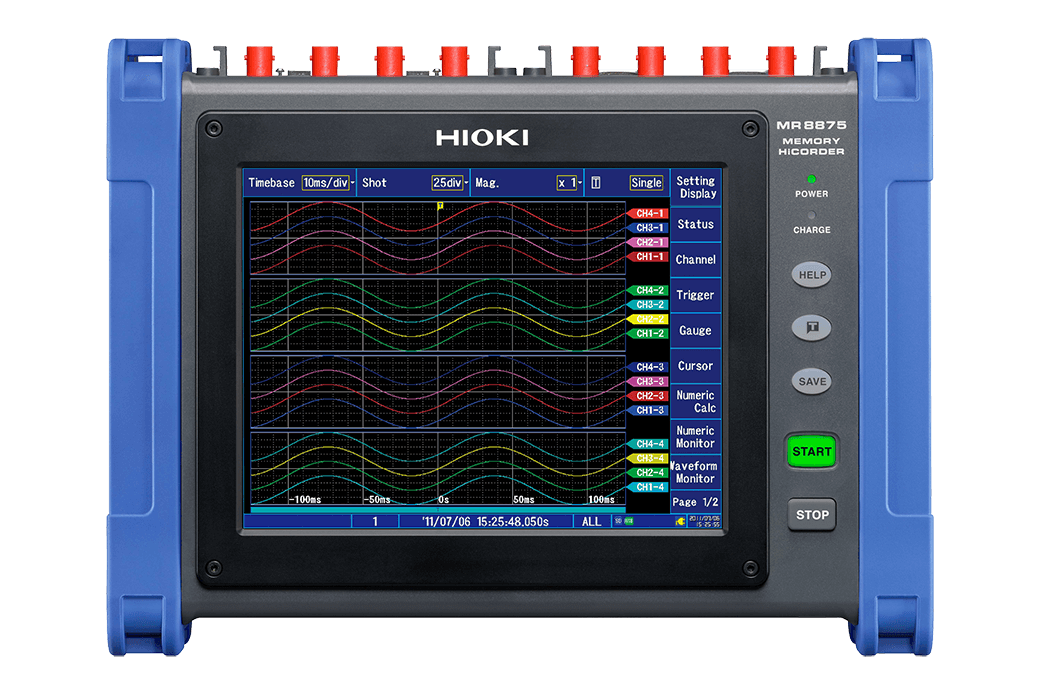

Display | Touch-panel operation 8.4-inch SVGA-TFT color LCD (800 × 600 dots) | |||||

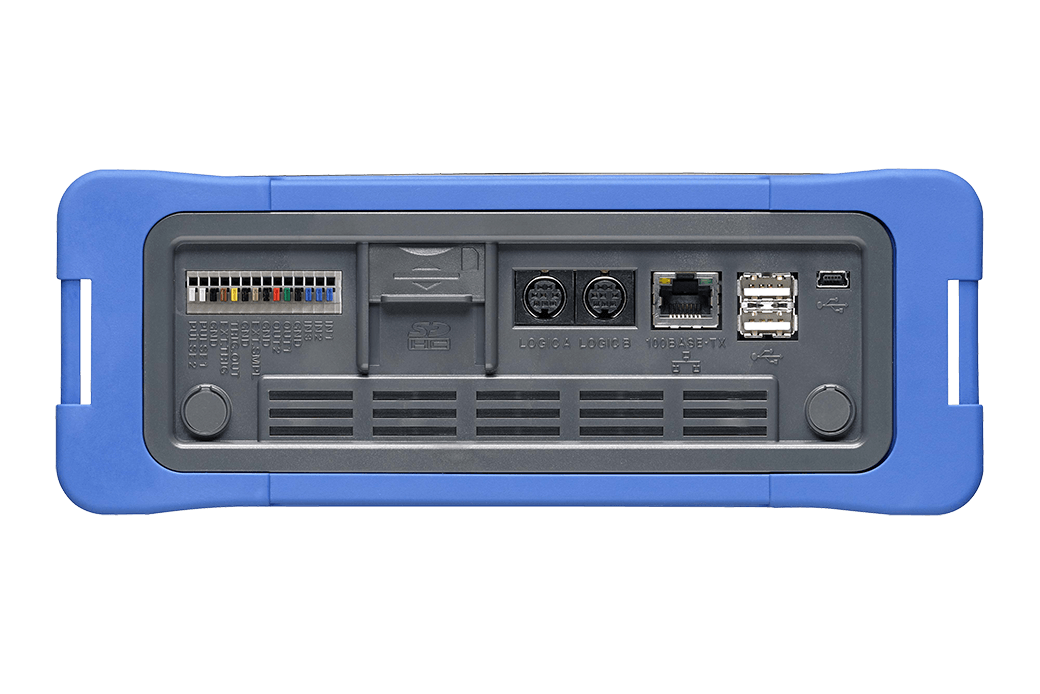

Communication interfaces | LAN: 100BASE-TX (DHCP, DNS supported, FTP server/ client, WEB server, send E-mail, command control) USB: USB 2.0 compliant, series mini-B receptacle ×1 (setting / measure with communication command, or file transfer SD card to PC), series A receptacle ×2 (USB memory, USB mouse/ key-board) |
|||||

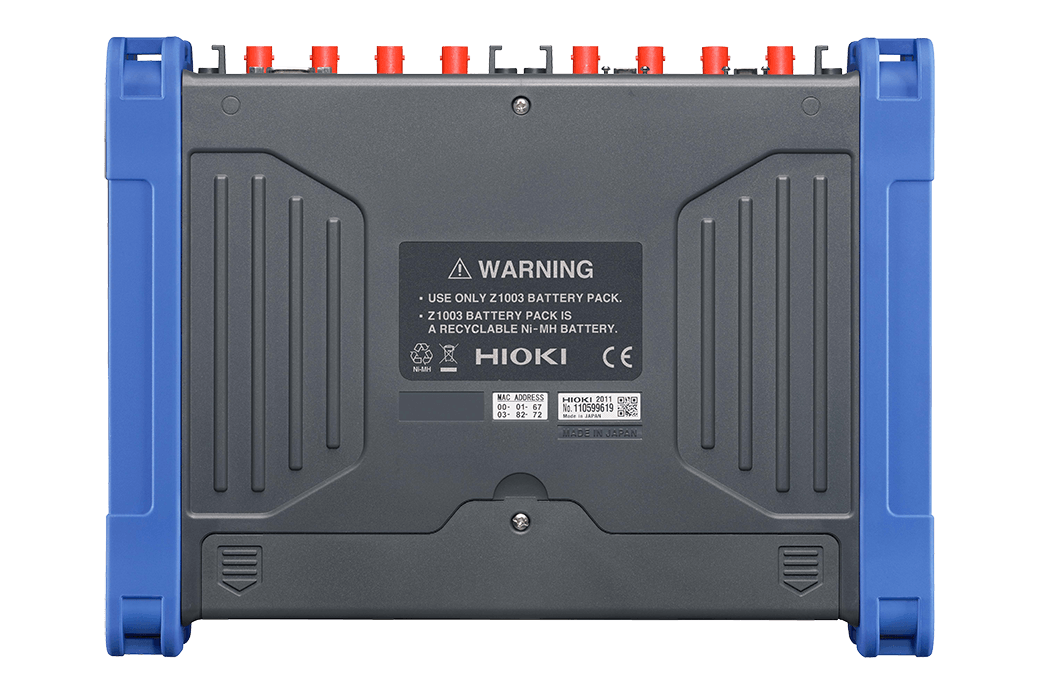

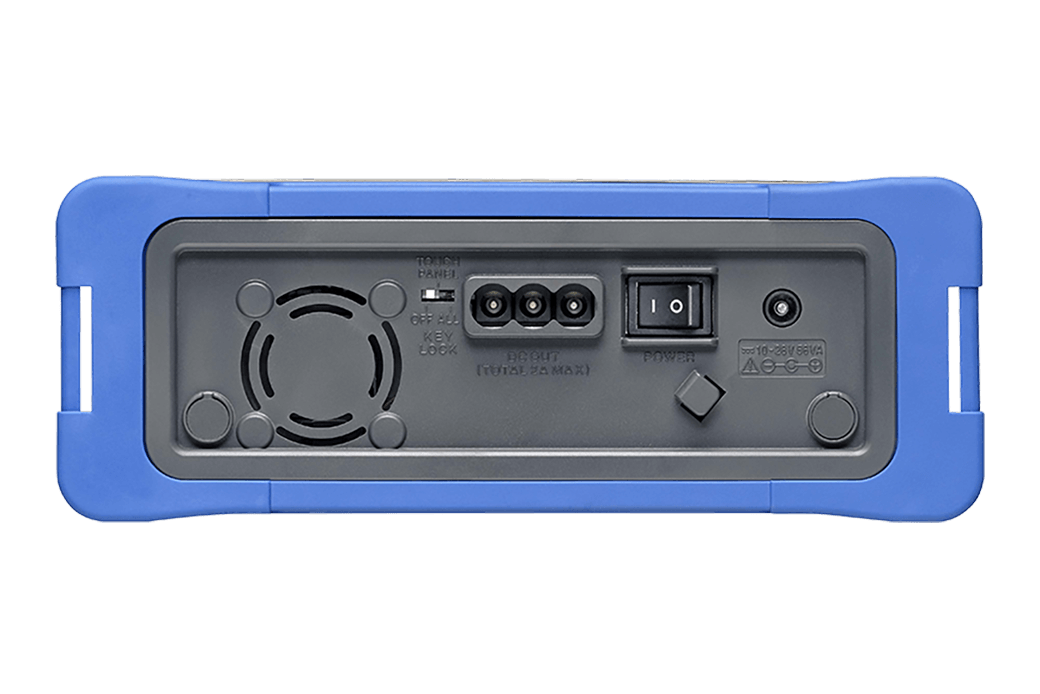

Power supply | 1) AC adapter Z1002: 100 to 240 V AC (50/60 Hz), 56 VA 2) Battery pack Z1003: 7.2 V DC, 36 VA, continuous operation time: 1 hour with back light ON (AC adapter has priority when used in combination with battery pack), Charges while installed in the MR8875, recharging time: 3 hours 3) External DC Power: 10 to 28 V DC, 56 VA |
|||||
Dimensions and mass | 298 mm (11.73 in)W × 224 mm (8.82 in)H × 84 mm (3.31 in)D, 2.4 kg (84.7 oz), (excluding input units and the Battery pack Z1003) Reference data: 3.47 kg/ 122.4 oz (including the MR8901 ×4 units and the Battery pack Z1003) |
|||||
Included accessories | Instruction manual ×1, Measurement guide ×1, AC adapter Z1002 ×1, Protection sheet ×1, USB cable ×1, Shoulder strap ×1, Application disk (Wave viewer Wv, communication commands table, CAN Editor) ×1 |
LabVIEW and MATLAB support
Compatible models | LabVIEW | MATLAB script | ||||
---|---|---|---|---|---|---|
MR8875 | Available | Available |
Storage media (3)
Use only CF Cards or USB drive sold by HIOKI. Compatibility and performance are not guaranteed for CF cards/USB memory stick made by other manufacturers. You may be unable to read from or save data to such cards.
2 GB capacity
8 GB capacity
16 GB, Long-life, High-reliability SLC Flash Memory
Input modules (5)
Install by inserting into the main unit. Can be replaced by user. Input cables are not supplied.
Input cable (A) (4)
Voltage is limited to the specifications of the input modules in use
• Flexible φ 4.1 mm (0.16 in) thin dia.
• Cable allowing for up to 600 V input
• 1.8 m (5.91 ft) length
Red/black set attaches to the ends of the Connection Cord L9790
Red/black set attaches to the ends of the Connection Cord L9790
Red/black set attaches to the ends of the Connection Cord L9790
Input cable (B) (1)
Voltage is limited to the specifications of the input modules in use
•φ 5.0 mm (0.20 in) dia.
•Cable allows for up to 300 V input
•1.7 m (5.58 ft) length
•Small alligator clip
Input cable (C) (6)
Voltage input via banana terminals limited by the voltage specifications of the respective input unit.
Expands the length of L4930/4940, 1.5 m (4.92 ft) length
Attaches to the tip of the L4930/4940, CAT IV 600 V, CAT III 1000 V
Attaches to the tip of the L4930/4940, CAT III 600 V
Attaches to the tip of the L4930/4940, CAT III 1000 V
Banana plug - banana plug, 1.5 m (4.92 ft) length, red/black each 1
Attaches to the tip of the banana plug cable, Red/Black: 1 each, 185 mm (7.28 in.) length, CAT II 1000 V
Input cable (D) (2)
Voltage to ground is within this product's specifications. Separate power source is also required.
Input cable (E) (2)
Voltage to ground is within this product's specifications. Separate power source is also required.
100 to 240V AC
Non-contact voltage measurement (0)
Non-contact CAN Sensor (1)
CAN FD is not supported when using with the MR8875 and MR8904.
Other options for Input (3)
Cord has insulated BNC connectors at both ends, 1.6 m (5.25 ft) length
Receiving side banana (female), output BNC (male)
Unprocessed on one end, 1.8 m (5.9 ft.)
Temperature sensor (0)
For reference only. Please purchase locally.
Thermocouple
Logic signal measurement (2)
Only the small terminal types can be used.
The 9323 is not required for the small-terminal types 9327, 9320-01, 9321-01 and MR9321-01.
Up to 200 A (High precision) (6)
Separate power supply (CT955x) is required in order to use a high-precision current sensor.
Only sensors with ME15W (12-pin) terminals can be connected to the CT955x.
The separately available CONVERSION CABLE CT9900 is required in order to use a sensor with PL23 (10-pin) terminal.
Up to 1000 A (High precision) (7)
Separate power supply (CT955x) is required in order to use a high-precision current sensor.
Only sensors with ME15W (12-pin) terminals can be connected to the CT955x.
The separately available CONVERSION CABLE CT9900 is required in order to use a sensor with PL23 (10-pin) terminal.
PL23 (10-pin) - ME15W (12-pin) conversion (1)
Convert PL23 (10-pin) terminal to ME15W (12-pin) terminal
POWER SUPPLY for Current Sensors (4)
A separate power supply (CT955x) is required in order to use a high-precision current sensor.
Only sensors with ME15W (12-pin) terminals (-05 type) can be connected to the CT955x. *The separately available Conversion Cable CT9900 is required in order to use a sensor with PL23 (10-pin) terminal.
Cord has insulated BNC connectors at both ends, 1.6 m (5.25 ft) length
Precautions when connecting a high-precision current sensor to a Memory HiCorder (0)
Connecting to the MR8880/MR8875/MR8870
• High-precision current sensor (ME15W) + CT9555 + BNC cable → MR8875
• High-precision current sensor (PL23) + CT9900 + CT9555 + BNC cable → MR8875
100 A to 2000 A (Medium speed) (9)
The CM7290 (available separately) is required in order to use these current sensors.
Connect to BNC terminal, 1.5 m (4.92 ft) length
500 A to 5000 A (3)
For commercial power lines, 50/60 Hz
Leak Current (2)
For commercial power lines, 50/60 Hz
100 V to 240 V AC
PC Software (3)
Straight Ethernet cable, supplied with straight-to-cross conversion adapter, 5 m (16.4 ft.)
Power supply (3)
Z1002 is a bundled accessory
For main unit, DC drive, Connect to external battery, Unprocessed ends, Approx. 2 m (6.6 ft.)
For main unit, 100 to 240 V AC
NiMH, Charges while installed in the main unit
Case (1)
For the MR8875, includes compartment for options, hard trunk type
