INSULATION TESTER IR4057-50

Quick Response Comparator Offering Reading Stability in High-speed Digital Format

  • When Z3210 is installed

Hioki insulation testers or megohmmeters feature all-in-one designs including　built-in rugged cases and test lead storage compartments. The IR4057-50 is a 5-range, 50 V to 1000 V digital insulation resistance tester with bargraph, and delivers efficient functions and features to help shorten work time associated with field insulation testing.

CAT III 600 V

Easy! Just connect the optional Z3210 Wireless Adapter to your Hioki compatible instrument, to make it Bluetooth® ready.

Wirelessly connect Hioki-compliant instruments with a simple connection.
Transmit measured values to your tablet or smartphone.

Key Features

  • Easily transfer measurement data to your smartphone or tablet by using our free app GENNECT Cross or to an Excel® file. (Wireless Adapter Z3210 is necessary)
  • 5-range testing voltage of 50 V/100 MΩ to 1000 V/4000 MΩ
  • Digital bar graph
  • Stable & high-speed digital readings, 0.3 second response time for PASS/ FAIL decisions
  • Drop proof onto concrete from 1m (3.28 feet)
  • Bright LED, luminous LCD, test lead with bright LED lamp to illuminate near hand (Option L9788-11 or L9788-10)
  • Continuity check via 200 mA testing
  • Built in AC/DC voltage meter, useful for testing solar power generation systems and electric vehicles

Model No. (Order Code)

IR4057-50 Wireless Adapter Z3210 not included

Data can be downloaded to tablets and smartphones using Hioki’s dedicated free app "GENNECT Cross," available from the Google Play or App Store.

Wireless support: Wireless communication capability for even greater convenience than legacy model

Compatible with Wireless Adapter Z3210 (optional). It transfers measurements to your smartphone or tablet and allows you to quickly create reports with field photos and drawings.

See details about Wireless Adapter Z3210

Instantly create reports by a free app (GENNECT Cross)

GENNECT Cross, a free app designed specifically for use with Hioki measuring instruments, lets you check and manage measurement results and create reports.
The software provides a range of functionality that helps manage data in the field, including photographing measurement sites, placing measurement results on photographs, and saving hand written memos.

Optional Wireless Adapter Z3210 is necessary.

Click here for details about GENNECT Cross

Easily transfer measurement data to an Excel® file

Excel® Direct Input function allows you to input measurement values directly and automatically into an Excel® file once the instrument's auto-hold function is activated. (Wireless Adapter Z3210 is necessary)

Product Video

How to Use Digital Insulation Resistance Meters - Basic Course

This video explains how to use a digital insulation resistance tester to measure a distribution panel.
※ Shooting was done with Japanese model IR 4052-50. The global model name is IR 4057-50.

Comparator function provides PASS/ FAIL decisions at a glance

Compare measured values to pre-set reference values to generate a pass or fail judgment with the Comparator function.
(also pair with insulation resistance measurement and low-resistance measurement)

The insulation testers give you pass/ fail results using a beeping sound, LCD light, and indication right on the test lead with remote control switch (option), letting you check for insulation integrity without needing to look at the instrument.

Robust, damage-resistant design

These instruments feature a robust design that can withstand being dropped onto concrete from a height of 1 m.
Difficult to damage, this insulation tester is ideal for use in the field.

White LED lighting that’s easy to read in dim locations in the field

The scale is lit by a white LED, ensuring that insulation resistance values are easy to read, even when using the instrument in a dim location.

Measurement switch designed for outstanding ease of use

The instrument’s measurement switch can be operated with just the thumb.
Press for a single measurement or lift up for continuous measurement of insulation resistance.

200 mA grounding line continuity check function

The Insulation testers can perform EV and HEV continuity checks as well as resistance measurement of safety conductors in building electrical equipment as defined by IEC 60364.

Basic specifications

Accuracy guaranteed: 1 year
Rated output voltage 50 V DC 125 V DC 250 V DC 500 V DC 1000 V DC
Effective maximum indicated value 100 MΩ 250 MΩ 500 MΩ 2000 MΩ 4000 MΩ
Accuracy
1st effective measuring range MΩ		 ±2 % rdg. ±2 dgt.
0.200 - 10.00		 ±2 % rdg. ±2 dgt.
0.200 - 25.0		 ±2 % rdg. ±2 dgt.
0.200 - 50.0		 ±2 % rdg. ±2 dgt.
0.200 - 500		 ±2 % rdg. ±2 dgt.
0.200 - 1000
Lower limit resistance 0.05 MΩ 0.125 MΩ 0.25 MΩ 0.5 MΩ 1 MΩ
Overload protection 600 V AC (10s) 660 V AC (10s)
DC voltage range 4.2 V (0.001 V resolution) to 600 V (1 V resolution), 4 ranges,
Accuracy: ±1.3% rdg. ±4 dgt., Input resistance: 100 kΩ or higher
AC voltage range 420 V (0.1 V resolution) / 600 V (1 V resolution), 2 ranges, 50/60 Hz,
Accuracy: ±2.3% rdg. ±8 dgt., Input resistance: 100 kΩ or higher, Average rectifier
Low resistance range For checking the continuity of ground wiring, 10 Ω (0.01 Ω resolution) to 1000 Ω (1 Ω resolution), 3 ranges, Basic accuracy: ±3 % rdg. ±2 dgt., testing current 200 mA or more (at 6 Ω or less)
Display Semi-transmissive FSTN LCD with back lighting, bar-graph indicator
Response time Approx. 0.3 second for PASS/FAIL decision (based on in-house testing)
Other functions Indicate MΩ measurement value after a lapse of one minute, Live circuit indicator, Automatic electric discharge, Automatic DC/AC detection, Comparator, Drop proof, Auto power save
Power supply LR6 (AA) alkaline batteries × 4, Continuous use: 20 hours (based on in-house testing)
Number of measurements: 1000 times (at 5 s ON, 25 s OFF cycle, insulation measurement of lower limit resistance value to maintain nominal output voltage)
Dimensions and mass 159 mm (6.26 in) W × 177 mm (6.97 in) H× 53 mm (2.09 in) D, 640 g (22.6 oz) (including batteries, excluding test leads)
Included accessories Connection cable L4930 ×1, Alligator clip set L4935 ×1, Test pin set L4938 ×1, Neck strap ×1, Instruction manual ×1, LR6 (AA) alkaline batteries ×4

Wireless communication (1)

Test lead/Connection cable (4)

*The L4930 is bundled

TEST LEAD L9787

Bundled with alligator clip, 1.2 m (3.94 ft) length

TEST LEAD SET WITH REMOTE SWITCH L9788-11

Bundled with Test Lead with Remote Switch L9788-10/ Earth lead, alligator clip, 1.2 m (3.94 ft) length

CONNECTION CABLE SET L4930

1.2 m (3.94 ft) length, CAT IV 600 V, CAT III 1000 V

TEST LEAD WITH REMOTE SWITCH (RED) L9788-10

Lighting LED lamp & comparator indicator (Operate only when main unit provides a comparator function), 1.2 m (3.94 ft) length

L9788-10 options (2)

Exclusively for the L9788-10

BREAKER PIN L9788-92

For checking breaker terminal, Detachable for tip of the L9788-10, 65 mm (2.56 in) length, φ 2.6 mm (0.10 in)

TIP PIN L9788-90

Spare parts for tip of the L9788/ L9788-10, Tip length 35 mm (1.38 in)/φ 3.2 mm (0.13 in)

L4930 options (6)

Exclusively for the L4930
*The L4935, L4938 is bundled

MAGNETIC ADAPTER 9804

Attaches to the tip of voltage cord, φ11 mm (0.43 in), compatible M6 pan screws

TEST PIN SET L4938

Attaches to the tip of the L4930/4940, CAT III 600 V

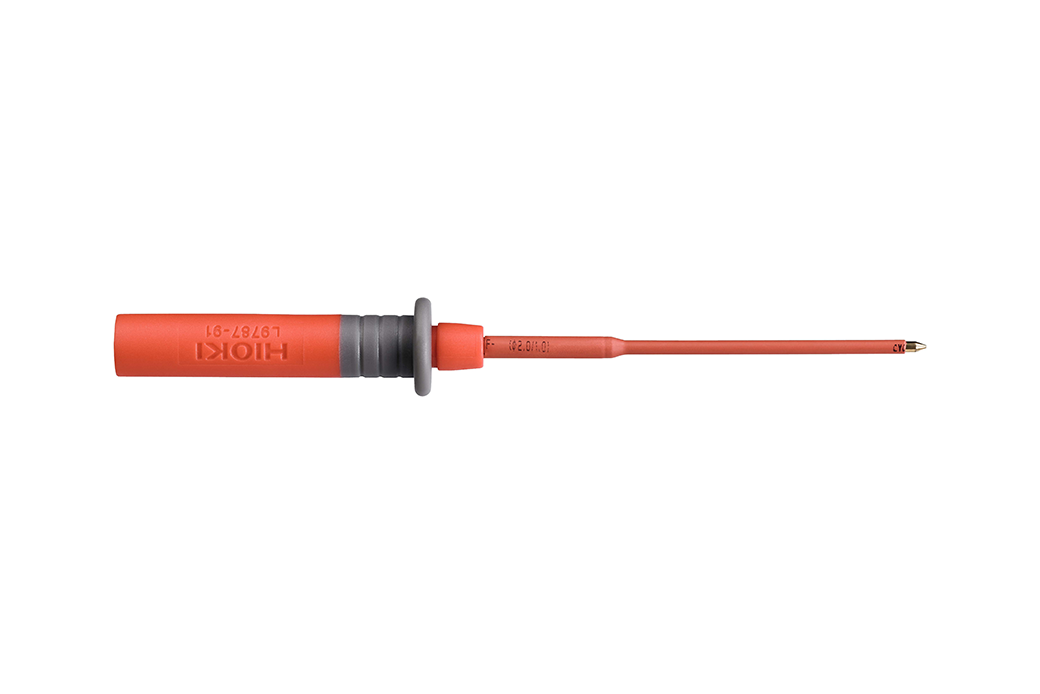

BREAKER PIN L9787-91

For checking breaker terminal, Detachable for tip of the L9787, 48 mm (1.89 in) length, φ 2.6 mm (0.10 in)

MAGNETIC ADAPTER 9804-01

Attaches to the tip of cord, red ×1, φ11 mm (0.43 in)

ALLIGATOR CLIP SET L4935

Attaches to the tip of the L4930/4940, CAT IV 600 V, CAT III 1000 V

MAGNETIC ADAPTER 9804-02

Attaches to the tip of cord, black ×1, φ11 mm (0.43 in)

Connect to your smartphone or tablet (1)

GENNECT CROSS SF4071, SF4072
