INSULATION TESTER IR4057-50
Quick Response Comparator Offering Reading Stability in High-speed Digital Format
Hioki insulation testers or megohmmeters feature all-in-one designs including built-in rugged cases and test lead storage compartments. The IR4057-50 is a 5-range, 50 V to 1000 V digital insulation resistance tester with bargraph, and delivers efficient functions and features to help shorten work time associated with field insulation testing.
CAT III 600 V
Easy! Just connect the optional Z3210 Wireless Adapter to your Hioki compatible instrument, to make it Bluetooth® ready.
Wirelessly connect Hioki-compliant instruments with a simple connection.
Transmit measured values to your tablet or smartphone.
Key Features
- Easily transfer measurement data to your smartphone or tablet by using our free app GENNECT Cross or to an Excel® file. (Wireless Adapter Z3210 is necessary)
- 5-range testing voltage of 50 V/100 MΩ to 1000 V/4000 MΩ
- Digital bar graph
- Stable & high-speed digital readings, 0.3 second response time for PASS/ FAIL decisions
- Drop proof onto concrete from 1m (3.28 feet)
- Bright LED, luminous LCD, test lead with bright LED lamp to illuminate near hand (Option L9788-11 or L9788-10)
- Continuity check via 200 mA testing
- Built in AC/DC voltage meter, useful for testing solar power generation systems and electric vehicles
Model No. (Order Code)
IR4057-50 | Wireless Adapter Z3210 not included |
---|---|
IR4057-90 | Bundled with the Wireless Adapter Z3210 |
Wireless support: Wireless communication capability for even greater convenience than legacy model
Compatible with Wireless Adapter Z3210 (optional). It transfers measurements to your smartphone or tablet and allows you to quickly create reports with field photos and drawings.
Instantly create reports by a free app (GENNECT Cross)
GENNECT Cross, a free app designed specifically for use with Hioki measuring instruments, lets you check and manage measurement results and create reports.
The software provides a range of functionality that helps manage data in the field, including photographing measurement sites, placing measurement results on photographs, and saving hand written memos.
Optional Wireless Adapter Z3210 is necessary.
Easily transfer measurement data to an Excel® file
Excel® Direct Input function allows you to input measurement values directly and automatically into an Excel® file once the instrument's auto-hold function is activated. (Wireless Adapter Z3210 is necessary)
Product Video
How to Use Digital Insulation Resistance Meters - Basic Course
This video explains how to use a digital insulation resistance tester to measure a distribution panel.
※ Shooting was done with Japanese model IR 4052-50. The global model name is IR 4057-50.
Comparator function provides PASS/ FAIL decisions at a glance
Compare measured values to pre-set reference values to generate a pass or fail judgment with the Comparator function.
(also pair with insulation resistance measurement and low-resistance measurement)
The insulation testers give you pass/ fail results using a beeping sound, LCD light, and indication right on the test lead with remote control switch (option), letting you check for insulation integrity without needing to look at the instrument.
Robust, damage-resistant design
These instruments feature a robust design that can withstand being dropped onto concrete from a height of 1 m.
Difficult to damage, this insulation tester is ideal for use in the field.
White LED lighting that’s easy to read in dim locations in the field
The scale is lit by a white LED, ensuring that insulation resistance values are easy to read, even when using the instrument in a dim location.
Measurement switch designed for outstanding ease of use
The instrument’s measurement switch can be operated with just the thumb.
Press for a single measurement or lift up for continuous measurement of insulation resistance.
200 mA grounding line continuity check function
The Insulation testers can perform EV and HEV continuity checks as well as resistance measurement of safety conductors in building electrical equipment as defined by IEC 60364.
Basic specifications
Rated output voltage | 50 V DC | 125 V DC | 250 V DC | 500 V DC | 1000 V DC | |
---|---|---|---|---|---|---|
Effective maximum indicated value | 100 MΩ | 250 MΩ | 500 MΩ | 2000 MΩ | 4000 MΩ | |
Accuracy 1st effective measuring range MΩ |
±2 % rdg. ±2 dgt. 0.200 - 10.00 |
±2 % rdg. ±2 dgt. 0.200 - 25.0 |
±2 % rdg. ±2 dgt. 0.200 - 50.0 |
±2 % rdg. ±2 dgt. 0.200 - 500 |
±2 % rdg. ±2 dgt. 0.200 - 1000 |
|
Lower limit resistance | 0.05 MΩ | 0.125 MΩ | 0.25 MΩ | 0.5 MΩ | 1 MΩ | |
Overload protection | 600 V AC (10s) | 660 V AC (10s) | ||||
DC voltage range | 4.2 V (0.001 V resolution) to 600 V (1 V resolution), 4 ranges, Accuracy: ±1.3% rdg. ±4 dgt., Input resistance: 100 kΩ or higher |
|||||
AC voltage range | 420 V (0.1 V resolution) / 600 V (1 V resolution), 2 ranges, 50/60 Hz, Accuracy: ±2.3% rdg. ±8 dgt., Input resistance: 100 kΩ or higher, Average rectifier |
|||||
Low resistance range | For checking the continuity of ground wiring, 10 Ω (0.01 Ω resolution) to 1000 Ω (1 Ω resolution), 3 ranges, Basic accuracy: ±3 % rdg. ±2 dgt., testing current 200 mA or more (at 6 Ω or less) | |||||
Display | Semi-transmissive FSTN LCD with back lighting, bar-graph indicator | |||||
Response time | Approx. 0.3 second for PASS/FAIL decision (based on in-house testing) | |||||
Other functions | Indicate MΩ measurement value after a lapse of one minute, Live circuit indicator, Automatic electric discharge, Automatic DC/AC detection, Comparator, Drop proof, Auto power save | |||||
Power supply | LR6 (AA) alkaline batteries × 4, Continuous use: 20 hours (based on in-house testing) Number of measurements: 1000 times (at 5 s ON, 25 s OFF cycle, insulation measurement of lower limit resistance value to maintain nominal output voltage) |
|||||
Dimensions and mass | 159 mm (6.26 in) W × 177 mm (6.97 in) H× 53 mm (2.09 in) D, 640 g (22.6 oz) (including batteries, excluding test leads) | |||||
Included accessories | Connection cable L4930 ×1, Alligator clip set L4935 ×1, Test pin set L4938 ×1, Neck strap ×1, Instruction manual ×1, LR6 (AA) alkaline batteries ×4 |
Wireless communication (0)
Test lead/Connection cable (4)
*The L4930 is bundled
1.2 m (3.94 ft) length, CAT IV 600 V, CAT III 1000 V
Bundled with alligator clip, 1.2 m (3.94 ft) length
Lighting LED lamp & comparator indicator (Operate only when main unit provides a comparator function), 1.2 m (3.94 ft) length
Bundled with Test Lead with Remote Switch L9788-10/ Earth lead, alligator clip, 1.2 m (3.94 ft) length
L9788-10 options (2)
Exclusively for the L9788-10
Spare parts for tip of the L9788/ L9788-10, Tip length 35 mm (1.38 in)/φ 3.2 mm (0.13 in)
For checking breaker terminal, Detachable for tip of the L9788-10, 65 mm (2.56 in) length, φ 2.6 mm (0.10 in)
L4930 options (6)
Exclusively for the L4930
*The L4935, L4938 is bundled
Attaches to the tip of the L4930/4940, CAT IV 600 V, CAT III 1000 V

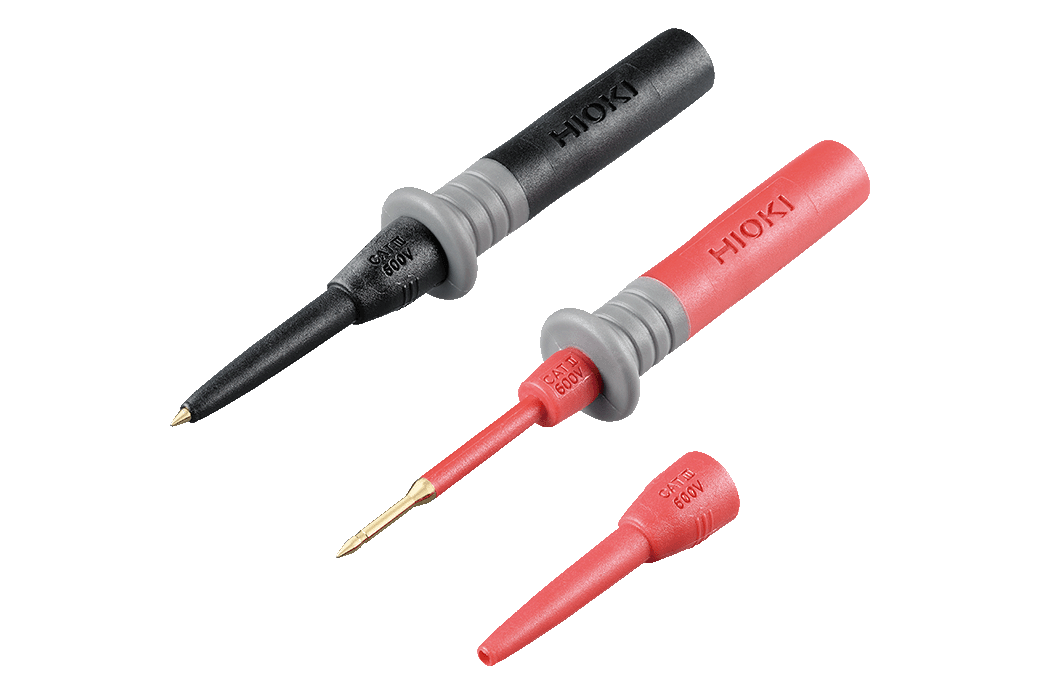

Attaches to the tip of the L4930/4940, CAT III 600 V
For checking breaker terminal, Detachable for tip of the L9787, 48 mm (1.89 in) length, φ 2.6 mm (0.10 in)
Attaches to the tip of voltage cord, φ11 mm (0.43 in), compatible M6 pan screws
Attaches to the tip of cord, red ×1, φ11 mm (0.43 in)
Attaches to the tip of cord, black ×1, φ11 mm (0.43 in)
