MEMORY HiCORDER MR8827
High-speed 20MS/s 32-channel Fully-isolated Memory Recorder Provides Simultaneous Data Acquisition
Over 32 Analog + 32 Logic Channels
Hioki Memory HiCorders are high-speed waveform monitoring and recording devices that can simultaneously measure multiple physical phenomena such as voltage, current, temperature, vibration, weight, acceleration and rotation due to complete isolation between channels and from each channel to the ground. More than just a digital oscilloscope, the MR8827 data acquisition (DAQ) recorder accommodates plug-and-play input modules to meet applications such as trial runs after the scheduled maintenance of railway cars to verify for voltage command signals, motor current, car speed, and brake pressure.
Key Features
- Generate and record waveforms with a single unit
- Output previously recorded problematic waveforms and apply to devices under test to simulate potential issues
- 32 analog + 32 logic channels to 28 analog + 64 logic channels
- High-speed sampling up to 20MS/s with fully isolated inputs
- Safe measurement with all isolated analog inputs
- Large capacity memory of total 512M-words
- Measure various system signals from high voltage to ultra low voltage simultaneously
Model No. (Order Code)
| MR8827 | Max. 32ch, 512MW memory, main unit only |
|---|
High-speed sampling at up to 20 MS/s and fully isolated input for all channels
The Memory HiCorder MR8827 achieves isolated input between the main unit and channel
or between channels, at a maximum sampling speed of 20 MS/s on all channels. (Resolution: 50nsec)
The MR8827 differentiates itself from typical oscilloscopes by providing complete isolation for the input of each channel, and between each channel and the main frame.
Inverter / UPS Testing
The MR8827A is perfect for the evaluation and start-up testing of inverters and UPS evaluation / start-up tests. Record using both logic channels for control signals) and analog channels to test the primary and secondary voltage or current of a UPS or inverter.
Transformer Interruption Tests
Inter-channel isolation allows for safe circuit connections in high voltage environments
A Memory HiCorder that can record mixed multichannel input
The Memory HiCorder MR8827 can connect a maximum of 16 moduleson the rear side.
Modules can be combined to accommodate input from multiple types of circuits.
A maximum of 8 logic probes can be inserted in the main unit.
Use of 2 Logic Unit 8973 will add 8 more connections, supporting 64 channel logic signal input.
(This reduces the number of available analog channels to 28.)
High-speed, high-definition printing with an A4-size printer
The Memory HiCorder MR8827 uses an A4-size high-speed thermal printer
that generates high-definition output at a speed of 50 mm per second,
making it easy to check waveforms in the field.
Just drop rocording paper in to set it up.
Save your important data on devices and media
Input signals after A/D conversion stored in internal memory can be saved on the optional internal SDD,
USB memory, or CF card. (Use only PC Cards sold by HIOKI.)
This next-generation Memory HiCorder can perform a variety of measurement tasks
The Memory HiCorder MR8827 is perfect for recording a combination of analog and logic signals
that require multiple channels.
It can be used in a variety of fields, including power, automotive, power electronics, and mechatronics.
Basic specifications
| Max. Number of channels | 32 ch analog + 32 ch logic, or 28 ch analog + 64 ch logic (when use with built-in logic input + plug-in logic unit 8973 × 2) |
|---|---|
| Number of slots | 16 slots (Max. 16) |
| Number of logic channels | 32 ch logic (logic probe terminal GND share a common GND with chassis) Built-in logic input not available when using DVM Unit MR8990 on slots 1, 2, 9, or 10. [Limitation on using built-in logic input] (with logic measurement ON) • Measurement resolution on slots 1, 2, 9, and slot 10 is limited up to 12 bits • Cannot use Frequency Unit 8970 on slots 1, 2, 9, or 10 |
| Measurement ranges (20 div full-scale) | [Analog Unit 8966]: 5 mV/div to 20 V/div, 12 ranges, resolution : 1/100 of range (using 12-bit A/D) [High Resolution Unit 8968]: 5 mV/div to 20 V/div, 12 ranges, resolution : 1/1600 of range (using 16-bit A/D) |
| Max. allowable input | 400 V DC (using the 8966/8968) |
| Frequency characteristics | DC to 5 MHz (-3 dB, using the 8966), DC to 100 kHz (-3 dB, using the 8968) |
| Time axis (Memory function) | 5 µs to 5 min/div, 26 ranges, at 100 points/div resolution |
| Measurement functions | Memory (high-speed recording), Recorder (real-time recording), X-Y recorder, FFT |
| Other functions | Numerical calculation, Waveform processing, Waveform judgment (at Memory, or FFT function) |
| Memory capacity | 128M-words/ch (using 4 Analog channels) to 16M-words/ch (using 32 Analog channels), Total capacity 512MW memory |
| Data storage media | USB memory stick, CF card, Built-in SSD unit (option, 128GB) *Approx. 125 sec. when saving 100 MB of data *Data of 100 MB in size can record 16,000 div waveforms across 32 channels. |
| Printing | [Built-in A4-size printer option]: 216 mm (8.50 in) × 30 m (98.43 ft), thermal paper roll, Recording speed : Max. 50 mm (1.97 in)/s |
| Display | 10.4 inch TFT color LCD (SVGA, 800 × 600 dots) |
| External interfaces | LAN: 100BASE-TX, USB 2.0 series A receptacle 2 port (for USB memory, mouse) USB 2.0 series B receptacle (for communication with PC, mass storage) |
| Power supply | 100 V to 240 V AC, 50/60 Hz (220 VA max., when using printer: 350 VA max.) |
| Dimensions and mass | 401 mm (15.79 in)W × 233 mm (9.17 in)H × 388 mm (15.28 in)D (including protruding parts except handle), 12.6 kg (444.4 oz) (main unit only) |
| Included accessories | Instruction manual ×1, Power cord ×1, Application disk (CD-R) ×1, Input cord label ×1, Printer paper ×1 (when ordering printer unit), Roll paper attachment ×2 (when ordering printer unit) |
LabVIEW and MATLAB support
| Compatible models | LabVIEW | MATLAB script | ||||
|---|---|---|---|---|---|---|
| MR8827 | Available | Available | ||||
Printer options (2)
*PRINTER UNIT is a built-in option that must be specified upon order.

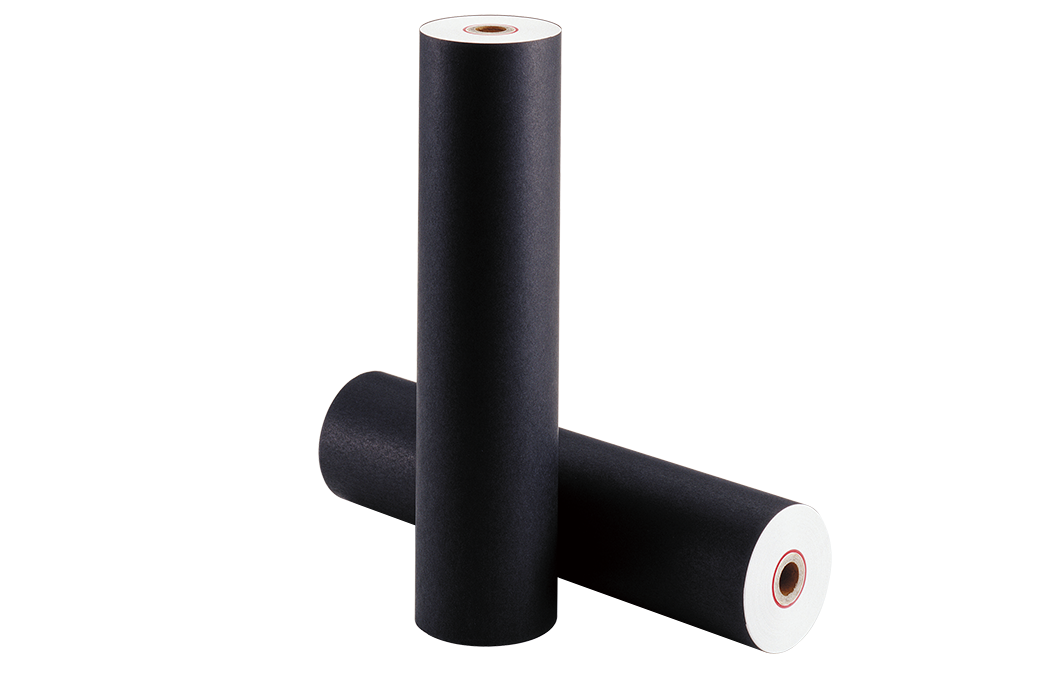

Specify upon order. Printing width 200 mm (7.87 inch). Compatible recording paper: Model 9231
Roll type A4 width 216 mm (8.50 in) × 30 m (98.43 ft), 6 rolls/set
Factory-installed option (1)
*Must specify when ordering
Specify upon order, built-in type, 128 GB
Storage media (4)
*The CF card includes a PC card adapter.
Use only CF Cards or USB drives sold by HIOKI. Compatibility and performance are not guaranteed for CF cards/USB memory sticks made by other manufacturers. You may be unable to read from or save data to such cards.
16 GB, Long-life, High-reliability SLC Flash Memory
Input modules (11)
*Input cords are not included. Please purchase them separately. *When using 9709 with Current Unit 8971, a total of 7 current probes can be used.
Output modules (3)
* Output cords not included. Please purchase separately.
Output cables (1)
* Please contact your local HIOKI distributor for connectors that support Model MR8791.
Max. rated voltage to earth: 33 Vrms AC or 70 V DC, SMB to alligator clip, 1.5 m (4.92 ft) length
Input cable (A) (4)
*Voltage is limited to the specifications of the input modules in use.
• Flexible φ 4.1 mm (0.16 in) thin dia.
• Cable allowing for up to 600 V input
• 1.8 m (5.91 ft) length
Red/black set attaches to the ends of the Connection Cord L9790
Red/black set attaches to the ends of the Connection Cord L9790
Red/black set attaches to the ends of the Connection Cord L9790
Input cable (B) (3)
*Voltage is limited to the specifications of the input modules in use
•φ 5.0 mm (0.20 in) dia
•Cable allows for up to 600 V input
•1.8 m (5.91 ft) length
•Includes detachable large alligator clips
•φ 5.0 mm (0.20 in) dia.
•Cable allows for up to 300 V input
•1.7 m (5.58 ft) length
•Small alligator clip
Attaches to the tip of the banana plug cable, Red/Black: 1 each, 185 mm (7.28 in.) length, CAT II 1000 V
Input cable (C) (2)
* This probe does not expand the maximum rated voltage above ground of an isolated input.
Input cable (D) (2)
* Voltage to ground is within this product’s specifications, separate power source is also required.
Custom cable (0)
*For P9000. Inquire with your Hioki distributor.
(1) Bus powered USB cable (2) USB(A)- Micro B cable (3) 3-prong cable
Input cable (E) (2)
*Voltage to ground is within this product's specifications. Separate power source is also required.
100 to 240V AC
Input cable (F) (6)
* Voltage input via banana terminals limited by the voltage specifications of the respective input unit.
Expands the length of L4930/4940, 1.5 m (4.92 ft) length
Attaches to the tip of the L4930/4940, CAT IV 600 V, CAT III 1000 V
Attaches to the tip of the L4930/4940, CAT III 600 V
Attaches to the tip of the L4930/4940, CAT III 1000 V
Banana plug - banana plug, 1.5 m (4.92 ft) length, red/black each 1
Attaches to the tip of the banana plug cable, Red/Black: 1 each, 185 mm (7.28 in.) length, CAT II 1000 V
Input cable (G) (1)
*For MR8990 *Voltage is limited to the specifications of the input modules in use.
70 cm (2.30ft) length, detachable large alligator clips or needle tips are bundled, CAT IV 600V, CAT III 1000V
Non-contact voltage measurement (0)
Other options for input (5)
Cord has insulated BNC connectors at both ends, 1.6 m (5.25 ft) length
Cord has metallic BNC connectors at both ends, use at metallic terminal, 1.5 m (4.92 ft) length
Metal BNC to clip, 1.5 m (4.92 ft) length
Receiving side banana (female), output BNC (male)
To connect the CT6841-6846, CT6865/63/62, 9709, 9272-10 to the 8971/40/51, 38 cm (14.96 in) length
Temperature sensor (0)
*For reference only. Please purchase locally.
Logic signal measurement (3)
* Only the small terminal types can be used.
Up to 200 A (High precision) (6)
Separate power supply (CT955x) is required in order to use a high-precision current sensor.
Only sensors with ME15W (12-pin) terminals can be connected to the CT955x.
The separately available CONVERSION CABLE CT9900 is required in order to use a sensor with PL23 (10-pin) terminal.
Up to 1000 A (High precision) (7)
Separate power supply (CT955x) is required in order to use a high-precision current sensor.
Only sensors with ME15W (12-pin) terminals can be connected to the CT955x.
The separately available CONVERSION CABLE CT9900 is required in order to use a sensor with PL23 (10-pin) terminal.

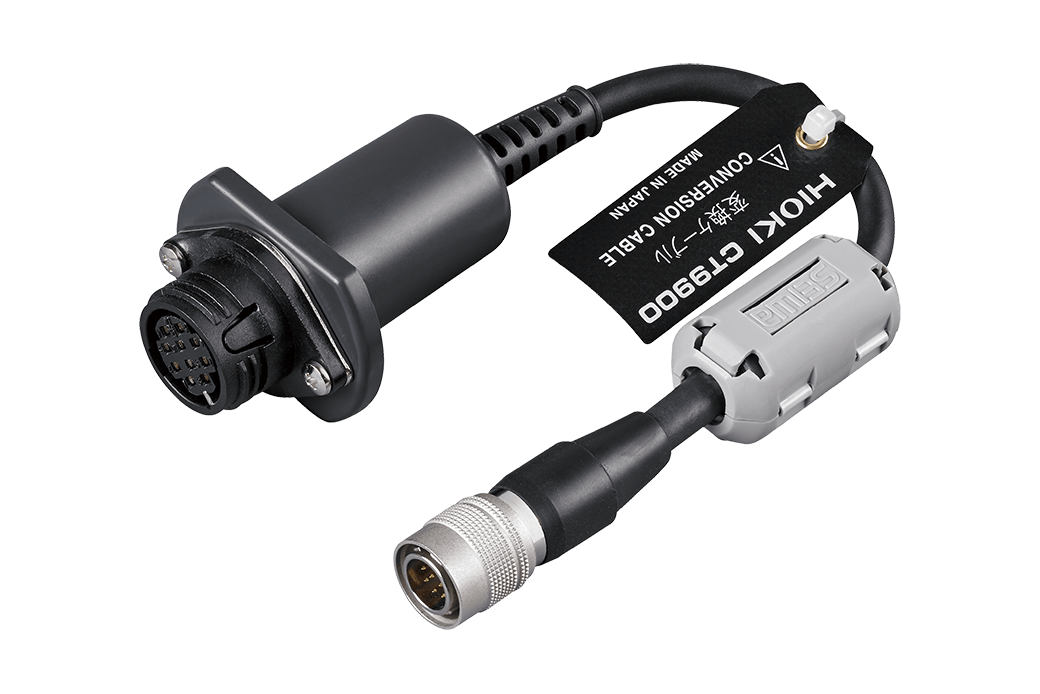

PL23 (10-pin) - ME15W (12-pin) conversion (1)
Convert PL23 (10-pin) terminal to ME15W (12-pin) terminal
POWER SUPPLY for Current Sensors (4)
*A separate power supply (CT955x) is required in order to use a high-precision current sensor.
*Only sensors with ME15W (12-pin) terminals (-05 type) can be connected to the CT955x. *The separately available Conversion Cable CT9900 is required in order to use a sensor with PL23 (10-pin) terminal.
Cord has insulated BNC connectors at both ends, 1.6 m (5.25 ft) length
Directly connect currents sensors (3)
ME15W (12-pin) - PL23 (10-pin) conversion
*The separately available Conversion Cable CT9901 is required in order to use a high-precision current sensor equipped with a ME15W (12-pin) terminal (-05 type) with the Current Unit 8971 (which is designed for use with the MR8847, MR8827, and MR8740).
*While the CT955x is not required in order to use a sensor equipped with a PL23 (10-pin) terminal with the 8971 or 8940, the Conversion Cable 9318 (which comes with the 8971) is required for that setup.
ME15W (12 pin) to PL23 (10 pin) connector
To connect the CT6841-6846, CT6865/63/62, 9709, 9272-10 to the 8971/40/51, 38 cm (14.96 in) length
Precautions when connecting a high-precision current sensor to a Memory HiCorder (0)
Connecting to the MR8847A / MR8827 / MR8740
• High-precision current sensor (ME15W) + CT9901 + 9318 → CURRENT UNIT 8971
• High-precision current sensor (ME15W) + CT955x + BNC cable → except CURRENT UNIT 8971
• High-precision current sensor (PL23) + 9318 → CURRENT UNIT 8971
• High-precision current sensor (PL23) + CT9900 + CT955x + BNC cable → except CURRENT UNIT 8971
10 mA class to 500 A (High speed) (4)
Power supply (2)
* Necessary for using the 3270 seies current probes
100 A to 2000 A (Medium speed) (9)
The CM7290 (available separately) is required in order to use these current sensors.

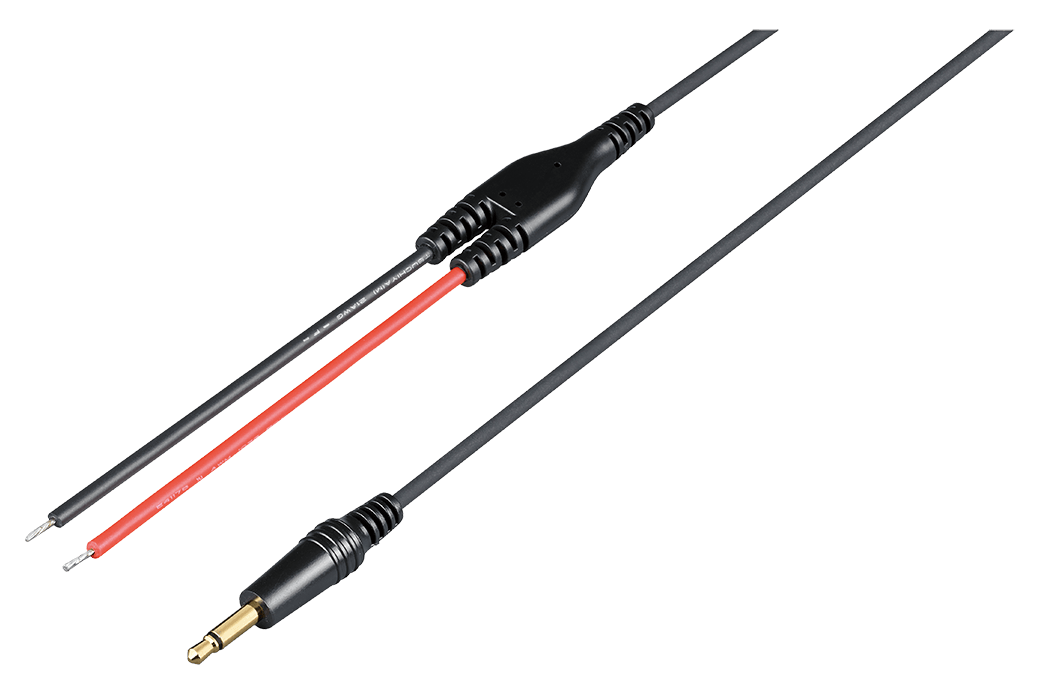

Connect to terminal block, 1.5 m (4.92 ft) length
500 A to 5000 A (3)
*For commercial power lines, 50/60 Hz
Leak current (2)
*For commercial power lines, 50/60 Hz
100 V to 240 V AC
PC software (4)
Straight Ethernet cable, supplied with straight-to-cross conversion adapter, 5 m (16.4 ft.)
Case (0)
CARRYING CASE (special order) hard trunk type Inquire with your local Hioki distributor.
-
