CARD HiTESTER 3244-60

Card-style Pocket Digital Multimeter for General Electrical Maintenance and Testing

Product video

The 3244-60 is a card-style digital multimeter for general electrical maintenance and testing, and includes gold-plated test leads for better contact. Insulated test pin sleeves also prevent short-circuits.

CAT III 300 V, CAT II 600 V

Key Features

  • Better contact test leads with 15 mm gold-plated tip pin
  • Only 9.5 mm(0.37 in) thick and 60 g(2.1 oz) in weight
  • Full auto-ranging function and automatic power saving function
  • Overload protection to 500 V at resistance or continuity functions

Card-size tester that’s easy to use in the field

Thanks to a compact design that’s less than 1 cm thick, this instrument is easy to carry and a breeze to use.

Test leads that reach all the way into outlets

Featuring a gold-plated tips that are 15 mm long

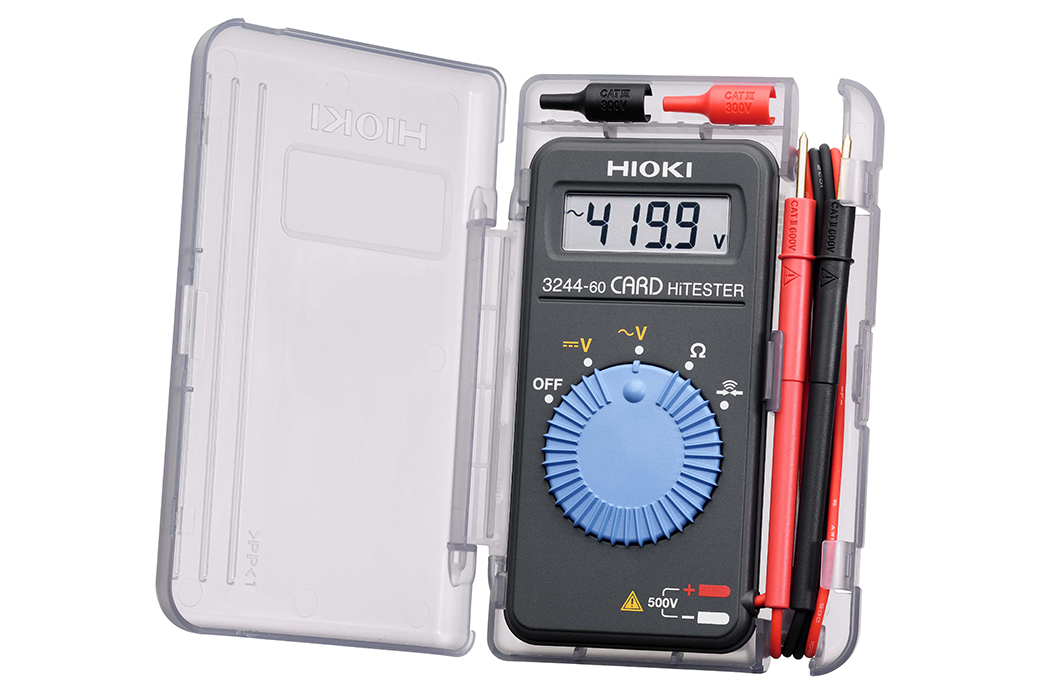

Included hard case for tidy storage

The instrument’s test leads can be wound up and stowed in this hard case. Dimensions: Approx. 80 (W) × 116 (H) × 17 (D) mm

CAT III (300 V) safety

This card tester can perform measurement safely at a high measurement category. It also includes a cap designed to prevent short-circuits.

Tester with a simple, easy-to-read display

A simple display with large text ensures measured values are easy to read.

Basic specifications

Accuracy guaranteed: 1 year
Regarding DMM Accuracy: Due to the many ranges and functions available in a DMM, only the basic accuracy is indicated for reference. Please refer to the brochure for detailed accuracy information.
DC Voltage range 419.9 mV to 500 V, 5 ranges, Basic accuracy: ±0.7 % rdg. ±4 dgt.
AC Voltage range 4.199 V to 500 V, 4 ranges, Basic accuracy 50 - 500 Hz : ±2.3 % rdg. ±8 dgt. (Average rectified)
Resistance range 419.9 Ω to 41.99 MΩ, 6 ranges, Basic accuracy: ±2.0 % rdg. ±4 dgt.
Continuity buzzer Detection level 50 Ω ±40 Ω, Diode check: Not available
Auto power save Available (cancel selectable)
Display Digital LCD, max. 4199 digits
Sampling rate 2.5 times/sec
Power supply Coin type lithium battery (CR2032) ×1, Continuous use: 150 hours
Dimensions and mass 55 mm (2.17 in) W × 109 mm (4.29 in) H × 9.5 mm (0.37 in) D, 60 g (2.1 oz)
Included accessories Instruction manual ×1, Carrying case ×1, Coin type lithium battery (CR2032) ×1 (for trial purposes only), Sleeves (Red/ Black each 1)

Options (1)

*The C0204 is bundled
