RESISTANCE HiTESTER RM3543

Resistance Meter for Ultra-low and Low Shunt Resistance

Overview
Features
Specifications
Options
Downloads

RM3543-01

Hioki DC resistance meters measure a broad range of resistance values at a high level of precision. The RM3543 is designed to be integrated into current sensing resistor taping machines, deliver high-accuracy measurement of super-low-resistance levels, and are advanced enough to measure 0.1 mΩ shunts with room to spare.

Key Features

Advanced enough to measure 0.1 mΩ shunts with room to spare at ±0.16% accuracy & 0.01μΩ resolution performance
Superb repeatable measurement accuracy
Advanced contact-check, comparator, and data export functions
Intuitive user interface and strong noise immunity are ideal for automated systems

Model No. (Order Code)

RM3543
RM3543-01	Built in GP-IB interface

Test fixtures are not supplied with the unit. Select an optional test fixture when ordering.

A resistance tester that can measure super-low resistance values and shunt resistors

The Resistance Meter RM3543 can measure low shunt resistance values and other DC resistance values at a high accuracy of ±0.16% for 0.1 mΩ and at the high resolution* of 0.01 μΩ.
*In the 10 mΩ range, at SLOW measurement speed, and with 16 averaging iterations.

Reduce the effects of thermoelectromotive force with the offset voltage correction

Thermoelectromotive force refers to the potential difference that occurs at junctions between different metals (see figure). Specifically, the phenomenon occurs where measurement probes and measurement targets come into contact, and at connections between measuring instruments and measurement leads. The magnitude of this thermoelectromotive force varies with the temperature of the measurement environment, increasing as the temperature difference grows. The RM3543 includes an offset voltage correction function that applies the measurement current in both the positive and negative directions and then uses the resulting detected voltages to eliminate the effects of thermoelectromotive force.

Use the scaling function to correct measurements as if the target component were mounted

The RM3543’s scaling function can correct for the difference in resistance values that are obtained when testing a given component alone and when it is mounted on a circuit board (due to the factors such as the effects of probing position). This feature is useful when testing low-resistance current-sensing resistors such as shunts.

Ensure reliable contact quickly with the contact improvement function

The RM3543 improves contact with measurement specimens by eliminating oxide films and dirt between the probes and specimens. By addressing faulty contact, the instrument facilitates stable measurement and reduces the contact error rate, boosting productivity.

Using probe short detection functionality to ensure the reliability of 4-terminal measurement

The presence of any foreign material between the POT and CUR measurement probes can interfere with reliable 4-terminal connections. The RM3543 checks for probe short-circuits by measuring the resistance value between POT and CUR while measurement is not being performed.

Basic specifications

Accuracy guaranteed: 1 year

Measurement method	Four-terminal, constant-current DC
Resistance range	10 mΩ (Max. 12.00000 mΩ, 0.01 μΩ resolution) to 1000 Ω range (Max. 1200.000 Ω, 1 mΩ resolution), 7 steps
Display	Monochrome graphic LCD 240 × 64 dot, white LED backlight
Measurement accuracy	[at 10 mΩ range, with SLOW mode, average 16 times settings] ±0.060 % rdg. ±0.001 % f.s.
Testing current	[at 10 mΩ range] 1 A DC to [at 1000 Ω range] 1 mA DC
Open-terminal voltage	20 V DC max. Note: Voltage when not measuring is 20 mV or less, with current mode set at PULSE and Contact Improver Setting set at OFF/PULSE (measured with a voltmeter having 10 MΩ)
Sampling rate	FAST, MEDIUM, SLOW, 3 settings
Integration time	[at 10 mΩ range, default value] FAST 2.0 ms, MED 5.0 ms, SLOW 1 PLC, Setting range: 0.1 ms to 100.0 ms, or 1 to 5 PLC at 50 Hz, 1 to 6 PLC at 60 Hz Note: PLC = one power line cycle (mains wave-form period)
Other functions	Comparator (compare setting value with measurement value), Delay, OVC (offset voltage compensation), Average, Measurement fault detection, Probe short-circuit detection, Improve contact, Current mode setting (A pulse application function that applies current only during measurement), Auto-memory, Statistical calculations, Settings monitor (when using two instruments, a difference in settings causes warning notification), Retry, Trigger function. etc,.
Interfaces	External I/O, RS-232C, Printer, GP-IB (Model RM3543-01)
External I/O	Trigger, Hold input, Comparator output, Settings monitor terminal, Service power output +5V, +12V, etc.
Power supply	100 to 240 V AC, 50/60 Hz, 40 VA max.
Dimensions and mass	260 mm (10.24 in) W × 88 mm (3.46 in) H × 300 mm (11.81 in) D, 3.0 kg (105.8 oz)

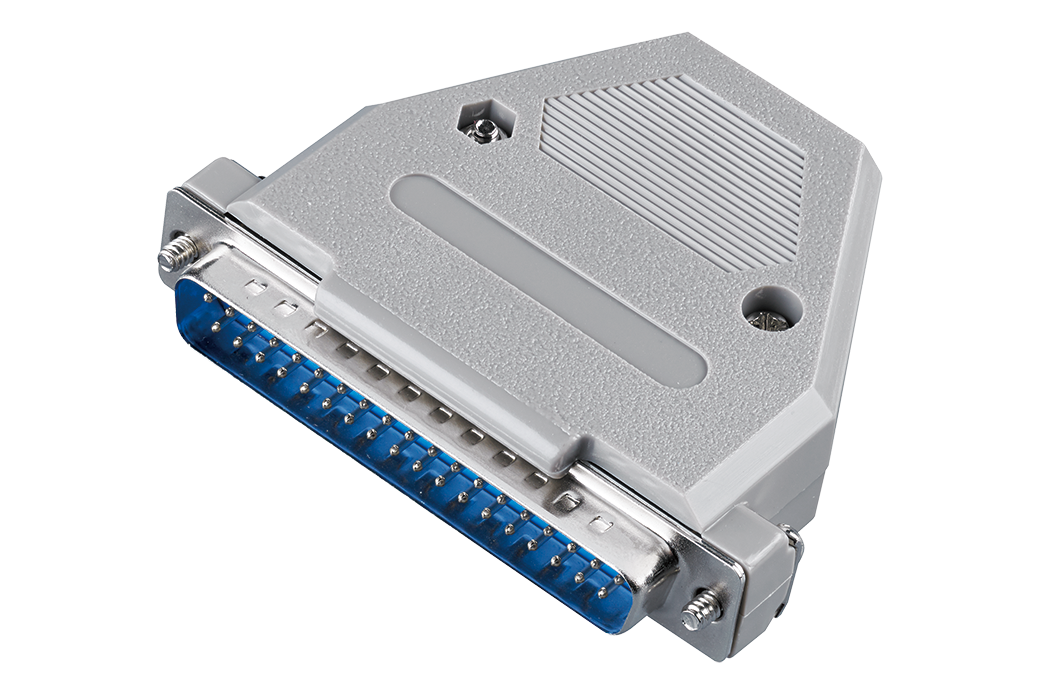

Included accessories	Power cord ×1, EXT. I/O male connector ×1, Instruction manual ×1, Operation guide ×1

Probe and Test fixtures (4)

4-TERMINAL PROBE 9140

DC to 100 kHz, 1 m (3.28 ft) length, impedance characteristics of 75 Ω

TEST FIXTURE 9262

Direct connection type, DC to 8 MHz（Can be measured up to 10 MHz, when combined with the special order model IM3536-01）, measurable conductor diameter: ø0.3 (0.01 in) to 2 mm (0.08 in)

SMD TEST FIXTURE 9263

Direct connection type, DC to 8 MHz（Can be measured up to 10 MHz, when combined with the special order model IM3536-01）, Test sample dimensions:1 mm (0.04 in) to 10 mm (0.39 in)
