DIGITAL MULTIMETER DT4224

Pocket DMM that Prevents False Circuit Breaker Trips using Proprietary Technology

The Hioki DT4200 Digital Multimeter Series consists of a diverse array of meters ranging from professional to industrial to pocket meters, delivering a super fast response rate and safety features that take electrical testing to a higher level. The Hioki DT4224 is a pocket-sized digital multimeter featuring an innovative circuit-breaker false trip prevention function to enhance testing safety, capacitance and diode testing functions, ideal for all general electrical jobs.

CAT IV 300 V, CAT III 600 V

Introduction of voltage input protection functionality

This functionality keeps errors in instrument configuration from resulting in an electrical accident. Even if the instrument’s rotary switch is mistakenly set to the resistance function when attempting to measure voltage, placing the probes in contact with the circuit under measurement will not cause a tripped circuit breaker or electrical arcing.

Key Features

  • Achieving a high level of safety in a compact body and lightweight design
  • Circuit breaker false trip prevention function helps avoid accidents resulting from breakers that mistakenly trip due to incorrect input
  • More convenient function: Resistance, Capacitance measurement and diode testing (DT4224)
  • Robust design capable of withstanding a drop from a height of 1 m
  • Test leads conveniently wrap around the back
  • ±0.5% DC V basic accuracy, wide 40 Hz to 1 kHz AC V frequency characteristics
  • Low-pass filter cuts high harmonics (when measuring inverter fundamental waveforms)
  • Broad -10°C (14°F) to 65°C (149°F) operating temperature range
  • Display backlight

Model No. (Order Code)

DT4224 With C/R measurement, for general use

Basic specifications

Accuracy guaranteed: 1 year
Regarding DMM Accuracy: Due to the many ranges and functions available in a DMM, only the basic accuracy is indicated for reference. Please refer to the brochure for detailed accuracy information.
DC Voltage range 600.0 mV to 600.0 V, 4 ranges, Basic accuracy: ±0.5 % rdg. ±5 dgt.
AC Voltage range 6.000 V to 600.0 V, 3 ranges, Frequency characteristics: 40 Hz - 1 kHz
Basic accuracy 40 - 500 Hz : ±1.0 % rdg. ±3 dgt. (True RMS, crest factor 3)
Resistance range 600.0 Ω to 60.00 MΩ, 6 ranges
Basic accuracy: ±0.9 % rdg. ±5 dgt.
Capacitance range 1.000 μF to 10.00 mF, 5 ranges,
Basic accuracy: ±1.9 % rdg. ±5 dgt.
Frequency range AC V measurement: 99.99 Hz (5 Hz or more) to 9.999 kHz, 3 ranges
Basic accuracy: ±0.1 % rdg. ±2 dgt.
Continuity check Continuity threshold [ON]: 25 Ω or less (buzzer sound), [OFF]: 245 Ω or more Response time: 0.5 ms or more
Diode test Open terminal voltage: 2.5 V or less, Testing current 0.5 mA or less,
Threshold of forward voltage: 0.15 V to 1.5 V
Voltage detection N/A
Other functions Circuit-breaker false trip prevention function, filter function, display value hold, relative value display, auto-power save
Display Main and Sub displays: 4-digits LCD, max. 6000 digits, bar graph
Display refresh rates 5 times/s (Capacitance measurement: 0.05 to 5 times/s, depending on measured value, Frequency: 1 to 2 time/s )
Power supply LR03 alkaline batteries ×1, Continuous use: 35 hours (backlight OFF)
Dimensions and mass 72 mm (2.83 in)W × 149 mm (5.87 in)H× 38 mm (1.50 in)D,190 g (6.7 oz) (including batteries and holster)
Included accessories Test lead DT4911 ×1, Holster ×1, Instruction manual ×1, LR03 alkaline battery ×1

Test lead (1)

DT4911 is a bundled accessory

Options for the Test lead (2)

Attach DT4911 with the cap removed.

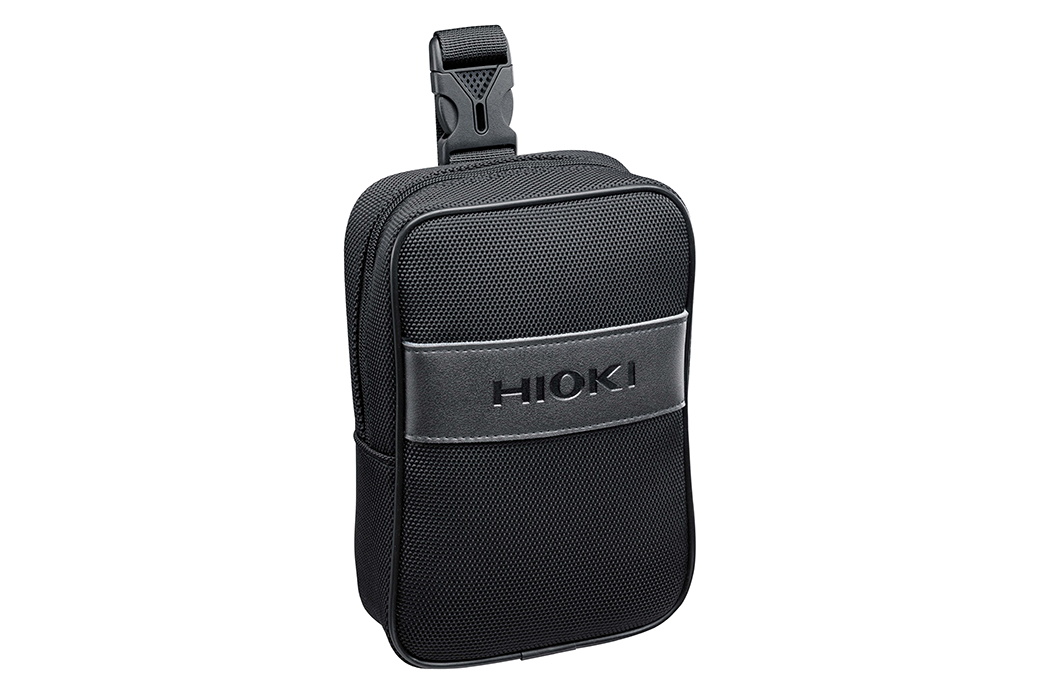

Other options (3)
