High Accuracy Clamps

AC/DC CURRENT PROBE CT6847A

Rated current: 2000 A DC, 1400 A AC
Frequency band: DC to 70 kHz
Core diameter: Φ 50 mm

High-accuracy sensor using the zero flux method and flux gate detection
Capture current signals from inverter motors, power conditioners for PV, charging facilities for EVs
Automatic Phase Correction

AC/DC CURRENT PROBE CT6833, CT6833-01

Rated current: 200 A AC/DC
Frequency band: DC to 50 kHz
Clamp conductor: φ20 mm

For vehicle power testing
Compliant with WLTP & SAE J1634 Standards

AC/DC CURRENT PROBE CT6834, CT6834-01

Rated current: 500 A AC/DC
Frequency band: DC to 50 kHz
Clamp conductor: φ20 mm

For vehicle power testing
Compliant with WLTP & SAE J1634 Standards

AC/DC CURRENT PROBE CT6830

Band: DC to 100 kHz
Rated measurement current: 2 A AC/DC
Measurable conductor: ⌀ 5 mm

For power analyzers and 3 ch current unit of Memory HiCORDER

AC/DC CURRENT PROBE CT6831

Band: DC to 100 kHz
Rated measurement current: 20 A AC/DC
Measurable conductor: ⌀ 5 mm

For power analyzers and 3 ch current unit of Memory HiCORDER

AC/DC CURRENT SENSOR CT7812

Band: DC to 100 kHz
Rated measurement current: 2 A AC/DC
Measurable conductor: ⌀ 5 mm

For data logger

AC/DC CURRENT SENSOR CT7822

Band: DC to 100 kHz
Rated measurement current: 20 A AC/DC
Measurable conductor: ⌀ 5 mm

For data logger

AC/DC CURRENT PROBE CT6841A

Rated current: 20 A AC/DC
Frequency band: DC to 2 MHz

High-accuracy sensor using the zero flux method and flux gate detection
Capture current signals from inverter motors, power conditioners for PV, charging facilities for EVs
Automatic Phase Correction

AC/DC CURRENT PROBE CT6844A

Rated current: 500 A AC/DC
Frequency band: DC to 500 kHz

High-accuracy sensor using the zero flux method and flux gate detection
Capture current signals from inverter motors, power conditioners for PV, charging facilities for EVs
Automatic Phase Correction

AC/DC CURRENT PROBE CT6843A

Rated current: 200 A AC/DC
Frequency band: DC to 700 kHz

High-accuracy sensor using the zero flux method and flux gate detection
Capture current signals from inverter motors, power conditioners for PV, charging facilities for EVs
Automatic Phase Correction

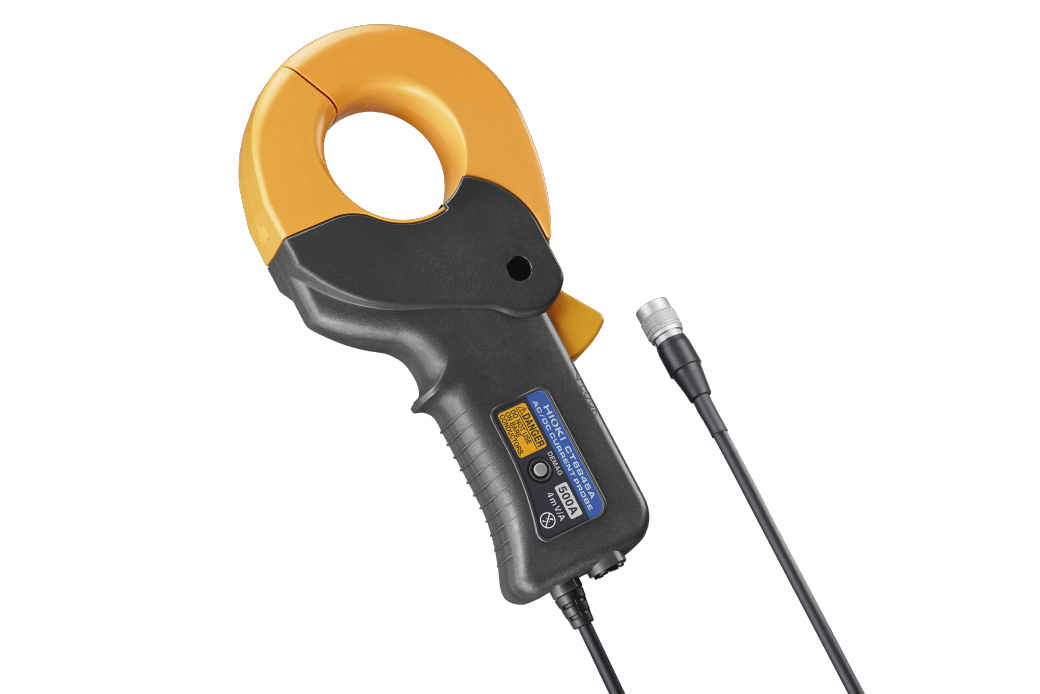

AC/DC CURRENT PROBE CT6845A

Rated current: 500 A AC/DC
Frequency band: DC to 200 kHz

High-accuracy sensor using the zero flux method and flux gate detection
Capture current signals from inverter motors, power conditioners for PV, charging facilities for EVs
Automatic Phase Correction

AC/DC CURRENT PROBE CT6846A

Rated current: 1000 A AC/DC
Frequency band: DC to 100 kHz

High-accuracy sensor using the zero flux method and flux gate detection
Capture current signals from inverter motors, power conditioners for PV, charging facilities for EVs
Automatic Phase Correction
