BATTERY IMPEDANCE METER BT4560

Achieve Long Service Life Battery Modules by Measuring Reaction Resistance

Hioki benchtop battery testers support simultaneous high-speed measurement in the ever-expanding production lines of increasingly larger lithium-ion low resistance batteries. The BT4560 battery impedance tester measures the impedance of lithium-ion batteries using the low-frequency AC-IR measurement method without charging and discharging the battery, substantially reducing the time needed to inspect the internal resistance of battery cells.

BT4560 Battery Impedance Meter Introductory Video

Key Features

  • Low-frequency AC-IR measurement (*1): Measure the reaction resistance of a battery
  • Extremely reliable measurements for low-impedance batteries (*2)
  • Circuit configuration highly tolerant of contact and wire resistance to provide stable measurements
  • Voltage measurement function equivalent to 6-digit DMM (± 0.0035% rdg.)
  • *1:The BT4560 ensures battery cell quality by measuring internal impedance at a low frequency of 1 Hz or below.
  • *2:The BT4560 uses a testing current of 1.5 A at the 3mΩ range, which improves the S/N ratio.

Model No. (Order Code)

BT4560
Note: This product is not supplied with measurement probes. Please select and purchase the measurement probe options appropriate for your application separately.

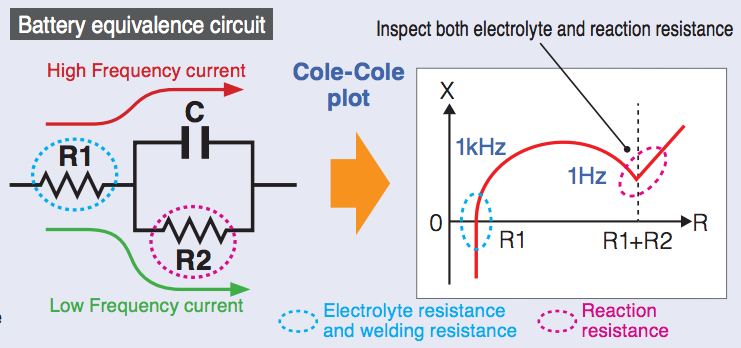

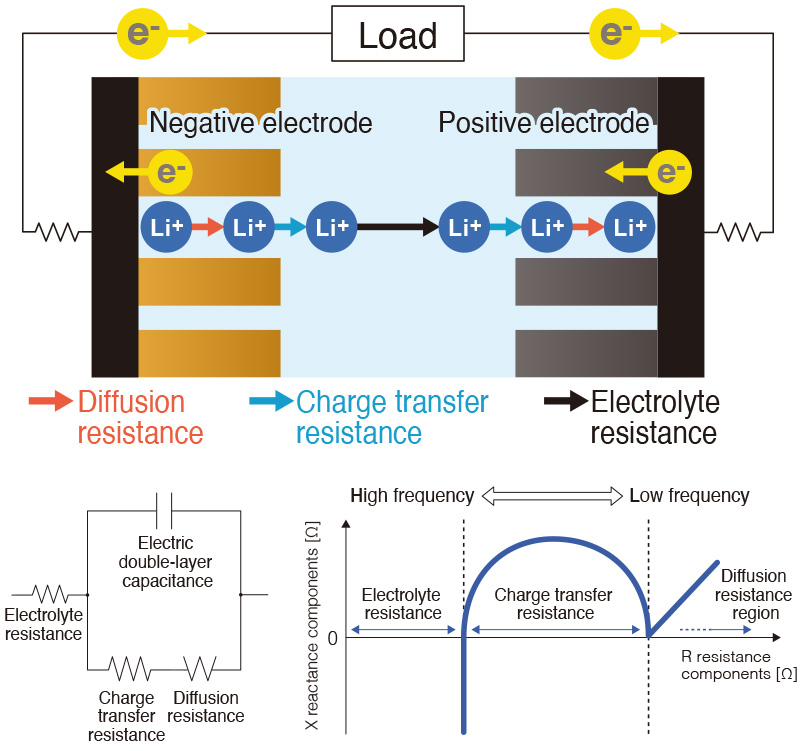

Manage electrode reaction resistance, electrolyte resistance, and welding resistance to Improve the quality of battery cell inspections

- Set your own measurement frequency between 100 mHz and 1.05 kHz
- Use low frequencies to measure electrode reaction resistance
- Use high frequencies to measure electrolyte resistance and welding resistance
- Create Cole-Cole plots (with bundled application program)
- Use equivalent circuit analytic software to analyze internal battery defects

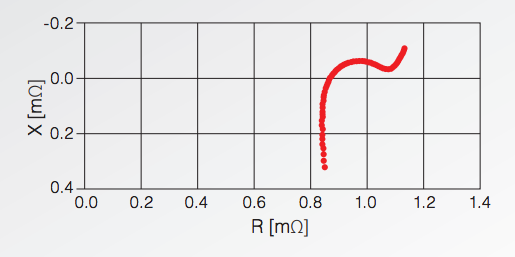

Measure very low impedances of 1mΩ or less

Some high-capacity Li-ion batteries have an internal impedance less than 1 mΩ.
The BT4560 is designed to measure very low impedances of 1mΩ or less with high stability and reproducibility.

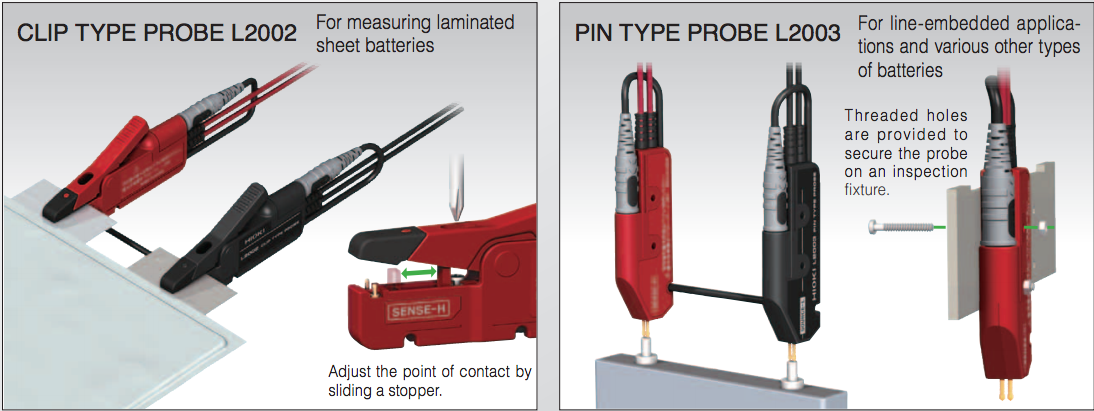

Dedicated probes for four-terminal pair measurement reduce the magnetic flux generated

Probes with a four-terminal pair structure provide very stable measurement that is less affected by environmental noise or cabling.

Basic specifications

Accuracy guaranteed: 1 year, Accuracy guarantee period after adjustment made by Hioki: 1 year
Allowable input voltage Up to 5 V
Measured information Impedance, voltage, temperature
Impedance measurement Parameters: R, X, Z, θ, Frequency: 0.1 Hz to 1050 Hz, Measurement ranges: 3.0000 mΩ, 10.0000 mΩ, 100.000 mΩ
Testing current: 3 mΩ range: 1.5 Arms, 10 mΩ range: 500 mArms, 100 mΩ range: 50 mArms
Voltage measurement Measurement range: 5.00000 V (single range), Measurement time: 0.1 s (Fast) to 1.0 s (Slow)
Temperature measurement Range: -10.0 °C to 60.0 °C, Measurement time: 2.3 s
Basic accuracy Z: ±0.4% rdg. θ: ±0.1 °, V: ±0.0035% rdg. ±5 dgt. , Temperature: ±0.5 °C (at 10.0 to 40.0 °C)
Functions Comparator, self-calibration, sample delay, average, contact check, measurement current error, and other
Interfaces RS-232C/USB (virtual COM port) * Cannot be used simultaneously
EXT. I/O (NPN/PNP can be switched)
Power supply 100 to 240 V AC, 50/60 Hz, 80 VA max
Dimensions and mass 330 mm (12.99 in) W × 80 mm (3.15 in) H × 293 mm (11.54 in) D, 3.7 kg (130.5 oz)
Accessories Power cord ×1, Instruction manual ×1, Zero-adjustment board ×1, USB cable (A-B type) ×1, CD-R (communication instruction manual, PC application software, USB driver) ×1
