LCR METER IM3523

Ideal for Production Lines of Electronic Parts and Automated Testing

Hioki LCR Meters and Impedance Analyzers range from 1 mHz to 3 GHz devices to suit a wide range of applications in the testing of electronic components. The IM3523 is designed for basic measurement on production lines so that it can be offered at a low price point, and delivers improved measurement reliability thanks to its contact check function.

Key Features

  • ±0.05% accuracy with wide measurement range (DC, 40Hz to 200kHz, 5mV to 5V, 10uA to 50mA)
  • Rapid 2 msec test time
  • Built-in comparator and BIN functions
  • Non-stop testing over mixed measurement conditions such as C-D(120 Hz) and ESR(100 kHz) at 10 times the speed of previous models (compared with Model 3532-50)

Model No. (Order Code)

IM3523
This product is not supplied with measurement probes or test fixtures. Please select and purchase the measurement probe or test fixture options appropriate for your application separately. All probes are constructed with a 1.5D-2V coaxial cable.
For an RS-232C connection: A crossover cable for interconnection can be used. You can use the RS-232C CABLE 9637 without hardware flow control.

Application information

Download the sample application and view the Communications Command User Manual.

Click here for the LCR application.

Accuracy calculation information

Calculate accuracy by simply entering a numerical value.

Click here to calculate accuracy.

Basic specifications

Accuracy guaranteed: 1 year, Accuracy guarantee period after adjustment made by Hioki: 1 year
Measurement modes LCR (Measurement with single condition), Continuous testing (Continuous measurement under saved conditions)
Measurement parameters Z, Y, θ, X, G, B, Q, Rdc (DC resistance), Rs (ESR), Rp, Ls, Lp, Cs, Cp, D (tanδ), σ, ε
Measurement range 100 mΩ to 100 MΩ, 10 ranges (All parameters defined in terms of Z.)
Displayable range Z, Y, Rs, Rp, Rdc, X, G, B, Ls, Lp, Cs, Cp :
± (0.00000 [unit] to 9.99999G [unit]) Real value display for Z and Y only
θ: ± (0.000° to 180.000°), D: ± (0.00000 to 9.99999)
Q: ± (0.00 to 99999.9), Δ%: ± (0.0000% to 999.999%)
Basic accuracy Z : ±0.05% rdg. θ: ±0.03°
Measurement frequency 40 Hz to 200 kHz (5 digits setting resolution)
Measurement signal level V mode, CV mode: 5 mV to 5 Vrms, 1 mVrms steps
CC mode: 10 μA to 50 mArms, 10 μArms steps
Output impedance 100 Ω
Display Monochrome LCD
Measurement time 2 ms (1 kHz, FAST, representative value)
Functions Comparator, BIN measurement (classify function), Panel loading/saving, Memory function
Interfaces EXT I/O (handler), USB communication (high-speed)

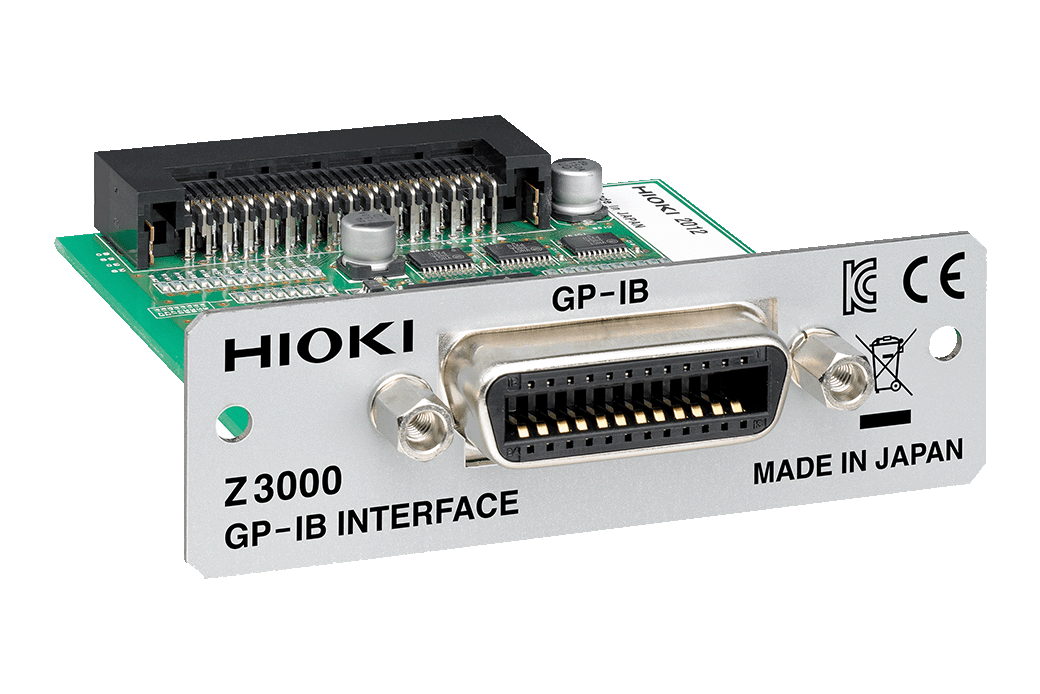

Optional: Choose 1 from RS-232C, GP-IB, or LAN
Power supply 100 to 240 V AC, 50/60 Hz, 50 VA max
Dimensions and mass 260 mm (10.24 in) W × 88 mm (3.46 in) H × 203 mm (7.99 in) D, 2.4 kg (84.7 oz)
Accessories Power cord × 1 , Instruction manual × 1, CD-R (Includes PC commands and sample software) × 1

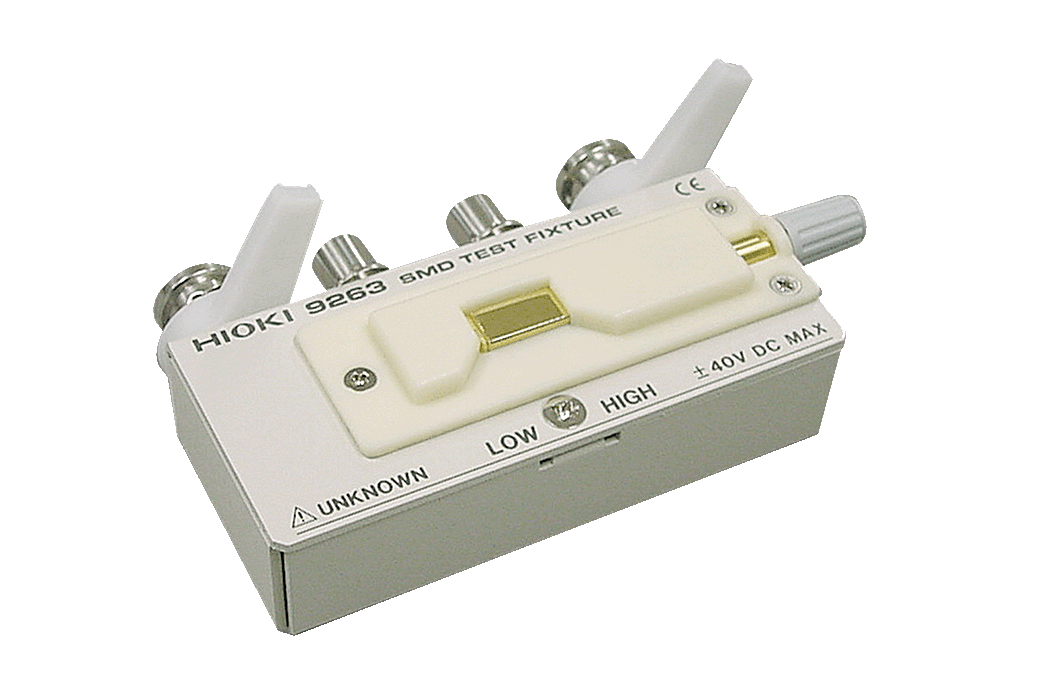

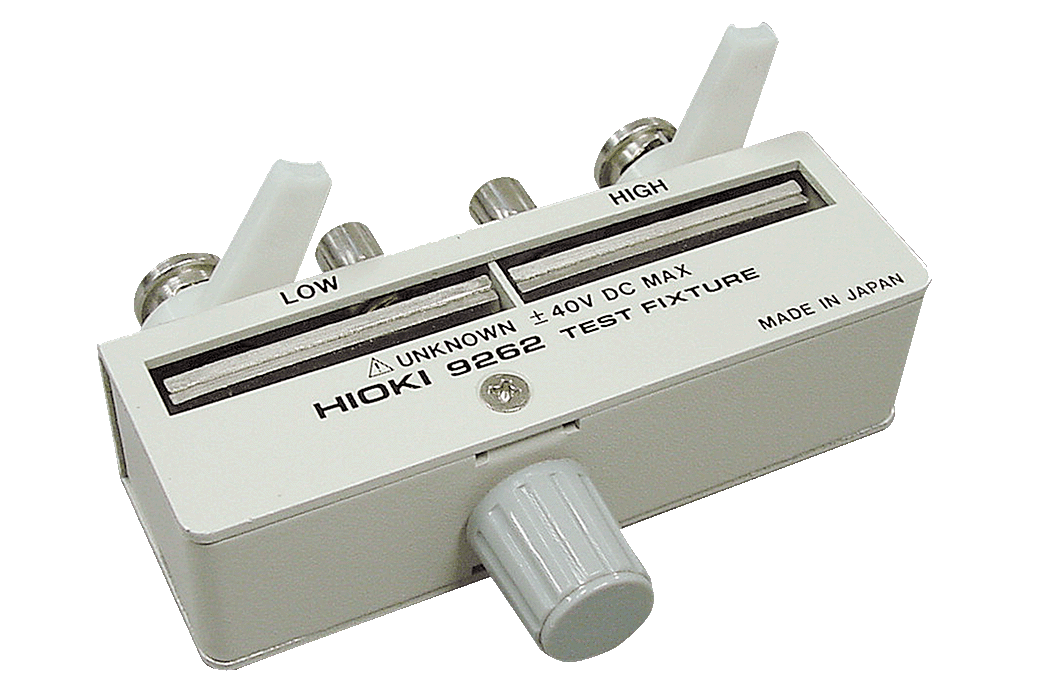

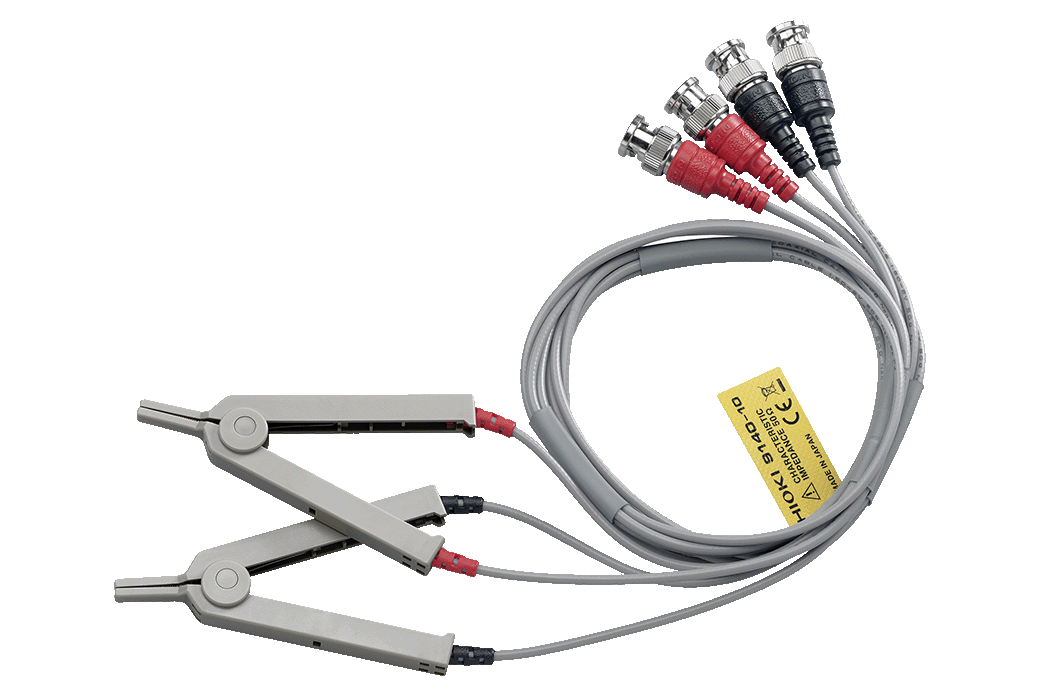

Probe and Test fixtures (15)

When using the 9268-10 or 9269-10, external constant-voltage and constant-current sources are required.

PC communication (4)
