AC AUTOMATIC INSULATION/WITHSTANDING HiTESTER 3174
Ensure Insulation and Withstand Voltage with Contact Check
The AC Automatic Insulation/Withstanding Tester 3174 is a low-cost solution featuring contact check functionality as well as a stabilized power supply to prevent the reduced test reliability that can result from these issues.
Key Features
- Continuous testing of insulation (500/1000 V) and withstand voltage (100 VA transformer capacity)
- Full remote operation when used in combination with the Safety Test Data Management Software 9267
- Save up to 8 test settings each for the withstanding and insulation testing modes
- Precise test voltage without power voltage dependency is generated using the PWM method
Model No. (Order Code)
3174 |
---|
Note: To perform contact checks, please purchase another High Voltage Test Lead 9615 set separately.
Basic specifications
Accuracy guaranteed: 1 year
[Withstanding test section] | ||||||
---|---|---|---|---|---|---|
Testing voltage | 0.2 V AC to 5.00 kV AC | |||||
Voltage setting | Digital setting, Setting resolution: 0.01 kV | |||||
Waveform/Frequency | Sine wave (Distortion ratio 5 % or less at no load), 50/60 Hz selectable | |||||
Current measurement | 0.01 mA to 20.0 mA, True RMS rectified (digital display) | |||||
Measurement range | 10 mA (0.01 mA resolution), 20 mA (0.1 mA resolution) | |||||
Voltage meter | Accuracy: ±1.5 % rdg. (1000 V or more), ±15 V (less than 1000 V), True RMS rectified | |||||
Judgment function | Window comparator method (Digital setting) | |||||
[Insulation test section] | ||||||
Testing voltage | 500 V DC, 1000 V DC | |||||
Unloaded voltage | 1 to 1.2 times rated voltage | |||||
Rated testing current | 1 to 1.2 mA, Shorted current: 4 to 5 mA (at 500 V), 2 to 3 mA (at 1000 V) | |||||
Measurement range, Accuracy | 0.5 MΩ to 999 MΩ (at 500 V), and 1 MΩ to 999 MΩ (at 1000 V): ±4 % rdg., 1000 MΩ to 2000 MΩ: ±8 % rdg. |
|||||
Judgment function | Window comparator method (Digital setting) | |||||
[Timer section] | *Test times may differ from set timer times depending on the load. | |||||
Setting range | 0.3 to 999 s | |||||
Ramp, Delay | Testing voltage ramp-up, or down, Insulation test delay: 0.1 to 99.9 s | |||||
[General section] | ||||||
Functions | Saving 8 testing conditions, hold, buzzer, contact check | |||||
Monitor function | Output voltage, detected current, insulation resistance, Refresh rate: 2 times/s | |||||
Power supply | 100 to 240 V AC, (50/60 Hz), 200 VA max. | |||||
Dimensions and mass | 320 mm (12.60 in)W × 155 mm (6.10 in)H × 395 mm (15.55 in)D, 15 kg (529.1 oz) | |||||
Included accessories | H.V. Test lead 9615 (high voltage side and return, 1 each) ×1, Power cord ×1, Instruction manual ×1, Disconnection prevention plate ×1 |
Input/Output cords (3)
*The 9615 is bundled

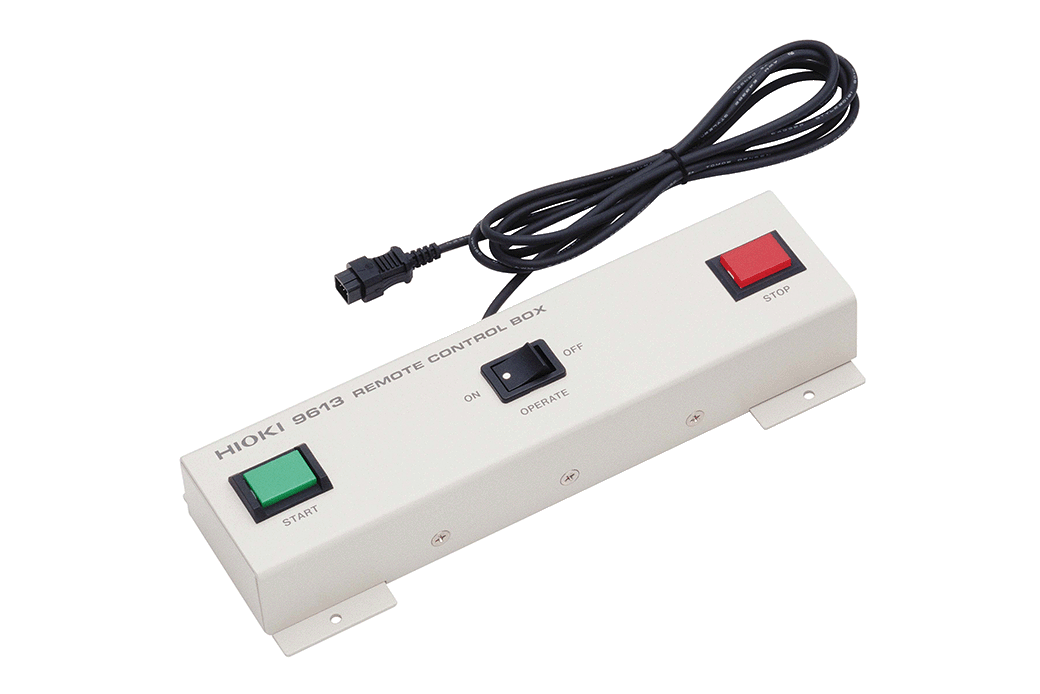

REMOTE CONTROL BOX (SINGLE) 9613
For start/stop control, one-handed, 1.5m (4.92 ft) cord length

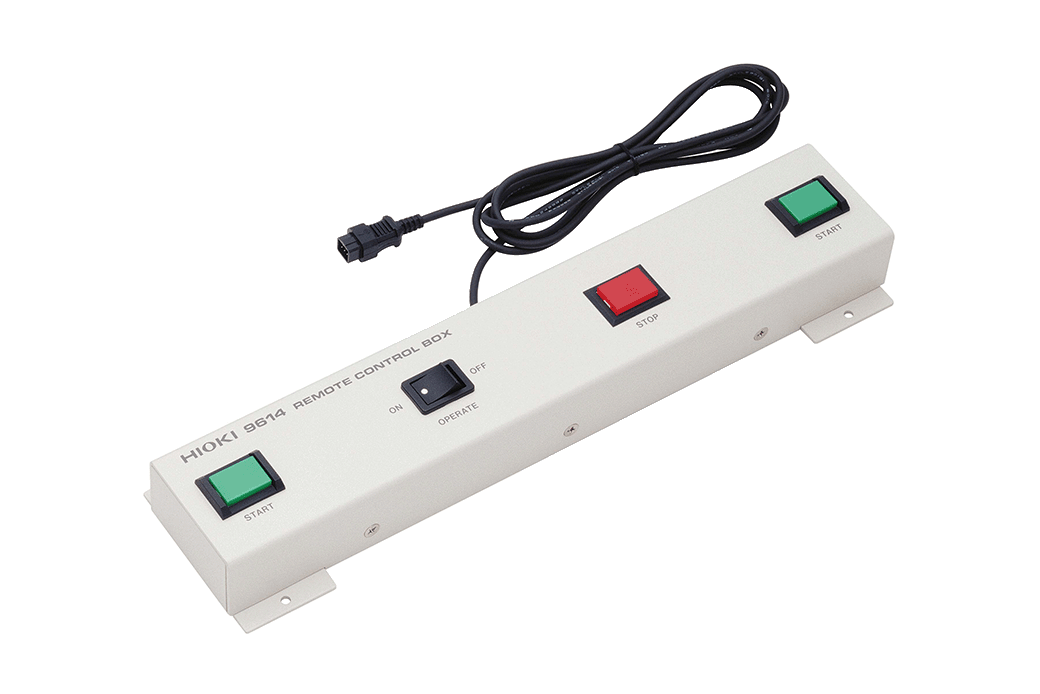

REMOTE CONTROL BOX (DUAL) 9614
For start/stop control, double-handed, 1.5m (4.92 ft) cord length
H.V. TEST LEAD 9615
Red, Black each 1, 1.5 m (4.92 ft) length
PC communication (2)
RS-232C CABLE 9637
9 pin - 9 pin, cross, 1.8 m (5.91 ft) length
