HUMIDITY LOGGER LR5001

Main unit only. Attached Connection Cable: Not covered by warranty

Hioki compact 1 or 2-channel data loggers feature a 60,000 data set/channel memory to measure temperature, humidity, voltage or instrumentation signals. The LR5001 logs temperature and humidity over 2 channels in as fast as 1 second intervals.

Key Features

Easily mount the light-weight, pocket-sized loggers in tight spaces
Easy-to-see dual display
Transfer data to PC even during recording(*1)
Replace batteries while recording (30 second limit) (*2)
7 times the memory capacity than predecessor (Record 60,000 data per channel)
Record without missing fluctuations in STAT mode
Measurement data is preserved even after the battery dies
Worry-free backup preserves recorded data even if a new measurement is started by mistake

*1:Optional accessory is required and sold separately.
*2:Recording is interrupted during battery replacement if the battery is very weak. After batteries are replaced, recording resumes automatically. Previously recorded data is not lost during battery replacement.

Model No. (Order Code)

LR5001	Temperature / Humidity each 1ch

Note: Communication Adapter LR5091 or Data Collector LR5092-20 is necessary to transfer data from a LR5000 series Logger to a PC.

Basic specifications

Accuracy guaranteed: 1 year

Measurement items	Temperature 1 ch and Humidity 1 ch (Requires included or optional humidity sensor)
Measurement range	Temperature: -40.0°C to 85.0°C, Humidity: 0 to 100% RH at sensor environment
Basic accuracy	[Temperature] : ±0.5 °C (main unit + sensor accuracy, at 0.0 to 35.0 °C) [Humidity] : ±5 % rh (main unit + temperature / humidity sensor LR950x combination, at 20 to 30 °C / 10 to 50 % rh) Note: Basic accuracy is typical value, refer to the detailed catalog
Storage capacity	Instantaneous value mode: 60,000 data/ch, Statistical value mode: 15,000 data/ch
Recording interval	1 to 30 sec., 1 to 60 min., 15 selections
Recording modes	Instantaneous recording: at every recording interval Statistical value recording: Measure at one second intervals, and record the instantaneous, maximum, minimum, and average values within every recording interval
Recording methods	One-time recording: Stop recording when the memory capacity is full Endless recording: Continue recording even when the memory capacity is full (old data is overwritten) Start: Logger button operation or scheduled time Stop: Logger button operation or scheduled time, or auto-stop when the memory capacity is full (at one-time recording)
Other functions	Always backs up last recorded data; backs up recorded data and setting conditions when battery power is low Note: After batteries are replaced within 30 seconds, recording resumes automatically (Recording is interrupted during battery replacement)
Waterproof and dust-proof	IP54 (EN60529) (with sensor connected, but not including sensor tip)
Interfaces	Infrared optical communications with LR5091, LR5092-20
Power supply	LR6 (AA) Alkaline battery × 1, Battery life: Approx. 3 months (Instantaneous recording, with 1-minute interval and auto power saving, at 20 °C), Approx. 20 days (Instantaneous recording, with 1-second interval at 20 °C)
Dimensions and mass	79 mm (3.11 in) W × 57 mm (2.246 in) H × 28 mm (1.10 in) D, 105 g (3.7 oz)
Included accessories	LR6 (AA) Alkaline battery (built-in internal) × 1, Humidity Sensor LR9504 × 1, Instruction manual × 1, Operation guide × 1, Kickstand × 1

Options (2)

For data acquisition to PC

COMMUNICATION ADAPTER LR5091

Learn more

• Transfer data from logger to PC
• Transfer setting/clock data from PC to logger
• Free bundled software

DATA COLLECTOR LR5092

Learn more

• Collect up to 60,000 data x 16 channels from LR5000 series loggers
• Transfer data from logger to PC
• Transfer setting/clock data from PC to logger
• Free bundled software

For fixing (2)

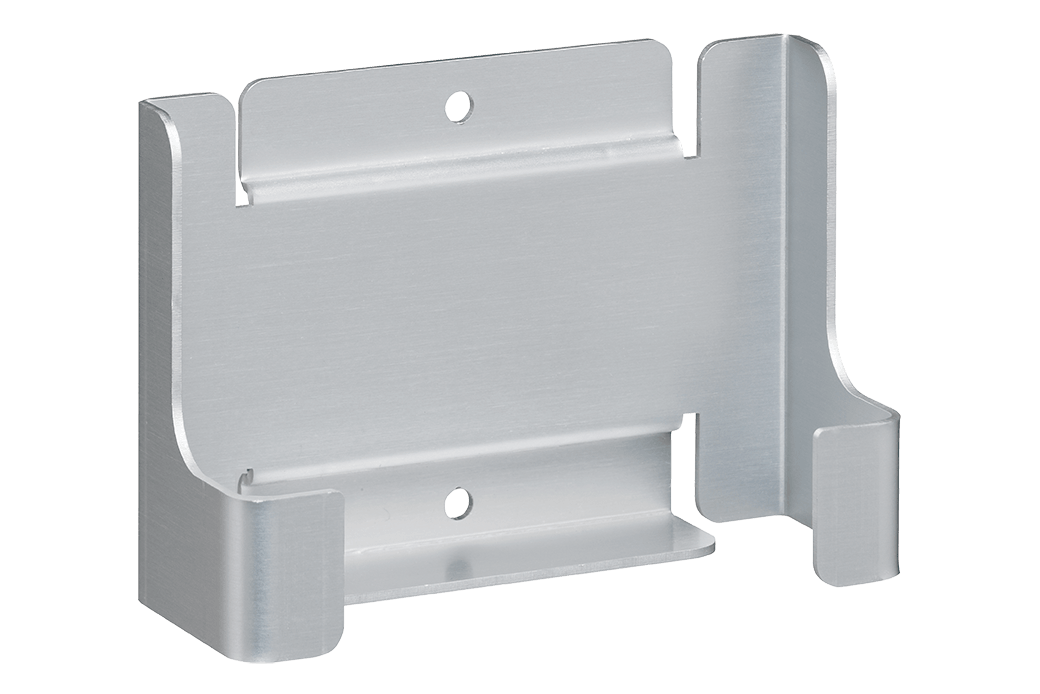

WALL-MOUNTED HOLDER LR9901

Not compatible with Model LR5051

MAGNETIC STRAP Z5004

Optional sensors (4)

LR9504 is bundled accessory

HUMIDITY SENSOR LR9501

1 m (3.28 ft) length
Temperature range: -40 to 85 ˚C
Humidity range: 0 to 100 % rh
Response time: 300 seconds
(90 % response time)
Waterproof: None
Sensor size: 13×30 mm
(0.51×1.18 in)

HUMIDITY SENSOR LR9502

5 m (16.41 ft)
Temperature range: -40 to 85 ˚C
Humidity range: 0 to 100 % rh
Response time: 300 seconds
(90 % response time)
Waterproof: None
Sensor size: 13×30 mm
(0.51×1.18 in)

HUMIDITY SENSOR LR9503

10 m (32.81 ft)
Temperature range: -40 to 85 ˚C
Humidity range: 0 to 100 % rh
Response time: 300 seconds
(90 % response time)
Waterproof: None
Sensor size: 13×30 mm
(0.51×1.18 in)

HUMIDITY SENSOR LR9504

40 mm (1.57 in)
Temperature range: -40 to 85 ˚C
Humidity range: 0 to 100 % rh
Response time: 300 seconds
(90 % response time)
Waterproof: None
Sensor size: 13×30 mm
(0.51×1.18 in)
