IMPEDANCE ANALYZER IM7580A

1 MHz to 300 MHz Measurement Frequency Impedance Analyzer with 0.5 ms Test Speed and Superior Repeatability

Hioki LCR Meters and Impedance Analyzers range from 1 mHz to 3 GHz devices to suit a wide range of applications in the testing of electronic components. The IM7580A impedance analyzer offers a top measurement time of 0.5 ms over a 1 MHz to 300 MHz frequency, and both LCR and Analyzer Modes to meet applications for both high volume production inspections and research and development.

LCR Measurement Using the SMD Test Fixture IM9201: Impedance Analyzer IM7580 series

The IM7580 series encompasses five models covering measurement frequencies of 1 MHz to 3 GHz. Used in combination with the Test Fixture IM9201, which can accommodate six SMD sizes, IM7580 series instruments allow you to measure specimens easily and reliably.

Key Features

  • 1 MHz to 300 MHz testing source frequency
  • Fastest test speed of 0.5 msec
  • ±0.72% rdg. basic accuracy
  • Half-rack size body and palm-sized test head
  • Comprehensive contact check (via DCR testing, Hi-Z reject or waveform judgment)
  • Make frequency sweeps, level sweeps and time interval measurements in Analyzer Mode

Model No. (Order Code)

IM7580A-1 Connection cable 1 m is bundled
IM7580A-2 Connection cable 2 m is bundled
The instrument does not ship with a test fixture or probe. A test fixture designed specifically for use with the Impedance Analyzer is required.

Comparator function: Impedance Analyzer IM7580 series

A comparator function lets you check whether measured values fall within a user-defined judgment range. This functionality is ideal for use in generating PASS/FAIL judgments for specimens.

Contact check function: Impedance Analyzer IM7580 series

The instruments’ contact check function lets you check contact between the specimen and measurement terminals to detect faulty contact or verify good contact.

How to connect the test head: Impedance Analyzer IM7580 series

Connect the cable of the test head to the impedance analyzer.
Tighten the nut until the handle of the torque wrench bends slightly.
Do not over tighten.

Application information

Download the sample application and view the Communications Command User Manual.

Click here for the IMPEDANCE ANALYZER application.

Accuracy calculation information

Calculate accuracy by simply entering a numerical value.

Click here to calculate accuracy.

Basic specifications

Accuracy guaranteed: 1 year, Accuracy guarantee period after adjustment made by Hioki: 1 year
Measurement modes LCR mode, Analyzer mode (Sweeps with measurement frequency and measurement level), Continuous measurement mode
Measurement parameters Z, Y, θ, Rs (ESR), Rp, X, G, B, Cs, Cp, Ls, Lp, D (tanδ), Q
Measurable range 100 mΩ to 5 kΩ
Display range Z: 0.00 m to 9.99999 GΩ / Rs, Rp, X: ± (0.00 m to 9.99999 GΩ)
Ls, Lp: ± (0.00000 n to 9.99999 GH) / Q: ± (0.00 to 9999.99)
θ: ± (0.000° to 180.000°), Cs, Cp: ± (0.00000 p to 9.99999 GF)
D: ± (0.00000 to 9.99999), Y: (0.000 n to 9.99999 GS)
G, B: ± (0.000 n to 9.99999 GS), Δ%: ± (0.000 % to 999.999 %)
Basic accuracy Z: ±0.72 % rdg. θ: ±0.41°
Measurement frequency 1.0000 MHz to 300.00 MHz (5 digits resolution)
Measurement signal level Power: -40.0 dBm to +7.0 dBm
Voltage: 4 mV to 1001 mVrms
Current: 0.09 mA to 20.02 mArms
Output impedance 50 Ω
Display 8.4-inch color TFT with touch screen
Measurement speeds *1 FAST: 0.5 ms (Analog measurement time, typical value)
Functions Contact check, Comparator, BIN measurement (classification), Panel loading/saving, Memory function, Equivalent circuit analysis, Correlation compensation
Interfaces EXT I/O (Handler), USB communication, USB memory, LAN, RS-232C (optional), GP-IB (optional)
Power supply 100 to 240 V AC, 50/60 Hz, 70 VA max.
Dimensions and mass Main unit: 215 mm (8.46 in) W × 200 mm (7.87 in) H × 268 mm (10.55 in) D, 6.5 kg (229.3 oz)
Test head: 61 mm (2.40 in) W × 55 mm (2.17 in) H × 24 mm (0.94 in) D, 175 g (6.2 oz)
Accessories Test head ×1, Connection cable ×1, Instruction manual ×1, LCR application disc (Communications user manual) ×1, Power cord ×1

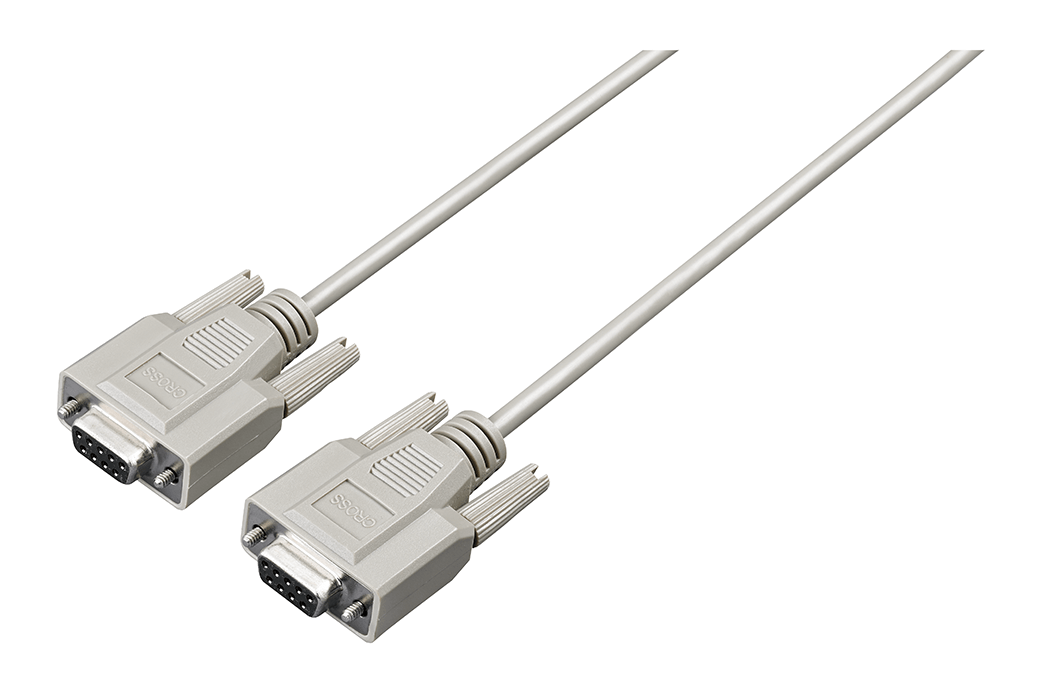

PC communication (4)
