INSULATION TESTER ST5520
Industry's Fastest Insulation Tester Assesses in as Fast as 50 ms
The Hioki electrical safety testers are designed for insulation resistance and voltage withstand testing of electrical devices and components according to various safety standards. The ST5520 is the fastest insulation tester in the industry, delivering pass/fail assessment in as fast as 50 ms. 25 V to 1000 V test voltage with 1 V resolution.
Key Features
- Rapidly assess in as fast as 50 ms
- Quick discharge of residual voltage
- Freely configurable test voltage (set from 25 V to 1000 V, 1 V resolution)
- Contact check function (prevents errors due to poor contact)
- Short-circuit check function (stops potential defects from reaching the market)
- Ideal for battery production lines
Model No. (Order Code)
ST5520 | Built-in external I/O output |
---|---|
ST5520-01 | Built-in BCD output |
Industry’s Fastest Testing Speed
The Insulation Tester ST5520 delivers the fastest insulation resistance testing in the industry, meeting all the requirements of production lines thanks to rapid takt times.
Rapidly assess in as fast as 50 ms
Testing is complete in as little as 50 ms — the fastest time in the industry. This is 700 ms faster than legacy Hioki models.

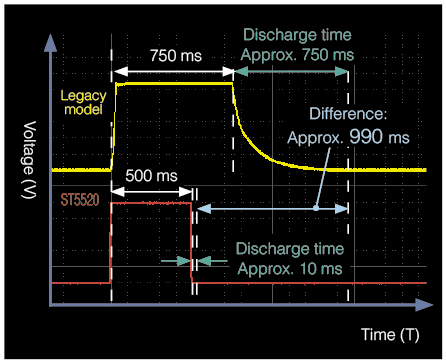

Quickly discharge residual voltage
The post-test residual voltage discharge time has been reduced significantly compared with legacy models. As a result, when comparing an identical sample under the following conditions, a takt time improvement of 990 ms is estimated.
Prevents errors due to poor contact
The contact check function allows you to check that proper contact has been made with the device under test prior to the testing. This ensures that resistance testing is not carried out without proper contact, as this can result in erroneous assessment.
There are two methods: 4-wire contact check and comparator contact check.
Stops potential defects from reaching the market
With this function, a low voltage (2 V to 4 V DC) is applied to the test patterns to check for micro-shorting prior to insulation testing.
Safe, easy operation at your fingertips

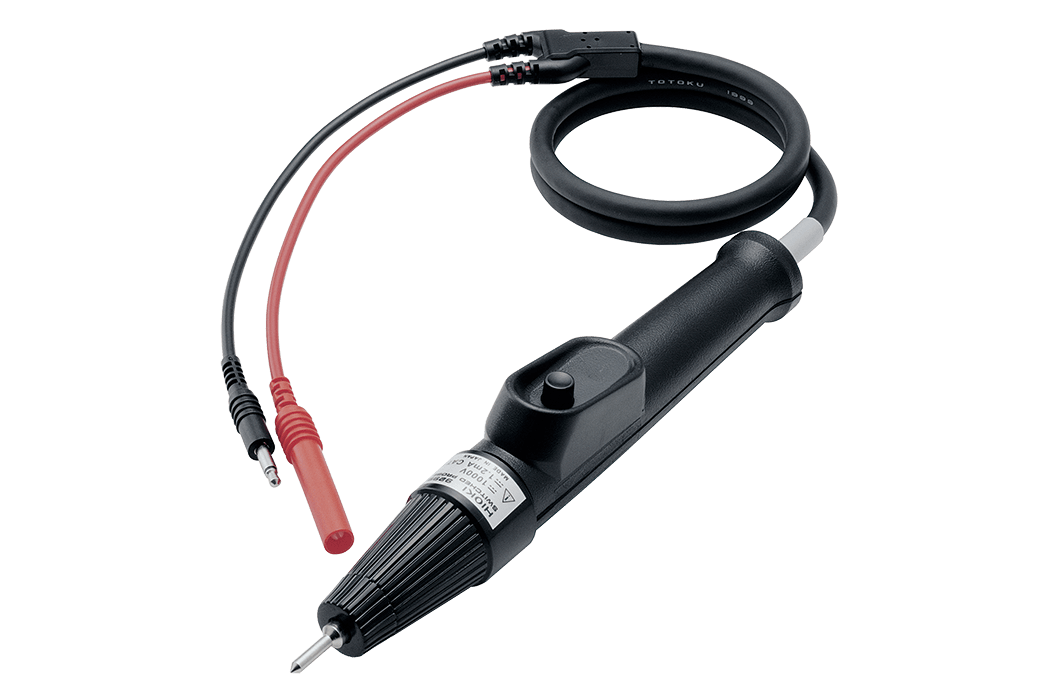

The use of optional Switched Probe 9299 lets you to operate the ST5520 while holding the probe.
Basic specifications
Measurement items | Insulation resistance (Applied DC voltage method) | |||||
---|---|---|---|---|---|---|
Testing voltage | (Measurement range: AUTO/MANUAL setting is possible) 25 V ≤ V < 100 V (2.000/20.00/200.0 MΩ), 100 V ≤ V < 500 V (2.000/20.00/200.0/2000 MΩ), 500 V ≤ V ≤ 1000 V (2.000/20.00/200.0/4000 MΩ) |
|||||
Basic accuracy | ±2 % rdg. ±5 dgt. 25 V ≤ V < 100 V [0 to 20 MΩ] 100 V ≤ V < 500 V [0 to 20 MΩ] 500 V ≤ V ≤ 1000 V [0 to 20 MΩ] |
|||||
Measurement speed | Fast: 30 ms/time, Slow: 500 ms/time (selectable) | |||||
Display | LCD (service life: 100,000 hours), 4-level backlight | |||||
Internal memory | Saved items: rated measurement voltage, comparator upper limit /lower limit values, test mode, beep sound to distinguish the result, test time, response time, resistance range, measurement speed Memory capacity: up to 10 items (can be saved/loaded) |
|||||
Comparator setting | UPPER_FAIL: Measured value ≥ upper limit value PASS: Upper limit value > measured value > lower limit value LOWER_FAIL: Measured value ≤ lower limit value |
|||||
Judgement process | Beep sound, PASS / U.FAIL/L. FAIL: light up on LED display, When UL_FAIL, U.FAIL / L.FAIL light up simultaneously, EXT.I/O output, judgement result can be obtained via RS-232C | |||||
Test duration | Definition of test duration: Test duration = Response time + Measurement time Function: Set the time from voltage application until pass/fail assessment Configuration range: 0.045 s to 999.999 s (0.001 s resolution) |
|||||
Response time timer | After the start of the test, comparator judgment operation can be prohibited until a set interval from 0.005 sec. to 999.999 sec. (at 0.001 sec. resolution) has passed. | |||||
Analog output | DC +4 V f.s. | |||||

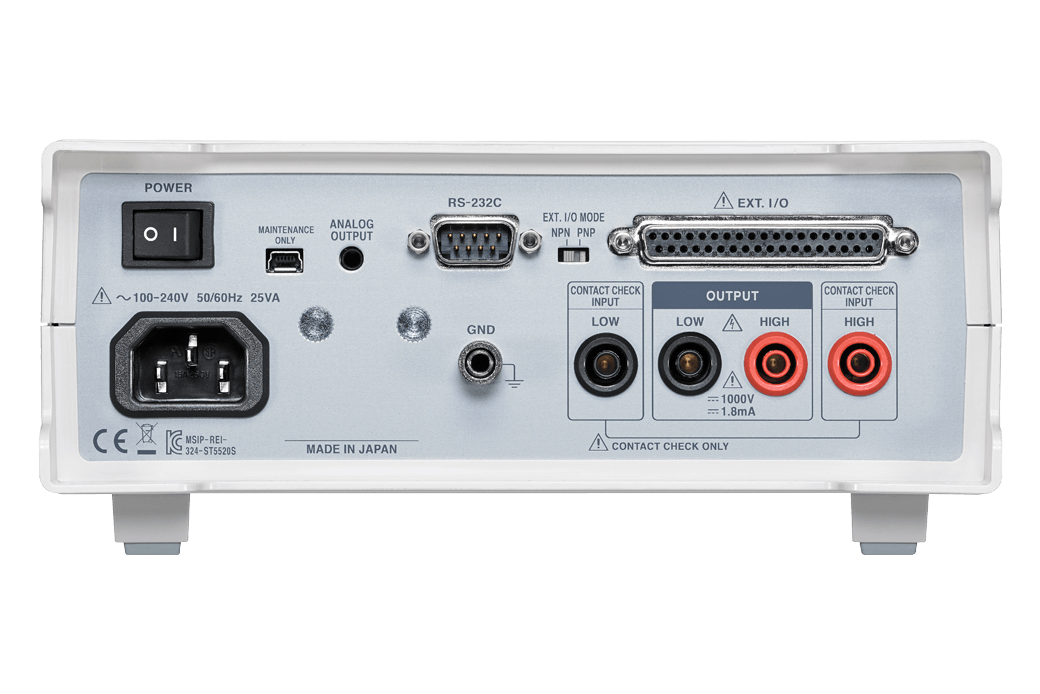

Interface | RS-232C (standard), External I/O (External control input, Judgment result) BCD output (ST5520-01 only) |
|||||
Power supply | 100 to 240 V AC, 50/60 Hz, 25 VA max. | |||||
Dimensions and mass | 215 mm (8.46 in)W × 80 mm (3.15 in)H × 166 mm (6.54 in)D, 1.1 kg (38.8 oz) | |||||
Included accessories | Instruction Manual ×1, Power cord ×1, EXT. I/O Connector ×1, Connector Cover ×1 |
Input/Output cords (4)
*Please contact your HIOKI distributor for extending the L2200 cable length
70 cm (2.30ft) length, detachable large alligator clips or needle tips are bundled, CAT IV 600V, CAT III 1000V
1.2 m (3.94 ft) length
Receiving side banana (female), output BNC (male)
80 cm (2.62 ft) length
PC Communication (1)
9 pin - 9 pin, cross, 1.8 m (5.91 ft) length
