DIFFERENTIAL PROBE 9322

3 Kinds of Measurements with a Single Probe

The 9322 is a differential probe used to measure high voltage with Hioki Memory HiCorders.

Key Features

  • Floating measurement of high-voltage waveforms (DC mode)
  • Detection of power supply surge noise (AC mode)
  • RMS rectified output (RMS mode)

Main Applications

  • Measure potential differences included in common mode voltages, such as IGBT
  • Measure commercial power line waveforms, such as on 400V power lines
  • Measure high voltage surge noise waveforms
  • Measure the RMS value of inverter output, etc.

Model No. (Order Code)

9322 For the Memory HiCorder series
The Differential Probe 9322 cannot be used by itself. Please use it in combination with the Hioki Memory HiCorder. The Differential Probe 9322 requires a power supply. For latest information about how to power the 9322 with a Memory HiCorder, please see the specifications.

Basic specifications

Accuracy guaranteed: 1 year
*1: Discontinued product
Measurement functions DC mode: Waveform monitor output, DC to 10 MHz ±3 dB
AC mode: Detection of power line surge noise, 1 kHz to 10 MHz ±3 dB
(Low frequency cut-off frequency 1 kHz ± 300 Hz)
RMS mode: Rectified RMS output of DC and AC voltages, DC, 40 Hz to 100 kHz, Response speed: 200 ms or less (400 V AC)
Max. allowable input 2000 V DC, 1000 V AC
Max. rated voltage to earth When using the Grabber Clip L9243: 1000 V AC/DC (CAT II)
When using alligator clip: 1000 V AC/DC (CAT II), 600 V AC/DC (CAT III)
Output Voltage division ratio: 1/1000, BNC terminal (DC/AC/RMS 3-mode selectable output)
DC amplitude accuracy ±1 % f.s. (1000 V DC or less), ±3 % f.s. (2000 V DC or less) (f.s.=2000 V DC)
RMS amplitude accuracy ±1 % f.s. (DC, 40 Hz to 1 kHz), ±4 % f.s. (1 kHz to 100 kHz) (f.s.=1000 VAC)
Input resistance, capacity H-L: 9 MΩ, approx 10 pF (C at 100 kHz)
H-case, L-case: 4.5 MΩ, approx 20 pF (C at 100 kHz)
Power supply +5 V to +12 V, less than 300 mA (DC jack OD 5.5 mm [0.22 in.], ID 2.1 mm [0.08 in.])

- Via AC Adapter 9418-15
- Via MR6000 dedicated Probe Power Unit Z5021 through Power Cord 9248
- Via Logic terminal on Memory HiCorder through Power Cord 9324 (*1)
- Via sensor terminal of F/V Unit 8940 (*1) through Power Cord 9325 (*1)
- Via DC power output terminal attached to the input unit for the 8855 through Power Cord 9328 (*1)
- Via the 8860 series dedicated Probe Power Unit 9687 (*1) through Power Cord 9248
Dimensions and mass 70 mm (2.76 in)W × 150 mm (5.91 in)H × 25 mm (0.98 in)D, 350 g (12.3 oz), Cord length: Input 46 cm (1.51 ft), Output 1.3 m (4.27 ft)

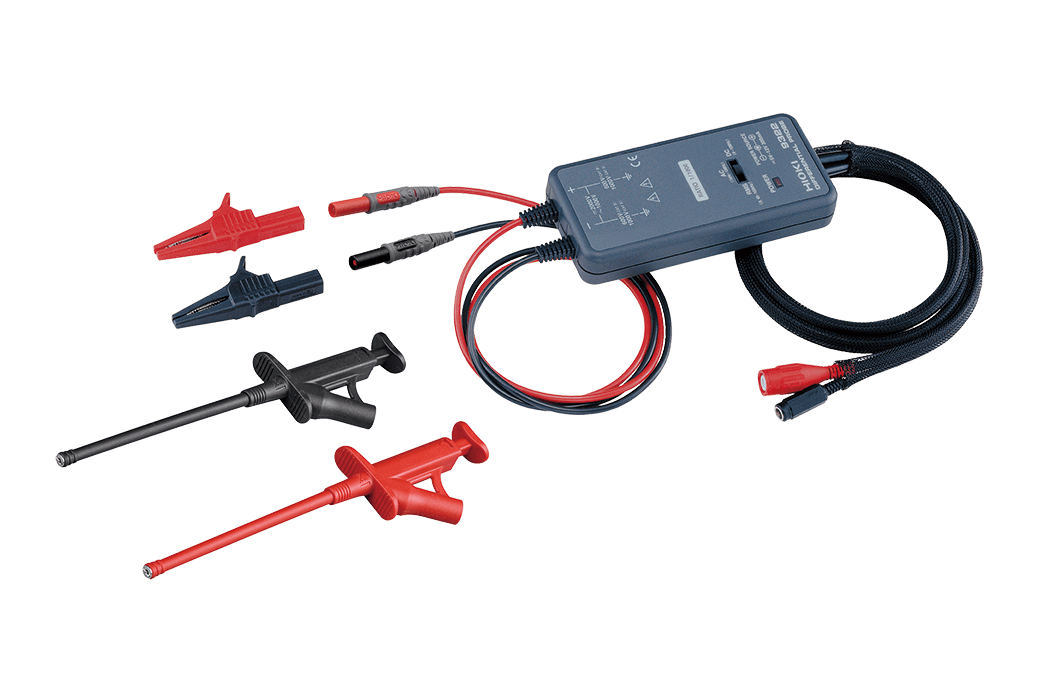

Included accessories Alligator clips ×1 (red/black set), Grabber Clip L9243 ×1 (red/black set), Carrying case C0203 ×1, Instruction manual ×1

How to power the 9322 with a Hioki Memory HiCorder (Via MR6000 dedicated Probe Power Unit Z5021)

Precaution: To avoid electric shock, connect the power cord supplied with the main unit (Memory HiCorder or AC adapter for the 9322) to a grounded 2-pole outlet.
*3: When a current sensor is connected to the Probe Power Unit Z5021, or the Current Unit 8971, U8977, the number of the 9322 connection including the current sensor is limited (up to a total of 9 including the current sensor).
Main unit Number of the 9322 connections
MR6000
MR6000-01
8 (Combined with 9248 cable) (*3)

How to power the 9322 with a Hioki Memory HiCorder (Via MR8875 DC power output terminal)

Precaution: To avoid electric shock, connect the power cord supplied with the main unit (Memory HiCorder or AC adapter for the 9322) to a grounded 2-pole outlet.
Main unit Number of the 9322 connections
MR8875 Unavailable

How to power the 9322 with a Hioki Memory HiCorder (Via F/V Unit 8940’s sensor terminal)

Precaution: To avoid electric shock, connect the power cord supplied with the main unit (Memory HiCorder or AC adapter for the 9322) to a grounded 2-pole outlet.
*1: Discontinued product
Main unit Required cord Number of the 9322 connections Number of current sensors that can be used simultaneously with the 9322
8860 (*1)
8860-50 (*1)
8861 (*1)
8861-50 (*1)
9325 (*1) 6 8
8855 (*1) N/A N/A N/A
8841 (*1)
8842 (*1)
9325 (*1) 6 4
8835-01 (*1) 9325 (*1) 4 4
8835 (*1) Unavailable Unavailable Unavailable
8826 (*1) 9325 (*1) 6 6

How to power the 9322 with a Hioki Memory HiCorder (Via Logic terminal on Memory HiCorder)

Precaution: To avoid electric shock, connect the power cord supplied with the main unit (Memory HiCorder or AC adapter for the 9322) to a grounded 2-pole outlet.
*1: Discontinued product
Main unit Required cable Number of the 9322 connections Number of logic probes that can be used simultaneously with the 9322
MR6000
MR6000-01
N/A N/A N/A
MR8740T N/A N/A N/A
MR8740
MR8741
9323 (*1) + 9324 (*1) 4 9322 ×4: Unavailable
9322 ×3: Unavailable
9322 ×2: Unavailable
9322 ×1: 2
MR8827 9323 (*1) + 9324 (*1) 4 9322 ×4: Unavailable
9322 ×3: Unavailable
9322 ×2: Unavailable
9322 ×1: 2
8847 (*1)
MR8847-01 (*1)
MR8847-02 (*1)
MR8847-03 (*1)
MR8847-51
MR8847-52
MR8847-53
9323 (*1) + 9324 (*1) 4 9322 ×4: Unavailable
9322 ×3: Unavailable
9322 ×2: Unavailable
9322 ×1: 2
8870-20 (*1)
MR8870-20
Unavailable
MR8875 Unavailable
MR8880-20 Unavailable
8860 (*1)
8860-50 (*1)
8861 (*1)
8861-50 (*1)
9323 (*1) + 9324 (*1) 2 9322 ×2: Unavailable
9322 ×1: 3
8855 (*1) 9323 (*1) + 9324 (*1) 2 9322 ×2: Unavailable
9322 ×1: 3
8841 (*1)
8842 (*1)
9324 (*1) 1 Unavailable
8835-01 (*1) 9324 (*1) 1 Unavailable
8835 (*1) 9324 (*1) 1 Unavailable
8826 (*1) 9324 (*1) 4 9322 ×4: Unavailable
9322 ×3: 4
9322 ×2: 6
9322 ×1: 7

How to power the 9322 with a Hioki Memory HiCorder (Via the 8860 [*1] series dedicated Probe Power Unit 9687 [*1])

Precaution: To avoid electric shock, connect the power cord supplied with the main unit (Memory HiCorder or AC adapter for the 9322) to a grounded 2-pole outlet.
*1: Discontinued product
*2: The number of 9322 that can be connected varies depending on the combination with the clamp probe connected to the probe power supply unit 9687.
Main unit Number of the 9322 connections
8860 (*1)
8860-50 (*1)
8861 (*1)
8861-50 (*1)
8 (Combined with 9248 cable) (*2)

How to power the 9322 with a Hioki Memory HiCorder (Via DC power output terminal attached to the input unit 8950 [*1], 8952 [*1], 8953-10 [*1], 8955 [*1] for the 8855)

Precaution: To avoid electric shock, connect the power cord supplied with the main unit (Memory HiCorder or AC adapter for the 9322) to a grounded 2-pole outlet.
*1: Discontinued product
Main unit Required cable
8855 (*1) 9328 (*1)

Included accessories (2)

Power supply (3)

Power supply 2 (2)

Option for the MR6000

Number of the 9322 connections: 8 (Combined with 9248 cable) * When a current sensor is connected to the Probe Power Unit Z5021, or the Current Unit 8971, U8977, the number of the 9322 connection including the current sensor is limited (up to a total of 9 including the current sensor).
