BATTERY TESTER BT3554 (Bluetooth® not installed)

Even Speedier Diagnosis of the Deterioration of Lead-acid Batteries

Discontinued

BT3554-50: With or without and the type of Pin Type Lead is selected by the order code.

Hioki portable battery testers support the maintenance of UPS and storage batteries critical to the life support of all businesses. The BT3554 battery internal resistance tester sets the standard for assessing the deterioration and remaining life of UPS and other lead-acid batteries by giving a complete diagnosis via battery resistance testing. The specially designed L2020 Pin Type Lead further improves testing efficiency with an L-shaped tip that lets you reach deep into the battery racks to completely probe the terminals.

Get Results in as Fast as 2 Seconds

Simply touch the test leads to the battery terminals to easily capture battery condition data with the Hioki BT3554 Battery Tester. Automatically save measurements results using the auto-hold or auto-memory function in just 2 seconds, a 60% reduction from the legacy product.

Key Features

  • Measure and save data in as fast as 2 seconds, a 60% improvement from the legacy 3554
  • Instantaneously diagnose battery degradation (PASS, WARNING, FAIL) by measuring internal resistance and voltage
  • Noise reduction technology improves noise resistance
  • New protector delivers better ergonomic hold and durability in the field.

Model No. (Order Code)

BT3554 Discontinued, bundled Pin Type Lead 9465-10
BT3554-10 Discontinued, bundled Pin Type Lead L2020
Note (1) The thresholds for determining the pass/fail condition of a battery depends on the specifications and standards of the battery manufacturer, battery type, capacity, etc. It is important and necessary to always conduct battery testing against the internal resistance and terminal voltage of a new or reference battery.
Note (2) In some cases, it may be difficult to determine the deterioration state of traditional open type (liquid) lead-acid or alkaline batteries which demonstrate smaller changes in internal resistance than sealed lead acid batteries.
For the latest information about countries and regions where wireless operation is currently supported, please visit the specifications.
Bluetooth® is a trademark of Bluetooth SIG, Inc. and licensed for use by HIOKI E.E. CORPORATION.

Generating comparative judgments based on a lead-acid battery’s internal resistance and voltage

By using its comparator function to simultaneously measure the internal resistance and voltage of a lead-acid, nickel-cadmium, or nickel-hydride battery, the BT3554 can generate comparative judgments quantifying degradation of the cell based on user-specified threshold values.

Saving data easily just by placing the leads in contact with a battery’s terminals

The BT3554’s auto-hold function automatically holds measured values once they stabilize. The instrument’s auto-memory function, which automatically stores measured values resulting from the auto-hold function in its internal memory, further streamlines work tasks.

The Best Choice Just Got Better: Speedy diagnosis of lead-acid battery deterioration status

Why switch to the BT3554 from the 3554?
Measure and save data in as fast as 2 seconds, a 60% improvement from the legacy 3554.
The same reliable instantaneous degradation diagnosis of lead-acid batteries (PASS, WARNING, FAIL) by measuring internal resistance and voltage Determine the health of your batteries even in high noise environments with the BT3554’s improved noise reduction technology.

Quicker and easier contact with battery racks using the longer and improved L-shaped probe (the L2020)

*Watch with the video subtitles on, to see detailed descriptions.

Basic specifications

Accuracy guaranteed: 1 year
　 BT3554, BT3554-10
Resistance measurement range 3 mΩ (max. display 3.100 mΩ, resolution 1 μΩ) to 3 Ω (max. display 3.100 Ω, resolution 1 mΩ), 4 ranges
Accuracy: ±0.8 % rdg. ±6 dgt. (3 mΩ range: ±1.0 % rdg. ±8 dgt.)
Testing source frequency: 1 kHz ±30 Hz, With function for avoiding noise
frequency enabled: 1 kHz ±80 Hz, Testing current: 160 mA (3m/30 mΩ range), 16 mA (300 mΩ range), 1.6 mA (3 Ω range), Open terminal Voltage: 5 V peak
Voltage measurement range ± 6 V (max. display ±6.000 V, resolution: 1 mV) to ± 60 V (max. display ±60.00 V, resolution: 10 mV), 2 ranges, Accuracy: ±0.08 % rdg. ±6 dgt.
Absolute max. input voltage 60 V DC max. (No AC input)
Display update rate Approx. 3 times/s
Comparator functions Resistance warning limit / failure limit, and voltage warning limit setting; Number of comparator setting: 200 sets, Beeper sound, PASS/WARNING or FAIL
Data storage Max. storable data: 6000 sets. (Saved items: Date, time, resistance value, voltage value, temperature, comparator setting values, and comparator judgement.)
Communication interface Via USB (forward the data to the PC, bundled software)
No Bluetooth® Wireless technology
Other functions Temperature measurement (-10.0 to 60.0 °C), Zero-adjustment, Hold, Auto-hold, Auto-memory, Auto-power-save, Clock
Power supply LR6 (size AA) alkaline battery ×8
Rated supply voltage: 1.5 V DC × 8
(Nickel metal hydride batteries may be used. However, the battery life display is not supported in this configuration.)
Continuous operating time: 8.5 hr
Dimensions and mass 199 mm (7.83 in)W × 132 mm (5.20 in)H × 60.6 mm (2.39 in)D (with protector), 937 g (33.1 oz) (including batteries and protector)
Included accessories Zero adjustment board ×1, Instruction manual ×1, Application software CD ×1, Power-on option sticker ×1, Carrying case ×1, LR6 (AA) alkaline batteries ×8, Spare fuse ×1, USB cable ×1, Neck strap ×1, Protector ×1
　 Pin Type Lead 9465-10 ×1 (Bundled with the BT3554), Pin Type Lead L2020 ×1 (Bundled with the BT3554-10)

About probe length (0)

A: From junction to probe
B: Probe part
L: Whole length

Measurement Leads A (3)

Primarily for use with lead acid batteries, easy 4-terminal measurement, 2.7 mm dia. single-axis type

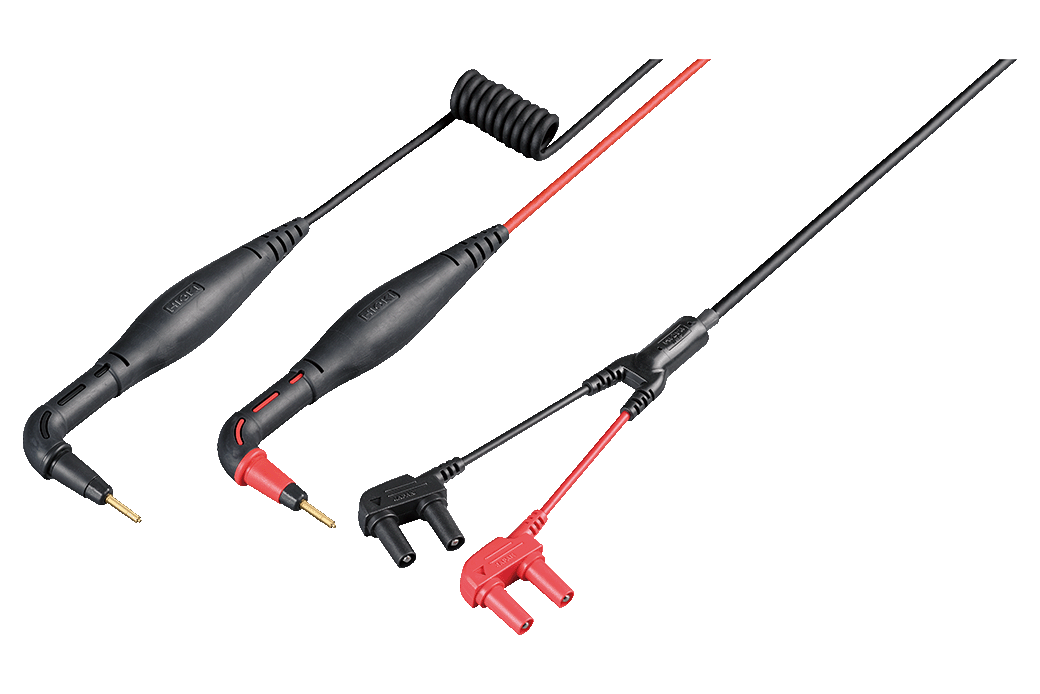

PIN TYPE LEAD L2020

A: 70 mm (2.76 in) (Red), 150 mm (5.91 in) (Black, up to 630 mm (24.8 in)), B: 164 mm (6.46 in), L: 1941 mm (76.42 in) (Red), 60 V DC

PIN TYPE LEAD 9465-10

A: 45 mm (1.77 in) red, 400 mm (15.75 in) black Max., B: 177 mm (6.97 in), L: 1925 mm (75.79 in) red, 60 V DC

TIP PIN 9465-90

To replace the tip on the 9465-10, L2020, (one piece)

Measurement Leads B (2)

Primarily for use with lead acid batteries, large angle of probe application, 2.5 mm pitch 2-axis pin type

PIN TYPE LEAD 9772

A: 45 mm (1.77 in) red, 400 mm (15.75 in) black Max., B: 173 mm (6.81 in), L: 1921 mm (6.30 ft) red, 60 V DC

TIP PIN 9772-90

To replace the tip of models Pin Type Lead 9772, L2100, L2110, L2120, and Pin Type Probe L2003 (one pin)

Measurement Leads C (3)

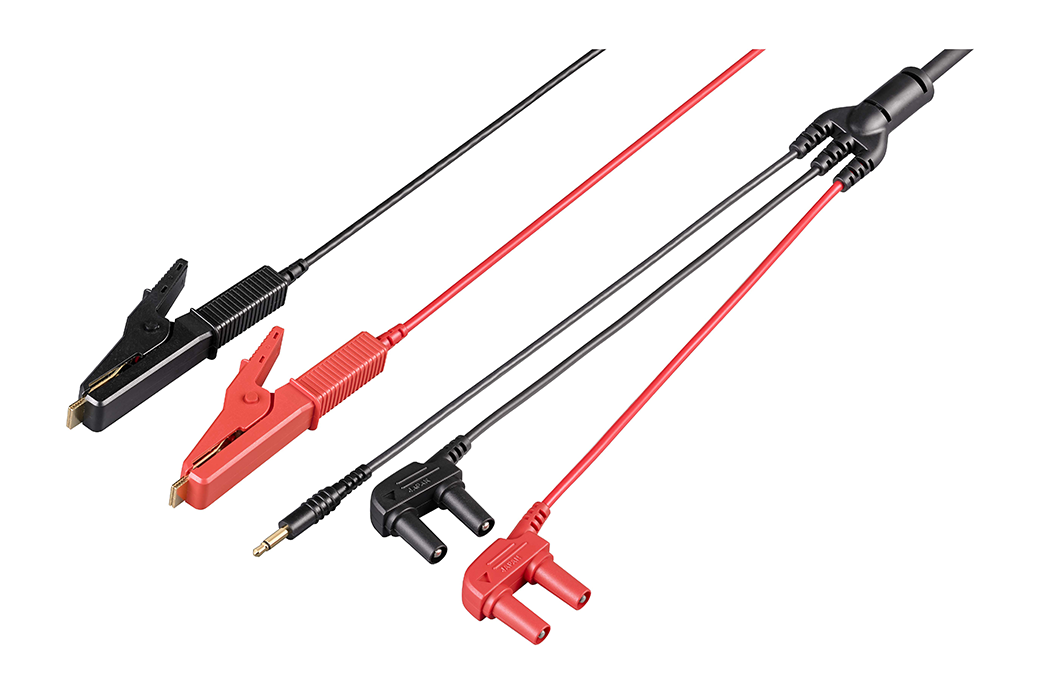

CLIP TYPE LEAD WITH TEMPERATURE SENSOR 9460

A:300 mm (11.81 in), B:106 mm (4.17 in), L:2268 mm (7.44 ft)

REMOTE CONTROL SWITCH 9466

Can hold the values while measuring them. For the BT3554 series (use with the L2020), 9772, 9465-10

LARGE CLIP TYPE LEAD 9467

A: 300 mm (11.81 in.), B: 131 mm (5.16 in.), L: 1350 mm (53.15 in.), tip φ 28 mm (1.10 in.), 50 V DC

Option (2)

0 ADJ BOARD: Use commercially available hook-and-loop fasteners when securing to the carrying case.

0 ADJ BOARD Z5038

For models L2120, L2100, L2110, L2020, 9465-10, 9772

FUSE SET Z5050

Replacement fuse set (5 pieces), for the BT3554 and BT3554-50
