ANALOG MΩ HiTESTER 3490

Hioki insulation testers or megohmmeters feature all-in-one designs including built-in rugged cases and test lead storage compartments. The 3490 is a 3-range, 250/500/1000V analog insulation resistance meter with efficient functions and features to help shorten work time associated with field insulation testing.
CAT III 600 V

Key Features

3-range testing voltage of 250/500 V (insulation resistance testing up to 100 MΩ), and 1000 V (insulation testing up to 4000 MΩ)
Continuity check at 3 Ω range via 200 mA testing
Bright LED luminous scale
Check for live circuits and battery status

Model No. (Order Code)

3490	Bundled with standard Test Lead L9787

3-range 250V・500V/1000MΩ 1000V/2000MΩ, easy-to-read scale for insulation resistance values

Robust, damage-resistant design

These instruments feature a robust design that can withstand being dropped onto concrete from a height of 1 m. Difficult to damage, this insulation tester is ideal for use in the field.

White LED lighting that’s easy to read in dim locations in the field

The scale is lit by a white LED, ensuring that insulation resistance values are easy to read, even when using the instrument in a dim location.

Continuous monitoring of battery life

You can keep track of remaining battery life since it’s shown on the LED, eliminating the need to worry about sudden loss of battery power in the field.

Measurement switch designed for outstanding ease of use

The instrument’s measurement switch can be operated with just the thumb. Press for a single measurement or lift up for continuous measurement of insulation resistance.

Remote control to start and stop insulation resistance measurement from the leads

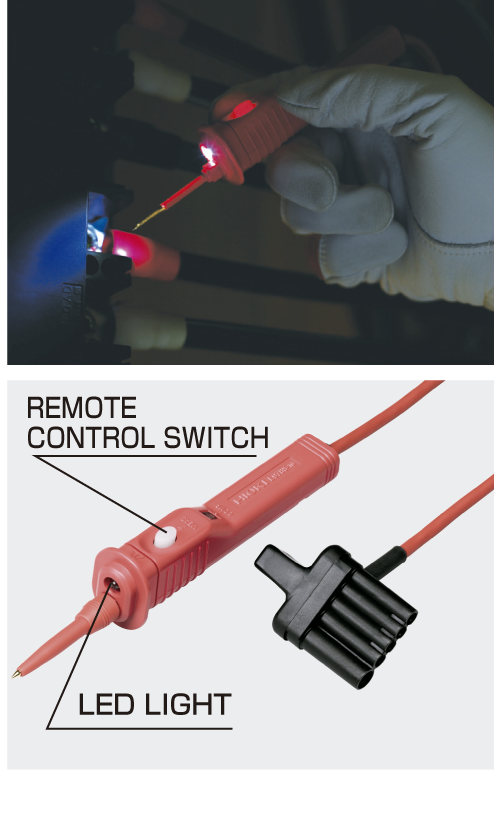

By using switch-equipped measurement leads, you can start and stop insulation resistance measurement remotely. There’s also a handy light for improved convenience when working in dim locations.

Function rotary switch designed for maximum safety

This insulation tester has voltages grouped by application with an “OFF” position between them to help keep users from inadvertently applying the wrong voltage.

Basic specifications

Accuracy guaranteed: 1 year

Rated output voltage	250 V DC	500 V DC	1000 V DC
Effective maximum indicated value	100 MΩ	100 MΩ	4000 MΩ
Accuracy 1st effective measuring range	±2 % of scale length 0.05 to 50 MΩ	±2 % of scale length 0.05 to 50 MΩ	±2 % of scale length 2 to 1000 MΩ
Lower limit resistance	0.25 MΩ	0.5 MΩ	1 MΩ
	(Measurement resistance value to maintain testing voltage)
Overload protection	660 V AC (10 sec.)
Low resistance range	3 Ω (at 200 mA testing current), ±0.09 Ω accuracy, 30 Ω (at 20 mA testing current), ±0.9 Ω accuracy, Open-circuit voltage: 4.1 to 6.9 V
AC voltage range	0 to 600 V (50/60 Hz), ±5 % of maximum scale value accuracy, 100 kΩ or more input resistance
Other functions	Bright LED luminous scale, Drop proof (on concrete, 1 m/1 time), Battery check, Live circuit check, Auto discharge
Power supply	LR6 (AA) alkaline batteries ×4, Continuous use: 20 hours (at 500 V range, no load)
Dimensions and mass	159 mm (6.26 in)W × 177 mm (6.97 in)H × 53 mm (2.09 in)D, 610 g (21.5 oz), (including battery, excluding test lead)
Included accessories	Test lead L9787 ×1, Instruction manual ×1, Shoulder strap ×1, LR6 (AA) alkaline batteries ×4
