POWER QUALITY ANALYZER 3197

3-Phase 4-Wire Portable Power Quality Analyzer to Detect, Measure and Record Power Quality Issues, Harmonics, Demand, Inrush and Power Transients

Hioki portable power meters and analyzers are best in class power measuring instruments for measuring single to three-phase lines with a high degree of precision and accuracy. The 3197 is a handheld power quality analyzer for monitoring and recording power supply anomalies, allowing their causes to be quickly investigated.

Key Features

  • Single-phase 2-wire/single-phase 3-wire/three-phase 3-wire/three-phase 4-wire
  • Catch power quality problems on the fly, before they catch you
  • Record measurement data on internal memory for easy transfer to a PC via USB
  • Analyze measurement data on a bundled PC aplication software

Model No. (Order Code)

3197 Discontinued, main unit, clamp sensor is sold separately
Note: Optional current sensor is necessary to measure current or power parameters.

Basic specifications

Accuracy guaranteed: 1 year
Measurement line type Single-phase 2-wire, single-phase 3-wire, three-phase 3-wire, three-phase 4-wire
Measurement range [Voltage] 600.0 V AC, [Current] 500.0 mA to 5.000 kA AC (depends on current sensor in use),
[Power] 300.0 W to 9.00 MW (depends on combination of current range and line type)
Basic accuracy Voltage: ±0.3 % rdg. ±0.2 % f.s.
Current: ±0.3 % rdg. ±0.2 % f.s. + current sensor accuracy
Active power: ±0.3 % rdg. ±0.2 % f.s. + current sensor accuracy (at power factor=1)
Measurement items 1. RMS Voltage and Current (200 ms calculation)
2. Voltage (1/2) RMS: one cycle calculation refreshed every half cycle
3. Current (1/2) RMS: half-cycle calculation
4. Frequency
5. Active Power/ Reactive Power/ Apparent Power/ Power Factor/ Displacement Power Factor/ Active or Reactive Energy Consumption
6. Demand (Active or Reactive power)
7. Up to 50th Harmonic Analysis (Time series measurement or recording is not available)
8. Peak Voltage and Current
9. Total harmonic voltage distortion ratio
10. Voltage Unbalance Factor
11. K Factor (Time series recording is not capable)
12. Total harmonic current distortion ratio (Time series recording is not available)
Event Detection 1. Voltage Swells (Rise), Voltage Dips (Drop), Interruptions: RMS value detected using voltage (1/2) measured every half cycle
2. Inrush Current: RMS value detected using current (1/2) every half cycle
3. Transient Overvoltage: 50 Vrms or more detection, 10 to 100 kHz
4. Timer: Detect events at preset intervals
5. Manual: Detect events when keys are pressed
Number of Recordable Events 50 event waveforms, 20 event voltage fluctuation graphs, 1 inrush current graph, 1000 event counts
Interfaces USB 2.0 (Communication with the PC)
Display 4.7-inch color STN LCD
Power supply AC adapter 9418-15 (100 - 240 V, 50/60 Hz), Battery pack 9459, Continuous use 6 hr (LCD Back-light auto-OFF 5 min.), 23 VA max.
Dimensions and mass 128 mm (5.04 in)W × 246 mm (9.69 in)H × 63 mm (2.48 in)D, 1.2 kg (42.3 oz) (with Battery pack)
Included accessories Voltage cord L9438-55 ×1 (Black ×4), AC adapter 9418-15 ×1, Power cord ×1, Battery pack 9459 ×1, Input terminal labels ×1, Input cord labels ×1, Strap ×1, Instruction manual ×1, Measurement guide ×1, USB Cable ×1, CD-R (Applications software) ×1, Carrying case ×1

Voltage input (4)

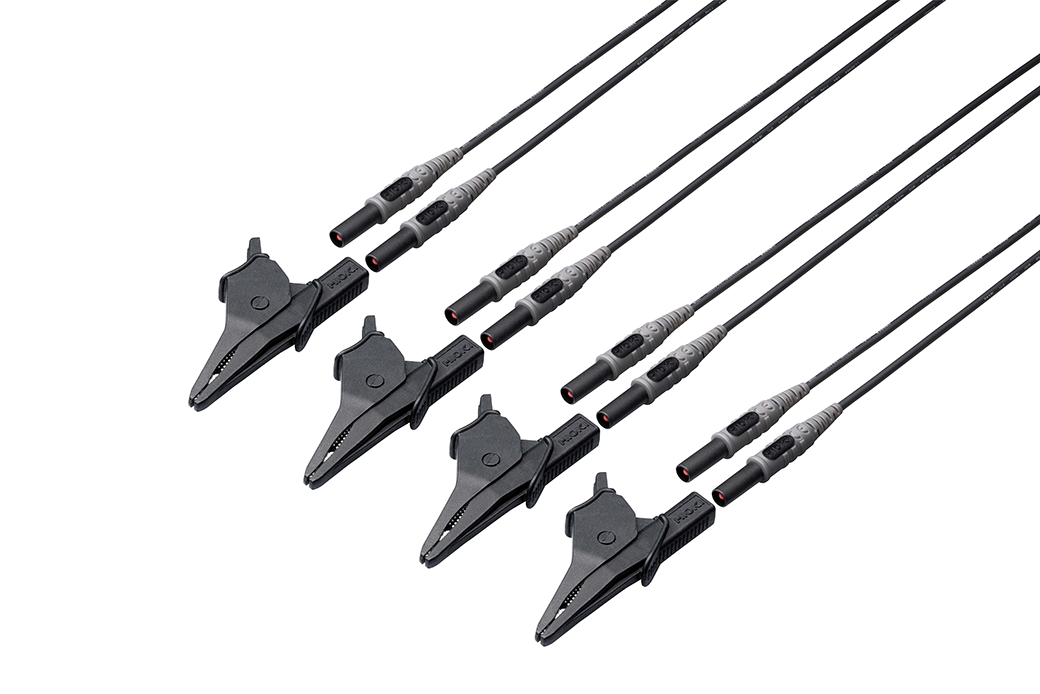

*The L9438-55 is bundled

Power supply (2)

*The 9459, 9418-15 are bundled
