ANALOG MΩ HiTESTER IR4017
Reliable and Efficient Insulation Testing in the Field
Hioki insulation testers or megohmmeters feature all-in-one designs including built-in rugged cases and test lead storage compartments. The IR4017-20 is a single-range, 500 V/1000 MΩ analog insulation resistance tester with efficient functions and features to help shorten work time associated with field insulation testing.
CAT III 600 V
- Single range testing voltage of 500 V
- Test insulation resistance up to 1000 MΩ
- Built tough to withstand a 1-meter drop onto a concrete floor
- Bright LED luminous scale
- Check for live circuits and battery status
- Integrated hard case for quick and easy storage without disconnecting the leads
Model No. (Order Code)
|IR4017-20||500 V/ 1000 MΩ, Test Lead L9787 bundled|
Single 500 V/1000 MΩ range with simple, easy-to-read scale for insulation resistance values
Robust, damage-resistant design
These instruments feature a robust design that can withstand being dropped onto concrete from a height of 1 m. Difficult to damage, this insulation tester is ideal for use in the field.
White LED lighting that’s easy to read in dim locations in the field
The scale is lit by a white LED, ensuring that insulation resistance values are easy to read, even when using the instrument in a dim location.
Continuous monitoring of battery life
You can keep track of remaining battery life since it’s shown on the LED, eliminating the need to worry about sudden loss of battery power in the field.
Measurement switch designed for outstanding ease of use
The instrument’s measurement switch can be operated with just the thumb. Press for a single measurement or lift up for continuous measurement of insulation resistance.
Remote control to start and stop insulation resistance measurement from the leads
By using switch-equipped measurement leads, you can start and stop insulation resistance measurement remotely. There’s also a handy light for improved convenience when working in dim locations.
|Rated output voltage||500 V DC|
|Effective maximum indicated value||1000 MΩ|
|Accuracy 1st effective measuring range||±2 % of scale length, 1 M to 500 MΩ|
|Lower limit resistance||0.5 MΩ (measurement resistance value to maintain testing voltage)|
|Overload protection||600 V AC (10 sec.)|
|AC voltage range||0 to 600 V (50/60 Hz), ±5 % of maximum scale value accuracy,
500 kΩ or more input resistance
|Other functions||Bright LED luminous scale, Drop proof (on concrete, 1 m/1 time), Battery check, Live circuit check, Auto discharge|
|Power supply||LR6 (AA) alkaline batteries ×4, Continuous use: 20 hours (no load)|
|Dimensions and mass||159 mm (6.26 in) W × 177 mm (6.97 in) H × 53 mm (2.09 in) D, 610 g (21.5 oz), (including battery, excluding test lead)|
|Included accessories||Test Lead L9787 ×1, LR6 (AA) alkaline batteries ×4, Instruction manual ×1, Shoulder strap ×1|
L9787 options (2)
Exclusively for the L9787 *The L9787 is bundled
Bundled with alligator clip, 1.2 m (3.94 ft) length

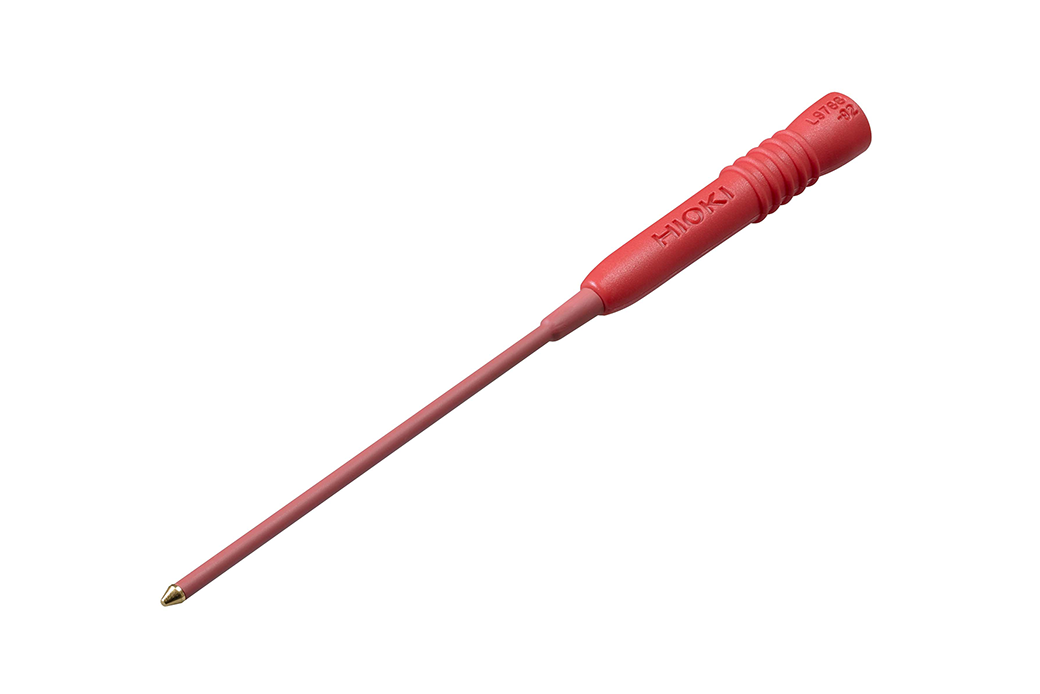

For checking breaker terminal, Detachable for tip of the L9787, 48 mm (1.89 in) length, φ 2.6 mm (0.10 in)
L9788 options (4)
Exclusively for the L9788-10/ L9788-11
Bundled with Test Lead with Remote Switch L9788-10/ Earth lead, alligator clip, 1.2 m (3.94 ft) length
For checking breaker terminal, Detachable for tip of the L9788-10, 65 mm (2.56 in) length, φ 2.6 mm (0.10 in)
Lighting LED lamp & comparator indicator (Operate only when main unit provides a comparator function), 1.2 m (3.94 ft) length
Spare parts for tip of the L9788/ L9788-10, Tip length 35 mm (1.38 in)/φ 3.2 mm (0.13 in)
Shared option (1)
Attached to the Earth side lead tip
Attaches to the tip of cord, black ×1, φ11 mm (0.43 in)
