HIGH VOLTAGE INSULATION TESTER IR5051
Measure Solar PV System Insulation Resistance Safely and Accurately While Generating.
Maximum 5kV Test Voltage - Up to 10 TΩ of Insulation Resistance Testing.
NEW
The IR5051 is a compact, lightweight, high-voltage insulation resistance tester capable of outputting up to 5 kV. Its unique measurement technology enables stable measurements of up to 10 TΩ. In addition, the IR5051 is capable of testing the insulation resistance of solar PV systems during power generation, and has a CAT III 2000 V safety rating to allow testing of 2000 V PV systems.
- Dedicated Measurement Function
- In addition to a normal insulation resistance measurement mode, the IR5051 also features a specialized mode for measuring PV insulation resistance.
- Flexible Voltage Range
- Effectively measures 1500 V solar PV systems and is prepared to accommodate systems up to 2000 V as technology advances.
- Standards Compliance
- Complies with IEC 62446-1 for Category 1 and Category 2 tests, ensuring robust safety and performance
Key Features
- Measure solar PV system insulation resistance safely and accurately while generating
- Measure insulation of high-voltage equipment (such as transformers, cables, and motors)
- Wide testing voltage range, up to 5000 V from 250 V DC
- Wide measurement insulation range, up to 10 TΩ
- Automatically calculated and displayed insulation diagnostics (PI, DAR, and DD)
- Data memory functions increase your work efficiency by eliminating human errors from manual reporting.
- Selectable Interface Compatibility: Offers both wireless and USB connectivity options.
- Compact and lightweight, equipped with an IP65-rated carrying case
Model No. (Order Code)
IR5051 | Wireless Adapter Z3210 not included |
---|---|
IR5051-90 | Bundled with the Wireless Adapter Z3210 |
2000 V solar power system compatible
Measure insulation resistance while the solar PV system continues to generate
The CAT III 2000 V and CAT IV 1000 V rated IR5051 can measure insulation resistance and open-circuit voltage in solar power systems up to 2000 V safely.
The IR5051 has a PV insulation resistance measurement function. It features the ability to measure even while PV systems are generating power. This means you don’t have to wait until night for measurement or stop power generation.
Identify ground faults in solar power systems using our free app, GENNECT Cross
The CAT III 2000 V and CAT IV 1000 V rated IR5051 can measure insulation resistance and open-circuit voltage in solar power systems up to 2000 V safely.
- 1.Use the IR5051's dedicated PV insulation function to measure the insulation resistance of solar strings during operation and detect faulty strings.
- 2.Measure the voltage at the disconnect switch and send it to GENNECT Cross; the software will locate the panel with the ground fault. This IR5051 is capable of safely and accurately measuring voltages up to 2,000 V DC.
Accurate, easy-to-use insulation resistance meter
Intuitive and precise high-voltage insulation testing
Easy-to-use insulation resistance meter with intuitive rotary knob operation.
- Selectable output voltage with 5 range settings for insulation resistance testing.
- Adjust the output voltage between 250 V and 5 kV in increments of 10 V or 25 V to accommodate specific testing needs.
- Automatic AC/DC detection for seamless voltage measurement.
Precision stability in high voltage insulation testing
When the test object has very high resistance, the insulation resistance meter measures minute currents. Because such measurements are sensitive to even minor changes in the environment, the readings can become unstable. The IR5051 reduces environmental influences using shielded wires, and its unique measurement technology enables stable measurements up to 10 TΩ.
Advanced diagnostics and calculations in insulation testing
Tailored measurement methods with advanced insulation diagnostic functions
When a high test voltage is continuously applied to the circuit under test, the insulation may break down. Failures caused by the application of a high voltage can be prevented by keeping the applied voltage as low as possible while testing the insulation.
The IR5051 is equipped with various insulation diagnostic functions, allowing you to choose the optimal measurement method according to the testing application.
Automatically calculated and displayed insulation diagnostics
After measurement completes, the instrument can display more than just the insulation resistance and leakage current, but also judgement index values of PI, DD, and DAR. It calculates these indexes based on the measured values and displays it as a pass/fail judgment.
Safety engineered
High-Safety design insulation resistance meter

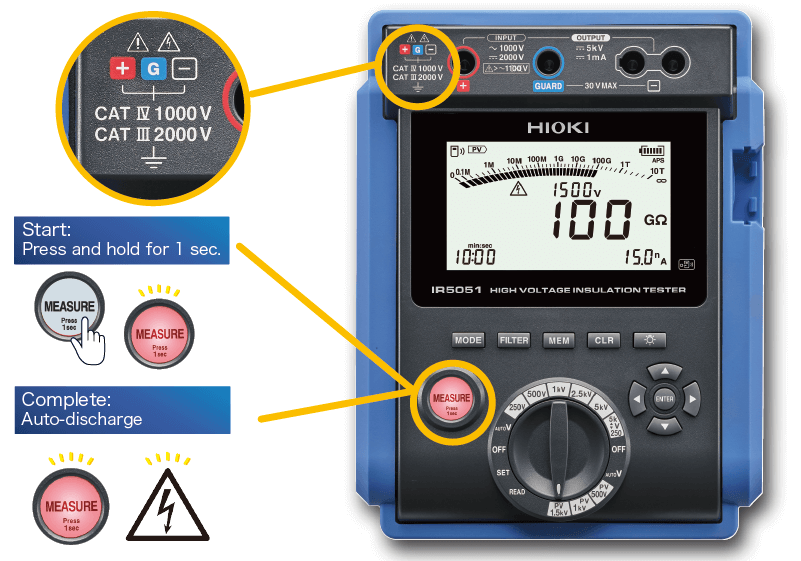

CAT III, CAT IV rated IR5051 hold the highest standards in safety performance. You may think that insulation resistance measurement is not dangerous because it is performed under power outage conditions, but on the contrary, accidents can be dangerous. The IR5051 have enhanced safety performance in case of such an accident.
Start test: Press and hold for 1 sec. to start measurement. This feature helps prevent inadvertent activation of a high voltage.
To encourage caution, the MEASURE button flashes when a high voltage is being generated or discharged.
Complete: The IR5051 will start discharging automatically as soon as the test is over. During this time, the test start button will flash red to indicate that it is discharging.
Wireless and USB connectivity options for even greater convenience
Wireless support(*1)
- *1:The optional Wireless Adapter Z3210 is required.
Installing the Wireless Adapter Z3210 on the instrument enables Bluetooth® wireless communication, facilitating the transfer of measurements to your smartphone or tablet.
Enhance your insulation resistance meter with GENNECT Cross
- A time-series graph of the current provides a visualization of the insulation state of a high-voltage cable. Utilize the logging function of GENNECT Cross to generate time-series graphs of data recorded at one-second intervals, enhancing the analysis and understanding of trends.
- Field Maintenance function: Using a picture of the site, this function can display the measurement values where the measurements are made.
- Report function: Easily create PDF reports with measurement results.
Excel® Direct Input Function
Boost work efficiency in the field by letting you directly transfer measurement data to (i.e., enter measured values directly into) templates created as Excel®.
Transfer data via USB after measurement
Transfer measured values and logging data saved on the instrument to a PC via USB (*2). This function requires Sequence Maker, a free Excel add-in.
See details about Sequence Maker
- *2:DMM Communicator DT4900-01 is required (sold separately).
Rugged protection
Dustproof & waterproof case for outdoor work
The Carrying Case C0212 is a rigid case with IP65 dust and water protection. It provides space for the insulation resistance meter and test leads so that they can be transported easily.
Basic specifications
Measurement parameters | • Insulation resistance • PV insulation resistance • Leakage current • Voltage • Capacitance (DD function) |
---|---|
Max. rated voltage to terminals | 1000 V AC, 2000 V DC |
Max. rated voltage to ground | 1000 V (CAT IV), 600 V (CAT III) |
Operating temperature and humidity range | -20°C to 50 °C (*1) (no condensation) |
Storage temperature and humidity range | -25°C to 65°C (-13°F to 149°F), less than 80% RH (no condensation) |
Dustproof/waterproof | IP40 (with protector attached, excluding terminals) IP65 (CARRYING CASE C0212) |
Standards | EN61010 (safety), EN61326 (EMC), IEC 61557-1, IEC 61557-2 (Insulation resistance tester) |
Power supply | • LR6 (AA) alkaline battery × 8 • HR6 (AA) nickel-metal hydride (NiMH) rechargeable battery × 8 |
Continuous operating time (*2) | Approx. 5 hours without Z3210 installed; approx. 4 hours with Z3210 installed and using wireless communication |
Dimensions and weight | 195 mm (7.68 in.) W × 254 mm (10 in.) H × 89 mm (3.50 in.) D, 1.7 kg (59.97 oz.) (including batteries) |
Included accessories | Test lead L9850-01 ×1, Test lead L9850-02 ×1, Test lead L9850-03 ×1, Alligator clip L9851-01 ×1, Alligator clip L9851-02 ×1, Alligator clip L9851-03 ×1, Test pin set L9852 ×1, Carrying Case C0212 ×1, LR6 Alkaline battery ×8, Instruction manual ×1, Operating precautions ×1, Wireless adapter Z3210(IR5051-90 only) |
- *1:-20°C to 40°C (-4°F to 104°F), less than 80% RH , 40°C to 45°C (104°F to 113°F), less than 60% RH , 45°C to 50°C (113°F to 122°F), less than 50% RH
- *2:When using alkaline batteries, 5 kV generated, +/- terminals open, backlight off and comparator off
Functions
Insulation diagnosis | PI, DAR, DD, SV, Ramp, Timer (*3) |
---|---|
Others | Battery charge indicator, live circuit indicator, automatic power save, automatic discharge, backlight, buzzer, manual recording, logging recording, temperature and humidity input, elapsed time display, clock, filter, hardware filter, data-hold, system reset, USB communication (only when DT4900-01 is installed), wireless communication (only when Z3210 is installed), comparator, resistance gauge display, switching of insulation diagnosis function, breakdown cut-off, negative voltage notification |
- *3:Only for can be set in the PV insulation resistance function
PV insulation resistance
Test voltage range | DC 250 V to 2.00 kV | ||
---|---|---|---|
Test voltage presets | 500 V, 1 kV, 1.5 kV | ||
User-set test voltage | 250 V to 1 kV: in 10 V increments; 1 kV to 2 kV: in 25 V increments | ||
Test voltage preset | 500 V | 1000 V | 1500 V |
Guaranteed accuracy range (1) | 0.00 MΩ to 5.00 GΩ ±5% rdg ±5 dgt | 0.00 MΩ to 10.00 GΩ ±5% rdg ±5 dgt | 0.00 MΩ to 20.0 GΩ ±5% rdg ±5 dgt |
Guaranteed accuracy range (2) | 5.01 GΩ to 100 GΩ ±20% rdg | 10.1 GΩ to 100 GΩ ±20% rdg | 20.1 GΩ to 100 GΩ ±20% rdg |
Rated current | [Test voltage] / [20 MΩ] | ||
Open-circuit voltage | From 0% to 10% of test voltage | ||
Short-circuit current | 2 mA or less | ||
Possible number of measurements | 1000 times or more on one set of fully-charged batteries |
Insulation resistance measurement
Test voltage range | DC 250 V to 5.20 kV DC | ||||
---|---|---|---|---|---|
User-set test voltage | 250 V to 1 kV: in 10 V increments; 1 kV to 5 kV: in 25 V increments | ||||
Test voltage preset | 250 V | 500 V | 1000 V | 2500 V | 5000 V |
Guaranteed accuracy range (1) | 0.00 MΩ〜2.50 GΩ ±5% rdg ±5 dgt | 0.00 MΩ〜5.00 GΩ ±5% rdg ±5 dgt | 0.00 MΩ〜10.0 GΩ ±5% rdg ±5 dgt | 0.00 MΩ〜25.0 GΩ ±5% rdg ±5 dgt | 0.00 MΩ〜50.0 GΩ ±5% rdg ±5 dgt |
Guaranteed accuracy range (2) | 2.51 GΩ〜500 GΩ ±20% rdg | 5.01 GΩ〜1.00 TΩ ±20% rdg | 10.1 GΩ〜2.00 TΩ ±20% rdg | 25.1 GΩ〜5.00 TΩ ±20% rdg | 50.1 GΩ〜10.00 TΩ ±20% rdg |
Rated current | 1 mA to 1.2 mA | ||||
Short-circuit current | 2 mA or less | ||||
Possible number of measurements | 200 times or more on one set of fully-charged batteries |
Leakage current measurement
Measurement range (auto) | 10 nA | 100 nA | 1000 nA | 10 μA | 100 μA | 1 mA |
---|---|---|---|---|---|---|
Display range | 0.00 nA to 9.99 nA | 9.0 nA to 99.9 nA | 90 nA to 999 nA | 0.90 μA to 9.99 μA | 9.0 μA to 99.9 μA | 90 μA to 999 μA (*4) 0.90 mA to 3.00 mA (*5) |
Resolution | 0.01 nA | 0.1 nA | 1 nA | 0.01 μA | 0.1 μA | *4: 1 μA *5: 0.01 mA |
Voltage measurement
Guaranteed accuracy range | 30 V to 1,000 V AC (45 Hz to 65 Hz), ±10 V to ±2,000 V DC |
---|---|
Accuracy | ±3% rdg. ±3 dgt. |
Input resistance | 500 kΩ or more (DC, 45 Hz to 65 Hz) |
Overload protection | 1100 V AC (1 min., between +/- terminals) 2200 V DC (1 min., between +/- terminals) |
Capacitance measurement
Accuracy | ±10% rdg. ±5 nF (guaranteed accuracy range: 10.0 nF to 25.0 µF) | ||
---|---|---|---|
Measurement range | 100 nF | 1000 nF | 10 μF |
Display range | 0.0 nF to 99.9 nF | 100 nF to 999 nF | 1.00 μF to 9.99 μF (*6) 10.0 μF to 25.0 μF (*7) |
Resolution | 0.1 nF | 1 nF | *6: 0.01 μF *7: 0.1 μF |
Included accessories (9)
Z3210 is included with IR5051-90 only
IP65
Red, 3 m (9.84 ft.)
Black, 3 m (9.84 ft.), shielded cable
Blue, 3 m (9.84 ft.)
Red, for L9850
Black, for L9850
Blue, for L9850
Red and black, for L9850
Test leads (6)
Red, 3 m (9.84 ft.)
Black, 3 m (9.84 ft.), shielded cable
Blue, 3 m (9.84 ft.)
Red, 10 m (32.81 ft.)
Black, 10 m (32.81 ft.), shielded cable
Blue, 10 m (32.81 ft.)
Aligator clips (3)
Red, for L9850
Black, for L9850
Blue, for L9850
Test pin set (1)
Red and black, for L9850
Communications (2)
Compatible to Windows 10
Carrying case (1)
IP65
