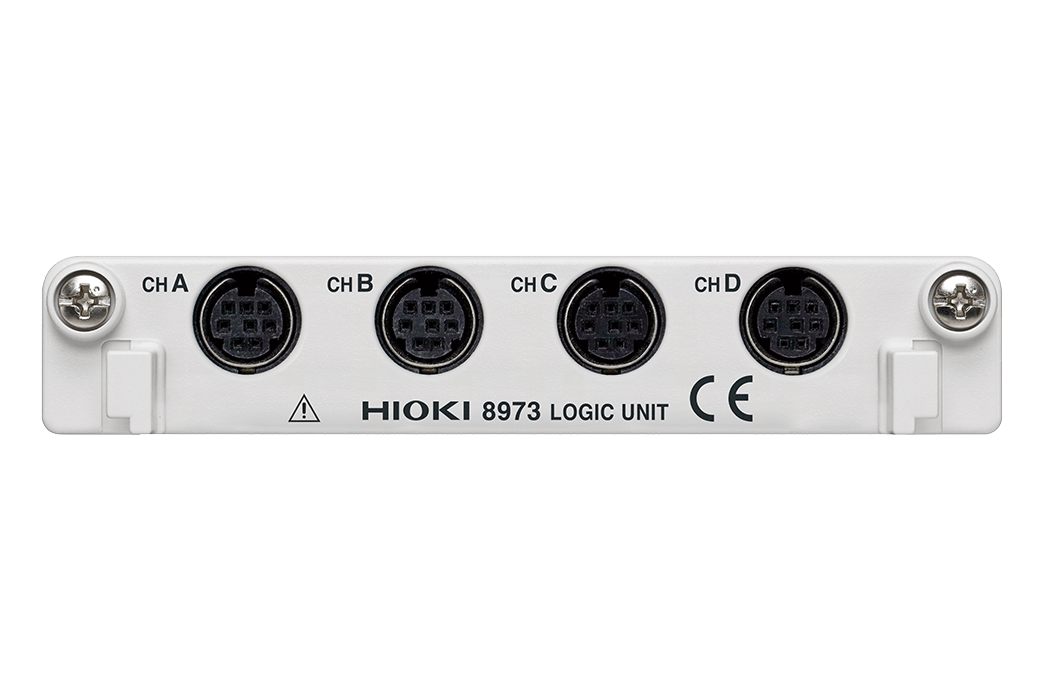

LOGIC UNIT 8973
Measure logic signals, such as the ON/OFF of relays
- Increases the number of logic probe terminals
- Install up to 4 units in the Memory HiCorder to achieve a maximum of 16 logic channels
Model No. (Order Code)
|8973||For MR6000, MR8847A, MR8827, and similar products|
Note: This module must be used with the Memory HiCorder. Input probes are not included. Please purchase them separately.
List of Available Memory HiCorders
Please refer to the table here for the types of input units that can be used for each Memory HiCorder.
Accuracy guaranteed: 1 year
|Measurement functions||Number of channels: 16 channels (4 ch/1 probe connector × 4 connectors)|
|Input connectors||Mini DIN connector (for HIOKI logic probes only),
Compatible logic probes: 9320-01, 9327, 9321-01
|Dimensions and mass||106 mm (4.17 in) W × 19.8 mm (0.78 in) H × 196.5 mm (7.74 in) D, 190 g (6.7 oz)|
