ST5520 Sample Application

ST5520 Sample Application

V1.10  Jun 12, 2017

The copyright to the executable program file and associated documents is owned by HIOKI E.E. CORPORATION.
This utility may not be bundled with software or other publications which are sold for profit without the express written permission of the copyright owner.
Further, this product may not be modified without the express written permission of the copyright owner.


HIOKI disclaims any and all responsibility for any consequences arising out of use of this software.


  • Application(ST5520SampleApplicationInstallerEN110.zip)

    DOWNLOAD

Specifications

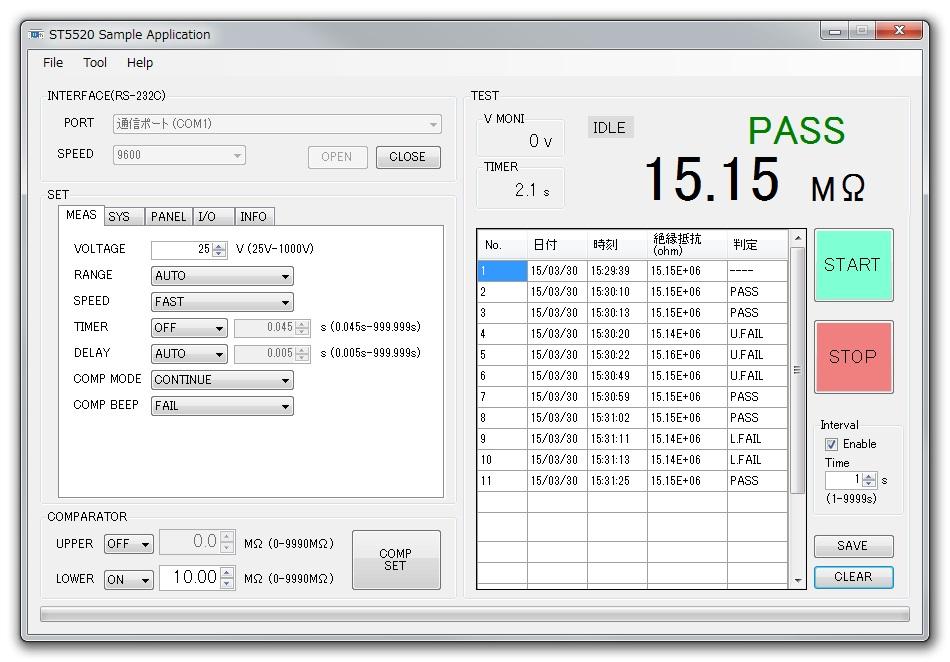

 The ST5520 Sample Application (this application) can perform the following operations on the ST5520 and ST5520-01:
・Setting test conditions such as the measurement voltage and timer
・Setting upper and lower limit values for the comparator
・Acquiring measured values and judgment results, and saving them in CSV format
・Performing interval measurement
・Saving and loading panels
・Testing communications command transmit/receive functionality
・Backing up and restoring instrument settings
Measure using EXT I/O or 9299 switched probe

Version Upgrade History

V1.10
・Add Measure using EXT I/O or 9299 switched probe
・Correspond to ST5520 firmware V2.02

V1.00
・Release

Operating Environment

・CPU: Operating speed of 1 GHz or greater
・RAM: 512 MB or greater
・Operating system: Windows 10, Windows 8.1, Windows 8, or Windows 7 (32-bit or 64-bit)
・Microsoft .NET Framework 4.0
・Interface: RS-232C
・Monitor resolution: 1,024×768 or greater
・Hard drive: Free space of 5 MB or greater (If .NET Framework 4.0 has not yet been installed, about 900 MB more free space will be required.) Additional free space for saving recorded data
