HiTESTER 3030-10

Basic Analog Tester (20 kiloohm/V)

The Hioki 3030-10 is an analog multimeter that measures voltage, current and resistance, with robust construction that withstands a 1 meter drop onto a concrete floor.

CAT III 600 V

Key Features

  • Drop proof design withstands drop onto a concrete floor from a height of 1 meter
  • LED check, Battery check support

Model No. (Order Code)

3030-10

Simple, easy-to-read scale

Robust design that can withstand being dropped onto concrete from a height of 1 m

Included carrying case designed to hold probes

Basic specifications

Accuracy guaranteed: 1 year
DC voltage range 0.3 V (16.7 kΩ/V), 3/12/30/120/300/600 V (20 kΩ/V)
Accuracy: ±2.5 % f.s. Max. rated voltage: 600 V
AC voltage range 12 V (9 kΩ/V) Accuracy: ±4 % f.s.
30/120/300/600 V (9 kΩ/V) Accuracy: ±2.5 % f.s.
Average rectifier effective value, Max. rated voltage: 600 V
DC current range 60 µA/30 m/300 mA (300 mV internal voltage drop)
Accuracy: ±3 % f.s.
Resistance range 0 to 3 kΩ (center scale 30 Ω), R × 1, R × 10, R × 100, R × 1 k
Accuracy: ±3 % of scale length
Battery check 0.9 to 1.8 V, load resistance 10 Ω, Accuracy: ±6 % f.s.
Temperature scale Note: The 3030-10 includes a temperature measurement scale, but because the optional Thermister Temperature Probe 9021-01 has been discontinued, the scale is not available for new customers.
Power supply For resistance measurement range, R6P (AA) ×2 batteries
Dimensions and mass 95 mm (3.74 in) W × 141 mm (5.55 in) H × 39 mm (1.54 in) D, 280 g (9.9 oz)
Included accessories Test Lead L9207-30 ×1, Spare fuse ×1, R6P (AA) manganese batteries ×2, Instruction manual ×1, Carrying case 9390 ×1

Options (5)

- The L9207-30 and the 9390 are bundled.
- L4933 and L4934 should be connected to the end of L9207-30.

CONTACT PIN SET L4933

Attaches to the tip of the Test Lead L9207-10/DT4911, L9206, 60V DC/ 30V AC

SMALL ALLIGATOR CLIP SET L4934

Attaches to the tip of the L4932, L9207-10/DT4911, L9206, CAT III 300 V, CAT II 600 V

TEST LEAD L9207-30

70 cm (2.30 ft) length

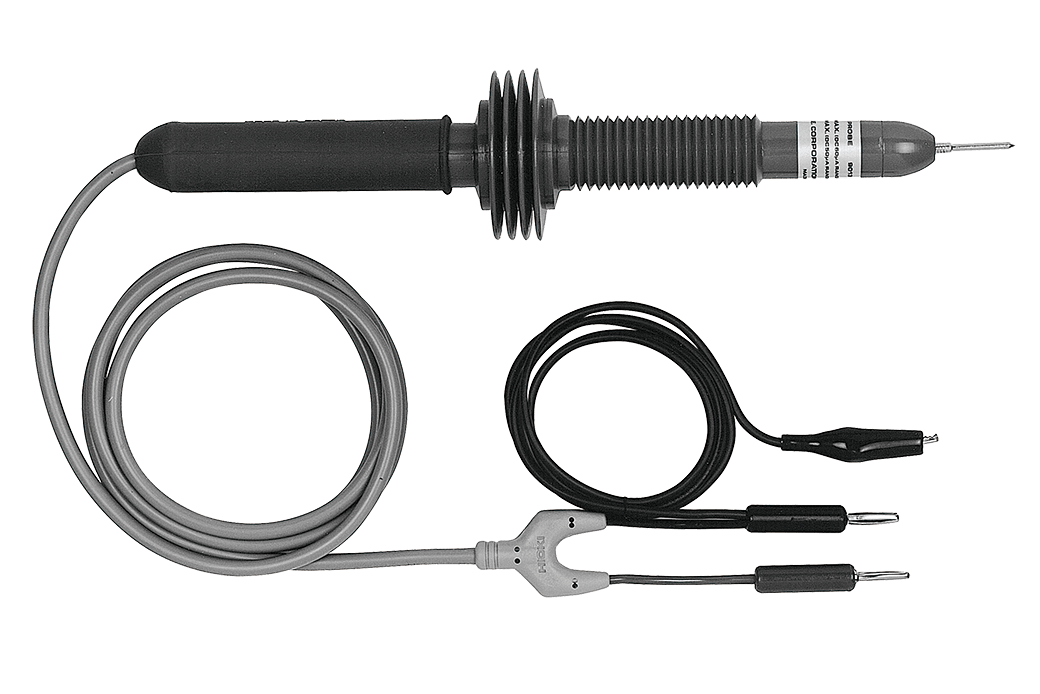

HIGH VOLTAGE PROBE 9017

HIGH-VOLTAGE PROBE 9017
Up to 30kV DC, 1.4 m (4.59 ft) length, not CE marked

CARRYING CASE 9390

Plastic type
