TEMPERATURE LOGGER LR5011

Main unit only. Sensors sold separately: Not covered by warranty

Hioki compact 1 or 2-channel data loggers feature a 60,000 data set/channel memory to measure temperature, humidity, voltage or instrumentation signals. The LR5011 logs temperature over 1 channel in as fast as 1 second intervals.

Key Features

Easily mount the light-weight , pocket-sized loggers in tight spaces
Easy-to-see dual display
Transfer data to PC even during recording*
Replace batteries while recording (30 second limit)
3 times the memory capacity than predecessor (Record 60,000 data per channel)
Record without missing fluctuations in STAT mode
Measurement data is preserved even after the battery dies
Worry-free backup preserves recorded data even if a new measurement is started by mistake

*Optional accessory is required and sold separately.

Model No. (Order Code)

LR5011	Temperature 1ch

Note: Communication Adapter LR5091 or Data Collector LR5092-20 is necessary to transfer data from a LR5000 series Logger to a PC

Basic specifications

Accuracy guaranteed: 1 year

Measurement items	Temperature 1ch (with optional sensor)
Measurement range	-40.0°C to 180.0°C Depends on measurement range of sensor
Basic accuracy	±0.5°C (main unit + sensor accuracy, at 0.0 to 35.0°C) Note: Basic accuracy is typical value, refer to the detailed catalog
Storage capacity	Instantaneous value mode: 60,000 data, Statistical value mode: 15,000 data
Recording interval	1 to 30 sec., 1 to 60 min., 15 selections
Recording modes	Instantaneous recording: at every recording interval Statistical value recording: Measure at one second intervals, and record the instantaneous, maximum, minimum, and average values within every recording interval
Recording methods	One-time recording: Stop recording when the memory capacity is full Endless recording: Continue recording even when the memory capacity is full (old data is overwritten) Start: Logger button operation or scheduled time Stop: Logger button operation or scheduled time, or auto-stop when the memory capacity is full (at one-time recording)
Other functions	Always backs up last recorded data; backs up recorded data and setting conditions when battery power is low; guarantees approx. 30 sec. of recording operation and clock while battery is replaced
Waterproof and dust-proof	IP54 (EN60529) (with sensor connected, but not including sensor tip)
Interfaces	Infrared optical communications with LR5091, LR5092-20
Power supply	LR6 (AA) Alkaline battery × 1, Battery life: Approx. 2 years (Instantaneous recording, with 1-minute interval and auto power saving, at 20 °C), Approx. 2 months (Instantaneous recording, with 1-second interval at 20 °C)
Dimensions and mass	79 mm (3.11 in) W × 57 mm (2.246 in) H × 28 mm (1.10 in) D, 105 g (3.7 oz)
Included accessories	LR6 (AA) Alkaline battery (built-in internal) × 1, Instruction manual × 1, Operation guide × 1, Kickstand × 1

Optional sensors (9)

TEMPERATURE SENSOR LR9601

1 m (3.28 ft) length
(Molded plastic type)
Temperature range : -40 to 180 ˚C (-40 to 356 ˚F)
Response time : 100 sec (90% response time)
Sensor head size: φ6 × 28 mm (0.24 in × 1.10 in)

TEMPERATURE SENSOR LR9602

5 m (16.41 ft)
(Molded plastic type)
Temperature range : -40 to 180 ˚C (-40 to 356 ˚F)
Response time : 100 sec (90% response time)
Sensor head size: φ6 × 28 mm (0.24 in × 1.10 in)

TEMPERATURE SENSOR LR9603

10 m (32.81 ft)
(Molded plastic type)
Temperature range : -40 to 180 ˚C (-40 to 356 ˚F)
Response time : 100 sec (90% response time)
Sensor head size: φ6 × 28 mm (0.24 in × 1.10 in)

TEMPERATURE SENSOR LR9604

45 mm (1.77 in)
(Molded plastic type)
Temperature range : -40 to 180 ˚C (-40 to 356 ˚F)
Response time : 100 sec (90% response time)
Sensor head size: φ6 × 28 mm (0.24 in × 1.10 in)

TEMPERATURE SENSOR LR9611

1 m (3.28 ft) length
(Lug type)
Temperature range : -30 to 180 ˚C (-22 to 356 ˚F)
Response time : 45 sec (90% response time)
Outer diameter: φ7 mm (0.26 in)
Inner diameter: φ3.2 mm (0.13 in)

TEMPERATURE SENSOR LR9612

5 m (16.41 ft)
(Lug type)
Temperature range : -30 to 180 ˚C (-22 to 356 ˚F)
Response time : 45 sec (90% response time)
Outer diameter: φ7 mm (0.26 in)
Inner diameter: φ3.2 mm (0.13 in)

TEMPERATURE SENSOR LR9613

10 m (32.81 ft)
(Lug type)
Temperature range : -30 to 180 ˚C (-22 to 356 ˚F)
Response time : 45 sec (90% response time)
Outer diameter: φ7 mm (0.26 in)
Inner diameter: φ3.2 mm (0.13 in)

TEMPERATURE SENSOR LR9621

1 m (3.28 ft) length
(Sheathed type)
Temperature range : -40 to 120 ˚C (-40 to 248 ˚F)
Response time : 90 sec (90% response time)
Sensor head size: φ4 × 180 mm (0.16 in × 7.09 in)

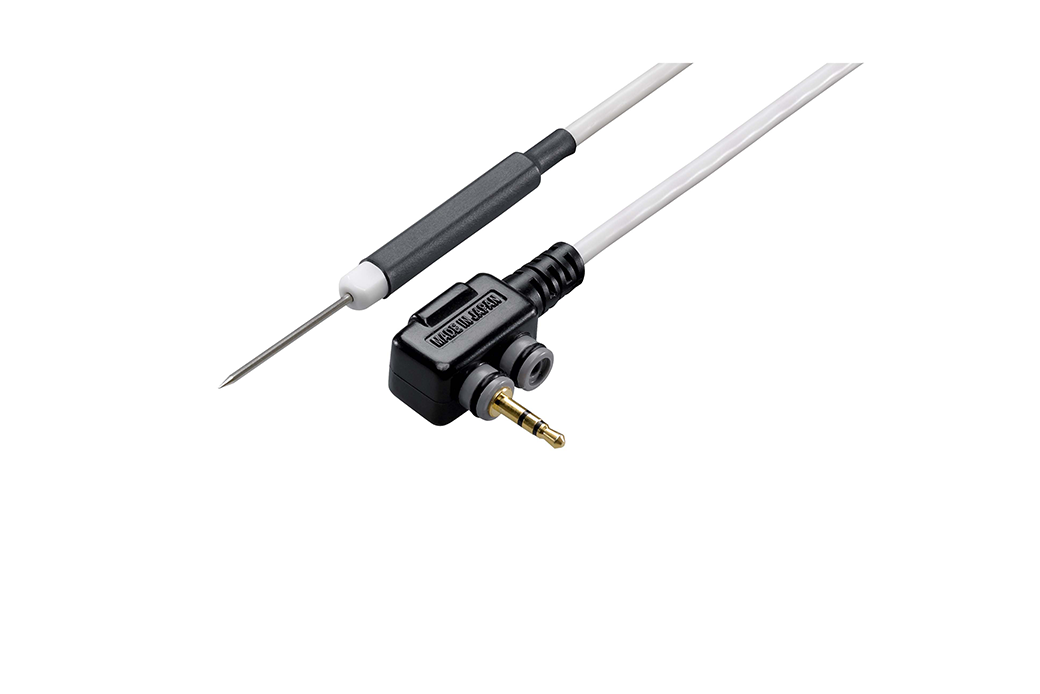

TEMPERATURE SENSOR LR9631

1 m (3.28 ft) length
(Needle type)
Temperature range : -40 to 120 ˚C (-40 to 248 ˚F)
Response time : 20 sec (90% response time)
Sensor head size: φ1.3 × 25 mm (0.05 in × 0.98 in)

Options (2)

For data acquisition to PC

COMMUNICATION ADAPTER LR5091

Learn more

• Transfer data from logger to PC
• Transfer setting/clock data from PC to logger
• Free bundled software

DATA COLLECTOR LR5092

Learn more

• Collect up to 60,000 data x 16 channels from LR5000 series loggers
• Transfer data from logger to PC
• Transfer setting/clock data from PC to logger
• Free bundled software
