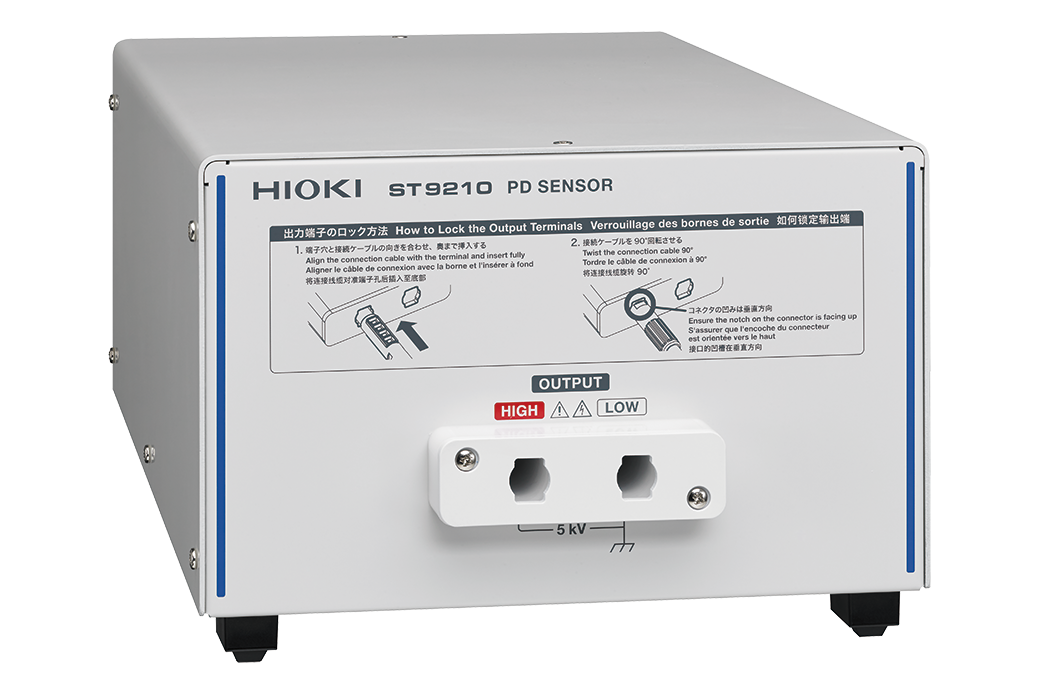

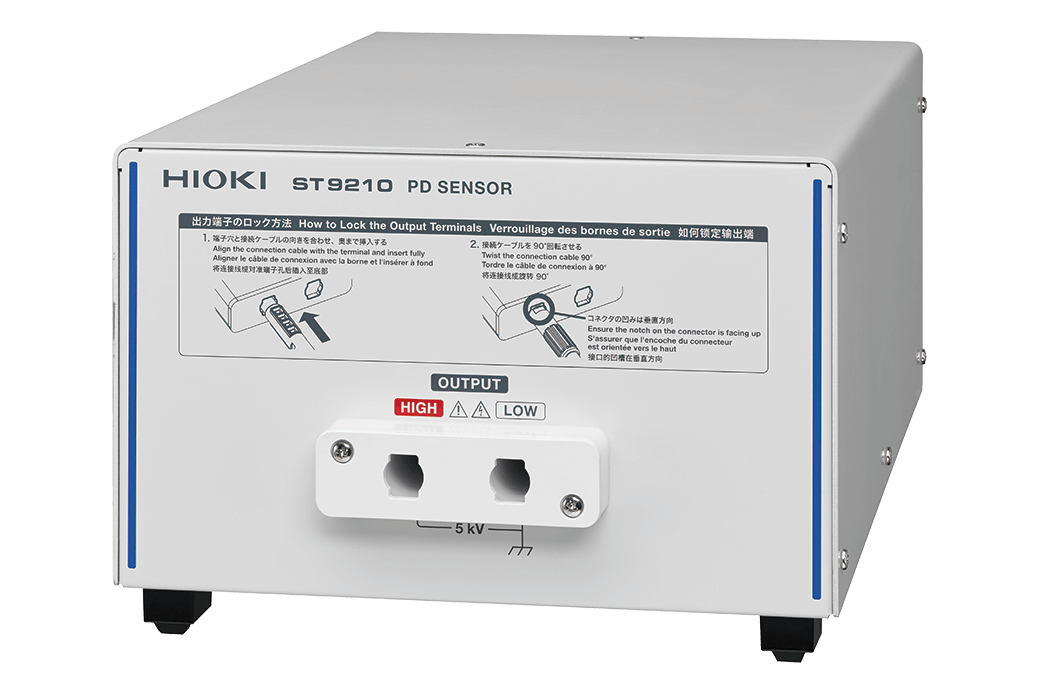

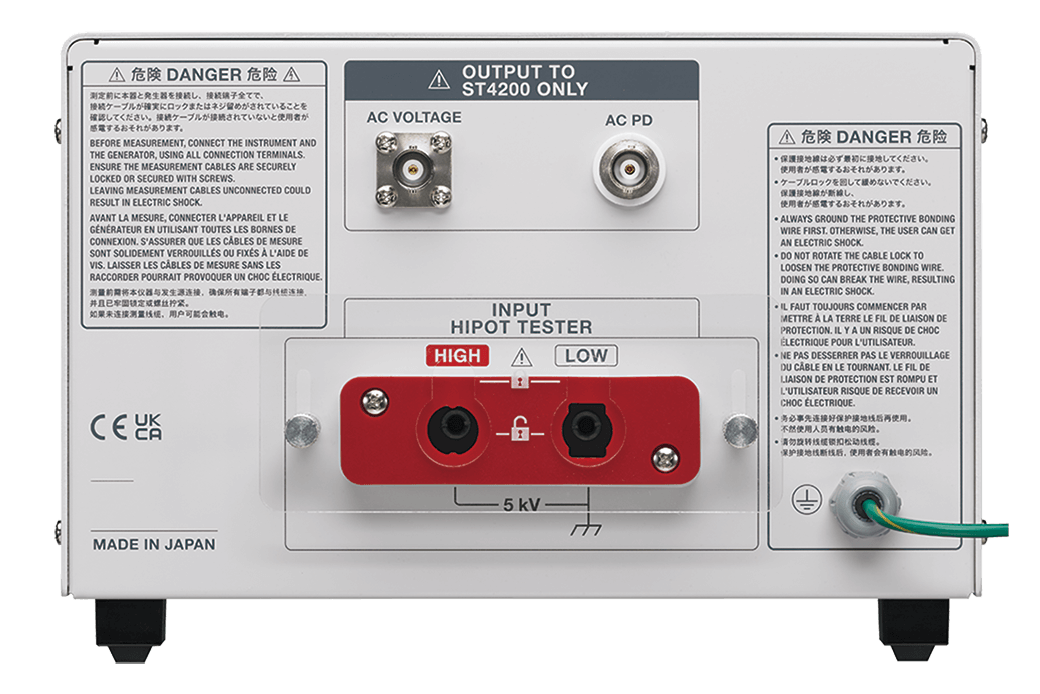

PD SENSOR ST9210
PD sensor for AC partial discharge (AC PD) testing
NEW
Partial Discharge Sensor Optimized for AC Partial Discharge Testing
The ST9210 is a partial discharge sensor designed for use in partial discharge (PD) testing during product development and production-line inspections of motors, insulation components, and other high-voltage devices. It supports AC PD testing using high-voltage AC sources and can handle input voltages up to 5 kV rms/7.07 kVpeak. The ST9210 is ideal for applications requiring high test voltages, such as EV motors, ensuring reliable and accurate discharge detection.
Key Features
- Detects partial discharges on waveforms up to 5 kV rms/7.07 kVpeak
- Works with the ST4200 Partial Discharge Detector for reliable partial discharge detection
- Compatible with various AC high voltage sources
Model No. (Order Code)
| ST9210 |
|---|
Designed for stand-alone use in ACPD testing during R&D and pilot production
Maximum Input Voltage: 5 kV rms/7.07 kVpeak
Compatible Partial Discharge Detector: ST4200-50
Compatible AC High Voltage Sources: 3153, or third-party voltage sources (hipot testers)

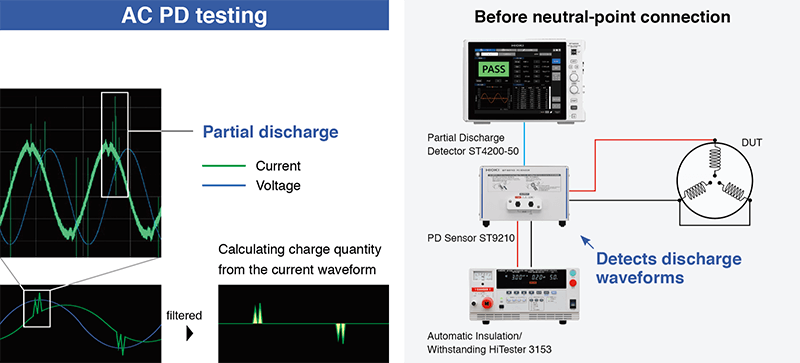

The ST9210 enables AC partial discharge (AC PD) testing when used in combination with the ST4200-50 Partial Discharge Detector and an AC high voltage source. It supports discharge detection up to 5 kV rms/7.07 kVpeak and can be paired with your existing AC high voltage source (such as a withstand voltage tester). Ideal for creating a test environment in the development and evaluation stages before full system integration.
Basic specifications
| Maximum input voltage | AC 5 kV rms, DC 5 kV, 7.07 kV peak |
|---|---|
| Maximum rated line-to-ground voltage | No measurement category: AC 5 kV rms, DC 5 kV, 7.07 kV peak, Anticipated transient overvoltage 0 V |
| Internal blocking coil inductance | 14 mH ±20% |
| Internal coupling capacitor capacitance | 1.33 nF ±10% |
| Measurable DUT capacitance range | 10 nF or less |
| Operating temperature and humidity range | 0°C to 40°C (32°F to 104°F), 80％RH or less (non-condensing) |
| Standards | Safety: EN 61010 |
| Dimensions and mass | Approx. 215 mm (8.46 in.) W × 132 mm (5.20 in.) H × 360 mm (14.17 in.) D, Approx. 3.57 kg (126 oz.) |
| Included accessories | Instruction manual, Operating precautions |
Unterminated Lead Cables (2)
Red, 3 m
Black, 3 m
Connection Cables (3)
Red Hi: For connecting the 3153, 1.5 m
Black Low: For connecting the 3153, 1.5 m
For connecting the ST4200 and SW2001, 1.5 m
-
