HIGH VOLTAGE SCANNER 3930
5kV AC/DC High Voltage Scanner that Supports Automatic Multi-point Testing
The Hioki 3930 is a passive auxiliary tester that is connected to and controlled by the Hioki 3153 automatic insulation/withstanding tester or a sequencer, and is designed to safely permit testing of multiple points with a minimum of connection changes.
Key Features
- Output of the input high voltage from a user-selected channel
- 8 ch per unit (single mode), with up to 32 ch (4 connected units)
- Isolated high-voltage I/O, control signal lines, and power supply
- Control using the 3153 program function or with a standard sequencer
Model No. (Order Code)
| 3930 | For the 3153 and similar products |
|---|
Basic specifications
| Operation modes | Multi-mode: Scanning of user-selected points for high 4 ch / low 4 ch Single mode: Common scan of high 8 ch - common |
|||||
|---|---|---|---|---|---|---|
| Rated voltage used | 5 kV AC / 5 kV DC | |||||
| Operation indications | Lamps light up when power is supplied and when a specified channel is operating | |||||
Relay area
| Max. open and closed voltage | 5000 V DC, 5000 V AC | |||||
|---|---|---|---|---|---|---|
| Max. open and closed current | 1.0 A (open and closed capacity: 50 W) | |||||
| Contact point indirect contact resistance | 500 mΩ or less, with 1 mA AC | |||||
| Contact point max. capacity | 50 W | |||||
| Time | Operation time: 6 ms or less, Recovery time: 6 ms or less | |||||
| Power supply | VSCV 24 V DC, ±10% (applied using the control signal input connector), 12 VA max. | |||||
| Dimensions and mass | 316 mm (12.44 in) W × 100 mm (3.94 in) H × 350 mm (13.78 in) D, 4.2 kg (148.1 oz) | |||||
| Included accessories | Control input connector connection cable ×1, H.V. Test Lead 9615-01 (red) ×8, H.V. Test lead (black) ×1, Grounding cable ×1, Instruction manual ×1 | |||||
Options (1)
*The 9615-01 is bundled

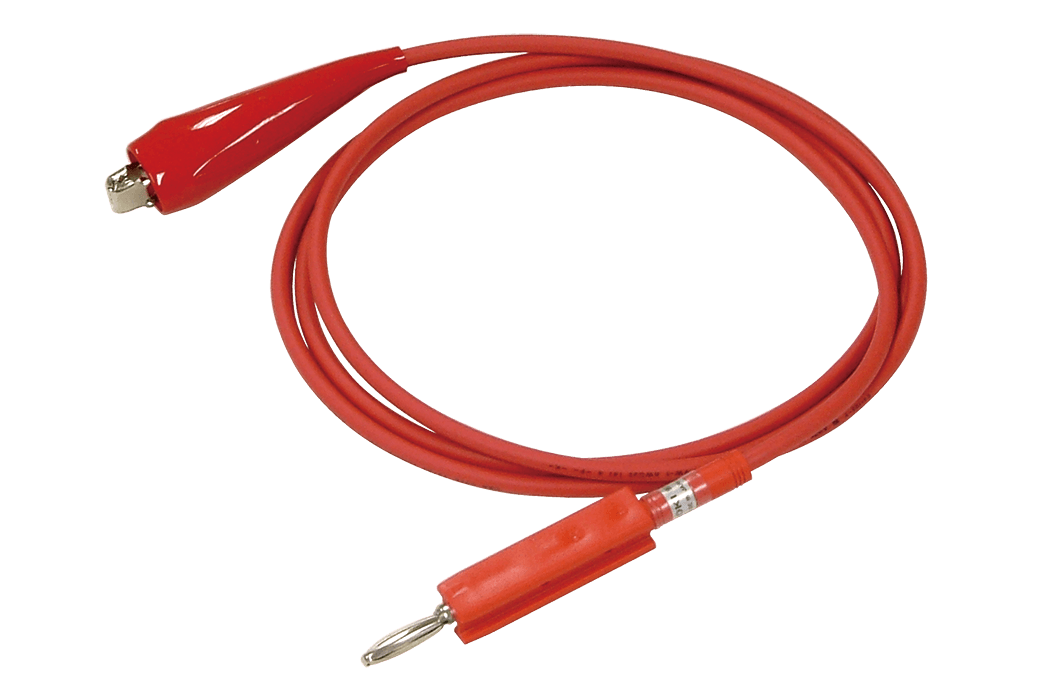

H.V. TEST LEAD 9615-01
Red, high voltage side, 1.5 m (4.92 ft) length
