Identifying PMSM Motor Parameters
Identify more accurate motor control motor control by using motor parameters measured under actual operating conditions in upstream design processes.
PMSM:
Permanent magnet synchronous motors (PMSMs) have been attracting attention in recent years as a type of 3-phase AC motor that can deliver low energy loss and significantly reduced power consumption.
Permanent magnet synchronous motors (PMSMs) have been attracting attention in recent years as a type of 3-phase AC motor that can deliver low energy loss and significantly reduced power consumption.
Measurement Example
* Please prepare the torque sensor and rotary encoder separately.Identifying Advanced Motor Control
In order to identify advanced motor control, it is necessary to take into account the current dependence of the d-axis and q-axis inductance Ld and Lq, which in the past were treated as constants. The PW8001 can carry out d-axis and q-axis vector analysis of voltage and current during motor operation. Since that data can be used to calculate Ld and Lq in real time, it is possible to measure the current saturation characteristics of motor parameters.
Instruments Used
POWER ANALYZERPW8001
・High Precision Power Analyzer for Motor and Inverter Efficiency Analysis
・Up to 8 power channels optimizing your measurement
・World-class measurement accuracy: Basic accuracy ±0.03%
・Simultaneous analysis of 4 motors (optional)
Learn More Download Brochure

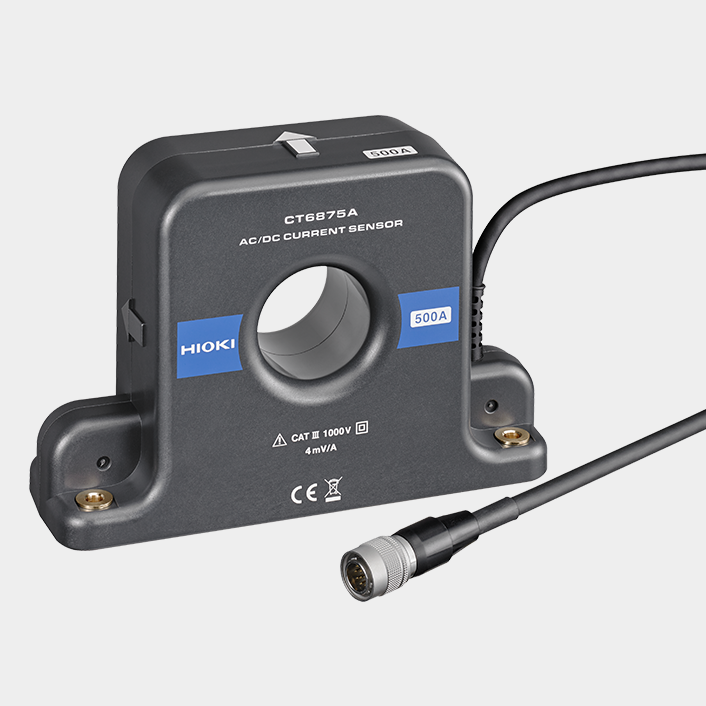

AC/DC CURRENT SENSORCT6875A, CT6876A
・500 A AC/DC, DC to 2 MHz (CT6875A)
・1000 A AC/DC, DC to 1.5 MHz (CT6876A)
Learn More about CT6875A Learn More about CT6876A Download Brochure
