CHEMICAL IMPEDANCE ANALYZER IM3590
For R&D applications of Electrochemical Components and Materials, Batteries, and EDLCs
-
-
option -
option -
option -
-
Hioki LCR Meters and Impedance Analyzers range from 1 mHz to 3 GHz devices to suit a wide range of applications in the testing of electronic components. The IM3590 impedance analyzer is an advanced component tester especially suited to electrochemical impedance measurements and includes a variety of graphing functions that are needed for battery and chemical material testing.
Battery internal resistance measurement and battery measurement function: Hioki IM3590 Chemical Impedance Analyzer
The Hioki IM3590 can measure a battery’s internal resistance in the no-load state by automatically measuring the battery voltage and generating the same DC voltage.
- Measurement range: 10 mΩ to 10 Ω
- Battery voltage: 5 V or less
Key Features
- Broad 1 mHz to 200 kHz signal source range supports measurements of ion behavior and solution resistance
- Continuous measuring and high-speed testing of LCR and sweep measurements with a single instrument
- Measure internal impedance of batteries with no load
- Perform high-speed sweep measurements in as little as 2 ms
- Basic accuracy of ±0.05% is ideal for applications from component testing to R&D
- Measure LCR impedance for Cole-Cole plots and equivalent-circuit analyses of electro-chemical components and materials
Model No. (Order Code)
| IM3590 | For electrochemical components |
|---|
Cole-Cole plot generation, equivalent circuit analysis, and other impedance measurement capabilities
In addition to measuring electrochemical components and materials, batteries, and electrical double-layer capacitors, the Hioki IM3590 can generate Cole-Cole plots and perform equivalent circuit analysis.
Key applications:
Analyze the internal phenomena in batteries, for example charge transfer resistivity at the electrode/electrolyte interface and the mass transfer process in electrolytes
Ascertain the frequency characteristics of electronic components, piezoelectric elements, and resonant elements
The Hioki IM3590 makes it easy to ascertain characteristics of electronic components with frequency sweep measurement (through up to 801 points), frequency characteristic measurement, and Cole-Cole plot display functionality. The impedance analyzer can also sweep through multiple signal levels (voltage and current) and DC bias voltages.
Ascertain changes in the behavior of electronic components over time with time interval measurement
Thanks to a time interval measurement function with up to 801 points, the Hioki IM3590 can generate a graph illustrating how the characteristics of an electronic component can change over time in response to changes in environmental conditions such as temperature.
Application information
Download the sample application and view the Communications Command User Manual.
Accuracy calculation information
Calculate accuracy by simply entering a numerical value.
Basic specifications
| Measurement modes | LCR mode, Continuous measurement mode (LCR mode / Analyzer mode), Analyzer mode (Sweeps with measurement frequency and measurement level, temperature characteristics, equivalent circuit analysis) | |||||
|---|---|---|---|---|---|---|
| Measurement parameters | Z, Y, θ, Rs (ESR), Rp, Rdc (DC resistance), X, G, B, Cs, Cp, Ls, Lp, D (tanδ), Q, T, σ (conductivity), ε (dielectric constant) |
|||||
| Measurement range | 100 mΩ to 100 MΩ, 10 ranges (All parameters are determined according to Z) | |||||
| Display range | Z, Y, Rs, Rp, Rdc, X, G, B, Ls, Lp, Cs, Cp, σ, ε : ±(0.00000 [unit] to 9.99999G [unit], Absolute value display for Z and Y only θ : ±(0.000° to 180.000°), D : ±(0.00000 to 9.99999) Q : ±(0.00 to 99999.9), Δ % : ±(0.0000% to 999.999%) T : -10.0°C to 99.9°C σ, ε :±(0.00000f [unit] to 999.999G [unit] |
|||||
| Basic accuracy | Z: ±0.05% rdg. θ: ±0.03° | |||||
| Measurement frequency | 1 mHz to 200 kHz (5 digits setting resolution, minimum resolution 1 mHz) | |||||
| Measurement signal level | Normal mode: V mode/CV mode: 5 mV to 5 Vrms, 1 mVrms steps CC mode: 10 μA to 50 mArms, 10 μArms steps Low impedance high accuracy mode: V mode/CV mode: 5 mV to 2.5 Vrms, 1 mVrms steps CC mode:10 μA to 100 mArms, 10 μArms steps |
|||||
| Output impedance | Normal mode: 100 Ω, Low impedance high accuracy mode: 25 Ω | |||||
| Display | 5.7-inch color TFT, display can be set to ON/OFF | |||||
| Measurement time | 2 ms (1 kHz, FAST, display OFF, representative value) | |||||
| Functions | DC bias measurement, DC resistance temperature compensation (converted reference temperature is displayed), Temperature measurement, Battery mesurement (Automatic DC biasing system), Comparator, BIN measurement (classification), Panel loading/saving, Memory function | |||||
| Interfaces | EXT I/O (Handler), USB communication (high-speed), USB memory Optional: Choose 1 from RS-232C, GP-IB, or LAN |
|||||
| Power supply | 100 to 240 V AC, 50/60 Hz, 50 VA max. | |||||
| Dimensions and mass | 330 mm (12.99 in) W × 119 mm (4.69 in) H × 168 mm (6.61 in) D, 3.1 kg (109.3 oz) | |||||
| Included accessories | Power cord ×1, Instruction manual ×1, CD-R (Communication instruction manual and sample software [Communications control, accuracy calculation, and screen capture functionality] ) ×1 | |||||
Probe and Test fixtures (15)
When using the 9268-10 or 9269-10, external constant-voltage and constant-current sources are required.
To replace the tip on the L2001, regular size, bundled with the L2001
To replace the tip on the L2001, small size
Cable length 1 m (3.28 ft), DC to 8 MHz, impedance characteristics of 50 Ω, 4-terminal pair configuration, measurable conductor diameter: ø0.3 (0.01 in) to 5 mm (0.20 in)
Cable length 1 m (3.28 ft), DC to 200 kHz, impedance characteristics of 50 Ω, 4-terminal pair configuration, measurable conductor diameter: ø0.3 (0.01 in) to 5 mm (0.20 in)
Cable length 1 m (3.28 ft), DC to 8 MHz, impedance characteristics of 50 Ω, 4-terminal pair configuration, measurable conductor diameter: ø0.3 (0.01 in) to 1.5 mm (0.06 in)
Direct connection type, DC to 8 MHz, measurable conductor diameter: ø0.3 (0.01 in) to 2 mm (0.08 in)
Direct connection type, DC to 8 MHz, Test sample dimensions:1 mm (0.04 in) to 10 mm (0.39 in)
Direct connection type, 40 Hz to 8 MHz, maximum applied voltage of DC ±40 V
Direct connection type, 40 Hz to 2 MHz, maximum applied current of DC 2 A
Cable length 1 m (3.28 ft), DC to 200 kHz, impedance characteristics of 50 Ω, measurable conductor diameter: φ0.3 mm (0.01 in) to 2 mm (0.08 in)
Direct connection type, For measuring SMDs with electrodes on the side; DC to 120 MHz, test sample dimensions: 3.5 mm ±0.5 mm (0.14 in ±0.02 in)
Direct connection type, For measuring SMDs with electrodes on the bottom; DC to 120 MHz, test sample dimensions: 1.0 mm (0.04 in) to 4.0 mm (0.16 in) wide, max. 1.5 mm (0.06 in) high
Temperature probe (1)
*Use with only for the IM3590, IM3533

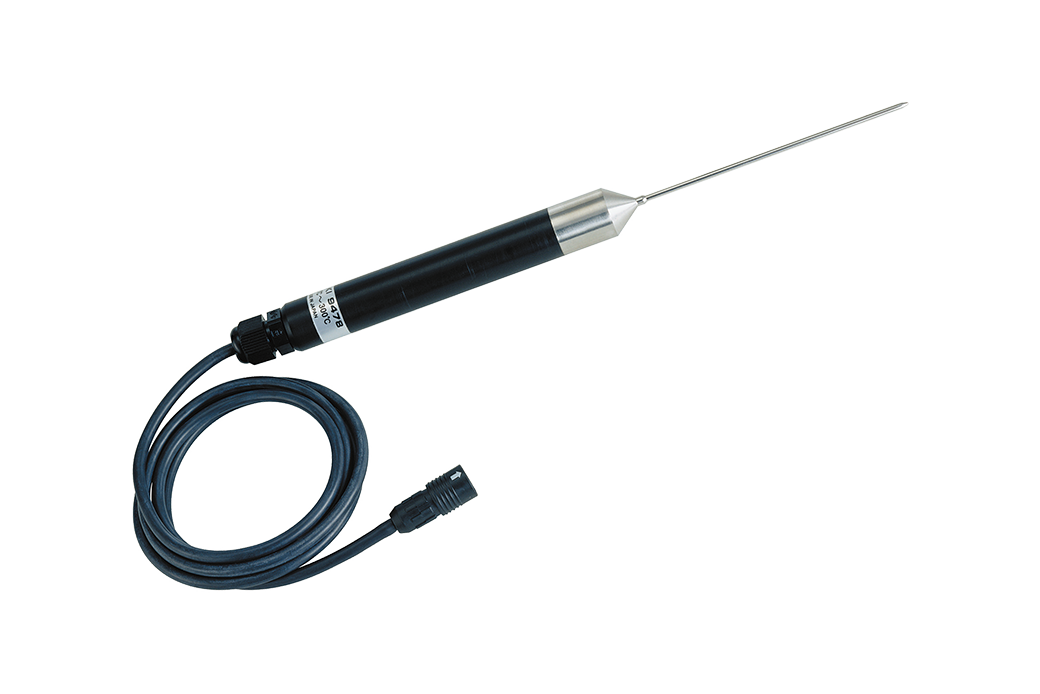

Pt100, Tip dia. φ2.3 mm (0.09 in), Cord length 1 m (3.28 ft), Waterproof construction
PC communication (4)
For external control
For external control
2 m (6.56 ft) length
Compatible products (2)
