Impedance Analyzer Sample Application

Impedance Analyzer Sample Application

V1.20  Sep 28, 2016

If you are unable to download software, please check the following:

  • Please register a myHioki account and then use it to log in to the myHioki service.
  • Product firmware (product upgrades) and computer application software can only be downloaded for products you have registered on the myHioki service.

  • Application(ImpedanceAnalyzerSampleApplicationEN120.msi)

    DOWNLOAD

Impedance Analyzer Sample Application
(IM7580A-1,IM7580A-2,IM7581-01,IM7581-02,IM7583-01,IM7583-02,IM7585-01,IM7585-02,IM7587-01,IM7587-02)
(Communication control, Calculate Accuracy, Calculate Measure Range, Get screen image)

*Specifications
1.This software is for following models.
 ・IM7580A-1,IM7580A-2,IM7581-01,IM7581-02,IM7583-01,IM7583-02,IM7585-01,IM7585-02,IM7587-01,IM7587-02
2.This software has for following functions.
 【Communication control, Calculate Accuracy, Calculate Measure Range, Get screen image】

 【Communication control】
 ・This is a PC application program that will enable users of Impedance Analyzer to download data to a PC via RS-232C, GPIB, USB or LAN interface, save the data as a CSV file or Microsoft Excel file. In analyzer mode, it can automatically create a graph.
 ・This software has 6 measuring functions.
  ■Frequency Characteristics (By changing Frequency)
  ■Power Characteristics (By changing Power)
  ■Voltage Characteristics (By changing Volt)
  ■Current Characteristics (By changing Cur)
  ■Time Interval Measurement (By setting up the time interval)
  ■Loading by Return key (Single Measurement)
 ・Following cable is required to communicate with PC.
  ■RS-232C. RS-232C cross cable(9pin-9pin)
  ■GPIB. GPIB-USB-HS from National Instruments
  ■USB. USB cable (A-B type)
  ■LAN. LAN cross cable

*How to install
1.Click [Download] and download the file.
2.Execute the downloaded file to start the installation.
 Note1: .NET Framework 4.0 is required to run this application program.
 If it has not been installed in your PC, the following dialog box will be popped up.
 Click on [Yes], and then go to the download page for NET Framework. Please download and install .NET Framework. Note2: If using this application program with the PC that doesn’t hook up to the Internet, at first, please download .NET Framework 4.0 on the Web page of the Microsoft company with another PC that hooks up o the Internet.
 .NET Framework 4.0 can be downloaded on a page.
3.After installing the .NET Framework, try installing the application program again.

*Version Upgrade History
V1.20 (Newest Version)
・Correspond to IM7587.
・The automatic setting function of the sweep point has been changed to deal with the descending order in the frequency, voltage and current characteristic measurement.

V1.10
・Correspond to IM7580A and IM7581.
・Made a change to the parameter 'Interval' to handle time between measuremts, instead to handle waiting time between series of measurements.

V1.00
・Release

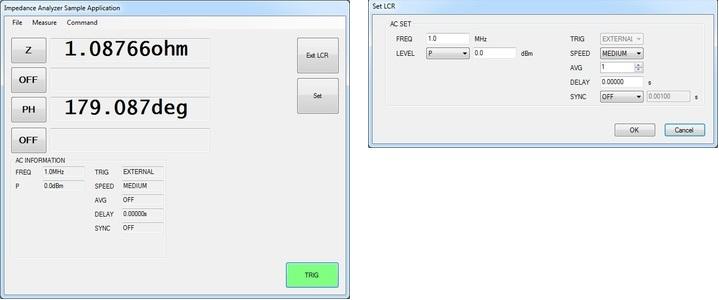

Mesurement screen & Setting screen (LCR mode)

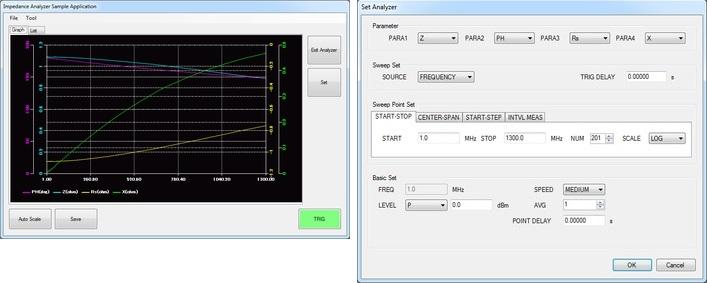

Mesurement screen & Setting screen (ANALYZER mode)

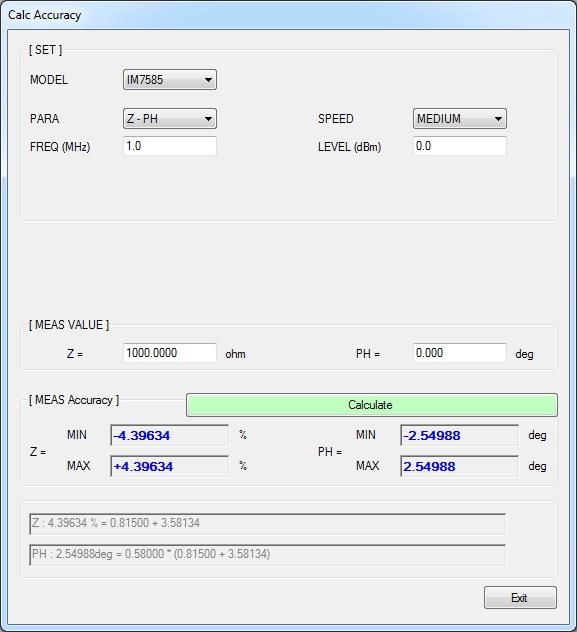

Caluculate Accuracy

・You can set the measurement conditions, to calculate the measurement accuracy.

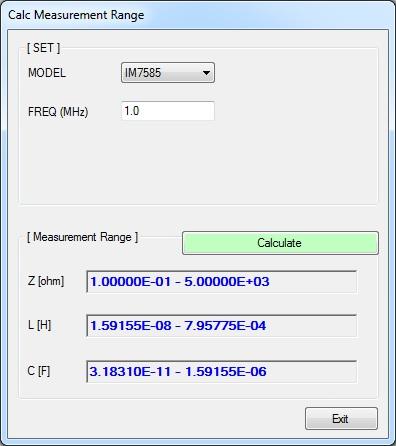

Calculate Measurement Range

・You can set the measurement conditions, to calculate the measurement range.

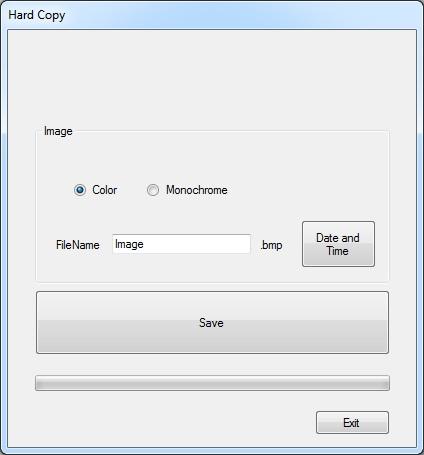

Get screen image

・Can be saved in BMP format to the measurement screen.

Operating Environment

・CPU: 1 GHz or faster processor clock
・RAM: At least 512 MB
・OS: Windows Vista SP1 or later (32-bit or 64-bit) , Windows7 (32-bit or 64-bit) , Windows8 (32-bit or 64-bit) , Windows10(32-bit or 64-bit)
・Library: Microsoft .NET Framework 4.0
・Interface: RS-232C, GPIB, USB, LAN
・Monitor Resolution:1024 X 768 or higher
・Hard Disk:At least 5 MB free space
 (Additional space is required for storing recorded data. Another 900 MB may be required if .NET Framework 4 is not yet installed.)
