Power Logger Viewer SF1001 Software Update

Power Logger Viewer SF1001 Software Update

V5.00.0  Apr 18, 2018

If you are unable to download software, please check the following:

  • Please register a myHioki account and then use it to log in to the myHioki service.
  • Product firmware (product upgrades) and computer application software can only be downloaded for products you have registered on the myHioki service.

  • software(Update_Eng.zip)

    DOWNLOAD

  • Version update procedure(VersionUp_Procedure_SF1001.pdf)

    DOWNLOAD

Version upgrade should be conducted by a qualified technician familiar with the functions and operations.
If you are uncertain as to how to proceed, please contact your local HIOKI distributor for assistance.

Software for the Model SF1001

The current newest software versions are shown below. A version update is highly recommended if you are running older software.
Version : V5.00.0

NOTE : About setup files.
This setup file is used to update Model SF1001 Power Logger Viewer.. Please install the complete SF1001 Power Logger Viewer before implementing the update.
Please buy purchased copy of the SF1001 application by contacting your local HIOKI distributor.

Before you proceed

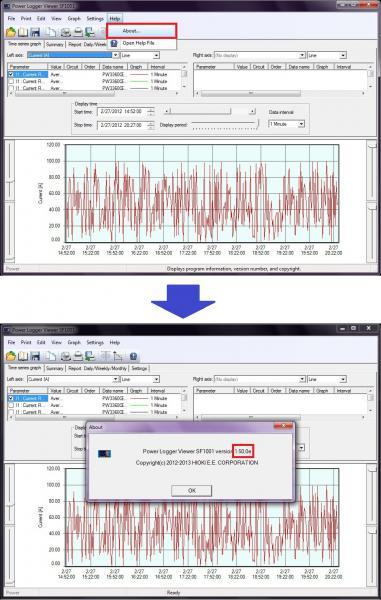

Launch the application, and click [Help] - [About…] from the menu.

Version Upgrade History

V5.00.0 (April 2018) Newest Version
1. Added functions:
-1.Support for HIOKI PW3365 harmonic-measurement data.
2. Improvements
-1."Maximum value in the period" of the "Summary" screen, "Minimum value in the period" of the "Summary" screen, and "Maximum demand" of the "Report : Daily/Weekly/Monthly" screen change the statistical calculation method of the "PF" and the "DPF" item to an operation using an absolute value.

V4.50.0 (December 2017)
1. Fixed bugs
-1. Fixed a bug in which the vertical axis of the time series graph could not be set when the data that occurred immediately after the start of the measurement was loaded.
2. Improvements
-1. Change some internal processing.

V4.00.0 (May 2015)
1. Fixed bugs
-1. Fix a bug that the result of the “Pdem+” average value may become zero on rare occasions when saving data in CSV format on the ”Report : Daily / Weekly / Monthly” screen.
2. Added functions:
-1. Support for HIOKI LR5000 Utility Program : data display and printing
-2. Added the function to change the measurement date and time for data saved by the PW3360 or PW3365.
-3. Added the total “Pdem+ ” value to the “Report : Daily / Weekly / Monthly” screen.
-4. Added the electric charges value to the “Report : Daily / Weekly / Monthly” screen.

V3.00.0 (June 2014)
-1.Support for HIOKI PW3365, 3168, 3169, 9625: data display and printing.
-2.Added ”CO2 conversion” value to the ”Report : Daily / Weekly / Monthly” screen.
-3.It comes to be able to carry out the bar graphical representation of the harmonic phase angle power data.

V2.01.0 (June 2013)
1.Added functions:
-1.Added ”Harmonic list”, ”Harmonic graph” and ”Waveform” to the displayable screens.
-2.Added energy cost, pulse input, and harmonic related items to the time series graph and summary screens.
2.Support for Windows8: data display and printing.

V1.50.0 (February 2013)
Improvements:
English edition release.

Operating Environment

Windows 7(32-bit or 64-bit), Windows 8.1(32-bit or64-bit), Windows 10(32-bit or 64-bit)
