Clearing the status byte register and related queues (except the output queue)

Syntax	Command	*CLS
	Query
	Response
	Parameter
Explanation	Command	Clears the content of the event registers (SESR, ESR0, ESR1, ESR2, ESR3, ESR4).
Explanation	Query
Example	Command	*CLS Clears the content of the event registers (SESR, ESR0, ESR1, ESR2, ESR3, ESR4).
	Query
	Response
Note		GPIB：The output queue is unaffected. RS-232C, USB, LAN：This has no effect upon the output queue, various enable registers, and MAV (bit 4) of the status byte register.

Reading and writing the standard event status enable register (SESER)

Syntax	Command	*ESE <Mask value>
	Query	*ESE?
	Response	<Mask value>
	Parameter	<Mask value> = 0 to 255 (NR1)
Explanation	Command	Sets the mask pattern of SESER. The initial value (at power-on) is 0.
Explanation	Query	Returns the mask pattern of SESER.
Example	Command	*ESE 36 Sets bits 5 and 2 of SESER.
	Query	*ESE?
	Response	*ESE 36 (when HEADER ON) 36 (when HEADER OFF) Bit 5 and 2 of SESER are 1.
Note

Reading and clearing the standard event status register (SESR)

Syntax	Command
	Query	*ESR?
	Response	<Register value>
	Parameter	<Register value> = 0 to 255 (NR1)
Explanation	Command
Explanation	Query	Returns the register value of SESR, and clears the register. The response message has no header.
Example	Command
	Query	*ESR?
	Response	32 Bit 5 of the SESR was set to 1.
Note		Bit 6 and 1 are not used in the instrument.

Querying the instrument ID (Identification Code)

Syntax	Command
	Query	*IDN?
	Response	<Maker Name>,< Model Name>,<Product No.>,<Software Version>
	Parameter
Explanation	Command
Explanation	Query	Returns the ID of the instrument. A header is not added to the response message.
Example	Command
	Query	*IDN?
	Response	HIOKI,IM7580,123456789,V1.00
Note

Setting OPC of SESR after all of the actions being executed are finished

Syntax	Command	*OPC
	Query
	Response
	Parameter
Explanation	Command	Sets the OPC (bit 0) of the SESR (standard event status register) at the point in time that　command processing finishes for the sent commands which are before the command. Sets OPC bit 0 of the Standard Event Status Register (SESR) when all prior commands have finished processing.
Explanation	Query
Example	Command	A;B;*OPC;C Sets the OPC of SESR after the A and B commands are finished.
	Query
	Response
Note

Sending response of ASCII 1 after all of the actions being executed are finished

Syntax	Command
	Query	*OPC?
	Response
	Parameter
Explanation	Command
Explanation	Query	Sends the response of ASCII 1 at the point in time that command processing finishes for the sent commands which are before the *OPC command. A header is not added to the response message.
Example	Command
	Query	*OPC?
	Response	1
Note

Initializing the instrument

Syntax	Command	*RST
	Query
	Response
	Parameter
Explanation	Command	Initializes the instrument. This is the same as a system reset. However, the settings of interface are not initialized. See "Initial Settings Table"
Explanation	Query
Example	Command	*RST Executes initialization of the instrument.
	Query
	Response
Note		When the instrument is initialized, the current setting information is deleted and the instrument is restored to the initial state.

Writing and reading the service request enable register (SRER)

Syntax	Command	*SRE <Mask value>
	Query	*SRE?
	Response	<Mask value>
	Parameter	<Mask value> = 0 to 255 (NR1)
Explanation	Command	Sets the mask pattern of SRER. The initial value (when power is turned on) is 0. Bit 6 is ignored.
Explanation	Query	Returns the mask pattern of SRER. The values of bit 6 is always 0.
Example	Command	*SRE 34 Set SRER bits 5 and 1 to 0.
	Query	*SRE?
	Response	*SRE 34 (when HEADER ON) 34 (when HEADER OFF) SRER bits 5 and 1 have been set to 1.
Note

Reading the Status Byte Register

Syntax	Command
	Query	*STB?
	Response	<Register value>
	Parameter	<Register value> = 0 to 255 (NR1)
Explanation	Command
Explanation	Query	Returns the register value of STB. The response message has no header.
Example	Command
	Query	*STB?
	Response	8 STB bit 3 has been set to 1.
Note

Requesting a Sample

Syntax	Command	*TRG
	Query
	Response
	Parameter
Explanation	Command	Performs sampling once when there is an external trigger.
Explanation	Query
Example	Command	:TRIGger EXTernal;*TRG;:MEASure? This is set for the external trigger and acquires the measurement value after sampling is performed once.
	Query
	Response
Note		An execution error occurs if this command is executed when there is an internal trigger.

Executing self tests and querying results

Syntax	Command
	Query	*TST?
	Response	<Result>
	Parameter	<Result> = 0 to 15 (NR1)
Explanation	Command
Explanation	Query	Executes the following self tests and returns the result. ROM test RAM test When the tests start, all functions including measurement are stopped and commands also become unable to be received. The tests take approximately 1 minute. Do not send commands or turn off the power of the instrument during the tests. A header is not added to the response message.
Example	Command
	Query	*TST?
	Response	3 (when HEADER ON) 3 (when HEADER OFF) The ROM test and SRAM test failed (NG).
Note		If the result is other than 0, the instrument may have malfunctioned. Contact your dealer or Hioki representative.

Executing following command after command processing is finished

Syntax	Command	*WAI
	Query
	Response
	Parameter
Explanation	Command	Executes the command following *WAI after command processing is finished.
Explanation	Query
Example	Command	A;B;WAI;C Executes WAI and then the C command after processing ends for commands A and B. Current Frequency:1 MHz when in internal trigger state When the WAI command was not used (Send) :FREQuency 1000000;:MEASure? In this case, it is not certain which frequency measurement value will be sent in response to the :MEASure? query. When the WAI command was used (Send) :FREQuency 1000000;*WAI;:MEASure? In this case, the 1 MHz frequency measurement value is sent in response to the :MEASure? query.
	Query
	Response
Note		Unique commands other than the ":MEASure?" query use sequential commands. Therefore, the *WAI command is only effective for the ":MEASure?" query.

Writing and reading event status enable register 0

Syntax	Command	:ESE0 <Mask value>
	Query	:ESE0?
	Response	<Mask value>
	Parameter	<Mask value> = 0 to 255 (NR1)
Explanation	Command	Sets the mask pattern of ESER0. The initial value (when power is turned on) is 0.
Explanation	Query	Returns the mask pattern of ESER0.
Example	Command	:ESE0 3 Sets bit 1 and bit 0 of ESER0.
	Query	:ESE0?
	Response	:ESE0 3 (when HEADER ON) 3 (when HEADER OFF) Bit 1 and bit 0 of ESER0 are set to 1.
Note		This register's bits are reset after 1 measurement completes. For details on each of the bits, refer to "About Event Registers".

Writing and reading event status enable register 1

Syntax	Command	:ESE1 <Mask value>
	Query	:ESE1?
	Response	<Mask value>
	Parameter	<Mask value> = 0 to 255 (NR1)
Explanation	Command	Sets the mask pattern of ESER1. The initial value (when power is turned on) is 0.
Explanation	Query	Returns the mask pattern of ESER1.
Example	Command	:ESE1 64 Sets bit 6 of ESER1.
	Query	:ESE1?
	Response	:ESE1 64 (when HEADER ON) 64 (when HEADER OFF) Bit 6 of ESER1 are set to 1.
Note		For details on each of the bits, refer to "About Event Registers".

Writing and reading event status enable register 2

Syntax	Command	:ESE2 <Mask value>
	Query	:ESE2?
	Response	<Mask value>
	Parameter	<Mask value> = 0 to 255 (NR1)
Explanation	Command	Sets the mask pattern of ESER2. The initial value (when power is turned on) is 0.
Explanation	Query	Returns the mask pattern of ESER2.
Example	Command	:ESE2 1 Sets bit 0 of ESER2.
	Query	:ESE2?
	Response	:ESE2 1 (when HEADER ON) 1 (when HEADER OFF) Bit 0 of ESER2 are set to 1.
Note		For details on each of the bits, refer to "About Event Registers".

Writing and reading event status enable register 3

Syntax	Command	:ESE3 <Mask value>
	Query	:ESE3?
	Response	<Mask value>
	Parameter	<Mask value> = 0 to 255 (NR1)
Explanation	Command	Sets the mask pattern of ESER3. The initial value (when power is turned on) is 0.
Explanation	Query	Returns the mask pattern of ESER3.
Example	Command	:ESE3 3 Sets bit 1 and bit 0 of ESER3.
	Query	:ESE3?
	Response	:ESE3 3 (when HEADER ON) 3 (when HEADER OFF) Bit 1 and bit 0 of ESER3 are set to 1.
Note		For details on each of the bits, refer to "About Event Registers".

Writing and reading event status enable register 4

Syntax	Command	:ESE4 <Mask value>
	Query	:ESE4?
	Response	<Mask value>
	Parameter	<Mask value> = 0 to 255 (NR1)
Explanation	Command	Sets the mask pattern of ESER4. The initial value (when power is turned on) is 0.
Explanation	Query	Returns the mask pattern of ESER4.
Example	Command	:ESE4 8 Sets bit 3 of ESER4.
	Query	:ESE4?
	Response	:ESE4 8 (when HEADER ON) 8 (when HEADER OFF) Bit 3 of ESER4 are set to 1.
Note		For details on each of the bits, refer to "About Event Registers".

Reading event status register 0

Syntax	Command
	Query	:ESR0?
	Response	<Register value>
	Parameter	<Register value> = 0 to 255 (NR1)
Explanation	Command
Explanation	Query	Returns the register value of event status register 0 (ESR0), and clears the register. A header is not added to the response message.
Example	Command
	Query	:ESR0?
	Response	4 Bit 2 of ESR0 are set to 1.
Note		This register's bits are reset after 1 measurement completes. For details on each of the bits, refer to "About Event Registers".

Reading event status register 1

Syntax	Command
	Query	:ESR1?
	Response	<Register value>
	Parameter	<Register value> = 0 to 255 (NR1)
Explanation	Command
Explanation	Query	Returns the register value of event status register 1 (ESR1), and clears the register. A header is not added to the response message.
Example	Command
	Query	:ESR1?
	Response	82 Bit 6, bit 4 and bit 1 of ESR1 are set to 1.
Note		When comparator measurement is performed in LCR mode, the bits are set after one measurement finishes. In the case of continuous measurement, the AND bit is set after continuous measurement finishes. For details on each of the bits, refer to "About Event Registers".

Reading event status register 2

Syntax	Command
	Query	:ESR2?
	Response	<Register value>
	Parameter	<Register value> = 0 to 255 (NR1)
Explanation	Command
Explanation	Query	Returns the register value of event status register 2 (ESR2), and clears the register. A header is not added to the response message.
Example	Command
	Query	:ESR2?
	Response	1 Bit 0 of ESR2 are set to 1.
Note		When BIN measurement is performed in LCR mode, the bits are set after one measurement finishes. In continuous measurement mode, the bits are not set. For details on each of the bits, refer to "About Event Registers".

Reading event status register 3

Syntax	Command
	Query	:ESR3?
	Response	<Register value>
	Parameter	<Register value> = 0 to 255 (NR1)
Explanation	Command
Explanation	Query	Returns the register value of event status register 3 (ESR3), and clears the register. A header is not added to the response message.
Example	Command
	Query	:ESR3?
	Response	64 Bit 6 of ESR3 are set to 1.
Note		When BIN measurement is performed in LCR mode, the bits are set after one measurement finishes. In continuous measurement mode, the bits are not set. For details on each of the bits, refer to "About Event Registers".

Reading event status register 4

Syntax	Command
	Query	:ESR4?
	Response	<Register value>
	Parameter	<Register value> = 0 to 255 (NR1)
Explanation	Command
Explanation	Query	Returns the register value of event status register 3 (ESR3), and clears the register. A header is not added to the response message.
Example	Command
	Query	:ESR4?
	Response	64 Bit 6 of ESR4 are set to 1.
Note		When BIN measurement is performed in LCR mode, the bits are set after one measurement finishes. In continuous measurement mode, the bits are not set. For details on each of the bits, refer to "About Event Registers".

Setting and querying measurement mode

Syntax	Command	:MODE <LCR/ANALyzer/CONTinuous>
	Query	:MODE?
	Response	<LCR/ANALyzer/CONTinuous>
	Parameter
Explanation	Command	Sets measurement mode. LCR : Sets measurement mode to LCR mode. ANALYZER : Sets measurement mode to ANALYZER mode. CONTINUOUS : Sets measurement mode to CONTINUOUS mode.
Explanation	Query	Returns the setting of measurement mode.
Example	Command	:MODE CONTinuous Sets measurement mode to continuous.
	Query	:MODE?
	Response	:MODE CONTINUOUS (when HEADER ON) CONTINUOUS (when HEADER OFF) Measurement mode is set to continuous.
Note

Setting and querying the trigger mode

Syntax	Command	:TRIGger <INTernal/EXTernal>
	Query	:TRIGger?
	Response	<INTERNAL/EXTERNAL>
	Parameter
Explanation	Command	Sets the trigger mode. INTernal: Sets the internal trigger. EXTernal: Sets the external trigger.
Explanation	Query	Returns the setting of the trigger mode.
Example	Command	:TRIGger INTernal Sets the trigger mode to the internal trigger.
	Query	:TRIGger?
	Response	:TRIGGER INTERNAL (when HEADER ON) INTERNAL (when HEADER OFF) The trigger mode is set to the internal trigger.
Note

Setting and querying the trigger delay time

Syntax	Command	:TRIGger:DELay <Trigger delay time>
	Query	:TRIGger:DELay?
	Response	<Trigger delay time>
	Parameter	<Trigger delay time> = 0 to 9.99999 s (NR2)
Explanation	Command	Sets the trigger delay time.
Explanation	Query	Returns the setting of the trigger delay time.
Example	Command	:TRIGger:DELay 0.1 Sets measurement to start when 100 ms elapses after trigger input.
	Query	:TRIGger:DELay?
	Response	:TRIGGER:DELAY 0.1000 (when HEADER ON) 0.1 (when HEADER OFF) Measurement is set to start when 100 ms elapses after trigger input.
Note		To set the trigger delay function to OFF, set to 0 s.

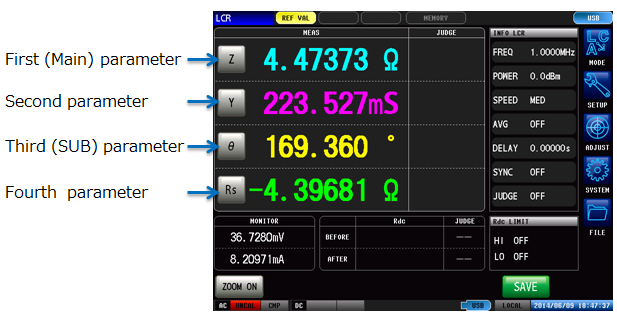

Setting and querying the display parameters (# is a numerical value from 1 to 4)

Syntax	Command	:PARameter# <Z/ Y/ PHASE(phase angle)/ CS/ CP/ D/ LS/ LP/ Q/ RS/ G/ RP/ X/ B/ OFF>
	Query	:PARameter#?
	Response	<Z/ Y/ PHASE(phase angle)/ CS/ CP/ D/ LS/ LP/ Q/ RS/ G/ RP/ X/ B/ OFF>
	Parameter
Explanation	Command	Sets the display parameters
Explanation	Query	Returns the settings of the display parameters.
Example	Command	:PARameter1 Z;:PARameter3 PHASE Sets the MAIN parameter to impedance, and the SUB parameter to phase angle.
	Query	:PARameter3?
	Response	:PARAMETER3 PHASE (when HEADER ON) PHASE (when HEADER OFF) The SUB parameter is set to phase angle.
Note		# is a numerical value from 1 to 4.

Setting and querying number of display digits (# is a numerical value from 1 to 4)

Syntax	Command	:PARameter#:DIGit <Number of display digits>
	Query	:PARameter#:DIGit?
	Response	<Number of display digits>
	Parameter	<Number of display digits> = 3 to 6 (NR1)
Explanation	Command	Sets the number of display digits of the parameters.
Explanation	Query	Returns the number of display digits of the parameters.
Example	Command	:PARameter1:DIGit 3 Sets the number of display digits of the MAIN parameter to 3.
	Query	:PARameter1:DIGit?
	Response	:PARAMETER1:DIGIT 3 (when HEADER ON) 3 (when HEADER OFF) The number of display digits of the MAIN parameter is set to 3.
Note		# is a numerical value from 1 to 4.

Setting of the absolute value display and queries

Syntax	Command	:PARameter:ABSolute <Z/Y/RS/RP/CS/CP/D/G/X/LS/LP/Q/B>, <ON/OFF>
	Query	:PARameter:ABSolute? <Z/Y/RS/RP/CS/CP/D/G/X/LS/LP/Q/B>
	Response	<ON/OFF>
	Parameter
Explanation	Command	Sets the display of the absolute measured value. ON: Displays the absolute value. OFF: Does not display the absolute value.
Explanation	Query	Returns the display of the absolute measured value.
Example	Command	:PARameter:ABSolute Z, ON Sets the display of the absolute impedance value.
	Query	:PARameter:ABSolute? Z
	Response	:PARAMETER:ABSOLUTE ON (when HEADER ON) ON (when HEADER OFF) Sets to display the absolute impedance value.
Note

Setting and querying the trigger synchronous output function

Syntax	Command	:SSOurce <ON/OFF>
	Query	:SSOurce?
	Response	<ON/OFF>
	Parameter
Explanation	Command	Enables or disables the trigger synchronous output function. ON: Enables the trigger synchronous output function. OFF: Disables the trigger synchronous output function.
Explanation	Query	Returns the setting of the trigger synchronous output function.
Example	Command	:SSOurce ON Enables the trigger synchronous output function.
	Query	:SSOurce?
	Response	:SSOURCE ON (when HEADER ON) ON (when HEADER OFF) The trigger synchronous output function is enabled.
Note

Setting and querying the wait time of trigger synchronous output

Syntax	Command	:SSOurce:WAIT <Wait time>
	Query	:SSOurce:WAIT?
	Response	<Wait time>
	Parameter	<Trigger delay time> = 0.00000 to 9.99999 s (NR2)
Explanation	Command	Sets the wait time for the period from after the measurement signal is output by applying a trigger until measurement starts.
Explanation	Query	Returns the wait time of the trigger synchronous output function.
Example	Command	:SSOurce:WAIT 0.50000 Sets the wait time for the period from after the trigger is applied until measurement starts to 500 ms.
	Query	:SSOurce:WAIT?
	Response	:SSOURCE:WAIT 0.50000 (when HEADER ON) 0.5 (when HEADER OFF) The wait time for the period from after the trigger is applied until measurement starts is set to 500 ms.
Note		A short wait time may result in an increase in measurement errors.

Setting of the delay time from when the signal is turned OFF until INDEX is turned ON and queries

Syntax	Command	:SSOurce:INDEX <Wait time>
	Query	:SSOurce:INDEX?
	Response	<Wait time>
	Parameter	<Wait time> = 0.00000 to 0.10000 s (NR2)
Explanation	Command	Sets the delay time from when the signal is turned OFF until INDEX is turned ON.
Explanation	Query	Returns the delay time from when the signal is turned OFF until INDEX is turned ON.
Example	Command	:SSOurce:INDEX 0.00100 Sets the INDEX delay time to 0.001 s.
	Query	:SSOurce:INDEX?
	Response	:SSOURCE:INDEX 0.00100 (when HEADER ON) 0.001 (when HEADER OFF) The INDEX delay time is set to 0.001 s.
Note

Setting and querying the Measurement Frequency

Syntax	Command	:FREQuency LCR mode: <Frequency> Analyzer mode:<Sweep point>,<Frequency>
	Query	:FREQuency? LCR mode: None Analyzer mode:<Sweep point>
	Response	<Frequency>
	Parameter	<Sweep point No.> = 1 to 801 (NR1) <Frequency> = 1.0000E+06 to 300.00E+06 (NR3)
Explanation	Command	Sets the measurement frequency. Sets all sweep points when the sweep point No. is omitted in the analyzer mode.
Explanation	Query	Returns the setting of the measurement frequency.
Example	Command	:FREQuency 8, 1E6 Sets the measurement frequency to 1 MHz.
	Query	:FREQuency? 8
	Response	:FREQUENCY 1.0000E+06 (when HEADER ON) 1000000 (when HEADER OFF) The measurement frequency is set to 1 MHz.
Note

Setting and querying the measurement signal level

Syntax	Command	:LEVel <P/V/I>
	Query	:LEVel?
	Response	<P/V/I>
	Parameter
Explanation	Command	Sets the measurement signal type to any one of open-circuit voltage, constant voltage, and constant current. P: Sets power mode. V: Sets voltage mode. I: Sets current mode.
Explanation	Query	Returns the measurement signal type.
Example	Command	:LEVel V Sets the measurement signal type to V (voltage mode).
	Query	:LEVel?
	Response	:LEVEL V (when HEADER ON) V (when HEADER OFF) The measurement signal type is set to V (voltage mode).
Note

Setting of the power level value and queries

Syntax	Command	:LEVel:POWer LCR mode: <power level>/ analyzer mode: <sweep point No.>, <power level>
	Query	:LEVel:POWer? LCR mode: none/ analyzer mode: <sweep point No.>
	Response	<Power level>
	Parameter	<Sweep point No.> = 1 to 801 (NR1) <Power level> = -40.0 to 7.0 (NR3)
Explanation	Command	Sets the power level. Sets all sweep points when the sweep point No. is omitted in the analyzer mode.
Explanation	Query	Returns the current power level setting.
Example	Command	:LEVel:POWer 1.0 Sets the power level to 1 dBm.
	Query	:LEVel:POWer?
	Response	:LEVEL:POWER 1.0 (when HEADER ON) 1 (when HEADER OFF) The power level is set to 1 dBm.
Note		When a power level value outside the range is specified, the value is rounded up to the limit value within the setting range. An error does not occur.

Setting of the voltage level value and queries

Syntax	Command	:LEVel:VOLTage LCR mode: <voltage level>/ analyzer mode: <sweep point No.>, <power level>
	Query	:LEVel:VOLTage? LCR mode: none/ analyzer mode: <sweep point No.>
	Response	<Voltage level>
	Parameter	<Sweep point No.> = 1 to 801 (NR1) <Voltage level> = 0.004 to 1.001 (NR3)
Explanation	Command	Sets the voltage level. Sets all sweep points when the sweep point No. is omitted in the analyzer mode.
Explanation	Query	Returns the current voltage level setting.
Example	Command	:LEVel:VOLTage 1.000 Sets the voltage level to 1 V.
	Query	:LEVel:VOLTage?
	Response	:LEVEL:VOLTAGE 1.000 (when HEADER ON) 1 (when HEADER OFF) The voltage level is set to 1 V.
Note		When a voltage level value outside the range is specified, the value is rounded up to the limit value within the setting range. An error does not occur.

Setting of the current level value and queries

Syntax	Command	:LEVel:CURRent LCR mode: <current level>/ analyzer mode: <sweep point No.>, <current level>
	Query	:LEVel:CURRent? LCR mode: none/ analyzer mode: <sweep point No.>
	Response	<Current level>
	Parameter	<Sweep point No.> = 1 to 801 (NR1) <Current level> = 0.09E-3 to 20.02E-3 (NR3)
Explanation	Command	Sets the current level. Sets all sweep points when the sweep point No. is omitted in the analyzer mode.
Explanation	Query	Returns the present current level setting.
Example	Command	:LEVel:CCURRent 10E-3 Sets the current level at 10 mA.
	Query	:LEVel:CCURRent?
	Response	:LEVEL:CCURRENT 10.00E-03 (when HEADER ON) 0.01 (when HEADER OFF) The current level is set to 10 mA.
Note		When the current level value outside the range is specified, the value is rounded up to the limit value within the setting range. An error does not occur.

Setting of the measurement speed and queries

Syntax	Command	:SPEEd LCR mode: <FAST/MEDium/SLOW/SLOW2/CUSTom>/ analyzer mode: <sweep point No.>, <FAST/MEDium/SLOW/SLOW2/CUSTom>
	Query	:SPEEd? LCR mode: none/ analyzer mode: <sweep point No.>
	Response	<FAST/MEDIUM/SLOW/SLOW2/CUSTOM>
	Parameter	<Sweep point No.> = 1 to 801 (NR1)
Explanation	Command	Sets the measurement speed. When the sweep points are omitted in the analyzer mode, the speed is set for all sweep points.
Explanation	Query	Returns the setting of the measurement speed.
Example	Command	:SPEEd MEDium Sets the measurement speed to medium.
	Query	:SPEEd?
	Response	:SPEED MEDIUM (when HEADER ON) MEDIUM (when HEADER OFF) The measurement speed is set to medium.
Note

Setting of the measurement speed when the measurement speed is custom and queries

Syntax	Command	:SPEEd:WAVE LCR mode: <number of waveforms>/ analyzer mode: <sweep point No.>, <number of waveforms>
	Query	:SPEEd:WAVE?
	Response	<Number of waveforms>
	Parameter	<Sweep point No.> = 1 to 801 (NR1) <Number of waveforms> = 8 to 87 (NR1)
Explanation	Command	Sets the measurement speed using the number of waveforms. When the sweep points are omitted in the analyzer mode, the number of waveforms is set for all sweep points.
Explanation	Query	Returns the setting of the measurement speed with the number of waveforms.
Example	Command	:SPEEd:WAVE 8 Sets the number of waveforms of the measurement speed to 8.
	Query	:SPEEd:WAVE?
	Response	:SPEED:WAVE 8 (when HEADER ON) 8 (when HEADER OFF) The number of waveforms of the measurement speed is set to 8.
Note

Setting of the measurement average and queries

Syntax	Command	:AVERaging LCR mode: <OFF/number of averaging times>/ analyzer mode: <sweep point No.>, <OFF/number of averaging times>
	Query	:AVERaging?
	Response	<OFF/number of averaging times>
	Parameter	<Number of averaging times> = 1 to 256 (NR1) <Sweep point No.> = 1 to 801 (NR1)
Explanation	Command	Sets the number of measurement averaging times. ? ?OFF: Disables the averaging function. Sets all sweep points when the sweep point No. is omitted in the analyzer mode.
Explanation	Query	Returns the number of measurement averaging times.
Example	Command	:AVERaging 32 Sets the number of averaging times to 32.
	Query	:AVERaging?
	Response	:AVERAGING 32 (when HEADER ON) 32 (when HEADER OFF) The number of averaging times is set to 32.
Note		When the number of averaging times is set to 1, the averaging function is automatically turned OFF. When the number of averaging times is set to 2 to 256, the averaging function is automatically turned ON. When the sweep point No. is omitted for setting in the analyzer mode, the specified number of averaging times are set to all points. In addition, when the sweep point No. is omitted for the query, the number of averaging times for the 1st point is returned.

Setting and querying the judgment function

Syntax	Command	:JUDGment <NORMal/COMParator/BIN>
	Query	:JUDGment?
	Response	<NORMAL/COMPARATOR/BIN>
	Parameter
Explanation	Command	Sets the judgment function.
Explanation	Query	Returns the setting of the judgment function.
Example	Command	:JUDGment COMParator Sets the judgment function to the comparator measurement.
	Query	:JUDGment?
	Response	:JUDGMENT COMPARATOR (when HEADER ON) COMPARATOR (when HEADER OFF) The judgment function is set to the comparator measurement.
Note

Setting and querying ON/ OFF of comparator function

Syntax	Command	:COMParator <OFF/ON>
	Query	:COMParator?
	Response	<OFF/ON>
	Parameter
Explanation	Command	Sets the comparator function. OFF: Disables the comparator function. ON: Enables the comparator function.
Explanation	Query	Returns the setting of the comparator function.
Example	Command	:COMParator ON Sets the comparator function to ON.
	Query	:COMParator?
	Response	:COMPARATOR ON (when HEADER ON) ON (when HEADER OFF) The comparator function is set to ON.
Note		Sending the :COMParator ON command during BIN measurement automatically ends BIN measurement and starts comparator measurement.

Setting and querying the upper and lower limit values of the MAIN parameter of the comparator function (absolute value mode)

Syntax	Command	:COMParator:FLIMit:ABSolute <OFF/ lower value>,<OFF/ upper value>
	Query	:COMParator:FLIMit:ABSolute?
	Response	<OFF/ lower value>, <OFF/ upper value>
	Parameter	<Lower limit values> = -9.99999E+09 to +9.99999E+09 (NR3) <Upper limit values> = -9.99999E+09 to +9.99999E+09 (NR3)
Explanation	Command	Sets the upper and lower limit values of the MAIN parameter in absolute mode.
Explanation	Query	Returns the upper and lower limit values of the MAIN parameter in absolute mode.
Example	Command	:COMParator:FLIMit:ABSolute 234.560E-06,1.23456 Sets the lower and upper limit values of the MAIN parameter in absolute value mode to 0.23456E-03 and 1.23456, respectively.
	Query	:COMParator:FLIMit:ABSolute?
	Response	:COMPARATOR:FLIMIT:ABSOLUTE 234.560E-06, 1.23456E+00 (when HEADER ON) 234.560E-06, 1.23456E+00 (when HEADER OFF) The lower and upper limit values of the MAIN parameter in absolute value mode are set to 0.23456E-03 and 1.23456, respectively.
Note		The instrument stores the upper and lower limit values for absolute mode and those for percentage (%) mode separately. The reference value and upper and lower limit values are common to percentage (%) mode and deviation percentage (Δ%) mode.

Setting and querying the reference value and the upper and lower limit values of the MAIN parameter of the comparator function (deviation percentage (Δ%) mode)

Syntax	Command	:COMParator:FLIMit:DEViation <Reference value>,<OFF/ Lower limit values>,<OFF/ Upper limit values>
	Query	:COMParator:FLIMit:DEViation?
	Response	<Reference value>,<OFF/ lower value>,<OFF/ upper value>
	Parameter	<Reference value> = -9.99999E+09 to +9.99999E+09 (NR3) <Lower limit values> = -999.999% to +999.999% (NR2) <Upper limit values> = -999.999% to +999.999% (NR2)
Explanation	Command	Sets the reference value and upper and lower limit values of the MAIN parameter in deviation percentage (Δ%) mode.
Explanation	Query	Returns the reference value and upper and lower limit values of the MAIN parameter in deviation percentage (Δ%) mode.
Example	Command	:COMParator:FLIMit:DEViation 1.23456E-6,-10.000,10.000 Sets the reference value and the lower and upper limit values of the MAIN parameter in deviation percentage (Δ%) mode to 1.23456E-6, -10%, and 10%, respectively.
	Query	:COMParator:FLIMit:DEViation?
	Response	:COMPARATOR:FLIMIT:DEVIATION 1.23456E-06,-10.000,10.000 (when HEADER ON) 1.23456E-06,-10.000,10.000 (when HEADER OFF) The reference value and the lower and upper limit values of the MAIN parameter in deviation percentage (Δ%) mode are set to 1.23456E-6, -10%, and 10%, respectively.
Note		The instrument stores the upper and lower limit values for absolute mode and those for deviation percentage (Δ%) mode separately. The reference value and upper and lower limit values are common to percentage (%) mode and deviation percentage (Δ%) mode. 0 cannot be set as a reference value.

Setting and querying the judgment mode of the MAIN parameter of the comparator function

Syntax	Command	:COMParator:FLIMit:MODE <ABSolute/PERcent/DEViation>
	Query	:COMParator:FLIMit:MODE?
	Response	<ABSOLUTE/PERCENT/DEVIATION>
	Parameter
Explanation	Command	Sets the mode of the MAIN parameter. ABSolute: Sets the mode to absolute (ABS) mode. PERcent: Sets the mode to percentage (%) mode. DEViation: Sets the mode to deviation percentage (Δ%) mode.
Explanation	Query	Returns the mode of the MAIN parameter.
Example	Command	:COMParator:FLIMit:MODE PERcent Selects percentage (%) mode.
	Query	:COMParator:FLIMit:MODE?
	Response	:COMPARATOR:FLIMIT:MODE PERCENT (when HEADER ON) PERCENT (when HEADER OFF) The mode is set to percentage (%) mode.
Note

Setting and querying the reference value and the upper and lower limit values of the MAIN parameter of the comparator function (percentage (%) mode)

Syntax	Command	:COMParator:FLIMit:PERcent <Reference value>,<OFF/ Lower limit values>,<OFF/ Upper limit values>
	Query	:COMParator:FLIMit:PERcent?
	Response	<Reference value>,<OFF/ lower value>,<OFF/ upper value>
	Parameter	<Reference value> = -9.99999E+09 to +9.99999E+09 (NR3) <Lower limit values> = -999.999% to +999.999% (NR2) <Upper limit values> = -999.999% to +999.999% (NR2)
Explanation	Command	Sets the reference value and upper and lower limit values of the MAIN parameter in percentage (%) mode.
Explanation	Query	Returns the reference value and upper and lower limit values of the MAIN parameter in percentage (%) mode.
Example	Command	:COMParator:FLIMit:PERcent 1.23456E-6,-10.000,10.000 Sets the reference value and the lower and upper limit values of the MAIN parameter in percentage (%) mode to 1.23456E-06, -10%, and 10%, respectively.
	Query	:COMParator:FLIMit:PERcent?
	Response	:COMPARATOR:FLIMIT:PERCENT 1.23456E-06,-10.000,10.000 (when HEADER ON) 1.23456E-06,-10.000,10.000 (when HEADER OFF) The reference value and the lower and upper limit values of the MAIN parameter in percentage (%) mode are set to 1.23456E-06, -10%, and 10%, respectively.
Note		The instrument stores the upper and lower limit values for absolute mode and those for percentage (%) mode separately. The reference value and upper and lower limit values are common to percentage (%) mode and deviation percentage (Δ%) mode. 0 cannot be set as a reference value.

Setting and querying the upper and lower limit values of the SUB parameter of the comparator function (absolute value mode)

Syntax	Command	:COMParator:SLIMit:ABSolute <OFF/ lower value>,<OFF/ upper value>
	Query	:COMParator:SLIMit:ABSolute?
	Response	<OFF/ lower limit values>,<OFF/ upper limit values>
	Parameter	<Lower limit values> = -9.99999E+09 to +9.99999E+09 (NR3) <Upper limit values> = -9.99999E+09 to +9.99999E+09 (NR3)
Explanation	Command	Sets the upper and lower limit values of the SUB parameter in absolute mode.
Explanation	Query	Returns the upper and lower limit values of the SUB parameter in absolute mode.
Example	Command	:COMParator:SLIMit:ABSolute 234.560E-06,1.23456 Sets the lower and upper limit values of the SUB parameter in absolute value mode to 0.23456E-03 and 1.23456, respectively.
	Query	:COMParator:SLIMit:ABSolute?
	Response	:COMPARATOR:SLIMIT:ABSOLUTE 234.560E-06, 1.23456E+00 (when HEADER ON) 234.560E-06, 1.23456E+00 (when HEADER OFF) The lower and upper limit values of the SUB parameter in absolute value mode are set to 0.23456E-03 and 1.23456, respectively.
Note		The instrument stores the upper and lower limit values for absolute mode and those for percentage (%) mode separately. The reference value and upper and lower limit values are common to percentage (%) mode and deviation percentage Δ%) mode.

Setting and querying the reference value and the upper and lower limit values of the SUB parameter of the comparator function (deviation percentage (Δ%) mode)

Syntax	Command	:COMParator:SLIMit:DEViation <Reference value>,<OFF/ Lower limit values>,<OFF/ Upper limit values>
	Query	:COMParator:SLIMit:DEViation?
	Response	<Reference value>,<OFF/ lower value>,<OFF/ upper value>
	Parameter	<Reference value> = -9.99999E+09 to +9.99999E+09 (NR3) <Lower limit values> = -999.999% to +999.999% (NR2) <Upper limit values> = -999.999% to +999.999% (NR2)
Explanation	Command	Sets the reference value and upper and lower limit values of the SUB parameter in deviation percentage (Δ%) mode.
Explanation	Query	Returns the reference value and upper and lower limit values of the SUB parameter in deviation percentage (Δ%) mode.
Example	Command	:COMParator:SLIMit:DEViation 1.23456E-6,-10.000,10.000 Sets the reference value and the lower and upper limit values of the SUB parameter in deviation percentage (Δ%) mode to 1.23456E-6, -10%, and 10%, respectively.
	Query	:COMParator:SLIMit:DEViation?
	Response	:COMPARATOR:SLIMIT:DEVIATION 1.23456E-06,-10.000,10.000 (when HEADER ON) 1.23456E-06,-10.000,10.000 (when HEADER OFF) The reference value and the lower and upper limit values of the MAIN parameter in deviation percentage (Δ%) mode are set to 1.23456E-6, -10%, and 10%, respectively.
Note		The instrument stores the upper and lower limit values for absolute mode and those for deviation percentage (Δ%) mode separately. The reference value and upper and lower limit values are common to percentage (%) mode and deviation percentage (Δ%) mode. 0 cannot be set as a reference value.

Setting and querying the judgment mode of the SUB parameter of the comparator function

Syntax	Command	:COMParator:SLIMit:MODE <ABSolute/PERcent/DEViation>
	Query	:COMParator:SLIMit:MODE?
	Response	<ABSOLUTE/PERCENT/DEVIATION>
	Parameter
Explanation	Command	Sets the mode of the SUB parameter. ABSolute: Sets the mode to absolute (ABS) mode. PERcent: Sets the mode to percentage (%) mode. DEViation: Sets the mode to deviation percentage (Δ%) mode.
Explanation	Query	Returns the mode of the SUB parameter.
Example	Command	:COMParator:SLIMit:MODE PERcent Selects percentage (%) mode.
	Query	:COMParator:SLIMit:MODE?
	Response	:COMPARATOR:SLIMIT:MODE PERCENT (when HEADER ON) PERCENT (when HEADER OFF) The mode is set to percentage (%) mode.
Note

Setting and querying the reference value and the upper and lower limit values of the SUB parameter of the comparator function (percentage mode)

Syntax	Command	:COMParator:SLIMit:PERcent <Reference value>,<OFF/ Lower limit values>,<OFF/ Upper limit values>
	Query	:COMParator:SLIMit:PERcent?
	Response	<Reference value>,<OFF/ lower value>,<OFF/ upper value>
	Parameter	<Reference value> = -9.99999E+09 to +9.99999E+09 (NR3) <Lower limit values> = -999.999% to +999.999% (NR2) <Upper limit values> = -999.999% to +999.999% (NR2)
Explanation	Command	Sets the reference value and upper and lower limit values of the SUB parameter in percentage (%) mode.
Explanation	Query	Returns the reference value and upper and lower limit values of the SUB parameter in percentage (%) mode.
Example	Command	:COMParator:SLIMit:PERcent 1.23456E-6,-10.000,10.000 Sets the reference value and the lower and upper limit values of the SUB parameter in percentage (%) mode to 1.23456E-6, -10%, and 10%, respectively.
	Query	:COMParator:SLIMit:PERcent?
	Response	:COMPARATOR:SLIMIT:PERCENT 1.23456E-06,-10.000,10.000 (when HEADER ON) 1.23456E-06,-10.000,10.000 (when HEADER OFF) The reference value and the lower and upper limit values of the SUB parameter in percentage (%) mode are set to 1.23456E-6, -10%, and 10%, respectively.
Note		The instrument stores the upper and lower limit values for absolute mode and those for percentage (%) mode separately. The reference value and upper and lower limit values are common to percentage (%) mode and deviation percentage (Δ%) mode.

Setting of the upper and lower limit values of the comparator function and queries (absolute mode)

Syntax	Command	:COMParator:ABSolute <Parameter number>, <OFF/lower limit value>, <OFF/upper limit value>
	Query	:COMParator:ABSolute? <Parameter number>
	Response	<OFF/lower limit value>, <OFF/upper limit value>
	Parameter	<Parameter number> = 1 to 4 (NR1) <Lower limit values> = -9.99999E+09 to +9.99999E+09 (NR3) <Upper limit values> = -9.99999E+09 to +9.99999E+09 (NR3)
Explanation	Command	Sets the upper and lower limit values of the specified parameter in the absolute value mode.
Explanation	Query	Returns the setting of the upper and lower limit values of the specified parameter in the absolute value mode.
Example	Command	:COMParator:ABSolute 1,234.560E-06,1.23456 Sets the upper and lower limit values of the 1st parameter in the absolute value mode to 1.23456 and 234.560E-06, respectively.
	Query	:COMParator:ABSolute? 1
	Response	:COMPARATOR:ABSOLUTE 234.560E-06, 1.23456E+00 (when HEADER ON) 234.560E-06, 1.23456E+00 (when HEADER OFF) The upper and lower limit values of the 1st parameter in the absolute value mode are set to 1.23456 and 234.560E-06, respectively.
Note		The instrument stores the upper and lower limit values for the absolute mode and those for percentage (%) mode separately. ?The reference, upper, and lower limit values are common to percentage (%) mode and deviation percentage (Δ%) mode.

Setting of the reference, upper, and lower limit values of the comparator function (deviation percentage (Δ%) mode) and queries

Syntax	Command	:COMParator:DEViation <Parameter number>, <reference value>, <OFF/lower limit value>, <OFF/upper limit value>
	Query	:COMParator:DEViation? <Parameter number>
	Response
	Parameter	<Parameter number> = 1 to 4 (NR1) <Reference values> = -9.99999E+09 to +9.99999E+09 (NR3) <Lower limit values> = -999.999% to +999.999% (NR2) <Upper limit values> = -999.999% to +999.999% (NR2)
Explanation	Command	Sets the reference, upper, and lower limit values of the specified parameter for the deviation percentage (Δ%) mode.
Explanation	Query	Returns the reference, upper, and lower limit values of the specified parameter for the deviation percentage (Δ%) mode.
Example	Command	:COMParator:DEViation 1,1.23456E-6,-10.000,10.000 Sets the reference, upper, and lower limit values of the 1st parameter for the deviation percentage (Δ%) mode to 1.23456E-6, 10% and -10%, respectively.
	Query	:COMParator:DEViation? 1
	Response	:COMPARATOR:DEVIATION 1.23456E-6,-10.000,10.000 (when HEADER ON) 1.23456E-6,-10.000,10.000 (when HEADER OFF) The reference, upper, and lower limit values of the 1st parameter in the deviation percentage (Δ%) mode are set to 1.23456E-6, 10% and -10%, respectively.
Note		The instrument stores the upper and lower limit values for the absolute mode and deviation percentage (Δ%) mode separately. ?The reference, upper, and lower limit values are common to percentage (%) mode and deviation percentage (Δ%) mode. 0 cannot be set for the reference value.

Setting of the judgment mode for the comparator function and queries

Syntax	Command	:COMParator:MODE <Parameter number>, <ABSolute/PERcent/DEViation>
	Query	:COMParator:MODE? <Parameter number>
	Response	<ABSOLUTE/PERCENT/DEVIATION>
	Parameter	<Parameter number> = 1 to 4 (NR1)
Explanation	Command	Sets the mode for the specified parameter. ABSolute: Sets to the absolute (ABS) mode. PERcent: Sets to the percentage (%) mode. DEViation: Sets to the deviation percentage (Δ%) mode.
Explanation	Query	Returns the mode for the specified parameter.
Example	Command	:COMParator:MODE 1,PERcent Sets the 1st parameter to the percentage (%) mode.
	Query	:COMParator:MODE? 1
	Response	:COMPARATOR:MODE PERCENT (when HEADER ON) PERCENT (when HEADER OFF) The 1st parameter is set to the percentage (%) mode.
Note

Setting of the reference, upper, and lower limit values of the comparator function (percentage (%) mode) and queries

Syntax	Command	:COMParator:PERcent <Parameter number>, <reference value>, <OFF/lower limit value>, <OFF/upper limit value>
	Query	:COMParator:PERcent? <Parameter number>
	Response	<Reference value>, <OFF/lower limit value>,<OFF/upper limit value>
	Parameter	<Parameter number> = 1 to 4 (NR1) <Reference values> = -9.99999E+09 to +9.99999E+09 (NR3) <Lower limit values> = -999.999% to +999.999% (NR2) <Upper limit values> = -999.999% to +999.999% (NR2)
Explanation	Command	Sets the reference, upper, and lower limit values of the specified parameter for the percentage (%) mode.
Explanation	Query	Returns the reference, upper, and lower limit values of the specified parameter for the percentage (%) mode.
Example	Command	:COMParator:PERcent 1,1.23456E-6,-10.000,10.000 Sets the reference, upper, and lower limit values of the 1st parameter in percentage (%) mode to 1.23456E-6, 10% and -10%, respectively.
	Query	:COMParator:PERcent? 1
	Response	:COMPARATOR:FLIMIT:PERCENT 1.23456E-06,-10.000,10.000 (when HEADER ON) 1.23456E-06,-10.000,10.000 (when HEADER OFF) The reference, upper, and lower limit values of the 1st parameter in percentage (%) mode are set to 1.23456E-6, 10% and -10%, respectively.
Note		The instrument stores the upper and lower limit values for the absolute mode and those for percentage (%) mode separately. ?The reference, upper, and lower limit values are common to percentage (%) mode and deviation percentage (Δ%) mode. 0 cannot be set for the reference value.

Setting of the judgment procedure when the measured value of the comparator function is outside the guaranteed accuracy and queries

Syntax	Command	:COMParator:JUDGment <DO/NOT>
	Query	:COMParator:JUDGment?
	Response	<DO/NOT>
	Parameter
Explanation	Command	Sets the judgment procedure when the measured value of the comparator function is outside the guaranteed accuracy. DO: Performs judgment even when the measured value is outside the guaranteed accuracy. NOT: Outputs an error for the HI judgment when the measured value is outside the guaranteed accuracy.
Explanation	Query	Returns the setting of the judgment procedure when the measured value is outside the guaranteed accuracy.
Example	Command	:COMParator:JUDGment DO Sets to perform a judgment when the measured value is outside the guaranteed accuracy.
	Query	:COMParator:JUDGment?
	Response	:COMPARATOR:JUDGMENT DO (when HEADER ON) DO (when HEADER OFF) It is set to perform a judgment when the measured value is outside the guaranteed accuracy.
Note

Setting and querying ON/ OFF of BIN function

Syntax	Command	:BIN <OFF/ON>
	Query	:BIN?
	Response	<OFF/ON>
	Parameter
Explanation	Command	Sets the BIN measurement function. OFF: Disables the BIN function. ON: Enables the BIN function.
Explanation	Query	Returns ON or OFF for the BIN measurement function.
Example	Command	:BIN ON Sets the BIN measurement function to ON.
	Query	:BIN?
	Response	:BIN ON (when HEADER ON) ON (when HEADER OFF) The BIN measurement function is set to ON.
Note		Sending the :BIN ON command during comparator measurement automatically ends comparator measurement and starts BIN measurement.

Setting and querying the upper and lower limit values of the MAIN parameter of the BIN function (absolute value mode)

Syntax	Command	:BIN:FLIMit:ABSolute <BIN number>,<OFF/ lower value>,<OFF/ upper value>
	Query	:BIN:FLIMit:ABSolute? <BIN number>
	Response	<OFF/ lower value>, <OFF/ upper value>
	Parameter	<BIN number> = 1 to 10 <Lower limit values> = -9.99999E+09 to +9.99999E+09 (NR3) <Upper limit values> = -9.99999E+09 to +9.99999E+09 (NR3)
Explanation	Command	Sets the upper and lower limit values of the MAIN parameter in absolute value mode of the specified BIN number.
Explanation	Query	Returns the setting of the upper and lower limit values of the MAIN parameter in absolute value mode of the specified BIN number.
Example	Command	:BIN:FLIMit:ABSolute 1,234.560E-06,1.23456 Sets the lower and upper limit values of the MAIN parameter in absolute value mode of BIN1 to 234.560E-06 and 1.23456, respectively.
	Query	:BIN:FLIMit:ABSolute? 1
	Response	:BIN:FLIMIT:ABSOLUTE 234.560E-06,1.23456E+00 (when HEADER ON) 234.560E-06,1.23456E+00 (when HEADER OFF) The lower and upper limit values of the MAIN parameter in absolute value mode of BIN1 are set to 234.560E-06 and 1.23456, respectively.
Note		The instrument stores the upper and lower limit values for absolute mode and those for percentage (%) mode separately. The reference value and upper and lower limit values are common to percentage (%) mode and deviation percentage (Δ%) mode.

Setting and querying the upper and lower limit values of the MAIN parameter of the BIN function (deviation percentage (Δ%) mode)

Syntax	Command	:BIN:FLIMit:DEViation <BIN number>,<OFF/ lower value>,<OFF/ upper value>
	Query	:BIN:FLIMit:DEViation? <BIN number>
	Response	<OFF/ lower value>, <OFF/ upper value>
	Parameter	<BIN number> = 1 to 10 <Lower limit values> = -999.999% to +999.999% (NR2) <Upper limit values> = -999.999% to +999.999% (NR2)
Explanation	Command	Sets the upper and lower limit values of the MAIN parameter in deviation percentage (Δ%) mode of the specified BIN number.
Explanation	Query	Returns the setting of the upper and lower limit values of the MAIN parameter in deviation percentage (Δ%) mode of the specified BIN number.
Example	Command	:BIN:FLIMit:DEViation 1,-10.000,10.000 Sets the lower and upper limit values of the MAIN parameter in deviation percentage (Δ%) mode of BIN1 to -10% and 10%, respectively.
	Query	:BIN:FLIMit:DEViation? 1
	Response	:BIN:FLIMIT:DEVIATION -10.000,10.000 (when HEADER ON) -10.000,10.000 (when HEADER OFF) The lower and upper limit values of the MAIN parameter in deviation percentage (Δ%) mode of BIN1 are set to -10% and 10%, respectively.
Note		The instrument stores the upper and lower limit values for absolute mode and those for deviation percentage (Δ%) mode separately. The reference value and upper and lower limit values are common to percentage (%) mode and deviation percentage (Δ%) mode.

Selecting and querying the mode of the MAIN parameter of the BIN function

Syntax	Command	:BIN:FLIMit:MODE <ABSolute/PERcent/DEViation>
	Query	:BIN:FLIMit:MODE?
	Response	<ABSOLUTE/PERCENT/DEVIATION>
	Parameter
Explanation	Command	Sets the mode of the MAIN parameter. ABSolute: Sets the mode to absolute (ABS) mode. PERcent: Sets the mode to percentage (%) mode. DEViation: Sets the mode to deviation percentage (Δ%) mode.
Explanation	Query	Returns the mode of the MAIN parameter.
Example	Command	:BIN:FLIMit:MODE PERcent Selects percentage (%) mode.
	Query	:BIN:FLIMit:MODE?
	Response	:BIN:FLIMIT:MODE PERCENT (when HEADER ON) PERCENT (when HEADER OFF) The mode is set to percentage (%) mode.
Note

Setting and querying the upper and lower limit values of the MAIN parameter of the BIN function (percentage (%) mode)

Syntax	Command	:BIN:FLIMit:PERcent <BIN number>,<OFF/ lower value>,<OFF/ upper value>
	Query	:BIN:FLIMit:PERcent? <BIN number>
	Response	<OFF/ lower value>, <OFF/ upper value>
	Parameter	<BIN number> = 1 to 10 <Lower limit values> = -999.999% to +999.999% (NR2) <Upper limit values> = -999.999% to +999.999% (NR2)
Explanation	Command	Sets the upper and lower limit values of the MAIN parameter in percentage (%) mode of the specified BIN number.
Explanation	Query	Returns the upper and lower limit values of the MAIN parameter in percentage (%) mode of the specified BIN number.
Example	Command	:BIN:FLIMit:PERcent 1,-10.000,10.000 Sets the lower and upper limit values of the MAIN parameter in percentage (%) mode of BIN1 to -10% and 10%, respectively.
	Query	:BIN:FLIMit:PERcent? 1
	Response	:BIN:FLIMIT:PERCENT -10.000,10.000 (when HEADER ON) -10.000,10.000 (when HEADER OFF) The lower and upper limit values of the MAIN parameter in percentage (%) mode of BIN1 are set to -10% and 10%, respectively.
Note		The instrument stores the upper and lower limit values for absolute mode and those for percentage (%) mode separately. The reference value and upper and lower limit values are common to percentage (%) mode and deviation percentage (Δ%) mode.

Setting and querying the reference value of the MAIN parameter of the BIN function (percentage (%) mode and deviation percentage (Δ%) mode)

Syntax	Command	:BIN:FLIMit:REFerence <Reference value>
	Query	:BIN:FLIMit:REFerence?
	Response	<Reference value>
	Parameter	<Reference value> = -9.99999E+09 to +9.99999E+09 (NR3)
Explanation	Command	Sets the reference value of the MAIN parameter in percentage (%) mode or deviation percentage (Δ%) mode.
Explanation	Query	Returns the reference value of the MAIN parameter in percentage (%) mode or deviation percentage (Δ%) mode.
Example	Command	:BIN:FLIMit:REFerence 1.23456E-6 Sets the reference value of the MAIN parameter in percentage (%) mode or deviation percentage (Δ%) mode to 1.23456E-6.
	Query	:BIN:FLIMit:REFerence?
	Response	:BIN:FLIMIT:REFERENCE 1.23456E-06 (when HEADER ON) 1.23456E-06 (when HEADER OFF) The reference value of the MAIN parameter in percentage (%) mode or deviation percentage (Δ%) mode is set to 1.23456E-6.
Note		The reference value is common to percentage (%) mode and deviation percentage (Δ%) mode. 0 cannot be set as a reference value.

Setting and querying the upper and lower limit values of the SUB parameter of the BIN function (absolute value mode)

Syntax	Command	:BIN:SLIMit:ABSolute <BIN number>,<OFF/ lower value>,<OFF/ upper value>
	Query	:BIN:SLIMit:ABSolute? <BIN number>
	Response	<OFF/ lower value>, <OFF/ upper value>
	Parameter	<BIN number> = 1 <Lower limit values> = -9.99999E+09 to +9.99999E+09 (NR3) <Upper limit values> = -9.99999E+09 to +9.99999E+09 (NR3)
Explanation	Command	Sets the upper and lower limit values of the SUB parameter in absolute value mode of the specified BIN number.
Explanation	Query	Returns the setting of the upper and lower limit values of the SUB parameter in absolute value mode of the specified BIN number.
Example	Command	:BIN:SLIMit:ABSolute 1,234.560E-06,1.23456 Sets the lower and upper limit values of the SUB parameter in absolute value mode of BIN1 to 234.560E-06 and 1.23456, respectively.
	Query	:BIN:SLIMit:ABSolute? 1
	Response	:BIN:SLIMIT:ABSOLUTE 234.560E-06, 1.23456E+00 (when HEADER ON) 234.560E-06, 1.23456E+00 (when HEADER OFF) The lower and upper limit values of the SUB parameter in absolute value mode of BIN1 are set to 234.560E-06 and 1.23456, respectively.
Note		The instrument stores the upper and lower limit values for absolute mode and those for percentage (%) mode separately. The reference value and upper and lower limit values are common to percentage (%) mode and deviation percentage (Δ%) mode. Enter 1 for the BIN number.

Setting and querying the upper and lower limit values of the SUB parameter of the BIN function (deviation percentage (Δ%) mode)

Syntax	Command	:BIN:SLIMit:DEViation <BIN number>,<OFF/ lower value>,<OFF/ upper value>
	Query	:BIN:SLIMit:DEViation? <BIN number>
	Response	<OFF/ lower value>, <OFF/ upper value>
	Parameter	<BIN number> = 1 <Lower limit values> = -999.999% to +999.999% (NR2) <Upper limit values> = -999.999% to +999.999% (NR2)
Explanation	Command	Sets the upper and lower limit values of the SUB parameter in deviation percentage (Δ%) mode of the specified BIN number.
Explanation	Query	Returns the setting of the upper and lower limit values of the SUB parameter in deviation percentage (Δ%) mode of the specified BIN number.
Example	Command	:BIN:SLIMit:DEViation 1,-10.0,10.0 Sets the lower and upper limit values of the SUB parameter in deviation percentage (Δ%) mode of BIN1 to -10% and 10%, respectively.
	Query	:BIN:SLIMit:DEViation? 1
	Response	:BIN:SLIMIT:DEVIATION -10.000,10.000 (when HEADER ON) -10.000,10.000 (when HEADER OFF) The lower and upper limit values of the SUB parameter in deviation percentage (Δ%) mode of BIN1 are set to -10% and 10%, respectively.
Note		The instrument stores the upper and lower limit values for absolute mode and those for deviation percentage (Δ%) mode separately. The reference value and upper and lower limit values are common to percentage (%) mode and deviation percentage (Δ%) mode. Enter 1 for the BIN number.

Selecting and querying the mode of the SUB parameter of the BIN function

Syntax	Command	:BIN:SLIMit:MODE <ABSolute/PERcent/DEViation>
	Query	:BIN:SLIMit:MODE?
	Response	<ABSOLUTE/PERCENT/DEVIATION>
	Parameter
Explanation	Command	Sets the mode of the SUB parameter. ABSolute: Sets the mode to absolute (ABS) mode. PERcent: Sets the mode to percentage (%) mode. DEViation: Sets the mode to deviation percentage (Δ%) mode.
Explanation	Query	Returns the mode of the SUB parameter.
Example	Command	:BIN:SLIMit:MODE PERcent Selects percentage (%) mode.
	Query	:BIN:SLIMit:MODE?
	Response	:BIN:SLIMIT:MODE PERCENT (when HEADER ON) PERCENT (when HEADER OFF) The mode is set to percentage (%) mode.
Note

Setting and querying the upper and lower limit values of the SUB parameter of the BIN function (percentage (%) mode)

Syntax	Command	:BIN:SLIMit:PERcent <BIN number>,<OFF/ lower value>,<OFF/ upper value>
	Query	:BIN:SLIMit:PERcent? <BIN number>
	Response	<OFF/ lower value>, <OFF/ upper value>
	Parameter	<BIN number> = 1 <Lower limit values> = -999.999% to +999.999% (NR2) <Upper limit values> = -999.999% to +999.999% (NR2)
Explanation	Command	Sets the upper and lower limit values of the SUB parameter in percentage (%) mode of the specified BIN number.
Explanation	Query	Returns the upper and lower limit values of the SUB parameter in percentage (%) mode of the specified BIN number.
Example	Command	:BIN:SLIMit:PERcent 1,-10.000,10.000 Sets the lower and upper limit values of the SUB parameter in percentage (%) mode of BIN1 to -10% and 10%, respectively.
	Query	:BIN:SLIMit:PERcent? 1
	Response	:BIN:SLIMIT:PERCENT -10.000,10.000 (when HEADER ON) -10.000,10.000 (when HEADER OFF) The lower and upper limit values of the SUB parameter in percentage (%) mode of BIN1 are set to -10% and 10%, respectively.
Note		The instrument stores the upper and lower limit values for absolute mode and those for percentage (%) mode separately. The reference value and upper and lower limit values are common to percentage (%) mode and deviation percentage (Δ%) mode. Enter 1 for the BIN number.

Setting and querying the reference value of the SUB parameter of the BIN function (percentage (%) mode and deviation percentage (Δ%) mode)

Syntax	Command	:BIN:SLIMit:REFerence <Reference value>
	Query	:BIN:SLIMit:REFerence?
	Response	<Reference value>
	Parameter	<Reference value> = -9.99999E+09 to +9.99999E+09 (NR3)
Explanation	Command	Sets the reference value of the SUB parameter in percentage (%) mode or deviation percentage (Δ%) mode.
Explanation	Query	Returns the reference value of the SUB parameter in percentage (%) mode or deviation percentage (Δ%) mode.
Example	Command	:BIN:SLIMit:REFerence 1.23456E-6 Sets the reference value of the SUB parameter in percentage (%) mode or deviation percentage (Δ%) mode to 1.23456E-6.
	Query	:BIN:SLIMit:REFerence?
	Response	:BIN:SLIMIT:REFERENCE 1.23456E-06 (when HEADER ON) 1.23456E-06 (when HEADER OFF) The reference value of the SUB parameter in percentage (%) mode or deviation percentage (Δ%) mode is set to 1.23456E-6.
Note		The reference value is common to percentage (%) mode and deviation percentage (Δ%) mode. 0 cannot be set as a reference value.

Setting of the upper and lower limit values of the BIN function and queries (absolute mode)

Syntax	Command	:BIN:ABSolute <Parameter number>, <BIN number>, <OFF/lower limit value>, <OFF/upper limit value>
	Query	:BIN:ABSolute? <Parameter number>, <BIN number>
	Response	<OFF/ lower limit value>, <OFF/ upper limit value>
	Parameter	<Parameter number> = 1 to 4 (NR1) <BIN number> = 1 to 10 (NR1) <Lower limit values> = -9.99999E+09 to +9.99999E+09 (NR3) <Upper limit values> = -9.99999E+09 to +9.99999E+09 (NR3)
Explanation	Command	Sets the upper and lower limit values of the specified parameter number and BIN number in the absolute value mode.
Explanation	Query	Returns the setting of the upper and lower limit values of the specified parameter number and BIN number in the absolute value mode.
Example	Command	:BIN:ABSolute 1,1,234.560E-06,1.23456 Sets the upper and lower limit values of the 1st parameter in the absolute value mode of BIN1 to 1.23456 and 234.560E-06, respectively.
	Query	:BIN:ABSolute? 1,1
	Response	:BIN:ABSOLUTE 234.560E-06, 1.23456E+00 (when HEADER ON) 234.560E-06, 1.23456E+00 (when HEADER OFF) The upper and lower values of the 1st parameter in the absolute value mode of BIN1 are set to 1.23456 and 234.560E-06, respectively.
Note		The instrument stores the upper and lower limit values for the absolute mode and those for percentage (%) mode separately. ?The reference, upper, and lower limit values are common to percentage (%) mode and deviation percentage (Δ%) mode.

Setting of the upper and lower limit values of the BIN function (deviation percentage (Δ%) mode) and queries

Syntax	Command	:BIN:DEViation <Parameter number>, <BIN number>, <OFF/lower limit value>, <OFF/upper limit value>
	Query	:BIN:DEViation? <Parameter number>, <BIN number>
	Response	<OFF/ lower limit value>, <OFF/ upper limit value>
	Parameter	<Parameter number> = 1 to 4 (NR1) <BIN number> = 1 to 10 (NR1) <Lower limit values> = -999.999% to +999.999% (NR2) <Upper limit values> = -999.999% to +999.999% (NR2)
Explanation	Command	Sets the upper and lower limit values of the specified BIN number and parameter number in deviation percentage (Δ%) mode.
Explanation	Query	Returns the upper and lower limit values of the specified BIN number and parameter number in deviation percentage (Δ%) mode.
Example	Command	:BIN:DEViation 1,1,-10.000,10.000 Sets the upper and lower limit values of the 1st parameter in deviation percentage (Δ%) mode of BIN1 to 10% and -10%, respectively.
	Query	:BIN:DEViation? 1,1
	Response	:BIN:DEVIATION -10.000,10.000 (when HEADER ON) -10.000,10.000 (when HEADER OFF) The upper and lower limit values of the 1st parameter in deviation percentage (Δ%) mode of BIN1 are set to 10% and -10%, respectively.
Note		The instrument stores the upper and lower limit values for the absolute mode and deviation percentage (Δ%) mode separately. ?The reference, upper, and lower limit values are common to percentage (%) mode and deviation percentage (Δ%) mode.

Setting of the judgment mode for the BIN function and queries

Syntax	Command	:BIN:MODE <Parameter number>, <ABSolute/PERcent/DEViation>
	Query	:BIN:MODE? <Parameter number>
	Response	<ABSolute/PERcent/DEViation>
	Parameter	<Parameter number> = 1 to 4 (NR1)
Explanation	Command	Sets the mode for the specified parameter. ABSolute: Sets to the absolute (ABS) mode. PERcent: Sets to the percentage (%) mode. DEViation: Sets to the deviation percentage (Δ%) mode.
Explanation	Query	Returns the mode for the specified parameter.
Example	Command	:BIN:MODE 1,PERcent Selects the percentage (%) mode.
	Query	:BIN:MODE? 1
	Response	:BIN:MODE PERCENT (when HEADER ON) PERCENT (when HEADER OFF) The percentage (%) mode is set.
Note

Setting of the upper and lower limit values of the BIN function (percentage (%) mode) and queries

Syntax	Command	:BIN:PERcent <Parameter number>, <BIN number>, <OFF/lower limit value>, <OFF/upper limit value>
	Query	:BIN:PERcent? <Parameter number>, <BIN number>
	Response	<OFF/lower limit value>, <OFF/upper limit value>
	Parameter	<Parameter number> = 1 to 4 (NR1) <BIN number> = 1 to 10 (NR1) <Lower limit values> = -999.999% to +999.999% (NR2) <Upper limit values> = -999.999% to +999.999% (NR2)
Explanation	Command	Sets the upper and lower limit values of the specified BIN number and parameter number in percentage (%) mode.
Explanation	Query	Returns the upper and lower limit values of the specified BIN number and parameter number in percentage (%) mode.
Example	Command	:BIN:PERcent 1,1,-10.000,10.000 Sets the upper and lower limit values of the 1st parameter in percentage (%) mode of BIN1 to 10% and -10%, respectively.
	Query	:BIN:PERcent? 1,1
	Response	:BIN:PERCENT -10.000,10.000 (when HEADER ON) -10.000,10.000 (when HEADER OFF) The upper and lower limit values of the 1st parameter in percentage (%) mode of BIN1 are set to 10% and -10%, respectively.
Note		The instrument stores the upper and lower limit values for the absolute mode and those for percentage (%) mode separately. ?The reference, upper, and lower limit values are common to percentage (%) mode and deviation percentage (Δ%) mode.

Setting of the reference value of the BIN function (percentage (%) mode and deviation percentage (Δ%) mode) and queries

Syntax	Command	:BIN:REFerence <Parameter number>, <reference value>
	Query	:BIN:REFerence? <Parameter number>
	Response	<Reference value>
	Parameter	<Parameter number> = 1 to 4 (NR1) <Reference values> = -9.99999E+09 to +9.99999E+09 (NR3)
Explanation	Command	Sets the reference value of the specified parameter for the percentage (%) mode and deviation percentage (Δ%) mode.
Explanation	Query	Returns the reference value of the specified parameter for the percentage (%) mode and deviation percentage (Δ%) mode.
Example	Command	:BIN:REFerence 1,1.23456E-6 Sets the reference value of the 1st parameter for the percentage (%) mode and deviation percentage (Δ%) mode to 1.23456E-6.
	Query	:BIN:REFerence? 1
	Response	:BIN:REFERENCE 1.23456E-06 (when HEADER ON) 1.23456E-06 (when HEADER OFF) The reference value of the 1st parameter for the percentage (%) mode and deviation percentage (Δ%) mode is set to 1.23456E-6.
Note		The reference value of this instrument is common to percentage (%) mode and deviation percentage (Δ%) mode. 0 cannot be set for the reference value.

Querying measurement data

Syntax	Command
	Query	:MEASure?
	Response	<Measurement value>
	Parameter
Explanation	Command
Explanation	Query	For more detail, refer to "Querying measurement data".
Example	Command
	Query
	Response
Note		If a setting has been changed, send the ":MEASure?" query after triggering.

Queries for the contact check measurement data

Syntax	Command
	Query	:MEASure:RDC?
	Response	<Measurement status>, <BEFORE measured value>, <BEFORE judgment>, <AFTER measured value>, <AFTER judgment>, <panel number>
	Parameter
Explanation	Command
Explanation	Query	Returns the measured value of the contact check. The measurement status has the same specification as the Measure? query status. Details of the judgment values are as follows. -1: LO judgment 0: IN judgment 1: HI judgment 2: Not judged
Example	Command
	Query	:MEASure:RDC?
	Response	0,4.9929E+03,0, 4.9957E+03,1,0 (when HEADER ON) 0,4.9929E+03,0, 4.9957E+03,1,0 (when HEADER OFF) Returns the BEFORE and AFTER measured values of the contact check. The judgment result shows BEFORE: IN and AFTER: HI.
Note		The output data follows the MEASure:VALid setting. The binary output is not supported.

Setting and querying main sweep measurement signal mode

Syntax	Command	:SWEep:MAIN:SOURce <FREQuency/POWer/V/I>
	Query	:SWEep:MAIN:SOURce?
	Response	<FREQUENCY/POWER/V/I>
	Parameter
Explanation	Command	Sets the main sweep measurement signal type. FREQuency: Sets frequency. POWer: Sets power level. V: Sets voltage level. I: Sets current level.
Explanation	Query	Returns the main sweep measurement signal type.
Example	Command	:SWEep:MAIN:SOURce V Sets the main sweep measurement signal type to V (voltage).
	Query	:SWEep:MAIN:SOURce?
	Response	:SWEEP:MAIN:SOURCE V (when HEADER ON) V (when HEADER OFF) The main sweep measurement signal type is set to V (voltage).
Note

Setting of the point delay and queries

Syntax	Command	:SWEep:PDELay <Sweep point No.>, <point delay time>
	Query	:SWEep:PDELay? <Sweep point No.>
	Response	<Point delay time>
	Parameter	<Sweep point No.> = 1 to 801 (NR1) <Point delay time> = 0.00000 s to 9.99999 s (NR2)
Explanation	Command	Sets the point delay time for the analyzer mode.
Explanation	Query	Returns the point delay time for the analyzer mode.
Example	Command	:SWEep:PDELay 1,0.0005 Sets the point delay interval for sweep point No. 1 to 0.5 ms.
	Query	:SWEep:PDELay? 1
	Response	:SWEEP:PDELAY 0.0005 (when HEADER ON) 0.0005 (when HEADER OFF) The point delay interval for sweep point No. 1 is set to 0.5 ms.
Note		The point delay setting is common to the interval setting during the interval measurement.

Setting and querying trigger mode

Syntax	Command	:SWEep:TRIGger <SEQuential/REPeat/STEP>
	Query	:SWEep:TRIGger?
	Response	<SEQUENTIAL/REPEAT/STEP>
	Parameter
Explanation	Command	Sets the trigger mode of analyzer mode. SEQuential: Measures all sweep points when one trigger is input. REPeat: Repeats sweep measurement. STEP: Measures one of the sweep points when one trigger is input.
Explanation	Query	Returns the trigger mode of analyzer mode.
Example	Command	:SWEep:TRIGger SEQuential Sets the trigger mode to sequential.
	Query	:SWEep:TRIGger?
	Response	:SWEEP:TRIGGER SEQUENTIAL (when HEADER ON) SEQUENTIAL (when HEADER OFF) The trigger mode is set to sequential.
Note

Setting of the display for the analyzer mode and queries

Syntax	Command	:SWEep:DISPlay <GRAPh/FGRAPh/XY/XY2/MULTi/NUMEric/PEAK>
	Query	:SWEep:DISPlay?
	Response	<GRAPH/FGRAPH/XY/XY2/MULTI/NUMERIC/PEAK>
	Parameter
Explanation	Command	Sets the display for the analyzer mode.
Explanation	Query	Returns the setting of the display for the analyzer mode.
Example	Command	:SWEep:DISPlay NUMERIC Sets the display to the list display for the analyzer mode.
	Query	:SWEep:DISPlay?
	Response	:SWEEP:DISPLAY NUMERIC (when HEADER ON) NUMERIC (when HEADER OFF) The display is set to the list display for the analyzer mode.
Note

Setting and querying the sweep point

Syntax	Command	:POINt <Sweep point No.>,<Setting value>
	Query	:POINt? <Sweep point No.>
	Response	<Setting value>
	Parameter	<Sweep point No.> = 1 to 801 (NR1) <Setting value> = The settable range varies depending on the conditions. (NR3)
Explanation	Command	Sets the sweep value.
Explanation	Query	Returns the sweep value.
Example	Command	:POINt 5,23E6 Sets sweep value of sweep point number 5 to 23 M.
	Query	:POINt? 5
	Response	:POINT 23.000E+06 (when HEADER ON) 23000000 (when HEADER OFF) The sweep value of sweep point number 5 is set to 23 M.
Note		An execution error occurs when a value that is larger than the number of sweep points is set for the sweep point number.

Adding a sweep point

Syntax	Command	:POINt:ADD <Sweep point No.>, <set value>
	Query
	Response	<Set value>
	Parameter	<Sweep point No.> = 1 to 801 (NR1) <Set value> = The settable range varies depending on the conditions. (NR3)
Explanation	Command	1 point is added to the sweep value. When the sweep point is omitted, the sweep point is added at the very end.
Explanation	Query
Example	Command	:POINt:ADD 5,23E6 A sweep point of 23 MHz is added to the end of sweep point No. 5.
	Query
	Response
Note

Deletion of sweep point

Syntax	Command	:POINt:DELete <Sweep point No.>
	Query
	Response
	Parameter	<Sweep point No.> = 1 to 801 (NR1)
Explanation	Command	The specified sweep point is deleted.
Explanation	Query
Example	Command	:POINt:DELete 5 Sweep point No. 5 is deleted.
	Query
	Response
Note

Setting and querying the sweep point settings of START-STOP mode

Syntax	Command	:LIST:STARt:STOP <START value>,<STOP value>,<Number of sweep points>,<LINear/ LOG>
	Query	:LIST:STARt:STOP?
	Response	<START value>,<STOP value>,<Number of sweep points>
	Parameter	<START value> = The settable range varies depending on the type of sweep parameter. (NR2/NR3) <STOP value> = The settable range varies depending on the type of sweep parameter. (NR2/NR3) <Number of sweep points> = 1 to 801 (NR1)
Explanation	Command	Simultaneously sets the sweep point settings of the START-STOP method.
Explanation	Query	Returns the sweep point settings of the START-STOP method.
Example	Command	:LIST:STARt:STOP 1.0000E+06,200.00E+06,801,LOG Sets the START value, STOP value, number of sweep points, and setting method of sweep points of the sweep point settings to 1 kHz, 200kHz, and 801 points, and LOG, respectively.
	Query	:LIST:STARt:STOP?
	Response	:LIST:START:STOP 1.0000E+06, 200.00E+06,801 (when HEADER ON) 1.0000E+06, 200.00E+06,801 (when HEADER OFF) The START value, STOP value, number of sweep points, and setting method of sweep points of the sweep point settings of the START-STOP method are set to 1 MHz, 200 MHz, and 801 points, and LOG, respectively.
Note		The valid ranges for the START value and STOP value differ depending on the type of sweep parameter. For each of the ranges, refer to the setting commands of the signal levels (frequency, constant voltage level, open-circuit voltage level, constant current level, and DC BIAS). The measurement speed takes priority during sweeping when the trigger setting is REPEAT, so if sweep points are changed by communication during sweeping, the first sweep result graph displayed after the change may appear in a disordered state. (In such a case, measurement is being performed without a problem.) Therefore, whenever possible change the trigger setting to SEQ or STEP when changing sweep points, and change the sweep points when sweeping is not being performed. An execution error occurs if the segment function is set to ON. When the setting of sweep source is V or I, some values of the query result may be different from setting.

Setting and querying the sweep point settings of START-STEP mode

Syntax	Command	:LIST:STARt:STEP <START value>,<STEP value>,<Number of sweep points>
	Query	:LIST:STARt:STEP?
	Response	<START value>, <STEP value>, <Number of sweep points>
	Parameter	<START value> = The settable range varies depending on the type of sweep parameter. (NR2/NR3) <STEP value> = The settable range varies depending on the type of sweep parameter. (NR2/NR3) <Number of sweep points> = 1 to 801 (NR1)
Explanation	Command	Simultaneously sets the sweep point settings of the START-STEP method.
Explanation	Query	Returns the sweep point settings of the START-STEP method.
Example	Command	:LIST:STARt:STEP 1.0000E+06,200.00E+00,801 (When the type of sweep parameter is frequency) Sets the START value, STEP value, and number of sweep points of the sweep point settings to 1 MHz, 200 Hz, and 801 points, respectively.
	Query	:LIST:STARt:STEP?
	Response	:LIST:START:STEP 1.0000E+06, 200.00E+00,801 (when HEADER ON) 1.0000E+06, 200.00E+00,801 (when HEADER OFF) The START value, STEP value, and number of sweep points of the sweep point settings of the START-STEP method are set to 1 MHz, 200 Hz, and 801 points, respectively.
Note		The valid ranges for the START value and STEP value differ depending on the type of sweep parameter. For each of the ranges, refer to the setting commands of the signal levels (frequency, constant voltage level, open-circuit voltage level, constant current level, and DC BIAS). The measurement speed takes priority during sweeping when the trigger setting is REPEAT, so if sweep points are changed by communication during sweeping, the first sweep result graph displayed after the change may appear in a disordered state. (In such a case, measurement is being performed without a problem.) Therefore, whenever possible change the trigger setting to SEQ or STEP when changing sweep points, and change the sweep points when sweeping is not being performed. An execution error occurs if the segment function is set to ON. When the setting of sweep source is V or I, some values of the query result may be different from setting.

Simultaneously setting and querying sweep point settings of the CENTER-SPAN method

Syntax	Command	:LIST:CENTerspan <CENTER value>,<SPAN value>,<Number of sweep points>
	Query	:LIST:CENTerspan?
	Response	<CENTER value>,<SPAN value>,<Number of sweep points>
	Parameter	<CENTER value> = The settable range varies depending on the type of sweep parameter. (NR2/NR3) <SPAN value> = The settable range varies depending on the type of sweep parameter. (NR2/NR3) <Number of sweep points> = 1 to 801 (NR1)
Explanation	Command	Simultaneously sets the sweep point settings of the CENTER SPAN method.
Explanation	Query	Returns the sweep point settings of the CENTER-SPAN method.
Example	Command	:LIST:CENTerspan 100.00E+06,200.00E+00,801 (When the type of sweep parameter is frequency) Sets the CENTER value, SPAN value, and number of sweep points of the sweep point settings to 100 MHz, 200 MHz, and 801 points, respectively.
	Query	:LIST:CENTerspan?
	Response	:LIST:CENTERSPAN 100.00E+06, 200.00E+00,801 (when HEADER ON) 100.00E+06, 200.00E+00,801 (when HEADER OFF) The CENTER value, SPAN value, and number of sweep points of the sweep point settings of the CENTER-SPAN method are set to 100 MHz, 200 Hz, and 801 points, respectively.
Note		The valid ranges for the CENTER value and SPAN value differ depending on the type of sweep parameter. For each of the ranges, refer to the setting commands of the signal levels (frequency, constant voltage level, open-circuit voltage level, constant current level, and DC BIAS). The measurement speed takes priority during sweeping when the trigger setting is REPEAT, so if sweep points are changed by communication during sweeping, the first sweep result graph displayed after the change may appear in a disordered state. (In such a case, measurement is being performed without a problem.) Therefore, whenever possible change the trigger setting to SEQ or STEP when changing sweep points, and change the sweep points when sweeping is not being performed. An execution error occurs if the segment function is set to ON. When the setting of sweep source is V or I, some values of the query result may be different from setting.

Setting and querying the sweep point settings of INTERVAL mode

Syntax	Command	:LIST:INTerval <POINT value>,<INTERVAL value>,<Number of sweep points>
	Query	:LIST:INTerval?
	Response	<POINT value>,<INTERVAL value>,<Number of sweep points>
	Parameter	<POINT value> = The settable range varies depending on the type of sweep parameter. (NR2/NR3) <INTERVAL value> = 0 to 1000 (NR2) <Number of sweep points> = 1 to 801 (NR1)
Explanation	Command	Simultaneously sets the sweep point settings of the INTERVAL method.
Explanation	Query	Returns the sweep point settings of INTERVAL method.
Example	Command	:LIST:INTerval 1.0000E+06,1.50000,801 (When the type of sweep parameter is frequency) Sets the POINT value, INTERVAL value, and number of sweep points of the sweep point settings to 1 MHz, 1.5 s, and 801 points, respectively.
	Query	:LIST:INTerval?
	Response	:LIST:INTERVAL 1.0000E+06,1.50000,801 (when HEADER ON) 1.0000E+06,1.50000,801 (when HEADER OFF) The POINT value, INTERVAL value, and number of sweep points for the sweep point settings of the INTERVAL method are set to 1 MHz, 1.5 s, and 801 points, respectively.
Note		The valid ranges for the POINT value differ depending on the type of sweep parameter. For each of the ranges, refer to the setting commands of the signal levels (frequency, constant voltage level, open-circuit voltage level, constant current level, and DC BIAS). The measurement speed takes priority during sweeping when the trigger setting is REPEAT, so if sweep points are changed by communication during sweeping, the first sweep result graph displayed after the change may appear in a disordered state. (In such a case, measurement is being performed without a problem.) Therefore, whenever possible change the trigger setting to SEQ or STEP when changing sweep points, and change the sweep points when sweeping is not being performed. An execution error occurs if the segment function is set to ON. When the setting of sweep source is V or I, some values of the query result may be different from setting.

Setting of the segment function and queries

Syntax	Command	:SEGMent <ON/OFF/INTerval>
	Query	:SEGMent?
	Response	<ON/OFF/INTERVAL>
	Parameter
Explanation	Command	Sets the segment sweep function. ON: Enables the segment sweep function. OFF: Disables the segment sweep function to perform the normal sweeping. INTerval: Enables the segment interval sweep function.
Explanation	Query	Returns the segment sweep function setting.
Example	Command	:SEGMent ON Enables the segment sweep function.
	Query	:SEGMent?
	Response	:SEGMENT ON (when HEADER ON) ON (when HEADER OFF) The segment sweep function is enabled.
Note

Adding a segment

Syntax	Command	:SEGMent:ADD <Segment No./ no data>
	Query
	Response
	Parameter
Explanation	Command	Creates a new segment, and adds it to the specified segment number. If there are already segments with the specified segment number and subsequent numbers, the segments with the specified number and subsequent numbers are each shifted up by one. If a segment number is not specified, a new segment is added at the end of the current segments. If a segment number that is larger than the number of current segments is specified, a new segment is added at the end of the current segments.
Explanation	Query
Example	Command	:SEGMent:ADD 3 Creates a new segment for segment number 3.
	Query
	Response
Note		Each parameter (sweep point, measurement speed, etc.) of the newly created segment is set to the initial value. When you create a new segment, set each of the parameters.

Deleting the specified segment

Syntax	Command	:SEGMent:DELete <Segment No.>
	Query
	Response
	Parameter	<Segment No.> = 1 to 20
Explanation	Command	Deletes the specified segment.
Explanation	Query
Example	Command	:SEGMent:DELete 3 Deletes the segment created for number 3.
	Query
	Response
Note		A segment cannot be restored once it is deleted.

Querying the number of segments

Syntax	Command
	Query	:SEGMent:NUM?
	Response	<Segment count>
	Parameter	<Segment count> = 1～20 (NR1)
Explanation	Command
Explanation	Query	Returns an NR1 numerical value for the number of segments currently created.
Example	Command
	Query	:SEGMent:NUM?
	Response	SEGMENT:NUM 3 (when HEADER ON) 3 (when HEADER OFF) The three segments number 1 to number 3 have been created.
Note

Setting of the number of averaging times for the specified segment and queries

Syntax	Command	:SEGMent:AVERaging <Segment No.>, <OFF/number of averaging times>
	Query	:SEGMent:AVERaging? <Segment No.>
	Response	<Number of averaging times>
	Parameter	<Segment No.> = 1 to 20 (NR1) <Number of averaging times> = 1 to 256 (NR1)
Explanation	Command	Sets the number of measurement averaging times for the specified segment No. OFF: Disables the averaging function.
Explanation	Query	Returns the number of measurement averaging times for the specified segment No.
Example	Command	:SEGMent:AVERaging 3,32 Sets the number of measurement averaging times to 32 for segment No. 3.
	Query	:SEGMent:AVERaging? 3
	Response	:SEGMENT:AVERAGING 32 (when HEADER ON) 32 (when HEADER OFF) The number of measurement averaging times is set to 32 for segment No. 3.
Note

Setting and querying the point delay time of the specified segment

Syntax	Command	:SEGMent:PDELay <Segment No.>,<Delay time>
	Query	:SEGMent:PDELay? <Segment No.>
	Response	<Delay time>
	Parameter	<Segment No.> = 1 to 20 <Delay time> = 0.00000s to 9.99999s (NR2)
Explanation	Command	Sets the point delay time of the specified segment.
Explanation	Query	Returns the point delay time of the specified segment.
Example	Command	:SEGMent:PDELay 3, 0.0005 Sets the point delay time of segment number 3 to 0.5 ms.
	Query	:SEGMent:PDELay? 3
	Response	:SEGMENT:PDELAY 0.0005 (when HEADER ON) 0.0005 (when HEADER OFF) The point delay time of segment number 3 is set to 0.5 ms.
Note

Setting and querying the measurement speed of the specified segment

Syntax	Command	:SEGMent:SPEEd <Segment No.>,<FAST/MEDium/SLOW/SLOW2>
	Query	:SEGMent:SPEEd? <Segment No.>
	Response	<FAST/MEDium/SLOW/SLOW2>
	Parameter	<Segment No.> = 1 to 20
Explanation	Command	Sets the measurement speed of the specified segment.
Explanation	Query	Returns the measurement speed of the specified segment.
Example	Command	:SEGMent:SPEEd 3, MEDium Sets the measurement speed of segment number 3 to medium.
	Query	:SEGMent:SPEEd? 3
	Response	:SEGMENT:SPEED MEDIUM (when HEADER ON) MEDIUM (when HEADER OFF) The measurement speed of segment number 3 is set to medium.
Note

Setting of the measurement speed when the measurement speed is custom for the specified segment and queries

Syntax	Command	:SEGMent:SPEEd:WAVE <Segment No.>, <number of waveforms>
	Query	:SEGMent:SPEEd:WAVE? <Segment No.>
	Response	<Number of waveforms>
	Parameter	<Segment No.> = 1 to 20 (NR1) <Number of waveforms> = 8 to 87 (NR1)
Explanation	Command	Sets the measurement speed of the specified segment using the number of waveforms.
Explanation	Query	Returns the measurement speed of the specified segment using the number of waveforms.
Example	Command	:SEGMent:SPEEd:WAVE 3, 87 Sets the number of waveforms of the measurement speed to 87 for segment No. 3.
	Query	:SEGMent:SPEEd:WAVE? 3
	Response	:SEGMENT:SPEED:WAVE 87 (when HEADER ON) 87 (when HEADER OFF) The number of waveforms of the measurement speed is set to 87 for segment No. 3.
Note

Setting and querying measurement signal for when segment sweep

Syntax	Command	:SEGMent:SUB:SOURce <P/V/I>
	Query	:SEGMent:SUB:SOURce?
	Response	<P/V/I>
	Parameter
Explanation	Command	Sets the measurement signal type for when segment sweep to any one of power, voltage, and current. This setting is common to all segments. P : Sets powere. V : Sets voltage. I : Sets current.
Explanation	Query	Returns the measurement signal type for when segment sweep.
Example	Command	:SEGMent:SUB:SOURce P Sets the measurement signal type for when segment sweep to P (power).
	Query	:SEGMent:SUB:SOURce?
	Response	:SEGMENT:SUB:SOURCE P (when HEADER ON) P (when HEADER OFF) The measurement signal type for when segment sweep is set to P (power).
Note		The measurement signal type for when segment sweep is common to all segments. If you set the measurement signal type for any segment, the setting is applied to all segments. The measurement signal type for when segment sweep can be set when the main sweep measurement signal mode is FREQ (frequency). An execution error occurs when the main sweep measurement signal is not FREQ.

Setting and querying the measurement signal level of the specified segment

Syntax	Command	:SEGMent:SUB:SOURce:VALue <Segment No.>,<Signal source value>
	Query	:SEGMent:SUB:SOURce:VALue? <Segment No.>
	Response	<Segment No.>, <Signal source value>
	Parameter	<Segment No.> = 1 to 20 <Signal source value> = The settable range varies depending on the measurement signal type for when segment sweep. (NR2/NR3)
Explanation	Command	Sets the signal source value of the specified segment. When the main sweep measurement signal mode is set to frequency: Level value When the main sweep measurement signal mode is set to P/V/I: Frequency
Explanation	Query	Returns the signal source value of the specified segment.
Example	Command	:SEGMent:SUB:SOURce:VALue 3, 0.5 Sets the measurement signal level of segment number 3 to 0.5 V.
	Query	:SEGMent:SUB:SOURce:VALue? 3
	Response	:SEGMENT:SUB:SOURCE:VALUE 0.500 (when HEADER ON) 0.5 (when HEADER OFF) The measurement signal level of segment number 3 is set to 0.5 V.
Note

Simultaneously setting and querying sweep point settings of START-STOP method of specified segment

Syntax	Command	:SEGMent:STARt:STOP <Segment No.>,<START value>,<STOP value>,<Number of sweep points>, <LINear/LOG>
	Query	:SEGMent:STARt:STOP? <Segment No.>
	Response	<START value>,<STOP value>,<Number of sweep points>
	Parameter	<Segment No.> = 1 to 20 <START value> = The settable range varies depending on the type of sweep parameter. (NR2/NR3) <STOP value> = The settable range varies depending on the type of sweep parameter. (NR2/NR3) <Number of sweep points> = 1 to 801 (NR1)
Explanation	Command	Simultaneously sets the sweep point settings of the START-STOP method of the specified segment.
Explanation	Query	Returns the sweep point settings of the START-STOP method of the specified segment.
Example	Command	:SEGMent:STARt:STOP 3, 1.0000E+06, 200.00E+06, 50, LOG (When the type of sweep parameter is frequency) Sets the START value, STOP value, number of sweep points, and setting method of sweep points of the sweep point settings of segment number 3 to 1 MHz, 100 MHz, 50 points, and LOG, respectively.
	Query	:SEGMent:STARt:STOP? 3
	Response	:SEGMENT:START:STOP 1.0000E+06, 200.00E+06, 50 (when HEADER ON) 1.0000E+06, 200.00E+06, 50 (when HEADER OFF) The START value, STOP value, number of sweep points, and setting method of sweep points of the sweep point settings of the START-STOP method of segment number 3 are set to 1 MHz, 100 MHz, and 50 points, respectively.
Note		The valid ranges for the START value and STOP value differ depending on the type of main sweep measurement signal mode. For the valid ranges of each signal mode, refer to the setting command of each signal level (frequency, constant voltage level, open-circuit voltage level, and constant current level). If the main sweep measurement signal mode is V/CV/CC, the setting of the sweep point calculation method can only be set to LINear. An error occurs if LOG is selected.

Setting of the interval time of the specified segment and queries

Syntax	Command	:SEGMent:INTerval <Segment No.>, <POINT value>, <interval time>, <Number of sweep points>
	Query	:SEGMent:INTerval? <Segment No.>
	Response	<POINT value>, <interval time>, <Number of sweep points>
	Parameter	<Segment No.> = 1 to 20 (NR1) <POINT value> = The settable range varies depending on the type of sweep parameter. (NR2/NR3) <Interval time> = 0.00000 s to 9.99999 s (NR2) <Number of sweep points> = 1 to 801 (NR1)
Explanation	Command	Sets the interval time of the specified segment.
Explanation	Query	Returns the interval time of the specified segment.
Example	Command	:SEGMent:INTerval 3, 1000000, 0.0005, 100 Sets the interval time of segment No. 3 to 0.5 ms.
	Query	:SEGMent:INTerval? 3
	Response	:SEGMENT:INTERVAL 3, 1000000, 0.0005, 100 (when HEADER ON) 3, 1000000, 0.0005, 100 (when HEADER OFF) The interval time of segment No. 3 is set to 0.5 ms.
Note

Executing auto scaling

Syntax	Command	:GRAPh:AUTOscale
	Query
	Response
	Parameter
Explanation	Command	Executes auto scaling.
Explanation	Query
Example	Command	:GRAPh:AUTOscale Executes auto scaling. This can be executed when the screen is set to graph display and the scaling mode is set to AUTO. An execution error occurs in other cases.
	Query
	Response
Note

Setting of the graph display color and queries

Syntax	Command	:GRAPh:COLor <Segment No.>, <parameter number>, <OFF/color No.>
	Query	:GRAPh:COLor? <Segment No.>, <parameter number>
	Response	<OFF/color No.>
	Parameter	<Segment No.> = 1 to 20 (NR1) <Parameter number> = 1 to 4 (NR1) <Color No.> = 1 to 25 (NR1)
Explanation	Command	Sets the graph display color. Sets the graph display color for the 1st to 4th parameters of each segment. To change the graph display color when the segment function is OFF (normal sweeping), fix the segment No. to 1. (When the other segment number is specified, the segment No. is forcibly set to 1.) For colors No. 1 to 25, refer to the figure below.
Explanation	Query	Returns the graph display color setting.
Example	Command	:GRAPh:COLor 1,2,15 Sets the graph display color to 15 for the 2nd parameter of segment 1.
	Query	:GRAPh:COLor? 1,2
	Response	:GRAPH:COLOR 15 (when HEADER ON) 15 (when HEADER OFF) The graph display color is set to 15 for the 2nd parameter of segment 1.
Note		Only the segment number that is currently created can be specified.

Executing reset of the graph display colors of all segments

Syntax	Command	:GRAPh:COLor:RESet <Parameter No.>
	Query
	Response
	Parameter	<Parameter No.> = 1 to 4 (NR1)
Explanation	Command	Resets the graph display colors of all segments. 1: Resets the graph display color of the first parameter. 2: Resets the graph display color of the second parameter. 3: Resets the graph display color of the third parameter. 4: Resets the graph display color of the fourth parameter.
Explanation	Query
Example	Command	:GRAPh:COLor:RESet 1 Resets the graph display color of the first parameter of all segments.
	Query
	Response
Note		An execution error occurs if the segment function is set to OFF.

Reflecting the display color of segment 1 to all segments

Syntax	Command	:GRAPh:COLor:SEG1 <Parameter No.>
	Query
	Response
	Parameter	<Parameter No.> = 1 to 4 (NR1)
Explanation	Command	Reflects the graph display color of segment 1 to all segments. 1: Reflects the graph display color of the first parameter of segment 1 to all segments. 2: Reflects the graph display color of the second parameter of segment 1 to all segments. 3: Reflects the graph display color of the third parameter of segment 1 to all segments. 4: Reflects the graph display color of the fourth parameter of segment 1 to all segments.
Explanation	Query
Example	Command	:GRAPh:COLor:SEG1 1 Reflects the graph display color of the first parameter of segment 1 to all segments.
	Query
	Response
Note		An execution error occurs if the segment function is set to OFF.

Setting and querying the overwrite function

Syntax	Command	:GRAPh:OVERwrite <ON/OFF>
	Query	:GRAPh:OVERwrite?
	Response	<ON/OFF>
	Parameter
Explanation	Command	Sets the overwrite function.
Explanation	Query	Returns the setting of the overwrite function.
Example	Command	:GRAPh:OVERwrite ON Enables the overwrite function so that a graph is overwritten.
	Query	:GRAPh:OVERwrite?
	Response	:GRAPH:OVERWRITE ON (when HEADER ON) ON (when HEADER OFF) The overwrite function is enabled, and a graph is set to be overwritten.
Note

Clearing of overdrawing

Syntax	Command	:GRAPh:OVERwrite:CLEar
	Query
	Response
	Parameter
Explanation	Command	Clears the overdrawing.
Explanation	Query	Returns the setting of the overdrawing.
Example	Command	:GRAPh:OVERwrite:CLEar Clears the overdrawn waveforms.
	Query
	Response
Note

Setting and querying the horizontal axis display scale

Syntax	Command	:GRAPh:SCALe <LINear/LOG>
	Query	:GRAPh:SCALe?
	Response	<LINEAR/LOG>
	Parameter
Explanation	Command	Sets the horizontal axis display scale.
Explanation	Query	Returns the setting of the horizontal axis display scale.
Example	Command	:GRAPh:SCALe LINear Sets the horizontal display scale to linear.
	Query	:GRAPh:SCALe?
	Response	:GRAPH:SCALE LINEAR (when HEADER ON) LINEAR (when HEADER OFF) The horizontal display scale is set to linear.
Note

Setting and querying the horizontal axis span format

Syntax	Command	:GRAPh:SPAN <SINGle/SEGMent>
	Query	:GRAPh:SPAN?
	Response	<SINGLE/SEGMENT>
	Parameter
Explanation	Command	Sets the horizontal axis span format. SINGle: Sets the whole measurement range to be drawn as a single span. SEGMent: Sets drawing to be performed for each segment.
Explanation	Query	Returns the setting of the horizontal axis span format.
Example	Command	:GRAPh:SPAN SEGMent Sets the horizontal axis span format to segment.
	Query	:GRAPh:SPAN?
	Response	:GRAPH:SPAN SEGMENT (when HEADER ON) SEGMENT (when HEADER OFF) The horizontal axis span format is set to segment.
Note

Setting and querying the reference value and graduation width of the vertical axis display scale

Syntax	Command	:GRAPh:VERTical:CENTerdiv <Parameter No.>,<Reference value>,<One graduation width>
	Query	:GRAPh:VERTical:CENTerdiv? <Parameter No.>
	Response	<Reference value>,<One graduation width>
	Parameter	<Parameter No.> = 1 to 4 (NR1) <Reference value> = -9.99999E+09 to +9.99999E+09 (NR3) <One graduation width> = -9.99999E+09 to +9.99999E+09 (NR3)
Explanation	Command	Sets the range of the vertical axis of the first parameter or second parameter with a reference value and the width of one graduation.
Explanation	Query	Returns the range of the vertical axis of the first parameter or second parameter in the order of the reference value and the width of one graduation.
Example	Command	:GRAPh:VERTical:CENTerdiv 1, 100E+03, 100E+00 Sets range of the vertical axis of the first parameter to 100 k for the reference value and 100 for the width of one graduation.
	Query	:GRAPh:VERTical:CENTerdiv? 1
	Response	:GRAPH:VERTICAL:CENTERDIV 100.0000E+03, 100.0000E+00 (when HEADER ON) 100.0000E+03, 100.0000E+00 (when HEADER OFF) The range of the vertical axis of the first parameter is set to 100 k for the reference value and 100 for the width of one graduation.
Note		If this command is executed, the vertical display scale setting method is automatically set to the reference value and one graduation width. If the reference value and one graduation width are set with this command, the upper and lower limit values are automatically recalculated.

Setting and querying the parameters to display grid

Syntax	Command	:GRAPh:VERTical:GRID <Graph No.>, <Parameter No.>
	Query	:GRAPh:VERTical:GRID? <Graph No.>
	Response	<Parameter No.>
	Parameter	<Graph No.> = 1 or 2 (NR1) <Parameter No.> = 1 to 4 (NR1)
Explanation	Command	Sets the parameters for which to display a grid.
Explanation	Query	Returns the parameters for which to display a grid.
Example	Command	:GRAPh:VERTical:GRID 1,2 Sets a grid to be displayed for the second parameter.
	Query	:GRAPh:VERTical:GRID? 1
	Response	:GRAPH:VERTICAL:GRID 2 (when HEADER ON) 2 (when HEADER OFF) A grid is set to be displayed for the second parameter.
Note

Setting and querying the setting method for the vertical axis display scale

Syntax	Command	:GRAPh:VERTical:METHod <Parameter No.>, <UPPer/CENTer>
	Query	:GRAPh:VERTical:METHod? <Parameter No.>
	Response	<UPPER/CENTER>
	Parameter	<Parameter No.> = 1 to 4 (NR1)
Explanation	Command	Sets the setting method for the display range of the vertical axis. UPPer: Sets the display range of the vertical axis to be set with the upper and lower limit values. ENTer: Sets the display range of the vertical axis to be set with a reference value and the width of one graduation.
Explanation	Query	Returns the setting method for the display range of the vertical axis.
Example	Command	:GRAPh:VERTical:METHod 1, UPPer Sets the display range of the vertical axis to be set with the upper and lower limit values.
	Query	:GRAPh:VERTical:METHod? 1
	Response	:GRAPH:VERTICAL:METHOD UPPER (when HEADER ON) UPPER (when HEADER OFF) The display range of the vertical axis is set to be set with the upper and lower limit values.
Note		Before executing this command, set MANUAL with the :GRAPh:VERTical:MODE command.

Setting and querying the vertical axis display scale method

Syntax	Command	:GRAPh:VERTical:MODE <Parameter No.>, <AUTO/MANual>
	Query	:GRAPh:VERTical:MODE? <Parameter No.>
	Response	<AUTO/MANUAL>
	Parameter	<Parameter No.> = 1 to 4 (NR1)
Explanation	Command	Sets the display range setting of the vertical axis to automatic or manual.
Explanation	Query	Returns the display range setting of the vertical axis.
Example	Command	:GRAPh:VERTical:MODE 1, MANual Sets the display range setting of the vertical axis of the first parameter to manual.
	Query	:GRAPh:VERTical:MODE? 1
	Response	:GRAPH:VERTICAL:MODE MANUAL (when HEADER ON) MANUAL (when HEADER OFF) The display range setting of the vertical axis of the first parameter is set to manual.
Note

Setting and querying the reversing of the display scale along the vertical axis

Syntax	Command	:GRAPh:VERTical:REVerse <Graph No.>, <OFF/ON>
	Query	:GRAPh:VERTical:REVerse? <Graph No.>
	Response	<OFF/ON>
	Parameter	<Graph No.> = 1 or 2 (NR1)
Explanation	Command	Sets the reversed display along the vertical axis for the second parameter during X-Y display. Set it to ON for Cole-Cole plot display. OFF: Display is not reversed along the axis. ON: Display is reversed along the axis.
Explanation	Query	Returns the reversed display along the vertical axis for the second parameter during X-Y display.
Example	Command	:GRAPh:VERTical:REVerse 1,ON Sets the second parameter during X-Y display to the reverse display along the vertical axis.
	Query	:GRAPh:VERTical:REVerse? 1
	Response	:GRAPH:VERTICAL:REVERSE ON (when HEADER ON) ON (when HEADER OFF) The second parameter during X-Y display is set to reverse display along the vertical axis.
Note

Setting and querying the vertical axis display scale

Syntax	Command	:GRAPh:VERTical:SCALe <Parameter No.>, <LINear/LOG>
	Query	:GRAPh:VERTical:SCALe? <Parameter No.>
	Response	<LINEAR/LOG>
	Parameter	<Parameter No.> = 1 to 4 (NR1)
Explanation	Command	Sets the vertical axis display scale.
Explanation	Query	Returns the vertical axis display scale.
Example	Command	:GRAPh:VERTical:SCALe 1, LOG Sets the vertical axis display scale of the first parameter to log.
	Query	:GRAPh:VERTical:SCALe? 1
	Response	:GRAPH:VERTICAL:SCALE LOG (when HEADER ON) LOG (when HEADER OFF) The vertical axis display scale of the first parameter is set to log.
Note

Setting and querying the upper and lower limit values of the vertical axis display scale

Syntax	Command	:GRAPh:VERTical:UPPerlower <Parameter No.>,<Lower limit values>,<Upper limit values>
	Query	:GRAPh:VERTical:UPPerlower? <Parameter No.>
	Response	<Lower limit values>,<Upper limit values>
	Parameter	<Parameter No.> = 1 to 4 (NR1) <Lower limit values> = -9.9999E+09 to +9.9999E+09 (NR3) <Upper limit values> = -9.9999E+09 to +9.9999E+09 (NR3)
Explanation	Command	Sets the range of the vertical axis of the first parameter or second parameter with the lower and upper limit values.
Explanation	Query	Returns the range of the vertical axis of the first parameter or second parameter in the order of the lower limit value and the upper limit value.
Example	Command	:GRAPh:VERTical:UPPerlower 1, 1E+03, 100E+03 Sets the range of the vertical axis of the first parameter to 1 k for the lower limit value and 100 k for the upper limit value.
	Query	:GRAPh:VERTical:UPPerlower? 1
	Response	:GRAPH:VERTICAL:UPPERLOWER 1.0000E+03, 100.00E+03 (when HEADER ON) 1.0000E+03, 100.00E+03 (when HEADER OFF) The range of the vertical axis of the first parameter is set to 1 k for the lower limit value and 100 k for the upper limit value.
Note		If this command is executed, the vertical display scale setting method is automatically set to the upper and lower limit values. Specify a lower limit value that does not exceed the upper limit value. An execution error occurs if a lower limit value that is larger than the upper limit value is specified. If the upper and lower limit values are set with this command, the width of one graduation is automatically recalculated.

Setting and querying the scaling method during automatic scaling for the X-Y display

Syntax	Command	:GRAPh:VERTical:XYGRaph <INDividual/SAME>
	Query	:GRAPh:VERTical:XYGRaph?
	Response	<INDIVIDUAL/SAME>
	Parameter
Explanation	Command	Sets the scaling method during automatic scaling for the X-Y display.
Explanation	Query	Returns the setting of the scaling method during automatic scaling for the X-Y display.
Example	Command	:GRAPh:VERTical:XYGRaph SAME Adjusts the scaling of PARA1 and PARA2 to the same value during automatic scaling for the X-Y display.
	Query	:GRAPh:VERTical:XYGRaph?
	Response	:GRAPH:VERTICAL:XYGRAPH SAME (when HEADER ON) SAME (when HEADER OFF) The scaling method during automatic scaling for the X-Y display is set to SAME.
Note

Setting and querying the display cursor setting

Syntax	Command	:CURSor <OFF/A/AB>
	Query	:CURSor?
	Response	<OFF/A/AB>
	Parameter
Explanation	Command	Sets the display cursor. OFF: Displays no cursor. A: Displays only cursor A. AB: Displays cursors A and B.
Explanation	Query	Returns the display cursor setting.
Example	Command	:CURSor AB Sets cursors A and B to be displayed.
	Query	:CURSor?
	Response	:CURSOR AB (when HEADER ON) AB (when HEADER OFF) Cursors A and B are set to be displayed.
Note		It is not possible to display only cursor B.

Setting and querying the search method (# is A or B)

Syntax	Command	:CURSor:#SEARch <MAX/MIN/TARGet/LMAX/LMIN>
	Query	:CURSor:#SEARch?
	Response	<MAX/MIN/TARGET/LMAX/LMIN>
	Parameter
Explanation	Command	Sets the search mode for cursor A or cursor B. MAX: Sets a search for the maximum value to be performed. MIN: Sets a search for the minimum value to be performed. TARGet: Sets a search for any value to be performed. LMAX: Sets a search for the local maximum value to be performed. LMIN: Sets a search for the local minimum value to be performed.
Explanation	Query	Returns the search mode for cursor A or cursor B.
Example	Command	:CURSor:BSEARch LMAX Sets the search mode for cursor B to local maximum value search.
	Query	:CURSor:BSEARch?
	Response	:CURSOR:BSEARCH LMAX (when HEADER ON) LMAX (when HEADER OFF) The search mode for cursor B is set to local maximum value search.
Note		When the search mode is set to TARGET, the target value can be set with the :CURSor:#SEARch:TARGet command. When the search mode is set to LMAX or LMIN, the filter value can be set with the :COMParator:PEAK:FILTer command.

Setting and querying the search parameter (# is A or B)

Syntax	Command	:CURSor:#SEARch:PARameter <Parameter No.>
	Query	:CURSor:#SEARch:PARameter?
	Response	<Parameter No.>
	Parameter	<Parameter No.> = 1 to 4 (NR1)
Explanation	Command	Sets the search parameter for cursor A or cursor B. 1: Performs a search for the measurement result of the first parameter. 2: Performs a search for the measurement result of the second parameter. 3: Performs a search for the measurement result of the third parameter. 4: Performs a search for the measurement result of the fourth parameter.
Explanation	Query	Returns the setting of the search parameter for cursor A or cursor B.
Example	Command	:CURSor:ASEARch:PARameter 2 Sets the search parameter of cursor A to the second parameter.
	Query	:CURSor:ASEARch:PARameter?
	Response	:CURSOR:ASEARCH:PARAMETER 2 (when HEADER ON) 2 (when HEADER OFF) The search parameter of cursor A is set to the second parameter.
Note

Setting and querying the target value (# is A or B)

Syntax	Command	:CURSor:#SEARch:TARGet <TARGET value>
	Query	:CURSor:#SEARch:TARGet?
	Response	<TARGET value>
	Parameter	<TARGET value> = -9.999999+E0 to +9.99999E+09 (NR3)
Explanation	Command	Sets the target value for when target search of cursor A or cursor B.
Explanation	Query	Returns the target value for when target search of cursor A or cursor B.
Example	Command	:CURSor:BSEARch:TARGet 100E+03 Sets the target value for when target search of cursor B to 100 k.
	Query	:CURSor:BSEARch:TARGet?
	Response	:CURSOR:BSEARCH:TARGET 100.000E+03 (when HEADER ON) 100000 (when HEADER OFF) The target value for when target search of cursor B is set to 100 k.
Note		When you want to perform a target search, set the search mode to TARGET with the :CURSor:#SEARch command.

Setting of the target slope and queries (# indicates A or B)

Syntax	Command	:CURSor:#SEARch:TARGet:SLOPe <UP/DOWN>
	Query	:CURSor:#SEARch:TARGet:SLOPe?
	Response	<UP/DOWN>
	Parameter
Explanation	Command	Sets the target slope of the A or B cursor. UP: Searches on the rising waveforms. DOWN: Searches on the falling waveforms.
Explanation	Query	Returns the target slope of the A or B cursor.
Example	Command	:CURSor:AEARch:TARGet:SLOPe UP Sets the target slope of the A cursor to search from the rising waveforms.
	Query	:CURSor:ASEARch:TARGet:SLOPe?
	Response	:CURSOR:ASEARCH:TARGET:SLOPE UP (when HEADER ON) UP (when HEADER OFF) The target slope of the A cursor is set to search from the rising waveforms.
Note

Setting and querying the cursor to move or perform searches.

Syntax	Command	:CURSor:MOVE <A/B>
	Query	:CURSor:MOVE?
	Response	<A/B>
	Parameter
Explanation	Command	Sets the cursor to move or perform searches. A: Cursor A can move or search. B: Cursor B can move or search.
Explanation	Query	Returns the setting of the cursor to move or perform searches.
Example	Command	:CURSor:MOVE B Sets the cursor to move or perform searches to cursor B.
	Query	:CURSor:MOVE?
	Response	:CURSOR:MOVE B (when HEADER ON) B (when HEADER OFF) The cursor to move or perform searches is set to cursor B.
Note		This command results in an execution error if display cursor is set to OFF. Furthermore, if the display cursor is set to A, the cursor to move or perform searches is fixed to cursor A and cannot be set to cursor B.

Setting and querying the auto search

Syntax	Command	:CURSor:SEARch:AUTO <ON/OFF>
	Query	:CURSor:SEARch:AUTO?
	Response	<ON/OFF>
	Parameter
Explanation	Command	Sets the auto search function.
Explanation	Query	Returns the auto search function.
Example	Command	:CURSor:SEARch:AUTO ON Sets the auto search function to ON.
	Query	:CURSor:SEARch:AUTO?
	Response	:CURSOR:SEARCH:AUTO ON (when HEADER ON) ON (when HEADER OFF) The auto search function is set to ON.
Note

Executing the search function

Syntax	Command	:SEARch
	Query	:SEARch? <A/B>
	Response	<Point data>, <Measured value>, ..., (Repeated the same number of times as the search results)
	Parameter
Explanation	Command	Executes the search function and moves the display cursor.
Explanation	Query	Executes the search function (during the manual seach setting) and returns the search result.
Example	Command	:SEARch Executes the search function.
	Query	:SEARch? A
	Response	300.00E+06, 2.00000E+00 (when HEADER ON) 300.00E+06, 2.00000E+00 (when HEADER OFF) The search result for cursor A is that the measured value is 2 at a frequency of 300 MHz.
Note		An execution error occurs if the sweep measurement is unfinished.

Setting and querying comparator judgment mode

Syntax	Command	:COMParator:ANALyzer <OFF/AREA/PEAK>
	Query	:COMParator:ANALyzer?
	Response	<OFF/AREA/PEAK>
	Parameter
Explanation	Command	Sets the comparator judgment mode in analyzer mode. OFF: Sets the comparator function to OFF. AREA:Sets the comparator judgment mode to area judgment. PEAK: Sets the comparator judgment mode to peak judgment.
Explanation	Query	Returns the setting of the comparator judgment mode in analyzer mode.
Example	Command	:COMParator:ANALyzer AREA Sets the comparator judgment mode in analyzer mode to area judgment.
	Query	:COMParator:ANALyzer?
	Response	:COMPARATOR:ANALYZER AREA (when HEADER ON) AREA (when HEADER OFF) The comparator judgment mode in analyzer mode is set to area judgment.
Note

Setting and querying drawing of judgment area

Syntax	Command	:COMParator:AREA <Graph No.>, <OFF/1/2/3/4>
	Query	:COMParator:AREA? <Graph No.>
	Response	<OFF/1/2/3/4>
	Parameter	<Graph No.> = 1 or 2 (NR1)
Explanation	Command	Sets the parameter for which to draw the comparator range. OFF: The comparator range is not drawn. 1: Draws the comparator range for the first parameter. 2: Draws the comparator range for the second parameter. 3: Draws the comparator range for the third parameter. 4: Draws the comparator range for the fourth parameter.
Explanation	Query	Returns the setting of the parameter for which to draw the comparator range.
Example	Command	:COMParator:AREA 2, 1 Sets the parameter for which to draw the comparator range to the main parameter.
	Query	:COMParator:AREA? 2
	Response	:COMPARATOR:AREA 1 (when HEADER ON) 1 (when HEADER OFF) The parameter for which to draw the comparator range is set to the first parameter.
Note		The parameter that can be set with this command varies depending on the setting for the parameter subject to comparator judgment. The comparator range can only be drawn for a parameter that is set to be subject to judgment. The comparator range cannot be drawn for both the first parameter and second parameter.

Setting and querying area judgment (reference value manual setting)

Syntax	Command	:COMParator:AREA:FIX <Segment No.>,<Parameter No.>,<PERcent/VALue>,<Reference value>,<Lower limit values>,<Upper limit values>
	Query	:COMParator:AREA:FIX? <Segment No.>,<Parameter No.>
	Response	<PERCENT/VALUE>,<Reference value>,<Lower limit values>,<Upper limit values>
	Parameter	<Segment No.> = 1 to 20 <Parameter No.> = 1 to 4 (NR1) <Reference value> = -9.99999E+09 to +9.99999E+09 (NR3) <Upper limit values> = -999.999% to +999.999% (NR2)/-9.99999E+09 to +9.99999E+09 (NR3) <Upper limit values> = -999.999% to +999.999% (NR2)/-9.99999E+09 to +9.99999E+09 (NR3)
Explanation	Command	Specifies the reference value and simultaneously sets the area judgment settings.
Explanation	Query	Returns the area judgment settings in the order of the mode, reference value, lower limit value, and upper limit value.
Example	Command	:COMParator:AREA:FIX 2,1,PERcent,1.2345E-06,-20,20 Sets the comparator range of the first parameter of segment 2 as a percentage to the reference value of 1.2345E-06, lower limit value of -20%, and upper limit value of 20%.
	Query	:COMParator:AREA:FIX? 2,1
	Response	:COMPARATOR:AREA:FIX PERCENT,1.23450E-06,-20.000,20.000 (when HEADER ON) PERCENT,1.23450E-06,-20.000,20.000 (when HEADER OFF) The comparator range of the first parameter of segment 2 is set as a percentage to the reference value of 1.2345E-06, lower limit value of -20%, and upper limit value of 20%.
Note		When the segment sweep setting is set to OFF, the segment number setting is disabled and fixed to segment 1.

Setting and querying the upper and lower limit values for area judgment

Syntax	Command	:COMParator:AREA:LIMit <Sweep point No.>,<Parameter No.>,<Lower limit values>,<Upper limit values>
	Query	:COMParator:AREA:LIMit? <Sweep point No.>,<Parameter No.>
	Response	<Lower limit values>,<Upper limit values>
	Parameter	<Sweep point No.> = 1 to 801 (NR1) <Parameter No.> = 1 to 4 (NR1) <Lower limit values> = OFF/-9.99999E+09 to +9.99999E+09 (NR3) <Upper limit values> = OFF/-9.99999E+09 to +9.99999E+09 (NR3)
Explanation	Command	Sets the upper and lower limit values for area judgment.
Explanation	Query	Returns the upper and lower limit values for area judgment.
Example	Command	:COMParator:AREA:LIMit 10,1,10E3,20E3 Sets the lower and upper limit values for the first parameter of Sweep point No. 10 to 10 k and 20 k, respectively.
	Query	:COMParator:AREA:LIMit? 10,1
	Response	:COMPARATOR:AREA:LIMIT 10.0000E+03,20.0000E+03 (when HEADER ON) 10.0000E+03,20.0000E+03 (when HEADER OFF) The lower and upper limit values for the first parameter of sweep point number 10 are set to 10 k and 20 k, respectively.
Note		An execution error occurs in the following cases. When a value that is larger than the number of sweep points is set for the sweep point number When the mode is not area judgment mode When the parameter to be set is not set as a judgment parameter

Setting and querying area judgment (reference value automatic setting)

Syntax	Command	:COMParator:AREA:MEAS <Segment No.>,<Parameter No.>,<PERcent/ VALue>,<Lower limit values>,<Upper limit values>
	Query	:COMParator:AREA:MEAS? <Segment No.>,<Parameter No.>
	Response	<PERCENT/ VALUE>,<Lower limit values>,<Upper limit values>
	Parameter	<Segment No.> = 1 to 20 <Parameter No.> = 1 to 4 (NR1) <Lower limit values> = -999.999% to +999.999% (NR2)/-9.99999E+09 to +9.99999E+09 (NR3) <Upper limit values> = -999.999% to +999.999% (NR2)/-9.99999E+09 to +9.99999E+09 (NR3)
Explanation	Command	Acquires the reference value from the current measurement value and simultaneously sets the area judgment settings.
Explanation	Query	Returns the area judgment settings in the order of the mode, lower limit value, and upper limit value.
Example	Command	:COMParator:AREA:MEAS 2,1,PERcent,-20,20 Sets the comparator range of the first parameter of segment 2 as a percentage to the lower limit value of -20% and the upper limit value of 20% based on the current measurement value.
	Query	:COMParator:AREA:MEAS? 2,1
	Response	:COMPARATOR:AREA:MEAS PERCENT,-20.000,20.000 (when HEADER ON) PERCENT,-20.000,20.000 (when HEADER OFF) The comparator range of the first parameter of segment 2 is set as a percentage to the lower limit value of -20% and the upper limit value of 20% based on the current measurement value.
Note		When the segment sweep setting is set to OFF, the segment number setting is disabled and .fixed to segment 1.

Setting and querying judgment parameter

Syntax	Command	:COMParator:PARAmeter <Parameter No./ALL>, <ON/OFF>
	Query	:COMParator:PARAmeter? <Parameter No.>
	Response	<ON/OFF>
	Parameter	<Parameter No.> = 1 to 4 (NR1)
Explanation	Command	Sets the parameter subject to comparator judgment. ALL: Sets all(1～4) parameter to be subject to comparator judgment. ON: Sets the selected parameter to be subject to comparator judgment. OFF: Clears the selected parameter to be subject to comparator judgment.
Explanation	Query	Returns the setting of the parameter subject to comparator judgment.
Example	Command	:COMParator:PARAmeter 1 ON Sets the parameter subject to comparator judgment to the first parameter.
	Query	:COMParator:PARAmeter? 1
	Response	:COMPARATOR:PARAMETER ON (when HEADER ON) ON (when HEADER OFF) The parameter subject to comparator judgment is set to the first parameter.
Note		Sets all parameters when Parameter No. is set ALL.

Setting and querying peak judgment

Syntax	Command	:COMParator:PEAK <Segment No.>,<Parameter No.>,<MAX/MIN>,<OFF/Left limit value>,<OFF/Right limit value>,<OFF/Lower limit values>,<OFF/Upper limit values>
	Query	:COMParator:PEAK? <Segment No.>,<Parameter No.>,<MAX/MIN>
	Response	<OFF/Left limit value>,<OFF/Right limit value>,<OFF/Lower limit values>,<OFF/Upper limit values>
	Parameter	<Segment No.> = 1 to 20 <Parameter No.> = 1 to 4 (NR1) <Left limit value> = The settable range varies depending on the conditions. (NR3) <Right limit value> = The settable range varies depending on the conditions. (NR3) <Lower limit values> = OFF/-9.99999E+09 to +9.99999E+09 (NR3) <Upper limit values> = OFF/-9.99999E+09 to +9.99999E+09 (NR3)
Explanation	Command	Simultaneously sets the peak judgment settings. The valid setting range for the left and right limit values differs depending on the type of main sweep measurement signal mode. Please refer to each signal level setting command (Frequency mode, Power mode, Voltage mode, Current mode) about each effective range.
Explanation	Query	Returns the area judgment settings in the order of the left limit value, right limit value, lower limit value, and upper limit value.
Example	Command	:COMParator:PEAK 1,1,MAX,40,1.0000E3,1.1234E+06,1.2345E+06 Sets the left limit value, right limit value, lower limit value, and upper limit value of the local maximum values of the first parameter of segment 1 to 40, 1.0000E3, 1.1234E+06, and 1.2345E+06, respectively.
	Query	:COMParator:PEAK? 1,1,MAX
	Response	:COMPARATOR:PEAK 40.00000E+00,1.000000E+03,1.123400E+06,1.234500E+06 (when HEADER ON) 40.00000E+00,1.000000E+03,1.123400E+06,1.234500E+06 (when HEADER OFF) The left limit value, right limit value, lower limit value, and upper limit value of the local maximum values of the first parameter of segment 1 are set to 40, 1.0000E3, 1.1234E+06, and 1.2345E+06, respectively.
Note		When the segment sweep setting is set to OFF, the segment number setting is disabled and fixed to segment 1.

Setting and querying the filter value

Syntax	Command	:COMParator:PEAK:FILTer <ON/OFF>
	Query	:COMParator:PEAK:FILTer?
	Response	<ON/OFF>
	Parameter
Explanation	Command	Sets the filter for when peak judgment.
Explanation	Query	Returns the filter for when peak judgment.
Example	Command	:COMParator:PEAK:FILTer ON Sets the filter value for when peak judgment to ON.
	Query	:COMParator:PEAK:FILTer?
	Response	:COMPARATOR:PEAK:FILTER ON (when HEADER ON) ON (when HEADER OFF) The filter value for when peak judgment is set to ON.
Note		The filter setting is common to the filter setting of the search by cursor function.

Setting and querying the local maximum number and local minimum number

Syntax	Command	:COMParator:PEAK:NO <Local minimum No.>, <Local maximum No.>
	Query	:COMParator:PEAK:NO?
	Response	<Local minimum No.>,<Local maximum No.>
	Parameter	<Local minimum No.> = 1 to 5 (NR1) <Local maximum No.> = 1 to 5 (NR1)
Explanation	Command	Sets the local minimum number and local maximum number to be the targets when performing peak judgment.
Explanation	Query	Returns the local minimum number and local maximum number to be the targets when performing peak judgment.
Example	Command	:COMParator:PEAK:NO 2,3 Sets peak judgment to be performed with the second local minimum value and third local maximum value as the targets.
	Query	:COMParator:PEAK:NO?
	Response	:COMPARATOR:PEAK:NO 2,3 (when HEADER ON) 2,3 (when HEADER OFF) Peak judgment is set to be performed with the second local minimum value and third local maximum value as the targets.
Note

Querying measurement data

Syntax	Command
	Query	:MEASure? <No data>
	Response
	Parameter
Explanation	Command
Explanation	Query	For more detail, refer to "Querying measurement data".
Example	Command
	Query
	Response
Note		If a setting has been changed, send the ":MEASure?" query after triggering.

Queries for the contact check measurement data

Syntax	Command
	Query	:MEASure:RDC?
	Response	<Measurement status>, <BEFORE measured value>, <BEFORE judgment>, <AFTER measured value>, <AFTER judgment>, <panel number>
	Parameter
Explanation	Command
Explanation	Query	Returns the measured value of the contact check. The measurement status has the same specification as the Measure? query status. Details of the judgment values are as follows. -1: LO judgment 0: IN judgment 1: HI judgment 2: Not judged
Example	Command
	Query	:MEASure:RDC?
	Response	0,4.9929E+03,0, 4.9957E+03,1,0 (when HEADER ON) 0,4.9929E+03,0, 4.9957E+03,1,0 (when HEADER OFF) Returns the BEFORE and AFTER measured values of the contact check. The judgment result shows BEFORE: IN and AFTER: HI.
Note		The output data follows the MEASure:VALid setting. The binary output is not supported.

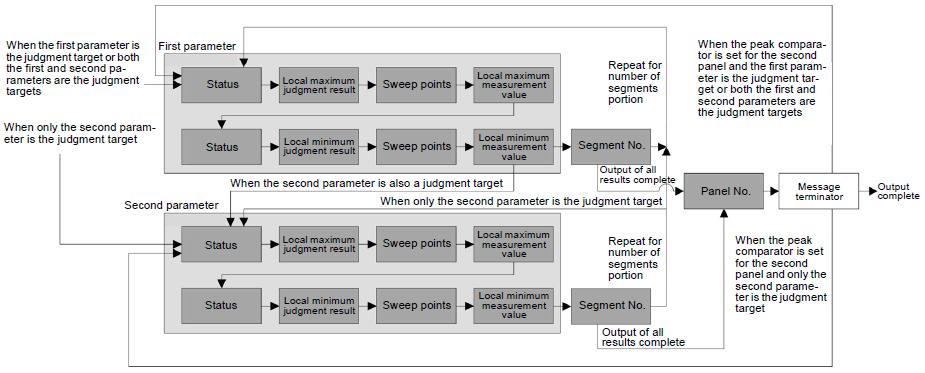

Querying the overall judgment result when peak comparator measurement

Syntax	Command
	Query	:MEASure:COMParator:PEAK?
	Response	<Judgment result>

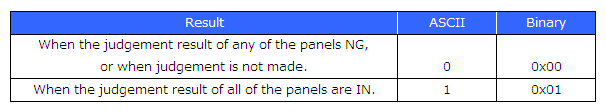

	Parameter	<Judgment result> = 0,1 (NR1)
Explanation	Command
Explanation	Query	Returns the overall judgment result when peak comparator measurement.
Example	Command
	Query	:MEASure:COMParator:PEAK?
	Response	:MEASURE:COMPARATOR:PEAK 1 (when HEADER ON) 1 (when HEADER OFF) The peak overall judgment result is IN.
Note

Querying the judgment result of the local maximum value when peak comparator measurement

Syntax	Command
	Query	:MEASure:COMParator:PEAK:LMAX? <Segment No.>,<Parameter No.>
	Response
	Parameter	<Segment No.> = 1 to 20 (NR1) <Parameter No.> = 1 to 4 (NR1) <Judgment result> = 1 to 9 (NR1)
Explanation	Command
Explanation	Query	Returns the judgment result of the local maximum value and the measurement data when peak comparator measurement. The judgment results indicate the positional relationship between the judgment area and peak. If the peak is within the judgment area (IN), 5 is returned. When the judgment area setting is OFF, 0 is returned for the judgment result. For details on the judgment result values, see the following figure.
Example	Command
	Query	:MEASure:COMParator:PEAK:LMAX? 1,1
	Response	:MEASURE:COMPARATOR:PEAK:LMAX 5, 24.831E+03,Z 4.082196E+03 (when HEADER ON) 5, 24.831E+03, 4.082196E+03 (when HEADER OFF) The peak comparator judgment result of the local maximum value of segment 1 and the first parameter is IN, the frequency of the sweep point is 24.831 kHz, and the measurement value is 4.082196 kΩ.
Note		When the segment sweep setting is set to OFF, the segment number setting is disabled and fixed to segment 1. An execution error occurs when the peak could not be detected. The output data follows the MEASure:VALid setting.

Querying the judgment result of the local minimum value when peak comparator measurement

Syntax	Command
	Query	:MEASure:COMParator:PEAK:LMIN? <Segment No.>,<Parameter No.>
	Response
	Parameter	<Segment No.> = 1 to 20 (NR1) <Parameter No.> = 1 to 4 (NR1) <Judgment result> = 1 to 9 (NR1)
Explanation	Command
Explanation	Query	Returns the judgment result of the local minimum value and the measurement data when peak comparator measurement. The judgment results indicate the positional relationship between the judgment area and peak. If the peak is within the judgment area (IN), 5 is returned. When the judgment area setting is OFF, 0 is returned for the judgment result. For details on the judgment result values, see the following figure.
Example	Command
	Query	:MEASure:COMParator:PEAK:LMIN? 1,1
	Response	:MEASURE:COMPARATOR:PEAK:LMIN 5, 901.57E+03,Z 11.20888E+03 (when HEADER ON) 5, 901.57E+03, 11.20888E+03 (when HEADER OFF) The peak comparator judgment result of the local minimum value of segment 1 and the first parameter is IN, the frequency of the sweep point is 901.57 kHz, and the measurement value is 11.20888 kΩ.
Note		When the segment sweep setting is set to OFF, the segment number setting is disabled and fixed to segment 1. An execution error occurs when the peak could not be detected. The output data follows the MEASure:VALid setting.

Querying the measurement data of the cursor position

Syntax	Command
	Query	:MEASure:CURSor? <A/B>
	Response	This is in accordance with the :MEASure? response format.
	Parameter
Explanation	Command
Explanation	Query	Returns the measurement data of the specified cursor.
Example	Command
	Query	:MEASure:CURSor? A
	Response	16.406E+03,Z 96.85033E+00,PHASE -89.954 (when HEADER ON) 16.406E+03, 96.85033E+00, -89.954 (when HEADER OFF) The sweep frequency of the sweep point of cursor A is 16.406 kHz, the measurement value of the first parameter is 96.85033, and the measurement value of the second parameter is -89.954.
Note

Querying the measurement data of the specified sweep point

Syntax	Command
	Query	:MEASure:POINt? <Sweep point>
	Response	This is in accordance with the :MEASure? response format.
	Parameter	<Sweep point> = 1 to 801
Explanation	Command
Explanation	Query	Returns the measurement data of the specified sweep point.
Example	Command
	Query	:MEASure:POINt? 100
	Response	30.549E+03,Z 52.00423E+00,PHASE -89.916 (when HEADER ON) 30.549E+03, 52.00423E+00, -89.916 (when HEADER OFF) The sweep frequency of the 100th sweep point is 30.549 kHz, the measurement result of the first parameter is 52.00423, and the measurement value of the second parameter is - 89.916.
Note		An execution error occurs if a sweep point with no measurement data is specified. The output data follows the MEASure:VALid setting.

Setting of the equivalent circuit analysis function and queries

Syntax	Command	:CIRCuit:ANALysis <OFF/HOLD/AUTO>
	Query	:CIRCuit:ANALysis?
	Response	<OFF/HOLD/AUTO>
	Parameter
Explanation	Command	Sets the model of the equivalent circuit analysis. OFF: Does not perform the equivalent circuit analysis. HOLD: Selects the equivalent circuit model manually for analysis. AUTO: Selects the optimum equivalent circuit model automatically for analysis.
Explanation	Query	Returns the setting of the model of the equivalent circuit analysis.
Example	Command	:CIRCuit:ANALysis HOLD Sets to the manual selection of the equivalent circuit model.
	Query	:CIRCuit:ANALysis?
	Response	:CIRCUIT:ANALYSIS HOLD (when HEADER ON) HOLD (when HEADER OFF) The manual selection of the equivalent circuit model is set.
Note

Setting of the frequency range of the equivalent circuit analysis and queries

Syntax	Command	:CIRCuit:ANALysis:FREQuency <Analysis start frequency>, <analysis end frequency>
	Query	:CIRCuit:ANALysis:FREQuency?
	Response	<Analysis start frequency>, <analysis end frequency>
	Parameter	<Analysis start frequency> = 1.0000E+06 to 300.00E+06 (NR3) <Analysis end frequency> = 1.0000E+06 to 300.00E+06 (NR3)
Explanation	Command	Sets the frequency range for which equivalent circuit analysis is performed.
Explanation	Query	Returns the setting of the frequency range for which equivalent circuit analysis is performed.
Example	Command	:CIRCuit:ANALysis:FREQuency 1E6, 300E6 Performs setting so that the equivalent circuit analysis is performed using a measured value with a frequency of 1 MHz to 300 MHz.
	Query	:CIRCuit:ANALysis:FREQuency?
	Response	:CIRCUIT:ANALYSIS:FREQUENCY 1.0000E+06, 300.00E+06 (when HEADER ON) 1.0000E+06, 300.00E+06 (when HEADER OFF) It is set to perform the equivalent circuit analysis using a measured value with a frequency of 1 MHz to 300 MHz.
Note		Restricts the analysis range for normal sweeping. Set the frequency to include an extreme value in the analysis range. The analysis range of the above command is disabled during segment sweeping. The analysis range can be restricted on a segment basis using the communication command: CIRCuit:ANALysis:SEGMent.

Setting and querying the vibration mode for calculation of the coupling coefficient (K) of an electric machine

Syntax	Command	:CIRCuit:ANALysis:K:MODE <KR/K31/K33/KT/K15>
	Query	:CIRCuit:ANALysis:K:MODE?
	Response	<KR/K31/K33/KT/K15>
	Parameter
Explanation	Command	Sets the vibration mode for calculation of the coupling coefficient (K) of an electric machine. KR: Calculates the coupling coefficient of an electric machine for the radial vibration. K31: Calculates the coupling coefficient of an electric machine for the extensional vibration in the longitudinal direction. K33: Calculates the coupling coefficient of an electric machine for the vertical vibration. KT: Calculates the coupling coefficient of an electric machine for the thickness vibration. K15: Calculates the coupling coefficient of an electric machine for the slip vibration.
Explanation	Query	Returns to the vibration mode for calculation of coupling coefficient (K) of an electric machine.
Example	Command	:CIRCuit:ANALysis:K:MODE KR Sets the vibration mode for calculation of coupling coefficient (K) of an electric machine to the radial vibration.
	Query	:CIRCuit:ANALysis:K:MODE?
	Response	:CIRCUIT:ANALYSIS:K:MODE KR (when HEADER ON) KR (when HEADER OFF) The vibration mode for calculation of coupling coefficient (K) of an electric machine is set to the radial vibration.
Note

Setting and querying the frequency type for calculation of the coupling coefficient (K) of an electric machine

Syntax	Command	:CIRCuit:ANALysis:K:TYPE <FSFP/FRFA>
	Query	:CIRCuit:ANALysis:K:TYPE?
	Response	<FSFP/FRFA>
	Parameter
Explanation	Command	Sets the frequency type for calculation of the coupling coefficient (K) of an electric machine. FSFP: Calculates the coupling coefficient (K) of an electric machine using serial/parallel resonant frequencies. FRFA: Calculates the coupling coefficient (K) of an electric machine using resonant/antiresonant frequencies.
Explanation	Query	Returns to the frequency type for calculation of coupling coefficient (K) of an electric machine.
Example	Command	:CIRCuit:ANALysis:K:TYPE FSFP Sets the frequency type for calculation of coupling coefficient (K) of an electric machine to the serial/parallel resonant frequencies.
	Query	:CIRCuit:ANALysis:K:TYPE?
	Response	:CIRCUIT:ANALYSIS:K:TYPE FSFP (when HEADER ON) FSFP (when HEADER OFF) The frequency type for calculation of coupling coefficient (K) of an electric machine is set to the serial/parallel resonant frequencies.
Note

Setting and querying the coefficient for calculation of the coupling coefficient (K) of an electric machine

Syntax	Command	:CIRCuit:ANALysis:K:COEFficient <Coefficient a>, <Coefficient b>
	Query	:CIRCuit:ANALysis:K:COEFficient?
	Response	<Coefficient a>, <Coefficient b>
	Parameter	<Coefficient a> = 0.000001 to 1.000000 (NR2) <Coefficient b> = 0.000001 to 1.000000 (NR2)
Explanation	Command	Sets a different coefficient to Poisson ratio when selecting KR (radial vibration) in the vibration mode.
Explanation	Query	Returns to the coefficient.
Example	Command	:CIRCuit:ANALysis:K:COEFficient 0.000001,1.000000 Sets coefficient a to 0.000001 and coefficient b to 1.000000.
	Query	:CIRCuit:ANALysis:K:COEFficient?
	Response	:CIRCUIT:ANALYSIS:K:COEFFICIENT 0.000001,1.000000 (when HEADER ON) 0.000001,1.000000 (when HEADER OFF) Coefficient a is set to 0.000001, and coefficient b is set to 1.000000.
Note

Setting of the equivalent circuit model and queries

Syntax	Command	:CIRCuit:ANALysis:MODel <A/B/C/D/E>
	Query	:CIRCuit:ANALysis:MODel?
	Response
	Parameter
Explanation	Command	Sets the equivalent circuit model.
Explanation	Query	Returns the setting of the equivalent circuit model.
Example	Command	:CIRCuit:ANALysis:MODel E Sets the equivalent circuit model to model E.
	Query	:CIRCuit:ANALysis:MODel?
	Response	:CIRCUIT:ANALYSIS:MODEL E (when HEADER ON) E (when HEADER OFF) The equivalent circuit model is set to model E.
Note

Queries of the R1, C1, L1, and C0 values.

Syntax	Command
	Query	:CIRCuit:ANALysis:RESult? <R1/C1/L1/C0/QM/K>
	Response	<Constant>
	Parameter
Explanation	Command
Explanation	Query	Returns the R1, C1, L1, C0, Qm, and K values. Uses this query to obtain the value acquired by the equivalent circuit analysis.
Example	Command
	Query	:CIRCuit:ANALysis:RESult? L1
	Response	:CIRCUIT:ANALYSIS:RESULT L1, 120.0000E-06 (when HEADER ON) 0.00012 (when HEADER OFF) The L1 value is 120 μH.
Note		When the equivalent circuit analysis is executed, each value is overwritten according to the analysis results.

Setting of the display position of the analysis result and queries

Syntax	Command	:CIRCuit:ANALysis:RESult:POSition <UL/UR/LL/LR>
	Query	:CIRCuit:ANALysis:RESult:POSition?
	Response	<UL/UR/LL/LR>
	Parameter
Explanation	Command	Sets the position at which the equivalent circuit analysis result is displayed. UL: Displays the analysis result on the upper left of the graph display area. UR: Displays the analysis result on the upper right of the graph display area. LL: Displays the analysis result on the lower left of the graph display area. LR: Displays the analysis result on the lower right of the graph display area.
Explanation	Query	Returns the setting of the position at which the equivalent circuit analysis result is displayed.
Example	Command	:CIRCuit:ANALysis:RESult:POSition UR Sets the position at which the equivalent circuit analysis result is displayed to the upper right.
	Query	:CIRCuit:ANALysis:RESult:POSition?
	Response	:CIRCUIT:ANALYSIS:RESULT:POSITION UR (when HEADER ON) UR (when HEADER OFF) The position at which the equivalent circuit analysis result is displayed is set to the upper right.
Note

Setting of the equivalent circuit analysis segment range and queries

Syntax	Command	:CIRCuit:ANALysis:SEGMent <Segment No./ALL>
	Query	:CIRCuit:ANALysis:SEGMent?
	Response	<Segment No./ALL>
	Parameter	<Segment No.> = 1 to 20 (NR1)
Explanation	Command	Sets the segment No. for which the equivalent circuit analysis is performed.
Explanation	Query	Returns the segment No. for which the equivalent circuit analysis is performed.
Example	Command	:CIRCuit:ANALysis:SEGMent 2 Performs setting so that the equivalent circuit analysis is performed using the measured value of segment No. 2.
	Query	:CIRCuit:ANALysis:SEGMent?
	Response	:CIRCUIT:ANALYSIS:SEGMENT 2 (when HEADER ON) 2 (when HEADER OFF) It is set to perform the equivalent circuit analysis using the measured value of segment No. 2.
Note		Restricts the analysis range for segment sweeping. Sets the segment No. to include an extreme value in the analysis segment. The analysis range of the above command is disabled during normal sweeping. Communication command: The analysis range can be restricted using the communication command: CIRCuit:ANALysis:SEGMent.

Execution of frequency characteristics simulation

Syntax	Command	:CIRCuit:ANALysis:SIMulation
	Query
	Response
	Parameter
Explanation	Command	Simulates frequency characteristics using the selected equivalent circuit model and sweep range.
Explanation	Query
Example	Command	:CIRCuit:ANALysis:SIMulation Simulates frequency characteristics.
	Query
	Response
Note		A simulation graph will not be generated if there are no measured values.

Execution of frequency characteristics simulation

Syntax	Command	:CIRCuit:ANALysis:SIMulation:GET
	Query
	Response
	Parameter
Explanation	Command	Acquires the result of the equivalent circuit analysis, setting it as a simulation value.
Explanation	Query
Example	Command	:CIRCuit:ANALysis:SIMulation:GET Acquires the result of the equivalent circuit analysis, setting it as a simulation value.
	Query
	Response
Note		Executing this command will clear the simulation result.

Setting of frequency characteristics simulation and queries

Syntax	Command	:CIRCuit:ANALysis:SIMulation:DEFine <R1/C1/L1/C0>, <Constant>
	Query	:CIRCuit:ANALysis:SIMulation:DEFine? <R1/C1/L1/C0>
	Response	<Constant>
	Parameter	<Constant> = 1.0E-18～+9.99999E+09 (NR3)
Explanation	Command	Sets the value of simuration.
Explanation	Query	Returns the value of simuration.
Example	Command	:CIRCuit:ANALysis:SIMulation:DEFine L1, 120E-6 Sets the value of L1 to 120 uH.
	Query	:CIRCuit:ANALysis:SIMulation:DEFine? L1
	Response	:CIRCUIT:ANALYSIS:SIMULATION:DEFINE L1, 120.000E-06 The value of L1 is set to 120 uH.
Note

Executes the equivalent circuit analysis.

Syntax	Command	:CIRCuit:ANALysis:TRIGger
	Query
	Response
	Parameter
Explanation	Command	Executes the equivalent circuit analysis using this command when automatic equivalent circuit analysis is OFF.
Explanation	Query
Example	Command	:CIRCuit:ANALysis:TRIGger Executes the equivalent circuit analysis.
	Query
	Response
Note		If the equivalent circuit analysis cannot be performed, an execution error occurs.

Setting of the automatic equivalent circuit analysis and queries

Syntax	Command	:CIRCuit:ANALysis:TRIGger:AUTO <ON/OFF>
	Query	:CIRCuit:ANALysis:TRIGger:AUTO?
	Response	<ON/OFF>
	Parameter
Explanation	Command	Sets the automatic equivalent circuit analysis. OFF: Does not perform the equivalent circuit analysis after measurement. ON: Performs the equivalent circuit analysis automatically after measurement.
Explanation	Query	Returns the setting of the automatic equivalent circuit analysis.
Example	Command	CIRCuit:ANALysis:TRIGger:AUTO ON Sets to perform the equivalent circuit analysis automatically after measurement.
	Query	:CIRCuit:ANALysis:TRIGger:AUTO?
	Response	:CIRCUIT:ANALYSIS:TRIGGER:AUTO ON (when HEADER ON) ON (when HEADER OFF) It is set to perform the equivalent circuit analysis automatically after measurement.
Note

Comparator function on/off setting for analysis results and inquiry

Syntax	Command	:COMParator:CIRCuit:ANALysis <ON/OFF>
	Query	:COMParator:CIRCuit:ANALysis?
	Response	<ON/OFF>
	Parameter
Explanation	Command	Configures the comparator function setting for equivalent circuit analysis results.
Explanation	Query	Returns the comparator function setting for equivalent circuit analysis results.
Example	Command	:COMParator:CIRCuit:ANALysis ON Turns on the comparator function for equivalent circuit analysis results.
	Query	:COMParator:CIRCuit:ANALysis?
	Response	:COMPARATOR:CIRCUIT:ANALYSIS ON (when HEADER ON) ON (when HEADER OFF) The comparator function for equivalent circuit analysis results has been set to on.
Note

Comparator upper and lower value settings for analysis results and inquiry

Syntax	Command	:COMParator:CIRCuit:ANALysis:ABSolute <L1/C1/R1/QM/C0>, <Off/lower limit value>, <Off/upper limit value>
	Query	:COMParator:CIRCuit:ANALysis:ABSolute? <L1/C1/R1/QM/C0>
	Response	<L1/C1/R1/QM/C0>, <Off/lower limit value>, <Off/upper limit value>
	Parameter	<Lower limit value> = -9.99999E+09 to 9.99999E+09 (NR3) <Upper limit value> = -9.99999E+09 to 9.99999E+09 (NR3)
Explanation	Command	Sets the upper and lower limit values for the comparator function for equivalent circuit analysis results. No judgment is made if both the upper and lower limit values are set to off.
Explanation	Query	Returns the upper and lower limit values for the comparator function for equivalent circuit analysis results.
Example	Command	:COMParator:CIRCuit:ANALysis:ABSolute R1, 20, 23 Sets the upper and lower limit values for the comparator function for equivalent circuit analysis results to 23Ω and 20Ω, respectively.
	Query	:COMParator:CIRCuit:ANALysis:ABSolute? R1
	Response	:COMPARATOR:CIRCUIT:ANALYSIS:ABSOLUTE R1,20.00000E+00,23.00000E+00 (when HEADER ON) R1,20.00000E+00,23.00000E+00 (when HEADER OFF) The upper and lower limit values for the comparator function for equivalent circuit analysis have been set to 23Ω and 20Ω, respectively.
Note

Comparator judgment results for analysis results inquiry

Syntax	Command
	Query	:MEASure:ANALysis:COMParator?
	Response	ModelA to D: <Equivalent circuit analysis overall judgment result>, <R1 judgment result>, <L1 judgment result>, <C1 judgment result>,<Qm judgment result> ModelE: <Equivalent circuit analysis overall judgment result>, <R1 judgment result>, <L1 judgment result>, <C1 judgment result>, <C0 judgment result>, <Qm judgment result>
	Parameter	<Judgment result> = -1/0/1/2
Explanation	Command
Explanation	Query	Returns the comparator function judgment result for the equivalent circuit analysis result. -1: LO judgment. 0: IN judgment. 1: HI judgment. 2: Comparator is not judged.
Example	Command
	Query	:MEASure:ANALysis:COMParator?
	Response	1,2,0,2,2 (when HEADER ON) 1,2,0,2,2 (when HEADER OFF) The comparator function judgment result for the equivalent circuit analysis result for model A is as follows. Total equivalent circuit analysis judgment result: IN R1 judgment result: Not judged L1 judgment result: IN C1 judgment result: Not judged Qm judgment result: Not judged
Note

Difference between measured value and simulation value inquiry

Syntax	Command
	Query	:MEASure:ANALysis:DELTa?
	Response	<Parameter 1 difference>, <Parameter 2 difference>, <Parameter 3 difference>, <Parameter 4 difference>
	Parameter
Explanation	Command
Explanation	Query	Returns the difference between the measured value and simulation value.
Example	Command
	Query	:MEASure:ANALysis:DELTa?
	Response	18.18248E-03, 10.36238E+00, OFF, OFF (when HEADER OFF) The difference between the measured value of the 1st parameter and simulation value is 18.18248E-03, and the measured value of the 2nd parameter and simulation value is 10.36238E+00. Simulation is not performed for the 3rd and 4th parameters.
Note		The frequency range that was analyzed or the frequency range for the segment number that was analyzed is used as the range for calculating this difference. Executing this query while no simulation is being performed will return the value "OFF". The response message does not include a header.

Acquisition of local extreme value frequency and measured values (models A to E only)

Syntax	Command
	Query	:MEASure:ANALysis:PEAK? <Z/G/B/RS>, <LMAX/LMIN>
	Response	<Frequency>, <Measurement value>
	Parameter
Explanation	Command
Explanation	Query	Searches extreme values and returns the frequency and measured value. This query allows you to acquire the extreme value for the parameter specified by the command data, regardless of the currently set measurement parameter. Z: Impedance (Ω) G: Conductance (S) B: Susceptance (S) RS: Series equivalent circuit mode execution resistance = ESR (Ω)
Example	Command
	Query	:MEASure:ANALysis:PEAK? G, LMAX
	Response	10.000E+03,500.000E+03 The G (conductance) maximum frequency is 10 kHz, and the value is 500 kS.
Note		An execution error occurs when the main sweep measurement signal is not FREQ. The frequency range that was analyzed or the frequency range for the segment number that was analyzed is used as the range for searching. If an external value cannot be detected, "99999E+28" and "9999999E+28" are returned. A header is not attached to the response message.

Simulation value inquiry

Syntax	Command
	Query	:MEASure:ANALysis:SIMulation? <Parameter No.>
	Response	<Simulation value>, <Simulation value>, ... , (repeated for each sweep point)
	Parameter	<Parameter No.> = 1 to 4 (NR1)
Explanation	Command
Explanation	Query	Returns the simulation values for the frequency characteristics. Values are comma-delimited.
Example	Command
	Query	:MEASure:ANALysis:SIMulation? 1
	Response	753.982E-03, 780.447E-03, 807.892E-03, 836.317E-03, … Acquires the PARA1 simulation value.
Note		The response message does not include a header.

Setting of the display method of the open calibration and compensation and queries

Syntax	Command	:CORRection:FORMat:OPEN <Display method>
	Query	:CORRection:FORMat:OPEN?
	Response	<Display method>
	Parameter	<Display method> = 1/2 (NR1)
Explanation	Command	Sets the display method of the open calibration and compensation. 1:G-Cp 2:G-B
Explanation	Query	Returns the setting of the display method of the open calibration and compensation.
Example	Command	:CORRection:FORMat:OPEN 2 Sets the display method of the open calibration and compensation to G-B.
	Query	:CORRection:FORMat:OPEN?
	Response	:CORRECTION:FORMAT:OPEN 2 (when HEADER ON) 2 (when HEADER OFF) The display method of the open calibration and compensation is set to G-B.
Note

Setting of the display method of the short calibration and compensation and queries

Syntax	Command	:CORRection:FORMat:SHORt <Display method>
	Query	:CORRection:FORMat:SHORt?
	Response	<Display method>
	Parameter	<Display method> = 1/2 (NR1)
Explanation	Command	Sets the display method of the short calibration and compensation. 1:Rs-Ls 2:Rs-X
Explanation	Query	Returns the setting of the display method of the short calibration and compensation.
Example	Command	:CORRection:FORMat:SHORt 2 Sets the display method of the short calibration and compensation to Rs-X.
	Query	:CORRection:FORMat:SHORt?
	Response	:CORRECTION:FORMAT:SHORT 2 (when HEADER ON) 2 (when HEADER OFF) The display method of the short calibration and compensation is set to Rs-X.
Note

Setting of the display method of the load calibration and compensation and queries

Syntax	Command	:CORRection:FORMat:LOAD <Display method>
	Query	:CORRection:FORMat:LOAD?
	Response	<Display method>
	Parameter	<Display method> = 1/2/3/4/5/6/7/8/9/10 (NR1)
Explanation	Command	Sets the display method of the load calibration and compensation. 1:Z-θ 2:Cs-D 3:Rs-Cs 4:Cp-D 5:Rp-Cp 6:Ls-Q 7:Rs-Ls 8:Lp-Q 9:Rp-Lp 10:Rs-X
Explanation	Query
Example	Command	:CORRection:FORMat:LOAD 2 Sets the display method of the load calibration and compensation to Cs-D.
	Query	:CORRection:FORMat:LOAD?
	Response	:CORRECTION:FORMAT:LOAD 2 (when HEADER ON) 2 (when HEADER OFF) The display method of the load calibration and compensation is set to Cs-D.
Note

Setting of the frequency range of the ALL calibration and compensation and queries

Syntax	Command	:CORRection:LIMit:POINt <Compensation minimum frequency>, <Compensation maximum frequency>
	Query	:CORRection:LIMit:POINt?
	Response	<Compensation minimum frequency>, <Compensation maximum frequency>
	Parameter	<Frequency> = 1.0000E+06 to 300.00E+06 (NR1) <Frequency> = 1.0000E+06 to 300.00E+06 (NR3)
Explanation	Command	Sets the frequency range of the ALL calibration and compensation. An error occurs during SPOT calibration and compensation selection.
Explanation	Query	Returns the setting of the frequency range of the ALL calibration and compensation. An error occurs during SPOT calibration and compensation selection.
Example	Command	:CORRection:LIMit:POINt 1E6, 300E6 Sets the frequency range of the ALL calibration and compensation to 1 MHz to 300 MHz.
	Query	:CORRection:LIMit:POINt?
	Response	:CORRECTION:LIMIT:POINT 1.0000E+06, 300.00E+06 (when HEADER ON) 1.0000E+06, 300.00E+06 (when HEADER OFF) The frequency range of the ALL calibration and compensation is set to 1 MHz to 300 MHz.
Note

Setting of the electrical length for calibration and compensation and queries

Syntax	Command	:CORRection:DISTance <Electrical length>
	Query	:CORRection:DISTance?
	Response	<Electrical length>
	Parameter	<Electrical length> = 0.0000 to 100.000E-03 (NR3)
Explanation	Command	Sets the electrical length for calibration and compensation.
Explanation	Query	Returns the setting of the electrical length for calibration and compensation.
Example	Command	:CORRection:DISTance 10E-3 Sets the electrical length for calibration and compensation to 100 mm.
	Query	:CORRection:DISTance?
	Response	:CORRECTION:DISTANCE 100.000E-03 (when HEADER ON) 100.000E-03 (when HEADER OFF) The electrical length for calibration and compensation is set to 100 mm.
Note

Queries for the calibration and compensation execution result

Syntax	Command
	Query	:CORRection:ERRor?
	Response	<Result>
	Parameter	<Result> = 0/1/2 (NR1)
Explanation	Command
Explanation	Query	Returns the result of the last calibration and compensation. 0： Calibration and compensation finished normally. 1： Calibration and compensation are finished due to an error. 2： Calibration and compensation are canceled.
Example	Command
	Query	:CORRection:ERRor?
	Response	:CORRECTION:ERROR 0 (when HEADER ON) 0 (when HEADER OFF) The last calibration and compensation finished normally.
Note		Returns 1 when calibration and compensation are not executed after startup.

Setting of the calibration and queries

Syntax	Command	:CORRection:CALIbration:RETurn LCR mode: <OFF/ALL/SPOT> / analyzer mode: <OFF/SPOT>
	Query	:CORRection:CALIbration:RETurn?
	Response	LCR mode: <OFF/ALL/SPOT> Analyzer mode: <OFF/SPOT>
	Parameter
Explanation	Command	Sets the calibration function. OFF: Does not perform a calibration. ALL: Performs an ALL calibration. SPOT: Performs a SPOT calibration.
Explanation	Query	Returns the setting of the calibration function.
Example	Command	:CORRection:CALIbration:RETurn SPOT Sets to perform the SPOT calibration.
	Query	:CORRection:CALIbration:RETurn?
	Response	:CORRECTION:CALIBRATION:RETURN SPOT (when HEADER ON) SPOT (when HEADER OFF) It is set to perform the SPOT calibration.
Note

Calibration resetting

Syntax	Command	:CORRection:CALIbration:RESet <Calibration No./ALL/DC>, <DATA/REFerence>
	Query
	Response
	Parameter	<Calibration No.> = 1 to 5((LCR mode, SPOT), 1～801(analyzer mode, SPOT), 1～102(ALL) / <ALL> = All calibration point / <DC> = DC calibration <DATA> = Measurement value / <REFerence> = Reference value
Explanation	Command	Clears the reference value and measured value of the calibration.
Explanation	Query
Example	Command	:CORRection:CALIbration:RESet ALL,DATA Clears the measured values for all calibration points.
	Query
	Response
Note		Command examples are as follows: :CORRection:CALIbration:RESet　3, DATA Clears the measured value for the third calibration points. :CORRection:CALIbration:RESet　3, REFerence Clears the reference value for the third calibration points. :CORRection:CALIbration:RESet　DC, DATA Clears the measured value for the DC calibration. :CORRection:CALIbration:RESet　DC, REFerence Clears the reference value for the DC calibration.

Setting of the frequency for the calibration point and queries

Syntax	Command	:CORRection:CALIbration:FREQuency <Calibration No.>, <frequency/OFF>
	Query	:CORRection:CALIbration:FREQuency? <Calibration No.>
	Response	<Frequency/OFF>
	Parameter	<Calibration No.> = 1 to 5 (LCR mode, SPOT)/1 to 801 (analyzer mode, SPOT)/1 to 102 (ALL) (NR1) <Frequency> = 1.0000E+06 to 300.00E+06 (NR3)
Explanation	Command	For the SPOT calibration, sets the frequency of the specified calibration No. For the ALL calibration, the frequency cannot be set. An execution error occurs. ?OFF: Disables the SPOT calibration of the specified calibration No. Frequency: Sets the SPOT calibration frequency of the specified calibration No.
Explanation	Query	Returns the frequency of the specified calibration No. OFF: The frequency of the specified calibration No. is not set. Frequency: Returns the frequency of the specified calibration No.
Example	Command	:CORRection:CALIbration:FREQuency 1, 2E6 Sets the calibration frequency to 2 MHz for calibration No. 1.
	Query	:CORRection:CALIbration:FREQuency? 1
	Response	:CORRECTION:CALIBRATION:FREQUENCY 2.0000E+06 (when HEADER ON) 2000000 (when HEADER OFF) The calibration frequency is set to 2 MHz for calibration No. 1.
Note

Setting of the level value for the calibration point and queries

Syntax	Command	:CORRection:CALIbration:LEVel <P/V/I>, <Calibration No./ALL>, <level value/OFF>
	Query	:CORRection:CALIbration:LEVel? <P/V/I>, <Calibration No.>
	Response	<Level value/OFF>
	Parameter	<Level mode.> = P:Power / V:Voltage / I:Current <Calibration No.> = 1 to 5 (LCR mode, SPOT)/1 to 801 (analyzer mode, SPOT) (NR1) <Level value> = -40.0 to 7.0 dBm(P) / 4 to 1001 mV(V) / 0.09 to 20.02 mA(I) (NR2)
Explanation	Command	Sets the level for the SPOT calibration. This command is enabled only in the LCR mode. When the calibration No. is ALL, sets the level values for all calibration points.
Explanation	Query	The query command is enabled only in the LCR and analyzer modes. Returns the level value for the SPOT calibration.
Example	Command	:CORRection:CALIbration:LEVel P, 1, 1.0 Sets the level value to 1 dBm for the SPOT calibration for calibration No. 1.
	Query	:CORRection:CALIbration:LEVel? V, 1
	Response	:CORRECTION:CALIBRATION:LEVEL 502E-03 (when HEADER ON) 0.502 (when HEADER OFF) The level value for the SPOT calibration for calibration No. 1 is set to 502mV(Voltage mode).
Note

Setting of the calibration point speed and queries

Syntax	Command	:CORRection:CALIbration:SPEEd SPOT calibration: <calibration No./ALL>, <FAST/MEDium/SLOW/SLOW2/CUSTom>, ALL calibration: <FAST/MEDium/SLOW/SLOW2/CUSTom>
	Query	:CORRection:CALIbration:SPEEd? SPOT calibration: <calibration No.>/ ALL calibration: none
	Response	<FAST/MEDIUM/SLOW/SLOW2/CUSTOM/OFF>
	Parameter	<Calibration No.> = 1 to 5 (LCR)/1 to 801 (analyzer) (NR1)
Explanation	Command	Sets the measurement speed for calibration. This command is enabled only in the LCR mode. When the calibration No. is ALL, sets the measurement speed for all calibration points.
Explanation	Query	Returns the setting of the measurement speed for calibration. The query command is enabled for the LCR and analyzer mode.
Example	Command	:CORRection:CALIbration:SPEEd 1, MEDium Sets the measurement speed to medium for the calibration No. 1 point.
	Query	:CORRection:CALIbration:SPEEd? 1
	Response	:CORRECTION:CALIBRATION:SPEED MEDIUM The measurement speed is set to medium for the calibration No. 1 point.
Note

Setting of the number of waveforms for the calibration point and queries

Syntax	Command	:CORRection:CALIbration:WAVE SPOT calibration: <calibration No./ALL>, <number of waveforms>, ALL calibration: <number of waveforms>
	Query	:CORRection:CALIbration:WAVE? SPOT calibration: <calibration No.>/ ALL calibration: none
	Response	<Number of waveforms>
	Parameter	<Calibration No.> = 1 to 5 (LCR mode)/1 to -801 (analyzer mode) (NR1) <Number of waveforms> = 8 to 87 (NR1)
Explanation	Command	Sets the measurement speed for the calibration No. point using the number of waveforms. (When the measurement speed is custom) This command is enabled only in the LCR mode. When the calibration No. is ALL, sets the measurement speed for all calibration points.
Explanation	Query	Returns the measurement speed setting for the calibration No. point using the number of waveforms. (When the measurement speed is custom)
Example	Command	:CORRection:CALIbration:WAVE 1, 8 Sets the number of waveforms of the measurement speed for calibration to 8.
	Query	:CORRection:CALIbration:WAVE? 1
	Response	:CORRECTION:CALIBRATION:WAVE 8 (when HEADER ON) 8 (when HEADER OFF) The number of waveforms of the measurement speed for calibration is set to 8.
Note

Execution and cancellation of open calibration

Syntax	Command	:CORRection:CALIbration:OPEN <AC/DC/ACDC/CANCel>
	Query
	Response
	Parameter
Explanation	Command	Performs setting of the open calibration function, loading of the calibration value, and cancellation of loading. AC: Performs the AC measurement. DC: Performs the DC measurement. ACDC: Performs the AC+DC measurement. CANCEL: Cancels the acquisition of the calibration value.
Explanation	Query
Example	Command	:CORRection:CALIbration:OPEN ACDC Obtains the open calibration value for the ACDC measurement.
	Query
	Response
Note		Calibration cannot be executed during measurement, and an execution error occurs. Execute the command after changing to an external trigger for the LCR mode, or to sequential sweep or step sweep for the analyzer mode. An execution error occurs if the command for changing the environment settings is executed during calibration. Also, be sure to avoid executing commands other than ones for checking each status register (*ESR?, ESR0?, etc.).

Setting of the reference value for open calibration and queries

Syntax	Command	:CORRection:CALIbration:OPEN:REFerence <Calibration No./ALL/DC>, <reference value 1>, <reference value 2 *disabled for DC>
	Query	:CORRection:CALIbration:OPEN:REFerence? <Calibration No./DC>
	Response	<Reference value 1>, <reference value 2 *no for DC>
	Parameter	<Calibration No.> = SPOT: 1 to 5 (LCR mode)/1 to 801 (analyzer mode), ALL: 1 to 102 (NR1) <Reference value 1> = The settable range varies depending on the reference value mode. (NR3) <Reference value 2> = The settable range varies depending on the reference value mode. (NR2/NR3)
Explanation	Command	Sets the reference value for open calibration. When the calibration No. is ALL, sets the reference values for all calibration points. When the calibration No. is DC, sets the reference values for DC measurement.
Explanation	Query	Returns the reference value for open calibration. When the calibration No. is DC, returns the reference values for DC measurement.
Example	Command	:CORRection:CALIbration:OPEN:REFerence 1, 10e-9, 0.00014 Sets reference value 1 for calibration No. 1 to 10 nF, and reference value 2 to 0.00014.
	Query	:CORRection:CALIbration:OPEN:REFerence? 1
	Response	:CORRECTION:CALIBRATION:OPEN:REFERENCE 10.0000E-09, 140.000E-06 (when HEADER ON) 10.0000E-09, 140.000E-06 (when HEADER OFF) Reference value 1 for calibration No. 1 is set to 10 nF, and reference value 2 to 0.00014.
Note

Queries for the calibration value for open calibration

Syntax	Command
	Query	:CORRection:CALIbration:OPEN:DATA? SPOT compensation: <compensation No./DC>/ ALL compensation: <compensation No./ALL/DC>
	Response	SPOT calibration: <frequency>, <calibration value 1>, <calibration value 2> Note: For DC, calibration value 1 only ALL calibration: <frequency>, <+7 dBm: calibration value 1>, <+7 dBm: calibration value 2>, <-3 dBm: calibration value 1>, <-3 dBm: calibration value 2>, <-23 dBm: calibration value 1>, <-23 dBm: calibration value 2>, <-30 dBm: calibration value 1>, <-30 dBm: calibration value 2> Note: For DC, one calibration value only.
	Parameter	<Calibration No.> = SPOT: 1 to 5 (LCR mode)/1 to 801 (analyzer mode), ALL: 1 to 102 (NR1) <Frequency> = 1.0000E+06 to 300.00E+06 (NR3) <Calibration values> = -9.99999E+09 to 9.99999E+09 (NR3)
Explanation	Command
Explanation	Query	Returns the open calibration value. When calibration is not executed, the calibration value is "0.0000E+00". When the frequency is not set, the frequency is "OFF". When ALL is specified for an argument for ALL calibration, all point data is output as a comma-delimited file.
Example	Command
	Query	:CORRection:CALIbration:OPEN:DATA? 1
	Response	1.0000E+06,-168.329E-03,-17.2696E-03,-168.131E-03,-17.2370E-03,-167.867E-03,-17.3651E-03,-167.751E-03,-17.3997E-03 Returns the calibration value for open calibration of calibration No. 1.
Note		The calibration value output format differs depending on the display method setting for the open calibration and compensation. A header is not provided for the response message.

Setting of the lower limit value for open calibration and queries

Syntax	Command	:CORRection:CALIbration:OPEN:LIMit <OFF/lower limit value>
	Query	:CORRection:CALIbration:OPEN:LIMit?
	Response	<OFF/lower limit value>
	Parameter	<Lower limit values> = -9.99999E+09 to +9.99999E+09 (NR3)
Explanation	Command	Sets the lower limit value for open calibration.
Explanation	Query	Returns the lower limit value for open calibration.
Example	Command	:CORRection:CALIbration:OPEN:LIMit 234.560E-06 Sets the lower limit value for open calibration to 234.560E-06.
	Query	:CORRection:CALIbration:OPEN:LIMit?
	Response	:CORRECTION:CALIBRATION:OPEN:LIMIT 234.560E-06 (when HEADER ON) 234.560E-06 (when HEADER OFF) The lower limit value for open calibration is set to 234.560E-06.
Note

Execution and cancellation of short calibration

Syntax	Command	:CORRection:CALIbration:SHORt <AC/DC/ACDC/CANCel>
	Query
	Response
	Parameter
Explanation	Command	Performs setting of the short calibration function, loading of the calibration value, and cancellation of loading. AC: Performs the AC measurement. DC: Performs the DC measurement. ACDC: Performs the AC+DC measurement. CANCEL: Cancels the acquisition of the calibration value.
Explanation	Query
Example	Command	:CORRection:CALIbration:SHORt ACDC Obtains the short calibration value using the ACDC measurement.
	Query
	Response
Note		Calibration cannot be executed during measurement, and an execution error occurs. Execute the command after changing to an external trigger for the LCR mode, or to sequential sweep or step sweep for the analyzer mode. An execution error occurs if the command for changing the environment settings is executed during calibration. Also, be sure to avoid executing commands other than ones for checking each status register (*ESR?, ESR0?, etc.).

Setting of the reference value for short calibration and queries

Syntax	Command	:CORRection:CALIbration:SHORt:REFerence <Calibration No./ALL/DC>, <reference value 1>, <reference value 2 *disabled for DC>
	Query	:CORRection:CALIbration:SHORt:REFerence? <Calibration No./DC>
	Response	<Reference value 1>, <reference value 2 *no for DC>
	Parameter	<Calibration No.> = SPOT: 1 to 5 (LCR mode)/1 to 801 (analyzer mode), ALL: 1 to 102 (NR1) <Reference value 1> = The settable range varies depending on the reference value mode. (NR3) <Reference value 2> = The settable range varies depending on the reference value mode. (NR2/NR3)
Explanation	Command	Sets the reference value for short calibration. When the calibration No. is ALL, sets the reference values for all calibration points. When the calibration No. is DC, sets the reference values for DC measurement.
Explanation	Query	Returns the reference value for short calibration. When the calibration No. is DC, returns the reference values for DC measurement.
Example	Command	:CORRection:CALIbration:SHORt:REFerence 1, 10e-9, 0.00014 Sets reference value 1 for calibration No. 1 to 10 nF, and reference value 2 to 0.00014.
	Query	:CORRection:CALIbration:SHORt:REFerence? 1
	Response	:CORRECTION:CALIBRATION:SHORT:REFERENCE 10.0000E-09, 140.000E-06 (when HEADER ON) 10.0000E-09, 140.000E-06 (when HEADER OFF) Reference value 1 for calibration No. 1 is set to 10 nF, and reference value 2 to 0.00014.
Note

Queries for the short calibration value

Syntax	Command
	Query	:CORRection:CALIbration:SHORt:DATA? SPOT compensation: <compensation No./DC>/ ALL compensation: <compensation No./ALL/DC>
	Response	SPOT calibration: <frequency>, <calibration value 1>, <calibration value 2> Note: For DC, calibration value 1 only ALL calibration: <frequency>, <+7 dBm: calibration value 1>, <+7 dBm: calibration value 2>, <-3 dBm: calibration value 1>, <-3 dBm: calibration value 2>, <-23 dBm: calibration value 1>, <-23 dBm: calibration value 2>, <-30 dBm: calibration value 1>, <-30 dBm: calibration value 2> Note: For DC, one calibration value only.
	Parameter	<Calibration No.> = SPOT: 1 to 5 (LCR mode)/1 to 801 (analyzer mode), ALL: 1 to 102 (NR1) <Frequency> = 1.0000E+06 to 300.00E+06 (NR3) <Calibration values> = -9.99999E+09 to 9.99999E+09 (NR3)
Explanation	Command
Explanation	Query	Returns the calibration value for short calibration. When calibration is not executed, the calibration value is "0.0000E+00". When the frequency is not set, the frequency is "OFF". When ALL is specified for an argument for ALL calibration, all point data is output as a comma-delimited file.
Example	Command
	Query	:CORRection:CALIbration:SHORt:DATA? 1
	Response	1.0000E+06,-5.87981E+00, 602.905E-03,-5.88537E+00, 603.450E-03,-5.89728E+00, 606.276E-03,-5.89881E+00, 615.916E-03 Returns the calibration value for short calibration of calibration No. 1.
Note		The calibration value output format differs depending on the display method setting for the short calibration and compensation. A header is not provided for the response message.

Setting of the upper limit value for short calibration and queries

Syntax	Command	:CORRection:CALIbration:SHORt:LIMit <OFF/upper limit value>
	Query	:CORRection:CALIbration:SHORt:LIMit?
	Response	<OFF/upper limit value>
	Parameter	<Upper limit values> = -9.99999E+09 to +9.99999E+09 (NR3)
Explanation	Command	Sets the upper limit value for short calibration.
Explanation	Query	Returns the setting of the upper limit value for short calibration.
Example	Command	:CORRection:CALIbration:SHORt:LIMit 1.23456 Sets the upper limit value for short calibration to 1.23456.
	Query	:CORRection:CALIbration:SHORt:LIMit?
	Response	:CORRECTION:CALIBRATION:SHORT:LIMIT 1.23456E+00 (when HEADER ON) 1.23456E+00 (when HEADER OFF) The upper limit value for short calibration is set to 1.23456.
Note

Execution and cancellation of load calibration

Syntax	Command	:CORRection:CALIbration:LOAD <AC/DC/ACDC/CANCel>
	Query
	Response
	Parameter
Explanation	Command	Performs setting of the load calibration function, loading of the calibration value, and cancellation of loading. AC: Performs the AC measurement. DC: Performs the DC measurement. AC+DC: Performs the AC+DC measurement. CANCEL: Cancels the acquisition of the calibration value.
Explanation	Query
Example	Command	:CORRection:CALIbration:LOAD ACDC Obtains the load calibration value using the ACDC measurement.
	Query
	Response
Note		Calibration cannot be executed during measurement, and an execution error occurs. Execute the command after changing to an external trigger for the LCR mode, or to sequential sweep or step sweep for the analyzer mode. An execution error occurs if the command for changing the environment settings is executed during calibration. Also, be sure to avoid executing commands other than ones for checking each status register (*ESR?, ESR0?, etc.).

Setting of the reference value for load calibration and queries

Syntax	Command	:CORRection:CALIbration:LOAD:REFerence <Calibration No./ALL/DC>, <reference value 1>, <reference value 2 *disabled for DC>
	Query	:CORRection:CALIbration:LOAD:REFerence? <Calibration No./DC>
	Response	<Reference value 1>, <reference value 2 *disabled for DC>
	Parameter	<Calibration No.> = SPOT: 1 to 5 (LCR mode)/1 to 801 (analyzer mode), ALL: 1 to 102 (NR1) <Reference value 1> = The settable range varies depending on the reference value mode. (NR3) <Reference value 2> = The settable range varies depending on the reference value mode. (NR2/NR3)
Explanation	Command	Sets the reference value for load calibration. When the calibration No. is ALL, sets the reference values for all calibration points. When the calibration No. is DC, sets the reference values for DC measurement.
Explanation	Query	Returns the reference value for load calibration. When the calibration No. is DC, returns the reference values for DC measurement.
Example	Command	:CORRection:CALIbration:LOAD:REFerence 1, 10e-9, 0.00014 Sets reference value 1 for calibration No. 1 to 10 nF, and reference value 2 to 0.00014.
	Query	:CORRection:CALIbration:LOAD:REFerence? 1
	Response	:CORRECTION:CALIBRATION:LOAD:REFERENCE 10.0000E-09, 140.000E-06 (when HEADER ON) 10.0000E-09, 140.000E-06 (when HEADER OFF) Reference value 1 for calibration No. 1 is set to 10 nF, and reference value 2 to 0.00014.
Note

Queries for the load calibration value

Syntax	Command
	Query	:CORRection:CALIbration:LOAD:DATA? SPOT compensation: <compensation No./DC>/ ALL compensation: <compensation No./ALL/DC>
	Response	SPOT calibration: <frequency>, <calibration value 1>, <calibration value 2> Note: For DC, calibration value 1 only ALL calibration: <frequency>, <+7 dBm: calibration value 1>, <+7 dBm: calibration value 2>, <-3 dBm: calibration value 1>, <-3 dBm: calibration value 2>, <-23 dBm: calibration value 1>, <-23 dBm: calibration value 2>, <-30 dBm: calibration value 1>, <-30 dBm: calibration value 2> Note: For DC, one calibration value only.
	Parameter	<Calibration No.> = SPOT: 1 to 5 (LCR mode)/1 to 801 (analyzer mode), ALL: 1 to 102 (NR1) <Frequency> = 1.0000E+06 to 300.00E+06 (NR3) <Calibration values> = -9.99999E+09 to 9.99999E+09 (NR3)
Explanation	Command
Explanation	Query	Returns the load calibration value. When calibration is not executed, the calibration value is "0.0000E+00". When the frequency is not set, the frequency is "OFF". When ALL is specified for an argument for ALL calibration, all point data is output as a comma-delimited file.
Example	Command
	Query	:CORRection:CALIbration:LOAD:DATA? 1
	Response	1.0000E+06,-268.072E-09,-9.91283E+00,-268.149E-09,-9.92681E+00,-264.962E-09,-9.82472E+00,-264.493E-09,-9.80054E+00 Returns the calibration value for load calibration of calibration No. 1.
Note		The calibration value output format differs depending on the display method setting for the load calibration and compensation. A header is not provided for the response message.

Setting of the upper and lower limit values for load calibration and queries

Syntax	Command	:CORRection:CALIbration:LOAD:LIMit <OFF/lower limit value>, <OFF/upper limit value>
	Query	:CORRection:CALIbration:LOAD:LIMit?
	Response	<OFF/lower limit value>, <OFF/upper limit value>
	Parameter	<Lower limit values> = -9.99999E+09 to +9.99999E+09 (NR3) <Upper limit values> = -9.99999E+09 to +9.99999E+09 (NR3)
Explanation	Command	Sets the upper and lower limit values for load calibration.
Explanation	Query	Returns the upper and lower limit values for load calibration.
Example	Command	:CORRection:CALIbration:LOAD:LIMit 234.560E-06,1.23456 Sets the upper and lower limit values for load calibration to 1.23456 and 234.560E-06, respectively.
	Query	:CORRection:CALIbration:LOAD:LIMit?
	Response	:CORRECTION:CALIBRATION:LOAD:LIMIT 234.560E-06, 1.23456E+00 (when HEADER ON) 234.560E-06, 1.23456E+00 (when HEADER OFF) The upper and lower limit values for load calibration are set to 1.23456 and 234.560E-06, respectively.
Note

Setting of compensation and queries

Syntax	Command	:CORRection:COMPensation:RETurn <OFF/ON>
	Query	:CORRection:COMPensation:RETurn?
	Response	<OFF/ON>
	Parameter
Explanation	Command	Sets the compensation function. OFF: Does not perform a compensation. ON: Performs a compensation.
Explanation	Query	Returns the setting of the compensation function.
Example	Command	:CORRection:COMPensation:RETurn ON Executes setting to perform a compensation.
	Query	:CORRection:COMPensation:RETurn?
	Response	:CORRECTION:COMPENSATION:RETURN ON (when HEADER ON) ON (when HEADER OFF) It is set to perform a compensation.
Note

Compensation resetting

Syntax	Command	:CORRection:COMPensation:RESet <Compensation No./ALL/DC>, <DATA/REFerence>
	Query
	Response
	Parameter	<Compensation No.> = 1～5(LCR mode, SPOT), 1～801(analyzer mode SPOT), 1～102(ALL) / <ALL> = All compensation point / <DC> = DC compensation <DATA> = Measurement value / <REFerence> = Reference value
Explanation	Command	Clears the parameter, reference value, and measured value of the compensation.
Explanation	Query
Example	Command	:CORRection:COMPensation:RESet ALL,DATA Clears the parameter, reference value, and measured value of the compensation.
	Query
	Response
Note		Command examples are as follows: :CORRection:COMPensation:RESet　3, DATA Clears the measured value for the third compensation points. :CORRection:COMPensation:RESet　3, REFerence Clears the reference value for the third compensation points. :CORRection:COMPensation:RESet　DC, DATA Clears the measured value for the DC compensation. :CORRection:COMPensation:RESet　DC, REFerence Clears the reference value for the DC compensation.

Queries for the frequency for the compensation point

Syntax	Command
	Query	:CORRection:COMPensation:FREQuency? <Compensation No.>
	Response	<Frequency/OFF>
	Parameter	<CompensationNo.> = 1 to 5 (LCR mode, SPOT)/1 to 801 (analyzer mode SPOT)/1 to 102 (ALL) (NR1)
Explanation	Command	The frequency of the compensation No. cannot be changed. To change the frequency, use the command shown below. :CORRection:CALIbration:FREQuency
Explanation	Query	Returns the frequency of the specified compensation No. OFF: The frequency of the specified compensation No. is not set. Frequency: Returns the frequency of the specified compensation No.
Example	Command
	Query	:CORRection:COMPensation:FREQuency? 1
	Response	:CORRECTION:COMPENSATION:FREQUENCY 2.0000E+06 (when HEADER ON) 2000000 (when HEADER OFF) The compensation frequency is set to 2 MHz for compensation No. 1.
Note

Queries for the level value for the compensation point

Syntax	Command
	Query	:CORRection:COMPensation:LEVel? <P/V/I>, <Compensation No.>
	Response	<Level value/OFF>
	Parameter	<Level mode.> = P:Power / V:Voltage / I:Current <Compensation No.> = 1 to 5 (LCR mode, SPOT)/1 to 801 (analyzer mode, SPOT) (NR1)
Explanation	Command	The compensation level cannot be changed. To change the level, use the command shown below. :CORRection:CALIbration:LEVel
Explanation	Query	The query command is enabled only in the LCR and analyzer modes. Returns the level value for the SPOT compensation.
Example	Command
	Query	:CORRection:COMPensation:LEVel? V, 1
	Response	:CORRECTION:COMPENSATION:LEVEL 502E-03 (when HEADER ON) 0.502 (when HEADER OFF) The level value for the SPOT compensation for compensation No. 1 is set to 502mV(Voltage mode).
Note

Queries for the compensation point speed

Syntax	Command
	Query	:CORRection:COMPensation:SPEEd? SPOT compensation: <compensation No.>/ ALL compensation: none
	Response	<FAST/MEDIUM/SLOW/SLOW2/CUSTOM/OFF>
	Parameter	<Compensation No.> = 1 to 5 (LCR)/1 to 801 (analyzer) (NR1)
Explanation	Command	The compensation speed cannot be set. To change the setting, use the command shown below. :CORRection:CALIbration:SPEEd
Explanation	Query	Returns the setting of the measurement speed for compensation. The query command is enabled for the LCR and analyzer mode.
Example	Command
	Query	:CORRection:COMPensation:SPEEd? 1
	Response	:CORRECTION:COMPENSATION:SPEED MEDIUM (when HEADER ON) MEDIUM (when HEADER OFF) The measurement speed for compensation is set to medium.
Note

Queries for the number of waveforms for the compensation point

Syntax	Command	:CORRection:COMPensation:WAVE
	Query	:CORRection:COMPensation:WAVE? SPOT compensation: <compensation No.>/ ALL compensation: none
	Response	<Number of waveforms>
	Parameter	<Compensation No.> = 1 to 5 (LCR mode)/1 to -801 (analyzer mode) (NR1)
Explanation	Command	The number of waveforms of the compensation point cannot be changed. To change the number, use the command shown below. :CORRection:CALIbration:WAVE
Explanation	Query	Returns the measurement speed setting for the compensation No. point using the number of waveforms. (When the measurement speed is custom)
Example	Command
	Query	:CORRection:COMPensation:WAVE? 1
	Response	:CORRECTION:COMPENSATION:WAVE 8 (when HEADER ON) 8 (when HEADER OFF) The number of waveforms of the measurement speed for compensation is set to 8.
Note

Execution and cancellation of open compensation

Syntax	Command	:CORRection:COMPensation:OPEN <AC/DC/ACDC/CANCel>
	Query
	Response
	Parameter
Explanation	Command	Performs setting of the open compensation function, loading of the compensation value, and cancellation of loading. AC: Performs the AC measurement. DC: Performs the DC measurement. ACDC: Performs the AC+DC measurement. CANCEL: Cancels the acquisition of the compensation value.
Explanation	Query
Example	Command	:CORRection:COMPensation:OPEN ACDC Obtains the open compensation value for the ACDC measurement.
	Query
	Response
Note		This command cannot be executed during measurement, and doing so will result in an execution error. Execute the command after changing to an external trigger for the LCR mode, or to sequential sweep or step sweep for the analyzer mode. An execution error occurs if the command for changing the environment settings is executed during compensation. Also, be sure to avoid executing commands other than ones for checking each status register (*ESR?, ESR0?, etc.).

Setting of the reference value for open compensation and queries

Syntax	Command	:CORRection:COMPensation:OPEN:REFerence <Compensation No./ALL/DC>, <reference value 1>, <reference value 2 *disabled for DC>
	Query	:CORRection:COMPensation:OPEN:REFerence? <Compensation No./DC>
	Response	<Reference value 1>, <reference value 2 *disabled for DC>
	Parameter	<Compensation No.> = SPOT: 1 to 5 (LCR mode)/1 to 801 (analyzer mode), ALL: 1 to 102 (NR1) <Reference value 1> = The settable range varies depending on the reference value mode. (NR3) <Reference value 2> = The settable range varies depending on the reference value mode. (NR2/NR3)
Explanation	Command	Sets the reference value for open compensation. When the compensation No. is ALL, sets the reference values for all compensation points. When the compensation No. is DC, sets the reference values for DC measurement.
Explanation	Query	Returns the reference value for open compensation. When the compensation No. is DC, returns the reference value for DC measurement.
Example	Command	:CORRection:COMPensation:OPEN:REFerence 1, 10e-9, 0.00014 Sets reference value 1 for compensation No. 1 to 10 nF, and reference value 2 to 0.00014.
	Query	:CORRection:COMPensation:OPEN:REFerence? 1
	Response	:CORRECTION:COMPENSATION:OPEN:REFERENCE 10.0000E-09, 140.000E-06 (when HEADER ON) 10.0000E-09, 140.000E-06 (when HEADER OFF) Reference value 1 for compensation No. 1 is set to 10 nF, and reference value 2 to 0.00014.
Note

Queries for the compensation value for open compensation

Syntax	Command
	Query	:CORRection:COMPensation:OPEN:DATA? SPOT compensation: <compensation No./DC>/ ALL compensation: <compensation No./ALL/DC>
	Response	SPOT calibration: <frequency>, <calibration value 1>, <calibration value 2> Note: For DC, calibration value 1 only ALL calibration: <frequency>, <+7 dBm: calibration value 1>, <+7 dBm: calibration value 2>, <-3 dBm: calibration value 1>, <-3 dBm: calibration value 2>, <-23 dBm: calibration value 1>, <-23 dBm: calibration value 2>, <-30 dBm: calibration value 1>, <-30 dBm: calibration value 2> Note: For DC, one calibration value only.
	Parameter	<Compensation No.> = SPOT: 1 to 5 (LCR mode)/1 to 801 (analyzer mode), ALL: 1 to 102 (NR1) <Frequency> = 1.0000E+06 to 300.00E+06 (NR3) <Compensation values> = -9.99999E+09 to 9.99999E+09 (NR3)
Explanation	Command
Explanation	Query	Returns the compensation value for open compensation. When compensation is not executed, the compensation value is "0.0000E+00". When the frequency is not set, the frequency is "OFF". When ALL is specified for an argument for ALL compensation, all point data is output as a comma-delimited file.
Example	Command
	Query	:CORRection:COMPensation:OPEN:DATA? 1
	Response	:CORRECTION:COMPENSATION:OPEN:DATA 1.0000E+06,-168.174E-03,-17.2123E-03 (when HEADER ON) 1.0000E+06,-168.174E-03,-17.2123E-03 (when HEADER OFF) Returns the compensation value for open compensation for compensation No. 1.
Note		The compensation value output format differs depending on the display method setting for the open calibration and compensation.

Setting of the lower limit value for open compensation and queries

Syntax	Command	:CORRection:COMPensation:OPEN:LIMit <OFF/lower limit value>
	Query	:CORRection:COMPensation:OPEN:LIMit?
	Response	<OFF/lower limit value>
	Parameter	<Lower limit values> = -9.99999E+09 to +9.99999E+09 (NR3)
Explanation	Command	Sets the lower limit value for open compensation.
Explanation	Query	Returns the lower limit value for open compensation.
Example	Command	:CORRection:COMPensation:OPEN:LIMit 234.560E-06 Sets the lower limit value for open compensation to 234.560E-06.
	Query	:CORRection:COMPensation:OPEN:LIMit?
	Response	:CORRECTION:COMPENSATION:OPEN:LIMIT 234.560E-06 (when HEADER ON) 234.560E-06 (when HEADER OFF) The lower limit value for open compensation is set to 234.560E-06.
Note

Execution and cancellation of short compensation

Syntax	Command	:CORRection:COMPensation:SHORt <AC/DC/ACDC/CANCel>
	Query
	Response
	Parameter
Explanation	Command	Sets the short compensation function and acquires or cancels the acquisition of the compensation value. AC: Performs the AC measurement. DC: Performs the DC measurement. AC+DC: Performs the AC+DC measurement. CANCEL: Cancels the acquisition of the compensation value.
Explanation	Query
Example	Command	:CORRection:COMPensation:SHORt ACDC Obtains the short compensation value using the ACDC measurement.
	Query
	Response
Note		This command cannot be executed during measurement, and doing so will result in an execution error. Execute the command after changing to an external trigger for the LCR mode, or to sequential sweep or step sweep for the analyzer mode. An execution error occurs if the command for changing the environment settings is executed during compensation. Also, be sure to avoid executing commands other than ones for checking each status register (*ESR?, ESR0?, etc.).

Setting of the reference value for short compensation and queries

Syntax	Command	:CORRection:COMPensation:SHORt:REFerence <Compensation No./ALL/DC>, <reference value 1>, <reference value 2 *disabled for DC>
	Query	:CORRection:COMPensation:SHORt:REFerence? <Compensation No./DC>
	Response	<Reference value 1>, <reference value 2 *disabled for DC>
	Parameter	<CompensationNo.> = SPOT: 1 to 5 (LCR mode)/1 to 801 (analyzer mode), ALL: 1 to 102 (NR1) <Reference value 1> = The settable range varies depending on the reference value mode. (NR3) <Reference value 2> = The settable range varies depending on the reference value mode. (NR2/NR3)
Explanation	Command	Sets the reference value for short compensation. When the compensation No. is ALL, sets the reference values for all compensation points. When the compensation No. is DC, sets the reference values for DC measurement.
Explanation	Query	Returns the reference value for short compensation. When the compensation No. is DC, returns the reference value for DC measurement.
Example	Command	:CORRection:COMPensation:SHORt:REFerence 1, 10e-9, 0.00014 Sets reference value 1 for compensation No. 1 to 10 nF, and reference value 2 to 0.00014.
	Query	:CORRection:COMPensation:SHORt:REFerence? 1
	Response	:CORRECTION:COMPENSATION:SHORT:REFERENCE 10.0000E-09, 140.000E-06 (when HEADER ON) 10.0000E-09, 140.000E-06 (when HEADER OFF) Reference value 1 for compensation No. 1 is set to 10 nF, and reference value 2 to 0.00014.
Note

Queries for the reference value for short compensation

Syntax	Command
	Query	:CORRection:COMPensation:SHORt:DATA? SPOT compensation: <compensation No./DC>/ ALL compensation: <compensation No./ALL/DC>
	Response	SPOT calibration: <frequency>, <calibration value 1>, <calibration value 2> Note: For DC, calibration value 1 only ALL calibration: <frequency>, <+7 dBm: calibration value 1>, <+7 dBm: calibration value 2>, <-3 dBm: calibration value 1>, <-3 dBm: calibration value 2>, <-23 dBm: calibration value 1>, <-23 dBm: calibration value 2>, <-30 dBm: calibration value 1>, <-30 dBm: calibration value 2> Note: For DC, one calibration value only.
	Parameter	<Compensation No.> = SPOT: 1 to 5 (LCR mode)/1 to 801 (analyzer mode), ALL: 1 to 102 (NR1) <Frequency> = 1.0000E+06 to 300.00E+06 (NR3) <Compensation values> = -9.99999E+09 to 9.99999E+09 (NR3)
Explanation	Command
Explanation	Query	Returns the compensation value for short compensation. When compensation is not executed, the compensation value is "0.0000E+00". When the frequency is not set, the frequency is "OFF". When ALL is specified for an argument for ALL compensation, all point data is output as a comma-delimited file.
Example	Command
	Query	:CORRection:COMPensation:SHORt:DATA? 1
	Response	:CORRECTION:COMPENSATION:SHORT:DATA 1.0000E+06,-49.0352E-03,-107.826E-03 (when HEADER ON) 1.0000E+06,-49.0352E-03,-107.826E-03 (when HEADER OFF) Returns the compensation value for short compensation for compensation No. 1.
Note		The compensation value output format differs depending on the display method setting for the short calibration and compensation.

Setting of the upper limit value for short compensation and queries

Syntax	Command	:CORRection:COMPensation:SHORt:LIMit <OFF/upper limit value>
	Query	:CORRection:COMPensation:SHORt:LIMit?
	Response	<OFF/upper limit value>
	Parameter	<Upper limit values> = -9.99999E+09 to +9.99999E+09 (NR3)
Explanation	Command	Sets the upper limit value for short compensation.
Explanation	Query	Returns the setting of the upper limit value for short compensation.
Example	Command	:CORRection:COMPensation:SHORt:LIMit 1.23456 Sets the upper limit value for short compensation to 1.23456.
	Query	:CORRection:COMPensation:SHORt:LIMit?
	Response	:CORRECTION:COMPENSATION:SHORT:LIMIT 1.23456E+00 (when HEADER ON) 1.23456E+00 (when HEADER OFF) The upper limit value for short compensation is set to 1.23456.
Note

Setting of the scaling compensation function and queries

Syntax	Command	:CORRection:SCALe <OFF/ON>
	Query	:CORRection:SCALe?
	Response	<OFF/ON>
	Parameter
Explanation	Command	Performs the setting of the scaling compensation function. This command is enabled only in the LCR and analyzer modes.
Explanation	Query	Returns the setting of the scaling compensation function.
Example	Command	:CORRection:SCALe ON Enables the scaling compensation function.
	Query	:CORRection:SCALe?
	Response	:CORRECTION:SCALE ON (when HEADER ON) ON (when HEADER OFF) The scaling compensation function is enabled.
Note

Setting of the scaling compensation value and queries

Syntax	Command	:CORRection:SCALe:DATA <Scale No.>, <compensation value A>, <compensation value B>
	Query	:CORRection:SCALe:DATA? <Scale No.>
	Response	<Compensation value A>, <compensation value B>
	Parameter	<Scale No.> = 1/2/3/4 (NR1) <Compensation value A> = -999.999 to 999.999 (NR2) <Compensation value B> = -9.99999E+09 to 9.99999E+09 (NR3)
Explanation	Command	Sets the value of the scaling compensation function. This command is enabled only in the LCR and analyzer modes.
Explanation	Query	Returns the value of the scaling compensation function.
Example	Command	:CORRection:SCALe:DATA 1,1.23,4.56 Sets compensation value A of scale No. 1 to 1.23, and compensation value B to 4.56.
	Query	:CORRection:SCALe:DATA? 1
	Response	:CORRECTION:SCALE:DATA 1.230,4.56000E+00 (when HEADER ON) 1.230,4.56000E+00 (when HEADER OFF) Compensation value A of scale No. 1 is set to 1.23, and compensation value B to 4.56.
Note		-0.001 to 0.001 cannot be set for the compensation value A. When the command is sent with a value between these values, the value is interpolated to -0.001 or 0.001.

Setting and querying the continuous measurement target

Syntax	Command	:CONTinuous:EXECution <Panel No.>, <ON/OFF>
	Query	:CONTinuous:EXECution? <Panel No.>
	Response	<ON/OFF>
	Parameter	<Panel No.> = 1 to 46/ ALL
Explanation	Command	Sets the panel to be the measurement target in continuous measurement mode. When ALL is specified for <Panel No.>, ON/OFF is set for all panels.
Explanation	Query	Returns the setting of the panel to be the measurement target in continuous measurement mode.
Example	Command	:CONTinuous:EXECution 5,ON Sets panel No. 5 as a measurement target of continuous measurement.
	Query	:CONTinuous:EXECution? 5
	Response	:CONTINUOUS:EXECUTION ON (when HEADER ON) ON (when HEADER OFF) Panel No. 5 is set as a measurement target of continuous measurement.
Note		ALL can only be specified for the parameter in the command. It cannot be used in the query. An execution error occurs if a panel for which continuous measurement can be performed is not saved to the specified panel number. An execution error occurs during continuous measurement.

Setting of the finish function for a judgment error and queries

Syntax	Command	:CONTinuous:ERRor <ON/OFF>
	Query	:CONTinuous:ERRor?
	Response	<ON/OFF>
	Parameter
Explanation	Command	Sets the measurement cancellation for a judgment error. OFF: When an error is detected for judgment, measurement is not canceled. ON: When an error is detected for judgment, measurement is canceled.
Explanation	Query	Returns the setting of measurement cancellation for a judgment error.
Example	Command	:CONTinuous:ERRor ON Sets to cancel measurement when a judgment error occurs.
	Query	:CONTinuous:ERRor?
	Response	:CONTINUOUS:ERROR ON (when HEADER ON) ON (when HEADER OFF) It is set to cancel measurement when a judgment error occurs.
Note

Panel count targeted for measurement in continuous measurement mode inquiry

Syntax	Command
	Query	:CONTinuous:COUNt?
	Response	<Panel count>
	Parameter	<Panel count> = 0 to 46 (NR1)
Explanation	Command
Explanation	Query	Returns the panel count targeted for measurement in continuous measurement mode.
Example	Command
	Query	:CONTinuous:COUNt?
	Response	:CONTINUOUS:COUNT 2 (when HEADER ON) 2 (when HEADER OFF) There are 2 panels targeted for measurement in continuous measurement mode.
Note

Querying measurement data

Syntax	Command
	Query	:MEASure? <No data/ ALL>
	Response
	Parameter
Explanation	Command
Explanation	Query	For more detail, refer to "Querying measurement data".
Example	Command
	Query
	Response
Note		If a setting has been changed, send the ":MEASure?" query after triggering.

Queries for the contact check measurement data

Syntax	Command
	Query	:MEASure:RDC?
	Response	<Measurement status>, <BEFORE measured value>, <BEFORE judgment>, <AFTER measured value>, <AFTER judgment>, <panel number>
	Parameter
Explanation	Command
Explanation	Query	Returns the measured value of the contact check. The measurement status has the same specification as the Measure? query status. Details of the judgment values are as follows. -1: LO judgment 0: IN judgment 1: HI judgment 2: Not judged
Example	Command
	Query	:MEASure:RDC?
	Response	0,4.9929E+03,0, 4.9957E+03,1,0 (when HEADER ON) 0,4.9929E+03,0, 4.9957E+03,1,0 (when HEADER OFF) Returns the BEFORE and AFTER measured values of the contact check. The judgment result shows BEFORE: IN and AFTER: HI.
Note		The output data follows the MEASure:VALid setting. The binary output is not supported.

Querying the overall judgment result when continuous measurement

Syntax	Command
	Query	:MEASure:CONTinuous:COMParator?
	Response	<Judgment result>
	Parameter	<Judgment result> = 0,1 (NR1)
Explanation	Command
Explanation	Query	Returns the setting of the overall judgment result at the time of continuous measurement.
Example	Command
	Query	:MEASure:CONTinuous:COMParator?
	Response	:MEASURE:CONTINUOUS:COMPARATOR 1 (when HEADER ON) 1 (when HEADER OFF) The overall judgment result of continuous measurement is IN.
Note

Querying the judgment results of the extreme values when continuous measurement

Syntax	Command
	Query	:MEASure:CONTinuous:PEAK? <No data/ ALL>
	Response
	Parameter
Explanation	Command
Explanation	Query	Returns the judgment results and measurement data of the extreme values when the peak comparator of the analyzer is included in continuous measurement. Set the each response content with the :MEASure:VALid command. The judgment results indicate the positional relationship between the judgment area and peak. If the peak is within the judgment area (IN), 5 is returned. When the judgment area setting is OFF or the peak was not detected, the judgment results and measurement data are not returned. For details on the judgment result values, see the following figure. In the judgment results, a message terminator or slash (/) is inserted for each single panel. When :MEASure:CONTinuous:PEAK?: Message terminator When :MEASure:CONTinuous:PEAK? ALL: Slash (/)
Example	Command
	Query	:MEASure:CONTinuous:PEAK?
	Response	0,1, 3.2141E+03,Z 2.74816E+03,0,2, 3.9427E+03,Z 1.83606E+03,0,3, 3.0914E+03,PHASE -66.196,0,4, 1.3653E+03,PHASE -88.665,1,0,5, 8.7754E+03,Z 1.18762E+03,0,6, 8.4322E+03,Z 772.516E+00,0,7, 8.6594E+03,PHASE -63.226,0,8, 12.236E+03,PHASE -88.566,2,3 0,1, 3.2154E+03,Z 2.74339E+03,0,2, 3.9449E+03,Z 1.83609E+03,0,3, 3.1059E+03,PHASE -65.983,0,4, 3.5677E+03,PHASE -85.406,1,5 (when HEADER ON) 0,1, 3.2141E+03, 2.74816E+03,0,2, 3.9427E+03, 1.83606E+03,0,3, 3.0914E+03, -66.196,0,4, 1.3653E+03, -88.665,1,0,5, 8.7754E+03, 1.18762E+03,0,6, 8.4322E+03, 772.516E+00,0,7, 8.6594E+03, -63.226,0,8, 12.236E+03, -88.566,2,3 0,1, 3.2154E+03, 2.74339E+03,0,2, 3.9449E+03, 1.83609E+03,0,3, 3.1059E+03, -65.983,0,4, 3.5677E+03, -85.406,1,5 (when HEADER OFF) The following shows the judgment results of the peak comparator of continuous measurement.

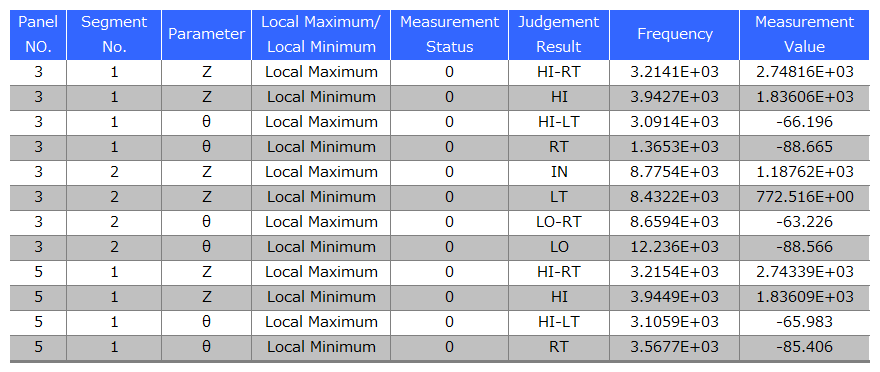

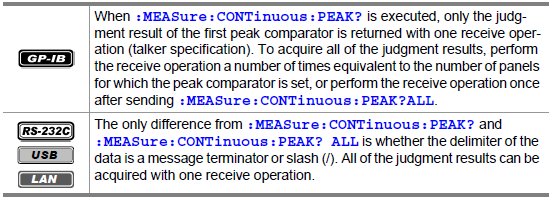

Note		The output data follows the MEASure:VALid setting. An execution error occurs if peak comparator measurement is not included in continuous measurement. An execution error occurs if the peak could not be detected.

Setting and querying the contact check function

Syntax	Command	:CCHeck:VERify <OFF/BEFore/AFTer/BOTH>
	Query	:CCHeck:VERify?
	Response	<OFF/BEFore/AFTer/BOTH>
	Parameter
Explanation	Command	Sets the contact check function.
Explanation	Query	Returns the setting of the contact check function.
Example	Command	:CCHeck:VERify AFTer Sets the contact check function to "AFTER".
	Query	:CCHeck:VERify?
	Response	:CCHECK:VERIFY AFTER (when HEADER ON) AFTER (when HEADER OFF) The contact check function is set to "AFTER".
Note		When the contact check function is set to "BEFore" or "BOTH", the trigger synchronous output function is automatically set to "ON".

Setting of whether a judgment is performed/not performed when the DC measured value is UNCAL for the contact check function and queries

Syntax	Command	:CCHeck:JUDGment <DO/NOT>
	Query	:CCHeck:JUDGment?
	Response	<DO/NOT>
	Parameter
Explanation	Command	Sets whether a judgment is performed/not performed when the DC measured value is UNCAL. DO: Performs a judgment. NOT: Does not perform a judgment. The result is HI.
Explanation	Query	Returns the setting of whether a judgment is performed/not performed when the DC measured value is UNCAL.
Example	Command	:CCHeck:JUDGment DO Sets to perform a judgment when the DC measured value is UNCAL.
	Query	:CCHeck:JUDGment?
	Response	:CCHECK:JUDGMENT DO (when HEADER ON) DO (when HEADER OFF) It is set to perform a judgment when the DC measured value is UNCAL.
Note

Setting of the contact check execution time and queries

Syntax	Command	:CCHeck:WAVe <Number of waveforms>
	Query	:CCHeck:WAVe?
	Response	<Number of waveforms>
	Parameter	<Number of waveforms> = 1 to 9999 (NR1)
Explanation	Command	Sets the contact check execution time using the number of waveforms.
Explanation	Query	Returns the contact check execution time setting using the number of waveforms.
Example	Command	:CCHeck:WAVe 1 Sets the number of waveforms for the contact check execution time to 1.
	Query	:CCHeck:WAVe?
	Response	:CCHECK:WAVE 0001 (when HEADER ON) 0001 (when HEADER OFF) The number of waveforms for the contact check execution time is set to 1.
Note

Setting of the upper and lower limit values for the contact check judgment condition and queries

Syntax	Command	:CCHeck:LIMit <OFF/lower limit value>, <OFF/upper limit value>
	Query	:CCHeck:LIMit?
	Response	<OFF/lower limit value>, <OFF/upper limit value>
	Parameter	<Lower limit values> = -9.99999E+09 to +9.99999E+09 (NR3) <Upper limit values> = -9.99999E+09 to +9.99999E+09 (NR3)
Explanation	Command	Sets the upper and lower limit values for the judgment condition.
Explanation	Query	Returns the upper and lower limit values for the judgment condition.
Example	Command	:CCHeck:LIMit 234.560E-06,1.23456 Sets the upper and lower limit values of the judgment condition to 1.23456 and 234.560E-06, respectively.
	Query	:CCHeck:LIMit?
	Response	:CCHECK:LIMIT 234.560E-06,1.23456E+00 (when HEADER ON) 234.560E-06,1.23456E+00 (when HEADER OFF) The upper and lower limit values of the judgment condition are set to 1.23456 and 234.560E-06, respectively.
Note		The upper and lower limit values outside the range are set to the limit value within the setting range. An error does not occur.

Setting of the measurement stop for a contact check error and queries

Syntax	Command	:CCHeck:ERREnd <OFF/ON>
	Query	:CCHeck:ERREnd?
	Response	<OFF/ON>
	Parameter
Explanation	Command	Sets the measurement stop for a contact check error. OFF: Does not cancel measurement when a contact check error occurs. ON: Cancels measurement when a contact check error occurs.
Explanation	Query	Returns the measurement stop when a contact check error occurs.
Example	Command	:CCHeck:ERREnd ON Sets to stop measurement when a contact check error occurs.
	Query	:CCHeck:ERREnd?
	Response	:CCHECK:ERREND ON (when HEADER ON) ON (when HEADER OFF) It is set to stop measurement when a contact check error occurs.
Note

Setting of the AC output during contact check and queries

Syntax	Command	:CCHeck:ACOut <OFF/ON>
	Query	:CCHeck:ACOut?
	Response	<OFF/ON>
	Parameter
Explanation	Command	Sets the AC output. OFF: Disables the AC output. ?ON: Enables the C output.
Explanation	Query	Returns the AC output setting.
Example	Command	:CCHeck:ACOut ON Sets the AC output to ON.
	Query	:CCHeck:ACOut?
	Response	:CCHECK:ACOUT ON (when HEADER ON) ON (when HEADER OFF) The AC output is set to ON.
Note

Setting of the DC wait time during contact check and queries

Syntax	Command	:CCHeck:DCWait <Wait time>
	Query	:CCHeck:DCWait?
	Response	<Wait time>
	Parameter	<Wait time> = 0.00000 s to 9.99999 s (NR2)
Explanation	Command	Sets the DC wait time.
Explanation	Query	Returns the DC wait time setting.
Example	Command	:CCHeck:DCWait 0.00000 Sets the DC wait time to 0.0 s.
	Query	:CCHeck:DCWait?
	Response	:CCHECK:DCWAIT 0.00000 (when HEADER ON) 0.00000 (when HEADER OFF) The DC wait time is set to 0.0 s.
Note

Setting of the AC wait time during contact check and queries

Syntax	Command	:CCHeck:ACWait <Wait time>
	Query	:CCHeck:ACWait?
	Response	<Wait time>
	Parameter	<Wait time> = 0.00000 s to 9.99999 s (NR2)
Explanation	Command	Sets the AC wait time.
Explanation	Query	Returns the AC wait time setting.
Example	Command	:CCHeck:ACWait 0.00000 Sets the AC wait time to 0.0 s.
	Query	:CCHeck:ACWait?
	Response	:CCHECK:ACWAIT 0.00000 (when HEADER ON) 0.00000 (when HEADER OFF) The AC wait time is set to 0.0 s.
Note

Setting of the detection level monitoring function for contact check and queries

Syntax	Command	:LEVCheck <ON/OFF>
	Query	:LEVCheck?
	Response	<ON/OFF>
	Parameter
Explanation	Command	Sets the detection level monitoring function. OFF: Disables the detection level monitoring function. ON: Enables the detection level monitoring function.
Explanation	Query	Returns the setting of the detection level monitoring function.
Example	Command	:LEVCheck ON Sets the detection level monitoring function to ON.
	Query	:LEVCheck?
	Response	:LEVCHECK ON (when HEADER ON) ON (when HEADER OFF) The detection level monitoring function is set to ON.
Note

Setting of the limit value for contact check and queries

Syntax	Command	:LEVCheck:LIMit <Limit value>
	Query	:LEVCheck:LIMit?
	Response	<Limit value>
	Parameter	<Limit value> = 0.01 to 100.00% (NR2)
Explanation	Command	Sets the limit value for contact check.
Explanation	Query	Returns the limit value setting for contact check.
Example	Command	:LEVCheck:LIMit 10 Sets the limit value for contact check to 10.0%.
	Query	:LEVCheck:LIMit?
	Response	:LEVCHECK:LIMIT 10.00 (when HEADER ON) 10.00 (when HEADER OFF) The limit value for contact check is set to 10.0%.
Note

Setting and querying the Hi Z reject function

Syntax	Command	:HIZ <ON/OFF>
	Query	:HIZ?
	Response	<ON/OFF>
	Parameter
Explanation	Command	Enables or disables the Hi Z reject function. OFF: Does not detect abnormal measurement values. ON: Detects abnormally high measurement values as errors.
Explanation	Query	Returns whether the Hi Z reject function is enabled or disabled.
Example	Command	:HIZ ON Enables the Hi Z reject function.
	Query	:HIZ?
	Response	:HIZ ON (when HEADER ON) ON (when HEADER OFF) The Hi Z reject function is enabled.
Note

Setting and querying the limit value of the Hi Z reject function

Syntax	Command	:HIZ:LIMit <Limit value>
	Query	:HIZ:LIMit?
	Response	<Limit value>
	Parameter	<Limit value> = 0 to 10000 Ohm (NR1)
Explanation	Command	Sets the limit value of the Hi Z reject function.
Explanation	Query	Returns the limit value of the Hi Z reject function.
Example	Command	:HIZ:LIMit 500 Sets the limit value of the Hi Z reject function to 500 Ohm.
	Query	:HIZ:LIMit?
	Response	:HIZ:LIMIT 500 (when HEADER ON) 500 (when HEADER OFF) The limit value of the Hi Z reject function is set to 500 Ohm.
Note

Querying measurement values saved to memory with the measurement value memory function

Syntax	Command
	Query	:MEMory? <No data/ ALL>
	Response	Refer to the response format of the MEASure? command.
	Parameter
Explanation	Command
Explanation	Query	Returns all of the measurement values saved to memory with the measurement value memory function. The measurement results for up to 32,000 measurements can be saved to memory. Executing this command will clear the contents of memory. To clear the contents of memory before acquiring the contents of memory, use the :MEMory:CLEar command. The formats of the memory contents are the same as the response data formats of :MEASure? query. For details on the formats, refer to the explanation for the :MEASure? query. A message terminator or slash (/) is inserted between memory items. In the case of :MEMory? Message terminator In the case of :MEMory? ALL Slash (/) The number of data items currently saved to memory can be confirmed with the :MEMory:COUNt? query. When the trigger setting is set to the internal trigger, the number of data items acquired with the :MEMory:COUNt? query may differ from that acquired with this command. To use the :MEMory:COUNt? query, set the trigger setting to the external trigger. When the trigger setting is set to the internal trigger, the measurement values of measurements performed while the memory values are being returned with this command may not be able to be saved. Set the external trigger when acquiring memory values and do not perform measurement until acquiring of all the memory values is complete. When memory becomes full, no more measurement values can be saved. To save new measurement values, use this command to read the contents of the memory or clear the contents of memory with the :MEMory:CLEar command.
Example	Command
	Query	:MEMory?
	Response	Z 1.59062E+03,PHASE -89.992 Z 1.59069E+03,PHASE -89.993 Z 1.59057E+03,PHASE -89.992 Z 1.59066E+03,PHASE -89.993 Z 1.59056E+03,PHASE -89.993 (when HEADER ON) 1.59062E+03, -89.992 1.59069E+03, -89.993 1.59057E+03, -89.992 1.59066E+03, -89.993 1.59056E+03, -89.993 (when HEADER OFF)

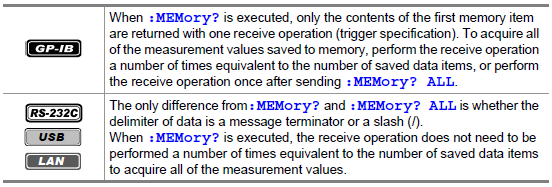

Note		The output data follows the MEASure:VALid setting. An execution error occurs during continuous measurement.

Saving of measured value memory

Syntax	Command	:MEMory:SAVE
	Query
	Response
	Parameter
Explanation	Command	Copies data saved to internal memory with the measured value memory function to USB memory.
Explanation	Query
Example	Command	:MEMory:SAVE
	Query
	Response
Note		If data has not been saved in internal memory, an execution error will result.

Clearing memory of measurement value memory function

Syntax	Command	:MEMory:CLEar
	Query
	Response
	Parameter
Explanation	Command	Clears all of the measurement values saved to internal memory with the measurement value memory function. If this command is sent, subsequent measurement results are saved from the beginning of memory.
Explanation	Query
Example	Command	:MEMory:CLEar Clears all of the measurement values saved to memory.
	Query
	Response
Note

Setting and querying the measurement value memory function

Syntax	Command	:MEMory:CONTrol LCR mode:<ON/IN/OFF> / Analyzer mode:<ON/OFF>
	Query	:MEMory:CONTrol?
	Response	<ON/IN/OFF>
	Parameter
Explanation	Command	Sets the measurement value memory function. If the setting is changed, all of the saved measurement values are cleared. OFF : Measurement values are not saved to internal memory. IN : Saves the measurement values to memory only when a pass judgment is made for all of the parameters judged with the comparator and BIN functions. (The measurement values are not saved if even one of the comparator results is HI or LO, or if the BIN result is OUT-OF-BINS or D-NG.) When the comparator and BIN functions are not used, the operation is the same as when ON. ON : Saves the measurement values to internal memory.
Explanation	Query	Returns the setting of the measurement value memory function.
Example	Command	:MEMory:CONTrol ON Saves the measurement values to memory.
	Query	:MEMory:CONTrol?
	Response	:MEMORY:CONTROL ON (when HEADER ON) ON (when HEADER OFF) Measurement values are set to be saved to memory.
Note

Querying the number of measurement values saved to memory with the memory function

Syntax	Command
	Query	:MEMory:COUNt?
	Response	<Number of data items>
	Parameter	<Number of data items> = 0 to 32000 (NR1)
Explanation	Command
Explanation	Query	Returns the number of data items saved to memory with the measurement value memory function. A header is not added to the response message.
Example	Command
	Query	:MEMory:COUNt?
	Response	1000 1,000 data items are saved to internal memory.
Note

Setting and querying the measurement value memory size

Syntax	Command	:MEMory:POINts <Memory size>
	Query	:MEMory:POINts?
	Response	<Memory size>
	Parameter	<Memory size> = 1 to 32000 (NR1)
Explanation	Command	Sets the number of data items to save to internal memory. This command is enable in only LCR mode. (The memory size is fixed 100 in the ANALYZER mode.) If the setting is changed, all of the saved measurement values are cleared.
Explanation	Query	Returns the number of data items to save to internal memory.
Example	Command	:MEMory:POINts 200 Sets the memory size to 200.
	Query	:MEMory:POINts?
	Response	:MEMORY:POINTS 200 (when HEADER ON) 200 (when HEADER OFF) The memory size is set to 200.
Note		An execution error occurs during continuous measurement and analyzer mode.

Setting and querying LCD display

Syntax	Command	:DISPlay <ON/OFF>
	Query	:DISPlay?
	Response	<ON/OFF>
	Parameter
Explanation	Command	Sets LCD display. ON: Sets the LCD to always on. OFF: The LCD goes off. Touching the key lights up the LCD again. The LCD turns off again after approximately 10 seconds elapse since the key was last touched.
Explanation	Query	Returns the setting of LCD display.
Example	Command	:DISPlay OFF Sets the LCD to turn off.
	Query	:DISPlay?
	Response	:DISPLAY OFF (when HEADER ON) OFF (when HEADER OFF) The LCD is set to turn off.
Note		A response of the communication decreases when LCD display set ON. Please set LCD display to OFF when fast reply is necessary.

Setting of the parameter color and queries

Syntax	Command	:DISPlay:PARAmeter <Parameter number>, <OFF/color No.>
	Query	:DISPlay:PARAmeter? <Parameter number>
	Response	<OFF/color No.>
	Parameter	<Parameter number> = 1 to 4 (NR1) <Color No.> = 1 to 25 (NR1)
Explanation	Command	Sets the measured value of the specified parameter number or color of the measurement result graph.
Explanation	Query	Returns the measured value of the specified parameter number or color of the measurement result graph.
Example	Command	:DISPlay:PARAmeter 1,2 Sets the color of the parameter for segment No. 1 of the 1st parameter to color No. 2.
	Query	:DISPlay:PARAmeter? 1
	Response	:DISPLAY:PARAMETER 2 (when HEADER ON) 2 (when HEADER OFF) The color of the parameter for 1st parameter is set to color No. 2.
Note

Setting of the screen background and queries

Syntax	Command	:DISPlay:COLor <WHITe/BLACk>
	Query	:DISPlay:COLor?
	Response	<WHITE/BLACK>
	Parameter
Explanation	Command	Sets the screen background. WHITe: Sets the screen background color to white. BLACk: Sets the screen background color to black.
Explanation	Query	Returns the screen background setting.
Example	Command	:DISPlay:COLor WHITe Sets the screen background to white.
	Query	:DISPlay:COLor?
	Response	:DISPLAY:COLOR WHITE (when HEADER ON) WHITE (when HEADER OFF) The screen background is set to white.
Note

Setting of the screen brightness and queries

Syntax	Command	:DISPlay:BACKlight <Brightness>
	Query	:DISPlay:BACKlight?
	Response	<Brightness>
	Parameter	<Brightness> = 0 to 250 (NR1)
Explanation	Command	Sets the screen brightness. The initial value is 130.
Explanation	Query	Returns the screen brightness setting.
Example	Command	:DISPlay:BACKlight 120 Sets the screen brightness to 120.
	Query	:DISPlay:BACKlight?
	Response	:DISPLAY:BACKLIGHT 120 (when HEADER ON) 120 (when HEADER OFF) The screen brightness is set to 120.
Note

Setting of the warm-up message display and queries

Syntax	Command	:DISPlay:WARMup <ON/OFF>
	Query	:DISPlay:WARMup?
	Response	<ON/OFF>
	Parameter
Explanation	Command	Sets the warm-up message display. ON: Displays the warm-up message. OFF: Does not display the warm-up message.
Explanation	Query	Returns the setting of the warm-up message display.
Example	Command	:DISPlay:WARMup OFF Sets not to display the warm-up message.
	Query	:DISPlay:WARMup?
	Response	:DISPLAY:WARMUP OFF (when HEADER ON) OFF (when HEADER OFF) It is set not to display the warm-up message.
Note

Setting and querying the zoom function

Syntax	Command	:ZOOM <ON/OFF>
	Query	:ZOOM?
	Response	<ON/OFF>
	Parameter
Explanation	Command	Sets the zoom function.
Explanation	Query	Returns the setting of the zoom function.
Example	Command	:ZOOM ON Enables the zoom function.
	Query	:ZOOM?
	Response	:ZOOM ON (when HEADER ON) ON (when HEADER OFF) The zoom function is enabled.
Note

Setting and querying beep sound for the judgment results of measurement values

Syntax	Command	:BEEPer:JUDGment <OFF/IN/NG>
	Query	:BEEPer:JUDGment?
	Response	<OFF/IN/NG>
	Parameter
Explanation	Command	Sets the beep sound for the judgment results of measurement values. OFF: No beep sound. IN: Sets a beep sound to be emitted when a result is within the range. NG: Sets a beep sound to be emitted when a result is outside the range.
Explanation	Query	Returns the setting of the beep sound for the judgment results of measurement values.
Example	Command	:BEEPer:JUDGment NG Sets a beep sound to be emitted when a result is outside the range.
	Query	:BEEPer:JUDGment?
	Response	:BEEPER:JUDGMENT NG (when HEADER ON) NG (when HEADER OFF) A beep sound is set to be emitted when a result is outside the range.
Note

Setting of the beep tone type for the measured value judgment result and queries

Syntax	Command	:BEEPer:JUDGment:TONE <0/1/2/3/4/5/6/7/8/9/10/11/12/13/14>
	Query	:BEEPer:JUDGment:TONE?
	Response	<0/1/2/3/4/5/6/7/8/9/10/11/12/13/14>
	Parameter
Explanation	Command	Sets the beep tone type for the measured value judgment result.
Explanation	Query	Returns the beep tone type for the measured value judgment result.
Example	Command	:BEEPer:JUDGment:TONE 0 Sets the beep tone type for the measured value judgment result to 0.
	Query	:BEEPer:JUDGment:TONE?
	Response	:BEEPER:JUDGMENT:TONE 0 (when HEADER ON) 0 (when HEADER OFF) The beep tone type for the measured value judgment result is set to 0.
Note

Setting of the beep volume for the measured value judgment result and queries

Syntax	Command	:BEEPer:JUDGment:VOLume <1/2/3>
	Query	:BEEPer:JUDGment:VOLume?
	Response	<1/2/3>
	Parameter
Explanation	Command	Sets the beep volume for the measured value judgment result.
Explanation	Query	Returns the beep volume setting for the measured value judgment result.
Example	Command	:BEEPer:JUDGment:VOLume 1 Sets the beep volume for the measured value judgment result to 1.
	Query	:BEEPer:JUDGment:VOLume?
	Response	:BEEPER:JUDGMENT:VOLUME 1 (when HEADER ON) 1 (when HEADER OFF) The beep volume for the measured value judgment result is set to 1.
Note

Setting and querying beep sound for key input

Syntax	Command	:BEEPer:KEY <ON/OFF>
	Query	:BEEPer:KEY?
	Response	<ON/OFF>
	Parameter
Explanation	Command	Sets the beep sound for key operation. ON: A beep sound is emitted. OFF: A beep sound is not emitted.
Explanation	Query	Returns the setting of the beep sound for key operation.
Example	Command	:BEEPer:KEY ON Sets a beep sound to be emitted.
	Query	:BEEPer:KEY?
	Response	:BEEPER:KEY ON (when HEADER ON) ON (when HEADER OFF) A beep sound is set to be emitted.
Note

Setting of the key operation beep tone type and queries

Syntax	Command	:BEEPer:KEY:TONE <0/1/2/3/4/5/6/7/8/9/10/11/12/13/14>
	Query	:BEEPer:KEY:TONE?
	Response	<0/1/2/3/4/5/6/7/8/9/10/11/12/13/14>
	Parameter
Explanation	Command	Sets the beep tone type.
Explanation	Query	Returns the beep tone type.
Example	Command	:BEEPer:TONE 0 Sets the beep tone to 0.
	Query	:BEEPer:TONE?
	Response	:BEEPER:TONE 0 (when HEADER ON) 0 (when HEADER OFF) The beep tone is set to 0.
Note

Setting of the key operation beep volume and queries

Syntax	Command	:BEEPer:KEY:VOLume <1/2/3>
	Query	:BEEPer:KEY:VOLume?
	Response	<1/2/3>
	Parameter
Explanation	Command	Sets the key operation beep volume.
Explanation	Query	Returns the key operation beep volume.
Example	Command	:BEEPer:KEY:VOLume 1 Sets the key operation beep volume to 1.
	Query	:BEEPer:KEY:VOLume?
	Response	:BEEPER:KEY:VOLUME 1 (when HEADER ON) 1 (when HEADER OFF) The key operation beep volume is set to 1.
Note

Execution of the key lock and queries

Syntax	Command	:KEYLock LCR mode: <FULL/SET> / Analyzer mode: <ON>
	Query	:KEYLock?
	Response	LCR mode: <OFF/FULL/SET> Analyzer mode: <ON/OFF>
	Parameter
Explanation	Command	Sets the key lock method and executes a key lock. FULL: Disables all operations. SET: Enables the comparator and BIN measurement setting, and disables all the other operations. ON: Disables all operations. Set the passcode before executing this command. The factory default setting for the passcode is “7580”.
Explanation	Query	Returns the state of the key lock. OFF: The key lock is not enabled. FULL: The FULL key lock is enabled. SET: The SET key lock is enabled. ON: The key lock is enabled.
Example	Command	:KEYLock FULL Enables the FULL key lock.
	Query	:KEYLock?
	Response	:KEYLOCK FULL (when HEADER ON) FULL (when HEADER OFF) The FULL key lock is enabled.
Note		An execution error occurs if this command is sent while the key lock is enabled.

Setting the key lock passcode

Syntax	Command	:KEYLock:PASScode <Passcode/ none>
	Query
	Response
	Parameter	<Passcode> = 0 to 9 (up to 4 digits)
Explanation	Command	Sets the passcode of the key lock. If the passcode is omitted, the key lock will be set without a passcode. The factory default setting for the passcode is "7580".
Explanation	Query
Example	Command	:KEYLock:PASScode "0523" Sets the passcode of the key lock to "0523".
	Query
	Response
Note		An execution error occurs in the following cases. When the key lock is enabled When the passcode contains an invalid character (alphabetical character, space, slash, etc.) When the passcode exceeds 4 digits

Disabling the key lock

Syntax	Command	:KEYLock:UNLock <Passcode/ none>
	Query
	Response
	Parameter	<Passcode> = 0 to 9 (up to 4 digits)
Explanation	Command	Disables the key lock. If a passcode is set, specify the passcode in the query data.
Explanation	Query
Example	Command	:KEYLock:UNLock "0523" Specifies "0523" for the passcode and disables the key lock.
	Query
	Response
Note		An execution error occurs in the following cases. When the key lock is not enabled When the passcode contains an invalid character (alphabetical character, space, slash, etc.) When the passcode exceeds 4 digits When the passcode is incorrect If you forget the passcode, perform a full reset to restore the instrument to the factory default settings. (Refer to "Full Reset Procedure" in "Maintenance and Service" of the instruction manual.)

Setting and querying measurement parameters

Syntax	Command	:MEASure:ITEM <MR0>, <MR1>
	Query	:MEASure:ITEM?
	Response	<MR0>, <MR1>

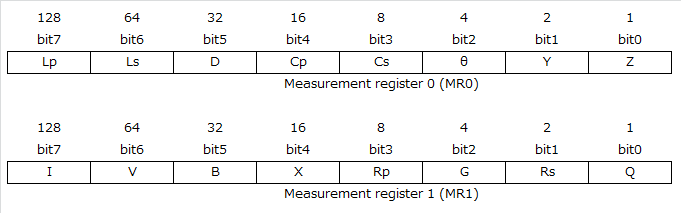

	Parameter	<MR0> = 0 to 255 (NR1) <MR1> = 0 to 255 (NR1)
Explanation	Command	Specifies the measurement parameter for response of the :MEASure? query during normal measurement by the sum of bits. If this is set to MR0=0 and MR1=0, the measurement values of the measurement parameters displayed on the screen are returned. This is set to MR0=0 and MR1=0 when the power is turned on.
Explanation	Query	Returns the measurement parameters for the response of the :MEASure? query during normal measurement.
Example	Command	:MEASure:ITEM 53,18 Sets measurement parameters for response to Z, θ, Cp, D, Rs, and X.
	Query	:MEASure:ITEM?
	Response	:MEASURE:ITEM 53,18 (when HEADER ON) 53,18 (when HEADER OFF) The measurement parameters for response are set to to Z, θ, Cp, D, Rs, and X.
Note		Specify the MR0 and MR1 values by the sum of bits. For example, when setting the measurement parameters for response to Z, θ, Cp, D, Rs, and X, specify MR0=1+4+16+32=53 and MR1=2+16=18 because Z = 1, θ = 4, Cp = 16, D = 32, Rs = 2, and X = 16. Measurement values are cleared when this settings is changed.

Setting and querying the response data of the measurement acquisition query

Syntax	Command	:MEASure:VALid <Setting value>
	Query	:MEASure:VALid?
	Response	<Setting value>

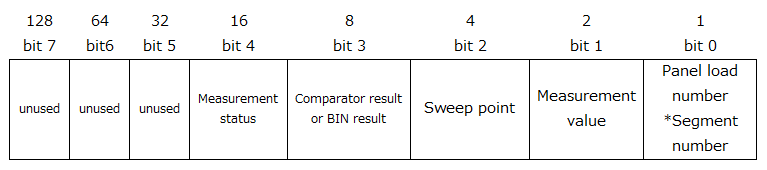

	Parameter	<Setting value> = 1 to 255 (NR1)
Explanation	Command	Sets the content for the response of the :MEASure? query by the sum of bits.
Explanation	Query	Returns the content for the response of the :MEASure? query.
Example	Command	:MEASure:VALid 18 Sets the measurement values and measurement status to be returned with the :MEASure? query.
	Query	:MEASure:VALid?
	Response	:MEASURE:VALID 18 (when HEADER ON) 18 (when HEADER OFF) The measurement values and measurement status are set to be returned with the :MEASure? query.
Note		When the setting is changed, the measured value is cleared.

Setting and querying the measurement value automatic output function

Syntax	Command	:MEASure:OUTPut:AUTO <ON/OFF>
	Query	:MEASure:OUTPut:AUTO?
	Response	<ON/OFF>
	Parameter
Explanation	Command	Sets the measurement value automatic output function. ON: Outputs the measurement values automatically after measurement finishes. OFF: Does not output the measurement values automatically after measurement finishes. If this is set to ON, the measurement values are automatically output from the selected interface after measurement finishes. The output format of measurement values is the same as that for the :MEASure? query.
Explanation	Query	Returns the setting of the measurement value automatic output function.
Example	Command	:MEASure:OUTPut:AUTO ON Sets the measurement value automatic output function to ON.
	Query	:MEASure:OUTPut:AUTO?
	Response	:MEASURE:OUTPUT:AUTO ON (when HEADER ON) ON (when HEADER OFF) The measurement value automatic output function is set to ON.
Note		Be sure to turn off the function when it is not used. Automatic output function is enable in only RS-232C.

INDEX and EMO output method setting and inquiry

Syntax	Command	:IO:EOM:MODE <HOLD/PULSe>
	Query	:IO:EOM:MODE?
	Response	<HOLD/PULSE>
	Parameter
Explanation	Command	Sets the INDEX and EOM output method.
Explanation	Query	Returns the INDEX and EOM output method.
Example	Command	IO:EOM:MODE PULSE Sets the INDEX and EOM output method to pulse.
	Query	IO:EOM:MODE?
	Response	:IO:EOM:MODE PULSE (when HEADER ON) PULSE (when HEADER OFF) The INDEX and EOM output method has been set to pulse.
Note		For a timing chart describing the setting made with this command, see the "External Control" chapter in the instrument's user manual.

Pulse width for which to keep EOM low (on) setting and inquiry

Syntax	Command	:IO:EOM:PULSe <Pulse width>
	Query	:IO:EOM:PULSe?
	Response
	Parameter	<Pulse width> = 0.00001 to 0.99999 s (NR2)
Explanation	Command	Sets the pulse width for which to keep EOM low (on).
Explanation	Query	Returns the pulse width for which to keep EOM low (on).
Example	Command	IO:EOM:PULSe 0.002 Sets the pulse width for which EOM is kept low (on) to 0.002 s.
	Query	IO:EOM:PULSe?
	Response	:IO:EOM:PULSE 0.00200 (when HEADER ON) 0.002 (when HEADER OFF) The pulse width for which EOM is kept low (on) has been set to 0.002 s.
Note		For a timing chart describing the setting made with this command, see the "External Control" chapter in the instrument's user manual.

Setting and querying the delay time between judgment result output and EOM output

Syntax	Command	:IO:OUTPut:DELay <I/O delay time>
	Query	:IO:OUTPut:DELay?
	Response	<I/O delay time>
	Parameter	<I/O delay time> = 0 to 0.99999 s (NR2)
Explanation	Command	Sets the delay time for the period between the output of comparator and BIN judgment results and the output of the EOM from the EXT I/O.
Explanation	Query	Returns the delay time for the period between the output of comparator and BIN judgment results and the output of the EOM from the EXT I/O.
Example	Command	:IO:OUTPUT:DELAY 0.12345 Sets the delay time for the period between the output of comparator and BIN judgment results and the output of the EOM from the EXT I/O to 0.1234 s.
	Query	:IO:OUTPUT:DELAY?
	Response	:IO:OUTPUT:DELAY 0.12345 (when HEADER ON) 0.12345 (when HEADER OFF) The delay time for the period between the output of comparator and BIN judgment results and the output of the EOM from the EXT I/O is set to 0.1234 s.
Note		The delay time for the period between the comparator and BIN judgment results and the EOM has an error of approximately 160 ms with regards to the setting value. Furthermore, the delay time may vary widely if a trigger is input from the EXT I/O or communication is performed via an interface during measurement, so make every effort not to perform control from an external device during measurement.

Setting and querying output of the judgment result signal line

Syntax	Command	:IO:RESult:RESet <ON/OFF>
	Query	:IO:RESult:RESet?
	Response	<ON/OFF>
	Parameter
Explanation	Command	Sets whether the judgment result signal line of the EXT I/O is reset. ON: Resets the judgment results simultaneously with the input of a measurement start signal (trigger signal). OFF: Updates the judgment results at the point in time when measurement ends.
Explanation	Query	Returns whether the judgment result signal line of the EXT I/O is reset.
Example	Command	:IO:RESult:RESet ON Sets the judgment results to be reset simultaneously with the input of a measurement start signal (trigger signal).
	Query	:IO:RESult:RESet?
	Response	:IO:RESULT:RESET ON (when HEADER ON) ON (when HEADER OFF) The judgment results are set to be reset simultaneously with the input of a measurement start signal (trigger signal).
Note		For details on the judgment result signal line, refer to "External Control" in the instruction manual.

Setting and querying the trigger edge

Syntax	Command	:IO:TRIGger:EDGe <DOWN/UP>
	Query	:IO:TRIGger:EDGe?
	Response	<DOWN/UP>
	Parameter
Explanation	Command	Sets the trigger edge of the EXT I/O. DOWN: Applies a trigger to the falling edge. UP: Applies a trigger to the rising edge.
Explanation	Query	Returns the setting of the trigger edge of the EXT I/O.
Example	Command	:IO:TRIGger:EDGe UP Sets a trigger to be applied to the rising edge.
	Query	:IO:TRIGger:EDGe?
	Response	:IO:TRIGGER:EDGE UP (when HEADER ON) UP (when HEADER OFF) A trigger is set to be applied to the rising edge.
Note

Setting and querying permit/prohibit of trigger input during measurement

Syntax	Command	:IO:TRIGger:ENABle <ON/OFF>
	Query	:IO:TRIGger:ENABle?
	Response	<ON/OFF>
	Parameter
Explanation	Command	Enables or disables trigger input from the EXT I/O during measurement. ON: Accepts trigger input from the EXT I/O during measurement. OFF: Does not accept trigger input from the EXT I/O during measurement.
Explanation	Query	Returns whether trigger input from the EXT I/O during measurement is enabled or disabled.
Example	Command	:IO:TRIGger:ENABle ON Sets trigger input from the EXT I/O during measurement to be accepted.
	Query	:IO:TRIGger:ENABle?
	Response	:IO:TRIGGER:ENABLE ON (when HEADER ON) ON (when HEADER OFF) Trigger input from the EXT I/O during measurement is set to be accepted.
Note

Executing and querying the panel save function

Syntax	Command	:SAVE <Panel No.>,<"Panel name">
	Query	:SAVE? <Panel No.>
	Response	<0/1>
	Parameter	<Panel No.> = 1 to 46 (NR1) <"Panel name"> = !, #, $, %, &, ', (, ), +, ,, -, ., ;, =, @, [, ], ^, _, `, 0 to 9, A t oZ (up to 10 characters)
Explanation	Command	Specifies the panel number and saves the panel under the specified panel name. Use the valid characters shown above for the panel name and specify a name that is within 10 characters. Lowercase a to z are converted to uppercase.
Explanation	Query	Returns 1 if a panel is saved to the specified panel number, and 0 if a panel is not saved. A header is not added to the response message.
Example	Command	:SAVE 3,"IM7580_003" Saves a panel under the panel name "IM7580_003" to panel number 3.
	Query	:SAVE? 3
	Response	1 A panel is saved to panel number 3.
Note		Please use only the character which you can set in the instrument for a panel name. An error occurs in the following cases. When a panel name is not specified When the number of characters of the panel name exceeds 10

Querying a panel name

Syntax	Command
	Query	:SAVE:NAME? <Panel No.>
	Response
	Parameter	<Panel No.> = 1 to 46 (NR1)
Explanation	Command
Explanation	Query	Returns the panel name of the specified panel number. A execution error occurs if there is no data for the specified panel number. A header is not added to the response message.
Example	Command
	Query	:SAVE:NAME? 1
	Response	IM7580_001 The panel name of panel number 1 is "IM7580_001".
Note

Changing a panel name

Syntax	Command	:SAVE:REName <Panel No.>,<"Panel name">
	Query
	Response
	Parameter	<Panel No.> = 1 to 46 (NR1) <"Panel name"> = !, #, $, %, &, ', (, ), +, ,, -, ., ;, =, @, [, ], ^, _, `, 0 to 9, A t oZ (up to 10 characters)
Explanation	Command	Changes the panel name of the specified panel number. Use the valid characters shown above for the panel name and specify a name that is within 10 characters. Lowercase a to z are converted to uppercase. A execution error occurs if there is no data for the specified panel number.
Explanation	Query
Example	Command	:SAVE:REName 1,"IM7580_001" Changes the panel name of panel 1 to "IM7580_001".
	Query
	Response
Note		Please use only the character which you can set in the instrument for a panel name.

Setting and querying the save type

Syntax	Command	:SAVE:TYPE <ALL/HARDware/ADJust>
	Query	:SAVE:TYPE?
	Response	<ALL/HARDWARE/ADJUST>
	Parameter

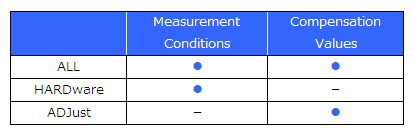

Explanation	Command	Sets the save type. The following data indicated by "" is saved.
Explanation	Query	Returns the setting of the save type.
Example	Command	:SAVE:TYPE HARDware Sets only the measurement conditions to be saved.
	Query	:SAVE:TYPE?
	Response	:SAVE:TYPE HARDWARE (when HEADER ON) HARDWARE (when HEADER OFF) Only the measurement conditions are set to be saved.
Note		Starts up with the ALL setting. Be sure to perform setting in advance for saving the panel with other than ALL due to the communication. If the panel is saved in the analyzer mode, it is saved with the ALL setting regardless of the actual setting.

Clearing data saved for a panel

Syntax	Command	:SAVE:CLEar <Panel No./ALL>
	Query
	Response
	Parameter	<Panel No.> = 1 to 46 (NR1)
Explanation	Command	Clears the data of the specified panel number. ALL : Clears all of the panels. A execution error occurs if there is no saved data for the specified panel number.
Explanation	Query
Example	Command	:SAVE:CLEar 5 Clears the data of panel number 5.
	Query
	Response
Note		Data cannot be restored once it is cleared.

Executing panel load

Syntax	Command	:LOAD <Panel No.>
	Query
	Response
	Parameter	<Panel No.> = 1 to 46
Explanation	Command	Loads the specified panel number.
Explanation	Query
Example	Command	:LOAD 2 Loads panel number 2.
	Query
	Response
Note

Setting and querying the terminator of the response message

Syntax	Command	:TRANsmit:TERMinator <Terminator number>
	Query	:TRANsmit:TERMinator?
	Response	<Terminator number>

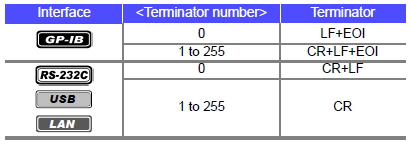

	Parameter	<Terminator number> = 0 to 255 (when command) / 0 to 1 (when query) (NR1)

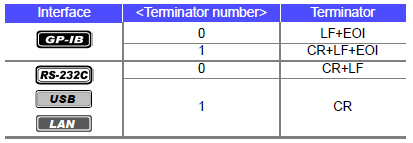

Explanation	Command	Sets the terminator of the response message.
Explanation	Query	Returns the setting of the terminator of the response message.

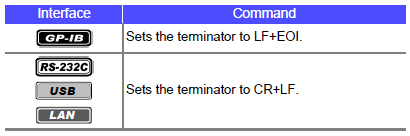

Example	Command	:TRANsmit:TERMinator 0
	Query	:TRANsmit:TERMinator?

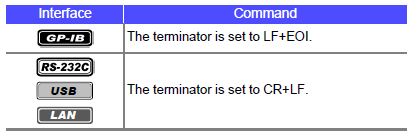

	Response	:TRANSMIT:TERMINATOR 0 (when HEADER ON) 0 (when HEADER OFF)
Note

Setting and querying the RS-232C Communication Handshake

Syntax	Command	:HANDshake <OFF/X>
	Query	:HANDshake?
	Response	<OFF/X>
	Parameter
Explanation	Command	Sets the RS-232C communication handshake. OFF: No handshake X: Software handshake
Explanation	Query	Returns the RS-232C communication handshake.
Example	Command	:HANDshake X Sets software handshake.
	Query	:HANDshake?
	Response	:HANDSHAKE X (when HEADER ON) X (when HEADER OFF) The setting is set to the software handshake.
Note		An execution error occurs if the interface is set to other than RS-232C.

Setting and querying the data transfer format

Syntax	Command	:FORMat:DATA <ASCii/REAL>
	Query	:FORMat:DATA?
	Response	<ASCII/REAL>
	Parameter
Explanation	Command	Sets the data transfer format. ASCii: Transfers data in ASCII format. REAL: Transfers data in binary format.
Explanation	Query	Returns the data transfer format.
Example	Command	:FORMat:DATA REAL Sets the data transfer format to binary.
	Query	:FORMat:DATA?
	Response	:FORMAT:DATA REAL (when HEADER ON) REAL (when HEADER OFF) The data transfer format is set to binary.
Note

Setting and querying long format for when data transfer

Syntax	Command	:FORMat:LONG <ON/OFF>
	Query	:FORMat:LONG?
	Response	<ON/OFF>
	Parameter
Explanation	Command	Sets long format for when data transfer.
Explanation	Query	Returns ON or OFF for the setting of long format for when data transfer.
Example	Command	:FORMat:LONG ON Returns the data in long format when data transfer
	Query	:FORMat:LONG?
	Response	:FORMAT:LONG ON (when HEADER ON) ON (when HEADER OFF) The data is set to be returned in long format when data transfer.
Note

Syntax	Command	:HEADer <ON/OFF>
	Query	:HEADer?
	Response
	Parameter
Explanation	Command	Sets whether or not there is a header in the response message. This is initialized to OFF when the power is turned on.
Explanation	Query	Returns the header setting of the response message.
Example	Command	:HEADer ON Adds a header to the response message.
	Query	:HEADer?
	Response	:HEADER ON (when HEADER ON) OFF (when HEADER OFF) A header is set to be added to the response message.
Note

Setting and querying the date

Syntax	Command	:SYSTem:DATE <Year>,<Month>,<Day>
	Query	:SYSTem:DATE?
	Response	<Year>,<Month>,<Day>
	Parameter	<Year> = 0 to 99 (NR1) <Month> = 1 to 12 (NR1) <Day> = 1 to 31 (NR1)
Explanation	Command	Sets the date.
Explanation	Query	Returns the set date.
Example	Command	:SYSTem:DATE 12,3,12 Sets the date to February 29, 2012.
	Query	:SYSTem:DATE?
	Response	:SYSTEM:DATE 12,3,12 (when HEADER ON) 12,3,12 (when HEADER OFF) The date is set to February 29, 2012.
Note		The data can be set in the range of January 1, 2000, to December 31, 2099. Therefore, the first two digits of the year are fixed to "20," and just the last two digits can be set for "Year." An execution error occurs if a date that does not exist is specified.

Querying the MAC address

Syntax	Command
	Query	:SYSTem:MACAddress?
	Response	<MAC address>
	Parameter
Explanation	Command
Explanation	Query	Returns the MAC address.
Example	Command
	Query	:SYSTem:MACAddress?
	Response	:SYSTEM:MACADDRESS 12-34-56-78-90-AB (when HEADER ON) 12-34-56-78-90-AB (when HEADER OFF) The MAC address is set to 12-34-56-78-90-AB.
Note		The MAC address cannot be changed.

Querying the serial number

Syntax	Command
	Query	:SYSTem:SERIAlno?
	Response	<Product No.>
	Parameter
Explanation	Command
Explanation	Query	Returns the serial number.
Example	Command
	Query	:SYSTem:SERIAlno?
	Response	:SYSTEM:SERIALNO 123456789 (when HEADER ON) 123456789 (when HEADER OFF) The serial number is set to 123456789.
Note		The serial number cannot be changed.

Setting and querying the time

Syntax	Command	:SYSTem:TIME <Hour>,<Minute>,<Second>
	Query	:SYSTem:TIME?
	Response	<Hour>,<Minute>,<Second>
	Parameter	<Hour> = 0 to 23 (NR1) <Minute> = 0 to 59 (NR1) <Second> = 0 to 59 (NR1)
Explanation	Command	Sets the time.
Explanation	Query	Returns the set time.
Example	Command	:SYSTem:TIME 12,34,56 Sets the time to 12:34:56.
	Query	:SYSTem:TIME?
	Response	:SYSTEM:TIME 12,34,56 (when HEADER ON) 12,34,56 (when HEADER OFF) The time is set to 12:34:56.
Note		An execution error occurs if a time that does not exist is specified.

Returns the USB ID.

Syntax	Command
	Query	:SYSTem:USBId?
	Response	<USB ID>
	Parameter
Explanation	Command
Explanation	Query	Returns the USB ID.
Example	Command
	Query	:SYSTem:USBId?
	Response	:SYSTEM:USBID 108F:0001 (when HEADER ON) 108F:0001 (when HEADER OFF) The USB ID is 108f:0001.
Note

Execution of system resetting

Syntax	Command	:SYSTem:RESet
	Query
	Response
	Parameter
Explanation	Command	Executes system resetting.
Explanation	Query
Example	Command	:SYSTem:RESet Executes system resetting.
	Query
	Response
Note		After system resetting is performed, the instrument is initialized to the factory default settings. Before performing system resetting, disconnect the measurement sample.

Initializing the instrument

Syntax	Command	:PRESet
	Query
	Response
	Parameter
Explanation	Command	Resets the instrument to the initial setting state. The initial setting state differs from when a reset is performed with the ?RST command. See "Initial Settings Table"
Explanation	Query
Example	Command	:PRESet Resets the instrument to the initial setting state.
	Query
	Response
Note

Executing file saving

Syntax	Command	:FILE:SAVE
	Query
	Response
	Parameter
Explanation	Command	Executes file saving. An execution error occurs if the file type is set to "OFF" or a USB flash drive is not connect.
Explanation	Query
Example	Command	:FILE:SAVE Executes file saving.
	Query
	Response
Note

BMP save settings and inquiry

Syntax	Command	:FILE:TYPE:BMP <OFF/COLor/MONochrome>
	Query	:FILE:TYPE:BMP?
	Response	<OFF/COLOR/MONOCHROME>
	Parameter
Explanation	Command	Configures the BMP save setting. OFF: BMP data is not saved. COLor: Screenshots are saved as full-color BMP files. MONochrome: Screenshots are saved as monochrome BMP files.
Explanation	Query	Returns the BMP save setting.
Example	Command	:FILE:TYPE:BMP COLOR Configures the instrument so that screenshots are saved as full-color BMP files.
	Query	:FILE:TYPE:BMP?
	Response	:FILE:TYPE:BMP COLOR (when HEADER ON) COLOR (when HEADER OFF) The instrument has been configured so that screenshots are saved as full-color BMP files.
Note		This command configures save settings but does not actually save data. To save data, use the FILe:SAVe command.

Text save settings and inquiry

Syntax	Command	:FILE:TYPE:TEXT <OFF/ON>
	Query	:FILE:TYPE:TEXT?
	Response	<OFF/ON>
	Parameter
Explanation	Command	Configures the text save setting. OFF: Text data is not saved. ON: Measured values are saved in text format.
Explanation	Query	Returns the text save setting.
Example	Command	:FILE:TYPE:TEXT ON Configures the instrument so that measured values are saved as text files.
	Query	:FILE:TYPE:TEXT?
	Response	:FILE:TYPE:TEXT ON (when HEADER ON) ON (when HEADER OFF) The instrument has been configured so that measured values are saved as text.
Note		This command configures save settings but does not actually save data. To save data, use the FILe:SAVe command.

Setting and querying the date and time for when saving text

Syntax	Command	:FILE:DATE <ON/OFF>
	Query	:FILE:DATE?
	Response	<ON/OFF>
	Parameter
Explanation	Command	Sets whether to save the date and time when saving text.
Explanation	Query	Returns the date and time setting for when saving text.
Example	Command	:FILE:DATE ON Saves the date and time when saving text.
	Query	:FILE:DATE?
	Response	:FILE:DATE ON (when HEADER ON) ON (when HEADER OFF) The date and time are saved when saving text.
Note

Setting and querying the delimiter for when saving text

Syntax	Command	:FILE:DELIMiter <COMma/TAB/SEMIcolon/SPACE>
	Query	:FILE:DELIMiter?
	Response	<COMMA/TAB/SEMICOLON/SPACE>
	Parameter
Explanation	Command	Sets the delimiter for when saving text. COMma: Comma (,) TAB: Tab SEMIcolon: Semicolon (;) SPACE: Space
Explanation	Query	Returns the delimiter for when saving text.
Example	Command	:FILE:DELIMiter SEMIcolon Sets the delimiter for when saving text to a semicolon.
	Query	:FILE:DELIMiter?
	Response	:FILE:DELIMITER SEMICOLON (when HEADER ON) SEMICOLON (when HEADER OFF) The delimiter for when saving text is set to a semicolon.
Note

Setting and querying the save folder

Syntax	Command	:FILE:FOLDer <"Folder name">
	Query	:FILE:FOLDer?
	Response	<Folder name>
	Parameter	<"Folder name"> = +, -, _, 0 to 9, A to Z (Up to 12 characters)
Explanation	Command	Sets the folder name of the save folder. The characters that can be used for the file name are alphanumeric characters and the "+", "-" and "_" symbols. Lowercase alphabetical characters are converted to uppercase.
Explanation	Query	Returns the folder name of the save folder.
Example	Command	:FILE:FOLDer "SaveData0523" Sets the folder name of the save folder to [SAVEDATA0523].
	Query	:FILE:FOLDer?
	Response	:FILE:FOLDER SAVEDATA0523 (when HEADER ON) SAVEDATA0523 (when HEADER OFF) The folder name of the save folder is set to [SAVEDATA0523].
Note		Please use only the character which you can set in the instrument for a folder name.

Querying USB flash drive information

Syntax	Command
	Query	:FILE:INFOrmation?
	Response	<Format type>,<Total size>,<Space used>,<Space free>,<Usage rate>
	Parameter	<Format type> = FAT12/ FAT16/ FAT32
Explanation	Command
Explanation	Query	Returns the information of the USB flash drive. An execution error occurs if the USB flash drive is not connected.
Example	Command
	Query	:FILE:INFOrmation?
	Response	:FILE:INFORMATION FAT32,1.9GB,960MB,949MB,50.3% (when HEADER ON) FAT32,1.9GB,960MB,949MB,50.3% (when HEADER OFF) The format type of the connected USB flash drive is FAT32, the total size 1.9 GB, space used 960 MB, space free 949 MB, and usage rate 50.3%.
Note

Setting and querying the mode of the save folder

Syntax	Command	:FILE:MODE <AUTO/MANUAL>
	Query	:FILE:MODE?
	Response	<AUTO/MANUAL>
	Parameter
Explanation	Command	Sets the mode of the save folder. AUTO: The save folder is set automatically from the date and time. MANUAL:Any folder can be set. Set the folder name with the FILE:FOLDer command.
Explanation	Query	Returns the mode of the save folder.
Example	Command	:FILE:MODE MANUAL Sets the mode of the save folder to manual.
	Query	:FILE:MODE?
	Response	:FILE:MODE MANUAL (when HEADER ON) MANUAL (when HEADER OFF) The mode of the save folder is set to manual.
Note

Setting and querying the measurement parameter setting for when saving text

Syntax	Command	:FILE:PARAmeter <ON/OFF>
	Query	:FILE:PARAmeter?
	Response	<ON/OFF>
	Parameter
Explanation	Command	Sets whether to save the measurement parameters when saving text.
Explanation	Query	Returns the setting of the measurement parameters for when saving text.
Example	Command	:FILE:PARAmeter ON Saves the measurement parameters when saving text.
	Query	:FILE:PARAmeter?
	Response	:FILE:PARAMETER ON (when HEADER ON) ON (when HEADER OFF) The measurement parameters are saved when saving text.
Note

Setting and querying the quotation mark setting for when saving text

Syntax	Command	:FILE:QUOTe <OFF/DOUBle/SINGle>
	Query	:FILE:QUOTe?
	Response	<OFF/DOUBLE/SINGLE>
	Parameter
Explanation	Command	Sets the quotation mark for when saving text. OFF: Quotation marks are not added. DOUBle: Double quotation mark (") SINGle: Single quotation mark (‘)
Explanation	Query	Returns the quotation mark for when saving text.
Example	Command	:FILE:QUOTe DOUBle Sets the quotation mark for when saving text to the double quotation mark.
	Query	:FILE:QUOTe?
	Response	:FILE:QUOTE DOUBLE (when HEADER ON) DOUBLE (when HEADER OFF) The quotation mark for when saving text is set to the double quotation mark.
Note

Setting and querying the measurement condition setting for when saving text

Syntax	Command	:FILE:SET <ON/OFF>
	Query	:FILE:SET?
	Response	<ON/OFF>
	Parameter
Explanation	Command	Sets whether to save the measurement conditions when saving text.
Explanation	Query	Returns the measurement condition setting for when saving text.
Example	Command	:FILE:SET ON Saves the measurement conditions when saving text.
	Query	:FILE:SET?
	Response	:FILE:SET ON (when HEADER ON) ON (when HEADER OFF) The measurement conditions are saved when saving text.
Note

Execution of settings save to USB memory

Syntax	Command	:FILE:PANel:SAVE <"File name">
	Query
	Response
	Parameter	<"File name"> = +, -, _, 0 to 9, A to Z (Up to 12 characters)
Explanation	Command	Specifies a panel name and saves the panel to USB memory. Executing this command causes a folder named "SETTING" to be created on the USB memory, and the settings is saved in that folder. Executing it in LCR mode causes the LCR panel to be saved, while executing it in analyzer mode causes the analyzer panel to be saved. The valid characters listed above are used for the file name, which can be specified using a maximum of 12 characters. Lowercase letters "a" to "z" are converted into uppercase letters.
Explanation	Query
Example	Command	:FILE:PANel:SAVE "TEST1" Saves the settings to USB memory under the name "TEST1".
	Query
	Response
Note		Before executing this command, check whether the USB memory has been properly recognized. Please use only the character which you can set in the instrument for a file name.

Execution of settings load from USB memory

Syntax	Command	:FILE:PANel:LOAD <"File name">
	Query
	Response
	Parameter	<"File name"> = +, -, _, 0 to 9, A to Z (Up to 12 characters)
Explanation	Command	Specifies a file name and executes a settings load from USB memory. The valid characters listed above are used for the file name, which can be specified using a maximum of 12 characters.
Explanation	Query
Example	Command	:FILE:PANel:LOAD "TEST1" Loads the file named "TEST1" from USB memory.
	Query
	Response
Note		An execution error will result if a settings with the specified name does not exist. This command cannot be executed during measurement, and doing so will result in an execution error. Execute the command after changing to an external trigger (in LCR mode) or to sequential sweep or step sweep (in analyzer mode). Please use only the character which you can set in the instrument for a file name.

Execution of all save to USB memory

Syntax	Command	:FILE:PANel:ALLSave <"Specified save file name">
	Query
	Response
	Parameter	<"File name"> = +, -, _, 0 to 9, A to Z (Up to 12 characters)
Explanation	Command	Specifies a file name and saves the current settings and all the panels saved in the instrument to USB memory. Executing this command creates a file named as the set saving file in the “SETTING” folder on the USB memory, and the data is saved in that folder. Use the valid characters shown above for the file name and specify a name that is within 12 characters. Lowercase a to z are converted to uppercase.
Explanation	Query
Example	Command	:FILE:PANel:ALLSave "TEST2" Executes all save onto the USB memory under the name “TEST2”.
	Query
	Response
Note		Before executing this command, check that the USB memory has been properly recognized. Please use only the character which you can set in the instrument for a file name.

Execution of all load from USB memory

Syntax	Command	:FILE:PANel:ALLLoad <"Specified save file name">
	Query
	Response
	Parameter	<"File name"> = +, -, _, 0 to 9, A to Z (Up to 12 characters)
Explanation	Command	Specifies a file name and executes all load from the USB memory. Use the valid characters shown above for the file name and specify a name that is within 12 characters.
Explanation	Query
Example	Command	:FILE:PANel:ALLLoad "TEST2" Executes all load of “TEST2” from the USB memory.
	Query
	Response
Note		An execution error occurs if a file with the specified name does not exist. This command cannot be executed during measurement, and an attempt to do so will cause an execution error. Execute the command after changing to an external trigger for the LCR mode, or to sequential sweep or step sweep for the analyzer mode. When all load is executed, all the panels saved in the instrument are overwritten. Please use only the character which you can set in the instrument for a file name.

Querying the voltage/current monitor value

Syntax	Command
	Query	:MONItor?
	Response	<AC voltage monitor value>, <AC current monitor value>
	Parameter
Explanation	Command
Explanation	Query	Returns the voltage monitor value and current monitor value.
Example	Command
	Query	:MONItor?
	Response	:MONITOR 3.500061E-03,1.015322E-02 (when HEADER ON) 3.500061E-03,1.015322E-02 (when HEADER OFF) The AC voltage monitor is 3.500061 mV, and AC current monitor is 10.15322 mA.
Note

Acquiring the BMP data of the measurement screen

Syntax	Command
	Query	:HCOPy:DATA? <COLor/MONochrome>
	Response	<BMP data>
	Parameter
Explanation	Command
Explanation	Query	Returns the BMP data of the measurement screen in binary format. As shown in the figure below, for the binary data, the number of transfer bytes is output at the top, and the BMP data is output next, and the terminator is output at the end. COLor: Color BMP data MONochrome: Black-and-white BMP data
Example	Command
	Query	:HCOPy:DATA? COLor
	Response	Acquires the color measurement screens.
Note		For the procedure to convert the binary data obtained by this query to the BMP, refer to the sample program.
