Syntax

Command

Query

:MEASure?   <no data/ ALL>
(ALL can be specified only in continuous measurement mode.)

Response

<Measurement data>
(The response format varies depending on the mode.)

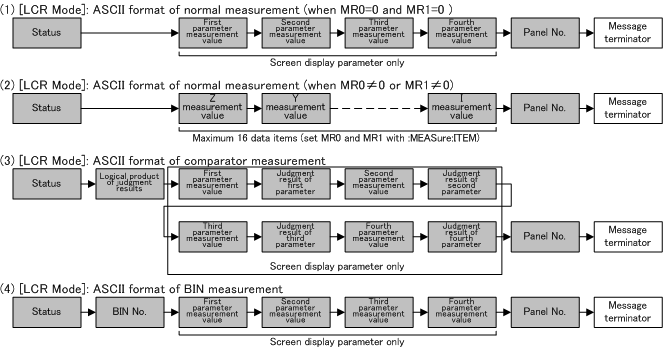

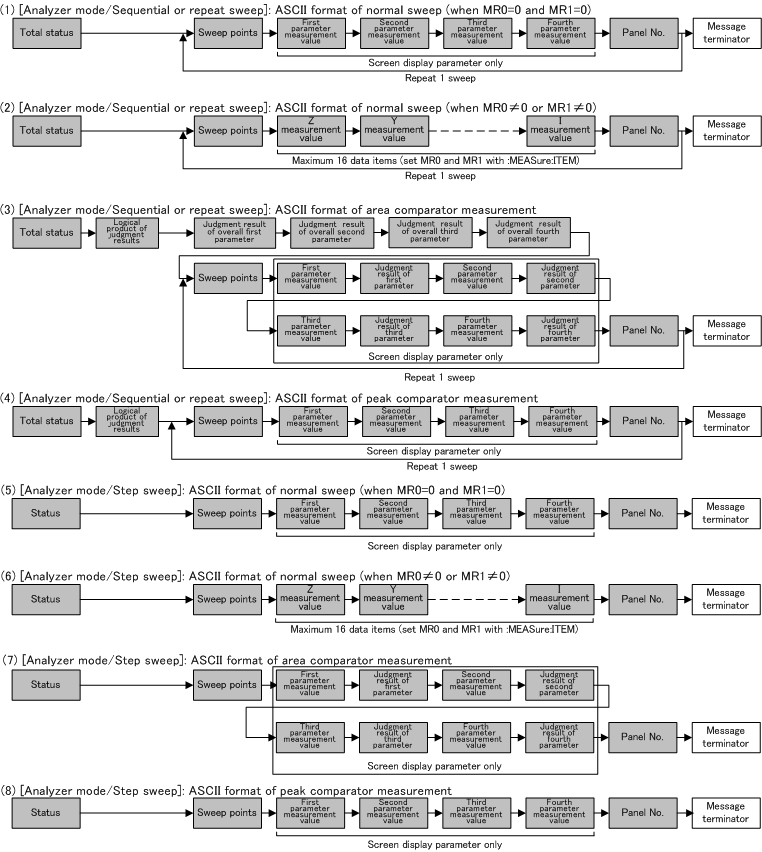

ASCII format

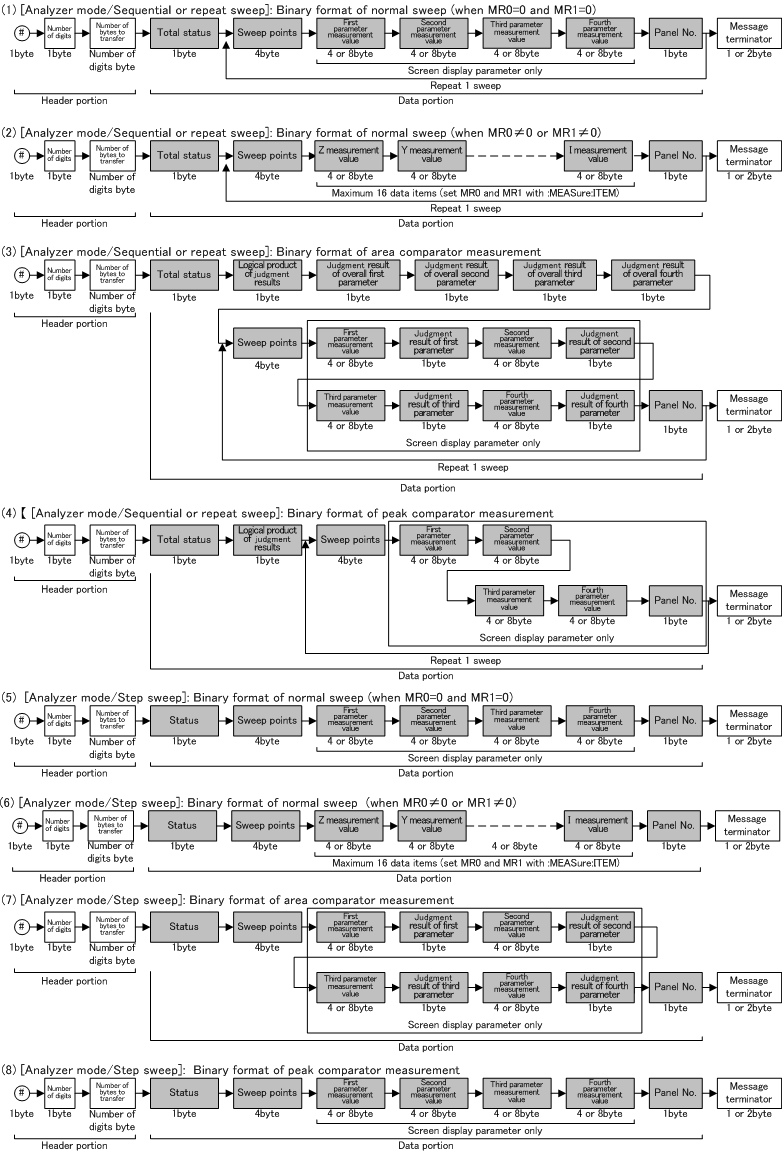

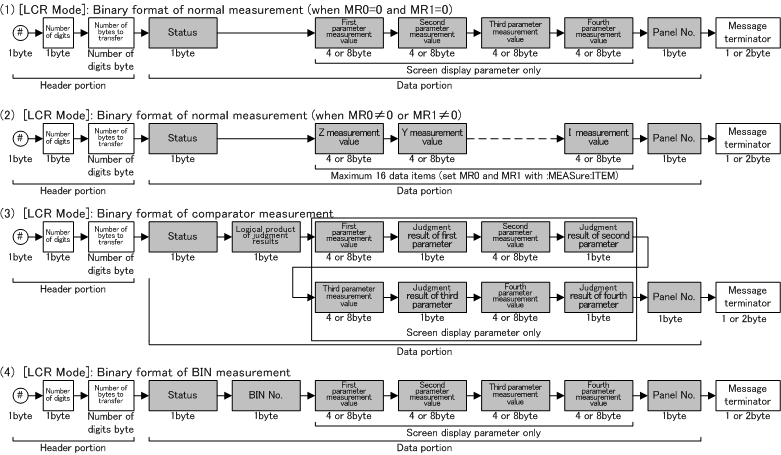

Binary format

Parameter

Explanation

Command

Query

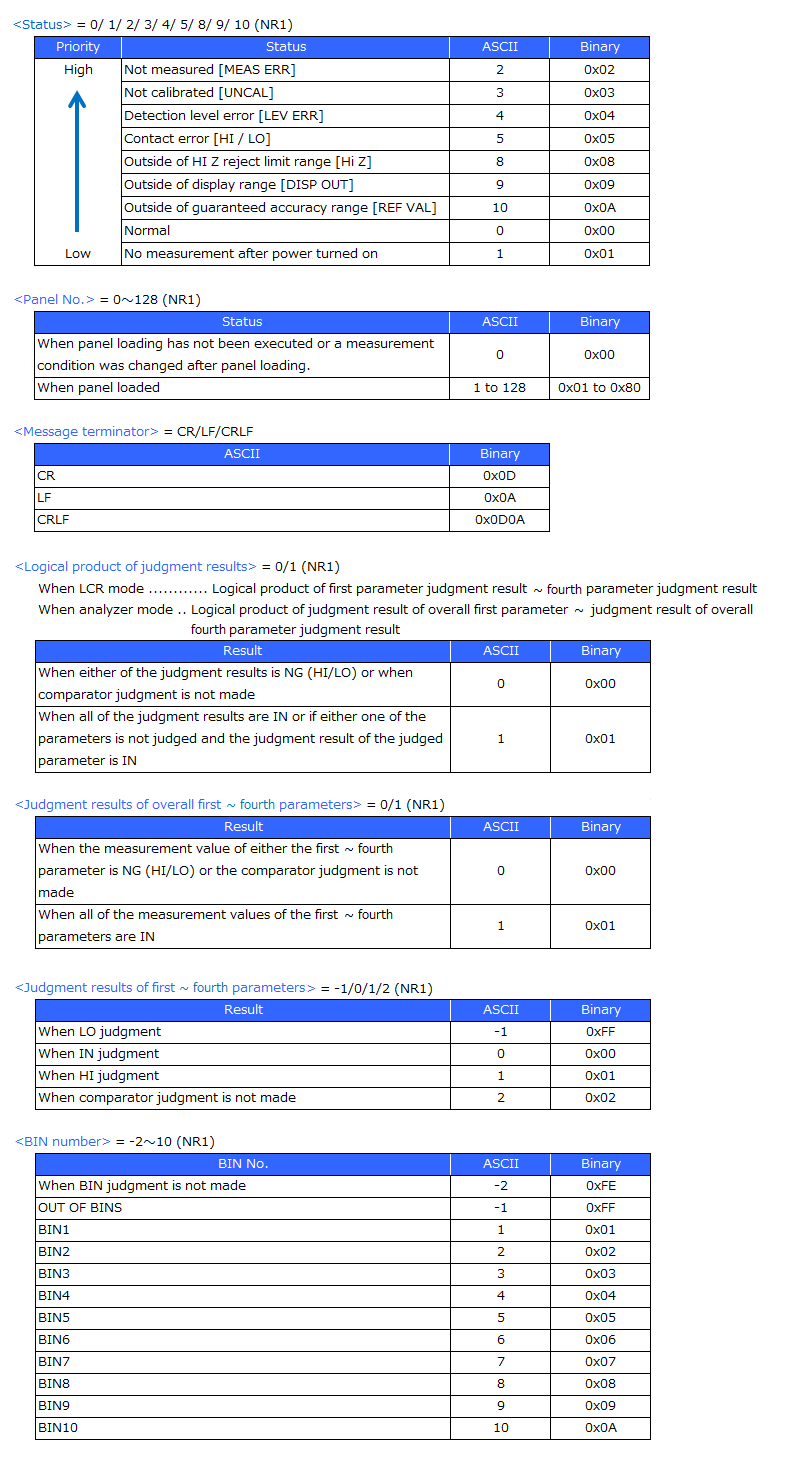

Returns the status, judgment results, measurement values, and panel number. Set the response content with the :MEASure:VALid command.
You can select the type of parameters to return with the :MEASure:ITEM command.
For details, refer to the :MEASure:ITEM command.
Switching between ASCII mode and binary mode can be set with the :FORMat:DATA command.

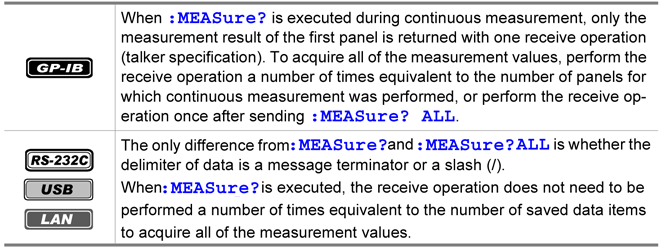

During continuous measurement, a message terminator or slash (/) is inserted for each single panel measurement.
When :MEASure? : Message terminator
When :MEASure? ALL : Slash (/)

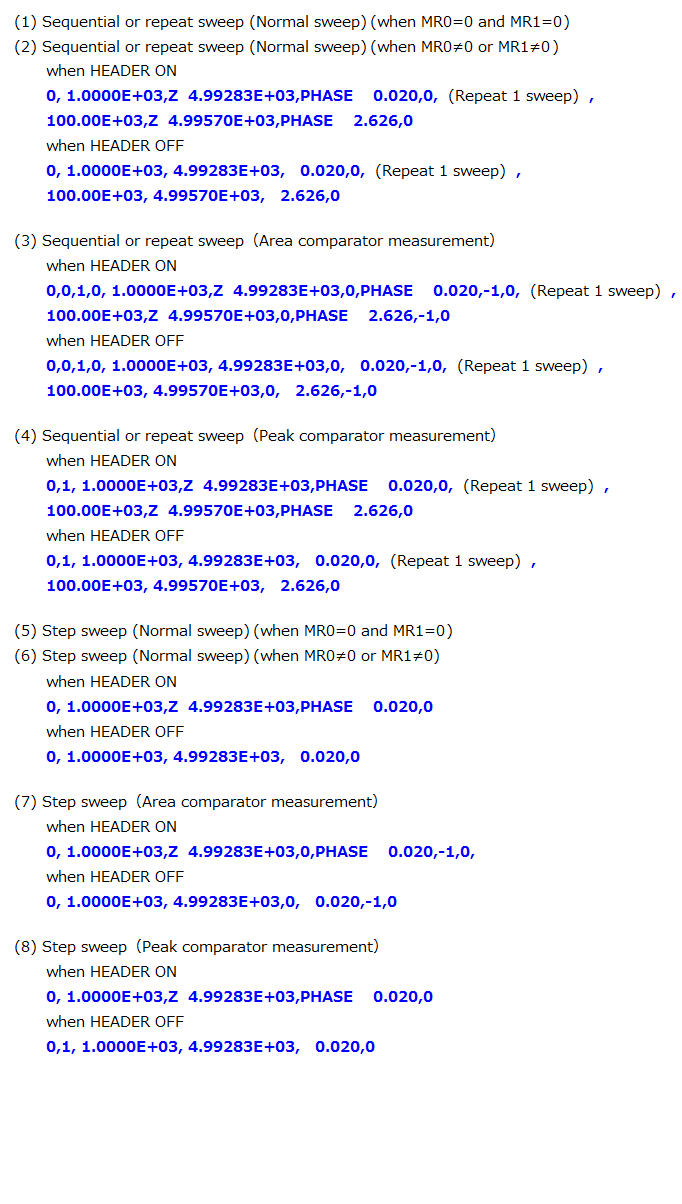

Example

Command

Query

:MEASure?

Response

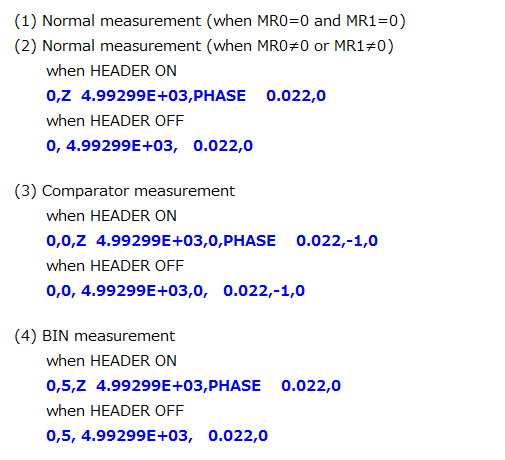

ASCII format

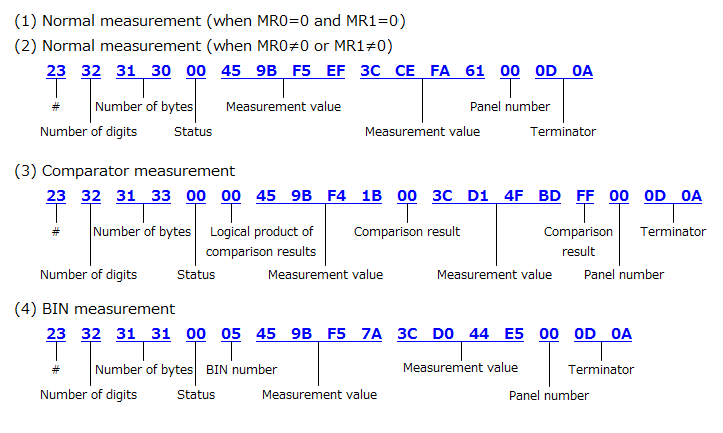

Binary format

注記

In the query example, the following are set before sending the :MEASure? command.
:MEASure:ITEM 0,0,0
:MEASure:VALid 31
