SW1001 Application Software

SW1001 Application Software

V1.01  Sep 10, 2018

The copyright to the executable program file and associated documents is owned by HIOKI E.E. CORPORATION.
This utility may not be bundled with software or other publications which are sold for profit without the express written permission of the copyright owner.
Further, this product may not be modified without the express written permission of the copyright owner.

HIOKI disclaims any and all responsibility for any consequences arising out of use of this software.

  • application(setup_SW1001Appli_v1.01.exe)


Version upgrade should be conducted by a qualified technician familiar with the functions and operations.
If you are uncertain as to how to proceed, please contact your local HIOKI distributor for assistance.

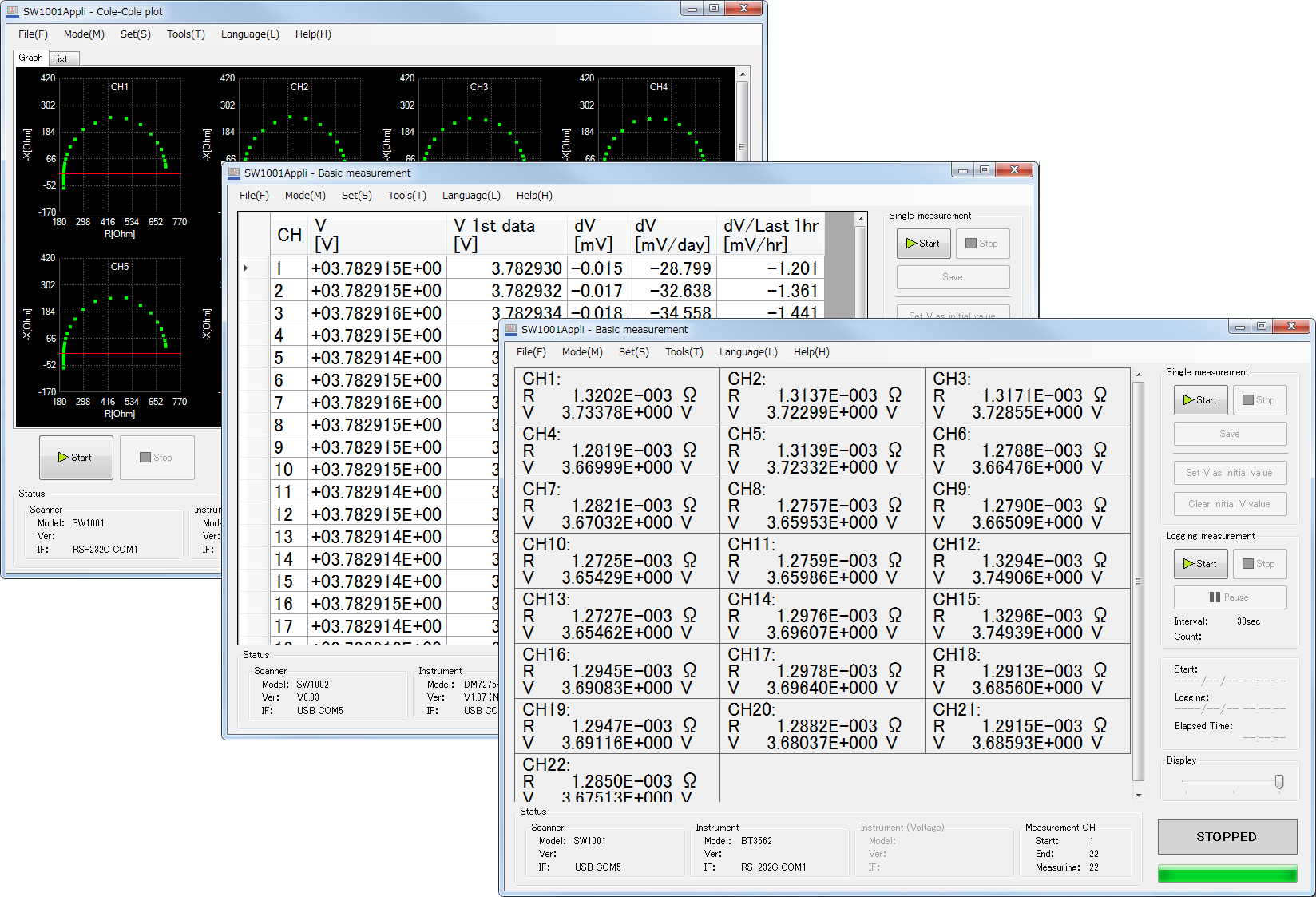

Use this PC application software, it perform multi-channel battery measurement easily.

Operating Environment

OS: Windows 7(32bit / 64bit), Windows 8(32bit / 64bit), Windows 8.1(32bit / 64bit), Windows 10(32bit / 64bit)
Display resolution: 1024 x 768 pixel (XGA) or more
HDD: 1GB or more free space (for storing recorded data)


・Measurement function:
OCV Measurement function, Logging function, Cole-Cole plot measurement function
・Supported measurement instruments:
Battery Tester BT3562, BT3563, 3561
Battery Impedance Meter BT4560
Chemical Impedance Analyzer IM3590
LCR Meter IM3536, IM3570, IM3523, IM3533
Precision DC Voltmeter DM7275, DM7276
Resistance Meter RM3545
Save measurement data in CSV file format.
Create save files for each channel.
RS-232C/USB/LAN supported (matching the communication function of the connected device).

Installation procedure

1. Click [Download] and download the file.
2. Double click the downloaded file and follow the instructions appearing on the screen.

Version Upgrade History

V1.01 (September 2018)
 First Release
