IMPEDANCE ANALYZER IM7587-01 IM7587-02

IMPEDANCE ANALYZER IM7587-01 IM7587-02

V1.01  Jul 18, 2017

If you are unable to download software, please check the following:

  • Please register a myHioki account and then use it to log in to the myHioki service.
  • Product firmware (product upgrades) and computer application software can only be downloaded for products you have registered on the myHioki service.

  • (IM7587_V1.01.zip)

    DOWNLOAD

  • (IM7580S_SoftwareUpgradeManual.pdf)

    DOWNLOAD

Version upgrade should be conducted by a qualified technician familiar with the functions and operations.
If you are uncertain as to how to proceed, please contact your local HIOKI distributor for assistance.

・All software provided here is the best version currently available.
・If the problems or errors during this download and install lead to malfunction, please contact your dealer or Hioki representative.
・The ownership, intellectual right and all other associated rights relating to the software provided here belong to Hioki E.E. Corporation.

If you have read and understand the information above and wish to proceed then please download the designated files.
As for version upgrade procedure, please download "Procedure on how to update the firmware" which describes the preparation and procedure for upgrading firmware after downloading the files.

Precaution when updating firmware:
・To conduct the version upgrade, USB memory is required.
・During the version upgrade process, don't turn off the power to the IM7587 or don't remove the USB memory from the slot.

Firmware for the Model IM7587

The current newest software versions are shown below. A version update is highly recommended if you are running older firmware.

Version :V1.01

Before you proceed

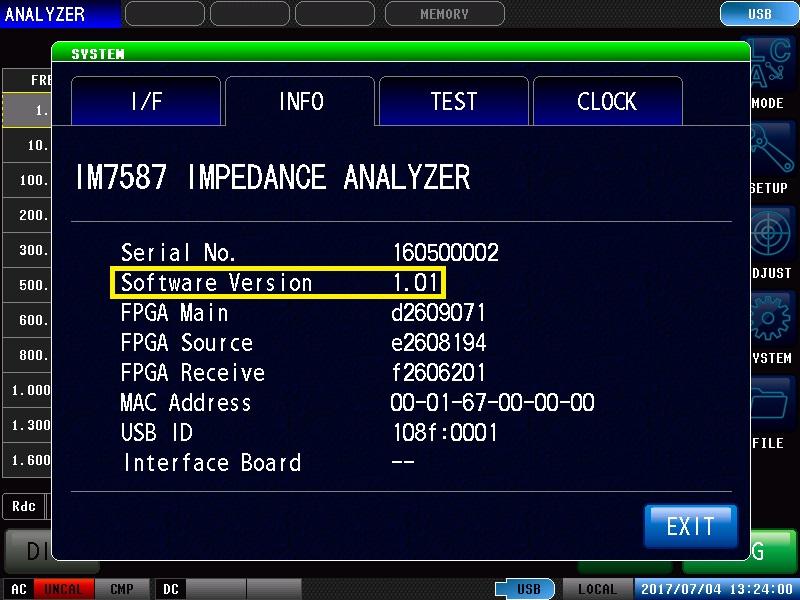

The version number of firmware can be checked by selecting the “INFO” tab of the System screen.

Version Upgrade History

V1.01 (July 2017)
 Repaired bug:
・When using the following commands, it was unable to set to off.
:CORRection:CALIbration:OPEN:LIMit OFF
:CORRection:CALIbration:SHORt:LIMit OFF
:CORRection:CALIbration:LOAD:LIMit OFF,OFF
:CORRection:COMPensation:OPEN:LIMit OFF
:CORRection:COMPensation:SHORt:LIMit OFF
