SM Sample Application

SM Sample Application

V1.02  Jul 11, 2017

The copyright to the executable program file and associated documents is owned by HIOKI E.E. CORPORATION.
This utility may not be bundled with software or other publications which are sold for profit without the express written permission of the copyright owner.
Further, this product may not be modified without the express written permission of the copyright owner.


HIOKI disclaims any and all responsibility for any consequences arising out of use of this software.


  • Application(SMSampleApplicationEN102.zip)

    DOWNLOAD

Specifications

The SM Sample Application (this application) can perform the following operations on the SM7110, SM7120 and SM7420:
●Measuring instrument settings
●Time Interval Measurement (By setting up the time interval)
●Voltage sweep measurement (measurement using a varying voltage)

*SM7110 and SM7120 only
●Loading by Return key (Single Measurement)
●Acquisition of measured values and saving in Excel or CSV format
●Graph display
●Testing communications command transmit/receive functionality
●Backing up and restoring instrument settings

How to install

1.Click [Download] and download the file.
2.Execute the downloaded file to start the installation.
・Note1: .NET Framework 4.0 is required to run this application program.
If it has not been installed in your PC, the following dialog box will be popped up.
Click on [Yes], and then go to the download page for NET Framework. Please download and install .NET Framework. Note2: If using this application program with the PC that doesn’t hook up to the Internet, at first, please download .NET Framework 4.0 on the Web page of the Microsoft company with another PC that hooks up o the Internet.
.NET Framework 4.0 can be downloaded on a page.
3.After installing the .NET Framework, try installing the application program again.

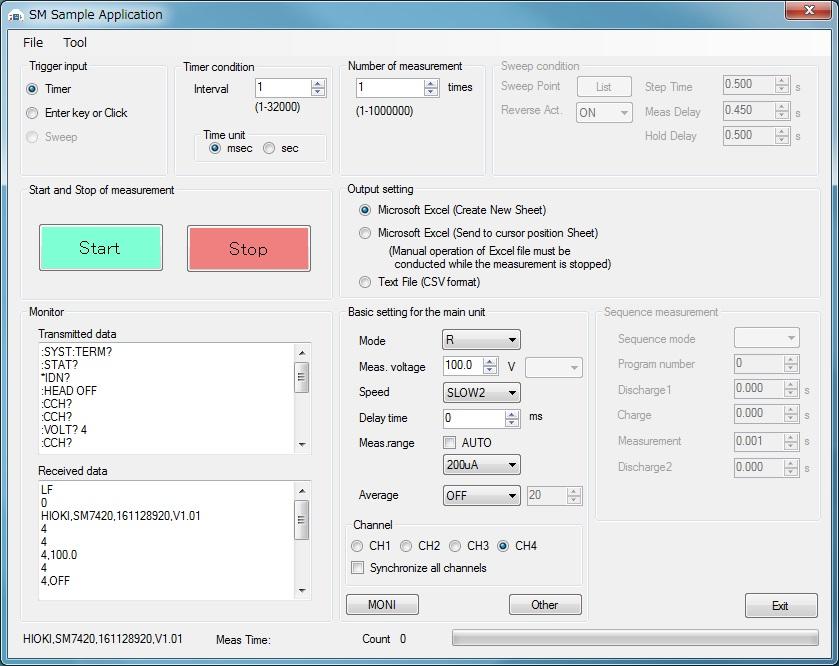

Measurement screen

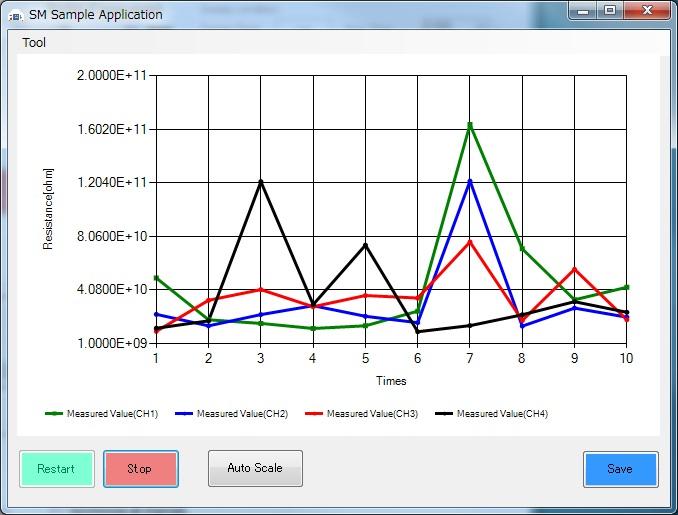

Graph display

Version Upgrade History

V1.02
・Improved timer accuracy
・Change the minimum step time to 150 ms
・Added Display drawing time
・Fix other minor bugs




V1.01
・First release

Operating Environment

・CPU: Operating speed of 1 GHz or greater
・RAM: 512 MB or greater
・Operating system: Windows 10, Windows 8.1, Windows 8, or Windows 7 (32-bit or 64-bit)
・Microsoft .NET Framework 4.0
・Interface: RS-232C, USB, RS232-C
・Monitor resolution: 1,024×768 or greater
・Hard drive: Free space of 5 MB or greater (If .NET Framework 4.0 has not yet been installed, about 900 MB more free space will be required.) Additional free space for saving recorded data.
