SWITCH MAINFRAME
SW1001
Packed with Features to Assure Accuracy in Multi-channel Battery Testing
-
myHioki
(logged in)

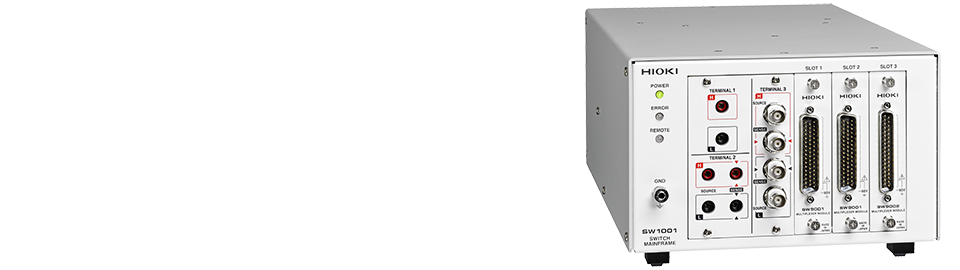

The SW1001 is a switch mainframe for housing up to 3 units of SW9001 or SW9002 Multiplexer Module to deliver quick, multi-channel battery testing. Connect up to 2 battery testing instruments to test OCV measurement, internal resistance measurement, and external potential measurement of battery cells. Key Features • Switch between voltmeter and battery tester while testing • SW1001: max. 66 channels (2-wire) to max. 18 channels (4-terminal pair) • Circuit-design-friendly for impedance measurements that minimize errors between channels (Effect: 0.01% f.s.*) * For BT4560 100 mΩ range, R measurements, and a measurement frequency of 1 kHz • For OCV measurement, internal resistance measurement, and external potential measurement of battery cells • Measure battery modules up to 60 V DC
Model No. (Order Code)
| SW1001 | 3 slots |
|---|
Note: Multiplexer Modules not included with the Switch Mainframe SW1001 / SW1002. Modules must be purchased separately.
Choose from Two Types of Multiplexer Modules
MULTIPLEXER MODULE SW9001:This module supports 2-wire/4-wire configurations. Channel switching can be performed in 11 ms (excluding communication, command processing time, and contact bounce). MULTIPLEXER MODULE SW9002: This module supports 4-terminal pair configuration for use in combination with BT4560 and IM3590. 2-wire measurement is also possible (Sense only). Channel switching can be performed in 11 ms (excluding communication, command processing time, and contact bounce).
Communication Command Transmission Function Reduces the Number of PC Ports Needed
Normally, PC control requires two ports: one communication port for switching and one for the measuring instrument. By using the communication command transmission function on the SW1001 the switch mainframe can transfer control commands from the PC to the measuring instrument (and responses can be received from the device). This allows you to reduce the number of communication ports used on the measuring instrument
Basic specifications
| Slots | 3 slots |
|---|---|
| Supported modules | MULTIPLEXER MODULE SW9001 (2-wire/4-wire) MULTIPLEXER MODULE SW9002 (4-terminal pair) |
| Connectible instruments | Max. 2 units 2-wire × 1 + 4-wire × 1, or 2-wire × 1 + 4-terminal pair × 1 |
| Max. input voltage | 60 V DC (Cannot connect to battery packs in excess of 60 V DC), 30 V AC rms, 42.4 V peak, Maximum rated voltage to ground: 60 V DC |
| Communication I/F | LAN, USB, RS-232C (for host, for measurement instruments) |
| Functions | Channel switching, wiring method, scan function, communication command transmission, channel delay, shield switching |
| Power supply | 100 to 240 V AC / 30 VA (50/60 Hz) |
| Dimensions and mass | 215 mm (8.46 in) W × 132 mm (5.20 in) H × 420 mm (16.54 in) D, 3.7 kg (130.5 oz) |
| Accessories | Power cord ×1, instruction manual ×1, usage precautions ×1, USB driver CD ×1 |
Basic specifications for MULTIPLEXER MODULE
| SW9001 | SW9002 | |
| Wiring method | 2-wire or 4-wire | 4-terminal pair (6-wire) or 2-wire |
| No. of channels | 22 channels (2-wire) / 11 channels (4-wire) | 6 channels (4-terminal pair) / 6 channels (2-wire) |
| Contact method | Armature relays | |
| Channel switching time | 11 ms (excluding measurement time) | |
| Max. allowable voltage | 60 V DC, 30 V AC rms, 42.4 V peak | |
| Max. allowable current | 1 A DC, 1 A AC rms | 1 A DC, 1 A AC rms (Sense), 2 A DC, 2 A AC rms (Source, Return) |
| Max. allowable power | 30 W (resistive load) | |
| Maximum rated voltage to ground | 60 V DC | |
| Dimensions and mass | 25.5 mm (1.00 in) W × 110 mm (4.33 in) H × 257 mm (10.12 in) D, 210 g (7.4 oz) | 25.5 mm (1.00 in) W × 110 mm (4.33 in) H × 257 mm (10.12 in) D, 196 g (6.9 oz) |
| Accessories | Instruction manual ×1 | |
