NEW

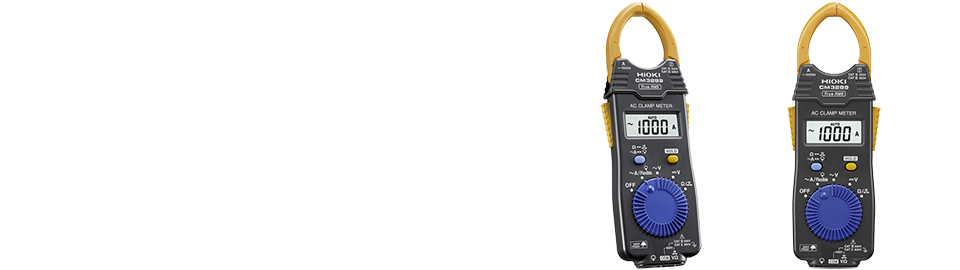

AC CLAMP METER

CM3289

Quickly clamp wires in even more confined spaces!

Hioki clamp meters are best-in-class measuring devices incorporating Hioki’ s expertise in current sensing technology. The CM3289 is a True RMS rectifying 1000A AC clamp meter that features a broad operating temperature range of -25° C to 65° C, thin and compact clamp core and optional flexible current sensor that you can attach to let you get into the tightest spots. CAT IV 300 V (Current) CAT III 600 V (Current) CAT III 300 V (Voltage) CAT II 600 V (Voltage) Key Features • New redesigned sensor for even easier clamping (CM3289) • Expanded -25 °C to 65 °C operating temperature range • Model CM3289: Measure even harmonic waveform components using the True RMS method • Model 3280-10F: Measure the fundamental waveform component using the average rectified method • Connect the CT6280 flexible sensor to measure up to 4199 A in thick or paired wires

Model No. (Order Code)

CM3289 True RMS

Guarantee3years
TrueRMS
CE
DROPPROOF

Video introducing the AC Clamp Meter CM3289

The popular 3280-20F AC Clamp Meter has be redesigned with a thinner sensor to help you get into the tightest spaces. Watch this video to learn more.


Quickly clamp wires in even more confined spaces!

A new sensor profile yields outstanding ease of use


True RMS model capable of accurately measuring even distorted waveforms

The waveform including harmonic components is calculated according to an RMS calculation formula and displayed. True RMS measurement yields accurate display values even when measuring a distorted waveform, for example from an inverter-equipped device or switching power supply.


A pocket clamp meter that can use flexible sensors

When connected to an optional flexible current sensor*, the CM3289 can be used to measure the current flowing in pairs of wires or in tangled or complexly routed wires around which it was not possible to apply a clamp-on sensor in the past. *AC FLEXIBLE CURRENT SENSOR CT6280 (4200 A AC, Φ130 mm)


Essential for electrical work: A thin card tester that fits in the pocket with all the capabilities of a clamp meter

The CM3289 delivers all the functionality of a clamp meter and card tester in the form factor of the latter. In addition to current measurement, this single instrument delivers voltage measurement, continuity check, and resistance measurement functionality.


Rugged, portable design that’s drop-resistant

Despite its thin, compact design, the CM3289 has an operating temperature range of -25°C to 65°C and can withstand being dropped from a height of 1 m onto concrete. It’s engineered for use in tough environments.


Basic specifications (Accuracy guaranteed for 1 year, Post-adjustment accuracy guaranteed for 1 year)

AC Current42.00 to 1000 A, 3 ranges
(40 Hz to 1 kHz, True RMS),
Basic accuracy: ±1.5 % rdg. ±5 dgt.
DC Voltage420.0 mV to 600 V, 5 ranges, Basic accuracy: ±1.0 % rdg. ±3 dgt.
AC Voltage4.200 V to 600 V, 4 ranges
(45 to 500 Hz, True RMS),
Basic accuracy: ±1.8 % rdg. ±7 dgt.
Crest factor2.5 or less at 2500 counts
(Linearly decreases to 1.5 or less at 4200 count)
Resistance420.0 Ω to 42.00 MΩ, 6 ranges, Basic accuracy: ±2 % rdg. ±4 dgt.
Other functionsContinuity: Buzzer sounds at 50 Ω ±40 Ω or less, Data hold, Auto power save, Drop-proof from height of 1 meter
DisplayLCD, max. 4199 dgt., Display refresh rate: 400 ms
Power supplyCoin type lithium battery (CR2032) ×1
Continuous use 70 hours
Core jaw dia.φ 33 mm (1.30 in)
Dimensions and mass57 mm (2.24 in) W × 181 mm (7.13 in) H × 16 mm (0.63 in) D, 100 g (3.5 oz)
AccessoriesCARRYING CASE 9398 × 1, TEST LEAD L9208 × 1, Coin type lithium battery (CR2032) × 1, Instruction manual × 1

CT6280 Basic specifications (Accuracy guaranteed for 1 year, Post-adjustment accuracy guaranteed for 1 year)

Core jaw dia.φ 130 mm (5.12 in) (Cable cross-section diameter: 5 mm (0.20 in); tip cap diameter: 7 mm (0.28 in))
AC Current419.9 A/ 4199 A, 2 ranges (±3.0 % rdg. ±5 dgt.)
Cable length800 mm (31.5 in)

Log into your myHioki account to access more technical documents and information where available.

Seminar Videos On Demand

No results were found.

Seminar Schedule

Automotive Testing Expo - Stuttgart, Germany

Jun 5, 2018 - Jun 7, 2018

Registration Open

iEVTech 2018 Thailand - Bangkok

Jun 6, 2018 - Jun 9, 2018

Registration Open

PSECE 2018, Manila

Jun 13, 2018 - Jun 15, 2018

Catalogs

Catalog: AC CLAMP METER CM3289 Download PDF  [2MB] English

User Guides

No results were found.

Manuals

Instruction Manual English
Ver.00
Instruction Manual English
Indonesian
Thai
Vietnamese
Ver.00
Instruction Manual English
Spanish
German
French
Italian
Ver.00
Instruction Manual Simplified Chinese
Ver.00
Instruction Manual Traditional Chinese
Ver.00
Instruction Manual Korean
Ver.00

Outline Drawings


Ver.00

Technical Notes

No results were found.

Declaration of Conformity


Ver.00

Drivers, Firmware

No results were found.

Others

No results were found.

Options

Bundled Accessories

TEST LEAD L9208

70 cm (2.30 ft) length

CARRYING CASE 9398

Options

The C0205 is a bundled accessory for the CT6280, 3280-70F

L4933, L4934 can be used on TEST LEAD L9208.

AC FLEXIBLE CURRENT SENSOR CT6280

Includes C0205 and attachment

CARRYING CASE C0205

For storing the CT6280, L9208 and main body

CONTACT PIN SET L4933

Attaches to the tip of the Test Lead L9207-10/DT4911, L9206, 70V DC/ 33V AC

SMALL ALLIGATOR CLIP SET L4934

Attaches to the tip of the L4932, L9207-10/DT4911, L9206, CAT III 300V, CAT II 600V
