NON-CONTACT AC VOLTAGE PROBE

SP3000

Capture Voltage Signals from Outside the Wire Cover

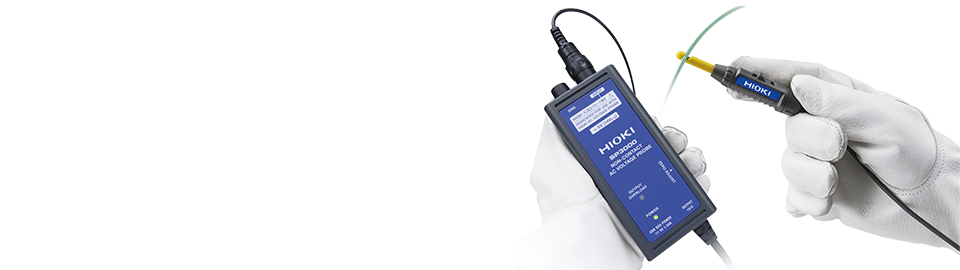

The SP3000 is a non-contact AC voltage waveform probe ideal for maintenance applications involving device control signals and sensor signals.  Simply apply the probe to a cable outside its insulation cover to capture the signal without exposing the technician to electrocution. Key Features • Observe waveforms with an oscilloscope or a Hioki Memory HiCorder by visualizing signals from electric equipment simply by applying the probe to the wire’s insulation • Capture LIN and other communications signals • Measure signals from electric equipment on vehicles • Ideal for applications where: - Miniaturization of devices and use of waterproof connectors make it impossible to establish contact with metal terminals - Connectors can’t be removed due to reduced ability to reproduce phenomena - There is need to avoid tearing the wire insulation so as to prevent risk of damage to the sensor due to static electricity A comment from the Good Design Award 2017 “First, this award recognizes Hioki’s proprietary no-metal-contact measurement technology, which allows measurement of voltage waveforms from outside a wire’s insulation, without any need to make contact with a metal terminal. Further, it recognizes the product’s technology and design, for example in terms of the implementation of that technology in an instrument that can be applied to wires single-handedly in confined locations and designers’ success in creating a small, hands-free probe that need not be supported by the end-user.”

Model No. (Order Code)

SP3000-01 SP3000, SP9001 bundled model

Connect to a Memory HiCorder’s analog input terminal or oscilloscope. Both the SP3000 amplifier box and SP9001 probe head are necessary to measure.  Select Model SP3000-01 for the entire system.

予備
CE

Basic specifications (Accuracy guaranteed for 1 year, Post-adjustment accuracy guaranteed for 1 year)[Head of probe] AC VOLTAGE PROBE SP9001

Measurement methodCapacitive-coupled current cancellation (not suitable for use with bare conductors)
Measurable wire typeInsulated wire
Maximum input voltageRMS : 30 Vrms or less, Peak : 42.4 Vpeak or less
Dimensions and mass15.0 mm (0.59 in) (W) × 13.9 mm (0.55 in) (H) × 77.4 mm (3.05 in) (D) mm, 52 g (1.83 oz) (including cable)

[Main body measuring circuit] NON-CONTACT AC VOLTAGE PROBE SP3000

Rated measurement voltage5 V rms (14.14 Vp-p)
Output rate1 V/V
Rising time4.5 μs or less
Frequency band10 Hz to 100 kHz (-3 dB)
Voltage measurement precision±2.5% rdg. ±1% f.s. (0.5 Vrms to 5 Vrms)
Effects of wire under measurement±5% rdg. (Finished outer diameter φ1.0 to 2.5 mm, in a wire rod in conformity with UL1007, UL1015, AV, AVS, AVSS)
Power supply(1)USB bus power: USB mini receptacle: 5 V ±0.25 V DC
(2)AC Adapter Z1013: 5 V DC, 2.6 A
Rated supply voltage: 100 V to 240 V AC (50 Hz/60 Hz)
Anticipated transient overvoltage: 2500 V
Output terminalInsulated BNC (Measuring device connection side), Output resistance : 50 Ω
Dimensions and mass120 mm (4.72 in) (W) × 25 mm (0.98 in) (H) × 55 mm (2.16 in) (D), 160 g (5.64 oz) (including cable)
AccessoriesGround connection cable (1.5 m) ×1, Alligator clip ×1, USB cable ×1, Instruction manual ×1

Hioki offers members manuals and other technical documentation.
The documents are available for download on your myHIOKI page.

Catalogs

Catalog: NON-CONTACT AC VOLTAGE PROBE SP3000 Download PDF  [2MB]
e-BOOK
English

User Guides

No results were found.

Manuals

Instruction Manual English
Ver.00
Instruction Manual Simplified Chinese  Ver.00

Outline Drawings


Ver.00

Ver.00
No results were found.

Technical Notes

Declaration of Conformity


Ver.00

Drivers, Firmware

No results were found.

Others

Contactless Voltage Probe Technology: Measuring Voltage Waveforms from Outside Signal Cables Download PDF  [1MB] English

Options

Also sold separately

NON-CONTACT AC VOLTAGE PROBE SP3000

Sold individually

AC VOLTAGE PROBE SP9001

Sold individually

Options

9804-02 can be used by being attached to the tip of the GND connection cable included in SP3000

AC ADAPTER Z1013

100 V to 240 V AC

MAGNETIC ADAPTER 9804-02

Attaches to the tip of cord, black ×1, φ11 mm (0.43 in)

CARRYING CASE C1011

Includes compartment for options
