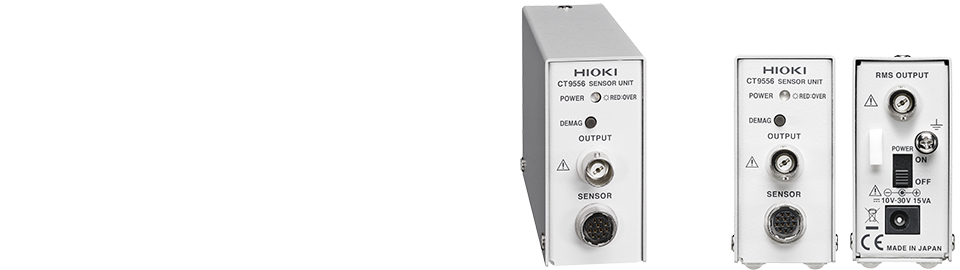

SENSOR UNIT

CT9556

Power supply for high-precision current sensors

Hioki pass-through current sensors and clamp on current probes are best-in-class current sensing devices for use with power meters, Memory HiCorders and high performance oscilloscopes. The CT9556 is 1-channel sensor unit and power adapter for any of the CT686x series, 9709 and CT684x series current sensors and probes that provides waveform and RMS output. Key Features • Power supply for high-precision current sensors with waveform output / RMS output functionality

Model No. (Order Code)

CT9556 For the CT6841-05, etc., ME15W connector

Guarantee3years
CE

Using with a data logger to perform high-precision current measurement

In this setup, waveform output is monitored on the DC current side, and RMS output is monitored on the AC current side of the circuit. Even a logger that lacks RMS conversion functionality can be used to measure AC current. A wireless logger can also be used. If a high-precision voltmeter is used, both the AC and DC currents can be measured with a high degree of precision.


Basic specifications (Accuracy guaranteed for 1 year, Post-adjustment accuracy guaranteed for 1 year)

Connectable current sensorsCurrent sensors with a Hioki ME15W (male) output connector (CT686x-05, 9709-05, CT684x-05, etc.)
*The separately available Conversion Cable CT9900 is required in order to use a current sensor equipped with a PL23 (10-pin) terminal
Output TerminalBNC Terminal
Output voltageWaveform output: 2 V f.s.
RMS output: 2 V DC f.s.
Output resistance50 Ω
Operating temperature range-10 °C to 50 °C (14 °F to 122 °F)
Power supplyAC Adapter Z1008 (100 to 240 V AC, 50/60 Hz, maximum rated power when used with sensors: 45 VA)
External power supply (10 to 30 V DC; maximum rated power: 15 VA)
Dimensions and mass33 mm (1.30 in)W × 67 mm (2.64 in)H × 132 mm (5.20 in)D (excluding protruding parts), 200 g (7.1 oz)
AccessoriesAC Adapter Z1008 ×1, Power cord ×1, Instruction manual ×1

Log into your myHioki account to access more technical documents and information where available.

Seminar Videos On Demand

No results were found.

Seminar Schedule

No results were found.

Catalogs

Catalog: AC/DC CURRENT SENSOR CT6860 series Download PDF  [2MB] English
Catalog: SENSOR UNIT CT9555, CT9556, CT9557 Download PDF  [1MB] English
Catalog: HIGH ACCURACY / WIDEBAND CURRENT SENSOR Series CT686x, CT687x, CT684x Download PDF  [8MB] English

User Guides

No results were found.

Manuals

If you can not download, log into your myHioki account to access more technical documents and information where available.


Instruction Manual Japanese
English
Simplified Chinese
Ver.02

Outline Drawings

If you can not download, log into your myHioki account to access more technical documents and information where available.



Ver.01

Technical Notes

No results were found.

Declaration of Conformity


Ver.00

Drivers, Firmware

No results were found.

Others

No results were found.

Options

Options

CONNECTION CABLE CT9904

ME15W (12 pin) terminal to ME15W (12 pin) terminal, 1 m (3.28 ft) length (for connecting CT9557 total output to PW6001 or PW3390 only)

CONVERSION CABLE CT9900

Convert PL23 (10-pin) terminal to ME15W (12-pin) terminal

CONVERSION CABLE CT9901

ME15W (12 pin) to PL23 (10 pin) connector

CONNECTION CORD L9217

Cord has insulated BNC connectors at both ends, 1.6 m (5.25 ft) length

CONNECTION CORD 9165

Cord has metallic BNC connectors at both ends, use at metallic terminal, 1.5 m (4.92 ft) length
