AC/DC CLAMP METER
CM4372 (Bluetooth®)

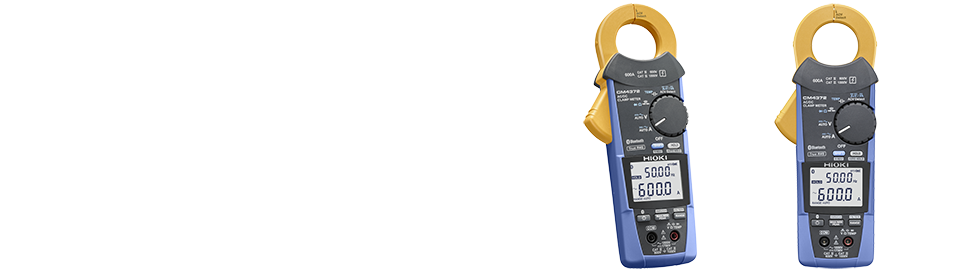

True RMS 600 A AC/DC Clamp Meter with Bluetooth Wireless Technology for Advanced Applications and the Toughest Situations
-
myHioki
(logged in)
Hioki clamp on meters are best-in-class measuring devices incorporating Hioki’s expertise in current sensing technology. The CM4372 is a 600A True RMS clamp meter that features stronger jaws, broader -25℃ to 65℃ operating temperature range and IP54 dustproof and waterproof enclosure to enable professionals to work quickly in tough situations including the development, repair, and maintenance of equipment and devices such as electric vehicles. Additionally, the high-voltage DC measurement capability of up to 1700 V (*1) is ideal for the clamp maintenance inspections of electrical and solar power equipment. Measured values can be sent to a smartphone or tablet using Bluetooth® wireless technology and displayed as waveforms in real time. CAT IV 600 V, CAT III 1000 V Key Features • Send measured values to a smartphone or tablet using Bluetooth® wireless technology • Multiple measurement functions • Automatic AC/DC function helps boost work efficiency • Measure DC voltages of up to 1700 V (*1) for open voltage inspections of solar panels • Simultaneously measure inrush current in RMS and crest values • Expanded -25 °C to 65 °C operating temperature range • IP54 dustproof and waterproof enclosure *Jaws (current sensor portion): IP50 ※1 Your instrument can be used to measure voltages in excess of 1000V DC if and only if both of the following conditions are satisfied: 1. The circuit under measurement is isolated from the commercial power grid. 2. The circuit under measurement is isolated from ground. e.g.: when measuring the no-load voltage of an ungrounded PV panel Do not use the instrument with circuits whose terminal-to-ground voltage exceeds 1000V. Doing so may result in electric shock. Data can be downloaded to tablets and smartphones using Hioki’s dedicated apps available from the Google Play or Apple Store. Search for “HIOKI” and download the “GENNECT Cross” app.
Model No. (Order Code)
| CM4372 | Built in Bluetooth(R) wireless technology |
|---|
*For the latest information about countries and regions where wireless operation is currently supported, please visit the Hioki website. *The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by HIOKI E.E. CORPORATION is under license. *Android, Google Play and the Google Play logo are trademarks of Google Inc. *iOS is a registered trademark of Cisco Technology, Inc. and/or its affiliates in the United States and certain other countries. *iPhone, iPad, iPad mini, iPad Pro and iPod touch are trademarks of Apple Inc. *Apple and the Apple logo are trademarks of Apple Inc. App Store is a service mark of Apple Inc.
Instantly create reports by a free app (GENNECT Cross)
GENNECT Cross, a free app designed specifically for use with Hioki measuring instruments, lets you check and manage measurement results and create reports. The software provides a range of functionality that helps manage data in the field, including photographing measurement sites, placing measurement results on photographs, and saving hand written memos.
How to Use Hioki Clamp Meters: Using the Wireless Feature to Display Data on a Mobile Device
Measured values captured by the Hioki CM4372 and CM4374 AC/DC Clamp Meters can be displayed and saved onto a mobile device wirelessly. The results can also be used to create automatic reports. Simply install the free GENNECT Cross app onto your mobile device and connect to the Hioki clamp meters. Reports created on your mobile device can even be e-mailed to the office to further increase work efficiency. Bluetooth wireless technology is available in North America, the EU, Japan and other countries. For an updated list of supported countries, please go to www.hioki.com.
CM4370 Series Clamp Meters Product Video
Key Features • Send measured values to a smartphone or tablet using Bluetooth® wireless technology Search for "HIOKI" and download "GENNECT Cross"! • Multiple measurement functions such as current, voltage, resistance, frequency, and voltage detection • Simultaneously measure inrush current in RMS and crest values • Damage-resistant jaws (current sensor) provide even more years of reliable use. • Expanded -25 °C to 65 °C operating temperature range • IP54 dustproof and waterproof enclosure *Jaws (current sensor portion): IP50 • Automatic AC/DC function helps boost work efficiency • Remain alert to hazards with a red backlight and beeping tone • Measure DC voltages of up to 1700 V
How to Use the Hioki CM4370 Series Clamp Meters
Auto Hold Function:
The Auto Hold feature is perfect in situations where the display is hard to read because the clamped wires are in hard to reach locations. With Auto Hold, measured results automatically freeze on the display until the next measurement starts, making testing and record taking a snap.
How to Use the Hioki CM4370 Series Clamp Meters
AC Voltage Detection Function:
The tip of the current sensor of the CM4370 Series can also detect live voltages, eliminating the need for you to use a separate voltage detector. Energized lines are identified with a loud buzzer and red LED on the clamp meter.
Basic specifications (Accuracy guaranteed for 1 year, Post-adjustment accuracy guaranteed for 1 year)*1 Your instrument can be used to measure voltages in excess of 1000 V DC if and only if both of the following conditions are satisfied: 1. The circuit under measurement is isolated from the commercial power grid. 2. The circuit under measurement is isolated from ground.
| DC Current range | 20.00 A/600.0 A, Basic accuracy: ±1.3% rdg. ±0.08 A (20 A range) |
|---|---|
| AC Current range | 20.00 A/600.0 A (10 Hz to 1 kHz, True RMS), Basic accuracy 45-66 Hz: ±1.3% rdg. ±0.08 A (at 20 A) |
| Crest factor | 20.00 A range: 7.5, 600.0A range: 3 or less |
| DC+AC Current range | 20.00 A/600.0 A (10 Hz to 1 kHz, True RMS), Basic accuracy DC, 45-66 Hz: ±1.3% rdg. ±0.13 A (at 20 A) |
| DC Voltage range | 600.0 mV to 1500 V (*1), 5 ranges, Basic accuracy: ±0.5% rdg. ±0.5 mV (at 600 mV) |
| AC Voltage range | 6.000 V to 1000 V, 4 ranges (15 Hz to 1 kHz, True RMS), Basic accuracy 45 - 66 Hz: ±0.9% rdg. ±0.013 V (at 6 V) |
| DC+AC Voltage range | 6.000 V to 1000 V, 4 ranges, Basic accuracy DC, 45 - 66 Hz: ±1.0% rdg. ±0.023 V (at 6 V) |
| Resistance range | 600.0 Ω to 600.0 kΩ, 4 ranges, Basic accuracy: ±0.7% rdg. ±0.5 Ω (at 600 Ω) |
| Capacitance range | 1.000 μF to 1000 μF, 4 ranges, Basic accuracy: ±1.9% rdg. ±0.005 μF (at 1 μF) |
| Frequency range | 9.999 Hz to 999.9 Hz, 3 ranges, Basic accuracy: ±0.1% rdg. ±0.003 Hz (at 9.999 Hz) |
| Temperature (K) | -40.0 to 400.0 ˚C, add temperature probe accuracy to basic accuracy of ±0.5% rdg. ±3.0 ˚C |
| Voltage detection | Hi: 40 V to 600 V AC, Lo: 80 V to 600 V AC, 50/60 Hz |
| Other functions | Automatic AC/DC detection, Plus/Minus judgement function of DC A, DC V, Max/Min/Average/PEAK MAX/ PEAK MIN value display, Filter function, Display value hold, Auto hold, Back light, Auto-power save, Buzzer sounds, Zero-adjustment |
| Dustproof, waterproof | Grip: IP54 (when measuring an insulated conductor only), Jaw (the current sensor portion of the instrument)/ barrier: IP50 *Risk of electric shock from the conductor being measured increases when wet. |
| Interface | Bluetooth® 4.0LE, Supported devices: iOS, Android™ smartphone/tablet GENNECT Cross (free downloadable app) : display measured values and waveforms, Simple logging function, Waveform monitor function, Hold save function |
| Power supply | LR03 Alkaline battery ×2, Continuous use: 45 hr (Backlight OFF, Bluetooth® OFF), 24 hr (Backlight OFF, Bluetooth® ON) |
| Core jaw diameter | φ33 mm (1.30 in), Jaw dimension: 69 mm (2.72 in) W× 14 mm (0.55 in) D |
| Dimensions and mass | 65 mm (2.56 in) W × 215 mm (8.46 in) H × 35 mm (1.38 in) D mm, 340 g (12.0 oz) |
| Accessories | TEST LEAD L9207-10, CARRYING CASE C0203, LR03 Alkaline battery ×2, Instruction Manual ×1, Precautions Concerning Use of Equipment that Emits Radio Waves ×1 |
Countries and regions where wireless operation is currently supported (CM4372, CM4374)Last update: April 14, 2020
| Countries and regions where wireless operation is currently supported | Australia, Austria, Belgium, Bulgaria, Canada, Chile, Colombia, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Georgia, Germany, Greece, Hong Kong, Hungary, Iceland, Ireland, Italy, Japan, Kenya, Latvia, Liechtenstein, Lithuania, Luxembourg, Macao, Malta, Mexico, Myanmar, Netherlands, New Zealand, Norway, Peru, Philippines, Poland, Portugal, Romania, Saudi Arabia, Singapore, Slovakia, Slovenia, Spain, Sweden, Switzerland, Thailand, Turkey, United Kingdom, United States, Viet Nam |
|---|---|
| Note | Use of devices that emit radio radiation requires approval in the country of use. Thus, use of the instrument in a country or region where they have not been approved may be subject to penalty as a violation of law. |
