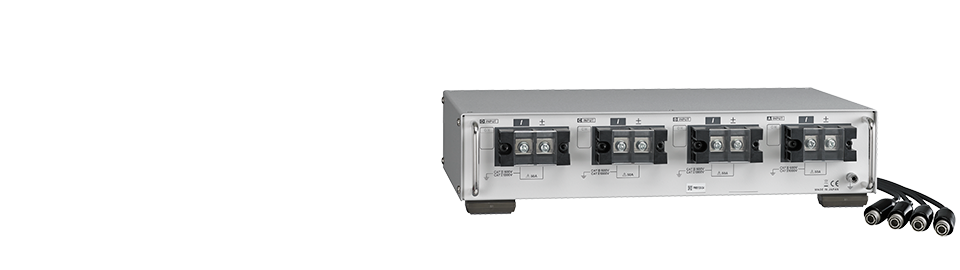

AC/DC CURRENT BOX
PW9100
Direct Current Measurement Option that Delivers a Wide Bandwidth and Superior Accuracy
-
myHioki
(logged in)
Hioki benchtop power meters and power analyzers are best in class power measuring instruments for measuring single to three-phase lines with a high degree of precision and accuracy. The PW9100 is a direct AC/DC current measurement option for the PW6001 and 3390 series Power Analyzers that delivers wide bandwidth and high accuracy testing across 3 channels of input. The option is ideal for applications requiring direct input connections when testing the power conversion efficiency of motors, primary and secondary side of inverters, hybrid and electric vehicles, and renewable energy equipment. Key Features • World-leading measurement bands and accuracy • Wide-band DC to 3.5MHz, 50A AC/DC rated input • ±0.04% power accuracy in combination with PW6001 • 120dB CMRR (100 kHz) • Full-rack size suitable for test/evaluation benches • Current measurement option for PW6001/ PW3390/ 3390 POWER ANALYZERS
Model No. (Order Code)
| PW9100-03 | For the PW6001/PW3390, 3 ch |
|---|---|
| PW9100-04 | For the PW6001/PW3390, 4 ch |
Basic specifications (Accuracy guaranteed for 1 year, Post-adjustment accuracy guaranteed for 1 year)
| Measurement line type | Isolated input, DCCT input |
|---|---|
| Rated primary current | 50 A AC/DC |
| Number of input channels | PW9100-03: 3 channels PW9100-04: 4 channels |
| Maximum input current | 60 A, within derating. However, up to ±200 A peak is allowable if within 20 ms (design value) |
| Amplitude and Phase accuracy | DC (±0.02 % rdg. ±0.007 % f.s.) 45 Hz < f ≤ 65 Hz (±0.02 % rdg. ±0.005 % f.s., Phase: ±0.1 deg.) Accuracy is defined to 1 MHz |
| Output voltage | 2 V/50 A |
| Measurement terminals | Terminal block (with safety cover), M6 screws |
| Input resistance | 1.5 mΩ or less (50 Hz/60 Hz) |
| Input capacitance | Between measurement terminals and case (secondary side), 40 pF or less, defined at 100 kHz |
| Operating temperature and humidity | Temperature: 0°C to 40°C (32°F to 104°F), Humidity: 80% RH or less (no condensation) |
| Power supply | Power supply from PW6001, PW3390 |
| Dimensions and mass | 430 mm (16.93 in) W × 88 mm (3.46 in) H × 260 mm (10.24 in) D, Cable length: 0.8 m (2.62 ft) PW9100-03: 3.7 kg (130.5 oz), PW9100-04: 4.3 kg (151.7 oz) |
| Accessories | Instruction Manual ×1 |
Log into your myHioki account to access more technical documents and information where available.
Seminar Videos On Demand
| No results were found. |
Seminar Schedule
|
Sep 24, 2019 - Sep 26, 2019 | |
|
|
2019 International Conference on Power Electronics and ECCE Asia (ICPE 2019 ECCE Asia) - Busan |
May 28, 2019 - May 30, 2019 |
|
|
May 29, 2019 - May 31, 2019 | |
|
|
May 21, 2019 - May 23, 2019 | |
|
|
May 21, 2019 - May 23, 2019 |
Catalogs
| Catalog: POWER ANALYZER PW6001 | Download PDF [8MB] |
English |
| Catalog: AC/DC CURRENT BOX PW9100 | Download PDF [1MB] |
English |
| Catalog: HIGH ACCURACY / WIDEBAND CURRENT SENSOR Series CT686x, CT687x, CT684x | Download PDF [8MB] |
English |
User Guides
| No results were found. |
Manuals
If you can not download, log into your myHioki account to access more technical documents and information where available.
|
AC/DC CURRENT BOX PW9100-03,PW9100-04 [1MB] |
Instruction Manual |
English |
Ver.02 |
|
AC/DC CURRENT BOX PW9100-03,PW9100-04 [1MB] |
Instruction Manual |
Simplified Chinese |
Ver.01 |
|
AC/DC CURRENT BOX PW9100-03,PW9100-04 [774KB] |
Instruction Manual |
French |
Ver.01 |
|
AC/DC CURRENT BOX PW9100-03,PW9100-04 [739KB] |
Instruction Manual |
German |
Ver.01 |
Outline Drawings
If you can not download, log into your myHioki account to access more technical documents and information where available.
|
AC/DC CURRENT BOX PW9100-03 [72KB] |
Ver.01 |
|
AC/DC CURRENT BOX PW9100-04 [77KB] |
Ver.01 |
Declaration of Conformity
| No results were found. |
Drivers, Firmware
| No results were found. |
Others
| No results were found. |
Options
Option A
CONVERSION CABLE CT9901
ME15W (12 pin) to PL23 (10 pin) connector
Option B
Only 1 unit of CT9902 can be used at any one time.
EXTENSION CABLE CT9902
5 m (16.41 ft) length, ME15W (12 pin) - ME15W (12 pin) connector
Option C
Rack mount hardware
Made-to-order, for EIA/JIS
Contact your local Hioki distributor for more information
