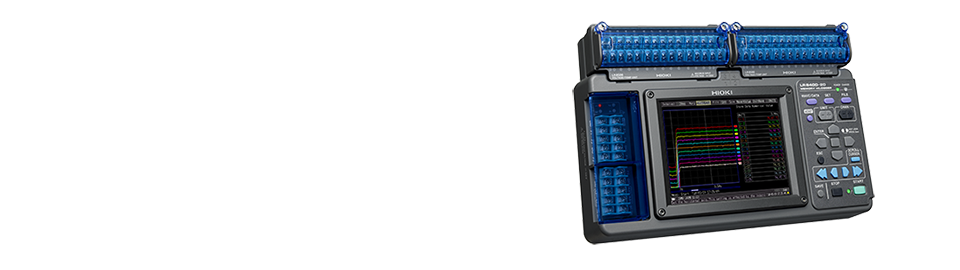

MEMORY HiLOGGER
LR8400 Series
Portable Handheld 30- to 60- channel Data Loggers with 10ms Simultaneous Sampling

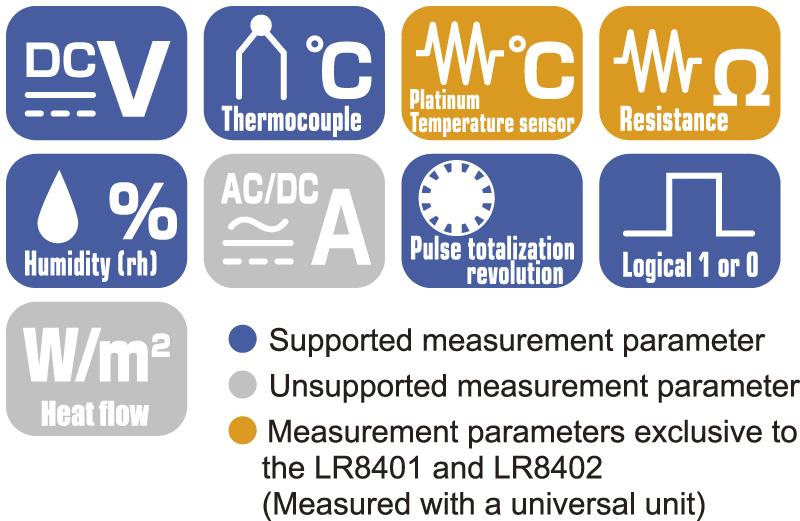

Hioki Memory HiLoggers are high-speed data loggers for recording multiple chanels of voltage, temperature, resistance, humidity and pulse signals, providing complete isolation between channels and strong noise resistance. The LR8400 Series logs data at 10ms speeds across 30 channels simultaneously, is expandible up to 60 channels, and features a bright color LCD for crystal clear waveform displays. Key Features • Compact size despite 30-channel standard capabilities • Expand up to 30 additional channels • Protected against unexpected power outages • Write data to USB memory stick or CF card in real-time • Built in with USB 2.0 or 100 BASE-TX LAN interfaces • 5.7” TFT color display
LR8400-20 | Built-in the Voltage/temp unit LR8500 ×2, 30 ch, English |
---|---|
LR8401-20 | Built-in the Universal unit LR8501 ×2, 30 ch, English |
LR8402-20 | Built-in the Universal unit ×1, Voltage/temp unit ×1, 30 ch, English |
Caution: Built-in units cannot be removed or changed. The Battery pack Z1000 is sold separately Model LR8400 : Built-in units are equivalent to the Votage/temp unit LR8500 ×2 Model LR8401 : Built-in units are equivalent to the Universal unit LR8501 ×2 Model LR8402 : Built-in units are equivalent to the Universal unit LR8501 (15 ch) ×1, and the Votage/temp unit LR8500 (15 ch) ×1
Use the Hioki LR8400 Memory HiLogger series to analyze the temperature difference between the external body and internal cavity of a refrigerator. Cold chain temperature management is particularly important for maintaining the integrity of storage systems for vaccines, perishables, and other temperature-sensitive products. The temperature of the refrigeration equipment at various internal and external points must be constantly monitored for sudden thermal excursions. Notwithstanding the multi-channel capabilities of the LR8400, the time scale axis of the data logger can be freely adjusted to display measured waveforms first as a trend in terms of seconds, then in terms of minutes, while still recording. Observe temperature changes from the very beginning and fast-forward to the present right on the screen.

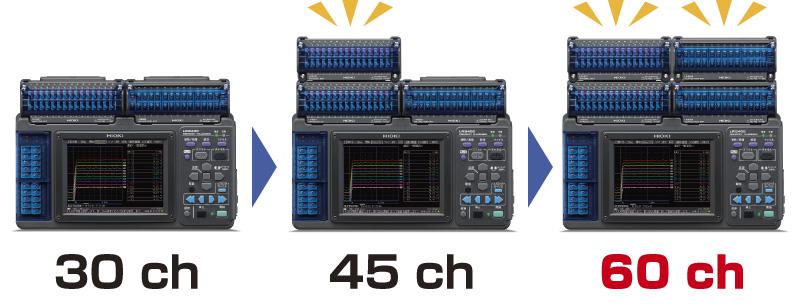

The need for more measurement channels can be met even after purchasing the instrument. The instrument comes with 30 channels as standard, but another two 15 channel input units can be added to expand the total number of channels to 60. (All 30 analog channels are isolated.) The instrument also features 8 channels of pulse and digital input. Each channel can configured for pulse or digital input as desired. Note: The units provided with the unit as standard cannot be removed.

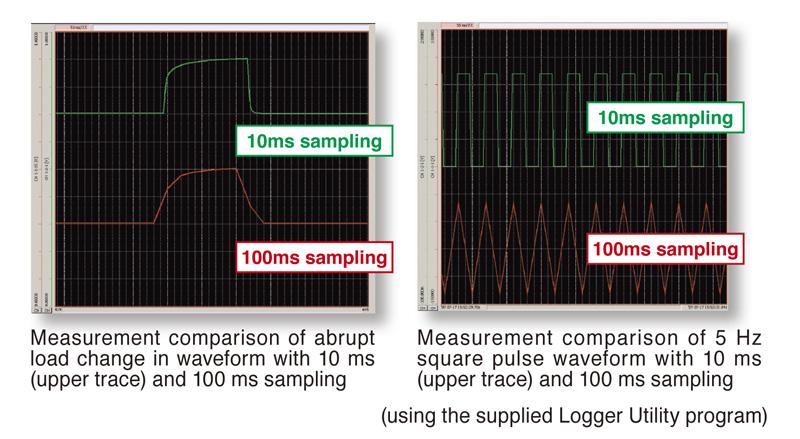

The development of hybrid and electric automobiles requires instruments that can measure abrupt load changes. The instrument can reliably capture even abrupt changes in load since it can measure channels 1 to 15 in 10 ms. Channels 16 to 30 provide 20-ms sampling. Note: Measurements on channels 31 to 60 provide 50-ms sampling.

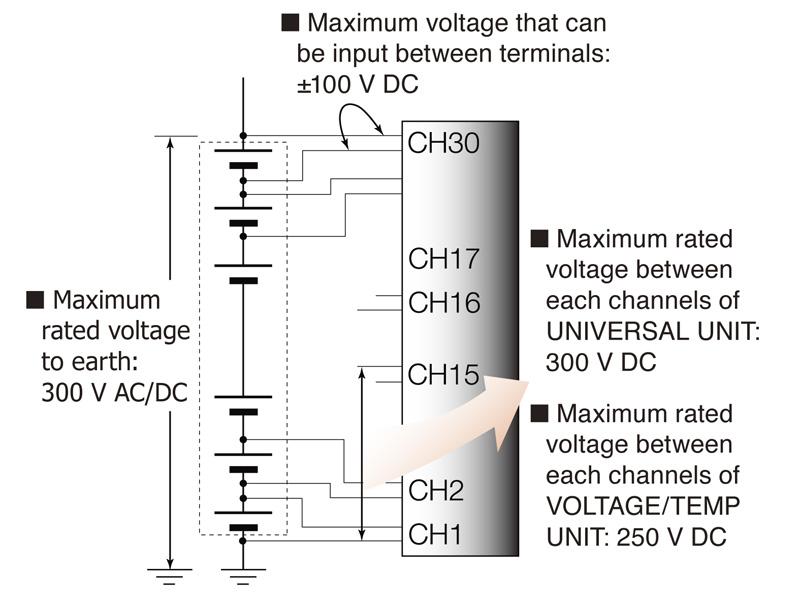

The HiLOGGER measures not only fuel cells, but also batteries for UPS (uninterruptible power supplies) devices used in buildings as well as batteries consisting of cells and packaging connected in stacks that require multi-point measurements. In such measurements, high voltage for the whole stack is applied between channel-to-channel and channel-to-ground. The universal unit delivers safe measurement thanks to a high-withstand-voltage design featuring a maximum rated channel-to-channel voltage of 300 V DC. (Maximum rated voltage between each channels of VOLTAGE/TEMP UNIT: 250 V DC) Note: Isolation between channels is possible through the use of semi-conductor relays. Voltage exceeding the product specifications, such as that originating from lightning surges or other sources, should never be applied between each channel; otherwise the relays will short and the recorder will be damaged.

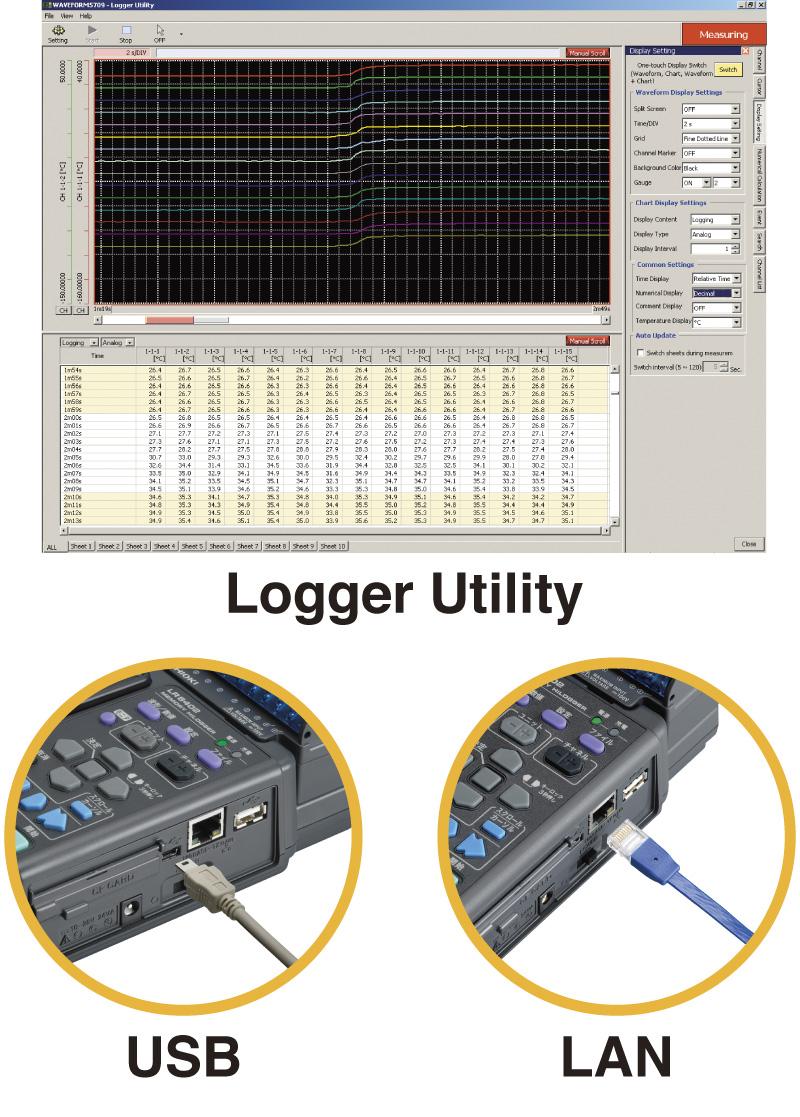

The supplied Logger Utility software enables processing of measurement data on a PC. Use the supplied Logger Utility software to record data on a PC in real-time. View past data during recording. Connect the PC to the HiLOGGER using USB or via LAN.
Capture data on the PC while testing remotely
Analog input Universal unit LR8501 Actual functionality will depend on combination of units installed Note: Isolated from each channel to chassis | [No. of channels] 15 analog channels; isolated scanning method input (4 terminals: push-button type) [Voltage] ±10 mV to ±100 V, 1-5 V f.s. Max. resolution: 500 nV, (Isolated between channels and from each channel to chassis) [Temperature: Thermocouples] -200 ˚C to 2000 ˚C (depends on sensor), Thermocouples (K, J, E, T, N, R, S, B, W,) Max. resolution 0.01 ˚C, (Isolated between channels and from each channel to chassis) [Temperature: Pt 100, JPt 100 sensor] -200 ˚C to 800 ˚C, Max. resolution 0.01 ˚C, (Not isolated between channels) [Resistance] 0 Ω to 200 Ω f.s. Max. resolution 0.5 mΩ, (Not isolated between channels) [Humidity] 5.0 to 95.0 % rh (use with optional sensor), resolution 0.1 % rh, (Not isolated between channels nor from each channel to chassis) [Max. rated voltage between isolated input channels] 300 V DC [Max. allowable input] ±100 V DC [Max. rated voltage from isolated terminals to ground] 300 V AC, DC |
---|---|
Analog input Votage/temp unit LR8500 Actual functionality will depend on combination of units installed Note: Isolated from each channel to chassis | [No. of channels] 15 analog channels; isolated scanning method input (2 terminals: M3 screw type) [Voltage] ±10 mV to ±100 V, 1-5 V f.s. Max. resolution: 500 nV, (Isolated between channels and from each channel to chassies) [Temperature: Thermocouples] -200 ˚C to 2000 ˚C (depends on sensor), Thermocouples (K, J, E, T, N, R, S, B, W), Max. resolution 0.01 ˚C, (Isolated between channels and from each channel to chassies) [Pt 100, JPt 100 sensor] [Resistance] Not available [Humidity] 5.0 to 95.0 % rh (use with optional sensor), resolution 0.1 % rh, (Not isolated between channels nor from each channel to chassies) [Max. rated voltage between isolated input channels] 250 V DC [Max. allowable input] ±100 V DC [Max. rated voltage from isolated terminals to ground] 300 V AC, DC Caution: Max. voltage from terminals to ground without damage |
Pulse, Digital input | [No. of channels] 8 channels, pulse / digital selectable for each channel, M3 screw terminal, not isolated, common ground [Pulse totalization] 0 to 1000 M pulse, 1 range (No-voltage 'a' contact; normally open, open collector or voltage input), Max. resolution 1 pulse [Rotation count] 0 to 5000 /n (r/s) f.s. 1 range (same as Pulse totalization input signal condition), resolution 1/n (r/s) Note: "n" is the number of sensor output pulses per revolution, 1 to 1000 [Digital input] Record logical "1" or "0" at each sampling [Max. rated voltage between input channels] Not isolated [Max. allowable input] 0 to 50 V |
Recording intervals | 10 ms to 50 ms, 100 ms to 1 hour, 19 selections (All input channels are scanned within each recording interval.) Note: limited by using channels at 10 ms to 50 ms interval |
Digital filter | Select from OFF/ 50 Hz/ 60 Hz (the cut-off frequency is automatically set) |
Data storage | Internal memory: 8 M-words, Data storage media: CF card or USB memory (Only data recorded to a genuine HIOKI CF card is guaranteed) |
LAN interfaces | 100BASE-TX, Functions: Data acquisition using bundled software or PC commands, FTP server, FTP client, HTTP server function, or E-mail system |
USB interfaces | USB 2.0 High-speed capable, series mini-B receptacle Functions: Data acquisition using bundled software or PC commands, Transfer data from the CF card to a PC via USB drive mode Note: Data transfer not possible from USB memory sticks |
Display device | 5.7 inch TFT color liquid crystal display (640 × 480 pixel) |
Other functions | Save waveform data in real time to the CF card or USB memory stick, Numerical value calculations, Waveform calculations, and others |
AC Power supply | Using the AC adapter 9418-15 (100 to 240 V AC, 50/60 Hz), 7 VA |
DC Power supply | Using the Battery pack Z1000 (optional accessory), Continuous use 5 hr, External power: 10 to 28 V DC (Please contact your HIOKI distributor for connection cord) |
Dimensions and Mass | 272 mm (10.71 in) W × 182.4 mm (7.18 in) H × 66.5 mm (2.62 in) D, 1.8 kg (63.5 oz), (LR8400-20 main unit, excluding the Battery Pack 370 g/ 13.1 oz) |
Accessories | Instruction manual ×1, Measurement guide ×1, CD-R (data collection software "Logger Utility") ×1, USB cable ×1, AC adapter 9418-15 ×1 |
Compatible models | LabVIEW | MATLAB script |
---|---|---|
LR8400-20 | OK | N/A |
LR8401-20 | OK | N/A |
LR8402-20 | OK | N/A |
Log into your myHioki account to access more technical documents and information where available.
No results were found. |
No results were found. |
Catalog: MEMORY HiLOGGER LR8400, LR8401, LR8402 | Download PDF [4MB] |
English |
Catalog: DATA LOGGER Selection Guide LR8431, LR8400 series, 8423, LR5000 series | Download PDF [5MB] |
English |
Catalog: GENNECT ONE SF4000 | Download PDF [1MB] |
English |
No results were found. |
If you can not download, log into your myHioki account to access more technical documents and information where available.
MEMORY HiLOGGER LR8400-20,LR8401-20,LR8402-20 [625KB] |
Measurement Guide |
English |
Ver.00 |
MEMORY HiLOGGER LR8400-21,LR8401-21,LR8402-21 [2MB] |
Measurement Guide |
Simplified Chinese |
Ver.00 |
MEMORY HiLOGGER LR8400-20,LR8401-20,LR8402-20 [973KB] |
Measurement Guide |
German |
Ver.00 |
MEMORY HiLOGGER LR8400-20,LR8401-20,LR8402-20 [957KB] |
Measurement Guide |
French |
Ver.00 |
MEMORY HiLOGGER LR8400-20,LR8401-20,LR8402-20 [9MB] |
Instruction Manual |
French |
Ver.01 |
MEMORY HiLOGGER LR8400-20,LR8401-20,LR8402-20 [9MB] |
Instruction Manual |
German |
Ver.01 |
MEMORY HiLOGGER LR8400-21,LR8401-21,LR8402-21 [21MB] |
Instruction Manual |
Simplified Chinese |
Ver.07 |
MEMORY HiLOGGER LR8400-20,LR8401-20,LR8402-20 [7MB] |
Instruction Manual |
English |
Ver.09 |
If you can not download, log into your myHioki account to access more technical documents and information where available.
MEMORY HiLOGGER LR8400 [555KB] |
Ver.00 |
MEMORY HiLOGGER LR8400-20 [403KB] |
Ver.00 |
MEMORY HiLOGGER LR8400-21 [407KB] |
Ver.00 |
MEMORY HiLOGGER LR8401 [92KB] |
Ver.01 |
MEMORY HiLOGGER LR8401-20 [92KB] |
Ver.01 |
MEMORY HiLOGGER LR8401-21 [92KB] |
Ver.01 |
MEMORY HiLOGGER LR8402 [90KB] |
Ver.01 |
MEMORY HiLOGGER LR8402-20 [90KB] |
Ver.01 |
MEMORY HiLOGGER LR8402-21 [89KB] |
Ver.01 |
MEMORY HiLOGGER LR8400 (With Voltage/Temp Unit LR8500 ) [131KB] |
Ver.00 |
MEMORY HiLOGGER LR8400-20 (With Vltage/Temp Unit LR8500) [143KB] |
Ver.00 |
MEMORY HiLOGGER LR8400-21 (With Voltage/Temp Unit LR8500 ) [143KB] |
Ver.00 |
MEMORY HiLOGGER LR8401 (With Universal Unit LR8501 ) [144KB] |
Ver.00 |
MEMORY HiLOGGER LR8401-20 (With Universal Unit LR8501 ) [151KB] |
Ver.00 |
MEMORY HiLOGGER LR8401-21 (With Universal Unit LR8501 ) [150KB] |
Ver.00 |
MEMORY HiLOGGER LR8402 (With Voltage/Temp Unit LR8500 and Universal Unit LR8501 ) [146KB] |
Ver.00 |
MEMORY HiLOGGER LR8402-20 (With Voltage/Temp Unit LR8500 and Universal Unit LR8501 ) [135KB] |
Ver.00 |
MEMORY HiLOGGER LR8402-21 (With Voltage/Temp Unit LR8500 and Universal Unit LR8501 ) [135KB] |
Ver.00 |
No results were found. |
MEMORY HiLOGGER LR8400-20,LR8400-21,LR8400-23,LR8401-20,LR8401-21,LR8402-20,LR8402-21 [99KB] |
Ver.06 |
WIRELESS LOGGING STATION LR8410 MEMORY HiLOGGER LR8400 LR8401 LR8402 8423 LabVIEW 2011 driver and Communication command manual | Freeware | Version 1.01 |
MEMORY HiLOGGER LR8400-20 series | Firmware | V1.29 |
GENNECT One | Freeware | V3.01 |
Logger Utility/Wireless Logger Collector for Models 8423 8430 LR8400Series LR8410 LR8431 LR8432 LR851xSeries LR8520 | Freeware | Version 1.87 Version 1.05 |
No results were found. |
Sensor guaranteed for 1 year.
Thermocouple
*For reference only. Please purchase locally.
VOLTAGE/TEMP UNIT LR8500
2 terminals M-3 mm screw type, 15 channels, Voltage, Temperature with thermocouple, or Humidity measurement, for the LR8400 series
UNIVERSAL UNIT LR8501
4 terminals push-button type, 15 channels, Voltage, Temperature with thermocouple, Platinum Resistance temperature sensor, Humidity, or Resistance measurement, for the LR8400 series
HUMIDITY SENSOR Z2000
(Analog output), 3 m (9.84 ft) length
Supplied with PC Card adapter
PC Card Precaution
Use only PC Cards sold by HIOKI. Compatibility and performance are not guaranteed for PC cards made by other manufacturers. You may be unable to read from or save data to such cards.
* Maximum input-to-ground rated voltages fall within these products’ specifications ranges (and do not affect the connected input units)
DIFFERENTIAL PROBE P9000
• Waveform only for exclusive use with Memory HiCorders (P9000-01) or waveform/RMS value switchable (P9000-02) • For use with input of up to 1 kV AC/DC • Requires separate power supply
AC ADAPTER Z1008
100 to 240V AC
Can also be used with accessories such as L4936/L4937/L4931 as available for other testers.
GRABBER CLIP 9243
Attaches to the tip of the banana plug cable, Red/ Black: 1 each, 196 mm (7.72 in) length, CAT III 1000 V
CONVERSION CABLE L1011
30 cm (0.98 ft) length, covert BNC to wire
CONVERSION CABLE L1011-10
2.4 m (7.87 ft) length, covert BNC to wire
*For P9000.
Inquire with your Hioki distributor.
(1) Bus powered USB cable
(2) USB(A)- Micro B cable
(3) 3-prong cable
AC adapter is bundled with the LR8400 series
AC ADAPTER 9418-15
100 to 240V AC
BATTERY PACK Z1000
NiMH, Charges while installed in the main unit
CARRYING CASE C1000
For the LR8400 series, for storing options
FIXED STAND Z5000
For wall hanging and slanted bench mounting
LOGGER UTILITY is a bundled software
LOGGER UTILITY SF1000
• For the HIOKI Memory HiLoggers • The control of the measurement of loggers, real-time data collection • Wavefrorm display, data conversion, calculation, search, print

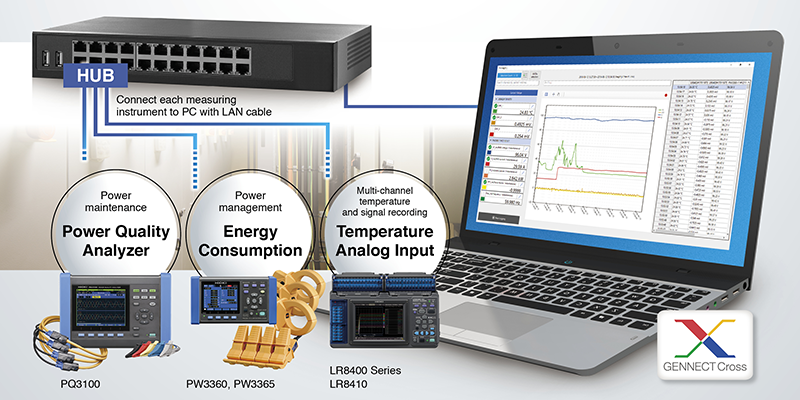

GENNECT ONE SF4000
• Automatically pair with LAN-connected measuring instruments • Display acquired data graphically in real-time • Windows compatible
LAN CABLE 9642
Straight Ethernet cable, supplied with straight to cross conversion adapter, 5 m (16.41 ft) length
