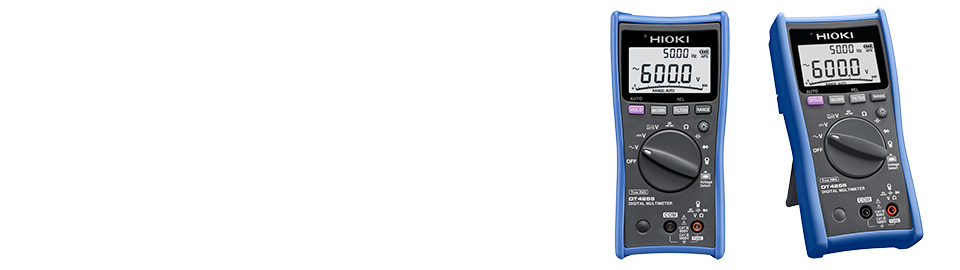

DIGITAL MULTIMETER

DT4255

Digital Multimeter with Fuse-protected Terminals Ideal for Harsh Work Environments

The Hioki DT4200 Digital Multimeter Series consist of a complete lineup of 9 models ranging from professional to industrial to pocket meters, delivering a super fast response rate and safety features that take electrical testing to a higher level. The DT4255 is a digital multimeter designed for maximum safety with voltage measurement terminals that are protected by a fuse. CAT IV 600 V, CAT III 1000 V Key Features • Prevents short-circuit accidents with a fast-blow fuse and current-limiting resistor (DT4255) • Prevents accidents with clamp-on sensor-based current measurement (DT4254, DT4255) • Voltage detection function (DT4254, DT4255) • Low-pass filter cuts high harmonics (when measuring inverter fundamental waveforms) • Broad -25°C (-13°F) to 65°C (149°F) operating temperature range (DT4254, DT4255) • Dual display lets you check voltage and frequency simultaneously



Model No. (Order Code)

DT4255 with fused measurement terminals

予備
Guarantee3years
USB2
Option
TrueRMS
CE
DROPPROOF

Video on how to use digital multimeters

This video introduces how to use the DT4200 series of digital testers as well as some of the instrument’s featured functionality. Hioki testers are engineered to help professional electricians do their jobs safely and quickly.


Digital Multimeter designed for maximum safety with fuse-protected terminals

・ Accepts an AC clamp sensor. ・ Voltage detection function


Thorough prevention of shortcircuit accidents

When using the resistance measurement function, a protective circuit functions to prevent a short-circuit accident in the event of erroneous operation such improperly supplying voltage input. Even if a short-circuit occurs inside the tester, a current-limiting resistor will limit any short-circuit current while a fast-blow fuse quickly and reliably disconnects the tester circuitry, preventing a short-circuit accident.


Clamp-on sensorbased current measurement eliminates the cause of accidents

Mistakenly measuring voltage using the current range may lead to a short-circuit. The DT4255 eliminates the root cause of such accidents by providing clamp-on sensorbased current measurement functionality instead of using conventional probes.


Measure output voltage on the secondary sides of inverters by eliminating harmonic components

Accurately measure the fundamental wave alone by eliminating harmonic components with the DMM’s low-pass filter function.


Measurement data can be downloaded to, reviewed on, and saved to a computer.

If you connect the DT4255 to a computer with the optional Communication Package DT4900-01, you can graph data stored in the instrument’s internal memory and display measurement results in real time on the computer. In addition, displayed measured values can be saved (in text format).  *The computer and multimeter are electrically isolated by means of optical communications so that data can be sent without concern for electrical hazards.


True RMS measurement for accurate measurement of even distorted current waveforms

Digital multimeters implement two types of measurement: mean-value measurement and true RMS measurement. The two methods yield significantly different measurement results for current waveforms, which are often distorted. For accurate measurement, it is necessary to use an instrument with true RMS capability.


Designed and manufactured in Japan to ensure high quality and guaranteed with a 3-year warranty for peace of mind

All development, design, and manufacturing processes for almost all Hioki digital multimeters are carried out at our Head Office in Nagano Prefecture. Some of the industry’s most advanced technological capabilities enable us to deliver products of the highest possible quality.


Safe measurement requires use of an instrument that suits the measurement location.

To ensure operators’ ability to use measuring instruments safely, IEC 61010 classifies the locations in which instruments are used into a series of safety-based measurement categories (ranging from CAT II to CAT IV). Using an instrument that does not satisfy the required safety level can lead to an electrical accident.


■ Basic specifications (Accuracy guaranteed for 1 year, Post-adjustment accuracy guaranteed for 1 year)Regarding DMM Accuracy Due to the many ranges and functions available in a DMM, only the basic accuracy is indicated for reference. Please refer to the individual catalogs for detailed accuracy information.

DC Voltage600.0 mV to 1000 V
5 ranges, Basic accuracy: ±0.3 % rdg. ±3 dgt.
AC Voltage6.000 V to 1000 V, 4 ranges, Frequency characteristics: 40 Hz to 1 kHz
Basic accuracy 40 - 500 Hz : ±0.9 % rdg. ±3 dgt. (True RMS, crest factor 3)
AUTO AC/DCVYes
Resistance600.0 Ω to 60.00 MΩ, 6 ranges, Basic accuracy: ±0.7 % rdg. ±3 dgt.
DC CurrentN/A
From 4 to 20mA Percentage conversion displayN/A
AC Current (use with Clamp on probes) 10.00 A to 1000 A, 7 ranges, Add the Clamp on probe accuracy to basic accuracy 40 - 1 kHz : ±0.9 % rdg. ±3 dgt. (True RMS, crest factor 3)
Temperature (thermocouples)N/A
Voltage detectionHi: AC40 V to 600 V, Lo: AC80 V to 600 V
C (capacitance)1.000 μF to 10.00 mF, 5 ranges, Basic accuracy: ±1.9 % rdg. ±5 dgt.
Frequency99.99 Hz to 99.99 kHz, 4 ranges (limited by the minimum detectable voltage),
Basic accuracy: ±0.1 % rdg. ±1 dgt.
Continuity checkContinuity threshold [ON]: 25 Ω or less ,
[OFF]: 245 Ω or more,
Response time: 0.5 ms or more
Diode testOpen terminal voltage: 5.0 V or less, Testing current 0.5 mA or less,
Threshold of forward voltage: 0.15 V to 1.5 V
Other functionsFilter function, Display value hold, Auto hold, Max/Min/Average value display, Relative display, Auto-power save, USB communication (option)
DisplayMain and Sub displays: 4-digits LCD, max. 6000 digits, bar graph
Display refresh rates5 times/s (Capacitance measurement: 0.05 to 5 times/s, depending on measured value, Frequency: 1 to 2 time/s)
Power supplyLR03 alkaline batteries ×4, Continuous use: 130 hours (backlight OFF)
Dimensions and mass84 mm (3.31 in)W × 174 mm (6.85 in)H× 52 mm (2.05 in)D,
390 g (13.8 oz) (including batteries and holster)
AccessoriesTest lead L9207-10 ×1, Holster ×1, Instruction manual ×1, LR03 alkaline battery ×4

Log into your myHioki account to access more technical documents and information where available.

Seminar Videos On Demand

No results were found.

Seminar Schedule

No results were found.

Catalogs

Catalog: COMMUNICATION PACKAGE (USB) DT4900-01 Download PDF  [1MB] English
Catalog: DIGITAL MULTIMETER DT4200 Series Download PDF  [5MB]
e-BOOK
English

User Guides

No results were found.

Outline Drawings


Ver.00
No results were found.

Drivers, Firmware

DMM Communicator for DT4200s  Freeware Version 2.10

Others

Flyer: Usable temperature range Max.65°C Max.-25°C Download PDF  [1MB]
e-BOOK
English

Options

Test leads

Options for the L9207-10 (L9207-10 is a bundled accessory)

CONTACT PIN SET L4933

Attaches to the tip of the Test Lead L9207-10/DT4911, L9206, 70V DC/ 33V AC

SMALL ALLIGATOR CLIP SET L4934

Attaches to the tip of the L4932, L9207-10/DT4911, L9206, CAT III 300V, CAT II 600V

TEST LEAD L9207-10

90 cm (2.95 ft) length

Current measurement

Clamp on current sensors for the DT4281, DT4253/4255/4256

CLAMP ON PROBE 9010-50

• Use for level measurement • 40 Hz to 1 kHz • 10 to 500 A AC • 0.2 V AC/range output • φ 46 mm (1.81 in) core dia.

Learn more

CLAMP ON PROBE 9018-50

• Excellent phase characteristics • 40 Hz to 3 kHz • 10 to 500A AC • 0.2V AC/range output • φ 46 mm (1.81 in) core dia.

Learn more

CLAMP ON PROBE 9132-50

• Use for level measurement • 40 Hz to 1 kHz • 20 to 1000A AC • 0.2 V AC/range output • φ 55 mm (2.17 in) core dia.

Learn more

CONVERSION ADAPTER 9704

Receiving end: Female BNC; Output end: Male banana-plug *Not compatible with older generation Memory Hicorders with banana input terminals

Options for Test leads

Options for the L4930

GRABBER CLIP 9243

Attaches to the tip of the banana plug cable, Red/ Black: 1 each, 196 mm (7.72 in) length, CAT III 1000 V

CONNECTION CABLE SET L4930

1.2 m (3.94 ft) length

EXTENSION CABLE SET L4931

Expands the length of the cable with banana plug, 1.5 m (4.92 ft) length

TEST PIN SET L4932

Attaches to the tip of the banana plug cable, CAT IV 600V, CAT III 1000V

SMALL ALLIGATOR CLIP SET L4934

Attaches to the tip of the L4932, L9207-10/DT4911, L9206, CAT III 300V, CAT II 600V

ALLIGATOR CLIP SET L4935

Attaches to the tip of the banana plug cable, CAT IV 600V, CAT III 1000V

BUS BAR CLIP SET L4936

Attaches to the tip of the banana plug cable, CAT III 600V

MAGNETIC ADAPTER SET L4937

Attaches to the tip of the banana plug cable, CAT III 1000V

TEST PIN SET L4938

Attaches to the tip of the banana plug cable, CAT III 600V

BREAKER PIN SET L4939

Attaches to the tip of the banana plug cable, CAT III 600V

Other options

CARRYING CASE 3853

CARRYING CASE C0201

CARRYING CASE C0202

COMMUNICATION PACKAGE (USB) DT4900-01

For DT4280s/4250s, compatible to Windows 8.1/ 8/ 7/ Vista

MAGNETIC STRAP Z5020

Extra strength
