Clearing the status byte register and related queues (except the output queue)

Syntax	Command	*CLS
	Query
	Response
	Parameter
Explanation	Command	Clears the content of the event registers (SESR, ESR0, ESR1, ESR2, ESR3).
Explanation	Query
Example	Command	*CLS Clears the content of the event registers (SESR, ESR0, ESR1, ESR2, ESR3).
	Query
	Response
Note		GPIB：The output queue is unaffected. RS-232C, USB, LAN：This has no effect upon the output queue, various enable registers, and MAV (bit 4) of the status byte register.

Reading and writing the standard event status enable register (SESER)

Syntax	Command	*ESE <Mask value>
	Query	*ESE?
	Response	<Mask value>
	Parameter	<Mask value> = 0 to 255 (NR1)
Explanation	Command	Sets the mask pattern of SESER. The initial value (at power-on) is 0.
Explanation	Query	Returns the mask pattern of SESER.
Example	Command	*ESE 36 Sets bits 5 and 2 of SESER.
	Query	*ESE?
	Response	*ESE 36 (when HEADER ON) 36 (when HEADER OFF) Bit 5 and 2 of SESER are 1.
Note

Reading and clearing the standard event status register (SESR)

Syntax	Command
	Query	*ESR?
	Response	<Register value>
	Parameter	<Register value> = 0 to 255 (NR1)
Explanation	Command
Explanation	Query	Returns the register value of SESR, and clears the register. The response message has no header.
Example	Command
	Query	*ESR?
	Response	32 Bit 5 of the SESR was set to 1.
Note		Bit 6 and 1 are not used in the instrument.

Querying the instrument ID (Identification Code)

Syntax	Command
	Query	*IDN?
	Response	<Maker Name>,<Serial No.>,< Model Name>,<Software Version>
	Parameter
Explanation	Command
Explanation	Query	Returns the ID of the instrument. A header is not added to the response message.
Example	Command
	Query	*IDN?
	Response	HIOKI,IM3590,123456789,V1.00
Note

Setting OPC of SESR after all of the actions being executed are finished

Syntax	Command	*OPC
	Query
	Response
	Parameter
Explanation	Command	Sets the OPC (bit 0) of the SESR (standard event status register) at the point in time that　command processing finishes for the sent commands which are before the command. Sets OPC bit 0 of the Standard Event Status Register (SESR) when all prior commands have finished processing.
Explanation	Query
Example	Command	A;B;*OPC;C Sets the OPC of SESR after the A and B commands are finished.
	Query
	Response
Note

Sending response of ASCII 1 after all of the actions being executed are finished

Syntax	Command
	Query	*OPC?
	Response
	Parameter
Explanation	Command
Explanation	Query	Sends the response of ASCII 1 at the point in time that command processing finishes for the sent commands which are before the *OPC command. A header is not added to the response message.
Example	Command
	Query	*OPC?
	Response	1
Note

Initializing the instrument

Syntax	Command	*RST
	Query
	Response
	Parameter
Explanation	Command	Initializes the instrument. This is the same as a system reset. However, the settings of interface are not initialized. See "Initial Settings Table"
Explanation	Query
Example	Command	*RST Executes initialization of the instrument.
	Query
	Response
Note		When the instrument is initialized, the current setting information is deleted and the instrument is restored to the initial state.

Writing and reading the service request enable register (SRER)

Syntax	Command	*SRE <Mask value>
	Query	*SRE?
	Response	<Mask value>
	Parameter	<Mask value> = 0 to 255 (NR1)
Explanation	Command	Sets the mask pattern of SRER. The initial value (when power is turned on) is 0. Bit 6 and unused bit 7 are ignored.
Explanation	Query	Returns the mask pattern of SRER. The values of bit 6 and the unused bit (bit 7) are always 0.
Example	Command	*SRE 34 Set SRER bits 5 and 1 to 0.
	Query	*SRE?
	Response	*SRE 34 (when HEADER ON) 34 (when HEADER OFF) SRER bits 5 and 1 have been set to 1.
Note

Reading the Status Byte Register

Syntax	Command
	Query	*STB?
	Response	<Register value>
	Parameter	<Register value> = 0 to 255 (NR1)
Explanation	Command
Explanation	Query	Returns the register value of STB. The response message has no header.
Example	Command
	Query	*STB?
	Response	8 STB bit 3 has been set to 1.
Note

Requesting a Sample

Syntax	Command	*TRG
	Query
	Response
	Parameter
Explanation	Command	Performs sampling once when there is an external trigger.
Explanation	Query
Example	Command	:TRIGger EXTernal;*TRG;:MEASure? This is set for the external trigger and acquires the measurement value after sampling is performed once.
	Query
	Response
Note		An execution error occurs if this command is executed when there is an internal trigger.

Executing self tests and querying results

Syntax	Command
	Query	*TST?
	Response	<Result>
	Parameter	<Result> = 0 to 15 (NR1)
Explanation	Command
Explanation	Query	Executes the following self tests and returns the result. ROM test SDRAM test SRAM test BUS test When the tests start, all functions including measurement are stopped and commands also become unable to be received. The tests take approximately 1 minute. Do not send commands or turn off the power of the instrument during the tests. A header is not added to the response message.
Example	Command
	Query	*TST?
	Response	5 The ROM test and SRAM test failed (NG).
Note		If the result is other than 0, the instrument may have malfunctioned. Contact your dealer or Hioki representative.

Executing following command after command processing is finished

Syntax	Command	*WAI
	Query
	Response
	Parameter
Explanation	Command	Executes the command following *WAI after command processing is finished.
Explanation	Query
Example	Command	A;B;WAI;C Executes WAI and then the C command after processing ends for commands A and B. Current Frequency:1 kHz when in internal trigger state When the WAI command was not used (Send) :FREQuency 120;:MEASure? In this case, it is not certain which frequency measurement value will be sent in response to the :MEASure? query. When the WAI command was used (Send) :FREQuency 120;*WAI;:MEASure? In this case, the 120 Hz frequency measurement value is sent in response to the :MEASure? query.
	Query
	Response
Note		Unique commands other than the ":MEASure?" query use sequential commands. Therefore, the *WAI command is only effective for the ":MEASure?" query.

Setting and querying measurement averaging

Syntax	Command	:AVERaging <OFF/ number of averaging times>
	Query	:AVERaging?
	Response	<OFF/ number of averaging times>
	Parameter	<number of averaging times> = 1 to 256 (NR1)
Explanation	Command	Sets the number of averaging times. OFF: Disables the averaging function.
Explanation	Query	Returns the number of measurement averaging times.
Example	Command	:AVERaging 32 Sets the number of averaging times to 32.
	Query	:AVERaging?
	Response	:AVERAGING 32 (when HEADER ON) 32 (when HEADER OFF) The number of averaging times is set to 32.
Note		Setting the number of averaging times to 1 automatically sets the averaging function to OFF. Setting the number of averaging times from 2 to 256 automatically sets the averaging function to ON.

Setting and querying the battery measurement function

Syntax	Command	:BATTery <OFF/ON>
	Query	:BATTery?
	Response	<OFF/ON>
	Parameter
Explanation	Command	Sets the battery measurement function. OFF: Disables the battery measurement function. ON: Enables the battery measurement function.
Explanation	Query	Returns the setting of the battery measurement function.
Example	Command	:BATTery ON Sets the battery measurement function to ON.
	Query	:BATTery?
	Response	:BATTERY ON (when HEADER ON) ON (when HEADER OFF) The battery measurement function is set to ON.
Note

Setting and querying the measurement speed for the battery measurement function

Syntax	Command	:BATTery:SPEEd <FAST/MEDium/SLOW/SLOW2>
	Query	:BATTery:SPEEd?
	Response	<FAST/MEDium/SLOW/SLOW2>
	Parameter
Explanation	Command	Sets the measurement speed for the battery measurement function.
Explanation	Query	Returns the setting of the measurement speed for the battery measurement function.
Example	Command	:BATTery:SPEEd MEDium Sets the measurement speed for the battery measurement function to medium.
	Query	:BATTery:SPEEd?
	Response	:BATTERY:SPEED MEDIUM (when HEADER ON) MEDIUM (when HEADER OFF) The measurement speed for the battery measurement function is set to medium.
Note

Setting and querying the line frequency for the battery measurement function

Syntax	Command	:BATTery:LFRequency <Line Frequency>
	Query	:BATTery:LFRequency?
	Response	<Line Frequency>
	Parameter	<Line Frequency> = 50/60 (NR1)
Explanation	Command	Sets the line frequency for the battery measurement function.
Explanation	Query	Returns the line frequency for the battery measurement function.
Example	Command	:BATTery:LFRequency 50 Sets the line frequency for the battery measurement function to 50 Hz.
	Query	:BATTery:LFRequency?
	Response	:BATTERY:LFREQUENCY 50 (when HEADER ON) 50 (when HEADER OFF) The line frequency for the battery measurement function is set to 50 Hz.
Note

Setting and querying the FINE ADJ function for the battery measurement function

Syntax	Command	:BATTery:FINeadj <OFF/ON>
	Query	:BATTery:FINeadj?
	Response	<OFF/ON>
	Parameter
Explanation	Command	Sets the FINE ADJ function for the battery measurement function. OFF: Disables the FINE ADJ function. ON: Enables the FINE ADJ function.
Explanation	Query	Returns the setting of the FINE ADJ function for the battery measurement function.
Example	Command	:BATTery:FINeadj ON Sets the FINE ADJ function for the battery measurement function to ON.
	Query	:BATTery:FINeadj?
	Response	:BATTERY:FINEADJ ON (when HEADER ON) ON (when HEADER OFF) The FINE ADJ function for the battery measurement function is set to ON.
Note

Querying the voltage monitor value for the battery measurement function

Syntax	Command
	Query	:BATTery:MONItor?
	Response	<Voltage monitor value for battery measurement>
	Parameter
Explanation	Command
Explanation	Query	Returns the voltage monitor value during battery measurement.
Example	Command
	Query	:BATTery:MONItor?
	Response	:BATTERY:MONITOR 4.902974E-03 (when HEADER ON) 4.902974E-03 (when HEADER OFF) The voltage monitor during battery measurement is set to 4.902974 mV.
Note

Setting and querying beep sound for the judgment results of measurement values

Syntax	Command	:BEEPer:JUDGment <OFF/IN/NG>
	Query	:BEEPer:JUDGment?
	Response	<OFF/IN/NG>
	Parameter
Explanation	Command	Sets the beep sound for the judgment results of measurement values. OFF: No beep sound. IN: Sets a beep sound to be emitted when a result is within the range. NG: Sets a beep sound to be emitted when a result is outside the range.
Explanation	Query	Returns the setting of the beep sound for the judgment results of measurement values.
Example	Command	:BEEPer:JUDGment NG Sets a beep sound to be emitted when a result is outside the range.
	Query	:BEEPer:JUDGment?
	Response	:BEEPER:JUDGMENT NG (when HEADER ON) NG (when HEADER OFF) A beep sound is set to be emitted when a result is outside the range.
Note

Setting and querying beep sound for key input

Syntax	Command	:BEEPer:KEY <ON/OFF>
	Query	:BEEPer:KEY?
	Response	<ON/OFF>
	Parameter
Explanation	Command	Sets the beep sound for key operation. ON: A beep sound is emitted. OFF: A beep sound is not emitted.
Explanation	Query	Returns the setting of the beep sound for key operation.
Example	Command	:BEEPer:KEY ON Sets a beep sound to be emitted.
	Query	:BEEPer:KEY?
	Response	:BEEPER:KEY ON (when HEADER ON) ON (when HEADER OFF) A beep sound is set to be emitted.
Note

Setting and querying the beep tone type

Syntax	Command	:BEEPer:TONE <A/B/C/D>
	Query	:BEEPer:TONE?
	Response	<A/B/C/D>
	Parameter
Explanation	Command	Sets the beep tone type.
Explanation	Query	Returns the beep tone type.
Example	Command	:BEEPer:TONE C Sets the beep tone to "C".
	Query	:BEEPer:TONE?
	Response	:BEEPER:TONE C (when HEADER ON) C (when HEADER OFF) The beep tone is set to "C".
Note

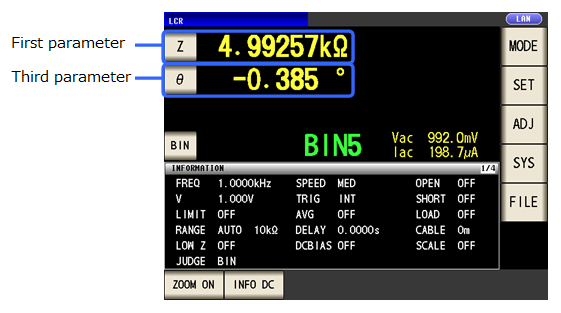

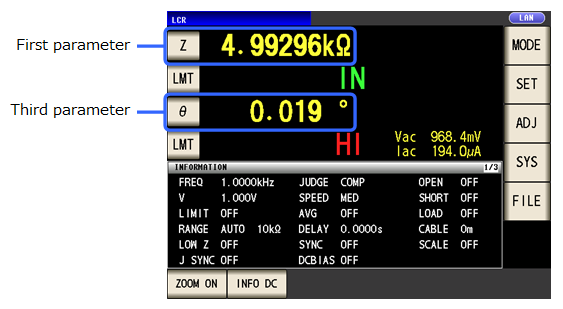

Setting and querying ON/ OFF of BIN function

Syntax	Command	:BIN <OFF/ON>
	Query	:BIN?
	Response	<OFF/ON>
	Parameter
Explanation	Command	Sets the BIN measurement function. OFF: Disables the BIN function. ON: Enables the BIN function.
Explanation	Query	Returns ON or OFF for the BIN measurement function.
Example	Command	:BIN ON Sets the BIN measurement function to ON.
	Query	:BIN?
	Response	:BIN ON (when HEADER ON) ON (when HEADER OFF) The BIN measurement function is set to ON.
Note		Sending the :BIN ON command during comparator measurement automatically ends comparator measurement and starts BIN measurement.

Setting and querying the upper and lower limit values of the first parameter of the BIN function (absolute value mode)

Syntax	Command	:BIN:FLIMit:ABSolute <BIN number>,<OFF/ lower value>,<OFF/ upper value>
	Query	:BIN:FLIMit:ABSolute? <BIN number>
	Response	<OFF/ lower value>, <OFF/ upper value>
	Parameter	<BIN number> = 1 to 10 <Lower limit values> = -9.99999E+09 to +9.99999E+09 (NR3) <Upper limit values> = -9.99999E+09 to +9.99999E+09 (NR3)
Explanation	Command	Sets the upper and lower limit values of the first parameter in absolute value mode of the specified BIN number.
Explanation	Query	Returns the setting of the upper and lower limit values of the first parameter in absolute value mode of the specified BIN number.
Example	Command	:BIN:FLIMit:ABSolute 1,234.560E-06,1.23456 Sets the lower and upper limit values of the first parameter in absolute value mode of BIN1 to 234.560E-06 and 1.23456, respectively.
	Query	:BIN:FLIMit:ABSolute? 1
	Response	:BIN:FLIMIT:ABSOLUTE 234.560E-06,1.23456E+00 (when HEADER ON) 234.560E-06,1.23456E+00 (when HEADER OFF) The lower and upper limit values of the first parameter in absolute value mode of BIN1 are set to 234.560E-06 and 1.23456, respectively.
Note		The instrument stores the upper and lower limit values for absolute mode and those for percentage (%) mode separately. The reference value and upper and lower limit values are common to percentage (%) mode and deviation percentage (Δ%) mode.

Setting and querying the upper and lower limit values of the first parameter of the BIN function (deviation percentage (Δ%) mode)

Syntax	Command	:BIN:FLIMit:DEViation <BIN number>,<OFF/ lower value>,<OFF/ upper value>
	Query	:BIN:FLIMit:DEViation? <BIN number>
	Response	<OFF/ lower value>, <OFF/ upper value>
	Parameter	<BIN number> = 1 to 10 <Lower limit values> = -999.999% to +999.999% (NR2) <Upper limit values> = -999.999% to +999.999% (NR2)
Explanation	Command	Sets the upper and lower limit values of the first parameter in deviation percentage (Δ%) mode of the specified BIN number.
Explanation	Query	Returns the setting of the upper and lower limit values of the first parameter in deviation percentage (Δ%) mode of the specified BIN number.
Example	Command	:BIN:FLIMit:DEViation 1,-10.000,10.000 Sets the lower and upper limit values of the first parameter in deviation percentage (Δ%) mode of BIN1 to -10% and 10%, respectively.
	Query	:BIN:FLIMit:DEViation? 1
	Response	:BIN:FLIMIT:DEVIATION -10.000,10.000 (when HEADER ON) -10.000,10.000 (when HEADER OFF) The lower and upper limit values of the first parameter in deviation percentage (Δ%) mode of BIN1 are set to -10% and 10%, respectively.
Note		The instrument stores the upper and lower limit values for absolute mode and those for deviation percentage (Δ%) mode separately. The reference value and upper and lower limit values are common to percentage (%) mode and deviation percentage (Δ%) mode.

Selecting and querying the mode of the first parameter of the BIN function

Syntax	Command	:BIN:FLIMit:MODE <ABSolute/PERcent/DEViation>
	Query	:BIN:FLIMit:MODE?
	Response	<ABSOLUTE/PERCENT/DEVIATION>
	Parameter
Explanation	Command	Sets the mode of the first parameter. ABSolute: Sets the mode to absolute (ABS) mode. PERcent: Sets the mode to percentage (%) mode. DEViation: Sets the mode to deviation percentage (Δ%) mode.
Explanation	Query	Returns the mode of the first parameter.
Example	Command	:BIN:FLIMit:MODE PERcent Selects percentage (%) mode.
	Query	:BIN:FLIMit:MODE?
	Response	:BIN:FLIMIT:MODE PERCENT (when HEADER ON) PERCENT (when HEADER OFF) The mode is set to percentage (%) mode.
Note

Setting and querying the upper and lower limit values of the first parameter of the BIN function (percentage (%) mode)

Syntax	Command	:BIN:FLIMit:PERcent <BIN number>,<OFF/ lower value>,<OFF/ upper value>
	Query	:BIN:FLIMit:PERcent? <BIN number>
	Response	<OFF/ lower value>, <OFF/ upper value>
	Parameter	<BIN number> = 1 to 10 <Lower limit values> = -999.999% to +999.999% (NR2) <Upper limit values> = -999.999% to +999.999% (NR2)
Explanation	Command	Sets the upper and lower limit values of the first parameter in percentage (%) mode of the specified BIN number.
Explanation	Query	Returns the upper and lower limit values of the first parameter in percentage (%) mode of the specified BIN number.
Example	Command	:BIN:FLIMit:PERcent 1,-10.000,10.000 Sets the lower and upper limit values of the first parameter in percentage (%) mode of BIN1 to -10% and 10%, respectively.
	Query	:BIN:FLIMit:PERcent? 1
	Response	:BIN:FLIMIT:PERCENT -10.000,10.000 (when HEADER ON) -10.000,10.000 (when HEADER OFF) The lower and upper limit values of the first parameter in percentage (%) mode of BIN1 are set to -10% and 10%, respectively.
Note		The instrument stores the upper and lower limit values for absolute mode and those for percentage (%) mode separately. The reference value and upper and lower limit values are common to percentage (%) mode and deviation percentage (Δ%) mode.

Setting and querying the reference value of the first parameter of the BIN function (percentage (%) mode and deviation percentage (Δ%) mode)

Syntax	Command	:BIN:FLIMit:REFerence <Reference value>
	Query	:BIN:FLIMit:REFerence?
	Response	<Reference value>
	Parameter	<Reference value> = -9.99999E+09 to +9.99999E+09 (NR3)
Explanation	Command	Sets the reference value of the first parameter in percentage (%) mode or deviation percentage (Δ%) mode.
Explanation	Query	Returns the reference value of the first parameter in percentage (%) mode or deviation percentage (Δ%) mode.
Example	Command	:BIN:FLIMit:REFerence 1.23456E-6 Sets the reference value of the first parameter in percentage (%) mode or deviation percentage (Δ%) mode to 1.23456E-6.
	Query	:BIN:FLIMit:REFerence?
	Response	:BIN:FLIMIT:REFERENCE 1.23456E-06 (when HEADER ON) 1.23456E-06 (when HEADER OFF) The reference value of the first parameter in percentage (%) mode or deviation percentage (Δ%) mode is set to 1.23456E-6.
Note		The reference value is common to percentage (%) mode and deviation percentage (Δ%) mode. 0 cannot be set as a reference value.

Setting and querying the upper and lower limit values of the third parameter of the BIN function (absolute value mode)

Syntax	Command	:BIN:SLIMit:ABSolute <BIN number>,<OFF/ lower value>,<OFF/ upper value>
	Query	:BIN:SLIMit:ABSolute? <BIN number>
	Response	<OFF/ lower value>, <OFF/ upper value>
	Parameter	<BIN number> = 1 to 10 <Lower limit values> = -9.99999E+09 to +9.99999E+09 (NR3) <Upper limit values> = -9.99999E+09 to +9.99999E+09 (NR3)
Explanation	Command	Sets the upper and lower limit values of the third parameter in absolute value mode of the specified BIN number.
Explanation	Query	Returns the setting of the upper and lower limit values of the third parameter in absolute value mode of the specified BIN number.
Example	Command	:BIN:SLIMit:ABSolute 1,234.560E-06,1.23456 Sets the lower and upper limit values of the third parameter in absolute value mode of BIN1 to 234.560E-06 and 1.23456, respectively.
	Query	:BIN:SLIMit:ABSolute? 1
	Response	:BIN:SLIMIT:ABSOLUTE 234.560E-06, 1.23456E+00 (when HEADER ON) 234.560E-06, 1.23456E+00 (when HEADER OFF) The lower and upper limit values of the third parameter in absolute value mode of BIN1 are set to 234.560E-06 and 1.23456, respectively.
Note		The instrument stores the upper and lower limit values for absolute mode and those for percentage (%) mode separately. The reference value and upper and lower limit values are common to percentage (%) mode and deviation percentage (Δ%) mode.

Setting and querying the upper and lower limit values of the third parameter of the BIN function (deviation percentage (Δ%) mode)

Syntax	Command	:BIN:SLIMit:DEViation <BIN number>,<OFF/ lower value>,<OFF/ upper value>
	Query	:BIN:SLIMit:DEViation? <BIN number>
	Response	<OFF/ lower value>, <OFF/ upper value>
	Parameter	<BIN number> = 1 to 10 <Lower limit values> = -999.999% to +999.999% (NR2) <Upper limit values> = -999.999% to +999.999% (NR2)
Explanation	Command	Sets the upper and lower limit values of the third parameter in deviation percentage (Δ%) mode of the specified BIN number.
Explanation	Query	Returns the setting of the upper and lower limit values of the third parameter in deviation percentage (Δ%) mode of the specified BIN number.
Example	Command	:BIN:SLIMit:DEViation 1,-10.0,10.0 Sets the lower and upper limit values of the third parameter in deviation percentage (Δ%) mode of BIN1 to -10% and 10%, respectively.
	Query	:BIN:SLIMit:DEViation? 1
	Response	:BIN:SLIMIT:DEVIATION -10.000,10.000 (when HEADER ON) -10.000,10.000 (when HEADER OFF) The lower and upper limit values of the third parameter in deviation percentage (Δ%) mode of BIN1 are set to -10% and 10%, respectively.
Note		The instrument stores the upper and lower limit values for absolute mode and those for deviation percentage (Δ%) mode separately. The reference value and upper and lower limit values are common to percentage (%) mode and deviation percentage (Δ%) mode.

Selecting and querying the mode of the third parameter of the BIN function

Syntax	Command	:BIN:SLIMit:MODE <ABSolute/PERcent/DEViation>
	Query	:BIN:SLIMit:MODE?
	Response	<ABSOLUTE/PERCENT/DEVIATION>
	Parameter
Explanation	Command	Sets the mode of the third parameter. ABSolute: Sets the mode to absolute (ABS) mode. PERcent: Sets the mode to percentage (%) mode. DEViation: Sets the mode to deviation percentage (Δ%) mode.
Explanation	Query	Returns the mode of the third parameter.
Example	Command	:BIN:SLIMit:MODE PERcent Selects percentage (%) mode.
	Query	:BIN:SLIMit:MODE?
	Response	:BIN:SLIMIT:MODE PERCENT (when HEADER ON) PERCENT (when HEADER OFF) The mode is set to percentage (%) mode.
Note

Setting and querying the upper and lower limit values of the third parameter of the BIN function (percentage (%) mode)

Syntax	Command	:BIN:SLIMit:PERcent <BIN number>,<OFF/ lower value>,<OFF/ upper value>
	Query	:BIN:SLIMit:PERcent? <BIN number>
	Response	<OFF/ lower value>, <OFF/ upper value>
	Parameter	<BIN number> = 1 to 10 <Lower limit values> = -999.999% to +999.999% (NR2) <Upper limit values> = -999.999% to +999.999% (NR2)
Explanation	Command	Sets the upper and lower limit values of the third parameter in percentage (%) mode of the specified BIN number.
Explanation	Query	Returns the upper and lower limit values of the third parameter in percentage (%) mode of the specified BIN number.
Example	Command	:BIN:SLIMit:PERcent 1,-10.000,10.000 Sets the lower and upper limit values of the third parameter in percentage (%) mode of BIN1 to -10% and 10%, respectively.
	Query	:BIN:SLIMit:PERcent? 1
	Response	:BIN:SLIMIT:PERCENT -10.000,10.000 (when HEADER ON) -10.000,10.000 (when HEADER OFF) The lower and upper limit values of the third parameter in percentage (%) mode of BIN1 are set to -10% and 10%, respectively.
Note		The instrument stores the upper and lower limit values for absolute mode and those for percentage (%) mode separately. The reference value and upper and lower limit values are common to percentage (%) mode and deviation percentage (Δ%) mode.

Setting and querying the reference value of the third parameter of the BIN function (percentage (%) mode and deviation percentage (Δ%) mode)

Syntax	Command	:BIN:SLIMit:REFerence <Reference value>
	Query	:BIN:SLIMit:REFerence?
	Response	<Reference value>
	Parameter	<Reference value> = -9.99999E+09 to +9.99999E+09 (NR3)
Explanation	Command	Sets the reference value of the third parameter in percentage (%) mode or deviation percentage (Δ%) mode.
Explanation	Query	Returns the reference value of the third parameter in percentage (%) mode or deviation percentage (Δ%) mode.
Example	Command	:BIN:SLIMit:REFerence 1.23456E-6 Sets the reference value of the third parameter in percentage (%) mode or deviation percentage (Δ%) mode to 1.23456E-6.
	Query	:BIN:SLIMit:REFerence?
	Response	:BIN:SLIMIT:REFERENCE 1.23456E-06 (when HEADER ON) 1.23456E-06 (when HEADER OFF) The reference value of the third parameter in percentage (%) mode or deviation percentage (Δ%) mode is set to 1.23456E-6.
Note		The reference value is common to percentage (%) mode and deviation percentage (Δ%) mode. 0 cannot be set as a reference value.

Setting and querying the calculation parameters of conductivity/permittivity

Syntax	Command	:CALCulate:PARameter <CS/ CP>
	Query	:CALCulate:PARameter?
	Response	<CS/ CP>
	Parameter
Explanation	Command	Sets the parameters during calculation of conductivity/permittivity.
Explanation	Query	Returns the parameter setting during calculation of conductivity/permittivity.
Example	Command	:CALCulate:PARameter　CS Sets the parameter setting during calculation of conductivity/permittivity to the capacitance of the direct current equivalent circuit mode.
	Query	:CALCulate:PARameter?
	Response	:CALCULATE:PARAMETER CS (when HEADER ON) CS (when HEADER OFF) The parameter setting during calculation of conductivity/permittivity is set to the capacitance of the direct current equivalent circuit mode.
Note

Setting and querying the conductor length during calculation of conductivity/permittivity

Syntax	Command	:CALCulate:LENGth <Length of conductor>
	Query	:CALCulate:LENGth?
	Response	<Length of conductor>
	Parameter	<Length of conductor> = 0.000001 to 1000000 (NR2)
Explanation	Command	Sets the length of the conductor during calculation of conductivity/permittivity.
Explanation	Query	Returns the setting of the length of the conductor during calculation of conductivity/permittivity.
Example	Command	:CALCulate:LENGth 30 Sets the length of the conductor during calculation of conductivity/permittivity to 30 mm.
	Query	:CALCulate:LENGth?
	Response	:CALCULATE:LENGTH 30.00000 (when HEADER ON) 30.00000 (when HEADER OFF) The length of the conductor during calculation of conductivity/permittivity is set to 30 mm.
Note

Setting and querying the cross-sectional area of the conductor during calculation of conductivity/permittivity

Syntax	Command	:CALCulate:AREA <Cross-sectional area of conductor>
	Query	:CALCulate:AREA?
	Response	<Cross-sectional area of conductor>
	Parameter	<Cross-sectional area of conductor> = 0.000001 to 1000000 (NR2)
Explanation	Command	Sets the cross-sectional area of the conductor during calculation of the conductivity/permittivity.
Explanation	Query	Returns the setting of the cross-sectional area of the conductor during calculation of conductivity/permittivity.
Example	Command	:CALCulate:AREA 10 Sets the cross-sectional area of the conductor during calculation of conductivity/permittivity to 10 mm2.
	Query	:CALCulate:AREA?
	Response	:CALCULATE:AREA 10.00000 (when HEADER ON) 10.00000 (when HEADER OFF) The cross-sectional area of the conductor during calculation of conductivity/permittivity is set to 10 mm².
Note

Setting and querying the length and cross-sectional area of the conductor during calculation of conductivity

Syntax	Command	:SIGMa <Length of conductor>, <Cross-sectional area of conductor>
	Query	:SIGMa?
	Response	<Length of conductor>, <Cross-sectional area of conductor>
	Parameter	<Length of conductor> = 0.000001 to 1000000 (NR2) <Cross-sectional area of conductor> = 0.000001 to 1000000 (NR2)
Explanation	Command	Sets the length and cross-sectional area of the conductor during calculation of conductivity.
Explanation	Query	Returns the setting of the length and cross-sectional area of the conductor during calculation of conductivity.
Example	Command	:SIGMa 30,10 Sets the length of the conductor during calculation of conductivity to 30 mm and the cross-sectional area to 10 mm2.
	Query	:SIGMa?
	Response	:SIGMA 30,10 (when HEADER ON) 30.00000,10.00000 (when HEADER OFF) The length of the conductor during calculation of the conductivity is set to 30 mm and the cross-sectional area to 10 mm2.
Note		The compatibility command for 3532-80.

Setting and querying the contact check function

Syntax	Command	:CCHeck:VERify <OFF/BEFore/AFTer/BOTH>
	Query	:CCHeck:VERify?
	Response	<OFF/BEFore/AFTer/BOTH>
	Parameter
Explanation	Command	Sets the contact check function.
Explanation	Query	Returns the setting of the contact check function.
Example	Command	:CCHeck:VERify AFTer Sets the contact check function to "AFTER".
	Query	:CCHeck:VERify?
	Response	:CCHECK:VERIFY AFTER (when HEADER ON) AFTER (when HEADER OFF) The contact check function is set to "AFTER".
Note		When the contact check function is set to "BEFore" or "BOTH", the trigger synchronous output function is automatically set to "ON".

Setting and querying the settable range for the contact check function

Syntax	Command	:CCHeck:SENSitivity <Settable range>
	Query	:CCHeck:SENSitivity?
	Response	<Settable range>
	Parameter	<Settable range> = 1 to 5 (NR1)
Explanation	Command	Sets the settable range of the contact check function.
Explanation	Query	Returns the settable range for the contact check function.
Example	Command	:CCHeck:SENSitivity 5 Sets the settable range for the contact check function to 5.
	Query	:CCHeck:SENSitivity?
	Response	:CCHECK:SENSITIVITY 5 (when HEADER ON) 5 (when HEADER OFF) The settable range for the contact check function is set to "5".
Note

Setting and querying ON/ OFF of comparator function

Syntax	Command	:COMParator <OFF/ON>
	Query	:COMParator?
	Response	<OFF/ON>
	Parameter
Explanation	Command	Sets the comparator function. OFF: Disables the comparator function. ON: Enables the comparator function.
Explanation	Query	Returns the setting of the comparator function.
Example	Command	:COMParator ON Sets the comparator function to ON.
	Query	:COMParator?
	Response	:COMPARATOR ON (when HEADER ON) ON (when HEADER OFF) The comparator function is set to ON.
Note		Sending the :COMParator ON command during BIN measurement automatically ends BIN measurement and starts comparator measurement.

Setting and querying the upper and lower limit values of the first parameter of the comparator function (absolute value mode)

Syntax	Command	:COMParator:FLIMit:ABSolute <OFF/ lower value>,<OFF/ upper value>
	Query	:COMParator:FLIMit:ABSolute?
	Response	<OFF/ lower value>, <OFF/ upper value>
	Parameter	<Lower limit values> = -9.99999E+09 to +9.99999E+09 (NR3) <Upper limit values> = -9.99999E+09 to +9.99999E+09 (NR3)
Explanation	Command	Sets the upper and lower limit values of the first parameter in absolute mode.
Explanation	Query	Returns the upper and lower limit values of the first parameter in absolute mode.
Example	Command	:COMParator:FLIMit:ABSolute 234.560E-06,1.23456 Sets the lower and upper limit values of the first parameter in absolute value mode to 0.23456E-03 and 1.23456, respectively.
	Query	:COMParator:FLIMit:ABSolute?
	Response	:COMPARATOR:FLIMIT:ABSOLUTE 234.560E-06, 1.23456E+00 (when HEADER ON) 234.560E-06, 1.23456E+00 (when HEADER OFF) The lower and upper limit values of the first parameter in absolute value mode are set to 0.23456E-03 and 1.23456, respectively.
Note		The instrument stores the upper and lower limit values for absolute mode and those for percentage (%) mode separately. The reference value and upper and lower limit values are common to percentage (%) mode and deviation percentage (Δ%) mode.

Setting and querying the reference value and the upper and lower limit values of the first parameter of the comparator function (deviation percentage (Δ%) mode)

Syntax	Command	:COMParator:FLIMit:DEViation <Reference value>,<OFF/ Lower limit values>,<OFF/ Upper limit values>
	Query	:COMParator:FLIMit:DEViation?
	Response	<Reference value>,<OFF/ lower value>,<OFF/ upper value>
	Parameter	<Reference value> = -9.99999E+09 to +9.99999E+09 (NR3) <Lower limit values> = -999.999% to +999.999% (NR2) <Upper limit values> = -999.999% to +999.999% (NR2)
Explanation	Command	Sets the reference value and upper and lower limit values of the first parameter in deviation percentage (Δ%) mode.
Explanation	Query	Returns the reference value and upper and lower limit values of the first parameter in deviation percentage (Δ%) mode.
Example	Command	:COMParator:FLIMit:DEViation 1.23456E-6,-10.000,10.000 Sets the reference value and the lower and upper limit values of the first parameter in deviation percentage (Δ%) mode to 1.23456E-6, -10%, and 10%, respectively.
	Query	:COMParator:FLIMit:DEViation?
	Response	:COMPARATOR:FLIMIT:DEVIATION 1.23456E-06,-10.000,10.000 (when HEADER ON) 1.23456E-06,-10.000,10.000 (when HEADER OFF) The reference value and the lower and upper limit values of the first parameter in deviation percentage (Δ%) mode are set to 1.23456E-6, -10%, and 10%, respectively.
Note		The instrument stores the upper and lower limit values for absolute mode and those for deviation percentage (Δ%) mode separately. The reference value and upper and lower limit values are common to percentage (%) mode and deviation percentage (Δ%) mode. 0 cannot be set as a reference value.

Setting and querying the judgment mode of the first parameter of the comparator function

Syntax	Command	:COMParator:FLIMit:MODE <ABSolute/PERcent/DEViation>
	Query	:COMParator:FLIMit:MODE?
	Response	<ABSOLUTE/PERCENT/DEVIATION>
	Parameter
Explanation	Command	Sets the mode of the first parameter. ABSolute: Sets the mode to absolute (ABS) mode. PERcent: Sets the mode to percentage (%) mode. DEViation: Sets the mode to deviation percentage (Δ%) mode.
Explanation	Query	Returns the mode of the first parameter.
Example	Command	:COMParator:FLIMit:MODE PERcent Selects percentage (%) mode.
	Query	:COMParator:FLIMit:MODE?
	Response	:COMPARATOR:FLIMIT:MODE PERCENT (when HEADER ON) PERCENT (when HEADER OFF) The mode is set to percentage (%) mode.
Note

Setting and querying the reference value and the upper and lower limit values of the first parameter of the comparator function (percentage (%) mode)

Syntax	Command	:COMParator:FLIMit:PERcent <Reference value>,<OFF/ Lower limit values>,<OFF/ Upper limit values>
	Query	:COMParator:FLIMit:PERcent?
	Response	<Reference value>,<OFF/ lower value>,<OFF/ upper value>
	Parameter	<Reference value> = -9.99999E+09 to +9.99999E+09 (NR3) <Lower limit values> = -999.999% to +999.999% (NR2) <Upper limit values> = -999.999% to +999.999% (NR2)
Explanation	Command	Sets the reference value and upper and lower limit values of the first parameter in percentage (%) mode.
Explanation	Query	Returns the reference value and upper and lower limit values of the first parameter in percentage (%) mode.
Example	Command	:COMParator:FLIMit:PERcent 1.23456E-6,-10.000,10.000 Sets the reference value and the lower and upper limit values of the first parameter in percentage (%) mode to 1.23456E-06, -10%, and 10%, respectively.
	Query	:COMParator:FLIMit:PERcent?
	Response	:COMPARATOR:FLIMIT:PERCENT 1.23456E-06,-10.000,10.000 (when HEADER ON) 1.23456E-06,-10.000,10.000 (when HEADER OFF) The reference value and the lower and upper limit values of the first parameter in percentage (%) mode are set to 1.23456E-06, -10%, and 10%, respectively.
Note		The instrument stores the upper and lower limit values for absolute mode and those for percentage (%) mode separately. The reference value and upper and lower limit values are common to percentage (%) mode and deviation percentage (Δ%) mode. 0 cannot be set as a reference value.

Setting and querying the upper and lower limit values of the third parameter of the comparator function (absolute value mode)

Syntax	Command	:COMParator:SLIMit:ABSolute <OFF/ lower value>,<OFF/ upper value>
	Query	:COMParator:SLIMit:ABSolute?
	Response	<OFF/ lower limit values>,<OFF/ upper limit values>
	Parameter	<Lower limit values> = -9.99999E+09 to +9.99999E+09 (NR3) <Upper limit values> = -9.99999E+09 to +9.99999E+09 (NR3)
Explanation	Command	Sets the upper and lower limit values of the third parameter in absolute mode.
Explanation	Query	Returns the upper and lower limit values of the third parameter in absolute mode.
Example	Command	:COMParator:SLIMit:ABSolute 234.560E-06,1.23456 Sets the lower and upper limit values of the third parameter in absolute value mode to 0.23456E-03 and 1.23456, respectively.
	Query	:COMParator:SLIMit:ABSolute?
	Response	:COMPARATOR:SLIMIT:ABSOLUTE 234.560E-06, 1.23456E+00 (when HEADER ON) 234.560E-06, 1.23456E+00 (when HEADER OFF) The lower and upper limit values of the third parameter in absolute value mode are set to 0.23456E-03 and 1.23456, respectively.
Note		The instrument stores the upper and lower limit values for absolute mode and those for percentage (%) mode separately. The reference value and upper and lower limit values are common to percentage (%) mode and deviation percentage Δ%) mode.

Setting and querying the reference value and the upper and lower limit values of the SUB parameter of the comparator function (deviation percentage (Δ%) mode)

Syntax	Command	:COMParator:SLIMit:DEViation <Reference value>,<OFF/ Lower limit values>,<OFF/ Upper limit values>
	Query	:COMParator:SLIMit:DEViation?
	Response	<Reference value>,<OFF/ lower value>,<OFF/ upper value>
	Parameter	<Reference value> = -9.99999E+09 to +9.99999E+09 (NR3) <Lower limit values> = -999.999% to +999.999% (NR2) <Upper limit values> = -999.999% to +999.999% (NR2)
Explanation	Command	Sets the reference value and upper and lower limit values of the third parameter in deviation percentage (Δ%) mode.
Explanation	Query	Returns the reference value and upper and lower limit values of the third parameter in deviation percentage (Δ%) mode.
Example	Command	:COMParator:SLIMit:DEViation 1.23456E-6,-10.000,10.000 Sets the reference value and the lower and upper limit values of the third parameter in deviation percentage (Δ%) mode to 1.23456E-6, -10%, and 10%, respectively.
	Query	:COMParator:SLIMit:DEViation?
	Response	:COMPARATOR:SLIMIT:DEVIATION 1.23456E-06,-10.000,10.000 (when HEADER ON) 1.23456E-06,-10.000,10.000 (when HEADER OFF) The reference value and the lower and upper limit values of the first parameter in deviation percentage (Δ%) mode are set to 1.23456E-6, -10%, and 10%, respectively.
Note		The instrument stores the upper and lower limit values for absolute mode and those for deviation percentage (Δ%) mode separately. The reference value and upper and lower limit values are common to percentage (%) mode and deviation percentage (Δ%) mode. 0 cannot be set as a reference value.

Setting and querying the judgment mode of the third parameter of the comparator function

Syntax	Command	:COMParator:SLIMit:MODE <ABSolute/PERcent/DEViation>
	Query	:COMParator:SLIMit:MODE?
	Response	<ABSOLUTE/PERCENT/DEVIATION>
	Parameter
Explanation	Command	Sets the mode of the third parameter. ABSolute: Sets the mode to absolute (ABS) mode. PERcent: Sets the mode to percentage (%) mode. DEViation: Sets the mode to deviation percentage (Δ%) mode.
Explanation	Query	Returns the mode of the third parameter.
Example	Command	:COMParator:SLIMit:MODE PERcent Selects percentage (%) mode.
	Query	:COMParator:SLIMit:MODE?
	Response	:COMPARATOR:SLIMIT:MODE PERCENT (when HEADER ON) PERCENT (when HEADER OFF) The mode is set to percentage (%) mode.
Note

Setting and querying the reference value and the upper and lower limit values of the third parameter of the comparator function (percentage mode)

Syntax	Command	:COMParator:SLIMit:PERcent <Reference value>,<OFF/ Lower limit values>,<OFF/ Upper limit values>
	Query	:COMParator:SLIMit:PERcent?
	Response	<Reference value>,<OFF/ lower value>,<OFF/ upper value>
	Parameter	<Reference value> = -9.99999E+09 to +9.99999E+09 (NR3) <Lower limit values> = -999.999% to +999.999% (NR2) <Upper limit values> = -999.999% to +999.999% (NR2)
Explanation	Command	Sets the reference value and upper and lower limit values of the third parameter in percentage (%) mode.
Explanation	Query	Returns the reference value and upper and lower limit values of the third parameter in percentage (%) mode.
Example	Command	:COMParator:SLIMit:PERcent 1.23456E-6,-10.000,10.000 Sets the reference value and the lower and upper limit values of the third parameter in percentage (%) mode to 1.23456E-6, -10%, and 10%, respectively.
	Query	:COMParator:SLIMit:PERcent?
	Response	:COMPARATOR:SLIMIT:PERCENT 1.23456E-06,-10.000,10.000 (when HEADER ON) 1.23456E-06,-10.000,10.000 (when HEADER OFF) The reference value and the lower and upper limit values of the third parameter in percentage (%) mode are set to 1.23456E-6, -10%, and 10%, respectively.
Note		The instrument stores the upper and lower limit values for absolute mode and those for percentage (%) mode separately. The reference value and upper and lower limit values are common to percentage (%) mode and deviation percentage (Δ%) mode.

Open / Short compensation function on/off setting and querying during DC measurement

Syntax	Command	:CORRection:LIMit:DC <ON/OFF>
	Query	:CORRection:LIMit:DC?
	Response	<ON/OFF>
	Parameter
Explanation	Command	Turns the open / short compensation function on and off during DC measurement.
Explanation	Query	Returns the open / short compensation function's on/off setting during DC measurement.
Example	Command	:CORRection:LIMit:DC ON Turns on the open / short compensation function during DC measurement.
	Query	:CORRection:LIMit:DC?
	Response	:CORRECTION:LIMIT:DC ON (when HEADER ON) ON (when HEADER OFF) The open / short correction function is set to on during DC measurement.
Note		This setting applies to all compensation. The compensation function on/off setting during DC measurement applies to both open and short compensation.

Open / Short compensation range setting and querying during AC measurement

Syntax	Command	:CORRection:LIMit:POINt <UNLimited/Compensation minimum frequency>, <UNLimited/Compensation maximum frequency>
	Query	:CORRection:LIMit:POINt?
	Response	<UNLIMITED/Compensation minimum frequency>, <UNLIMITED/Compensation maximum frequency>
	Parameter	<Compensation minimum frequency> = 20.000 to 200.00 kHz (NR3) <Compensation minimum frequency> = 20.000 to 200.00 kHz (NR3)
Explanation	Command	Sets the open / short compensation range during AC measurement.
Explanation	Query	Returns the open / short compensation range during AC measurement.
Example	Command	:CORRection:LIMit:POINt 100E3, 200E3 Sets the open / short compensation range to 100 kHz to 200 kHz during AC measurement.
	Query	:CORRection:LIMit:POINt?
	Response	:CORRECTION:LIMIT:POINT 100.00E+03, UNLIMITED (when HEADER ON) 100.00E+03, UNLIMITED (when HEADER OFF) The open / short compensation range is set to 100 kHz to 200 kHz during AC measurement.
Note		This setting applies to all compensation. The compensation range during AC measurement is common to the open and short compensations. If the maximum compensation frequency is lower than the minimum compensation frequency, the maximum and minimum compensation frequencies are automatically switched.

Executing, cancelling, and querying the open compensation function

Syntax	Command	:CORRection:OPEN <OFF/ALL/SPOT/CANCel>
	Query	:CORRection:OPEN?
	Response	<OFF/ALL/SPOT>
	Parameter
Explanation	Command	Sets the open compensation function and acquires or cancels acquisition of the compensation value. This command is only valid when in LCR mode and analyzer mode. OFF: Disables the open compensation function. ALL: Acquires the open compensation value and sets the open compensation function to ALL compensation. SPOT: Acquires the open compensation value at the set SPOT compensation frequency, and sets the open compensation function to SPOT compensation. CANCEL: Cancels the acquisition of the compensation value.
Explanation	Query	Returns the setting of the open compensation function. OFF: The open compensation function is disabled. ALL: The open compensation function is set to ALL compensation. SPOT: The open compensation function is set to SPOT compensation.
Example	Command	:CORRection:OPEN ALL Acquires the open compensation value and sets the open compensation function to ALL compensation.
	Query	:CORRection:OPEN?
	Response	:CORRECTION:OPEN ALL (when HEADER ON) ALL (when HEADER OFF) The open compensation function is set to ALL compensation.
Note		Compensation cannot be executed during measurement as doing so will result in an execution error. Change to an external trigger in the case of LCR mode, and sequence sweep or step sweep in the case of analyzer mode, and then execute the command.(For IM3533-01 only in the analyzer mode) An execution error occurs if a command to change the environment settings is executed during compensation. Also, try your hardest to avoid executing commands other than ones for checking each status register (*ESR?, :ESR0? ,etc.). A cancellation command is only valid during open compensation. In the following cases, the load compensation value cannot be acquired and an execution error occurs. When performing measurement with an internal trigger in LCR mode When performing measurement with an external trigger in LCR mode When performing measurement sequentially in analyzer mode

Querying open compensation failure flag

Syntax	Command
	Query	:CORRection:OPEN:ERRor?
	Response	<Result>
	Parameter	<Result> = 0/ 1/ 2 (NR1)
Explanation	Command
Explanation	Query	Returns the result of executing open compensation. 0: Open compensation ended normally. 1: Open compensation ended abnormally. 2: Open compensation ended in a state in which the range has not been determined.
Example	Command
	Query	:CORRection:OPEN:ERRor?
	Response	:CORRECTION:OPEN:ERROR 0 (when HEADER ON) 0 (when HEADER OFF) Open compensation ended normally.
Note		If [2] is returned for this command, the compensation value is being acquired in the state in which auto ranging has not determined the range. In particular, symptoms such as this may occur if compensation is executed in an environment subject to a lot of noise. For the countermeasures against noise, see "Appendix External Interference" in the instruction manual. Also, use guarding when testing high impedance elements. See "Appendix Measurement of High Impedance Components" in the instruction manual.

Setting and querying frequency for acquiring open compensation value

Syntax	Command	:CORRection:OPEN:FREQuency <Compensation No.>,<OFF/ DC/ Frequency>
	Query	:CORRection:OPEN:FREQuency? <Compensation No.>
	Response	<OFF/ DC/ Frequency>
	Parameter	<Compensation No.> = 1/ 2/ 3/ 4/ 5 <Frequency> = 0.0010～200.00E+03 (NR3)
Explanation	Command	Sets the frequency for performing SPOT compensation with the open compensation function. This command is only valid when in LCR mode and analyzer mode. OFF: Disables SPOT compensation of the specified compensation number. DC: Sets the specified compensation number to DC SPOT compensation. Frequency: Sets the SPOT compensation frequency of the specified compensation number.
Explanation	Query	Returns the SPOT compensation frequency of the open compensation function. OFF: The SPOT compensation frequency of the specified compensation number is not set. DC: The specified compensation number is set to DC SPOT compensation. Frequency:Returns the SPOT compensation frequency of the specified compensation number.
Example	Command	:CORRection:OPEN:FREQuency 1,120E+3 Sets the SPOT compensation frequency of compensation No. 1 to 120 kHz.
	Query	:CORRection:OPEN:FREQuency? 1
	Response	:CORRECTION:OPEN:FREQUENCY 120.00E+03 (when HEADER ON) 120.00E+03 (when HEADER OFF) The SPOT compensation frequency of compensation No. 1 is set to 120 kHz.
Note

Setting and querying the open compensation function

Syntax	Command	:CORRection:OPEN:RETurn <OFF/ALL/SPOT>
	Query	:CORRection:OPEN:RETurn?
	Response	<OFF/ALL/SPOT>
	Parameter
Explanation	Command	Sets the open compensation function. The compensation values are not acquired. This command is only valid when in LCR mode and analyzer mode. OFF: Disables the open compensation function. ALL: Sets the open compensation function to ALL compensation. SPOT: Sets the open compensation function to SPOT compensation.
Explanation	Query	Returns the open compensation setting. OFF: The open compensation function is disabled. ALL: The open compensation function is set to ALL compensation. SPOT: The open compensation function is set to SPOT compensation.
Example	Command	:CORRection:OPEN:RETurn SPOT Sets the open compensation function to SPOT compensation.
	Query	:CORRection:OPEN:RETurn?
	Response	:CORRECTION:OPEN:RETURN SPOT (when HEADER ON) SPOT (when HEADER OFF) The open compensation function is set to SPOT compensation.
Note

Open compensation value inquiry (all compensation)

Syntax	Command
	Query	:CORRection:OPEN:DATA:ALL?
	Response	<Open compensation frequency>, <Open compensation value G>, <Open compensation value B> (comma-delimited) for each compensation frequency
	Parameter	<Open compensation frequency> = 0/20.000 to 200.00E+03 (NR3)
Explanation	Command
Explanation	Query	Returns the open compensation values acquired for all compensation frequencies. If the compensation frequency is DC, the <Open compensation frequency> is 0.0000E+00. If compensation has not been performed, <Open compensation value G> and <Open compensation value B> are 0.0000E+00.
Example	Command
	Query	:CORRection:OPEN:DATA:ALL?
	Response	0.0000E+00, -0.0786E-09, 0.0000E-09, 20.000E+00, 0.0062E-09, 0.0118E-09, .... ... ... , 200.00E+03, 9.102775E-06, 7.158449E-06 Returns the open compensation values acquired for all compensation frequencies.
Note		The open compensation value output format is the same as the MEASure response format (G, B). The response message does not include a header.

Open compensation value inquiry (spot compensation)

Syntax	Command
	Query	:CORRection:OPEN:DATA:SPOT? <Compensation No.>
	Response	<Open compensation frequency>, <Open compensation value G>, <Open compensation value B>
	Parameter	<Compensation no.> = 1/2/3/4/5 <Open compensation frequency> = 0/0.0010 to 200.000E+03 (NR3)
Explanation	Command
Explanation	Query	Returns the open compensation value specified with the compensation number. If compensation has not been performed, <Open compensation value G> and <Open compensation value B> are 0.0000E+00. If the compensation frequency is DC, the <Open compensation frequency> is 0.0000E+00. If not compensation frequency has been set, the <Open compensation frequency> is off.
Example	Command
	Query	:CORRection:OPEN:DATA:SPOT? 2
	Response	120.00E+03, 23.7354E-09, 341.7050E-09 Returns the open compensation value for compensation No. 2.
Note		The open compensation value output format is the same as the MEASure response format (G, B). The response message does not include a header.

Executing, cancelling, and querying the short compensation function

Syntax	Command	:CORRection:SHORt <OFF/ALL/SPOT/CANCel>
	Query	:CORRection:SHORt?
	Response	<OFF/ALL/SPOT>
	Parameter
Explanation	Command	Sets the short compensation function and acquires or cancels the acquisition of the compensation value. This command is only valid when in LCR mode and analyzer mode. OFF: Disables the short compensation function. ALL: Acquires the short compensation value and sets the short compensation function to ALL compensation. SPOT: Acquires the short compensation value at the set SPOT compensation frequency, and sets the short compensation function to SPOT compensation. CANCEL: Cancels the acquisition of the compensation value.
Explanation	Query	Returns the setting of the short compensation function. OFF: The short compensation function is disabled. ALL: The short compensation function is set to ALL compensation. SPOT: The short compensation function is set to SPOT compensation.
Example	Command	:CORRection:SHORt ALL Acquires the short compensation value and sets the short compensation function to ALL compensation.
	Query	:CORRection:SHORt?
	Response	:CORRECTION:SHORT ALL (when HEADER ON) ALL (when HEADER OFF) The short compensation function is set to ALL compensation.
Note		This command cannot be executed during measurement, and doing so will result in an execution error. Execute the command after changing to an external trigger (in LCR mode) or to sequential sweep or step sweep (in analyzer mode). An execution error occurs if a command to change the environment settings is executed during compensation. Also, try your hardest to avoid executing commands other than ones for checking each status register (*ESR?, ESR0?, etc.). A cancellation command is only valid during short compensation. In the following cases, a short compensation value cannot be acquired and an execution error occurs. When performing measurement with an internal trigger in LCR mode When performing measurement with an external trigger in LCR mode When performing measurement with a sequential sweep in analyzer mode/li>

Querying short compensation failure flag

Syntax	Command
	Query	:CORRection:SHORt:ERRor?
	Response	<Result>
	Parameter	<Result> = 0/ 1/ 2 (NR1)
Explanation	Command
Explanation	Query	Returns the result of executing short compensation. 0: Short compensation ended normally. 1: Short compensation ended abnormally. 2: Short compensation ended in a state in which the range has not been determined.
Example	Command
	Query	:CORRection:SHORt:ERRor?
	Response	:CORRECTION:SHORT:ERROR 0 (when HEADER ON) 0 (when HEADER OFF) Short compensation ended normally.
Note		If [2] is returned for this command, the compensation value is being acquired in the state in which auto ranging has not determined the range. In particular, symptoms such as this may occur if compensation is executed in an environment subject to a lot of noise.For the countermeasures against noise, see "Appendix External Interference" in the instruction manual.

Setting and querying frequency for acquiring short compensation value

Syntax	Command	:CORRection:SHORt:FREQuency <Compensation No.>,<OFF/ DC/ Frequency>
	Query	:CORRection:SHORt:FREQuency? <Compensation No.>
	Response	<OFF/ DC/ Frequency>
	Parameter	<Compensation No.> = 1/ 2/ 3/ 4/ 5 <Frequency> = 0.0010～200.00E+03 (NR3)
Explanation	Command	Sets the frequency for performing SPOT compensation with the short compensation function. This command is only valid when in LCR mode and analyzer mode. OFF: Disables SPOT compensation of the specified compensation number. DC: Sets the specified compensation number to DC SPOT compensation. Frequency: Sets the SPOT compensation frequency of the specified compensation number.
Explanation	Query	Returns the SPOT compensation frequency of the short compensation function. OFF: The SPOT compensation frequency of the specified compensation number is not set. DC: The specified compensation number is set to DC SPOT compensation. Frequency: Returns the SPOT compensation frequency of the specified compensation number.
Example	Command	:CORRection:SHORt:FREQuency 1,120E+3 Sets the SPOT compensation frequency of compensation No. 1 to 120 kHz.
	Query	:CORRection:SHORt:FREQuency? 1
	Response	:CORRECTION:SHORT:FREQUENCY 120.00E+03 (when HEADER ON) 120.00E+03 (when HEADER OFF) The SPOT compensation frequency of compensation No. 1 is set to 120 kHz.
Note

Setting and querying the short compensation function

Syntax	Command	:CORRection:SHORt:RETurn <OFF/ALL/SPOT>
	Query	:CORRection:SHORt:RETurn?
	Response	<OFF/ALL/SPOT>
	Parameter
Explanation	Command	Sets the short compensation function. The compensation values are not acquired. This command is only valid when in LCR mode and analyzer mode. OFF: Disables the short compensation function. ALL: Sets the short compensation function to ALL compensation. SPOT: Sets the short compensation function to SPOT compensation.
Explanation	Query	Returns the setting of the short compensation function. OFF: The short compensation function is disabled. ALL: The short compensation function is set to ALL compensation. SPOT: The short compensation function is set to SPOT compensation.
Example	Command	:CORRection:SHORt:RETurn SPOT Sets the short compensation function to SPOT compensation.
	Query	:CORRection:SHORt:RETurn?
	Response	:CORRECTION:SHORT:RETURN SPOT (when HEADER ON) SPOT (when HEADER OFF) The short compensation function is set to SPOT compensation.
Note		The SPOT compensation cannot be set unless the frequency is set.

Short compensation value inquiry (all compensation)

Syntax	Command
	Query	:CORRection:SHORt:DATA:ALL?
	Response	<Short compensation frequency>, <Open compensation value R>, <Open compensation value X> (comma delimited) for each compensation frequency
	Parameter	<Short compensation frequency> = 0/39.999 to 200.00E+03 (NR3)
Explanation	Command
Explanation	Query	Returns the short compensation values acquired for all compensation frequencies. If the compensation frequency is DC, the <Short compensation frequency> is 0.0000E+00. If compensation has not been performed, <Short compensation value R> and <Short compensation value X> are 0.0000E+00.
Example	Command
	Query	:CORRection:SHORt:DATA:ALL?
	Response	0.0000E+00, 11.742E-03, 0.0000E+00, 20.000E+00, 11.741E-03, -0.002E-03, ... ... ... , 200.00E+03, 89.957E-03, 450.797E-03 Returns the short compensation values acquired for all compensation frequencies.
Note		The short compensation value output format is the same as the MEASure response format (R, X). The response message does not include a header.

Short compensation value inquiry (spot compensation)

Syntax	Command
	Query	:CORRection:SHORt:DATA:SPOT? <Compensation No.>
	Response	<Short compensation frequency>, <Open compensation value R>, <Open compensation value X>
	Parameter	<Compensation no.> = 1/2/3/4/5 <Short compensation frequency> = 0/0.0010 to 200.00E+03 (NR3)
Explanation	Command
Explanation	Query	Returns the short compensation value specified with the compensation number. If compensation has not been performed, <Short compensation value R> and <Short compensation value X> are 0.0000E+00. If the compensation frequency is DC, the <Short compensation frequency> is 0.0000E+00. If the compensation frequency has not been set, the <Short compensation frequency> is off.
Example	Command
	Query	:CORRection:SHORt:DATA:SPOT? 2
	Response	120.00E+03, 2.720E-03, 26.536E-03 Returns the short compensation value for compensation No. 2.
Note		The short compensation value output format is the same as the MEASure response format (R, X). The response message does not include a header.

Executing and querying the load compensation function

Syntax	Command	:CORRection:LOAD <OFF/ON>
	Query	:CORRection:LOAD?
	Response	<OFF/ON>
	Parameter
Explanation	Command	Sets the load compensation function and acquires the compensation value. This command is only valid when in LCR mode. OFF: Disables the load compensation function. ON: Acquires the load compensation value and enables the load compensation function.
Explanation	Query	Returns the setting of the load compensation function.
Example	Command	:CORRection:LOAD ON Acquires the load compensation value and enables the load compensation function.
	Query	:CORRection:LOAD?
	Response	:CORRECTION:LOAD ON (when HEADER ON) ON (when HEADER OFF) The load compensation function is enabled.
Note		Set the load compensation conditions before acquiring the load compensation value. A command error occurs if there is not even one valid load compensation condition. In the following cases, the load compensation value cannot be acquired and an execution error occurs. When performing measurement with an internal trigger in LCR mode When performing measurement with an external trigger in LCR mode

Setting and querying the load compensation conditions

Syntax	Command	:CORRection:LOAD:CONDition <Compensation No.>,<Frequency>,<Range No.>,<LOW Z>,<V/ CV /CC>,<Level value>,<DC bias>,<DC bias value>
	Query	:CORRection:LOAD:CONDition? <Compensation No.>
	Response	<Frequency>,<Range No.>,<LOW Z>,<V/ CV /CC>,<Level value>,<DC bias>,<DC bias value>
	Parameter	<Compensation No.> = 1/ 2/ 3/ 4/ 5 <Frequency> = 0.0010～200.00E+03 (NR3) <Range No.> = 1 to 10 (NR1) <LOW Z> = OFF/ON <Level Value> = The settable range varies depending on the conditions. (NR3) <DC bias> = OFF/ON <DC bias value> = The settable range varies depending on the conditions. (NR3)
Explanation	Command	Sets the load compensation conditions. This command is only valid when in LCR mode.
Explanation	Query	Returns the load compensation conditions.
Example	Command	:CORRection:LOAD:CONDition 3,5.0000E+03,3,ON,CV,0.300,ON,2.00 Sets the following load compensation conditions for load compensation No. 3. Frequency: 5.0000 kHz Range: 3 (10 Ω range) LOW Z : ON Level mode: CV Level value: 0.300 V DC bias: ON DC bias value: 2.00 V
	Query	:CORRection:LOAD:CONDition? 3
	Response	:CORRECTION:LOAD:CONDITION 5.0000E+03,3,ON,CV,0.300,ON,2.00 (when HEADER ON) 5.0000E+03,3,ON,CV,0.300,ON,2.00 (when HEADER OFF) The following load conditions are set for load compensation No. 3. Frequency: 5.0000 kHz Range: 3 (10 Ω range) LOW Z : ON Level mode: CV Level value: 0.300 V DC bias: ON DC bias value: 2.00 V
Note		If this command is executed when the setting last time was the DC setting, the parameter to be used for the reference value is changed to Z-θ, and the reference value is cleared. An execution error occurs in the following cases. When a value that cannot be set as a load compensation condition is specified When a compensation number for which the load compensation conditions have not been set is queried When a compensation number which is set to DC is queried

Setting and querying the load compensation conditions for when DC resistance measurement

Syntax	Command	:CORRection:LOAD:DCResistance:CONDition <Compensation No.>,<Range No.>,<LOW Z>
	Query	:CORRection:LOAD:DCResistance:CONDition? <Compensation No.>
	Response	<Range No.>,<LOW Z>
	Parameter	<Compensation No.> = 1/ 2/ 3/ 4/ 5 <Range No.> = 1 to 10 (NR1) <LOW Z> = OFF/ON
Explanation	Command	Sets the load compensation conditions for when DC resistance measurement. This command is only valid when in LCR mode.
Explanation	Query	Returns the load compensation conditions for when DC resistance measurement.
Example	Command	:CORRection:LOAD:DCResistance:CONDition 5,6,OFF Sets the following load compensation conditions for when DC resistance measurement to load compensation No. 5. Range: 6 (10 kΩ range) LOW Z : OFF
	Query	:CORRection:LOAD:DCResistance:CONDition? 5
	Response	:CORRECTION:LOAD:DCRESISTANCE:CONDITION 6,OFF (when HEADER ON) 6,OFF (when HEADER OFF) The following load compensation conditions for when DC resistance measurement are set to load compensation No. 5. Range: 6 (10 kΩ range) LOW Z : OFF
Note		If this command is executed and the setting last time was not the DC setting, the parameter to use for the reference value is changed to Rdc, and the reference value is cleared. An execution error occurs in the following cases. When a value that cannot be set as a load compensation condition for DC resistance measurement is specified When a compensation number for which the load compensation conditions for when DC resistance measurement have not been set is queried When a compensation number which is not set to DC is queried

Setting and querying the reference value of load compensation for when DC resistance measurement

Syntax	Command	:CORRection:LOAD:DCResistance:REFerence <Compensation No.>,<Reference value>
	Query	:CORRection:LOAD:DCResistance:REFerence? <Compensation No.>
	Response	<Reference value>
	Parameter	<Compensation No.> = 1/ 2/ 3/ 4/ 5 <Reference value> = The settable range varies depending on the conditions. (NR3)
Explanation	Command	Sets the reference value to use for load compensation for when DC resistance measurement. This command is only valid when in LCR mode.
Explanation	Query	Returns the reference value to use for load compensation for when DC resistance measurement.
Example	Command	:CORRection:LOAD:DCResistance:REFerence 1,20 Sets the reference value of compensation No. 1 to 20 Ω.
	Query	:CORRection:LOAD:DCResistance:REFerence? 1
	Response	:CORRECTION:LOAD:DCRESISTANCE:REFERENCE 20.00000E+00 (when HEADER ON) 20.00000E+00 (when HEADER OFF) The reference value of compensation No. 1 is set to 20 Ω.
Note		An execution error occurs in the following cases. When the specified compensation number is not set to DC When a valid reference value is not set

Load compensation value inquiry

Syntax	Command
	Query	:CORRection:LOAD:DATA? <Compensation No.>
	Response	<Compensation coefficient 1>, <Compensation coefficient 2>
	Parameter	<Compensation No.> = 1/ 2/ 3/ 4/ 5
Explanation	Command
Explanation	Query	Returns the compensation coefficient acquired by executing load compensation.
Example	Command
	Query	:CORRection:LOAD:DATA? 1
	Response	225.661E-03, -61.18 Returns the compensation coefficient for compensation No. 1.
Note		If the compensation mode is DC, only compensation coefficient 1 is returned. If the load compensation setting for the specified compensation number has not been set, an execution error will result.

Querying load compensation failure flag

Syntax	Command
	Query	:CORRection:LOAD:ERRor?
	Response	<Result>
	Parameter	<Result> = 0/ 1 (NR1)
Explanation	Command
Explanation	Query	Returns the result of executing load compensation. 0: Load compensation ended normally. 1: Load compensation ended abnormally.
Example	Command
	Query	:CORRection:LOAD:ERRor?
	Response	:CORRECTION:LOAD:ERROR 0 (when HEADER ON) 0 (when HEADER OFF) Load compensation ended normally.
Note

Setting and querying the reference values of load compensation

Syntax	Command	:CORRection:LOAD:REFerence <Compensation No.>,<Mode No.>,<Reference value1>,<Reference value2>
	Query	:CORRection:LOAD:REFerence? <Compensation No.>
	Response	<Mode No.>,<Reference value1>,<Reference value2>
	Parameter	<Compensation No.> = 1/ 2/ 3/ 4/ 5 <Mode No.> = 1 to 10 (NR1) <Reference value1> = The settable range varies depending on the reference value mode. (NR3) <Reference value2> = The settable range varies depending on the reference value mode. (NR3)
Explanation	Command	Sets the parameter and reference values to use for the reference values for load compensation. This command is only valid when in LCR mode and transformer mode.
Explanation	Query	Returns the parameter and reference values to use for the reference value for load compensation.
Example	Command	:CORRection:LOAD:REFerence 1,2,10e-9,0.00014 Sets parameter, reference value 1 (Cs), and reference value 2 (D) of compensation No. 1 to Cs-D, 10 nF, and 0.00014, respectively.
	Query	:CORRection:LOAD:REFerence? 1
	Response	:CORRECTION:LOAD:REFERENCE 2,10.0000E-09,140.000E-06 (when HEADER ON) 2,10.0000E-09,0.000140 (when HEADER OFF) The parameter, reference value 1 (Cs), and reference value 2 (D) of compensation No. 1 are set to Cs-D, 10 nF, and 0.00014, respectively.
Note		An execution error occurs in the following cases. When the specified compensation number is set to DCR When a valid reference value is not set

Resetting the load compensation conditions

Syntax	Command	:CORRection:LOAD:RESet <Compensation No.>
	Query
	Response
	Parameter	<Compensation No.> = 1/ 2/ 3/ 4/ 5
Explanation	Command	Clears the load compensation conditions of the specified compensation number. This command is only valid when in LCR mode.
Explanation	Query
Example	Command	:CORRection:LOAD:RESet 1 Clears the load compensation conditions of compensation No. 1.
	Query
	Response
Note		The load compensation conditions cannot be restored once they are cleared. Set them again.

Setting and querying the load compensation function

Syntax	Command	:CORRection:LOAD:RETurn <OFF/ON>
	Query	:CORRection:LOAD:RETurn?
	Response	<OFF/ON>
	Parameter
Explanation	Command	Sets the load compensation function. The compensation values are not acquired. This command is only valid when in LCR mode. OFF: Disables the load compensation function. ON: Enables the load compensation function.
Explanation	Query	Returns the setting of the load compensation function.
Example	Command	:CORRection:LOAD:RETurn ON Enables the load compensation function.
	Query	:CORRection:LOAD:RETurn?
	Response	:CORRECTION:LOAD:RETURN ON (when HEADER ON) ON (when HEADER OFF) The load compensation function is enabled.
Note

Setting and querying the cable length compensation function

Syntax	Command	:CORRection:CABLe <Cable length>
	Query	:CORRection:CABLe?
	Response	<Cable length>
	Parameter	<Cable length> = 0/1/2/4 (NR1)
Explanation	Command	Sets the cable length compensation function. This command is only valid when in LCR mode.
Explanation	Query	Returns the setting of the cable length compensation function. 0: The cable length compensation function is set to 0 m. 1: The cable length compensation function is set to 1 m.
Example	Command	:CORRection:CABLe 1 Sets the cable length compensation function to 1 m.
	Query	:CORRection:CABLe?
	Response	:CORRECTION:CABLE 1 (when HEADER ON) 1 (when HEADER OFF) The cable length compensation function is set to 1 m.
Note

Setting and querying the scaling compensation function

Syntax	Command	:CORRection:SCALe <OFF/ON>
	Query	:CORRection:SCALe?
	Response	<OFF/ON>
	Parameter
Explanation	Command	Sets the scaling compensation function. This command is only valid when in LCR mode and analyzer mode.
Explanation	Query	Returns the setting of the scaling compensation function.
Example	Command	:CORRection:SCALe ON Enables the scaling compensation function.
	Query	:CORRection:SCALe?
	Response	:CORRECTION:SCALE ON (when HEADER ON) ON (when HEADER OFF) The scaling compensation function is enabled.
Note

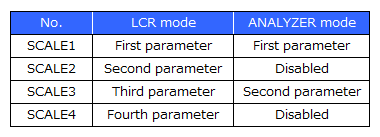

Setting and querying the scaling compensation value

Syntax	Command	:CORRection:SCALe:DATA <Scaling No.>,<Compensation value A>,<Compensation value B>
	Query	:CORRection:SCALe:DATA? <Scaling No.>
	Response	<Compensation value A>,<Compensation value B>
	Parameter	<Scaling No.> = 1/ 2/ 3/ 4 <Compensation value A> = -999.999 to 999.999 (NR2) <Compensation value B> = -9.99999E+09 to 9.99999E+09 (NR3)
Explanation	Command	Sets the values of the scaling compensation function. This command is only valid when in LCR mode and analyzer mode.
Explanation	Query	Returns the values of the scaling compensation function.
Example	Command	:CORRection:SCALe:DATA 1,1.23,4.56 Sets compensation value A and compensation value B of scaling No. 1 to 1.23 and 4.56, respectively.
	Query	:CORRection:SCALe:DATA? 1
	Response	:CORRECTION:SCALE:DATA 1.230,4.56000E+00 (when HEADER ON) 1.230,4.56000E+00 (when HEADER OFF) The compensation value A and compensation value B of scaling No. 1 are set to 1.23 and 4.56, respectively.
Note		Values within the range from -0.001 to 0.001 cannot be set as compensation value A. If a command is sent using a value within this range, the value is automatically interpolated to -0.001 or 0.001. In analyzer mode, only scaling No. 1 and scaling No. 3 are enabled.

Setting and querying ON/ OFF of DC bias function

Syntax	Command	:DCBias <ON/OFF>
	Query	:DCBias?
	Response	<ON/OFF>
	Parameter
Explanation	Command	Sets the DC bias function.
Explanation	Query	Returns the setting of the DC bias function.
Example	Command	:DCBias ON Enables the DC bias function.
	Query	:DCBias?
	Response	:DCBIAS ON (when HEADER ON) ON (when HEADER OFF) The DC bias function is enabled.
Note

Setting and querying the DC bias level

Syntax	Command	:DCBias:LEVel <DC bias level>
	Query	:DCBias:LEVel?
	Response	<DC bias level>
	Parameter	<DC bias level> = -5.00 to 5.00 V (NR2)
Explanation	Command	Sets the DC bias level.
Explanation	Query	Returns the DC bias level.
Example	Command	:DCBias:LEVel 1.50 Sets the DC bias level to 1.5 V.
	Query	:DCBias:LEVel?
	Response	:DCBIAS:LEVEL 1.50 (when HEADER ON) 1.50 (when HEADER OFF) The DC bias level is set to 1.5 V.
Note

Setting and querying averaging for when DC resistance measurement

Syntax	Command	:DCResistance:AVERaging <OFF/ number of averaging times>
	Query	:DCResistance:AVERaging?
	Response	<OFF/ number of averaging times>
	Parameter	<number of averaging times> = 1 to 256 (NR1)
Explanation	Command	Sets the number of averaging times for when DC resistance measurement. OFF : Disables the averaging function.
Explanation	Query	Returns the number of averaging times for when DC resistance measurement.
Example	Command	:DCResistance:AVERaging 32 Sets the number of averaging times for when DC resistance measurement to 32.
	Query	:DCResistance:AVERaging?
	Response	:DCRESISTANCE:AVERAGING 32 (when HEADER ON) 32 (when HEADER OFF) The number of averaging times for when DC resistance measurement is set to 32.
Note		Setting the number of averaging times to 1 automatically sets the averaging function to OFF. Setting the number of averaging times from 2 to 256 automatically sets the averaging function to ON.

Setting and querying the adjustment delay time during DC resistance measurement

Syntax	Command	:DCResistance:ADJDelay <Adjustment Delay time>
	Query	:DCResistance:ADJDelay?
	Response	<Adjustment Delay time>
	Parameter	<Adjustment Delay time> = 0.0030 to 9.9999 (NR2)
Explanation	Command	Sets the adjustment delay time during DC resistance measurement.
Explanation	Query	Returns the adjustment delay time during DC resistance measurement.
Example	Command	:DCResistance:ADJDelay 0.05 Sets the adjustment delay time during DC resistance measurement to 0.05 seconds.
	Query	:DCResistance:ADJDelay?
	Response	:DCRESISTANCE:ADJDELAY 0.0500 (when HEADER ON) 0.0500 (when HEADER OFF) The adjustment delay time during DC resistance measurement is set to 0.05 seconds.
Note

Setting and querying the DC delay time during DC resistance measurement

Syntax	Command	:DCResistance:DCDelay <DC Delay time>
	Query	:DCResistance:DCDelay?
	Response	<DC Delay time>
	Parameter	<DC Delay time> = 0 to 9.9999 (NR2)
Explanation	Command	Sets the DC delay time during DC resistance measurement.
Explanation	Query	Returns the DC delay time during DC resistance measurement.
Example	Command	:DCResistance:DCDelay 0.01 Sets the DC delay time during DC resistance measurement to 0.01 seconds.
	Query	:DCResistance:DCDelay?
	Response	:DCRESISTANCE:DCDELAY 0.0100 (when HEADER ON) 0.0100 (when HEADER OFF) The DC delay during DC resistance measurement is set to 0.01 seconds.
Note

Setting and querying the line frequency during DC resistance measurement

Syntax	Command	:DCResistance:LFRequency <Line Frequency>
	Query	:DCResistance:LFRequency?
	Response	<Line Frequency>
	Parameter	<Line Frequency> = 50/60 (NR1)
Explanation	Command	Sets the line frequency during DC resistance measurement.
Explanation	Query	Returns the line frequency during DC resistance measurement.
Example	Command	:DCResistance:LFRequency 50 Sets the line frequency during DC resistance measurement to 50 Hz.
	Query	:DCResistance:LFRequency?
	Response	:DCRESISTANCE:LFREQUENCY 50 (when HEADER ON) 50 (when HEADER OFF) The line frequency during DC resistance measurement is set to 50 Hz.
Note

Setting and querying the measurement range for when DC resistance measurement

Syntax	Command	:DCResistance:RANGe <Range No.>
	Query	:DCResistance:RANGe?
	Response	<Range No.>
	Parameter	<Range No.> = 1 to 10 (NR1)
Explanation	Command	Sets the measurement range for when DC resistance measurement. If this command is executed, the range setting is automatically changed from auto to hold.
Explanation	Query	Returns the measurement range for when DC resistance measurement.
Example	Command	:DCResistance:RANGe 4 Sets the measurement range for when DC resistance measurement to 4 (100 Ω).
	Query	:DCResistance:RANGe?
	Response	:DCRESISTANCE:RANGE 4 (when HEADER ON) 4 (when HEADER OFF) The measurement range for when DC resistance measurement is set to 4 (100 Ω).
Note

Automatically setting and querying the measurement range for when DC resistance measurement

Syntax	Command	:DCResistance:RANGe:AUTO <ON/OFF>
	Query	:DCResistance:RANGe:AUTO?
	Response	<ON/OFF>
	Parameter
Explanation	Command	Sets the measurement range for when DC resistance measurement to be changed automatically. ON: The range is changed automatically by the auto ranging function. OFF: The range is fixed and is not changed automatically.
Explanation	Query	Returns the automatic setting of the measurement range for when DC resistance measurement.
Example	Command	:DCResistance:RANGe:AUTO ON Sets the measurement range for when DC resistance measurement to be changed automatically.
	Query	:DCResistance:RANGe:AUTO?
	Response	:DCRESISTANCE:RANGE:AUTO ON (when HEADER ON) ON (when HEADER OFF) The measurement range for when DC resistance measurement is set to be changed automatically.
Note

Setting and querying the AUTO range limit function during DC resistance measurement

Syntax	Command	:DCResistance:RANGe:AUTO:LIMit <RST/lower limit range>,<upper limit range>
	Query	:DCResistance:RANGe:AUTO:LIMit?
	Response	<lower limit range>,<upper limit range>
	Parameter	<lower limit range> = 1 to 10 (NR1) <upper limit range> = 1 to 10 (NR1)
Explanation	Command	Sets the AUTO range limit function during DC resistance measurement.
Explanation	Query	Returns the AUTO range limit function during DC resistance measurement.
Example	Command	:DCResistance:RANGe:AUTO:LIMit 4,7 Sets the lower and upper limit values of the AUTO range limit function during DC resistance measurement to 4 (100Ω) and 7 (100kΩ), respectively.
	Query	:DCResistance:RANGe:AUTO:LIMit?
	Response	:DCRESISTANCE:RANGE:AUTO:LIMIT 4,7 (when HEADER ON) 4,7 (when HEADER OFF) The lower and upper limit values of the AUTO range limit function during DC resistance measurement are set to 4 (100Ω) and 7 (100kΩ), respectively.
Note		The setting is reset by issuing ":DCResistance:RANGe:AUTO:LIMit RST".

Setting and querying low Z high accuracy mode for when DC resistance measurement

Syntax	Command	:DCResistance:RANGe:LOWZ <ON/OFF>
	Query	:DCResistance:RANGe:LOWZ?
	Response	<ON/OFF>
	Parameter
Explanation	Command	Sets low Z high accuracy mode for when DC resistance measurement.
Explanation	Query	Returns the setting of low Z high accuracy mode for when DC resistance measurement.
Example	Command	:DCResistance:RANGe:LOWZ ON Enables low Z high accuracy mode for when DC resistance measurement.
	Query	:DCResistance:RANGe:LOWZ?
	Response	:DCRESISTANCE:RANGE:LOWZ ON (when HEADER ON) ON (when HEADER OFF) Low Z high accuracy mode for when DC resistance measurement is enabled.
Note

Setting and querying the JUDGE synchronization setting during DC resistance measurement

Syntax	Command	:DCResistance:RANGe:JSYNc <ON/OFF>
	Query	:DCResistance:RANGe:JSYNc?
	Response	<ON/OFF>
	Parameter
Explanation	Command	Sets the JUDGE synchronization setting during DC resistance measurement.
Explanation	Query	Returns the setting of the JUDGE synchronization during DC resistance measurement.
Example	Command	:DCResistance:RANGe:JSYNc ON Enables the JUDGE synchronization setting during DC resistance measurement.
	Query	:DCResistance:RANGe:JSYNc?
	Response	:DCRESISTANCE:RANGE:JSYNC ON (when HEADER ON) ON (when HEADER OFF) The JUDGE synchronization setting during DC resistance measurement is enabled.
Note

Setting and querying the number of measurement averaging time for the range synchronization function during DC resistance measurement

Syntax	Command	:DCResistance:RANGe:SYNC:AVERaging <ALL/Range No.>,<OFF/number of averaging times>
	Query	:DCResistance:RANGe:SYNC:AVERaging? <Range No.>
	Response	<ALL/Range No.>,<OFF/number of averaging times>
	Parameter	<Range No.> = 1 to 10 (NR1) <number of averaging times> = 1 to 256 (NR1)
Explanation	Command	Sets the number of measurement averaging times for the range synchronization function during DC resistance measurement. OFF: Disables the averaging function.
Explanation	Query	Returns the number of measurement averaging times for the range synchronization function during DC resistance measurement.
Example	Command	:DCResistance:RANGe:SYNC:AVERaging 4,32 Sets the number of measurement averaging times for 4 (100Ω) of the range synchronization function during DC resistance measurement to 32.
	Query	:DCResistance:RANGe:SYNC:AVERaging? 4
	Response	:DCRESISTANCE:RANGE:SYNC:AVERAGING 32 (when HEADER ON) 32 (when HEADER OFF) The number of measurement averaging times for 4 (100Ω) of the range synchronization function during DC resistance measurement is set to 32.
Note		When ALL is set, this is reflected to all ranges.

Setting and querying the measurement speed for the range synchronization function during DC resistance measurement

Syntax	Command	:DCResistance:RANGe:SYNC:SPEEd <ALL/Range No.>,<FAST/MEDium/SLOW/SLOW2>
	Query	:DCResistance:RANGe:SYNC:SPEEd? <Range No.>
	Response	<ALL/Range No.>,<FAST/MEDium/SLOW/SLOW2>
	Parameter	<Range No.> = 1 to 10 (NR1)
Explanation	Command	Sets the measurement speed for the range synchronization function during DC resistance measurement.
Explanation	Query	Returns the measurement speed for the range synchronization function during DC resistance measurement.
Example	Command	:DCResistance:RANGe:SYNC:SPEEd 4,FAST Sets the measurement speed for 4 (100Ω) of the range synchronization function during DC resistance measurement to "FAST".
	Query	:DCResistance:RANGe:SYNC:SPEEd? 4
	Response	:DCRESISTANCE:RANGE:SYNC:SPEED FAST (when HEADER ON) FAST (when HEADER OFF) The measurement speed for 4 (100Ω) of the range synchronization function during DC resistance measurement is set to "FAST".
Note		When ALL is set, this is reflected to all ranges.

Setting and querying the measurement speed for when DC resistance measurement

Syntax	Command	:DCResistance:SPEEd <FAST/MEDium/SLOW/SLOW2>
	Query	:DCResistance:SPEEd?
	Response	<FAST/MEDIUM/SLOW/SLOW2>
	Parameter
Explanation	Command	Sets the measurement speed for when DC resistance measurement.
Explanation	Query	Returns the setting of the measurement speed for when DC resistance measurement.
Example	Command	:DCResistance:SPEEd MEDium Sets the measurement speed for when DC resistance measurement to medium.
	Query	:DCResistance:SPEEd?
	Response	:DCRESISTANCE:SPEED MEDIUM (when HEADER ON) MEDIUM (when HEADER OFF) The measurement speed for when DC resistance measurement is set to medium.
Note

Setting and querying the temperature correction function during DC resistance measurement

Syntax	Command	:DCResistance:TCORrect <ON/OFF>
	Query	:DCResistance:TCORrect?
	Response	<ON/OFF>
	Parameter
Explanation	Command	Sets the temperature correction function during DC resistance measurement.
Explanation	Query	Returns the setting of the temperature correction function during DC resistance measurement.
Example	Command	:DCResistance:TCORrect ON Enables the temperature correction function during DC resistance measurement.
	Query	:DCResistance:TCORrect?
	Response	:DCRESISTANCE:TCORRECT ON (when HEADER ON) ON (when HEADER OFF) The temperature correction function during DC resistance measurement is enabled.
Note

Setting and querying the reference temperature and temperature coefficient for the temperature correction function during DC resistance measurement

Syntax	Command	:DCResistance:TCORrect:PARameter <Reference temperature>, <Temperature coefficient>
	Query	:DCResistance:TCORrect:PARameter?
	Response	<Reference temperature>, <Temperature coefficient>
	Parameter	<Reference temperature> = -10 to 99.9oC (NR2) <Temperature coefficient> = -99999 to 99999 ppm (NR1)
Explanation	Command	Sets the reference temperature and temperature coefficient for the temperature correction function during DC resistance measurement.
Explanation	Query	Returns the reference temperature and temperature coefficient for the temperature correction function during DC resistance measurement.
Example	Command	:DCResistance:TCORrect:PARameter 25.5,110 Sets the reference temperature for the temperature correction function during DC resistance measurement to 25.5oC, and the temperature coefficient to 110 ppm.
	Query	:DCResistance:TCORrect:PARameter?
	Response	:DCRESISTANCE:TCORRECT:PARAMETER 25.5,110 (when HEADER ON) 25.5,110 (when HEADER OFF) The reference temperature for the temperature correction function during DC resistance measurement is set to 25.5oC, and the temperature coefficient is set to 110 ppm.
Note

Setting and querying LCD display

Syntax	Command	:DISPlay <ON/OFF>
	Query	:DISPlay?
	Response	<ON/OFF>
	Parameter
Explanation	Command	Sets LCD display. ON: Sets the LCD to always on. OFF: The LCD goes off. Touching the touch panel lights up the LCD again. The LCD turns off again after approximately 10 seconds elapse since the touch panel was last touched.
Explanation	Query	Returns the setting of LCD display.
Example	Command	:DISPlay OFF Sets the LCD to turn off.
	Query	:DISPlay?
	Response	:DISPLAY OFF (when HEADER ON) OFF (when HEADER OFF) The LCD is set to turn off.
Note

Writing and reading event status enable register 0

Syntax	Command	:ESE0 <Mask value>
	Query	:ESE0?
	Response	<Mask value>
	Parameter	<Mask value> = 0 to 255 (NR1)
Explanation	Command	Sets the mask pattern of ESER0. The initial value (when power is turned on) is 0.
Explanation	Query	Returns the mask pattern of ESER0.
Example	Command	:ESE0 20 Sets bit 4 and bit 2 of ESER0.
	Query	:ESE0?
	Response	:ESE0 20 (when HEADER ON) 20 (when HEADER OFF) Bit 4 and bit 2 of ESER0 are set to 1.
Note		This register's bits are reset after 1 measurement completes. For details on each of the bits, refer to "About Event Registers".

Writing and reading event status enable register 1

Syntax	Command	:ESE1 <Mask value>
	Query	:ESE1?
	Response	<Mask value>
	Parameter	<Mask value> = 0 to 255 (NR1)
Explanation	Command	Sets the mask pattern of ESER1. The initial value (when power is turned on) is 0.
Explanation	Query	Returns the mask pattern of ESER1.
Example	Command	:ESE1 64 Sets bit 6 of ESER1.
	Query	:ESE1?
	Response	:ESE1 64 (when HEADER ON) 64 (when HEADER OFF) Bit 6 of ESER1 are set to 1.
Note		For details on each of the bits, refer to "About Event Registers".

Writing and reading event status enable register 2

Syntax	Command	:ESE2 <Mask value>
	Query	:ESE2?
	Response	<Mask value>
	Parameter	<Mask value> = 0 to 255 (NR1)
Explanation	Command	Sets the mask pattern of ESER2. The initial value (when power is turned on) is 0.
Explanation	Query	Returns the mask pattern of ESER2.
Example	Command	:ESE2 1 Sets bit 0 of ESER2.
	Query	:ESE2?
	Response	:ESE2 1 (when HEADER ON) 1 (when HEADER OFF) Bit 0 of ESER2 are set to 1.
Note		For details on each of the bits, refer to "About Event Registers".

Writing and reading event status enable register 3

Syntax	Command	:ESE3 <Mask value>
	Query	:ESE3?
	Response	<Mask value>
	Parameter	<Mask value> = 0 to 255 (NR1)
Explanation	Command	Sets the mask pattern of ESER3. The initial value (when power is turned on) is 0.
Explanation	Query	Returns the mask pattern of ESER3.
Example	Command	:ESE3 3 Sets bit 1 and bit 0 of ESER3.
	Query	:ESE3?
	Response	:ESE3 3 (when HEADER ON) 3 (when HEADER OFF) Bit 1 and bit 0 of ESER3 are set to 1.
Note		For details on each of the bits, refer to "About Event Registers".

Reading event status register 0

Syntax	Command
	Query	:ESR0?
	Response	<Register value>
	Parameter	<Register value> = 0 to 255 (NR1)
Explanation	Command
Explanation	Query	Returns the register value of event status register 0 (ESR0), and clears the register. A header is not added to the response message.
Example	Command
	Query	:ESR0?
	Response	4 Bit 2 of ESR0 are set to 1.
Note		This register's bits are reset after 1 measurement completes. In analyzer mode, the bits are set after measurement of 1 sweep point completes. For details on each of the bits, refer to "About Event Registers".

Reading event status register 1

Syntax	Command
	Query	:ESR1?
	Response	<Register value>
	Parameter	<Register value> = 0 to 255 (NR1)
Explanation	Command
Explanation	Query	Returns the register value of event status register 1 (ESR1), and clears the register. A header is not added to the response message.
Example	Command
	Query	:ESR1?
	Response	82 Bit 6, bit 4 and bit 1 of ESR1 are set to 1.
Note		When comparator measurement is performed in LCR mode, the bits are set after one measurement finishes. When area judgment is performed in analyzer mode, the bits are set after one sweep point measurement finishes. In the case of continuous measurement, the AND bit is set after continuous measurement finishes. For details on each of the bits, refer to "About Event Registers".

Reading event status register 2

Syntax	Command
	Query	:ESR2?
	Response	<Register value>
	Parameter	<Register value> = 0 to 255 (NR1)
Explanation	Command
Explanation	Query	Returns the register value of event status register 2 (ESR2), and clears the register. A header is not added to the response message.
Example	Command
	Query	:ESR2?
	Response	1 Bit 0 of ESR2 are set to 1.
Note		When BIN measurement is performed in LCR mode, the bits are set after one measurement finishes. When peak judgment is performed in analyzer mode, the bits are set after one sweep measurement finishes. In continuous measurement mode, the bits are not set. For details on each of the bits, refer to "About Event Registers".

Reading event status register 3

Syntax	Command
	Query	:ESR3?
	Response	<Register value>
	Parameter	<Register value> = 0 to 255 (NR1)
Explanation	Command
Explanation	Query	Returns the register value of event status register 3 (ESR3), and clears the register. A header is not added to the response message.
Example	Command
	Query	:ESR3?
	Response	64 Bit 6 of ESR3 are set to 1.
Note		When BIN measurement is performed in LCR mode, the bits are set after one measurement finishes. When peak judgment is performed in analyzer mode, the bits are set after one sweep measurement finishes. In continuous measurement mode, the bits are not set. For details on each of the bits, refer to "About Event Registers".

Setting and querying the date and time for when saving text

Syntax	Command	:FILE:DATE <ON/OFF>
	Query	:FILE:DATE?
	Response	<ON/OFF>
	Parameter
Explanation	Command	Sets whether to save the date and time when saving text.
Explanation	Query	Returns the date and time setting for when saving text.
Example	Command	:FILE:DATE ON Saves the date and time when saving text.
	Query	:FILE:DATE?
	Response	:FILE:DATE ON (when HEADER ON) ON (when HEADER OFF) The date and time are saved when saving text.
Note

Setting and querying the delimiter for when saving text

Syntax	Command	:FILE:DELIMiter <COMma/TAB/SEMIcolon/SPACE>
	Query	:FILE:DELIMiter?
	Response	<COMMA/TAB/SEMICOLON/SPACE>
	Parameter
Explanation	Command	Sets the delimiter for when saving text. COMma: Comma (,) TAB: Tab SEMIcolon: Semicolon (;) SPACE: Space
Explanation	Query	Returns the delimiter for when saving text.
Example	Command	:FILE:DELIMiter SEMIcolon Sets the delimiter for when saving text to a semicolon.
	Query	:FILE:DELIMiter?
	Response	:FILE:DELIMITER SEMICOLON (when HEADER ON) SEMICOLON (when HEADER OFF) The delimiter for when saving text is set to a semicolon.
Note

Setting and querying the save folder

Syntax	Command	:FILE:FOLDer <Folder name>
	Query	:FILE:FOLDer?
	Response	<Folder name>
	Parameter	<Folder name> = 0 to 9, A to Z, + ,?, _ (Up to 12 characters)
Explanation	Command	Sets the folder name of the save folder. The characters that can be used for the file name are alphanumeric characters and the "+", "-" and "_" symbols. Lowercase alphabetical characters are converted to uppercase.
Explanation	Query	Returns the folder name of the save folder.
Example	Command	:FILE:FOLDer SaveData0523 Sets the folder name of the save folder to [SAVEDATA0523].
	Query	:FILE:FOLDer?
	Response	:FILE:FOLDER SAVEDATA0523 (when HEADER ON) SAVEDATA0523 (when HEADER OFF) The folder name of the save folder is set to [SAVEDATA0523].
Note

Querying USB flash drive information

Syntax	Command
	Query	:FILE:INFOrmation?
	Response	<Format type>,<Total size>,<Space used>,<Space free>,<Usage rate>
	Parameter	<Format type> = FAT12/ FAT16/ FAT32
Explanation	Command
Explanation	Query	Returns the information of the USB flash drive. An execution error occurs if the USB flash drive is not connected.
Example	Command
	Query	:FILE:INFOrmation?
	Response	:FILE:INFORMATION FAT32,1.9GB,960MB,949MB,50.3% (when HEADER ON) FAT32,1.9GB,960MB,949MB,50.3% (when HEADER OFF) The format type of the connected USB flash drive is FAT32, the total size 1.9 GB, space used 960 MB, space free 949 MB, and usage rate 50.3%.
Note

Setting and querying the mode of the save folder

Syntax	Command	:FILE:MODE <AUTO/MANUAL>
	Query	:FILE:MODE?
	Response	<AUTO/MANUAL>
	Parameter
Explanation	Command	Sets the mode of the save folder. AUTO: The save folder is set automatically from the date and time. MANUAL:Any folder can be set. Set the folder name with the FILE:FOLDer command.
Explanation	Query	Returns the mode of the save folder.
Example	Command	:FILE:MODE MANUAL Sets the mode of the save folder to manual.
	Query	:FILE:MODE?
	Response	:FILE:MODE MANUAL (when HEADER ON) MANUAL (when HEADER OFF) The mode of the save folder is set to manual.
Note

Execution of panel save to USB memory

Syntax	Command	:FILE:PANel:SAVE <Panel name>
	Query
	Response
	Parameter	<Panel name> = +, -, _, 0 to 9, A to Z (12 characters or less)
Explanation	Command	Specifies a panel name and saves the panel to USB memory. Executing this command causes a folder named "SETTING" to be created on the USB memory, and the panel is saved in that folder. Executing it in LCR mode causes the LCR panel to be saved, while executing it in analyzer mode causes the analyzer panel to be saved. The valid characters listed above are used for the panel name, which can be specified using a maximum of 12 characters. Lowercase letters "a" to "z" are converted into uppercase letters.
Explanation	Query
Example	Command	:FILE:PANel:SAVE TEST1 Saves the panel to USB memory under the name "TEST1".
	Query
	Response
Note		Before executing this command, check whether the USB memory has been properly recognized.

Execution of panel load from USB memory

Syntax	Command	:FILE:PANel:LOAD <Panel name>
	Query
	Response
	Parameter	<Panel name> = +, -, _, 0 to 9, A to Z (12 characters or less)
Explanation	Command	Specifies a panel name and executes a panel load from USB memory. The valid characters listed above are used for the panel name, which can be specified using a maximum of 12 characters.
Explanation	Query
Example	Command	:FILE:PANel:LOAD TEST1 Loads the panel named "TEST1" from USB memory.
	Query
	Response
Note		An execution error will result if a panel with the specified name does not exist. This command cannot be executed during measurement, and doing so will result in an execution error. Execute the command after changing to an external trigger (in LCR mode) or to sequential sweep or step sweep (in analyzer mode).

Execution of all save to USB memory

Syntax	Command	:FILE:PANel:ALLSave <Specified save folder name>
	Query
	Response
	Parameter	<Panel name> = +, -, _, 0 to 9, A to Z (12 characters or less)
Explanation	Command	Specifies a panel name and saves the current panel and all the panels saved in the instrument to USB memory. Executing this command causes a folder named "SETTING" to be created on the USB memory, and the data is saved in that folder. Use the valid characters shown above for the panel name and specify a name that is within 12 characters. Lowercase a to z are converted to uppercase.
Explanation	Query
Example	Command	:FILE:PANel:ALLSave TEST2 Executes all save onto the USB memory under the name "TEST2".
	Query
	Response
Note		Before executing this command, check whether the USB memory has been properly recognized.

Execution of all load from USB memory

Syntax	Command	:FILE:PANel:ALLLoad <Specified save folder name>
	Query
	Response
	Parameter	<Panel name> = +, -, _, 0 to 9, A to Z (12 characters or less)
Explanation	Command	Specifies a panel name and executes all load from the USB memory. Use the valid characters shown above are used for the folder name and specify a name that is within 12 characters.
Explanation	Query
Example	Command	:FILE:PANel:ALLLoad TEST2 Executes all load of "TEST2" from the USB memory.
	Query
	Response
Note		An execution error will result if a folder with the specified name does not exist. This command cannot be executed during measurement, and doing so will result in an execution error. Execute the command after changing to an external trigger (in LCR mode) or to sequential sweep or step sweep (in analyzer mode). When all load is executed, all the panels saved in the instrument are overwritten.

Setting and querying the measurement parameter setting for when saving text

Syntax	Command	:FILE:PARAmeter <ON/OFF>
	Query	:FILE:PARAmeter?
	Response	<ON/OFF>
	Parameter
Explanation	Command	Sets whether to save the measurement parameters when saving text.
Explanation	Query	Returns the setting of the measurement parameters for when saving text.
Example	Command	:FILE:PARAmeter ON Saves the measurement parameters when saving text.
	Query	:FILE:PARAmeter?
	Response	:FILE:PARAMETER ON (when HEADER ON) ON (when HEADER OFF) The measurement parameters are saved when saving text.
Note

Setting and querying the quotation mark setting for when saving text

Syntax	Command	:FILE:QUOTe <OFF/DOUBle/SINGle>
	Query	:FILE:QUOTe?
	Response	<OFF/DOUBLE/SINGLE>
	Parameter
Explanation	Command	Sets the quotation mark for when saving text. OFF: Quotation marks are not added. DOUBle: Double quotation mark (") SINGle: Single quotation mark (‘)
Explanation	Query	Returns the quotation mark for when saving text.
Example	Command	:FILE:QUOTe DOUBle Sets the quotation mark for when saving text to the double quotation mark.
	Query	:FILE:QUOTe?
	Response	:FILE:QUOTE DOUBLE (when HEADER ON) DOUBLE (when HEADER OFF) The quotation mark for when saving text is set to the double quotation mark.
Note

Executing file saving

Syntax	Command	:FILE:SAVE
	Query
	Response
	Parameter
Explanation	Command	Executes file saving. An execution error occurs if the file type is set to "OFF" or a USB flash drive is not connect.
Explanation	Query
Example	Command	:FILE:SAVE Executes file saving.
	Query
	Response
Note

Setting and querying the measurement condition setting for when saving text

Syntax	Command	:FILE:SET <ON/OFF>
	Query	:FILE:SET?
	Response	<ON/OFF>
	Parameter
Explanation	Command	Sets whether to save the measurement conditions when saving text.
Explanation	Query	Returns the measurement condition setting for when saving text.
Example	Command	:FILE:SET ON Saves the measurement conditions when saving text.
	Query	:FILE:SET?
	Response	:FILE:SET ON (when HEADER ON) ON (when HEADER OFF) The measurement conditions are saved when saving text.
Note

Text save settings and inquiry

Syntax	Command	:FILE:TYPE:TEXT <OFF/ON>
	Query	:FILE:TYPE:TEXT?
	Response	<OFF/ON>
	Parameter
Explanation	Command	Configures the text save setting. OFF: Text data is not saved. ON: Measured values are saved in text format.
Explanation	Query	Returns the text save setting.
Example	Command	:FILE:TYPE:TEXT ON Configures the instrument so that measured values are saved as text files.
	Query	:FILE:TYPE:TEXT?
	Response	:FILE:TYPE:TEXT ON (when HEADER ON) ON (when HEADER OFF) The instrument has been configured so that measured values are saved as text.
Note		This command configures save settings but does not actually save data. To save data, use the FILe:SAVe command.

BMP save settings and inquiry

Syntax	Command	:FILE:TYPE:BMP <OFF/COLor/MONochrome>
	Query	:FILE:TYPE:BMP?
	Response	<OFF/COLOR/MONOCHROME>
	Parameter
Explanation	Command	Configures the BMP save setting. OFF: BMP data is not saved. COLor: Screenshots are saved as 256-color BMP files. MONochrome: Screenshots are saved as 2-color monochrome BMP files.
Explanation	Query	Returns the BMP save setting.
Example	Command	:FILE:TYPE:BMP COLOR Configures the instrument so that screenshots are saved as 256-color BMP files.
	Query	:FILE:TYPE:BMP?
	Response	:FILE:TYPE:BMP COLOR (when HEADER ON) COLOR (when HEADER OFF) The instrument has been configured so that screenshots are saved as 256-color BMP files.
Note		This command configures save settings but does not actually save data. To save data, use the FILe:SAVe command.

Setting and querying the data transfer format

Syntax	Command	:FORMat:DATA <ASCii/REAL>
	Query	:FORMat:DATA?
	Response	<ASCII/REAL>
	Parameter
Explanation	Command	Sets the data transfer format. ASCii: Transfers data in ASCII format. REAL: Transfers data in binary format.
Explanation	Query	Returns the data transfer format.
Example	Command	:FORMat:DATA REAL Sets the data transfer format to binary.
	Query	:FORMat:DATA?
	Response	:FORMAT:DATA REAL (when HEADER ON) REAL (when HEADER OFF) The data transfer format is set to binary.
Note

Setting and querying long format for when data transfer

Syntax	Command	:FORMat:LONG <ON/OFF>
	Query	:FORMat:LONG?
	Response	<ON/OFF>
	Parameter
Explanation	Command	Sets long format for when data transfer.
Explanation	Query	Returns ON or OFF for the setting of long format for when data transfer.
Example	Command	:FORMat:LONG ON Returns the data in long format when data transfer
	Query	:FORMat:LONG?
	Response	:FORMAT:LONG ON (when HEADER ON) ON (when HEADER OFF) The data is set to be returned in long format when data transfer.
Note

Setting and querying the Measurement Frequency

Syntax	Command	:FREQuency <Frequency>
	Query	:FREQuency?
	Response	<Frequency>
	Parameter	<Frequency> = 0.0010～200.00E+03 (NR3)
Explanation	Command	Sets the measurement frequency.
Explanation	Query	Returns the setting of the measurement frequency.
Example	Command	:FREQuency 1000 Sets the measurement frequency to 1 kHz.
	Query	:FREQuency?
	Response	:FREQUENCY 1.0000E+03 (when HEADER ON) 1.0000E+03 (when HEADER OFF) The measurement frequency is set to 1 kHz.
Note

Setting and querying the RS-232C Communication Handshake

Syntax	Command	:HANDshake <OFF/HARDware/X/BOTH>
	Query	:HANDshake?
	Response	<OFF/HARDware/X/BOTH>
	Parameter
Explanation	Command	Sets the RS-232C communication handshake. OFF: No handshake HARDware: Hardware handshake X: Software handshake BOTH: Both hardware handshake and software handshake
Explanation	Query	Returns the RS-232C communication handshake.
Example	Command	:HANDshake X Sets software handshake.
	Query	:HANDshake?
	Response	:HANDSHAKE X (when HEADER ON) X (when HEADER OFF) The setting is set to the software handshake.
Note		An execution error occurs if the interface is set to other than RS-232C.

Acquiring the BMP data of the measurement screen

Syntax	Command
	Query	:HCOPy:DATA? <COLor/MONochrome>
	Response	<BMP data>
	Parameter
Explanation	Command
Explanation	Query	Returns the BMP data of the measurement screen in binary format. As shown in the figure below, for the binary data, the number of transfer bytes is output at the top, and the BMP data is output next, and the terminator is output at the end. COLor: Color BMP data MONochrome: Black-and-white BMP data
Example	Command
	Query	:HCOPy:DATA? COLor
	Response	Acquires the color measurement screens.

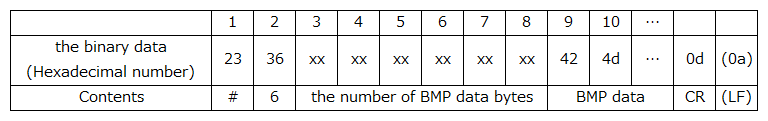

Note		For the procedure to convert the binary data obtained by this query to the BMP, refer to the sample program.

Syntax	Command	:HEADer <ON/OFF>
	Query	:HEADer?
	Response
	Parameter
Explanation	Command	Sets whether or not there is a header in the response message. This is initialized to OFF when the power is turned on.
Explanation	Query	Returns the header setting of the response message.
Example	Command	:HEADer ON Adds a header to the response message.
	Query	:HEADer?
	Response	:HEADER ON (when HEADER ON) OFF (when HEADER OFF) A header is set to be added to the response message.
Note

Setting and querying the Hi Z reject function

Syntax	Command	:HIZ <ON/OFF>
	Query	:HIZ?
	Response	<ON/OFF>
	Parameter
Explanation	Command	Enables or disables the Hi Z reject function. OFF: Does not detect abnormal measurement values. ON: Detects abnormally high measurement values as errors.
Explanation	Query	Returns whether the Hi Z reject function is enabled or disabled.
Example	Command	:HIZ ON Enables the Hi Z reject function.
	Query	:HIZ?
	Response	:HIZ ON (when HEADER ON) ON (when HEADER OFF) The Hi Z reject function is enabled.
Note

Setting and querying the limit value of the Hi Z reject function

Syntax	Command	:HIZ:LIMit <Limit value>
	Query	:HIZ:LIMit?
	Response	<Limit value>
	Parameter	<Limit value> = 0 to 30000% (NR1)
Explanation	Command	Sets the limit value of the Hi Z reject function.
Explanation	Query	Returns the limit value of the Hi Z reject function.
Example	Command	:HIZ:LIMit 500 Sets the limit value of the Hi Z reject function to 500%.
	Query	:HIZ:LIMit?
	Response	:HIZ:LIMIT 500 (when HEADER ON) 500 (when HEADER OFF) The limit value of the Hi Z reject function is set to 500%.
Note

INDEX and EMO output method setting and inquiry

Syntax	Command	IO:EOM:MODE <HOLD/PULSe>
	Query	IO:EOM:MODE?
	Response
	Parameter
Explanation	Command	Sets the INDEX and EOM output method.
Explanation	Query	Returns the INDEX and EOM output method.
Example	Command	IO:EOM:MODE PULSE Sets the INDEX and EOM output method to pulse.
	Query	IO:EOM:MODE?
	Response	:IO:EOM:MODE PULSE (when HEADER ON) PULSE (when HEADER OFF) The INDEX and EOM output method has been set to pulse.
Note		For a timing chart describing the setting made with this command, see the "External Control" chapter in the instrument's user manual.

Pulse width for which to keep EOM low (on) setting and inquiry

Syntax	Command	IO:EOM:PULSe <Pulse width>
	Query	IO:EOM:PULSe?
	Response
	Parameter	<Pulse width> = 0.0001 to 0.9999s (NR2)
Explanation	Command	Sets the pulse width for which to keep EOM low (on).
Explanation	Query	Returns the pulse width for which to keep EOM low (on).
Example	Command	IO:EOM:PULSe 0.002 Sets the pulse width for which EOM is kept low (on) to 0.002 s.
	Query	IO:EOM:PULSe?
	Response	:IO:EOM:PULSE 0.0020 (when HEADER ON) 0.0020 (when HEADER OFF) The pulse width for which EOM is kept low (on) has been set to 0.002 s.
Note		For a timing chart describing the setting made with this command, see the "External Control" chapter in the instrument's user manual.

Setting and querying the delay time between judgment result output and EOM output

Syntax	Command	:IO:OUTPut:DELay <I/O delay time>
	Query	:IO:OUTPut:DELay?
	Response	<I/O delay time>
	Parameter	<I/O delay time> = 0 to 0.9999 s (NR2)
Explanation	Command	Sets the delay time for the period between the output of comparator and BIN judgment results and the output of the EOM from the EXT I/O.
Explanation	Query	Returns the delay time for the period between the output of comparator and BIN judgment results and the output of the EOM from the EXT I/O.
Example	Command	:IO:OUTPUT:DELAY 0.1234 Sets the delay time for the period between the output of comparator and BIN judgment results and the output of the EOM from the EXT I/O to 0.1234 s.
	Query	:IO:OUTPUT:DELAY?
	Response	:IO:OUTPUT:DELAY 0.1234 (when HEADER ON) 0.1234 (when HEADER OFF) The delay time for the period between the output of comparator and BIN judgment results and the output of the EOM from the EXT I/O is set to 0.1234 s.
Note		The delay time for the period between the comparator and BIN judgment results and the EOM has an error of approximately 160 ms with regards to the setting value. Furthermore, the delay time may vary widely if a trigger is input from the EXT I/O or communication is performed via an interface during measurement, so make every effort not to perform control from an external device during measurement.

Setting and querying output of the judgment result signal line

Syntax	Command	:IO:RESult:RESet <ON/OFF>
	Query	:IO:RESult:RESet?
	Response	<ON/OFF>
	Parameter
Explanation	Command	Sets whether the judgment result signal line of the EXT I/O is reset. ON: Resets the judgment results simultaneously with the input of a measurement start signal (trigger signal). OFF: Updates the judgment results at the point in time when measurement ends.
Explanation	Query	Returns whether the judgment result signal line of the EXT I/O is reset.
Example	Command	:IO:RESult:RESet ON Sets the judgment results to be reset simultaneously with the input of a measurement start signal (trigger signal).
	Query	:IO:RESult:RESet?
	Response	:IO:RESULT:RESET ON (when HEADER ON) ON (when HEADER OFF) The judgment results are set to be reset simultaneously with the input of a measurement start signal (trigger signal).
Note		For details on the judgment result signal line, refer to "External Control" in the instruction manual.

Setting and querying the trigger edge

Syntax	Command	:IO:TRIGger:EDGe <DOWN/UP>
	Query	:IO:TRIGger:EDGe?
	Response	<DOWN/UP>
	Parameter
Explanation	Command	Sets the trigger edge of the EXT I/O. DOWN: Applies a trigger to the falling edge. UP: Applies a trigger to the rising edge.
Explanation	Query	Returns the setting of the trigger edge of the EXT I/O.
Example	Command	:IO:TRIGger:EDGe UP Sets a trigger to be applied to the rising edge.
	Query	:IO:TRIGger:EDGe?
	Response	:IO:TRIGGER:EDGE UP (when HEADER ON) UP (when HEADER OFF) A trigger is set to be applied to the rising edge.
Note

Setting and querying permit/prohibit of trigger input during measurement

Syntax	Command	:IO:TRIGger:ENABle <ON/OFF>
	Query	:IO:TRIGger:ENABle?
	Response	<ON/OFF>
	Parameter
Explanation	Command	Enables or disables trigger input from the EXT I/O during measurement. ON: Accepts trigger input from the EXT I/O during measurement. OFF: Does not accept trigger input from the EXT I/O during measurement.
Explanation	Query	Returns whether trigger input from the EXT I/O during measurement is enabled or disabled.
Example	Command	:IO:TRIGger:ENABle ON Sets trigger input from the EXT I/O during measurement to be accepted.
	Query	:IO:TRIGger:ENABle?
	Response	:IO:TRIGGER:ENABLE ON (when HEADER ON) ON (when HEADER OFF) Trigger input from the EXT I/O during measurement is set to be accepted.
Note

Setting and querying the judgment function

Syntax	Command	:JUDGment
	Query	:JUDGment?
	Response	<NORMAL/COMPARATOR/BIN>
	Parameter
Explanation	Command	Sets the judgment function.
Explanation	Query	Returns the setting of the judgment function.
Example	Command	:JUDGment COMParator Sets the judgment function to the comparator measurement.
	Query	:JUDGment?
	Response	:JUDGEMENT COMPARATOR (when HEADER ON) COMPARATOR (when HEADER OFF) The judgment function is set to the comparator measurement.
Note

Executing and querying the key lock

Syntax	Command	:KEYLock
	Query	:KEYLock?
	Response	<ON/OFF>
	Parameter
Explanation	Command	Enables the key lock. When you want to set a passcode, set it before using this command. The factory default setting for the passcode is "3590".
Explanation	Query	Returns the state of the key lock. OFF: The key lock is not enabled. ON: The key lock is enabled.
Example	Command	:KEYLock Enables the key lock.
	Query	:KEYLock?
	Response	:KEYLOCK ON (when HEADER ON) ON (when HEADER OFF) The instrument is in the key lock state.
Note		An execution error occurs if this command is sent while the key lock is enabled.

Setting the key lock passcode

Syntax	Command	:KEYLock:PASScode <Passcode/ none>
	Query
	Response
	Parameter	<Passcode> = 0 to 9 (up to 4 digits)
Explanation	Command	Sets the passcode of the key lock. If the passcode is omitted, the key lock will be set without a passcode. The factory default setting for the passcode is "3590".
Explanation	Query
Example	Command	:KEYLock:PASScode 0523 Sets the passcode of the key lock to "0523".
	Query
	Response
Note		An execution error occurs in the following cases. When the key lock is enabled When the passcode contains an invalid character (alphabetical character, space, slash, etc.) When the passcode exceeds 4 digits

Disabling the key lock

Syntax	Command	:KEYLock:UNLock <Passcode/ none>
	Query
	Response
	Parameter	<Passcode> = 0 to 9 (up to 4 digits)
Explanation	Command	Disables the key lock. If a passcode is set, specify the passcode in the query data.
Explanation	Query
Example	Command	:KEYLock:UNLock 0523 Specifies "0523" for the passcode and disables the key lock.
	Query
	Response
Note		An execution error occurs in the following cases. When the key lock is not enabled When the passcode contains an invalid character (alphabetical character, space, slash, etc.) When the passcode exceeds 4 digits When the passcode is incorrect If you forget the passcode, perform a full reset to restore the instrument to the factory default settings. (Refer to "Full Reset Procedure" in "Maintenance and Service" of the instruction manual.)

Setting and querying the measurement signal level

Syntax	Command	:LEVel <V/CV/CC>
	Query	:LEVel?
	Response	<V/CV/CC>
	Parameter
Explanation	Command	Sets the measurement signal type to any one of open-circuit voltage, constant voltage, and constant current. V: Sets open-circuit voltage. CV: Sets constant voltage. CC: Sets constant current.
Explanation	Query	Returns the measurement signal type.
Example	Command	:LEVel V Sets the measurement signal type to V (open-circuit voltage).
	Query	:LEVel?
	Response	:LEVEL V (when HEADER ON) V (when HEADER OFF) The measurement signal type is set to V (open-circuit voltage).
Note

Setting and querying the constant current level value

Syntax	Command	:LEVel:CCURRent <Constant current level>
	Query	:LEVel:CCURRent?
	Response	<Constant current level>
	Parameter	<Constant current level> = The settable range varies depending on the conditions. (NR3) Refer to "Setting the Measurement Signal Level" in the instruction manual
Explanation	Command	Sets the constant current level.
Explanation	Query	Returns the currently set constant current level.
Example	Command	:LEVel:CCURRent 10E-3 Sets the constant current level to 10 mA.
	Query	:LEVel:CCURRent?
	Response	:LEVEL:CCURRENT 10.00E-03 (when HEADER ON) 10.00E-03 (when HEADER OFF) The constant current level is set to 10 mA.
Note

Setting and querying the constant voltage level

Syntax	Command	:LEVel:CVOLTage <Constant voltage level>
	Query	:LEVel:CVOLTage?
	Response	<Constant voltage level>
	Parameter	<Constant voltage level> = The settable range varies depending on the conditions. (NR3) Refer to "Setting the Measurement Signal Level" in the instruction manual.
Explanation	Command	Sets the constant voltage level.
Explanation	Query	Returns the currently set constant voltage level.
Example	Command	:LEVel:CVOLTage 1.000 Sets the constant voltage level to 1 V.
	Query	:LEVel:CVOLTage?
	Response	:LEVEL:CVOLTAGE 1.000 (when HEADER ON) 1.000 (when HEADER OFF) The constant voltage level is set to 1 V.
Note

Setting and querying the open-circuit voltage level

Syntax	Command	:LEVel:VOLTage <Open-circuit voltage level>
	Query	:LEVel:VOLTage?
	Response	<Open-circuit voltage level>
	Parameter	<Open-circuit voltage level> = The settable range varies depending on the conditions. (NR3) Refer to "Setting the Measurement Signal Level" in the instruction manual.
Explanation	Command	Sets the open-circuit voltage level.
Explanation	Query	Returns the currently set open-circuit voltage level.
Example	Command	:LEVel:VOLTage 1.000 Sets the open-circuit voltage level to 1 V.
	Query	:LEVel:VOLTage?
	Response	:LEVEL:VOLTAGE 1.000 (when HEADER ON) 1.000 (when HEADER OFF) The open-circuit voltage level is set to 1 V.
Note

Setting and querying the limit function

Syntax	Command	:LIMiter <ON/OFF>
	Query	:LIMiter?
	Response	<ON/OFF>
	Parameter
Explanation	Command	Sets the limit function.
Explanation	Query	Returns the setting of the limit function.
Example	Command	:LIMiter ON Sets the limit function to ON.
	Query	:LIMiter?
	Response	:LIMITER ON (when HEADER ON) ON (when HEADER OFF) The limit function is set to ON.
Note

Setting and querying the current limit value

Syntax	Command	:LIMiter:CURRent <Current limit value>
	Query	:LIMiter:CURRent?
	Response	<Current limit value>
	Parameter	<Current limit value> = 0.01 m to 100.00 mA (NR3)
Explanation	Command	Sets the current limit value.
Explanation	Query	Returns the current limit value.
Example	Command	:LIMiter:CURRent 50.00E-03 Sets the current limit value to 50 mA.
	Query	:LIMiter:CURRent?
	Response	:LIMITER:CURRENT 50.00E-03 (when HEADER ON) 50.00E-03 (when HEADER OFF) The current limit value is set to 50 mA.
Note

Setting and querying the voltage limit value

Syntax	Command	:LIMiter:VOLTage <Voltage limit value>
	Query	:LIMiter:VOLTage?
	Response	<Voltage limit value>
	Parameter	<Voltage limit value> = 0.005 to 5.000 V (NR3)
Explanation	Command	Sets the voltage limit value.
Explanation	Query	Returns the voltage limit value.
Example	Command	:LIMiter:VOLTage 5.000 Sets the voltage limit value to 5 V.
	Query	:LIMiter:VOLTage?
	Response	:LIMITER:VOLTAGE 5.000 (when HEADER ON) 5.000 (when HEADER OFF) The voltage limit value is set to 5 V.
Note

Executing panel load

Syntax	Command	:LOAD <Panel No.>
	Query
	Response
	Parameter	<Panel No.> = 1 to 128
Explanation	Command	Loads the specified panel number.
Explanation	Query
Example	Command	:LOAD 2 Loads panel number 2.
	Query
	Response
Note

Querying measurement data

Syntax	Command
	Query	:MEASure?
	Response	<Measurement value>
	Parameter
Explanation	Command
Explanation	Query	For more detail, refer to "Querying measurement data".
Example	Command
	Query
	Response
Note		If a setting has been changed, send the ":MEASure?" query after triggering.

Setting and querying measurement parameters

Syntax	Command	:MEASure:ITEM <MR0>, <MR1>, <MR2>
	Query	:MEASure:ITEM?
	Response	<MR0>, <MR1>, <MR2>
	Parameter	<MR0> = 0 to 255 (NR1) <MR1> = 0 to 255 (NR1) <MR2> = 0 to 255 (NR1)
Explanation	Command	Specifies the measurement parameter for response of the :MEASure? query during normal measurement by the sum of bits. If this is set to MR0=0 and MR1=0 and MR2=0, the measurement values of the measurement parameters displayed on the screen are returned. This is set to MR0=0 and MR1=0 and MR2=0 when the power is turned on.
Explanation	Query	Returns the measurement parameters for the response of the :MEASure? query during normal measurement.
Example	Command	:MEASure:ITEM 53,18,0 Sets measurement parameters for response to Z, θ, Cp, D, Rs, and X.
	Query	:MEASure:ITEM?
	Response	:MEASURE:ITEM 53,18,0 (when HEADER ON) 53,18,0 (when HEADER OFF) The measurement parameters for response are set to to Z, θ, Cp, D, Rs, and X.

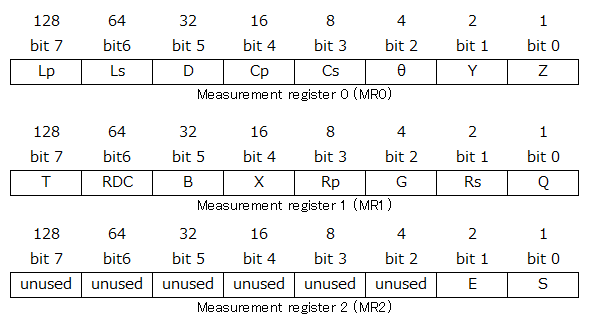

Note		Specify the MR0 and MR1 and MR2 values by the sum of bits. For example, when setting the measurement parameters for response to Z, θ, Cp, D, Rs, and X, specify MR0=1+4+16+32=53 and MR1=2+16=18 and MR2=0 because Z = 1, θ = 4, Cp = 16, D = 32, Rs = 2, and X = 16. This command results in an execution error in other than LCR mode.

Setting and querying the measurement value automatic output function

Syntax	Command	:MEASure:OUTPut:AUTO <ON/OFF>
	Query	:MEASure:OUTPut:AUTO?
	Response	<ON/OFF>
	Parameter
Explanation	Command	Sets the measurement value automatic output function. ON: Outputs the measurement values automatically after measurement finishes. OFF: Does not output the measurement values automatically after measurement finishes. If this is set to ON, the measurement values are automatically output from the selected interface after measurement finishes. The output format of measurement values is the same as that for the :MEASure? query. In analyzer mode, the measurement values are input when the measurement of one sweep point finishes.
Explanation	Query	Returns the setting of the measurement value automatic output function.
Example	Command	:MEASure:OUTPut:AUTO ON Sets the measurement value automatic output function to ON.
	Query	:MEASure:OUTPut:AUTO?
	Response	:MEASURE:OUTPUT:AUTO ON (when HEADER ON) ON (when HEADER OFF) The measurement value automatic output function is set to ON.
Note		Be sure to turn off the power when the instrument is not used.

Setting and querying the response data of the measurement acquisition query

Syntax	Command	:MEASure:VALid <Setting value>
	Query	:MEASure:VALid?
	Response	<Setting value>

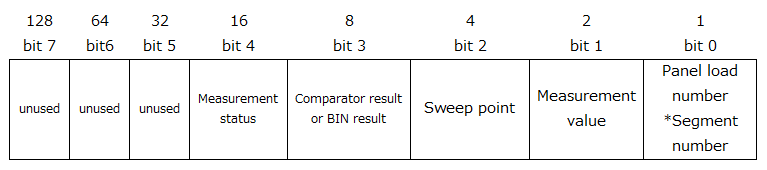

	Parameter	<Setting value> = 1 to 255 (NR1)
Explanation	Command	Sets the content for the response of the :MEASure? query by the sum of bits.
Explanation	Query	Returns the content for the response of the :MEASure? query.
Example	Command	:MEASure:VALid 18 Sets the measurement values and measurement status to be returned with the :MEASure? query.
	Query	:MEASure:VALid?
	Response	:MEASURE:VALID 18 (when HEADER ON) 18 (when HEADER OFF) The measurement values and measurement status are set to be returned with the :MEASure? query.
Note

Querying measurement values saved to memory with the measurement value memory function

Syntax	Command
	Query	:MEMory? <No data/ ALL>
	Response	Refer to the response format of the MEASure? command.
	Parameter
Explanation	Command

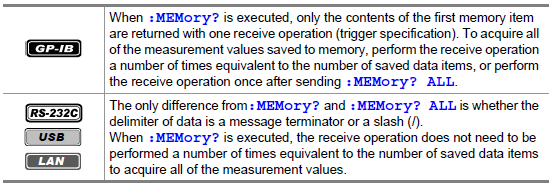

Explanation	Query	Returns all of the measurement values saved to memory with the measurement value memory function. The measurement results for up to 32,000 measurements can be saved to memory. Executing this command will clear the contents of memory. To clear the contents of memory before acquiring the contents of memory, use the :MEMory:CLEar command. The formats of the memory contents are the same as the response data formats of :MEASure? query. For details on the formats, refer to the explanation for the :MEASure? query. A message terminator or slash (/) is inserted between memory items. In the case of :MEMory?Message terminator In the case of :MEMory? ALLSlash (/) The number of data items currently saved to memory can be confirmed with the :MEMory:COUNt? query. When the trigger setting is set to the internal trigger, the number of data items acquired with the :MEMory:COUNt? query may differ from that acquired with this command. To use the :MEMory:COUNt? query, set the trigger setting to the external trigger. When the trigger setting is set to the internal trigger, the measurement values of measurements performed while the memory values are being returned with this command may not be able to be saved. Set the external trigger when acquiring memory values and do not perform measurement until acquiring of all the memory values is complete. When memory becomes full, no more measurement values can be saved. To save new measurement values, use this command to read the contents of the memory or clear the contents of memory with the :MEMory:CLEar command.
Example	Command
	Query	:MEMory?
	Response	Z 1.59062E+03,PHASE -89.992 Z 1.59069E+03,PHASE -89.993 Z 1.59057E+03,PHASE -89.992 Z 1.59066E+03,PHASE -89.993 Z 1.59056E+03,PHASE -89.993 (when HEADER ON) 1.59062E+03, -89.992 1.59069E+03, -89.993 1.59057E+03, -89.992 1.59066E+03, -89.993 1.59056E+03, -89.993 (when HEADER OFF)
Note		An execution error occurs during continuous measurement. If measurement values equivalent to the memory size set with the :MEMory:POINt command are saved to memory, measurement values from subsequent measurements will not be saved. At that time, a message like the following appears on the screen to notify you that memory is full.

Clearing memory of measurement value memory function

Syntax	Command	:MEMory:CLEar
	Query
	Response
	Parameter
Explanation	Command	Clears all of the measurement values saved to internal memory with the measurement value memory function. If this command is sent, subsequent measurement results are saved from the beginning of memory.
Explanation	Query
Example	Command	:MEMory:CLEar Clears all of the measurement values saved to memory.
	Query
	Response
Note

Setting and querying the measurement value memory function

Syntax	Command	:MEMory:CONTrol <ON/IN/OFF>
	Query	:MEMory:CONTrol?
	Response	<ON/IN/OFF>
	Parameter
Explanation	Command	Sets the measurement value memory function. If the setting is changed, all of the saved measurement values are cleared. OFF : Measurement values are not saved to internal memory. IN : Saves the measurement values to memory only when a pass judgment is made for all of the parameters judged with the comparator and BIN functions. (The measurement values are not saved if even one of the comparator results is HI or LO, or if the BIN result is OUT-OF-BINS or D-NG.) In analyzer mode and when the comparator and BIN functions are not used, the operation is the same as when ON. ON : Saves the measurement values to internal memory.
Explanation	Query	Returns the setting of the measurement value memory function.
Example	Command	:MEMory:CONTrol ON Saves the measurement values to memory.
	Query	:MEMory:CONTrol?
	Response	:MEMORY:CONTROL ON (when HEADER ON) ON (when HEADER OFF) Measurement values are set to be saved to memory.
Note

Querying the number of measurement values saved to memory with the memory function

Syntax	Command
	Query	:MEMory:COUNt?
	Response	<Number of data items>
	Parameter	<Number of data items> = 0 to 32000 (NR1)
Explanation	Command
Explanation	Query	Returns the number of data items saved to memory with the measurement value memory function. A header is not added to the response message.
Example	Command
	Query	:MEMory:COUNt?
	Response	1000 1,000 data items are saved to internal memory.
Note

Setting and querying the measurement value memory size

Syntax	Command	:MEMory:POINts <Memory size>
	Query	:MEMory:POINts?
	Response	<Memory size>
	Parameter	<Memory size> = 1 to 32000 (NR1)
Explanation	Command	Sets the number of data items to save to internal memory. This cannot be set when the memory function is set to ON or IN. If the setting is changed, all of the saved measurement values are cleared.
Explanation	Query	Returns the number of data items to save to internal memory.
Example	Command	:MEMory:POINts 200 Sets the memory size to 200.
	Query	:MEMory:POINts?
	Response	:MEMORY:POINTS 200 (when HEADER ON) 200 (when HEADER OFF) The memory size is set to 200.
Note		An execution error occurs during continuous measurement.

Saving of measured value memory

Syntax	Command	:MEMory:SAVE
	Query
	Response
	Parameter
Explanation	Command	Copies data saved to internal memory with the measured value memory function to USB memory.
Explanation	Query
Example	Command	:MEMory:SAVE
	Query
	Response
Note		If data has not been saved in internal memory, an execution error will result.

Setting and querying measurement mode

Syntax	Command	:MODE <LCR/ANALyzer/CONTinuous>
	Query	:MODE?
	Response	<LCR/ANALYZER/CONTINUOUS>
	Parameter
Explanation	Command	Sets measurement mode. LCR : Sets measurement mode to LCR mode. ANALYZER : Sets measurement mode to ANALYZER mode. CONTINUOUS : Sets measurement mode to CONTINUOUS mode.
Explanation	Query	Returns the setting of measurement mode.
Example	Command	:MODE ANALyzer Sets measurement mode to analyzer.
	Query	:MODE?
	Response	:MODE ANALYZER (when HEADER ON) ANALYZER (when HEADER OFF) Measurement mode is set to analyzer.
Note

Querying the voltage/current monitor value

Syntax	Command
	Query	:MONItor?
	Response	<AC voltage monitor value>,<AC current monitor value>,<DC voltage monitor value>,<DC current monitor value>
	Parameter
Explanation	Command
Explanation	Query	Returns the voltage monitor value and current monitor value.
Example	Command
	Query	:MONItor?
	Response	:MONITOR 3.500061E-03,1.015322E-02,3.361863E-03,9.767721E-03 (when HEADER ON) 3.500061E-03,1.015322E-02,3.361863E-03,9.767721E-03 (when HEADER OFF) The AC voltage monitor value is 3.500061 mV, the AC current monitor value is 10.15322 mA, the DC voltage monitor value is 3.361863 mV, and the DC current monitor value is 9.767721mA.
Note		When only DC measurement is performed, the AC voltage monitor value and AC current monitor value become 0.000000E+00. When DC measurement is not performed, the DC voltage monitor value and DC current monitor value become 0.000000E+00.

Setting and querying the display parameters

Syntax	Command	:PARameter# <Z/ Y/ PHASE(phase angle)/ CS/ CP/ D/ LS/ LP/ Q/ RS/ G/ RP/ X/ B/ RDC/ T/ S/ E/ OFF>
	Query	:PARameter#?
	Response	<Z/ Y/ PHASE(phase angle)/ CS/ CP/ D/ LS/ LP/ Q/ RS/ G/ RP/ X/ B/ RDC/ T/ S/ E/ OFF>
	Parameter
Explanation	Command	Sets the display parameters
Explanation	Query	Returns the settings of the display parameters.
Example	Command	:PARameter1 Z;:PARameter3 PHASE Sets the first parameter to impedance, and the third parameter to phase angle.
	Query	:PARameter3?
	Response	:PARAMETER3 PHASE (when HEADER ON) PHASE (when HEADER OFF) The third parameter is set to phase angle.
Note		# is a numerical value from 1 to 4.

Setting and querying number of display digits

Syntax	Command	:PARameter#:DIGit <Number of display digits>
	Query	:PARameter#:DIGit?
	Response	<Number of display digits>
	Parameter	<Number of display digits> = 3 to 6 (NR1)
Explanation	Command	Sets the number of display digits of the parameters.
Explanation	Query	Returns the number of display digits of the parameters.
Example	Command	:PARameter1:DIGit 3 Sets the number of display digits of the first parameter to 3.
	Query	:PARameter1:DIGit?
	Response	:PARAMETER1:DIGIT 3 (when HEADER ON) 3 (when HEADER OFF) The number of display digits of the first parameter is set to 3.
Note		# is a numerical value from 1 to 4.

Initializing the instrument

Syntax	Command	:PRESet
	Query
	Response
	Parameter
Explanation	Command	Resets the instrument to the initial setting state. The initial setting state differs from when a reset is performed with the ?RST command. See "Initial Settings Table"
Explanation	Query
Example	Command	:PRESet Resets the instrument to the initial setting state.
	Query
	Response
Note

Setting and querying the measurement range

Syntax	Command	:RANGe <Range No.>
	Query	:RANGe?
	Response	<Range No.>
	Parameter	<Range No.> = 1 to 10 (NR1)
Explanation	Command	Sets the measurement range. If this command is executed, the range setting is automatically changed from auto to hold.
Explanation	Query	Returns the measurement range.
Example	Command	:RANGe 4 Sets the measurement range to 4 (100 Ω).
	Query	:RANGe?
	Response	:RANGE 4 (when HEADER ON) 4 (when HEADER OFF) The measurement range is set to 4 (100 Ω).
Note

Automatically setting and querying the measurement range

Syntax	Command	:RANGe:AUTO <ON/OFF>
	Query	:RANGe:AUTO?
	Response	<ON/OFF>
	Parameter
Explanation	Command	Sets the measurement range to be changed automatically. ON: The range is changed automatically by the auto ranging function. OFF: The range is fixed and is not changed automatically.
Explanation	Query	Returns the automatic setting of the measurement range.
Example	Command	:RANGe:AUTO ON Sets the measurement range to be changed automatically.
	Query	:RANGe:AUTO?
	Response	:RANGE:AUTO ON (when HEADER ON) ON (when HEADER OFF) The measurement range is set to be changed automatically.
Note

Setting and querying the AUTO range limit function

Syntax	Command	:RANGe:AUTO:LIMit <RST/lower limit range>,<upper limit range>
	Query	:RANGe:AUTO:LIMit?
	Response	<lower limit range>,<upper limit range>
	Parameter	<lower limit range> = 1 to 10 (NR1)
Explanation	Command	Sets the AUTO range limit function.
Explanation	Query	Returns the setting of the AUTO range limit function.
Example	Command	:RANGe:AUTO:LIMit 4,7 Sets the lower and upper limit values of the AUTO range limit function to 4 (100Ω) and 7 (100kΩ), respectively.
	Query	:RANGe:AUTO:LIMit?
	Response	:RANGE:AUTO:LIMIT 4,7 (when HEADER ON) 4,7 (when HEADER OFF) The lower and upper limit values of the AUTO range limit function are set to 4 (100Ω) and 7 (100kΩ), respectively.
Note		The setting is reset by issuing ": RANGe:AUTO:LIMit RST".

Setting and querying the JUDGE synchronization setting

Syntax	Command	:RANGe:JSYNc <ON/OFF>
	Query	:RANGe:JSYNc?
	Response	<ON/OFF>
	Parameter
Explanation	Command	Sets the JUDGE synchronization function.
Explanation	Query	Returns the setting of the JUDGE synchronization.
Example	Command	:RANGe:JSYNc ON Enables the JUDGE synchronization setting.
	Query	:RANGe:JSYNc?
	Response	:RANGE:JSYNC ON (when HEADER ON) ON (when HEADER OFF) The JUDGE synchronization setting is enabled.
Note

Setting and querying low Z high accuracy mode

Syntax	Command	:RANGe:LOWZ <ON/OFF>
	Query	:RANGe:LOWZ?
	Response	<ON/OFF>
	Parameter
Explanation	Command	Sets low Z high accuracy mode.
Explanation	Query	Returns the setting of low Z high accuracy mode.
Example	Command	:RANGe:LOWZ ON Enables low Z high accuracy mode.
	Query	:RANGe:LOWZ?
	Response	:RANGE:LOWZ ON (when HEADER ON) ON (when HEADER OFF) Low Z high accuracy mode is enabled.
Note

Setting and querying the range synchronization function

Syntax	Command	:RANGe:SYNC <ON/OFF>
	Query	:RANGe:SYNC?
	Response	<ON/OFF>
	Parameter
Explanation	Command	Sets the range synchronization function.
Explanation	Query	Returns the setting of the range synchronization function.
Example	Command	:RANGe:SYNC ON Enables the range synchronization setting.
	Query	:RANGe:SYNC?
	Response	:RANGE:SYNC ON (when HEADER ON) ON (when HEADER OFF) The range synchronization function is enabled.
Note

Setting and querying the number of measurement averaging time for the range synchronization function

Syntax	Command	:RANGe:SYNC:AVERaging <ALL/Range No.>,<OFF/number of averaging times>
	Query	:RANGe:SYNC:AVERaging? <Range No.>
	Response	<OFF/number of averaging times>
	Parameter	<Range No.> = 1 to 10 (NR1) <number of averaging times> = 1 to 256 (NR1)
Explanation	Command	Sets the number of measurement averaging times for the range synchronization function. OFF: Disables the averaging function.
Explanation	Query	Returns the number of measurement averaging times for the range synchronization function.
Example	Command	:RANGe:SYNC:AVERaging 4,32 Sets the number of measurement averaging times for 4 (100Ω) of the range synchronization function to 32.
	Query	:RANGe:SYNC:AVERaging? 4
	Response	:RANGE:SYNC:AVERAGING 32 (when HEADER ON) 32 (when HEADER OFF) The number of measurement averaging times for 4 (100Ω) of the range synchronization function is set to 32.
Note		When ALL is set, this is reflected to all ranges.

Setting and querying the measurement speed for the range synchronization function

Syntax	Command	:RANGe:SYNC:SPEEd <ALL/Range No.>,<FAST/MEDium/SLOW/SLOW2>
	Query	:RANGe:SYNC:SPEEd? <Range No.>
	Response	<FAST/MEDIUM/SLOW/SLOW2>
	Parameter	<Range No.> = 1 to 10 (NR1)
Explanation	Command	Sets the measurement speed for the range synchronization function.
Explanation	Query	Returns the measurement speed for the range synchronization function.
Example	Command	:RANGe:SYNC:SPEEd 4,FAST Sets the measurement speed for 4 (100Ω) of the range synchronization function to "FAST".
	Query	:RANGe:SYNC:SPEEd? 4
	Response	:RANGE:SYNC:SPEED FAST (when HEADER ON) FAST (when HEADER OFF) The measurement speed for 4 (100Ω) of the range synchronization function is set to "FAST".
Note		When ALL is set, this is reflected to all ranges.

Setting and querying the trigger delay time for the range synchronization function

Syntax	Command	:RANGe:SYNC:TRIGger:DELay <ALL/Range No.>,<Trigger delay time>
	Query	:RANGe:SYNC:TRIGger:DELay? <Range No.>
	Response	<Trigger delay time>
	Parameter	<Range No.> = 1 to 10 (NR1) <Trigger delay time> = 0 to 9.9999 s (NR2)
Explanation	Command	Sets the trigger delay time for the range synchronization function.
Explanation	Query	Returns the setting of the trigger delay time for the range synchronization function.
Example	Command	:RANGe:SYNC:TRIGger:DELay 4,0.1 Sets measurements for 4 (100Ω) of the range synchronization function to start when 100 ms elapses after trigger input.
	Query	:RANGe:SYNC:TRIGger:DELay? 4
	Response	:RANGE:SYNC:TRIGGER:DELAY 0.1000 (when HEADER ON) 0.1000 (when HEADER OFF) Measurements for 4 (100Ω) of the range synchronization function is set to start when 100 ms elapses after trigger input.
Note		When ALL is set, this is reflected to all ranges.

Setting and querying the trigger synchronous output function for the range synchronization function

Syntax	Command	:RANGe:SYNC:SSOurce <ALL/Range No.>,<ON/OFF>
	Query	:RANGe:SYNC:SSOurce? <Range No.>
	Response	<ON/OFF>
	Parameter	<Range No.> = 1 to 10 (NR1)
Explanation	Command	Enables/disables the trigger synchronous output function for the range synchronization function. ON: Enables the trigger synchronous output function. OFF: Disables the trigger synchronous output function.
Explanation	Query	Returns the setting of the trigger synchronous output function for the range synchronization function.
Example	Command	:RANGe:SYNC:SSOurce 4,ON Enables the trigger synchronous output function for 4 (100Ω) of the range synchronization function.
	Query	:RANGe:SYNC:SSOurce? 4
	Response	:RANGE:SYNC:SSOURCE ON (when HEADER ON) ON (when HEADER OFF) The trigger synchronous output function for 4 (100Ω) of the range synchronization function is enabled.
Note		When ALL is set, this is reflected to all ranges.

Setting and querying the wait time of the trigger synchronous output function for the range synchronization function

Syntax	Command	:RANGe:SYNC:SSOurce:WAIT <ALL/Range No.>,<Wait time>
	Query	:RANGe:SYNC:SSOurce:WAIT? <Range No.>
	Response	<Wait time>
	Parameter	<Range No.> = 1 to 10 (NR1) <Trigger delay time> = 0 to 9.9999 s (NR2)
Explanation	Command	Sets the wait time for the period from after the measurement signal is output by applying a trigger for the range synchronization function until measurement starts.
Explanation	Query	Returns the wait time of the trigger synchronous output function for the range synchronization function.
Example	Command	:RANGe:SYNC:SSOurce:WAIT 4,0.5000 Sets the wait time for the period from after the trigger for 4 (100Ω) of the range synchronization function is applied until measurement starts to 500 ms.
	Query	:RANGe:SYNC:SSOurce:WAIT? 4
	Response	:RANGE:SYNC:SSOURCE:WAIT 0.5000 The wait time for the period from after the trigger for 4 (100Ω) of the range synchronization function is applied until measurement starts is set to 500 ms.
Note		When ALL is set, this is reflected to all ranges.

Executing and querying the panel save function

Syntax	Command	:SAVE <Panel No.>,<Panel name>
	Query	:SAVE? <Panel name>
	Response	<0/1>
	Parameter	<Panel No.> = 1 to 128 (NR1) <Panel name> = +, ?, 0 to 9, A to Z (up to 10 characters)
Explanation	Command	Specifies the panel number and saves the panel under the specified panel name. An LCR panel is saved when this is executed in LCR mode and an analyzer panel is saved when this is executed in analyzer mode. Use the valid characters shown above for the panel name and specify a name that is within 10 characters. Lowercase a to z are converted to uppercase.
Explanation	Query	Returns 1 if a panel is saved to the specified panel number, and 0 if a panel is not saved. A header is not added to the response message.
Example	Command	:SAVE 3,IM3590_003 Saves a panel under the panel name "IM3590_003" to panel number 3.
	Query	:SAVE? 3
	Response	1 A panel is saved to panel number 3.
Note		An error occurs in the following cases. When the panel name contains an invalid character (space, slash, etc.) When a panel name is not specified When the number of characters of the panel name exceeds 10

Clearing data saved for a panel

Syntax	Command	:SAVE:CLEar <ALL/ Panel No.>
	Query
	Response
	Parameter	<Panel No.> = 1 to 128 (NR1)
Explanation	Command	Clears the data of the specified panel number. ALL : Clears all of the panels. A command error occurs if there is no saved data for the specified panel number.
Explanation	Query
Example	Command	:SAVE:CLEar 5 Clears the data of panel number 5.
	Query
	Response
Note		Data cannot be restored once it is cleared.

Querying a panel name

Syntax	Command
	Query	:SAVE:NAME? <Panel No.>
	Response
	Parameter	<Panel No.> = 1 to 128 (NR1)
Explanation	Command
Explanation	Query	Returns the panel name of the specified panel number. A command error occurs if there is no data for the specified panel number. A header is not added to the response message.
Example	Command
	Query	:SAVE:NAME? 1
	Response	IM3590_001 The panel name of panel number 1 is "IM3590_001".
Note

Changing a panel name

Syntax	Command	:SAVE:REName <Panel No.>,<Panel name>
	Query
	Response
	Parameter	<Panel No.> = 1 to 128 (NR1) <Panel name> = +, ?, 0 to 9, A to Z
Explanation	Command	Changes the panel name of the specified panel number. Use the valid characters shown above for the panel name and specify a name that is within 10 characters. Lowercase a to z are converted to uppercase. A command error occurs if there is no data for the specified panel number.
Explanation	Query
Example	Command	:SAVE:REName 1,IM3590_001 Changes the panel name of panel 1 to "IM3590_001".
	Query
	Response
Note

Setting and querying the save type

Syntax	Command	:SAVE:TYPE <ALL/HARDware/ADJust>
	Query	:SAVE:TYPE?
	Response	<ALL/HARDWARE/ADJUST>
	Parameter

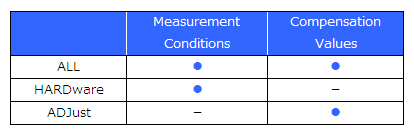

Explanation	Command	Sets the save type. The following data indicated by "" is saved.
Explanation	Query	Returns the setting of the save type.
Example	Command	:SAVE:TYPE HARDware Sets only the measurement conditions to be saved.
	Query	:SAVE:TYPE?
	Response	:SAVE:TYPE HARDWARE (when HEADER ON) HARDWARE (when HEADER OFF) Only the measurement conditions are set to be saved.
Note

Setting and querying the measurement speed

Syntax	Command	:SPEEd <FAST/MEDium/SLOW/SLOW2>
	Query	:SPEEd?
	Response	<FAST/MEDIUM/SLOW/SLOW2>
	Parameter
Explanation	Command	Sets the measurement speed.
Explanation	Query	Returns the setting of the measurement speed.
Example	Command	:SPEEd MEDium Sets the measurement speed to medium.
	Query	:SPEEd?
	Response	:SPEED MEDIUM (when HEADER ON) MEDIUM (when HEADER OFF) The measurement speed is set to medium.
Note

Setting and querying the trigger synchronous output function

Syntax	Command	:SSOurce <ON/OFF>
	Query	:SSOurce?
	Response	<ON/OFF>
	Parameter
Explanation	Command	Enables or disables the trigger synchronous output function. ON: Enables the trigger synchronous output function. OFF: Disables the trigger synchronous output function.
Explanation	Query	Returns the setting of the trigger synchronous output function.
Example	Command	:SSOurce ON Enables the trigger synchronous output function.
	Query	:SSOurce?
	Response	:SSOURCE ON (when HEADER ON) ON (when HEADER OFF) The trigger synchronous output function is enabled.
Note

Setting and querying the wait time of trigger synchronous output

Syntax	Command	:SSOurce:WAIT <Wait time>
	Query	:SSOurce:WAIT?
	Response	<Wait time>
	Parameter	<Trigger delay time> = 0.0010 to 9.9999 s (NR2)
Explanation	Command	Sets the wait time for the period from after the measurement signal is output by applying a trigger until measurement starts.
Explanation	Query	Returns the wait time of the trigger synchronous output function.
Example	Command	:SSOurce:WAIT 0.5000 Sets the wait time for the period from after the trigger is applied until measurement starts to 500 ms.
	Query	:SSOurce:WAIT?
	Response	:SSOURCE:WAIT 0.5000 (when HEADER ON) 0.5000 (when HEADER OFF) The wait time for the period from after the trigger is applied until measurement starts is set to 500 ms.
Note		A short wait time may result in an increase in measurement errors.

Setting and querying the date

Syntax	Command	:SYSTem:DATE <Year>,<Month>,<Day>
	Query	:SYSTem:DATE?
	Response	<Year>,<Month>,<Day>
	Parameter	<Year> = 0 to 99 (NR1) <Month> = 1 to 12 (NR1) <Day> = 1 to 31 (NR1)
Explanation	Command	Sets the date.
Explanation	Query	Returns the set date.
Example	Command	:SYSTem:DATE 12,3,12 Sets the date to February 29, 2012.
	Query	:SYSTem:DATE?
	Response	:SYSTEM:DATE 12,3,12 (when HEADER ON) 12,3,12 (when HEADER OFF) The date is set to February 29, 2012.
Note		The data can be set in the range of January 1, 2000, to December 31, 2099. Therefore, the first two digits of the year are fixed to "20," and just the last two digits can be set for "Year." An execution error occurs if a date that does not exist is specified.

Querying the MAC address

Syntax	Command
	Query	:SYSTem:MACAddress?
	Response	<MAC address>
	Parameter
Explanation	Command
Explanation	Query	Returns the MAC address.
Example	Command
	Query	:SYSTem:MACAddress?
	Response	:SYSTEM:MACADDRESS 12-34-56-78-90-AB (when HEADER ON) 12-34-56-78-90-AB (when HEADER OFF) The MAC address is set to 12-34-56-78-90-AB.
Note		The MAC address cannot be changed.

Querying the serial number

Syntax	Command
	Query	:SYSTem:SERIAlno?
	Response	<Serial No.>
	Parameter
Explanation	Command
Explanation	Query	Returns the serial number.
Example	Command
	Query	:SYSTem:SERIAlno?
	Response	:SYSTEM:SERIALNO 123456789 (when HEADER ON) 123456789 (when HEADER OFF) The serial number is set to 123456789.
Note		The serial number cannot be changed.

Setting and querying the time

Syntax	Command	:SYSTem:TIME <Hour>,<Minute>,<Second>
	Query	:SYSTem:TIME?
	Response	<Hour>,<Minute>,<Second>
	Parameter	<Hour> = 0 to 23 (NR1) <Minute> = 0 to 59 (NR1) <Second> = 0 to 59 (NR1)
Explanation	Command	Sets the time.
Explanation	Query	Returns the set time.
Example	Command	:SYSTem:TIME 12,34,56 Sets the time to 12:34:56.
	Query	:SYSTem:TIME?
	Response	:SYSTEM:TIME 12,34,56 (when HEADER ON) 12,34,56 (when HEADER OFF) The time is set to 12:34:56.
Note		An execution error occurs if a time that does not exist is specified.

Returns the USB ID.

Syntax	Command
	Query	:SYSTem:USBId?
	Response	<USB ID>
	Parameter
Explanation	Command
Explanation	Query	Returns the USB ID.
Example	Command
	Query	:SYSTem:USBId?
	Response	:SYSTEM:USBID 108F:0001 (when HEADER ON) 108F:0001 (when HEADER OFF) The USB ID is 108f:0001.
Note

Setting and querying the terminator of the response message

Syntax	Command	:TRANsmit:TERMinator <Terminator number>
	Query	:TRANsmit:TERMinator?
	Response	<Terminator number>

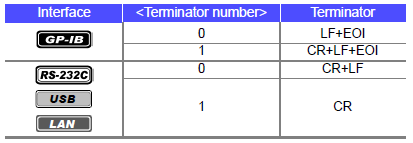

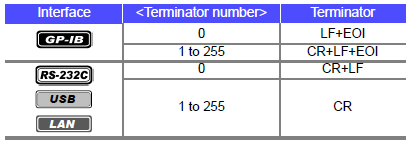

	Parameter	<Terminator number> = 0 to 255 (when command) / 0 to 1 (when query) (NR1)

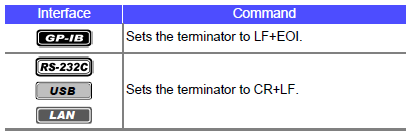

Explanation	Command	Sets the terminator of the response message.
Explanation	Query	Returns the setting of the terminator of the response message.

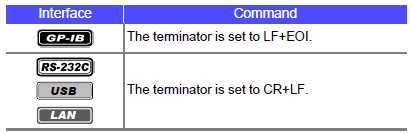

Example	Command	:TRANsmit:TERMinator 0
	Query	:TRANsmit:TERMinator?
	Response	:TRANSMIT:TERMINATOR 0 (when HEADER ON) 0 (when HEADER OFF)
Note

Setting and querying the trigger mode

Syntax	Command	:TRIGger <INTernal/EXTernal>
	Query	:TRIGger?
	Response	<INTERNAL/EXTERNAL>
	Parameter
Explanation	Command	Sets the trigger mode. INTernal: Sets the internal trigger. EXTernal: Sets the external trigger.
Explanation	Query	Returns the setting of the trigger mode.
Example	Command	:TRIGger INTernal Sets the trigger mode to the internal trigger.
	Query	:TRIGger?
	Response	:TRIGGER INTERNAL (when HEADER ON) INTERNAL (when HEADER OFF) The trigger mode is set to the internal trigger.
Note

Setting and querying the trigger delay time

Syntax	Command	:TRIGger:DELay <Trigger delay time>
	Query	:TRIGger:DELay?
	Response	<Trigger delay time>
	Parameter	<Trigger delay time> = 0 to 9.9999 s (NR2)
Explanation	Command	Sets the trigger delay time.
Explanation	Query	Returns the setting of the trigger delay time.
Example	Command	:TRIGger:DELay 0.1 Sets measurement to start when 100 ms elapses after trigger input.
	Query	:TRIGger:DELay?
	Response	:TRIGGER:DELAY 0.1000 (when HEADER ON) 0.1000 (when HEADER OFF) Measurement is set to start when 100 ms elapses after trigger input.
Note		To set the trigger delay function to OFF, set to 0 s.

Setting and querying the waveform averaging function

Syntax	Command	:WAVE <ON/OFF>
	Query	:WAVE?
	Response	<ON/OFF>
	Parameter
Explanation	Command	Sets the waveform averaging function.
Explanation	Query	Returns the setting of the waveform averaging function.
Example	Command	:WAVE ON Enables the waveform averaging function.
	Query	:WAVE?
	Response	:WAVE ON (when HEADER ON) ON (when HEADER OFF) The waveform averaging function is enabled.
Note

Setting and querying the number of measurement waveforms for the waveform averaging function

Syntax	Command	:WAVE:NUM <Frequency No.>,<number of measurement waveforms>
	Query	:WAVE:NUM? <Frequency No.>
	Response	<number of measurement waveforms>
	Parameter	<Frequency No.> = 1 to 17 (NR1) <number of measurement waveforms> = The settable range varies depending on the conditions. (NR1)
Explanation	Command	Sets the number of measurement waveforms for the waveform averaging function.
Explanation	Query	Returns the number of measurement waveforms for the waveform averaging function.
Example	Command	:WAVE:NUM 5,40 Sets the number of measurement waveforms for 5 (40.000 Hz to 99.999 Hz) of the waveform averaging function to 40.
	Query	:WAVE:NUM? 5
	Response	:WAVE:NUM 40 (when HEADER ON) 40 (when HEADER OFF) The number of measurement waveforms for 5 (40.000 Hz to 99.999 Hz) of the waveform averaging function is set to 40.

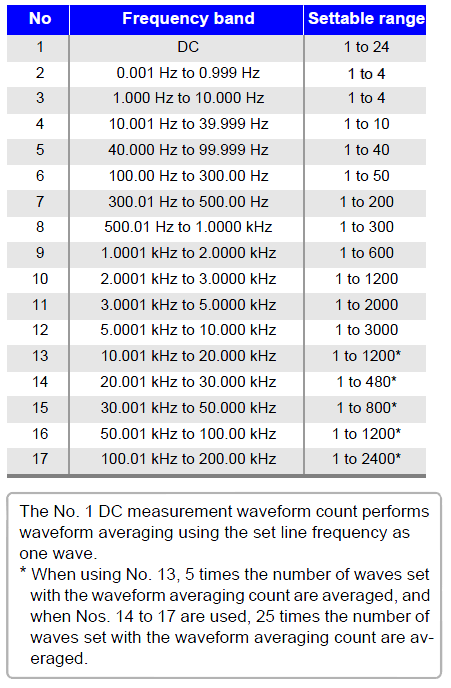

Note		The settable range for the number of measurement waveforms varies depending on the frequency zone.

Resets the number of measurement waveforms for the waveform averaging function to that of each measurement speed.

Syntax	Command	:WAVE:RESet <FAST2/FAST/MEDium/SLOW/SLOW2>
	Query
	Response
	Parameter
Explanation	Command	Resets the number of measurement waveforms for the waveform averaging function to that of each measurement speed.
Explanation	Query
Example	Command	:WAVE:RESet FAST Resets the number of measurement waveforms for the waveform averaging function to that of "FAST".
	Query
	Response
Note

Setting and querying the zoom function

Syntax	Command	:ZOOM <ON/OFF>
	Query	:ZOOM?
	Response	<ON/OFF>
	Parameter
Explanation	Command	Sets the zoom function.
Explanation	Query	Returns the setting of the zoom function.
Example	Command	:ZOOM ON Enables the zoom function.
	Query	:ZOOM?
	Response	:ZOOM ON (when HEADER ON) ON (when HEADER OFF) The zoom function is enabled.
Note

Setting and querying the equivalent circuit model in the electrochemical field

Syntax	Command	:CIRCuit:ANALysis <OFF/CHEMical/ELECtric>
	Query	:CIRCuit:ANALysis?
	Response	<OFF/HOLD/AUTO>
	Parameter
Explanation	Command	Sets the model type of the equivalent circuit analysis. OFF: Does not perform the equivalent circuit analysis. CHEMical: Performs analysis using the equivalent circuit model in the electrochemical field. ELECtric: Performs analysis using the equivalent circuit model of the circuit element.
Explanation	Query	Returns the setting of the model type of the equivalent circuit analysis.
Example	Command	:CIRCuit:ANALysis CHEMICAL Sets to the equivalent circuit model in the electrochemical field.
	Query	:CIRCuit:ANALysis?
	Response	:CIRCUIT:ANALYSIS CHEMICAL (when HEADER ON) CHEMICAL (when HEADER OFF) The equivalent circuit model in the electrochemical field is set.
Note

Setting and querying the equivalent circuit model of the circuit element

Syntax	Command	:CIRCuit:ANALysis:MODel:CHEMical <1～4>
	Query	:CIRCuit:ANALysis:MODel:CHEMical?
	Response
	Parameter
Explanation	Command	Sets the equivalent circuit model of the electrochemical field used for equivalent circuit analysis.
Explanation	Query	Returns the setting of the equivalent circuit model in the electrochemical field.
Example	Command	:CIRCuit:ANALysis:MODel:CHEMical 2 Sets to model 2.
	Query	:CIRCuit:ANALysis:MODel:CHEMical?
	Response	:CIRCUIT:ANALYSIS:MODEL:CHEMICAL 2 (when HEADER ON) 2 (when HEADER OFF) Model 2 is set.
Note		When a model is set using this command, the model type is automatically set to "CHEMICAL".

Setting and querying the equivalent circuit model of the circuit element

Syntax	Command	:CIRCuit:ANALysis:MODel:ELECtric <A～E>
	Query	:CIRCuit:ANALysis:MODel:ELECtric?
	Response
	Parameter
Explanation	Command	Sets the equivalent circuit model of the circuit element used for equivalent circuit analysis.
Explanation	Query	Returns the setting of the equivalent circuit model of the circuit element.
Example	Command	:CIRCuit:ANALysis:MODel:ELECtric E Sets to model E.
	Query	:CIRCuit:ANALysis:MODel:ELECtric?
	Response	:CIRCUIT:ANALYSIS:MODEL:ELECTRIC E (when HEADER ON) E (when HEADER OFF) Model E is set.
Note		When a model is set using this command, the model type is automatically set to "ELECTRIC".

Setting and querying the automatic selection function of the equivalent circuit model

Syntax	Command	:CIRCuit:ANALysis:MODel:AUTO <ON/OFF>
	Query	:CIRCuit:ANALysis:MODel:AUTO?
	Response
	Parameter
Explanation	Command	Sets the function to automatically select the optimum equivalent circuit model during equivalent circuit analysis of the circuit element. The target models are A to E.
Explanation	Query	Returns the setting of the function to automatically select the optimum equivalent circuit model.
Example	Command	:CIRCuit:ANALysis:MODel:AUTO ON Automatically selects the optimum equivalent circuit model.
	Query	:CIRCuit:ANALysis:MODel:AUTO?
	Response	:CIRCUIT:ANALYSIS:MODEL:AUTO ON (when HEADER ON) ON (when HEADER OFF) It is set to select the optimum equivalent circuit model automatically.
Note		When the automatic selection of the equivalent circuit model is set to ON using this command, the model type is automatically set to "ELECTRIC".

Equivalent circuit analysis automatic execution setting and inquiry

Syntax	Command	:CIRCuit:ANALysis:TRIGger:AUTO <ON/OFF>
	Query	:CIRCuit:ANALysis:TRIGger:AUTO?
	Response	<ON/OFF>
	Parameter
Explanation	Command	Configures the equivalent circuit analysis automatic execution setting. OFF: Equivalent circuit analysis is not performed after measurement. ON: Equivalent circuit analysis is performed automatically after measurement.
Explanation	Query	Returns the equivalent circuit analysis automatic execution setting.
Example	Command	:CIRCuit:ANALysis:TRIGger:AUTO ON Configures equivalent circuit analysis so that it is performed automatically after measurement.
	Query	:CIRCuit:ANALysis:TRIGger:AUTO?
	Response	:CIRCUIT:ANALYSIS:TRIGGER:AUTO ON (when HEADER ON) ON (when HEADER OFF) Equivalent circuit analysis has been configured so that it is performed automatically after measurement.
Note

Execution of equivalent circuit analysis

Syntax	Command	:CIRCuit:ANALysis:TRIGger
	Query
	Response
	Parameter
Explanation	Command	Equivalent circuit analysis is executed with this command when automatic execution of equivalent circuit analysis is set to off.
Explanation	Query
Example	Command	:CIRCuit:ANALysis:TRIGger Performs equivalent circuit analysis.
	Query
	Response
Note		An execution error occurs if it can't analyze equivalent circuit.

Equivalent circuit analysis range setting and inquiry

Syntax	Command	:CIRCuit:ANALysis:FREQuency <Analysis start frequency(1)>, <Analysis stop frequency(1)>, <Analysis start frequency(2)>, <Analysis stop frequency(2)>
	Query	:CIRCuit:ANALysis:FREQuency?
	Response	<Analysis start frequency(1)>, <Analysis stop frequency(1)>, <Analysis start frequency(2)>, <Analysis stop frequency(2)>
	Parameter	<Analysis start frequency(1)> = 1mHz to 200.00kHz (NR3) <Analysis stop frequency(1)> = 1mHz to 200.00kHz (NR3) <Analysis start frequency(2)> = 1mHz to 200.00kHz (NR3) <Analysis stop frequency(2)> = 1mHz to 200.00kHz (NR3)
Explanation	Command	Sets the frequency range for which equivalent circuit analysis is performed. For models 1 and 2 and models A to E, frequency (1) of the high-frequency area is enabled. For models 3 and 4, frequency 1 of the high-frequency area and frequency 2 of the low-frequency area are enabled.
Explanation	Query	Returns the frequency range over which to perform equivalent circuit analysis.
Example	Command	:CIRCuit:ANALysis:FREQuency 100, 100E3 Configures equivalent circuit analysis so that it uses measured values for frequencies from 100 Hz to 100 kHz.
	Query	:CIRCuit:ANALysis:FREQuency?
	Response	:CIRCUIT:ANALYSIS:FREQUENCY 100.00E+00, 100.00E+03 (when HEADER ON) 100.00E+00, 100.00E+03 (when HEADER OFF) Equivalent circuit analysis has been configured so that measured values for frequencies from 120 kHz to 400 kHz are used.
Note		Limits the analysis range during normal sweep operation. Set the frequencies so that the analysis range includes local extreme values. During segment sweep operation, the analysis range is disabled for the above command. The analysis range can be limited by segment by using the communications command :CIRCuit:ANALysis:SEGMent.

Equivalent circuit analysis segment range setting and inquiry

Syntax	Command	:CIRCuit:ANALysis:SEGMent <Segment No.(1)/ALL>, <Segment No.(2)/ALL>
	Query	:CIRCuit:ANALysis:SEGMent?
	Response	<Segment No.(1)/ALL>, <Segment No.(2)/ALL>
	Parameter	<Segment No.(1)> = 1 to 20 (NR1) <Segment No.(2)> = 1 to 20 (NR1)
Explanation	Command	Sets the segment No. for which equivalent circuit analysis is performed.For models 1 and 2 and models A to E, segment No. (1) of the high-frequency area is enabled. For models 3 and 4, segment No. (1) of the high-frequency area and segment No. (2) of the low-frequency area are enabled.
Explanation	Query	Returns the segment number for which to perform equivalent circuit analysis.
Example	Command	:CIRCuit:ANALysis:SEGMent 2 Configures equivalent circuit analysis so that is uses measured values for segment No. 2.
	Query	:CIRCuit:ANALysis:SEGMent?
	Response	:CIRCUIT:ANALYSIS:SEGMENT 2 (when HEADER ON) 2 (when HEADER OFF) Equivalent circuit analysis has been configured so that measured values for segment No. 2 are used.
Note		Limits the analysis range during segment sweep operation. Set the segment number so that the analysis segment includes local extreme values. During normal sweep operation, the analysis range is disabled for the above command. The analysis range can be limited by using the communications command :CIRCuit:ANALysis:FREQuency.

Setting and querying the vibration mode for calculation of the coupling coefficient (K) of an electric machine

Syntax	Command	:CIRCuit:ANALysis:K:MODE <KR/K31/K33/KT/K15>
	Query	:CIRCuit:ANALysis:K:MODE?
	Response	<KR/K31/K33/KT/K15>
	Parameter
Explanation	Command	Sets the vibration mode for calculation of the coupling coefficient (K) of an electric machine. KR: Calculates the coupling coefficient of an electric machine for the radial vibration. K31: Calculates the coupling coefficient of an electric machine for the extensional vibration in the longitudinal direction. K33: Calculates the coupling coefficient of an electric machine for the vertical vibration. KT: Calculates the coupling coefficient of an electric machine for the thickness vibration. K15: Calculates the coupling coefficient of an electric machine for the slip vibration.
Explanation	Query	Returns to the vibration mode for calculation of coupling coefficient (K) of an electric machine.
Example	Command	:CIRCuit:ANALysis:K:MODE KR Sets the vibration mode for calculation of coupling coefficient (K) of an electric machine to the radial vibration.
	Query	:CIRCuit:ANALysis:K:MODE?
	Response	:CIRCUIT:ANALYSIS:K:MODE KR (when HEADER ON) KR (when HEADER OFF) The vibration mode for calculation of coupling coefficient (K) of an electric machine is set to the radial vibration.
Note

Setting and querying the frequency type for calculation of the coupling coefficient (K) of an electric machine

Syntax	Command	:CIRCuit:ANALysis:K:TYPE <FSFP/FRFA>
	Query	:CIRCuit:ANALysis:K:TYPE?
	Response	<FSFP/FRFA>
	Parameter
Explanation	Command	Sets the frequency type for calculation of the coupling coefficient (K) of an electric machine. FSFP: Calculates the coupling coefficient (K) of an electric machine using serial/parallel resonant frequencies. FRFA: Calculates the coupling coefficient (K) of an electric machine using resonant/antiresonant frequencies.
Explanation	Query	Returns to the frequency type for calculation of coupling coefficient (K) of an electric machine.
Example	Command	:CIRCuit:ANALysis:K:TYPE FSFP Sets the frequency type for calculation of coupling coefficient (K) of an electric machine to the serial/parallel resonant frequencies.
	Query	:CIRCuit:ANALysis:K:TYPE?
	Response	:CIRCUIT:ANALYSIS:K:TYPE FSFP (when HEADER ON) FSFP (when HEADER OFF) The frequency type for calculation of coupling coefficient (K) of an electric machine is set to the serial/parallel resonant frequencies.
Note

Setting and querying the coefficient for calculation of the coupling coefficient (K) of an electric machine

Syntax	Command	:CIRCuit:ANALysis:K:COEFficient <Coefficient a>, <Coefficient b>
	Query	:CIRCuit:ANALysis:K:COEFficient?
	Response	<Coefficient a>, <Coefficient b>
	Parameter	<Coefficient a> = 0.000001 to 1.000000 (NR2) <Coefficient b> = 0.000001 to 1.000000 (NR2)
Explanation	Command	Sets a different coefficient to Poisson ratio when selecting KR (radial vibration) in the vibration mode.
Explanation	Query	Returns to the coefficient.
Example	Command	:CIRCuit:ANALysis:K:COEFficient 0.000001,1.000000 Sets coefficient a to 0.000001 and coefficient b to 1.000000.
	Query	:CIRCuit:ANALysis:K:COEFficient?
	Response	:CIRCUIT:ANALYSIS:K:COEFFICIENT 0.000001,1.000000 (when HEADER ON) 0.000001,1.000000 (when HEADER OFF) Coefficient a is set to 0.000001, and coefficient b is set to 1.000000.
Note

R1, C1(T1), L1, C0, RS, R2, P1, P2 and C2(T2) value settings and inquiry

Syntax	Command	:CIRCuit:ANALysis:RESult <R1/C1(T1)/L1/C0/RS/R2/P1/P2/C2(T2)>, <Constant>
	Query	:CIRCuit:ANALysis:RESult? <R1/C1(T1)/L1/C0/QM/K/RS/R2/P1/P2/C2(T2)>
	Response	<R1/C1(T1)/L1/C0/QM/K/RS/R2/P1/P2/C2(T2)>, <Constant>

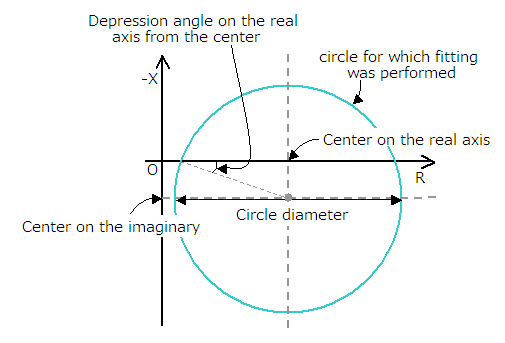

	Parameter	<Constant> = 1.0E-18 to +9.999999E+09 (NR3) Note: For P1, P2 <Constant> = 0.00000 to 1.00000 (NR2)
Explanation	Command	Sets the R1, C1(T1), L1, C0, RS, R2, P1, P2 and C2(T2) values. This command is used to set the desired constant values when simulating frequency characteristics.
Explanation	Query	Returns the R1, C1(T1), L1, C0, RS, R2, P1, P2, C2(T2), Qm and K values. This query is used to acquire the values obtained by equivalent circuit analysis.
Example	Command	:CIRCuit:ANALysis:RESult L1, 120E-6 Sets the L1 value to 120 μH.
	Query	:CIRCuit:ANALysis:RESult? L1
	Response	:CIRCUIT:ANALYSIS:RESULT L1, 120.0000E-06 (when HEADER ON) 120.0000E-06 (when HEADER OFF) The L1 value is 120 μH.
Note		When the equivalent circuit analysis is executed, each value is overwritten according to the analysis results.

Analysis results display position setting and inquiry

Syntax	Command	:CIRCuit:ANALysis:RESult:POSition <LEFT/RIGHt/UPPer/LOWer>
	Query	:CIRCuit:ANALysis:RESult:POSition?
	Response	<LEFT/RIGHT/UPPER/LOWER>
	Parameter
Explanation	Command	Sets the position at which to display equivalent circuit analysis results. LEFT: Analysis results are displayed to the left of the graph display area. RIGHt: Analysis results are displayed to the right of the graph display area. UPPer: Analysis results are displayed above the graph display area. LOWer: Analysis results are displayed below the graph display area.
Explanation	Query	Returns the position at which to display equivalent circuit analysis results.
Example	Command	:CIRCuit:ANALysis:RESult:POSition RIGHt Configures equivalent circuit analysis so that results are displayed at the right.
	Query	:CIRCuit:ANALysis:RESult:POSition?
	Response	:CIRCUIT:ANALYSIS:RESULT:POSITION RIGHT (when HEADER ON) RIGHT (when HEADER OFF) Equivalent circuit analysis has been configured so that results are displayed at the right.
Note

Comparator function on/off setting for analysis results and inquiry

Syntax	Command	:COMParator:CIRCuit:ANALysis <ON/OFF>
	Query	:COMParator:CIRCuit:ANALysis?
	Response	<ON/OFF>
	Parameter
Explanation	Command	Configures the comparator function setting for equivalent circuit analysis results.
Explanation	Query	Returns the comparator function setting for equivalent circuit analysis results.
Example	Command	:COMParator:CIRCuit:ANALysis ON Turns on the comparator function for equivalent circuit analysis results.
	Query	:COMParator:CIRCuit:ANALysis?
	Response	:COMPARATOR:CIRCUIT:ANALYSIS ON (when HEADER ON) ON (when HEADER OFF) The comparator function for equivalent circuit analysis results has been set to on.
Note

Comparator upper and lower value settings for analysis results and inquiry

Syntax	Command	:COMParator:CIRCuit:ANALysis:ABSolute <R1/C1(T1)/L1/C0/QM/K/RS/R2/P1/P2/C2(T2)>, <Off/lower limit value>, <Off/upper limit value>
	Query	:COMParator:CIRCuit:ANALysis:ABSolute? <R1/C1(T1)/L1/C0/QM/K/RS/R2/P1/P2/C2(T2)>
	Response	<R1/C1(T1)/L1/C0/QM/K/RS/R2/P1/P2/C2(T2)>, <Off/lower limit value>, <Off/upper limit value>
	Parameter	<Lower limit value> = -9.99999E+09 to 9.99999E+09 (NR3) <Upper limit value> = -9.99999E+09 to 9.99999E+09 (NR3)
Explanation	Command	Sets the upper and lower limit values for the comparator function for equivalent circuit analysis results. No judgment is made if both the upper and lower limit values are set to off.
Explanation	Query	Returns the upper and lower limit values for the comparator function for equivalent circuit analysis results.
Example	Command	:COMParator:CIRCuit:ANALysis:ABSolute R1, 20, 23 Sets the upper and lower limit values for the comparator function for equivalent circuit analysis results to 23Ω and 20Ω, respectively.
	Query	:COMParator:CIRCuit:ANALysis:ABSolute? R1
	Response	:COMPARATOR:CIRCUIT:ANALYSIS:ABSOLUTE R1,20.00000E+00,23.00000E+00 (when HEADER ON) R1,20.00000E+00,23.00000E+00 (when HEADER OFF) The upper and lower limit values for the comparator function for equivalent circuit analysis have been set to 23Ω and 20Ω, respectively.
Note

Comparator judgment results for analysis results inquiry

Syntax	Command
	Query	:MEASure:ANALysis:COMParator?
	Response	Model1: <Equivalent circuit analysis overall judgment result>, <L1 judgment result>, <RS judgment result>, <R1 judgment result>, <C1 judgment result> Model2: <Equivalent circuit analysis overall judgment result>, <L1 judgment result>, <RS judgment result>, <R1 judgment result>, <P1 judgment result>, <T1 judgment result> Model3: <Equivalent circuit analysis overall judgment result>, <L1 judgment result>, <RS judgment result>, <R1 judgment result>, <R2 judgment result>, <C1 judgment result>, <C2 judgment result> Model4: <Equivalent circuit analysis overall judgment result>, <L1 judgment result>, <RS judgment result>, <R1 judgment result>, <R2 judgment result>, <P1 judgment result>, <T1 judgment result>, <P2 judgment result>, <T2 judgment result> ModelA～D: <Equivalent circuit analysis overall judgment result>, <R1 judgment result>, <L1 judgment result>, <C1 judgment result>, <C0 judgment result>, <Qm judgment result> ModelE: <Equivalent circuit analysis overall judgment result>, <R1 judgment result>, <L1 judgment result>, <C1 judgment result>, <C0 judgment result>, <Qm judgment result>, <K judgment result>
	Parameter	<Equivalent circuit analysis overall judgment result> = 0/1 (NR1) <R1, L1, C1, C0, QM, K, RS, R2, C2, P1, T1, P2, T2 judgment result> = -1/0/1/2 (NR1)
Explanation	Command
Explanation	Query	Returns the judgment result for the comparator function for equivalent circuit analysis results. <Equivalent circuit analysis overall judgment results> 0: One of the judgment results was FAIL (HI/LO), or no comparator judgment was acquired. 1: All judgment results were IN. <R1 to Qm judgment results> -1: LO judgment 0: IN judgment 1: HI judgment 2: No comparator judgment
Example	Command
	Query	:MEASure:ANALysis:COMParator?
	Response	0,2,1,0,2,2,1 The comparator function judgment results for the equivalent circuit analysis results are as follows: Equivalent circuit analysis overall judgment results: FAIL R1 judgment result: No judgment L1 judgment result: IN C1 judgment result: HI C0 judgment result: No judgment Qm judgment result: No judgment
Note		The response message does not include a header.

Execution of frequency characteristics simulation

Syntax	Command	:CIRCuit:ANALysis:SIMulation
	Query
	Response
	Parameter
Explanation	Command	Simulates frequency characteristics using the selected equivalent circuit model and sweep range.
Explanation	Query
Example	Command	:CIRCuit:ANALysis:SIMulation Simulates frequency characteristics.
	Query
	Response
Note		A simulation graph will not be generated if there are no measured values.

Simulation value inquiry

Syntax	Command
	Query	:MEASure:ANALysis:SIMulation? <MAIN/SUB>
	Response	<Simulation value>, <Simulation value>, ... , (repeated for each sweep point)
	Parameter
Explanation	Command
Explanation	Query	Returns the simulation values for the frequency characteristics. Values are comma-delimited. MAIN: Returns the PARA1 (main parameter) simulation value. SUB: Returns the PARA2 (sub-parameter) simulation value.
Example	Command
	Query	:MEASure:ANALysis:SIMulation? MAIN
	Response	753.982E-03, 780.447E-03, 807.892E-03, 836.317E-03, ... Acquires the PARA1 (main parameter) simulation value.
Note		The response message does not include a header.

Difference between measured value and simulation value inquiry

Syntax	Command
	Query	:MEASure:ANALysis:DELTa?
	Response	<MAIN　parameter difference>, <SUB　parameter difference>
	Parameter
Explanation	Command
Explanation	Query	Returns the difference between the measured value and simulation value.
Example	Command
	Query	:MEASure:ANALysis:DELTa?
	Response	18.18248E-03, 10.36238E+00 The difference between the PARA1 (main parameter) measured value and the simulation value is 10.04176.
Note		The frequency range that was analyzed or the frequency range for the segment number that was analyzed is used as the range for calculating this difference. Executing this query while no simulation is being performed will return the value "OFF". The response message does not include a header.

Acquisition of local extreme value frequency and measured values (models A to E only)

Syntax	Command
	Query	:MEASure:ANALysis:PEAK? <Z/G/B/RS>, <LMAX/LMIN>
	Response	<Frequency>, <Measurement value>
	Parameter
Explanation	Command
Explanation	Query	Searches extreme values and returns the frequency and measured value. This query allows you to acquire the extreme value for the parameter specified by the command data, regardless of the currently set measurement parameter. Z: Impedance (Ω) G: Conductance (S) B: Susceptance (S) RS: Series equivalent circuit mode execution resistance = ESR (Ω)
Example	Command
	Query	:MEASure:ANALysis:PEAK? G, LMAX
	Response	10.000E+03,500.000E+03 The G (conductance) maximum frequency is 10 kHz, and the value is 500 kS.
Note		This query is valid only during frequency sweep operation. The frequency range that was analyzed or the frequency range for the segment number that was analyzed is used as the range for searching. An execution error occurs if a local extreme value cannot be detected. An execution error occurs if the equivalent circuit model is set to any types except for "ELECTRIC". A header is not attached to the response message.

Acquisition of resonance/antiresonance frequency (models A to E only)

Syntax	Command
	Query	:MEASure:ANALysis:PHASe:ZERO? <RESonant/ANTIresonant>
	Response	<Frequency>
	Parameter
Explanation	Command
Explanation	Query	Searches for the measurement point at which the phase becomes 0 and returns the frequency. RESonant: Returns the resonance frequency. ANTIresonant: Returns the antiresonance frequency.
Example	Command
	Query	:MEASure:ANALysis:PHASe:ZERO? RESonant
	Response	162.67E+03 The resonance frequency is 162.67 kHz.
Note		The frequency range that was analyzed or the frequency range for the segment number that was analyzed is used as the range for searching. An execution error occurs if a resonance/antiresonance frequency cannot be detected. An execution error occurs if the equivalent circuit model is set to any types except for "ELECTRIC". A header is not attached to the response message.

Acquisition of the information of the circle for which fitting was performed (models 1 to 4 only)

Syntax	Command
	Query	:MEASure:ANALysis:CIRCle? <1/2>
	Response	<Center on the real axis>, <Center on the imaginary axis>, <Circle diameter>, <Depression angle on the real axis from the center>
	Parameter
Explanation	Command
Explanation	Query	Returns the information of the circle for which fitting was performed during equivalent circuit analysis. 1: Returns the information of the circle in the high-frequency area. 2: Returns the information of the circle in the low-frequency area.
Example	Command
	Query	:MEASure:ANALysis:CIRCle? 1
	Response	20.048E+00, 3.0974E+00, 23.361E+00, 268.39E-03 Center on the real axis is 20.048, center on the imaginary axis is 3.0974, circle diameter is 23.361, and depression angle on the real axis from the center is 268.39E-03.
Note		An execution error occurs if the equivalent circuit model is set to any types except for "CHEMICAL". A header is not attached to the response message.

Acquisition of the angular speed at the vertex of the circle for which fitting was performed (models 1 to 4 only)

Syntax	Command
	Query	:MEASure:ANALysis:OMEGa? <1/2>
	Response	<Angular speedω>
	Parameter
Explanation	Command
Explanation	Query	Returns the angular speed at the vertex of the circle for which fitting was performed during equivalent circuit analysis. 1: Returns the angular speed at the vertex of the circle in the high-frequency area. 2: Returns the angular speed at the vertex of the circle in the low-frequency area.
Example	Command
	Query	:MEASure:ANALysis:OMEGa? 1
	Response	5.4545E+03 The angular speed at the circle vertex is ω=5.4545k.
Note		An execution error occurs if the equivalent circuit model is set to any types except for "CHEMICAL". A header is not attached to the response message.

Setting and querying comparator judgment mode

Syntax	Command	:COMParator:ANALyzer <OFF/AREA/PEAK>
	Query	:COMParator:ANALyzer?
	Response	<OFF/AREA/PEAK>
	Parameter
Explanation	Command	Sets the comparator judgment mode in analyzer mode. OFF: Sets the comparator function to OFF. AREA:Sets the comparator judgment mode to area judgment. PEAK: Sets the comparator judgment mode to peak judgment.
Explanation	Query	Returns the setting of the comparator judgment mode in analyzer mode.
Example	Command	:COMParator:ANALyzer AREA Sets the comparator judgment mode in analyzer mode to area judgment.
	Query	:COMParator:ANALyzer?
	Response	:COMPARATOR:ANALYZER AREA (when HEADER ON) AREA (when HEADER OFF) The comparator judgment mode in analyzer mode is set to area judgment.
Note

Setting and querying drawing of judgment area

Syntax	Command	:COMParator:AREA <OFF/1/2>
	Query	:COMParator:AREA?
	Response	<OFF/1/2>
	Parameter
Explanation	Command	Sets the parameter for which to draw the comparator range. OFF: The comparator range is not drawn. 1: Draws the comparator range for the first parameter. 2: Draws the comparator range for the second parameter.
Explanation	Query	Returns the setting of the parameter for which to draw the comparator range.
Example	Command	:COMParator:AREA 1 Sets the parameter for which to draw the comparator range to the main parameter.
	Query	:COMParator:AREA?
	Response	:COMPARATOR:AREA 1 (when HEADER ON) 1 (when HEADER OFF) The parameter for which to draw the comparator range is set to the first parameter.
Note		The parameter that can be set with this command varies depending on the setting for the parameter subject to comparator judgment. The comparator range can only be drawn for a parameter that is set to be subject to judgment. The comparator range cannot be drawn for both the first parameter and second parameter.

Setting and querying area judgment (reference value manual setting)

Syntax	Command	:COMParator:AREA:FIX <Segment No.>,<1/2>,<PERcent/VALue>,<Reference value>,<Lower limit values>,<Upper limit values>
	Query	:COMParator:AREA:FIX? <Segment No.>,<1/2>
	Response	<PERCENT/VALUE>,<Reference value>,<Lower limit values>,<Upper limit values>
	Parameter	<Segment No.> = 1 to 20 <Reference value> = -9.999999+E09 to +9.999999+E09 (NR3) <Upper limit values> = -999.9999% to +999.9999% (NR2)/-9.999999+E09 to +9.999999+E09 (NR3) <Upper limit values> = -999.9999% to +999.9999% (NR2)/-9.999999+E09 to +9.999999+E09 (NR3)
Explanation	Command	Specifies the reference value and simultaneously sets the area judgment settings.
Explanation	Query	Returns the area judgment settings in the order of the mode, reference value, lower limit value, and upper limit value.
Example	Command	:COMParator:AREA:FIX 2,1,PERcent,1.2345E-06,-20,20 Sets the comparator range of the first parameter of segment 2 as a percentage to the reference value of 1.2345E-06, lower limit value of -20%, and upper limit value of 20%.
	Query	:COMParator:AREA:FIX? 2,1
	Response	:COMPARATOR:AREA:FIX PERCENT,1.234500E-06,-20.0000,20.0000 (when HEADER ON) PERCENT,1.234500E-06,-20.0000,20.0000 (when HEADER OFF) The comparator range of the first parameter of segment 2 is set as a percentage to the reference value of 1.2345E-06, lower limit value of -20%, and upper limit value of 20%.
Note		When the segment sweep setting is set to OFF, the segment number setting is disabled and fixed to segment 1.

Setting and querying the upper and lower limit values for area judgment

Syntax	Command	:COMParator:AREA:LIMit <Sweep point No.>,<1/2>,<Lower limit values>,<Upper limit values>
	Query	:COMParator:AREA:LIMit? <Sweep point No.>,<1/2>
	Response	<Lower limit values>,<Upper limit values>
	Parameter	<Sweep point No.> = 1 to 801 (NR1) <Lower limit values> = OFF/-9.999999+E09 to +9.999999+E09 (NR3) <Upper limit values> = OFF/-9.999999+E09 to +9.999999+E09 (NR3)
Explanation	Command	Sets the upper and lower limit values for area judgment.
Explanation	Query	Returns the upper and lower limit values for area judgment.
Example	Command	:COMParator:AREA:LIMit 10,1,10E3,20E3 Sets the lower and upper limit values for the first parameter of Sweep point No. 10 to 10 k and 20 k, respectively.
	Query	:COMParator:AREA:LIMit? 10,1
	Response	:COMPARATOR:AREA:LIMIT 10.00000E+03,20.00000E+03 (when HEADER ON) 10.00000E+03,20.00000E+03 (when HEADER OFF) The lower and upper limit values for the first parameter of sweep point number 10 are set to 10 k and 20 k, respectively.
Note		An execution error occurs in the following cases. When a value that is larger than the number of sweep points is set for the sweep point number When the mode is not area judgment mode When the parameter to be set is not set as a judgment parameter

Setting and querying area judgment (reference value automatic setting)

Syntax	Command	:COMParator:AREA:MEAS <Segment No.>,<1/2>,<PERcent/ VALue>,<Lower limit values>,<Upper limit values>
	Query	:COMParator:AREA:MEAS? <Segment No.>,<1/2>
	Response	<PERCENT/ VALUE>,<Lower limit values>,<Upper limit values>
	Parameter	<Segment No.> = 1 to 20 <Lower limit values> = -999.9999% to +999.9999% (NR2)/-9.999999+E09 to +9.999999+E09 (NR3) <Upper limit values> = -999.9999% to +999.9999% (NR2)/-9.999999+E09 to +9.999999+E09 (NR3)
Explanation	Command	Acquires the reference value from the current measurement value and simultaneously sets the area judgment settings.
Explanation	Query	Returns the area judgment settings in the order of the mode, lower limit value, and upper limit value.
Example	Command	:COMParator:AREA:MEAS 2,1,PERcent,-20,20 Sets the comparator range of the first parameter of segment 2 as a percentage to the lower limit value of -20% and the upper limit value of 20% based on the current measurement value.
	Query	:COMParator:AREA:MEAS? 2,1
	Response	:COMPARATOR:AREA:MEAS PERCENT,-20.0000,20.0000 (when HEADER ON) PERCENT,-20.0000,20.0000 (when HEADER OFF) The comparator range of the first parameter of segment 2 is set as a percentage to the lower limit value of -20% and the upper limit value of 20% based on the current measurement value.
Note		When the segment sweep setting is set to OFF, the segment number setting is disabled and .fixed to segment 1.

Setting and querying judgment parameter

Syntax	Command	:COMParator:PARAmeter <1/2/ALL>
	Query	:COMParator:PARAmeter?
	Response	<1/2/ALL>
	Parameter
Explanation	Command	Sets the parameter subject to comparator judgment. 1: Sets the first parameter to be subject to comparator judgment. 2: Sets the second parameter to be subject to comparator judgment. ALL: Sets both the first parameter and second parameter to be subject to comparator judgment.
Explanation	Query	Returns the setting of the parameter subject to comparator judgment.
Example	Command	:COMParator:PARAmeter 1 Sets the parameter subject to comparator judgment to the first parameter.
	Query	:COMParator:PARAmeter?
	Response	:COMPARATOR:PARAMETER 1 (when HEADER ON) 1 (when HEADER OFF) The parameter subject to comparator judgment is set to the first parameter.
Note

Setting and querying peak judgment

Syntax	Command	:COMParator:PEAK <Segment No.>,<1/2>,<MAX/MIN>,<Left limit value>,<Right limit value>,<Lower limit values>,<Upper limit values>
	Query	:COMParator:PEAK? <Segment No.>,<1/2>,<MAX/MIN>
	Response	<Left limit value>,<Right limit value>,<Lower limit values>,<Upper limit values>
	Parameter	<Segment No.> = 1 to 20 <Left limit value> = The settable range varies depending on the conditions. (NR3) <Right limit value> = The settable range varies depending on the conditions. (NR3) <Lower limit values> = OFF/-9.999999+E09 to +9.999999+E09 (NR3) <Upper limit values> = OFF/-9.999999+E09 to +9.999999+E09 (NR3)
Explanation	Command	Simultaneously sets the peak judgment settings. The valid setting range for the left and right limit values differs depending on the type of main sweep measurement signal mode. When frequency sweep: OFF/0.0010 to 200.00E+03 When open-circuit voltage sweep: OFF/5.000E-03 to 5.000 When constant voltage sweep: OFF/5.000E-03 to 5.000 When constant current sweep: OFF/0.01E-03 to 50.00E-03 When DC bias sweep: OFF/-5.00 to 5.00
Explanation	Query	Returns the area judgment settings in the order of the left limit value, right limit value, lower limit value, and upper limit value.
Example	Command	:COMParator:PEAK 1,1,MAX,40,1.0000E3,1.1234E+06,1.2345E+06 Sets the left limit value, right limit value, lower limit value, and upper limit value of the local maximum values of the first parameter of segment 1 to 40, 1.0000E3, 1.1234E+06, and 1.2345E+06, respectively.
	Query	:COMParator:PEAK? 1,1,MAX
	Response	:COMPARATOR:PEAK 40.00000E+00,1.000000E+03,1.123400E+06,1.234500E+06 (when HEADER ON) 40.00000E+00,1.000000E+03,1.123400E+06,1.234500E+06 (when HEADER OFF) The left limit value, right limit value, lower limit value, and upper limit value of the local maximum values of the first parameter of segment 1 are set to 40, 1.0000E3, 1.1234E+06, and 1.2345E+06, respectively.
Note		When the segment sweep setting is set to OFF, the segment number setting is disabled and fixed to segment 1.

Setting and querying the filter value

Syntax	Command	:COMParator:PEAK:FILTer <ON/OFF>
	Query	:COMParator:PEAK:FILTer?
	Response	<ON/OFF>
	Parameter
Explanation	Command	Sets the filter for when peak judgment.
Explanation	Query	Returns the filter for when peak judgment.
Example	Command	:COMParator:PEAK:FILTer ON Sets the filter value for when peak judgment to ON.
	Query	:COMParator:PEAK:FILTer?
	Response	:COMPARATOR:PEAK:FILTER ON (when HEADER ON) ON (when HEADER OFF) The filter value for when peak judgment is set to ON.
Note		The filter setting is common to the filter setting of the search by cursor function.

Setting and querying the local maximum number and local minimum number

Syntax	Command	:COMParator:PEAK:NO <Local minimum No.>, <Local maximum No.>
	Query	:COMParator:PEAK:NO?
	Response	<Local minimum No.>,<Local maximum No.>
	Parameter	<Local minimum No.> = 1 to 5 (NR1) <Local maximum No.> = 1 to 5 (NR1)
Explanation	Command	Sets the local minimum number and local maximum number to be the targets when performing peak judgment.
Explanation	Query	Returns the local minimum number and local maximum number to be the targets when performing peak judgment.
Example	Command	:COMParator:PEAK:NO 2,3 Sets peak judgment to be performed with the second local minimum value and third local maximum value as the targets.
	Query	:COMParator:PEAK:NO?
	Response	:COMPARATOR:PEAK:NO 2,3 (when HEADER ON) 2,3 (when HEADER OFF) Peak judgment is set to be performed with the second local minimum value and third local maximum value as the targets.
Note

Setting and querying the display cursor setting

Syntax	Command	:CURSor <OFF/A/AB>
	Query	:CURSor?
	Response	<OFF/A/AB>
	Parameter
Explanation	Command	Sets the display cursor. OFF: Displays no cursor. A: Displays only cursor A. AB: Displays cursors A and B.
Explanation	Query	Returns the display cursor setting.
Example	Command	:CURSor AB Sets cursors A and B to be displayed.
	Query	:CURSor?
	Response	:CURSOR AB (when HEADER ON) AB (when HEADER OFF) Cursors A and B are set to be displayed.
Note		It is not possible to display only cursor B.

Setting and querying the search method (# is A or B)

Syntax	Command	:CURSor:#SEARch <MAX/MIN/TARGet/LMAX/LMIN>
	Query	:CURSor:#SEARch?
	Response	<MAX/MIN/TARGET/LMAX/LMIN>
	Parameter
Explanation	Command	Sets the search mode for cursor A or cursor B. MAX: Sets a search for the maximum value to be performed. MIN: Sets a search for the minimum value to be performed. TARGet: Sets a search for any value to be performed. LMAX: Sets a search for the local maximum value to be performed. LMIN: Sets a search for the local minimum value to be performed.
Explanation	Query	Returns the search mode for cursor A or cursor B.
Example	Command	:CURSor:BSEARch LMAX Sets the search mode for cursor B to local maximum value search.
	Query	:CURSor:BSEARch?
	Response	:CURSOR:BSEARCH LMAX (when HEADER ON) LMAX (when HEADER OFF) The search mode for cursor B is set to local maximum value search.
Note		When the search mode is set to TARGET, the target value can be set with the :CURSor:#SEARch:TARGet command. When the search mode is set to LMAX or LMIN, the filter value can be set with the :COMParator:PEAK:FILTer command.

Setting and querying the search parameter (# is A or B)

Syntax	Command	:CURSor:#SEARch:PARameter <1/2>
	Query	:CURSor:#SEARch:PARameter?
	Response	<1/2>
	Parameter
Explanation	Command	Sets the search parameter for cursor A or cursor B. 1: Performs a search for the measurement result of the first parameter. 2: Performs a search for the measurement result of the second parameter.
Explanation	Query	Returns the setting of the search parameter for cursor A or cursor B.
Example	Command	:CURSor:ASEARch:PARameter 2 Sets the search parameter of cursor A to the second parameter.
	Query	:CURSor:ASEARch:PARameter?
	Response	:CURSOR:ASEARCH:PARAMETER 2 (when HEADER ON) 2 (when HEADER OFF) The search parameter of cursor A is set to the second parameter.
Note

Setting and querying the target value (# is A or B)

Syntax	Command	:CURSor:#SEARch:TARGet <TARGET value>
	Query	:CURSor:#SEARch:TARGet?
	Response	<TARGET value>
	Parameter	<TARGET value> = -9.999999+E0 to +9.999999+E09 (NR3)
Explanation	Command	Sets the target value for when target search of cursor A or cursor B.
Explanation	Query	Returns the target value for when target search of cursor A or cursor B.
Example	Command	:CURSor:BSEARch:TARGet 100E+03 Sets the target value for when target search of cursor B to 100 k.
	Query	:CURSor:BSEARch:TARGet?
	Response	:CURSOR:BSEARCH:TARGET 100.0000E+03 (when HEADER ON) 100.0000E+03 (when HEADER OFF) The target value for when target search of cursor B is set to 100 k.
Note		When you want to perform a target search, set the search mode to TARGET with the :CURSor:#SEARch command.

Setting and querying the cursor to move or perform searches.

Syntax	Command	:CURSor:MOVE <A/B>
	Query	:CURSor:MOVE?
	Response	<A/B>
	Parameter
Explanation	Command	Sets the cursor to move or perform searches. A: Cursor A can move or search. B: Cursor B can move or search.
Explanation	Query	Returns the setting of the cursor to move or perform searches.
Example	Command	:CURSor:MOVE B Sets the cursor to move or perform searches to cursor B.
	Query	:CURSor:MOVE?
	Response	:CURSOR:MOVE B (when HEADER ON) B (when HEADER OFF) The cursor to move or perform searches is set to cursor B.
Note		This command results in an execution error if display cursor is set to OFF. Furthermore, if the display cursor is set to A, the cursor to move or perform searches is fixed to cursor A and cannot be set to cursor B.

Setting and querying the auto search

Syntax	Command	:CURSor:SEARch:AUTO <ON/OFF>
	Query	:CURSor:SEARch:AUTO?
	Response	<ON/OFF>
	Parameter
Explanation	Command	Sets the auto search function.
Explanation	Query	Returns the auto search function.
Example	Command	:CURSor:SEARch:AUTO ON Sets the auto search function to ON.
	Query	:CURSor:SEARch:AUTO?
	Response	:CURSOR:SEARCH:AUTO ON (when HEADER ON) ON (when HEADER OFF) The auto search function is set to ON.
Note

Executing auto scaling

Syntax	Command	:GRAPh:AUTOscale
	Query
	Response
	Parameter
Explanation	Command	Executes auto scaling.
Explanation	Query
Example	Command	:GRAPh:AUTOscale Executes auto scaling. This can be executed when the screen is set to graph display and the scaling mode is set to AUTO for either the first parameter or second parameter. An execution error occurs in other cases.
	Query
	Response
Note

Setting and querying the graph display color

Syntax	Command	:GRAPh:COLor <Segment No.>,<1/2>,<OFF/Color No.>
	Query	:GRAPh:COLor? <Segment No.>,<1/2>
	Response	<OFF/Color No.>
	Parameter	<Segment No.> = 1 to 20 <Color No.> = 1 to 20 (NR1)
Explanation	Command	Sets the graph display color. Sets the graph display color of the first parameter and second parameter of each segment. If the segment function is set to OFF, the segment number is fixed to 1. For the display colors that correspond to color numbers 1 to 20, refer to the figure below.
Explanation	Query	Returns the graph display color.
Example	Command	:GRAPh:COLor 1,2,15 Sets the graph display color for the second parameter of segment 1 to 15.
	Query	:GRAPh:COLor? 1,2
	Response	:GRAPH:COLOR 15 (when HEADER ON) 15 (when HEADER OFF) The graph display color for the second parameter of segment 1 is set to 15.
Note		Only a number that has currently already been created can be specified for the segmentnumber.

Executing reset of the graph display colors of all segments

Syntax	Command	:GRAPh:COLor:RESet <1/2>
	Query
	Response
	Parameter
Explanation	Command	Resets the graph display colors of all segments. 1: Resets the graph display color of the first parameter. 2: Resets the graph display color of the second parameter.
Explanation	Query
Example	Command	:GRAPh:COLor:RESet 1 Resets the graph display color of the first parameter of all segments.
	Query
	Response
Note		An execution error occurs if the segment function is set to OFF.

Reflecting the display color of segment 1 to all segments

Syntax	Command	:GRAPh:COLor:SEG1 <1/2>
	Query
	Response
	Parameter
Explanation	Command	Reflects the graph display color of segment 1 to all segments. 1: Reflects the graph display color of the first parameter of segment 1 to all segments. 2: Reflects the graph display color of the second parameter of segment 1 to all segments.
Explanation	Query
Example	Command	:GRAPh:COLor:SEG1 1 Reflects the graph display color of the first parameter of segment 1 to all segments.
	Query
	Response
Note		An execution error occurs if the segment function is set to OFF.

Setting and querying the overwrite function

Syntax	Command	:GRAPh:OVERwrite <ON/OFF>
	Query	:GRAPh:OVERwrite?
	Response	<ON/OFF>
	Parameter
Explanation	Command	Sets the overwrite function.
Explanation	Query	Returns the setting of the overwrite function.
Example	Command	:GRAPh:OVERwrite ON Enables the overwrite function so that a graph is overwritten.
	Query	:GRAPh:OVERwrite?
	Response	:GRAPH:OVERWRITE ON (when HEADER ON) ON (when HEADER OFF) The overwrite function is enabled, and a graph is set to be overwritten.
Note

Setting and querying the horizontal axis display scale

Syntax	Command	:GRAPh:SCALe <LINear/LOG>
	Query	:GRAPh:SCALe?
	Response	<LINEAR/LOG>
	Parameter
Explanation	Command	Sets the horizontal axis display scale.
Explanation	Query	Returns the setting of the horizontal axis display scale.
Example	Command	:GRAPh:SCALe LINear Sets the horizontal display scale to linear.
	Query	:GRAPh:SCALe?
	Response	:GRAPH:SCALE LINEAR (when HEADER ON) LINEAR (when HEADER OFF) The horizontal display scale is set to linear.
Note

Setting and querying the horizontal axis span format

Syntax	Command	:GRAPh:SPAN <SINGle/SEGMent>
	Query	:GRAPh:SPAN?
	Response	<SINGLE/SEGMENT>
	Parameter
Explanation	Command	Sets the horizontal axis span format. SINGle: Sets the whole measurement range to be drawn as a single span. SEGMent: Sets drawing to be performed for each segment.
Explanation	Query	Returns the setting of the horizontal axis span format.
Example	Command	:GRAPh:SPAN SEGMent Sets the horizontal axis span format to segment.
	Query	:GRAPh:SPAN?
	Response	:GRAPH:SPAN SEGMENT (when HEADER ON) SEGMENT (when HEADER OFF) The horizontal axis span format is set to segment.
Note

Setting and querying the reference value and graduation width of the vertical axis display scale

Syntax	Command	:GRAPh:VERTical:CENTerdiv <1/2>,<Reference value>,<One graduation width>
	Query	:GRAPh:VERTical:CENTerdiv? <1/2>
	Response	<Reference value>,<One graduation width>
	Parameter	<Reference value> = -9.999999+E09 to +9.999999+E09 (NR3) <One graduation width> = -9.999999+E09 to +9.999999+E09 (NR3)
Explanation	Command	Sets the range of the vertical axis of the first parameter or second parameter with a reference value and the width of one graduation.
Explanation	Query	Returns the range of the vertical axis of the first parameter or second parameter in the order of the reference value and the width of one graduation.
Example	Command	:GRAPh:VERTical:CENTerdiv 1, 100E+03, 100E+00 Sets range of the vertical axis of the first parameter to 100 k for the reference value and 100 for the width of one graduation.
	Query	:GRAPh:VERTical:CENTerdiv? 1
	Response	:GRAPH:VERTICAL:CENTERDIV 100.0000E+03, 100.0000E+00 (when HEADER ON) 100.0000E+03, 100.0000E+00 (when HEADER OFF) The range of the vertical axis of the first parameter is set to 100 k for the reference value and 100 for the width of one graduation.
Note		If this command is executed, the vertical display scale setting method is automatically set to the reference value and one graduation width. If the reference value and one graduation width are set with this command, the upper and lower limit values are automatically recalculated.

Setting and querying the parameters to display grid

Syntax	Command	:GRAPh:VERTical:GRID <1/2>
	Query	:GRAPh:VERTical:GRID?
	Response	<1/2>
	Parameter
Explanation	Command	Sets the parameters for which to display a grid.
Explanation	Query	Returns the parameters for which to display a grid.
Example	Command	:GRAPh:VERTical:GRID 2 Sets a grid to be displayed for the second parameter.
	Query	:GRAPh:VERTical:GRID?
	Response	:GRAPH:VERTICAL:GRID 2 (when HEADER ON) 2 (when HEADER OFF) A grid is set to be displayed for the second parameter.
Note

Setting and querying the setting method for the vertical axis display scale

Syntax	Command	:GRAPh:VERTical:METHod <1/2>, <UPPer/CENTer>
	Query	:GRAPh:VERTical:METHod? <1/2>
	Response	<UPPER/CENTER>
	Parameter
Explanation	Command	Sets the setting method for the display range of the vertical axis. UPPer: Sets the display range of the vertical axis to be set with the upper and lower limit values. ENTer: Sets the display range of the vertical axis to be set with a reference value and the width of one graduation.
Explanation	Query	Returns the setting method for the display range of the vertical axis.
Example	Command	:GRAPh:VERTical:METHod 1, UPPer Sets the display range of the vertical axis to be set with the upper and lower limit values.
	Query	:GRAPh:VERTical:METHod? 1
	Response	:GRAPH:VERTICAL:METHOD UPPER (when HEADER ON) UPPER (when HEADER OFF) The display range of the vertical axis is set to be set with the upper and lower limit values.
Note		Before executing this command, set MANUAL with the :GRAPh:VERTical:MODE command.

Setting and querying the vertical axis display scale method

Syntax	Command	:GRAPh:VERTical:MODE <1/2>, <AUTO/MANual>
	Query	:GRAPh:VERTical:MODE? <1/2>
	Response	<AUTO/MANUAL>
	Parameter
Explanation	Command	Sets the display range setting of the vertical axis to automatic or manual.
Explanation	Query	Returns the display range setting of the vertical axis.
Example	Command	:GRAPh:VERTical:MODE 1, MANual Sets the display range setting of the vertical axis of the first parameter to manual.
	Query	:GRAPh:VERTical:MODE? 1
	Response	:GRAPH:VERTICAL:MODE MANUAL (when HEADER ON) MANUAL (when HEADER OFF) The display range setting of the vertical axis of the first parameter is set to manual.
Note

Setting and querying the reversing of the display scale along the vertical axis

Syntax	Command	:GRAPh:VERTical:REVerse <OFF/ON>
	Query	:GRAPh:VERTical:REVerse?
	Response	<OFF/ON>
	Parameter
Explanation	Command	Sets the reversed display along the vertical axis for the second parameter during X-Y display. Set it to ON for Cole-Cole plot display. OFF: Display is not reversed along the axis. ON: Display is reversed along the axis.
Explanation	Query	Returns the reversed display along the vertical axis for the second parameter during X-Y display.
Example	Command	:GRAPh:VERTical:REVerse ON Sets the second parameter during X-Y display to the reverse display along the vertical axis.
	Query	:GRAPh:VERTical:REVerse?
	Response	:GRAPH:VERTICAL:REVERSE ON (when HEADER ON) ON (when HEADER OFF) The second parameter during X-Y display is set to reverse display along the vertical axis.
Note

Setting and querying the vertical axis display scale

Syntax	Command	:GRAPh:VERTical:SCALe <1/2>, <LINear/LOG>
	Query	:GRAPh:VERTical:SCALe? <1/2>
	Response	<LINEAR/LOG>
	Parameter
Explanation	Command	Sets the vertical axis display scale.
Explanation	Query	Returns the vertical axis display scale.
Example	Command	:GRAPh:VERTical:SCALe 1, LOG Sets the vertical axis display scale of the first parameter to log.
	Query	:GRAPh:VERTical:SCALe? 1
	Response	:GRAPH:VERTICAL:SCALE LOG (when HEADER ON) LOG (when HEADER OFF) The vertical axis display scale of the first parameter is set to log.
Note

Setting and querying the upper and lower limit values of the vertical axis display scale

Syntax	Command	:GRAPh:VERTical:UPPerlower <1/2>,<Lower limit values>,<Upper limit values>
	Query	:GRAPh:VERTical:UPPerlower? <1/2>
	Response	<Lower limit values>,<Upper limit values>
	Parameter	<Lower limit values> = -9.9999+E09 to +9.9999+E09 (NR3) <Upper limit values> = -9.9999+E09 to +9.9999+E09 (NR3)
Explanation	Command	Sets the range of the vertical axis of the first parameter or second parameter with the lower and upper limit values.
Explanation	Query	Returns the range of the vertical axis of the first parameter or second parameter in the order of the lower limit value and the upper limit value.
Example	Command	:GRAPh:VERTical:UPPerlower 1, 1E+03, 100E+03 Sets the range of the vertical axis of the first parameter to 1 k for the lower limit value and 100 k for the upper limit value.
	Query	:GRAPh:VERTical:UPPerlower? 1
	Response	:GRAPH:VERTICAL:UPPERLOWER 1.000000E+03, 100.0000E+03 (when HEADER ON) 1.000000E+03, 100.0000E+03 (when HEADER OFF) The range of the vertical axis of the first parameter is set to 1 k for the lower limit value and 100 k for the upper limit value.
Note		If this command is executed, the vertical display scale setting method is automatically set to the upper and lower limit values. Specify a lower limit value that does not exceed the upper limit value. An execution error occurs if a lower limit value that is larger than the upper limit value is specified. If the upper and lower limit values are set with this command, the width of one graduation is automatically recalculated.

Setting and querying the scaling method during automatic scaling for the X-Y display

Syntax	Command	:GRAPh:VERTical:XYGRaph <INDividual/SAME>
	Query	:GRAPh:VERTical:XYGRaph?
	Response	<INDIVIDUAL/SAME>
	Parameter
Explanation	Command	Sets the scaling method during automatic scaling for the X-Y display.
Explanation	Query	Returns the setting of the scaling method during automatic scaling for the X-Y display.
Example	Command	:GRAPh:VERTical:XYGRaph SAME Adjusts the scaling of PARA1 and PARA2 to the same value during automatic scaling for the X-Y display.
	Query	:GRAPh:VERTical:XYGRaph?
	Response	:GRAPH:VERTICAL:XYGRAPH SAME (when HEADER ON) SAME (when HEADER OFF) The scaling method during automatic scaling for the X-Y display is set to SAME.
Note

Simultaneously setting and querying sweep point settings of the CENTER-SPAN method

Syntax	Command	:LIST:CENTerspan <CENTER value>,<SPAN value>,<Number of sweep points>
	Query	:LIST:CENTerspan?
	Response	<CENTER value>,<SPAN value>,<Number of sweep points>
	Parameter	<CENTER value> = The settable range varies depending on the type of sweep parameter. (NR2/NR3) <SPAN value> = The settable range varies depending on the type of sweep parameter. (NR2/NR3) <Number of sweep points> = 2 to 801 (NR1)
Explanation	Command	Simultaneously sets the sweep point settings of the CENTER SPAN method.
Explanation	Query	Returns the sweep point settings of the CENTER-SPAN method.
Example	Command	:LIST:CENTerspan 1.0000E+03,200.00E+00,801 (When the type of sweep parameter is frequency) Sets the CENTER value, SPAN value, and number of sweep points of the sweep point settings to 1 kHz, 200 Hz, and 801 points, respectively.
	Query	:LIST:CENTerspan?
	Response	:LIST:CENTERSPAN 1.0000E+03, 200.00E+00,801 (when HEADER ON) 1.0000E+03, 200.00E+00,801 (when HEADER OFF) The CENTER value, SPAN value, and number of sweep points of the sweep point settings of the CENTER-SPAN method are set to 1 kHz, 200 Hz, and 801 points, respectively.
Note		The valid ranges for the CENTER value and SPAN value differ depending on the type of sweep parameter. For each of the ranges, refer to the setting commands of the signal levels (frequency, constant voltage level, open-circuit voltage level, constant current level, and DC BIAS). The measurement speed takes priority during sweeping when the trigger setting is REPEAT, so if sweep points are changed by communication during sweeping, the first sweep result graph displayed after the change may appear in a disordered state. (In such a case, measurement is being performed without a problem.) Therefore, whenever possible change the trigger setting to SEQ or STEP when changing sweep points, and change the sweep points when sweeping is not being performed. An execution error occurs if the segment function is set to ON.

Setting and querying the sweep point settings of INTERVAL mode

Syntax	Command	:LIST:INTerval <POINT value>,<INTERVAL value>,<Number of sweep points>
	Query	:LIST:INTerval?
	Response	<POINT value>,<INTERVAL value>,<Number of sweep points>
	Parameter	<POINT value> = The settable range varies depending on the type of sweep parameter. (NR2/NR3) <INTERVAL value> = 0 to 10000 (NR2) <Number of sweep points> = 2 to 801 (NR1)
Explanation	Command	Simultaneously sets the sweep point settings of the INTERVAL method.
Explanation	Query	Returns the sweep point settings of INTERVAL method.
Example	Command	:LIST:INTerval 1.0000E+03,1.5000,801 (When the type of sweep parameter is frequency) Sets the POINT value, INTERVAL value, and number of sweep points of the sweep point settings to 1 kHz, 1.5 s, and 801 points, respectively.
	Query	:LIST:INTerval?
	Response	:LIST:INTERVAL 1.0000E+03,1.5000,801 (when HEADER ON) 1.0000E+03,1.5000,801 (when HEADER OFF) The POINT value, INTERVAL value, and number of sweep points for the sweep point settings of the INTERVAL method are set to 1 kHz, 1.5 s, and 801 points, respectively.
Note		The valid ranges for the POINT value differ depending on the type of sweep parameter. For each of the ranges, refer to the setting commands of the signal levels (frequency, constant voltage level, open-circuit voltage level, constant current level, and DC BIAS). The measurement speed takes priority during sweeping when the trigger setting is REPEAT, so if sweep points are changed by communication during sweeping, the first sweep result graph displayed after the change may appear in a disordered state. (In such a case, measurement is being performed without a problem.) Therefore, whenever possible change the trigger setting to SEQ or STEP when changing sweep points, and change the sweep points when sweeping is not being performed. An execution error occurs if the segment function is set to ON.

Setting and querying the sweep point settings of START-STEP mode

Syntax	Command	:LIST:STARt:STEP <START value>,<STEP value>,<Number of sweep points>
	Query	:LIST:STARt:STEP?
	Response	<START value>, <STEP value>, <Number of sweep points>
	Parameter	<START value> = The settable range varies depending on the type of sweep parameter. (NR2/NR3) <STEP value> = The settable range varies depending on the type of sweep parameter. (NR2/NR3) <Number of sweep points> = 2 to 801 (NR1)
Explanation	Command	Simultaneously sets the sweep point settings of the START-STEP method.
Explanation	Query	Returns the sweep point settings of the START-STEP method.
Example	Command	:LIST:STARt:STEP 1.0000E+03,200.00E+00,801 (When the type of sweep parameter is frequency) Sets the START value, STEP value, and number of sweep points of the sweep point settings to 1 kHz, 2 kHz, and 801 points, respectively.
	Query	:LIST:STARt:STEP?
	Response	:LIST:START:STEP 1.0000E+03, 200.00E+00,801 (when HEADER ON) 1.0000E+03, 200.00E+00,801 (when HEADER OFF) The START value, STEP value, and number of sweep points of the sweep point settings of the START-STEP method are set to 1 kHz, 2 kHz, and 801 points, respectively.
Note		The valid ranges for the START value and STEP value differ depending on the type of sweep parameter. For each of the ranges, refer to the setting commands of the signal levels (frequency, constant voltage level, open-circuit voltage level, constant current level, and DC BIAS). The measurement speed takes priority during sweeping when the trigger setting is REPEAT, so if sweep points are changed by communication during sweeping, the first sweep result graph displayed after the change may appear in a disordered state. (In such a case, measurement is being performed without a problem.) Therefore, whenever possible change the trigger setting to SEQ or STEP when changing sweep points, and change the sweep points when sweeping is not being performed. An execution error occurs if the segment function is set to ON.

Setting and querying the sweep point settings of START-STOP mode

Syntax	Command	:LIST:STARt:STOP <START value>,<STOP value>,<Number of sweep points>,<LINear/ LOG>
	Query	:LIST:STARt:STOP?
	Response	<START value>,<STOP value>,<Number of sweep points>,<LINEAR/LOG>
	Parameter	<START value> = The settable range varies depending on the type of sweep parameter. (NR2/NR3) <STOP value> = The settable range varies depending on the type of sweep parameter. (NR2/NR3) <Number of sweep points> = 2 to 801 (NR1)
Explanation	Command	Simultaneously sets the sweep point settings of the START-STOP method.
Explanation	Query	Returns the sweep point settings of the START-STOP method.
Example	Command	:LIST:STARt:STOP 1.0000E+03,200.00E+03,801,LOG (When the type of sweep parameter is frequency) Sets the START value, STOP value, number of sweep points, and setting method of sweep points of the sweep point settings to 1 kHz, 200kHz, and 801 points, and LOG, respectively.
	Query	:LIST:STARt:STOP?
	Response	:LIST:START:STOP 1.0000E+03, 200.00E+03,801,LOG (when HEADER ON) 1.0000E+03, 200.00E+03,801,LOG (when HEADER OFF) The START value, STOP value, number of sweep points, and setting method of sweep points of the sweep point settings of the START-STOP method are set to 1 kHz, 200 kHz, and 801 points, and LOG, respectively.
Note		The valid ranges for the START value and STOP value differ depending on the type of sweep parameter. For each of the ranges, refer to the setting commands of the signal levels (frequency, constant voltage level, open-circuit voltage level, constant current level, and DC BIAS). If the type of sweep parameter is V/ CV/ CC/ BIAS, the setting method of sweep points can only be set to LINEAR. An execution error occurs if LOG is specified. The measurement speed takes priority during sweeping when the trigger setting is REPEAT, so if sweep points are changed by communication during sweeping, the first sweep result graph displayed after the change may appear in a disordered state. (In such a case, measurement is being performed without a problem.) Therefore, whenever possible change the trigger setting to SEQ or STEP when changing sweep points, and change the sweep points when sweeping is not being performed. An execution error occurs if the segment function is set to ON.

Querying measurement data

Syntax	Command
	Query	:MEASure?
	Response	<Measurement value>
	Parameter
Explanation	Command
Explanation	Query	For more detail, refer to "Querying measurement data".
Example	Command
	Query
	Response
Note		If a setting has been changed, send the ":MEASure?" query after triggering.

Querying the overall judgment result when peak comparator measurement

Syntax	Command
	Query	:MEASure:COMParator:PEAK?
	Response	<Judgment result>
	Parameter	<Judgment result> = 0,1 (NR1)
Explanation	Command
Explanation	Query	Returns the overall judgment result when peak comparator measurement.
Example	Command
	Query	:MEASure:COMParator:PEAK?
	Response	:MEASURE:COMPARATOR:PEAK 1 (when HEADER ON) 1 (when HEADER OFF) The peak overall judgment result is IN.
Note

Querying the judgment result of the local maximum value when peak comparator measurement

Syntax	Command
	Query	:MEASure:COMParator:PEAK:LMAX? <Segment No.>,<1/2>
	Response
	Parameter	<Segment No.> = 1 to 20 <Judgment result> = 0 to 9 (NR1)
Explanation	Command
Explanation	Query	Returns the judgment result of the local maximum value and the measurement data when peak comparator measurement. The judgment results indicate the positional relationship between the judgment area and peak. If the peak is within the judgment area (IN), 5 is returned. When the judgment area setting is OFF, 0 is returned for the judgment result. For details on the judgment result values, see the following figure.
Example	Command
	Query	:MEASure:COMParator:PEAK:LMAX? 1,1
	Response	:MEASURE:COMPARATOR:PEAK:LMAX 5, 24.831E+03,Z 4.082196E+03 (when HEADER ON) 5, 24.831E+03, 4.082196E+03 (when HEADER OFF) The peak comparator judgment result of the local maximum value of segment 1 and the first parameter is IN, the frequency of the sweep point is 24.831 kHz, and the measurement value is 4.082196 kΩ.
Note		When the segment sweep setting is set to OFF, the segment number setting is disabled and fixed to segment 1. An execution error occurs when the peak could not be detected.

Querying the judgment result of the local minimum value when peak comparator measurement

Syntax	Command
	Query	:MEASure:COMParator:PEAK:LMIN? <Segment No.>,<1/2>
	Response
	Parameter	<Segment No.> = 1 to 20 <Judgment result> = 0 to 9 (NR1)
Explanation	Command
Explanation	Query	Returns the judgment result of the local minimum value and the measurement data when peak comparator measurement. The judgment results indicate the positional relationship between the judgment area and peak. If the peak is within the judgment area (IN), 5 is returned. When the judgment area setting is OFF, 0 is returned for the judgment result. For details on the judgment result values, see the following figure.
Example	Command
	Query	:MEASure:COMParator:PEAK:LMIN? 1,1
	Response	:MEASURE:COMPARATOR:PEAK:LMIN 5, 901.57E+03,Z 11.20888E+03 (when HEADER ON) 5, 901.57E+03, 11.20888E+03 (when HEADER OFF) The peak comparator judgment result of the local minimum value of segment 1 and the first parameter is IN, the frequency of the sweep point is 901.57 kHz, and the measurement value is 11.20888 kΩ.
Note		When the segment sweep setting is set to OFF, the segment number setting is disabled and fixed to segment 1. An execution error occurs when the peak could not be detected.

Querying the measurement data of the cursor position

Syntax	Command
	Query	:MEASure:CURSor? <A/B>
	Response	This is in accordance with the :MEASure? response format.
	Parameter
Explanation	Command
Explanation	Query	Returns the measurement data of the specified cursor.
Example	Command
	Query	:MEASure:CURSor? A
	Response	16.406E+03,Z 96.85033E+00,PHASE -89.954 (when HEADER ON) 16.406E+03, 96.85033E+00, -89.954 (when HEADER OFF) The sweep frequency of the sweep point of cursor A is 16.406 kHz, the measurement value of the first parameter is 96.85033, and the measurement value of the second parameter is -89.954.
Note

Querying the measurement data of the specified sweep point

Syntax	Command
	Query	:MEASure:POINt? <Sweep point>
	Response	This is in accordance with the :MEASure? response format.
	Parameter	<Sweep point> = 1 to 801
Explanation	Command
Explanation	Query	Returns the measurement data of the specified sweep point.
Example	Command
	Query	:MEASure:POINt? 100
	Response	30.549E+03,Z 52.00423E+00,PHASE -89.916 (when HEADER ON) 30.549E+03, 52.00423E+00, -89.916 (when HEADER OFF) The sweep frequency of the 100th sweep point is 30.549 kHz, the measurement result of the first parameter is 52.00423, and the measurement value of the second parameter is - 89.916.
Note		An execution error occurs if a sweep point with no measurement data is specified.

Setting and querying the sweep point

Syntax	Command	:POINt <Sweep point No.>,<Setting value>
	Query	:POINt? <Sweep point No.>
	Response	<Setting value>
	Parameter	<Sweep point No.> = 1 to 801 (NR1) <Setting value> = The settable range varies depending on the conditions. (NR3)
Explanation	Command	Sets the sweep value.
Explanation	Query	Returns the sweep value.
Example	Command	:POINt 5,23E3 Sets sweep value of sweep point number 5 to 23 k.
	Query	:POINt? 5
	Response	:POINT 23.000E+03 (when HEADER ON) 23.000E+03 (when HEADER OFF) The sweep value of sweep point number 5 is set to 23 k.
Note		An execution error occurs when a value that is larger than the number of sweep points is set for the sweep point number.

Executing the search function

Syntax	Command	:SEARch
	Query
	Response
	Parameter
Explanation	Command	Executes the search function and moves the display cursor.
Explanation	Query
Example	Command	:SEARch Executes the search function.
	Query
	Response
Note		An execution error occurs if there is no applicable search result.

Setting and querying the segment sweep function

Syntax	Command	:SEGMent <ON/OFF>
	Query	:SEGMent?
	Response	<ON/OFF>
	Parameter
Explanation	Command	Sets the segment sweep function. ON : Enables the segment sweep function. OFF : Disables the segment sweep function and sets a normal sweep to be performed.
Explanation	Query	Returns the setting of the segment sweep function.
Example	Command	:SEGMent ON Enables the segment sweep function.
	Query	:SEGMent?
	Response	:SEGMENT ON (when HEADER ON) ON (when HEADER OFF) The segment sweep function is enabled.
Note

Adding a segment

Syntax	Command	:SEGMent:ADD <Segment No./ no data>
	Query
	Response
	Parameter
Explanation	Command	Creates a new segment, and adds it to the specified segment number. If there are already segments with the specified segment number and subsequent numbers, the segments with the specified number and subsequent numbers are each shifted up by one. If a segment number is not specified, a new segment is added at the end of the current segments. If a segment number that is larger than the number of current segments is specified, a new segment is added at the end of the current segments.
Explanation	Query
Example	Command	:SEGMent:ADD 3 Creates a new segment for segment number 3.
	Query
	Response
Note		Each parameter (sweep point, measurement speed, etc.) of the newly created segment is set to the initial value. When you create a new segment, set each of the parameters.

Setting and querying measurement averaging of the specified segment

Syntax	Command	:SEGMent:AVERaging <Segment No.>,<OFF/Number of averaging times>
	Query	:SEGMent:AVERaging? <Segment No.>
	Response	<OFF/Number of averaging times>
	Parameter	<Segment No.> = 1 to 20 <Number of averaging times> = 1 to 256 (NR1)
Explanation	Command	Sets the number of measurement averaging times of the specified segment number. OFF: Disables the averaging function.
Explanation	Query	Returns the number of measurement averaging times of the specified segment number.
Example	Command	:SEGMent:AVERaging 3, 32 Sets the number of averaging times of segment number 3 to 32.
	Query	:SEGMent:AVERaging? 3
	Response	:SEGMENT:AVERAGING 32 (when HEADER ON) 32 (when HEADER OFF) The number of averaging times of segment number 3 is set to 32.
Note		Setting the number of averaging times to 1 automatically sets the averaging function to OFF. Setting the number of averaging times from 2 to 256 automatically sets the averaging function to ON.

Setting and querying the DC bias function of the specified segment

Syntax	Command	:SEGMent:DCBias <Segment No.>,<OFF/ON>
	Query	:SEGMent:DCBias? <Segment No.>
	Response	<OFF/ON>
	Parameter
Explanation	Command	Sets the DC bias function of the specified segment.
Explanation	Query	Returns the setting of the DC bias function of the specified segment.
Example	Command	:SEGMent:DCBias 3,ON Sets the DC bias function of segment No. 3 to ON.
	Query	:SEGMent:DCBias? 3
	Response	:SEGMENT:DCBIAS ON (when HEADER ON) ON (when HEADER OFF) The DC bias function of segment No. 3 is set to ON.
Note

Setting and querying the DC bias level of the specified segment

Syntax	Command	:SEGMent:DCBias:LEVel <Segment No.>,<DC bias level>
	Query	:SEGMent:DCBias:LEVel? <Segment No.>
	Response	<DC bias level>
	Parameter
Explanation	Command	Sets the DC bias level of the specified segment.
Explanation	Query	Returns the DC bias level of the specified segment.
Example	Command	:SEGMent:DCBias:LEVel 3,1.50 Sets the DC bias level of segment No. 3 to 1.5 V.
	Query	:SEGMent:DCBias:LEVel? 3
	Response	:SEGMENT:DCBIAS:LEVEL 1.50 (when HEADER ON) 1.50 (when HEADER OFF) The DC bias level of segment No. 3 is set to 1.5 V.
Note

Deleting the specified segment

Syntax	Command	:SEGMent:DELete <Segment No.>
	Query
	Response
	Parameter	<Segment No.> = 1 to 20
Explanation	Command	Deletes the specified segment.
Explanation	Query
Example	Command	:SEGMent:DELete 3 Deletes the segment created for number 3.
	Query
	Response
Note		A segment cannot be restored once it is deleted.

Querying the number of segments

Syntax	Command
	Query	:SEGMent:NUM?
	Response	<Segment count>
	Parameter	<Segment count> = 1～20 (NR1)
Explanation	Command
Explanation	Query	Returns an NR1 numerical value for the number of segments currently created.
Example	Command
	Query	:SEGMent:NUM?
	Response	SEGMENT:NUM 3 (when HEADER ON) 3 (when HEADER OFF) The three segments number 1 to number 3 have been created.
Note

Setting and querying the point delay time of the specified segment

Syntax	Command	:SEGMent:PDELay <Segment No.>,<Delay time>
	Query	:SEGMent:PDELay? <Segment No.>
	Response	<Delay time>
	Parameter	<Segment No.> = 1 to 20 <Delay time> = 0 to 10000 (NR2)
Explanation	Command	Sets the point delay time of the specified segment.
Explanation	Query	Returns the point delay time of the specified segment.
Example	Command	:SEGMent:PDELay 3, 0.0005 Sets the point delay time of segment number 3 to 0.5 ms.
	Query	:SEGMent:PDELay? 3
	Response	:SEGMENT:PDELAY 0.0005 (when HEADER ON) 0.0005 (when HEADER OFF) The point delay time of segment number 3 is set to 0.5 ms.
Note

Setting and querying the measurement range of the specified segment

Syntax	Command	:SEGMent:RANGe <Segment No.>,<Measurement range/AUTO>
	Query	:SEGMent:RANGe? <Segment No.>
	Response	<Measurement range/AUTO>
	Parameter	<Segment No.> = 1 to 20 <Measurement range> = 1 to 10 (NR1)
Explanation	Command	Sets the measurement range of the specified segment. If this command is executed, the range setting is automatically changed from auto to hold.
Explanation	Query	Returns the measurement range of the specified segment.
Example	Command	:SEGMent:RANGe 3, AUTO Sets the measurement range of segment number 3 to auto range.
	Query	:SEGMent:RANGe? 3
	Response	:SEGMENT:RANGE AUTO (when HEADER ON) AUTO (when HEADER OFF) The measurement range of segment number 3 is set to auto range.
Note		For the range number and measurement range, refer to the measurement range setting command.

Setting and querying low Z high accuracy mode of the specified segment

Syntax	Command	:SEGMent:RANGe:LOWZ <Segment No.>,<ON/OFF>
	Query	:SEGMent:RANGe:LOWZ? <Segment No.>
	Response	<ON/OFF>
	Parameter	<Segment No.> = 1 to 20
Explanation	Command	Sets low Z high accuracy mode of the specified segment.
Explanation	Query	Returns low Z high accuracy mode of the specified segment.
Example	Command	:SEGMent:RANGe:LOWZ 3, ON Enables the low impedance mode of segment No. 3.
	Query	:SEGMent:RANGe:LOWZ? 3
	Response	:SEGMENT:RANGE:LOWZ ON (when HEADER ON) ON (when HEADER OFF) The low impedance mode of segment No. 3 is enabled.
Note

Setting and querying the measurement speed of the specified segment

Syntax	Command	:SEGMent:SPEEd <Segment No.>,<FAST/MEDium/SLOW/SLOW2>
	Query	:SEGMent:SPEEd? <Segment No.>
	Response	<FAST/MEDium/SLOW/SLOW2>
	Parameter	<Segment No.> = 1 to 20
Explanation	Command	Sets the measurement speed of the specified segment.
Explanation	Query	Returns the measurement speed of the specified segment.
Example	Command	:SEGMent:SPEEd 3, MEDium Sets the measurement speed of segment number 3 to medium.
	Query	:SEGMent:SPEEd? 3
	Response	:SEGMENT:SPEED MEDIUM (when HEADER ON) MEDIUM (when HEADER OFF) The measurement speed of segment number 3 is set to medium.
Note

Simultaneously setting and querying sweep point settings of START-STOP method of specified segment

Syntax	Command	:SEGMent:STARt:STOP <Segment No.>,<START value>,<STOP value>,<Number of sweep points>, <LINear/LOG>
	Query	:SEGMent:STARt:STOP? <Segment No.>
	Response	<START value>,<STOP value>,<Number of sweep points>,<LINEAR/LOG>
	Parameter	<START value> = The settable range varies depending on the type of sweep parameter. (NR2/NR3) <STOP value> = The settable range varies depending on the type of sweep parameter. (NR2/NR3) <Number of sweep points> = 2 to 801 (NR1)
Explanation	Command	Simultaneously sets the sweep point settings of the START-STOP method of the specified segment.
Explanation	Query	Returns the sweep point settings of the START-STOP method of the specified segment.
Example	Command	:SEGMent:STARt:STOP 3, 1.0000E+03, 100.00E+03, 50, LOG (When the type of sweep parameter is frequency) Sets the START value, STOP value, number of sweep points, and setting method of sweep points of the sweep point settings of segment number 3 to 1 kHz, 1 MHz, 50 points, and LOG, respectively.
	Query	:SEGMent:STARt:STOP? 3
	Response	:SEGMENT:START:STOP 1.0000E+03, 100.00E+03,50,LOG (when HEADER ON) 1.0000E+03, 100.00E+03,50,LOG (when HEADER OFF) The START value, STOP value, number of sweep points, and setting method of sweep points of the sweep point settings of the START-STOP method of segment number 3 are set to 1 kHz, 1 MHz, 50 points, and LOG, respectively.
Note		The valid ranges for the START value and STOP value differ depending on the type of main sweep measurement signal mode. For the valid ranges of each signal mode, refer to the setting command of each signal level (frequency, constant voltage level, open-circuit voltage level, and constant current level). If the main sweep measurement signal mode is V/CV/CC, the setting of the sweep point calculation method can only be set to LINear. An error occurs if LOG is selected.

Setting and querying measurement signal for when segment sweep

Syntax	Command	:SEGMent:SUB:SOURce <V/CV/CC>
	Query	:SEGMent:SUB:SOURce?
	Response	<V/CV/CC>
	Parameter
Explanation	Command	Sets the measurement signal type for when segment sweep to any one of open-circuit voltage, constant voltage, and constant current. This setting is common to all segments. V : Sets open-circuit voltage. CV : Sets constant voltage. CC : Sets constant current.
Explanation	Query	Returns the measurement signal type for when segment sweep.
Example	Command	:SEGMent:SUB:SOURce CV Sets the measurement signal type for when segment sweep to CV (constant voltage).
	Query	:SEGMent:SUB:SOURce?
	Response	:SEGMENT:SUB:SOURCE CV (when HEADER ON) CV (when HEADER OFF) The measurement signal type for when segment sweep is set to CV (constant voltage).
Note		The measurement signal type for when segment sweep is common to all segments. If you set the measurement signal type for any segment, the setting is applied to all segments. The measurement signal type for when segment sweep can be set when the main sweep measurement signal mode are FREQ (frequency) or BIAS (DC BIAS). An execution error occurs when the main sweep measurement signal mode are other than FREQ or BIAS.

Setting and querying the measurement signal level of the specified segment

Syntax	Command	:SEGMent:SUB:SOURce:VALue <Segment No.>,<Signal source value>
	Query	:SEGMent:SUB:SOURce:VALue? <Segment No.>
	Response	<Segment No.>, <Signal source value>, <Signal source value (Note: Only when the main sweep measurement signal mode is set to DC bias)>
	Parameter	<Segment No.> = 1 to 20 <Signal source value> = The settable range varies depending on the measurement signal type for when segment sweep. (NR2/NR3) <Signal source value: Frequency (Note: Only when the main sweep measurement signal mode is set to DC bias)> = 0.0010 to 200.00E+03 (NR3)
Explanation	Command	Sets the signal source value of the specified segment. When the main sweep measurement signal mode is set to frequency: Level value When the main sweep measurement signal mode is set to V/ CV/ CC: Frequency When the main sweep measurement signal mode is set to DC bias: Level value and frequency
Explanation	Query	Returns the signal source value of the specified segment.
Example	Command	:SEGMent:SUB:SOURce:VALue 3, 0.5 Sets the measurement signal level of segment number 3 to 0.5 V.
	Query	:SEGMent:SUB:SOURce:VALue? 3
	Response	:SEGMENT:SUB:SOURCE:VALUE 0.500 (when HEADER ON) 0.500 (when HEADER OFF) The measurement signal level of segment number 3 is set to 0.5 V.
Note		Only when the main sweep measurement signal mode is set to DC bias, there are three arguments. At this point, the order of these arguments is , , and then .

Setting and querying display for when analyzer mode

Syntax	Command	:SWEep:DISPlay <GRAPh/NUMEric/COMParator/XY>
	Query	:SWEep:DISPlay?
	Response	<GRAPH/NUMERIC/COMPARATOR/XY>
	Parameter
Explanation	Command	Sets the screen display for when analyzer mode.
Explanation	Query	Returns the screen display setting for when analyzer mode.
Example	Command	:SWEep:DISPlay NUMERIC Sets the screen display for when analyzer mode to list display.
	Query	:SWEep:DISPlay?
	Response	:SWEEP:DISPLAY NUMERIC (when HEADER ON) NUMERIC (when HEADER OFF) The screen display for when analyzer mode is set to list display.
Note

Setting and querying the screen display timing

Syntax	Command	:SWEep:DRAW <REAL/AFTer>
	Query	:SWEep:DRAW?
	Response	<REAL/AFTER>
	Parameter
Explanation	Command	Sets the display update timing of analyzer mode. REAL: Updates display in real time after the measurement of one sweep point finishes. AFTer: Simultaneously updates all display when one sweep ends.
Explanation	Query	Returns the display update timing of analyzer mode.
Example	Command	:SWEep:DRAW REAL Sets the display update timing to real-time drawing.
	Query	:SWEep:DRAW?
	Response	:SWEEP:DRAW REAL (when HEADER ON) REAL (when HEADER OFF) The display update timing is set to real-time drawing.
Note

Setting and querying main sweep measurement signal mode

Syntax	Command	:SWEep:MAIN:SOURce <FREQuency/V/CV/CC/DCBias>
	Query	:SWEep:MAIN:SOURce?
	Response	<FREQUENCY/V/CV/CC/DCBIAS>
	Parameter
Explanation	Command	Sets the main sweep measurement signal type. FREQuency: Sets frequency. 　V: Sets open-circuit voltage level. CV: Sets constant voltage level. CC: Sets constant current level. DCBias: Sets DC BIAS.
Explanation	Query	Returns the main sweep measurement signal type.
Example	Command	SWEep:MAIN:SOURce V Sets the main sweep measurement signal type to V (open-circuit voltage).
	Query	:SWEep:MAIN:SOURce?
	Response	:SWEEP:MAIN:SOURCE V (when HEADER ON) V (when HEADER OFF) The main sweep measurement signal type is set to V (open-circuit voltage).
Note

Setting and querying point delay

Syntax	Command	:SWEep:PDELay <Point delay time>
	Query	:SWEep:PDELay?
	Response	<Point delay time>
	Parameter	<Point delay time> = 0 to 10000 (NR2)
Explanation	Command	Sets the point delay time of analyzer mode.
Explanation	Query	Returns the point delay time of analyzer mode.
Example	Command	:SWEep:PDELay 0.0005 Sets the point delay interval to 0.5 ms.
	Query	:SWEep:PDELay?
	Response	:SWEEP:PDELAY 0.0005 (when HEADER ON) 0.0005 (when HEADER OFF) The point delay interval is set to 0.5 ms.
Note		The point delay setting is common to the interval setting for during interval measurement.

Setting and querying trigger mode

Syntax	Command	:SWEep:TRIGger <SEQuential/REPeat/STEP>
	Query	:SWEep:TRIGger?
	Response	<SEQUENTIAL/REPEAT/STEP>
	Parameter
Explanation	Command	Sets the trigger mode of analyzer mode. SEQuential: Measures all sweep points when one trigger is input. REPeat: Repeats sweep measurement. STEP: Measures one of the sweep points when one trigger is input.
Explanation	Query	Returns the trigger mode of analyzer mode.
Example	Command	:SWEep:TRIGger SEQuential Sets the trigger mode to sequential.
	Query	:SWEep:TRIGger?
	Response	:SWEEP:TRIGGER SEQUENTIAL (when HEADER ON) SEQUENTIAL (when HEADER OFF) The trigger mode is set to sequential.
Note

Setting and querying the screen display timing

Syntax	Command	:CONTinuous:DRAW <REAL/AFTer>
	Query	:CONTinuous:DRAW?
	Response	<REAL/AFTER>
	Parameter
Explanation	Command	Sets the display update timing of continuous measurement mode. REAL: Updates display in real time after one measurement finishes. AFTer: Simultaneously updates all display when all measurements finish.
Explanation	Query	Returns the setting of the display update timing of continuous measurement mode.
Example	Command	:CONTinuous:DRAW REAL Sets the display update timing to real-time drawing.
	Query	:CONTinuous:DRAW?
	Response	:CONTINUOUS:DRAW REAL (when HEADER ON) REAL (when HEADER OFF) The display update timing is set to real-time drawing.
Note

Setting and querying the continuous measurement target

Syntax	Command	:CONTinuous:EXECution <Panel No.>, <ON/OFF>
	Query	:CONTinuous:EXECution? <Panel No.>
	Response	<ON/OFF>
	Parameter	<Panel No.> = 1 to 128 / ALL
Explanation	Command	Sets the panel to be the measurement target in continuous measurement mode. When ALL is specified for <Panel No.>, ON/OFF is set for all panels.
Explanation	Query	Returns the setting of the panel to be the measurement target in continuous measurement mode.
Example	Command	:CONTinuous:EXECution 5,ON Sets panel No. 5 as a measurement target of continuous measurement.
	Query	:CONTinuous:EXECution? 5
	Response	:CONTINUOUS:EXECUTION ON (when HEADER ON) ON (when HEADER OFF) Panel No. 5 is set as a measurement target of continuous measurement.
Note		ALL can only be specified for the parameter in the command. It cannot be used in the query. An execution error occurs if a panel for which continuous measurement can be performed is not saved to the specified panel number. An execution error occurs during continuous measurement.

Panel count targeted for measurement in continuous measurement mode inquiry

Syntax	Command
	Query	:CONTinuous:COUNt?
	Response	<Panel count>
	Parameter	<Panel count> = 0 to 60(62：IM3533-01) (NR1)
Explanation	Command
Explanation	Query	Returns the panel count targeted for measurement in continuous measurement mode.
Example	Command
	Query	:CONTinuous:COUNt?
	Response	:CONTINUOUS:COUNT 5 (when HEADER ON) 5 (when HEADER OFF) There are 5 panels targeted for measurement in continuous measurement mode.
Note

Querying measurement data

Syntax	Command
	Query	:MEASure? <No data/ ALL>
	Response
	Parameter
Explanation	Command
Explanation	Query	For more detail, refer to "Querying measurement data".
Example	Command
	Query
	Response
Note		If a setting has been changed, send the ":MEASure?" query after triggering.

Querying the overall judgment result when continuous measurement

Syntax	Command
	Query	:MEASure:CONTinuous:COMParator?
	Response	<Judgment result>
	Parameter	<Judgment result> = 0,1 (NR1)
Explanation	Command
Explanation	Query	Returns the setting of the overall judgment result at the time of continuous measurement.
Example	Command
	Query	:MEASure:CONTinuous:COMParator?

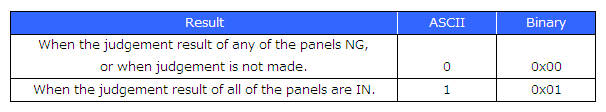

	Response	:MEASURE:CONTINUOUS:COMPARATOR 1 (when HEADER ON) 1 (when HEADER OFF) The overall judgment result of continuous measurement is IN.
Note

Querying the judgment results of the extreme values when continuous measurement

Syntax	Command
	Query	:MEASure:CONTinuous:PEAK? <No data/ ALL>
	Response
	Parameter	<Judgment result> = 0 to 9 (NR1) <Segment No.> = 1 to 20 (NR1)
Explanation	Command
Explanation	Query	Returns the judgment results and measurement data of the extreme values when the peak comparator of the analyzer is included in continuous measurement. Set the each response content with the :MEASure:VALid command. The judgment results indicate the positional relationship between the judgment area and peak. If the peak is within the judgment area (IN), 5 is returned. When the judgment area setting is OFF or the peak was not detected, the judgment results and measurement data are not returned. For details on the judgment result values, see the following figure. In the judgment results, a message terminator or slash (/) is inserted for each single panel. When :MEASure:CONTinuous:PEAK?: Message terminator When :MEASure:CONTinuous:PEAK? ALL: Slash (/)
Example	Command
	Query	:MEASure:CONTinuous:PEAK?

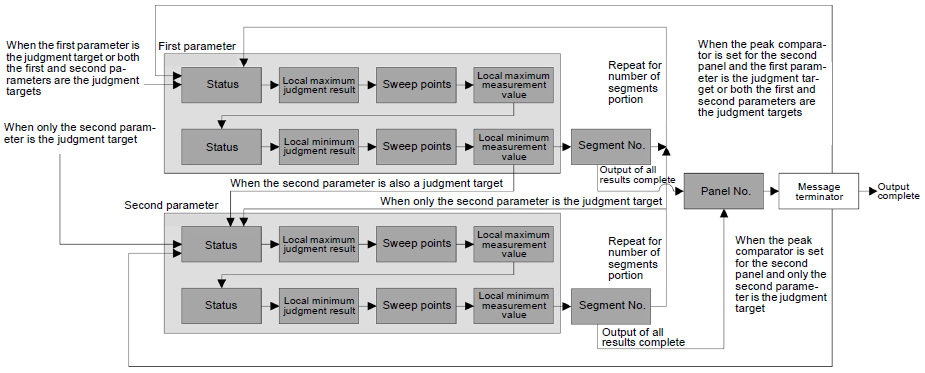

	Response	0,1, 3.2141E+03,Z 2.74816E+03,0,2, 3.9427E+03,Z 1.83606E+03,0,3, 3.0914E+03,PHASE -66.196,0,4, 1.3653E+03,PHASE -88.665,1,0,5, 8.7754E+03,Z 1.18762E+03,0,6, 8.4322E+03,Z 772.516E+00,0,7, 8.6594E+03,PHASE -63.226,0,8, 12.236E+03,PHASE -88.566,2,3 0,1, 3.2154E+03,Z 2.74339E+03,0,2, 3.9449E+03,Z 1.83609E+03,0,3, 3.1059E+03,PHASE -65.983,0,4, 3.5677E+03,PHASE -85.406,1,5 (when HEADER ON) 0,1, 3.2141E+03, 2.74816E+03,0,2, 3.9427E+03, 1.83606E+03,0,3, 3.0914E+03, -66.196,0,4, 1.3653E+03, -88.665,1,0,5, 8.7754E+03, 1.18762E+03,0,6, 8.4322E+03, 772.516E+00,0,7, 8.6594E+03, -63.226,0,8, 12.236E+03, -88.566,2,3 0,1, 3.2154E+03, 2.74339E+03,0,2, 3.9449E+03, 1.83609E+03,0,3, 3.1059E+03, -65.983,0,4, 3.5677E+03, -85.406,1,5 (when HEADER OFF) The following shows the judgment results of the peak comparator of continuous measurement.

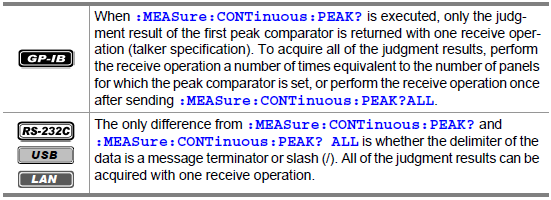

Note		An execution error occurs if peak comparator measurement is not included in continuous measurement. An execution error occurs if the peak could not be detected.
